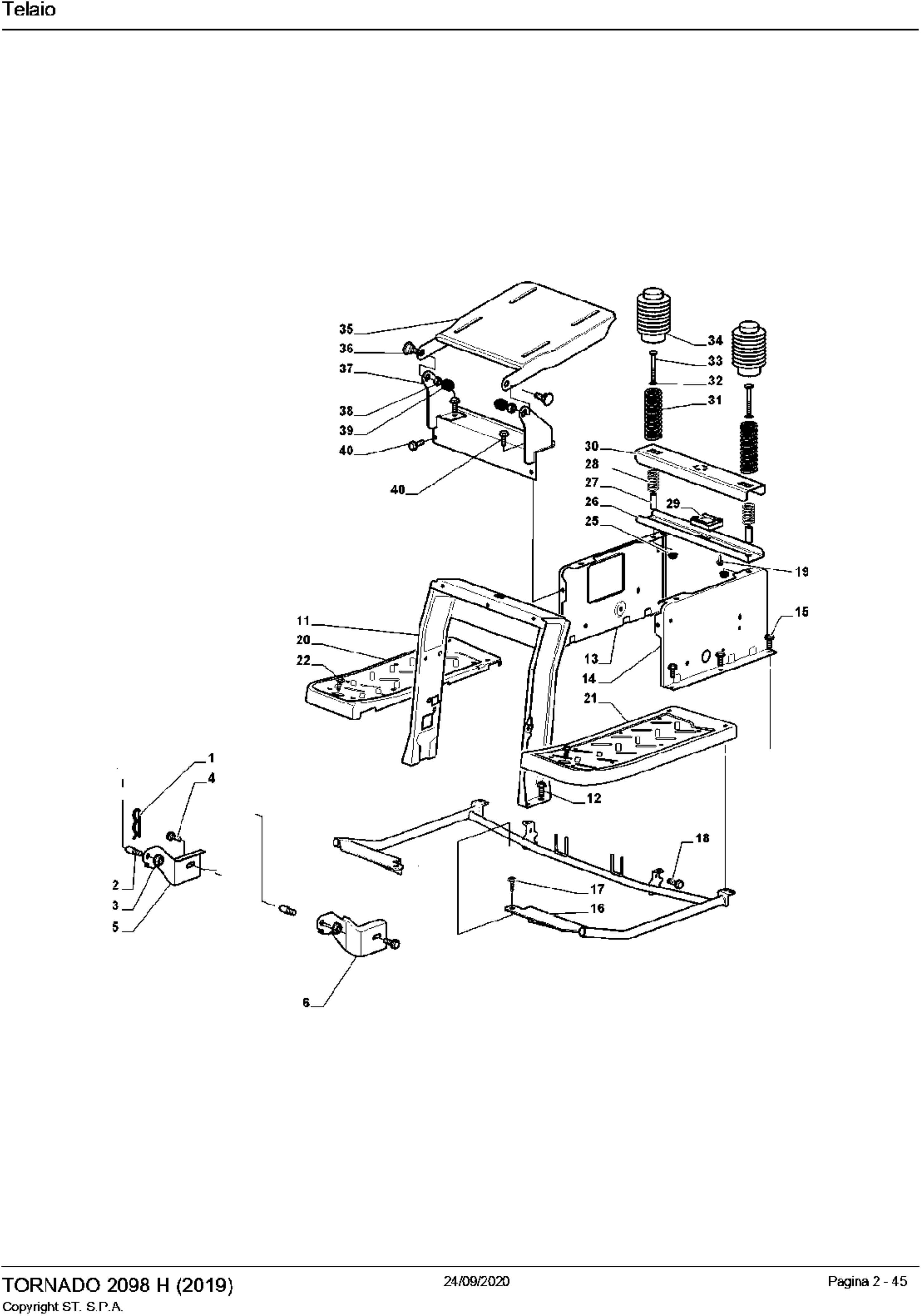

| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.1 |
| N. |
Codice |
Descrizione |
| 1 |
124487998/0 |
Coppiglia |
| 2 |
125510079/1 |
Perno To S/N 19LA3RON002089 |
| 2 |
125510169/0 |
Perno From S/N 19DA3RON003315 |
| 3 |
112154210/0 |
Dado To 31-August-2013 |
| 3 |
112155000/0 |
Dado From 01-September-2013 |
| 4 |
112735599/0 |
Vite |
| 5 |
325547225/0 |
Piastrina Destra |
| 6 |
325547227/0 |
Piastrina Sinistra |
| 11 |
382785169/1 |
Supporto Piantone |
| 12 |
125943009/0 |
Vite |
| 13 |
325785331/1 |
Supporto Sedile Destro |
| 14 |
325785333/1 |
Supporto Sedile Sinistro |
| 15 |
125943009/0 |
Vite |
| 16 |
382785179/0 |
Supporto Pedana |
| 17 |
125943009/0 |
Vite |
| 18 |
125943009/0 |
Vite |
| 19 |
112728686/0 |
Vite |
| 20 |
325500041/1 |
Pedana Destra |
| 21 |
325500043/1 |
Pedana Sinistra |
| 22 |
112735599/0 |
Vite |
| 25 |
112293201/0 |
Dado |
| 26 |
325820109/0 |
Supporto Sedile |
| 26 |
325820109/1 |
Supporto Sedile |
| 27 |
125160048/0 |
Distanziale |
| 28 |
125430263/0 |
Molla |
| 29 |
325785379/0 |
Supporto To 31-August-2013 |
| 29 |
325785379/1 |
Supporto From 01-September-2013 |
| 30 |
325820111/1 |
Traversa |
| 31 |
125430264/0 |
Molla |
| 32 |
112521350/0 |
Rondella |
| 33 |
112691400/0 |
Vite |
| 34 |
325122002/0 |
Cuffia |
| 35 |
382547061/0 |
Piastrina |
| 36 |
122524970/2 |
Perno Fulcro To 31-August-2014 |
| 36 |
122524970/3 |
Perno From 01-September-2014 |
| 37 |
382820151/0 |
Supporto Sedile To S/N 20EA3RON000611 |
| 37 |
382820151/1 |
Supporto Sedile From S/N 20EA3RON000612 |
| 38 |
112155010/0 |
Dado |
| 39 |
118203854/0 |
Cappuccio |
| 40 |
125943009/0 |
Vite |

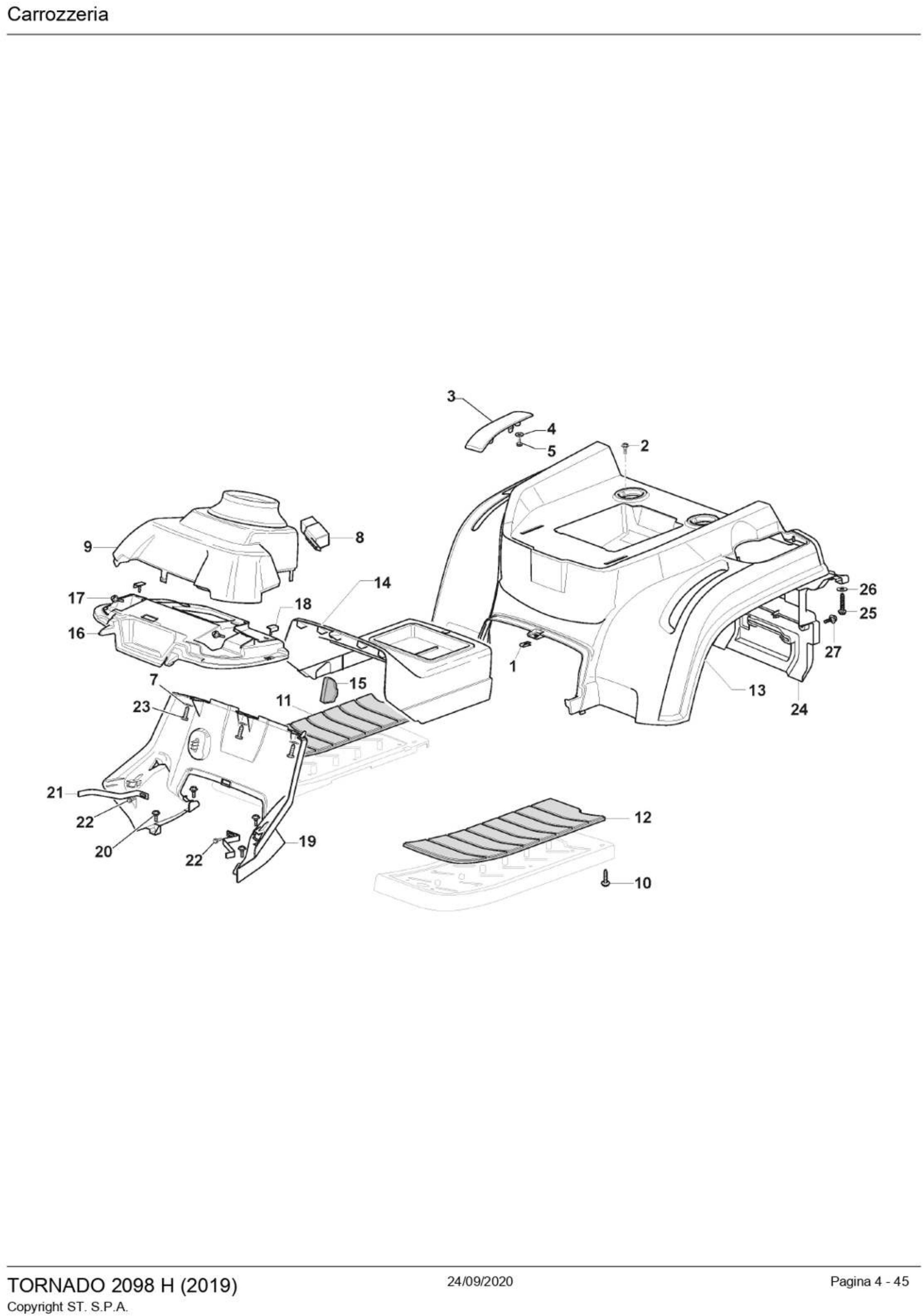

| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.2 |
| 1 |
112437506/0 |
Piastrina |
| 2 |
125943010/0 |
Vite |
| 3 |
325207190/0 |
Coperchio Not needed for Gear Model |
| 4 |
112523050/0 |
Rondella |
| 5 |
112735403/0 |
Vite |
| 7 |
112523040/0 |
Rondella |
| 8 |
9400-0384-01 |
Contaore |
| 9 |
325120288/0 |
Cruscotto |
| 10 |
112735406/0 |
Vite |
| 11 |
325110384/0 |
Copripedana Destra AS OPTIONAL - Not present on all Assortment |
| 12 |
325110385/0 |
Copripedana Sinistra AS OPTIONAL - Not present on all assortment |
| 13 |
325110399/1 |
Copertura Ruote Giallo Yellow |
| 14 |
325110463/0 |
Copertura Centrale Grigio Grey NCS S8000-N |
| 15 |
325207191/0 |
Piastrina Not needed for Hydro Model |
| 16 |
325120259/2 |
Cruscotto |
| 17 |
125943010/0 |
Vite |
| 18 |
325260003/0 |
Gommino |
| 19 |
325785298/0 |
Supporto Cruscotto |
| 20 |
125943010/0 |
Vite |
| 21 |
325270325/0 |
Guida |
| 22 |
112735599/0 |
Vite |
| 23 |
112735406/0 |
Vite |
| 24 |
325547208/2 |
Piastrina |
| 25 |
112735406/0 |
Vite |
| 26 |
112523040/0 |
Rondella |
| 27 |
125943010/0 |
Vite |

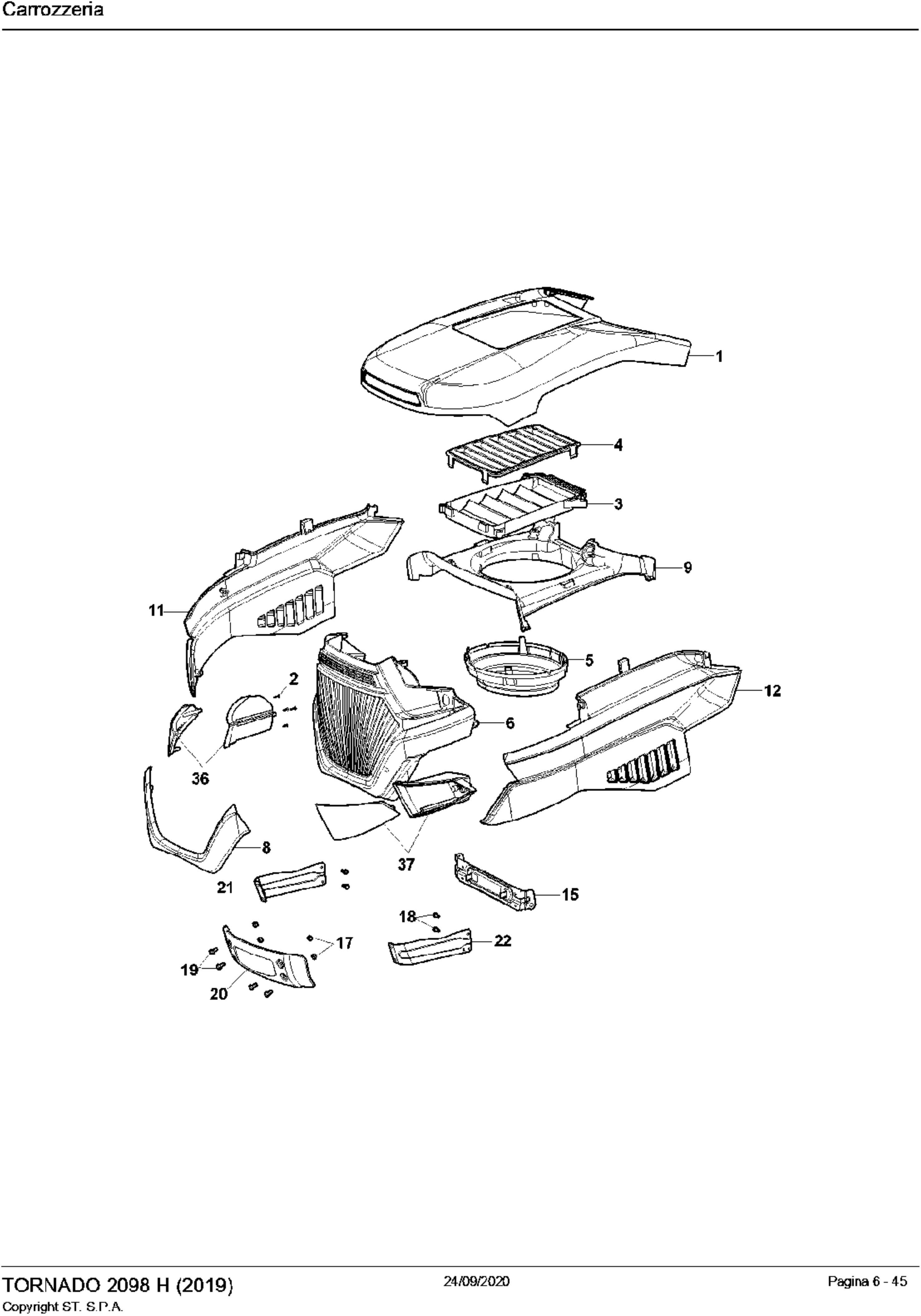

| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.3 |
| 1 |
325077005/0 |
Cofano Superiore Giallo Yellow without Air Intake |
| 2 |
112728691/0 |
Vite |
| 3 |
325263313/0 |
Griglia Aspirazione Only for Twin Cylinder Engine |
| 4 |
325263314/0 |
Griglia Aspirazione Only for Twin Cylinder Engine |
| 5 |
325108108/0 |
Convogliatore For B&S Engine and ST. Single Cylinder Engine - Not for B&S 7200 |
| 6 |
325076997/0 |
Frontale Cofano |
| 8 |
325076998/0 |
Cofano Frontale Inferiore Grey NCS S8000-N |
| 9 |
325108109/0 |
Griglia Aspirazione Grey NCS S8000-N |
| 11 |
325207283/0 |
Copertura Fianco Destro, Grey Grey NCS S8000-N |
| 12 |
325207284/0 |
Copertura Fianco Sinistro, Grey Grey NCS S8000-N |
| 15 |
325785551/0 |
Supporto Cofano |
| 17 |
112155000/0 |
Dado |
| 18 |
112735599/0 |
Vite |
| 19 |
112792611/0 |
Vite |
| 20 |
382263501/0 |
Paraurti |
| 21 |
382785255/0 |
Supporto Destro |
| 22 |
382785257/0 |
Supporto Sinistro |
| 36 |
382185516/0 |
Mascherina Fari Destra For LAMP Version |
| 37 |
382185517/0 |
Mascherina Fari Sinistra For LAMP Version |

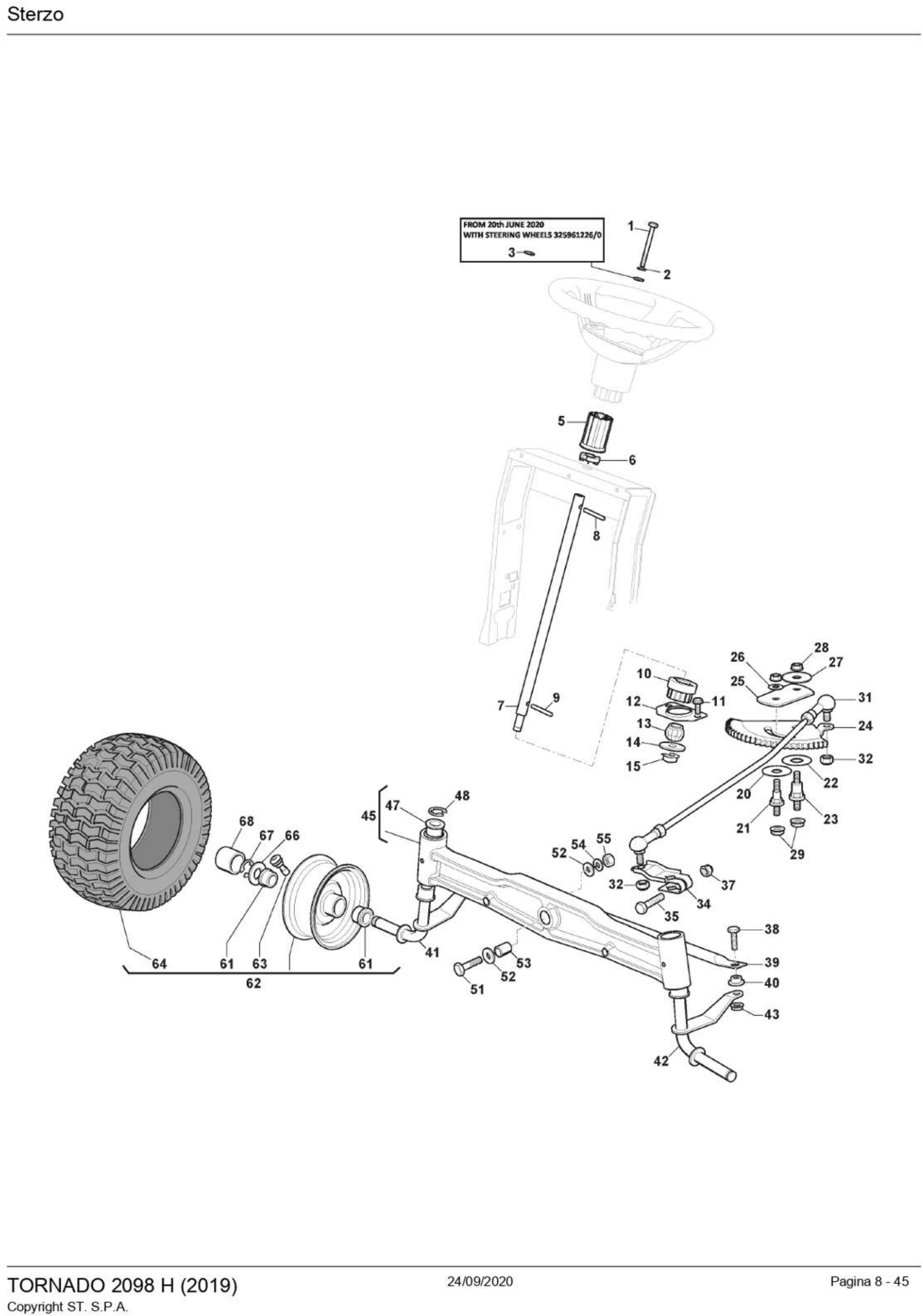

| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.4 |
| 1 |
112692100/0 |
Vite To 19-June-2020 |
| 1 |
112692110/0 |
Vite From 20-June-2020 |
| 2 |
112540260/0 |
Rosetta Dentellata |
| 3 |
112521360/0 |
Rondella From 20-June-2020 |
| 5 |
382785304/0 |
Supporto |
| 6 |
325038008/0 |
Boccola |
| 7 |
125520018/0 |
Piantone Sterzo |
| 8 |
112620300/0 |
Molla |
| 9 |
112622650/0 |
Spina |
| 10 |
125570003/0 |
Pignone |
| 11 |
127943051/0 |
Vite |
| 12 |
325785213/1 |
Supporto |
| 13 |
325743000/0 |
Snodo |
| 14 |
112521370/0 |
Rondella |
| 15 |
112436030/0 |
Piastrina |
| 20 |
322672151/0 |
Rondella Antifrizione |
| 21 |
125510104/0 |
Perno To S/N 19LA3RON007423 |
| 21 |
125510173/0 |
Perno From S/N 19GA3RON000127 |
| 22 |
125670023/0 |
Rondella |
| 23 |
125510109/0 |
Perno To S/N 19KA3RON007494 |
| 23 |
125510165/0 |
Perno From S/N 19FA3RON000287 |
| 24 |
325735519/0 |
Settore Sterzo |
| 25 |
325547233/0 |
Piastrina |
| 26 |
112369500/0 |
Disco Elastico |
| 27 |
122160400/0 |
Disco Elastico |
| 28 |
112155010/0 |
Dado |
| 29 |
112155010/0 |
Dado |
| 31 |
382000566/2 |
Asta Comando Sterzo For Single Cylinder Engine |
| 32 |
112156602/0 |
Dado |
| 34 |
325318243/0 |
Leva To 16-June-2019 |
| 34 |
382318323/0 |
Leva Comando Sterzo From 17-June-2019 |
| 35 |
112692390/0 |
Vite To 16-June-2019 |
| 35 |
112692395/2 |
Vite From 17-June-2019 |
| 36 |
112521360/0 |
Rondella no more needed To 17-June-2019 |
| 37 |
112155020/0 |
Dado From 17-June-2019 |
| 37 |
112156602/0 |
Dado To 16-June-2019 |
| 38 |
125510103/0 |
Perno |
| 39 |
325840029/0 |
Tirante Steel |
| 40 |
325038007/0 |
Boccola |
| 41 |
382230373/0 |
Fusello Destro 15" To S/N 19FA3RON000054 |
| 41 |
382230373/1 |
Fusello Destro 15" From S/N 19FA3RON000055 |
| 42 |
382230375/0 |
Fusello Sinistro 15" To S/N 19FA3RON000102 |
| 42 |
382230375/1 |
Fusello Sinistro 15" From S/N 19FA3RON000103 |
| 43 |
112155000/0 |
Dado |
| 45 |
382034029/0 |
Asta Steel |
| 47 |
125034002/1 |
Boccola |
| 48 |
112001010/0 |
Anello Benzing |
| 51 |
112692695/0 |
Vite |
| 52 |
112523100/0 |
Rondella |
| 53 |
125160016/1 |
Distanziale |
| 54 |
112587100/0 |
Grower |
| 55 |
112295300/0 |
Dado |
| 61 |
125122200/2 |
Cuscinetto |
| 62 |
382680078/0 |
Ass. Ruota 15" - P519 |
| 63 |
125950000/0 |
Valvola |
| 64 |
125590020/0 |
Pneumatico 15x6.00-6 P519 WANDA 15" |
| 66 |
125670005/2 |
Rondella |
| 67 |
112001010/0 |
Anello Benzing |
| 68 |
322110240/0 |
Coprimozzo |

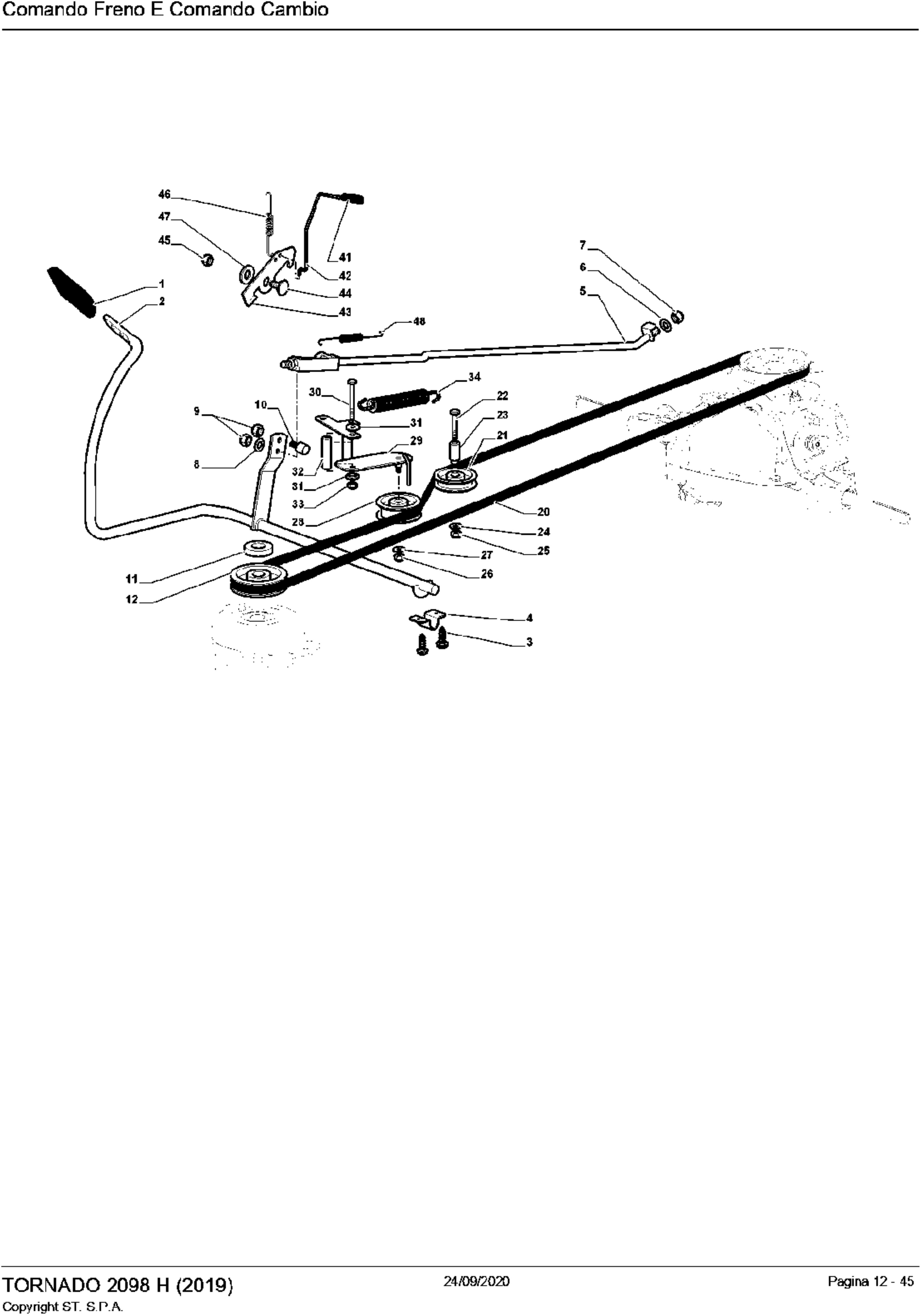

| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.5 |
| 1 |
325110409/0 |
Copristaffa |
| 2 |
382000641/0 |
Pedale To S/N 19FA3RON000274 |
| 2 |
382000641/1 |
Pedale From S/N 19FA3RON000275 |
| 3 |
112735599/0 |
Vite |
| 4 |
325547231/0 |
Piastrina |
| 5 |
382000576/0 |
Asta |
| 6 |
112521360/0 |
Rondella |
| 7 |
112156602/0 |
Dado |
| 8 |
325670011/0 |
Rondella Antifrizione |
| 9 |
112155000/0 |
Dado |
| 10 |
125510116/0 |
Perno To S/N 19DA3RON003314 |
| 10 |
125510166/0 |
Perno From S/N 19DA3RON003315 |
| 11 |
125160021/0 |
Distanziale |
| 12 |
125601577/0 |
Puleggia |
| 20 |
135062003/0 |
Cinghia To 31-August-2015 |
| 20 |
135062003/1 |
Cinghia From 01-September-2015 |
| 21 |
125601555/0 |
Puleggia To 31-August-2013 |
| 21 |
325601599/0 |
Puleggia From 01-September-2013 |
| 22 |
112691400/0 |
Vite |
| 23 |
125160051/0 |
Distanziale To S/N 00088193 |
| 23 |
125160083/0 |
Distanziale S/N 00088194 To S/N 19LA3RON001058 |
| 23 |
125160107/0 |
Distanziale From S/N 19JA3RON001862 |
| 24 |
112523060/0 |
Rondella |
| 25 |
112155000/0 |
Dado |
| 26 |
112155000/0 |
Dado |
| 27 |
112523060/0 |
Rondella |
| 28 |
125601554/0 |
Puleggia |
| 29 |
382318245/0 |
Leva |
| 30 |
112691600/0 |
Vite |
| 31 |
125038002/1 |
Boccola To 31-August-2016 |
| 31 |
125038021/0 |
Boccola From 01-September-2016 |
| 32 |
125160027/0 |
Distanziale |
| 33 |
112155000/0 |
Dado |
| 34 |
125430262/0 |
Molla |
| 41 |
125394509/1 |
Manopola From 01-September-2013 |
| 41 |
325394534/0 |
Manopola To 31-August-2013 |
| 42 |
125033083/0 |
Asta To 31-August-2013 |
| 42 |
125033113/0 |
Asta From 01-September-2013 |
| 43 |
325253011/0 |
Gancio To 31-August-2013 |
| 43 |
325253011/1 |
Gancio From 01-September-2011 |
| 44 |
122524970/2 |
Perno Fulcro To 31-August-2014 |
| 44 |
122524970/3 |
Perno From 01-September-2014 |
| 45 |
112155000/0 |
Dado |
| 46 |
125430213/0 |
Molla |
| 47 |
112523060/0 |
Rondella |
| 48 |
125430269/1 |
Molla |

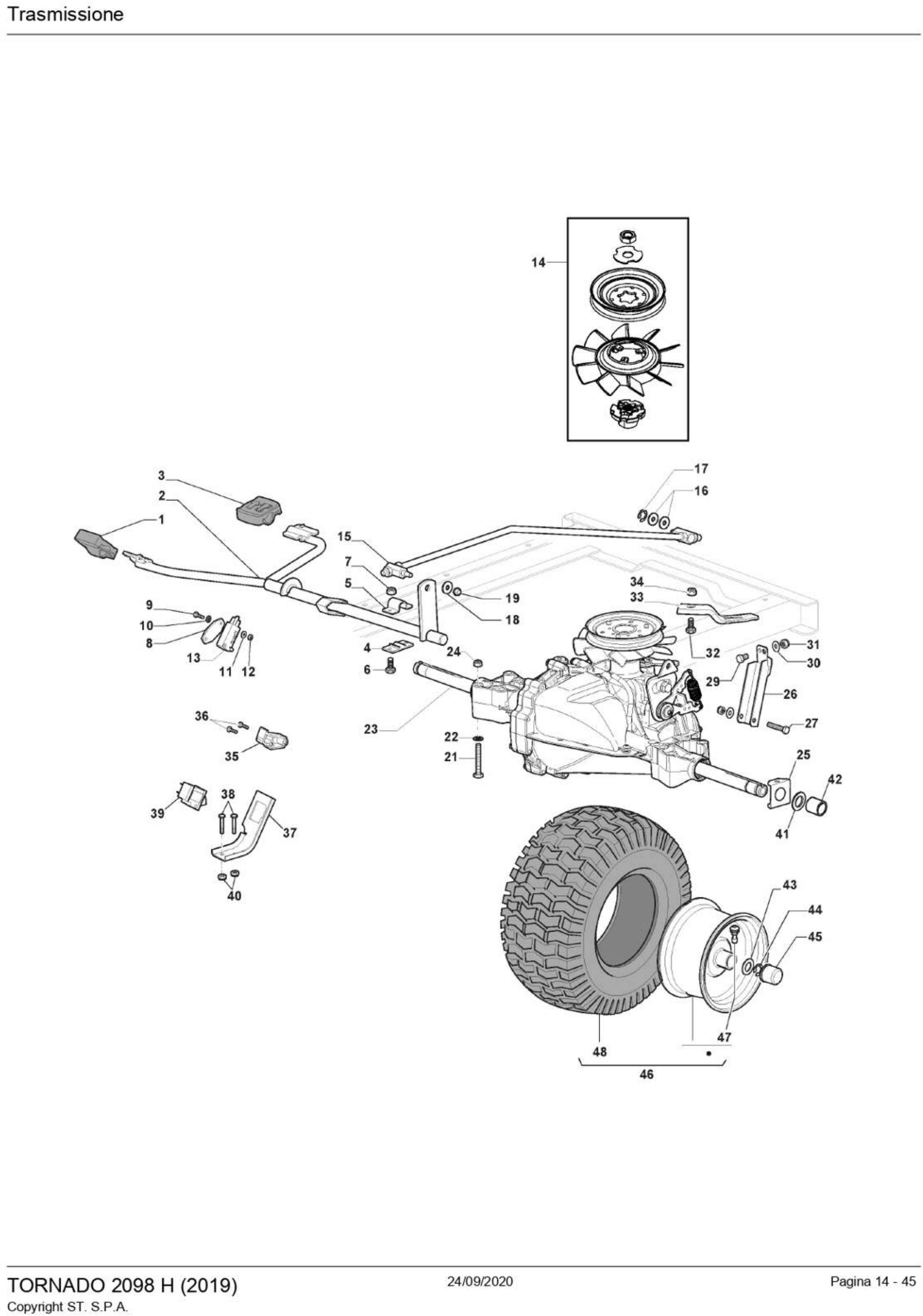

| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.6 |
| 1 |
325110274/0 |
Copristaffa Anteriore |
| 2 |
382000574/2 |
Pedale Avanzamento |
| 3 |
325110331/0 |
Copristaffa Posteriore |
| 4 |
325785350/0 |
Supporto |
| 5 |
325547231/0 |
Piastrina |
| 6 |
112735599/0 |
Vite |
| 7 |
112154510/0 |
Dado |
| 8 |
327546019/0 |
Piastrina |
| 9 |
112735602/0 |
Vite |
| 10 |
112540020/0 |
Rondella |
| 11 |
112581100/0 |
Grower |
| 12 |
112290791/0 |
Dado |
| 13 |
119410609/1LC |
Micro Interruttore |
| 14 |
118802723/0 |
Kit Ventola Puleggia |
| 15 |
382000573/1 |
Asta |
| 16 |
325670011/0 |
Rondella Antifrizione |
| 17 |
112000940/0 |
Anello Benzing |
| 18 |
112523040/0 |
Rondella |
| 19 |
112154510/0 |
Dado |
| 21 |
112691600/0 |
Vite |
| 22 |
112521350/0 |
Rondella |
| 23 |
118400919/2 |
Asse Posteriore (Hydro-Gear T2-Adbf-2X3C-17X1) |
| 24 |
112155000/0 |
Dado |
| 25 |
325670026/0 |
Rondella |
| 26 |
325785349/1 |
Supporto |
| 27 |
112691700/0 |
Vite |
| 29 |
112792611/0 |
Vite |
| 30 |
112523060/0 |
Rondella |
| 31 |
112155000/0 |
Dado |
| 32 |
112791213/1 |
Vite |
| 33 |
325318251/0 |
Leva |
| 34 |
112154510/0 |
Dado |
| 35 |
325060034/1 |
Camma |
| 36 |
112735403/0 |
Vite |
| 37 |
325774573/0 |
Staffa |
| 38 |
112791400/0 |
Vite |
| 39 |
119410614/0 |
Micro Interruttore To 31-August-2019 |
| 39 |
119410623/0 |
Micro Interruttore From 01-September-2019 |
| 40 |
112154510/0 |
Dado |
| 41 |
125670005/2 |
Rondella |
| 42 |
125160058/0 |
Distanziale |
| 43 |
125670005/2 |
Rondella |
| 44 |
112001010/0 |
Anello Benzing |
| 45 |
322110240/0 |
Coprimozzo Stiga Style |
| 46 |
382680083/0 |
Ass. Ruota |
| 47 |
125950000/0 |
Valvola |
| 48 |
125590022/0 |
Pneumatico 18x8.50-8 P519 WANDA |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.7 |

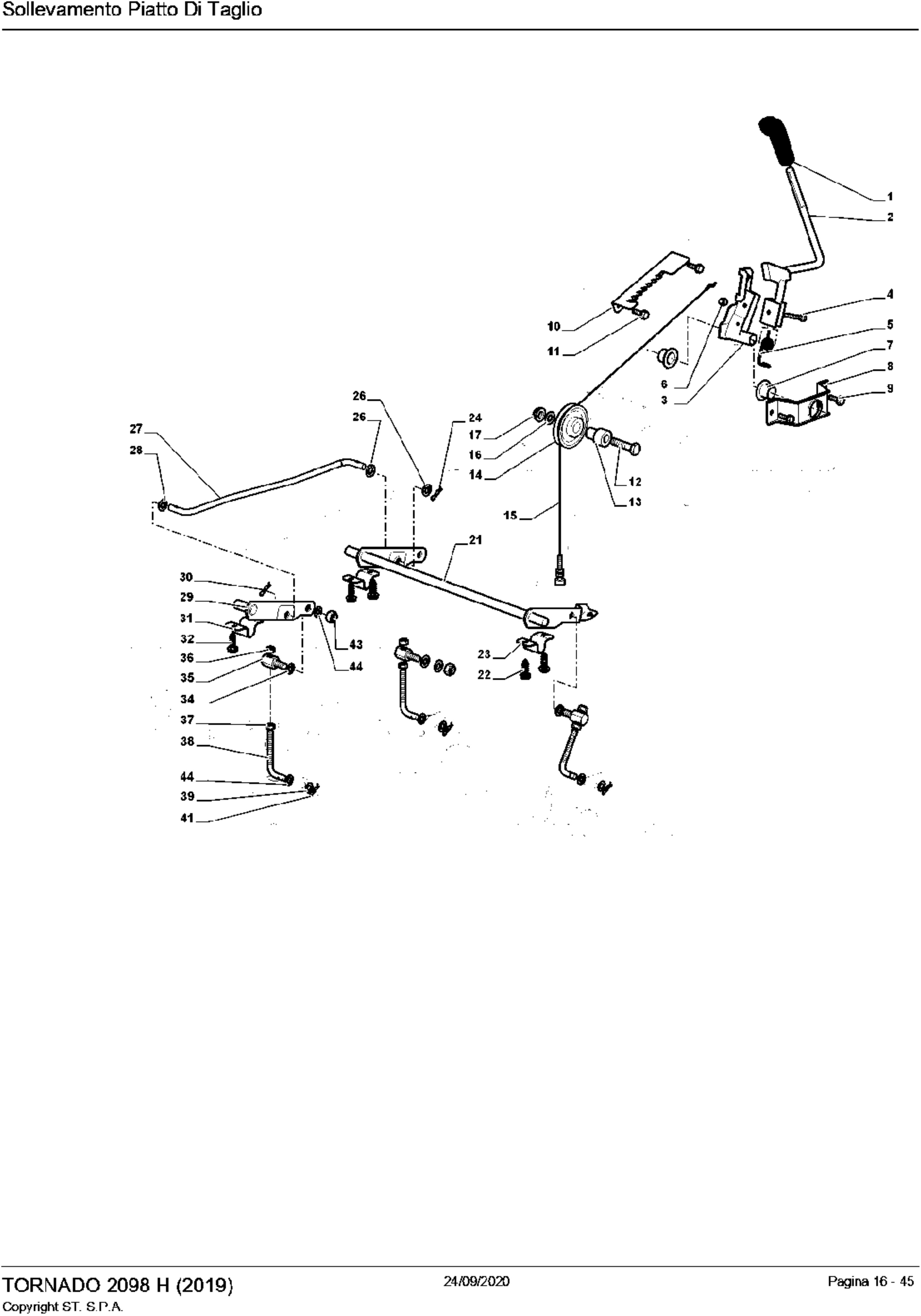

| 1 |
325394533/0 |
Manopola |
| 2 |
382318229/0 |
Leva |
| 3 |
382318231/0 |
Asse |
| 4 |
112674700/0 |
Vite |
| 5 |
125430261/0 |
Molla |
| 6 |
112154510/0 |
Dado |
| 7 |
325038006/0 |
Boccola |
| 8 |
325785297/0 |
Supporto |
| 9 |
125943009/0 |
Vite |
| 10 |
325735515/0 |
Settore Sterzo |
| 11 |
125943009/0 |
Vite |
| 12 |
112793701/0 |
Vite |
| 13 |
125040636/1 |
Boccola |
| 14 |
125601579/0 |
Puleggia |
| 15 |
382004620/0 |
Filo |
| 16 |
112523060/0 |
Rondella |
| 17 |
112293201/0 |
Dado |
| 21 |
382318295/0 |
Asse Sollevamento To S/N 19FA3RON000170 |
| 21 |
382318295/1 |
Asse Sollevamento Piatto From S/N 19FA3RON000171 |
| 22 |
112735599/0 |
Vite |
| 23 |
325547231/0 |
Piastrina |
| 24 |
124487997/0 |
Coppiglia |
| 26 |
325670010/0 |
Rondella Antifrizione |
| 27 |
125033109/0 |
Asta Collegamento |
| 28 |
325670010/0 |
Rondella Antifrizione |
| 29 |
382318293/0 |
Asse Sollevamento To S/N 19FA3RON000060 |
| 29 |
382318293/1 |
Asse Sollevamento From S/N 19FA3RON000061 |
| 30 |
124487997/0 |
Coppiglia |
| 31 |
325547231/0 |
Piastrina |
| 32 |
112735599/0 |
Vite |
| 34 |
325670008/1 |
Rondella |
| 35 |
125510107/1 |
Perno To S/N 19KA3RON005043 |
| 35 |
125510170/0 |
Perno From S/N 19EA3RON001208 |
| 36 |
112156602/0 |
Dado |
| 37 |
112295200/0 |
Dado |
| 38 |
125840012/0 |
Tirante To S/N 20BA3RON001428 |
| 38 |
125840012/1 |
Tirante From S/N 20BA3RON003001 |
| 39 |
325670008/1 |
Rondella |
| 41 |
124487998/0 |
Coppiglia |
| 43 |
112156602/0 |
Dado |
| 44 |
112521360/0 |
Rondella |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.8 |
| 1 |

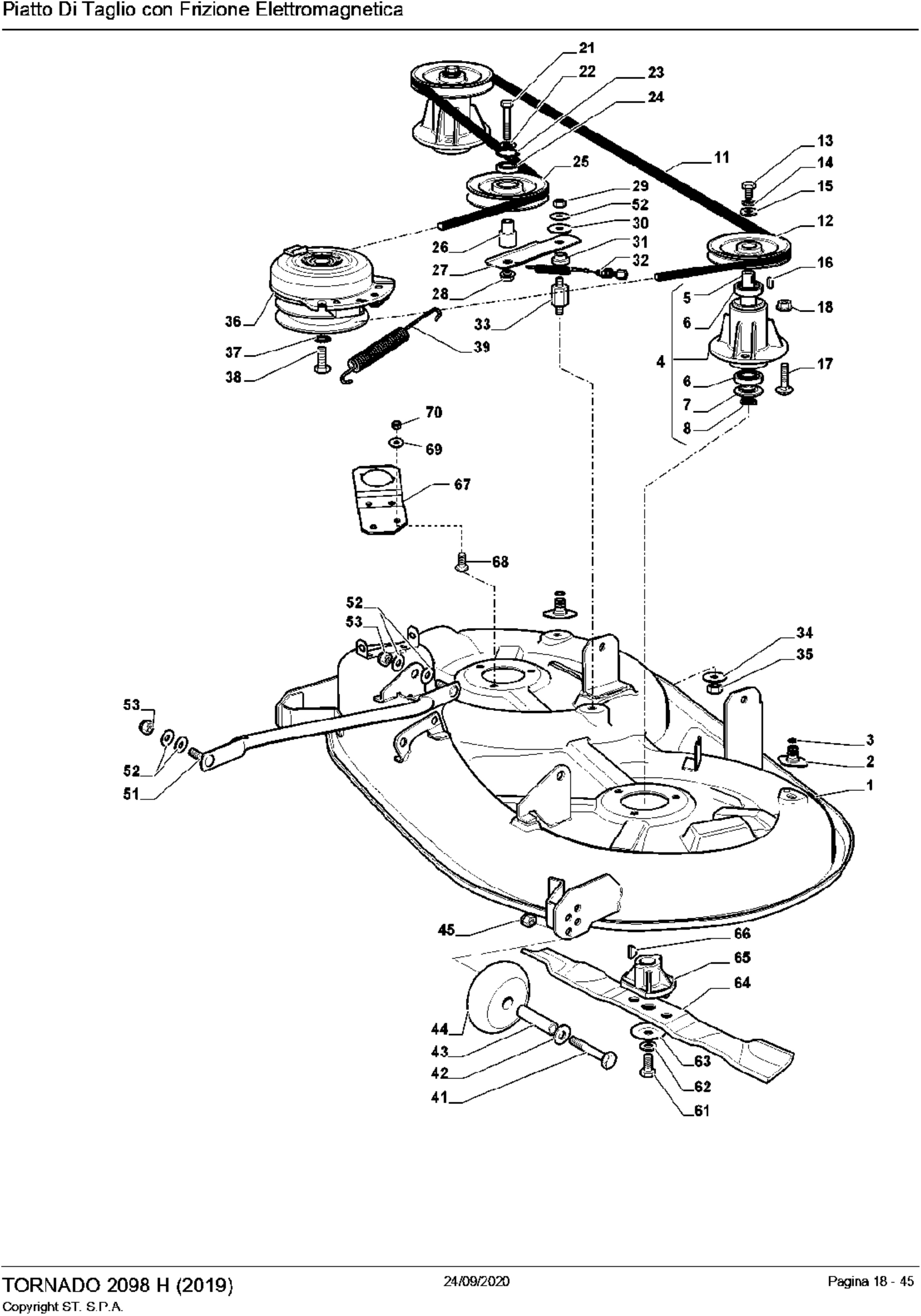

382564219/2 |
Piatto Di Taglio Grigio To 31-August-2018 |
| 1 |
382564219/3 |
Piatto Di Taglio Grigio From 01-September-2018 |
| 2 |
325033086/0 |
Attacco Tubo Acqua |
| 3 |
119035000/0 |
Anello Or |
| 4 |
382207204/1 |
Ass. Flangia |
| 5 |
125020804/0 |
Albero |
| 6 |
119216040/0 |
Cuscinetto To 31-August-2018 |
| 6 |
119216047/0 |
Cuscinetto From 01-September-2018 |
| 7 |
325160501/0 |
Disco Parapolvere To 31-December-2018 |
| 7 |
325160501/1 |
Disco Parapolvere From 01-January-2019 |
| 8 |
112609260/0 |
Seeger |
| 11 |
135061504/0 |
Cinghia |
| 12 |
125601571/0 |
Puleggia |
| 13 |
112793102/0 |
Vite |
| 14 |
112540260/0 |
Rosetta Dentellata |
| 15 |
125670007/0 |
Rondella |
| 16 |
112139480/0 |
Linguetta |
| 17 |
112818700/0 |
Vite |
| 18 |
112154210/0 |
Dado |
| 21 |
112691900/0 |
Vite |
| 22 |
112524010/0 |
Rondella |
| 23 |
112610800/0 |
Anello Elastico |
| 24 |
119216048/0 |
Cuscinetto |
| 25 |
125601586/0 |
Puleggia To 31-december-2016 |
| 25 |
125601606/0 |
Puleggia From 01-January-2017 |
| 26 |
125160056/0 |
Distanziale |
| 27 |
325318232/0 |
Leva |
| 28 |
112293201/0 |
Dado |
| 29 |
112155020/0 |
Dado |
| 30 |
125670022/0 |
Rondella |
| 31 |
125040635/0 |
Boccola |
| 32 |
382004618/0 |
Filo |
| 33 |
125160086/0 |
Distanziale |
| 34 |
112523080/0 |
Rondella |
| 35 |
112156602/0 |
Dado |
| 36 |
118399063/0 |
Frizione |
| 37 |
112543000/0 |
Rondella |
| 38 |
112737320/0 |
Vite |
| 39 |
125430277/0 |
Molla |
| 41 |
112692050/0 |
Vite |
| 42 |
112523060/0 |
Rondella |
| 43 |
125510072/1 |
Perno |
| 44 |
182700001/0 |
Ruotino |
| 45 |
112293201/0 |
Dado |
| 51 |
382000565/0 |
Asta Bilanciere To 31-August-2016 |
| 51 |
382000565/1 |
Asta Bilanciere From 01-September-2016 |
| 52 |
325670008/1 |
Rondella |
| 53 |
112156602/0 |
Dado |
| 61 |
112735694/0 |
Vite |
| 62 |
112523080/0 |
Rondella |
| 63 |
122160400/0 |
Disco Elastico |
| 64 |
1134-9225-01 |
Lame Mulching Stiga Packed into 182004346/0 (2pcs) |
| 64 |
182004346/0 |
Coltello Sinistro Mulching Mulching |
| 65 |
1134-9159-01 |
Mozzo Coltello Stiga Packed into 125463200/0 |
| 65 |
125463200/0 |
Mozzo Coltello |
| 66 |
112139100/0 |
Linguetta |
| 67 |
325774665/0 |
Staffa |
| 68 |
112793102/0 |
Vite |
| 69 |
112523060/0 |
Rondella |
| 70 |
112154210/0 |
Dado |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.9 |

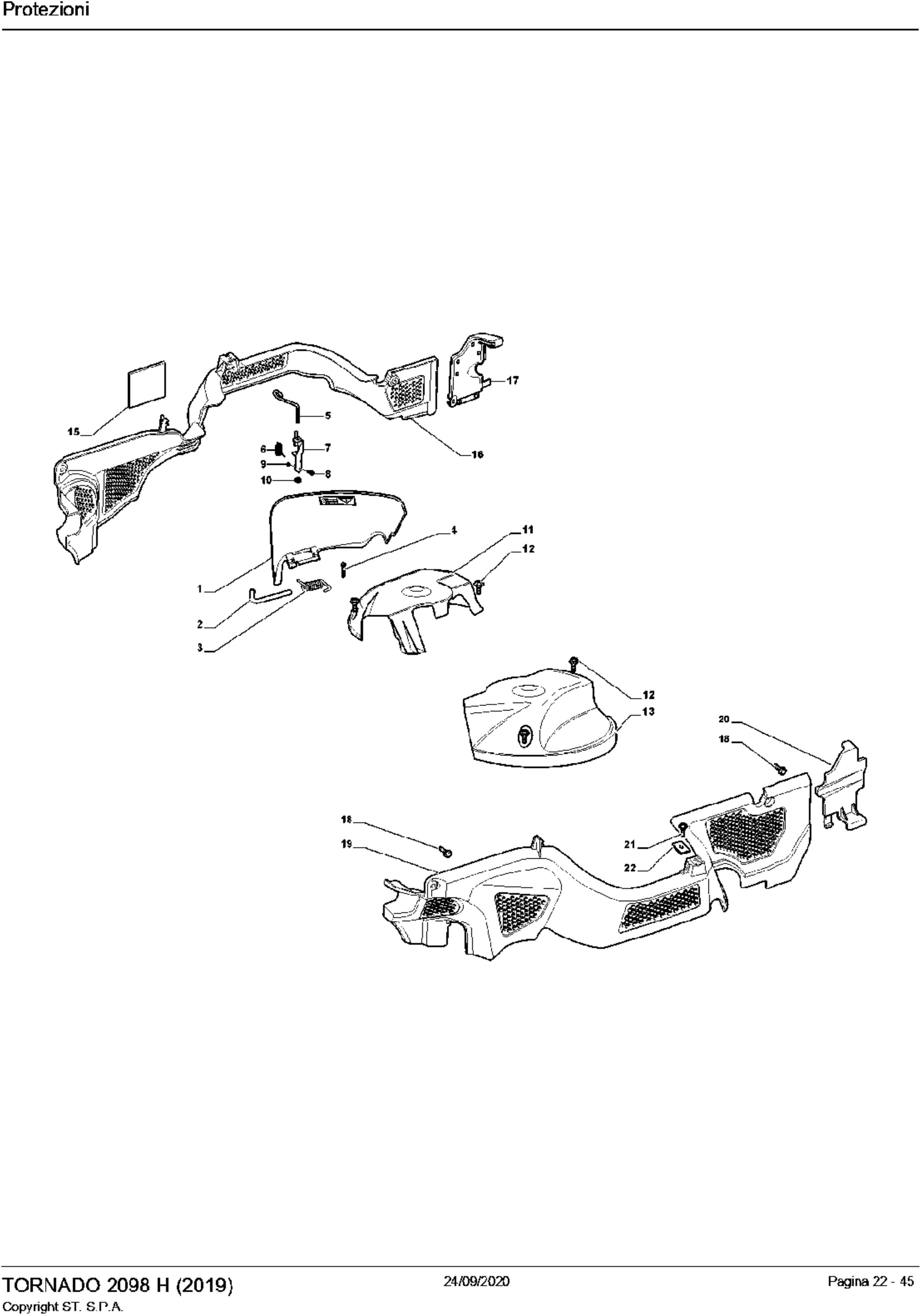

| 1 |
325600077/3 |
Protezione Uscita |
| 2 |
125510073/0 |
Perno Fulcro |
| 3 |
125430242/1 |
Molla |
| 4 |
112141418/0 |
Coppiglia |
| 5 |
125318355/0 |
Perno Fulcro |
| 6 |
125430288/0 |
Molla |
| 7 |
325774719/0 |
Staffa Fulcro |
| 8 |
112815200/0 |
Vite |
| 9 |
112154510/0 |
Dado |
| 10 |
112604899/0 |
Fissatore A Corona |
| 11 |
325600078/0 |
Carter Protezione Cinghia Dx |
| 12 |
125943010/0 |
Vite |
| 13 |
325600079/0 |
Carter Protezione Cinghia Sx |
| 15 |
325600084/0 |
Protezione only 98cm |
| 16 |
325060154/0 |
Carter |
| 17 |
325600082/0 |
Protezione |
| 18 |
125943011/0 |
Vite |
| 19 |
325060155/0 |
Carter |
| 20 |
325600083/0 |
Protezione |
| 21 |
127943051/0 |
Vite |
| 22 |
112437506/0 |
Piastrina |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.10 |

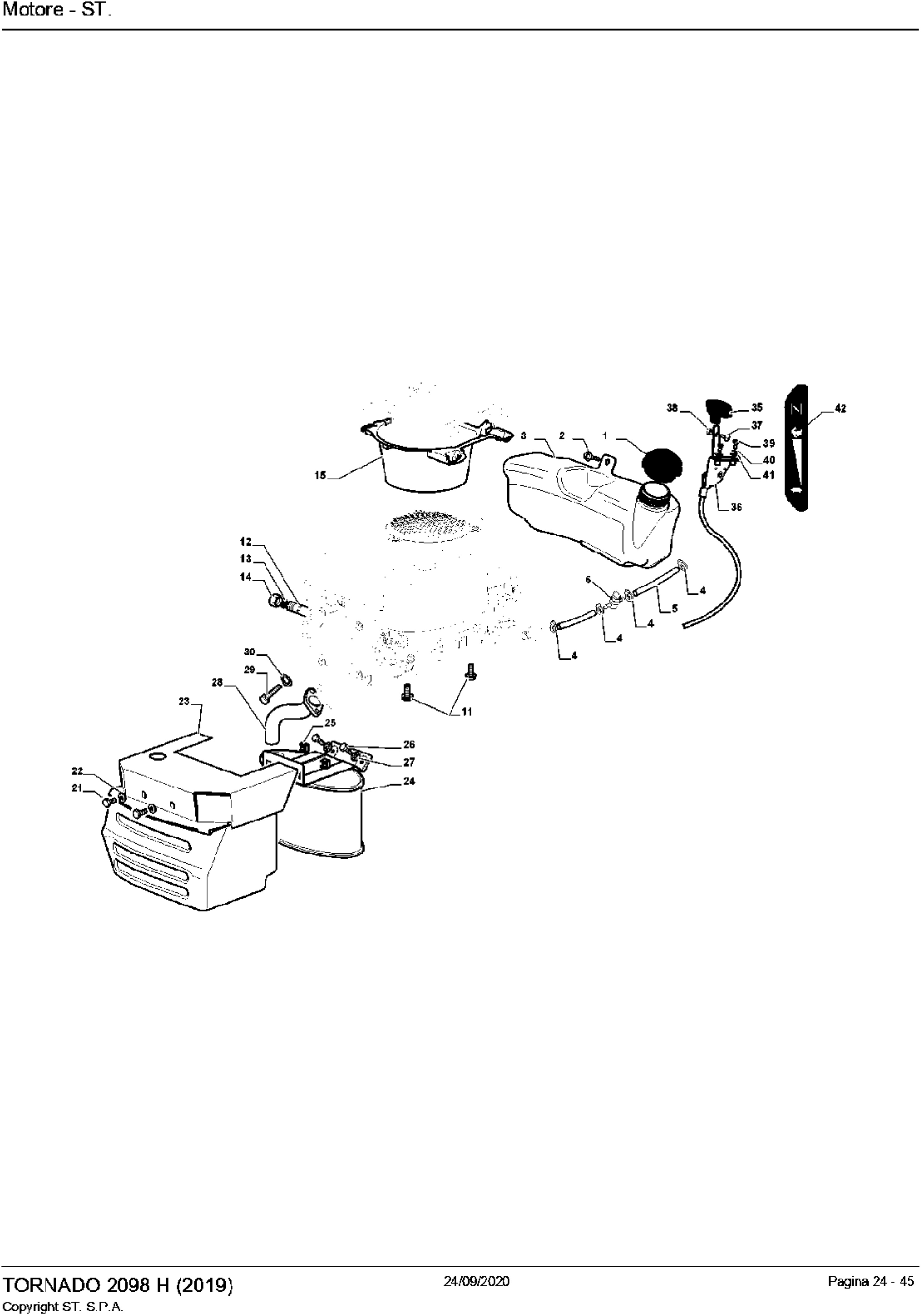

| 1 |
125795001/1 |
Tappo |
| 2 |
125943006/0 |
Vite |
| 3 |
325735126/0 |
Serbatoio Benzina To 31-August-2017 |
| 3 |
325735126/1 |
Serbatoio From 01-September-2017 |
| 4 |
118375051/1 |
Fascetta |
| 5 |
325869057/0 |
Tubo Carburante |
| 6 |
118562996/0 |
Rubinetto |
| 11 |
112735108/1 |
Vite |
| 12 |
127598060/0 |
Prolunga Scarico Olio |
| 13 |
118401001/1 |
Guarnizione |
| 14 |
118737849/0 |
Tappo |
| 15 |
325108044/0 |
Convogliatore To 31-August-2010 |
| 15 |
325108044/1 |
Convogliatore From 01-September-2010 |
| 21 |
112792611/0 |
Vite |
| 22 |
112540260/0 |
Rosetta Dentellata |
| 23 |
382598045/0 |
Protezione Silenziatore To 25-May-2019 |
| 23 |
382598045/1 |
Protezione Silenziatore From 27-May-2019 |
| 24 |
182750010/0 |
Silenziatore |
| 25 |
112360425/0 |
Dado |
| 26 |
112792611/0 |
Vite |
| 27 |
112540260/0 |
Rosetta Dentellata |
| 28 |
118738231/1 |
Tubo Raccordo Scarico |
| 29 |
112737450/0 |
Vite |
| 30 |
112540260/0 |
Rosetta Dentellata |
| 35 |
325394531/0 |
Manopola |
| 36 |
182000215/0 |
Acceleratore |
| 37 |
112726389/0 |
Vite |
| 38 |
112290800/0 |
Dado |
| 39 |
112726389/0 |
Vite |
| 40 |
112540020/0 |
Rondella |
| 41 |
112521310/0 |
Rondella |
| 42 |
114363697/0 |
Etichetta |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.11 |

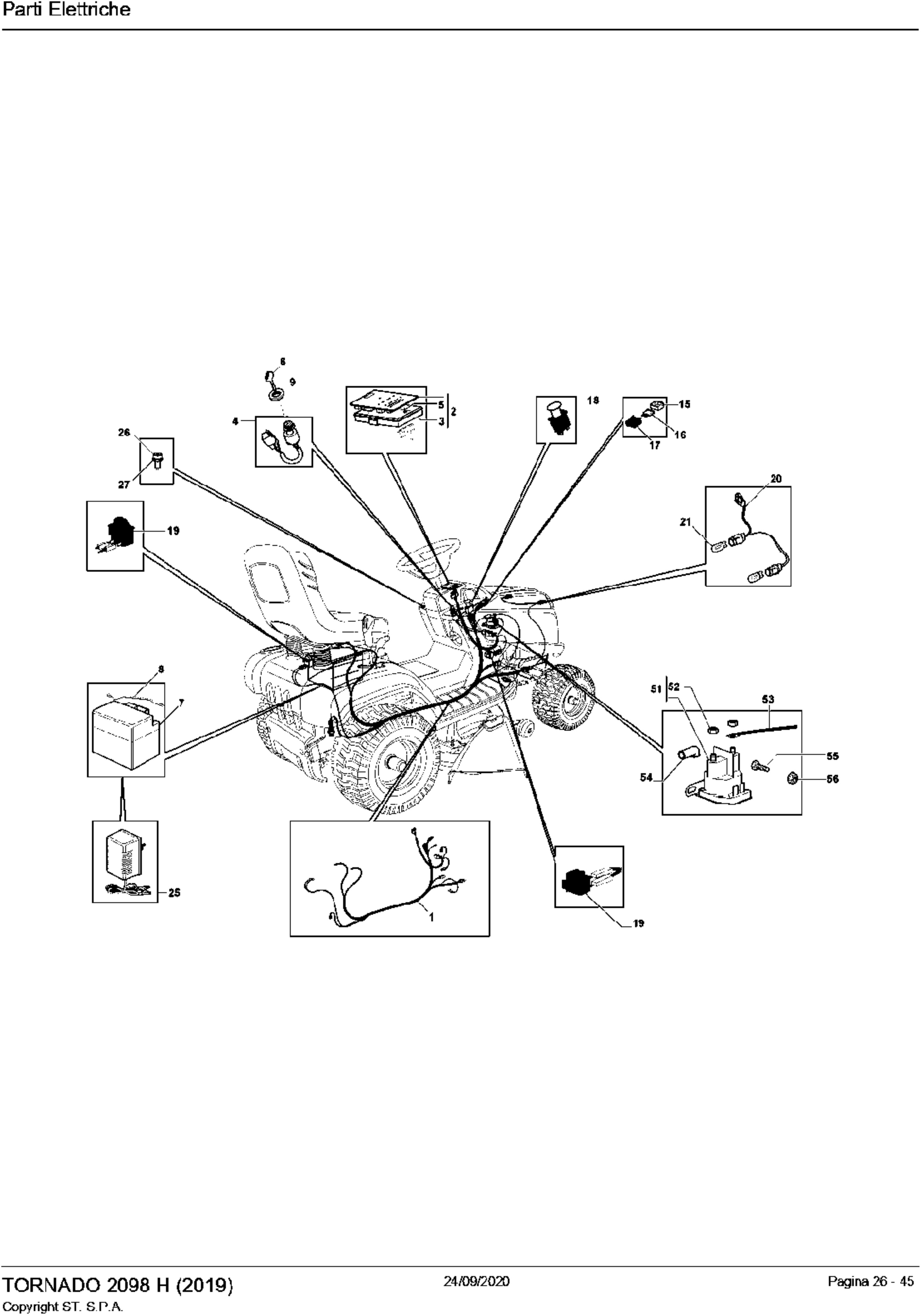

| 1 |
182040196/0 |
Cablaggio For Hydro Models To 31-August-2016 |
| 1 |
182040196/1 |
Cablaggio For Hydro Models From 01-September-2016 |
| 2 |
382722443/0 |
Scheda Elettronica To 31-August-2015 |
| 2 |
382722443/1 |
Scheda Elettronica "LS" marked From 01-September-2015 |
| 3 |
112735105/0 |
Vite |
| 4 |
118450075/1 |
Interruttore Avviamento |
| 5 |
325600080/0 |
Protezione Scheda To 31-August-2015 |
| 5 |
325600090/1 |
Protezione Scheda From 01-September-2015 |
| 6 |
118210023/0 |
Chiave Avviamento |
| 7 |
118120002/1 |
Batteria To 31-August-2016 |
| 7 |
118120007/0 |
Batteria From 01-September-2016 |
| 8 |
125430265/1 |
Molla |
| 9 |
118400863/0 |
Ghiera |
| 15 |
133215000/0 |
Coperchio |
| 16 |
133340036/0 |
Fusibile 25 A |
| 16 |
133340040/0 |
Fusibile 10 A |
| 17 |
133500007/0 |
Portafusibile |
| 18 |
118450073/0 |
Interruttore Frizione Yellow |
| 18 |
118450074/0 |
Interruttore Frizione Red |
| 19 |
119410613/0 |
Micro Interruttore To 31-August-2019 |
| 19 |
119410622/1 |
Micro Interruttore From 01-September-2019 |
| 20 |
182040186/0 |
Cavo Fari for Lamp Version |
| 21 |
118459100/0 |
Lampada |
| 25 |
182180090/0 |
Carica Batteria 12V 1A - CE Plugg CE Plug |
| 26 |
325605003/0 |
Pulsante Retromarcia |
| 27 |
325256250/0 |
Ghiera |
| 51 |
118736111/0 |
Relè Avviamento To 31-August-2015 |
| 51 |
118736112/0 |
Solenoide From 01-September-2015 |
| 52 |
112360352/0 |
Dado To 31-August-2015 |
| 52 |
112361005/0 |
Dado From 01-September-2015 |
| 53 |
125065002/0 |
Cavo Relé Avv. |
| 54 |
118564864/1 |
Cappuccio |
| 55 |
112790781/0 |
Vite |
| 56 |
112154510/0 |
Dado |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.12 |
| 1 |

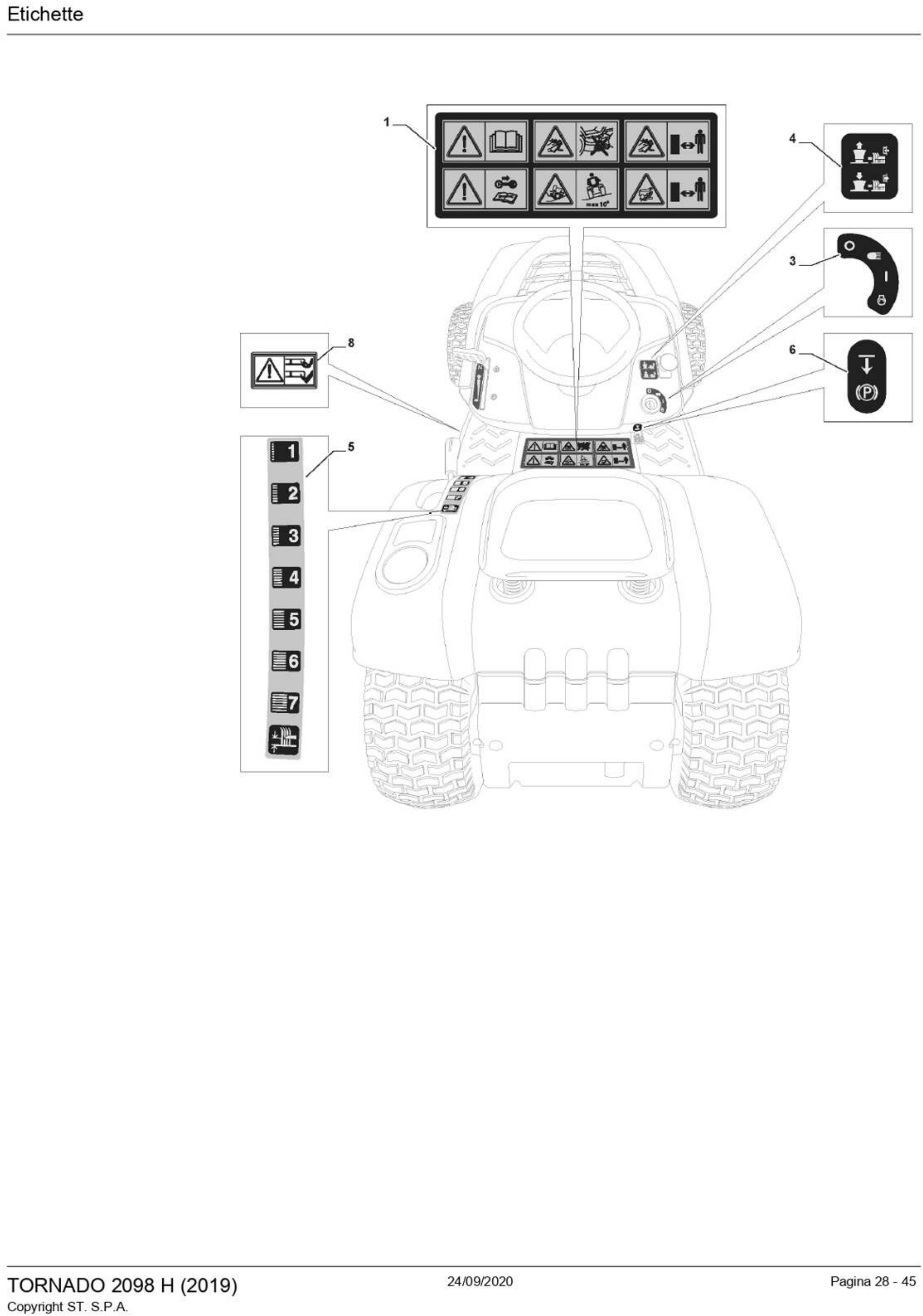

114362365/1 |
Etichetta |
| 3 |
114363699/0 |
Etichetta |
| 4 |
114361438/0 |
Etichetta |
| 5 |
114363701/0 |
Etichetta To 31-August-2014 |
| 5 |
114366142/0 |
Etichetta From 01-September-2014 |
| 6 |
114363700/0 |
Etichetta |
| 8 |
114356699/1 |
Etichetta Pericolo Piatto |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.13 |

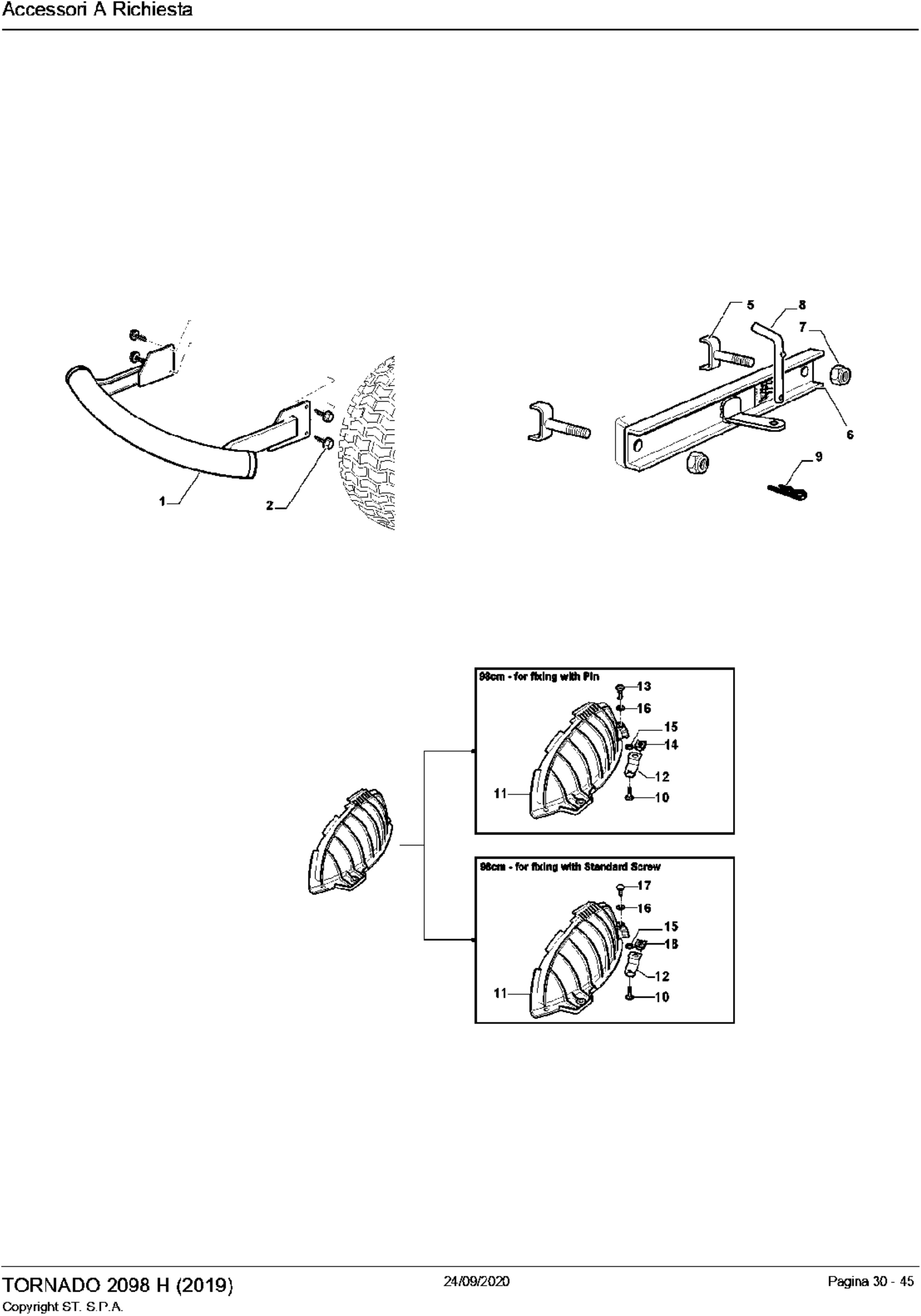

| 1 |
382869038/0 |
Protezione Silenziatore |
| 2 |
125943008/0 |
Vite |
| 5 |
382650211/0 |
Rinforzo |
| 6 |
382033111/0 |
Asta |
| 7 |
112155000/0 |
Dado |
| 8 |
125510021/1 |
Perno |
| 9 |
124487999/0 |
Coppiglia |
| 10 |
112815205/0 |
Vite TTQ 6x12 |
| 11 |
325140105/0 |
Deflettore |
| 12 |
325785471/0 |
Perno |
| 13 |
125580040/0 |
Piolo Imperdibile SD/MP |
| 14 |
118737221/0 |
Piastra for fixing with Pin |
| 15 |
112292102/0 |
Dado |
| 16 |
112604899/0 |
Fissatore A Corona |
| 17 |
125580041/0 |
Piolo for fixing with Standard Screw |
| 18 |
112437507/0 |
Piastrina for fixing with Standard Screw |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.14 |
| 1 |
325580508/0 |
Placca Volante To 19-June-2020 |
| 1 |
325580510/0 |
Placca Volante From 20-June-2020 |
| 2 |
325961221/1 |
Volante To 19-June-2020 |
| 2 |
325961226/0 |
Volante From 20-June-2020 |

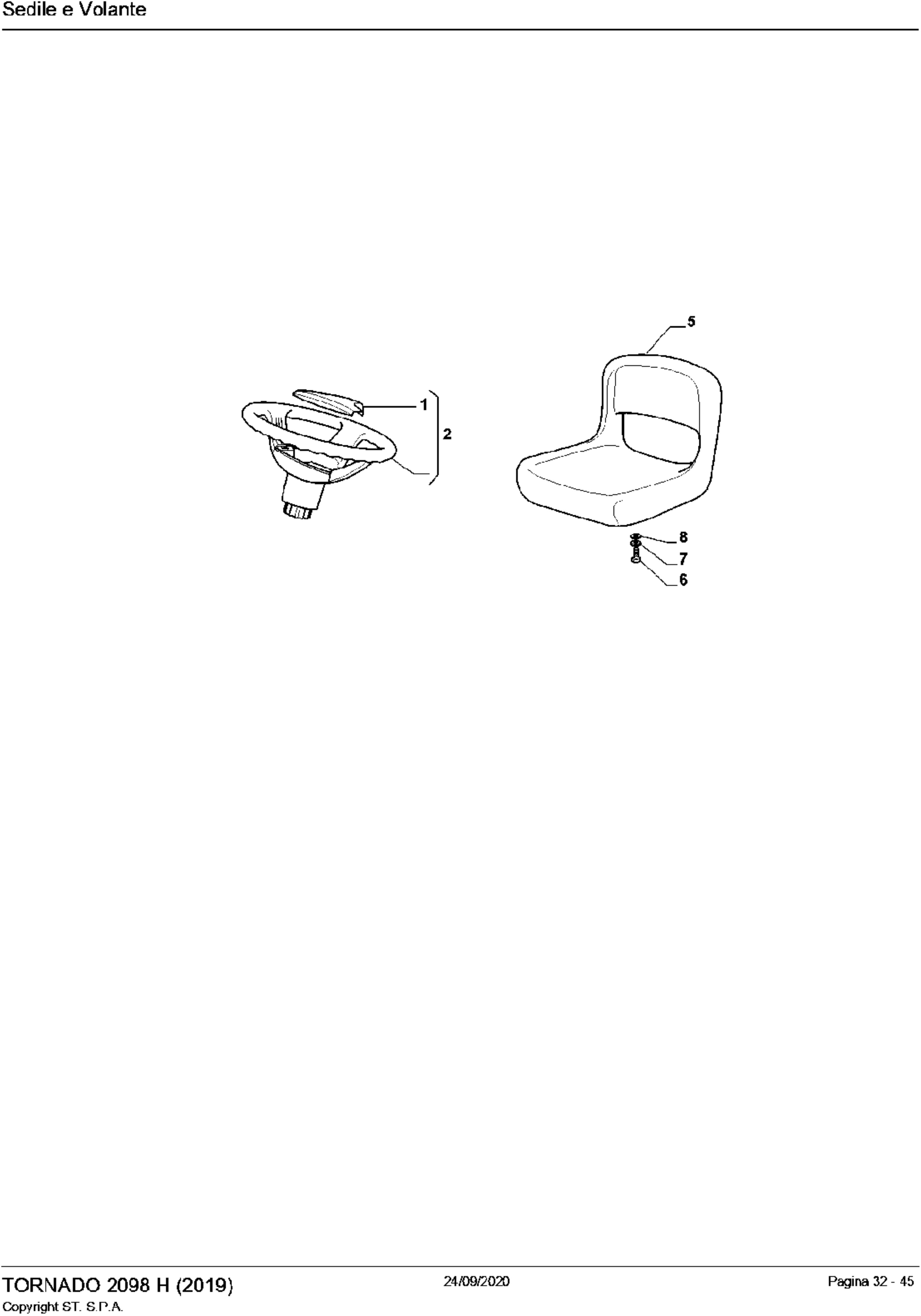

| 5 |
125722477/0 |
Sedile |
| 6 |
112792611/0 |
Vite |
| 7 |
112540260/0 |
Rosetta Dentellata |
| 8 |
112523060/0 |
Rondella |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.15 |

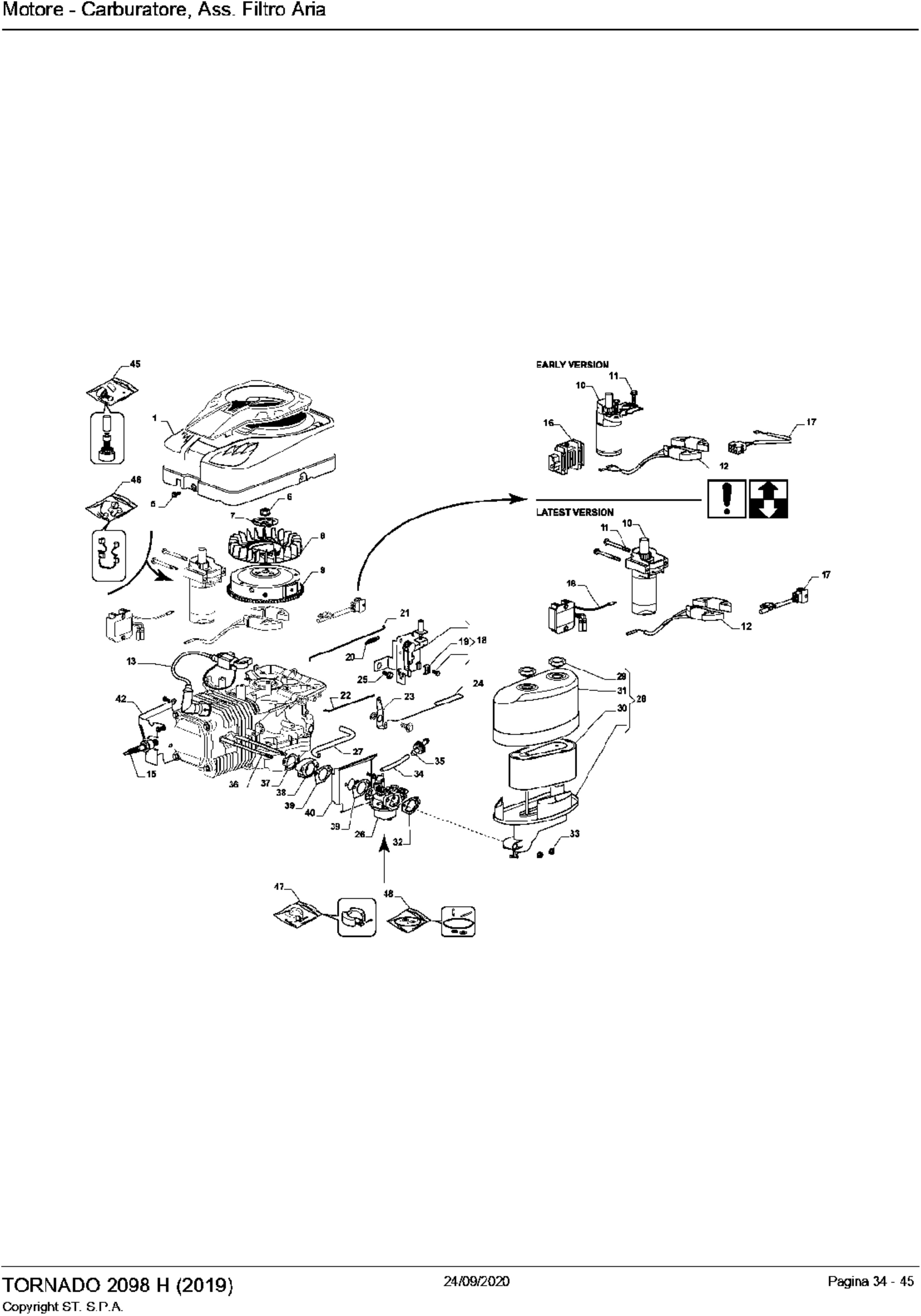

| 1 |
118550516/0 |
Capottina |
| 5 |
112791213/1 |
Vite |
| 6 |
118550237/0 |
Dado |
| 7 |
118550236/0 |
Coppa Avviamento |
| 8 |
118550235/1 |
Ventola Volano |
| 9 |
118550234/2 |
Ass. Volano C/Masse |
| 10 |
118550214/0 |
Ass. Motorino Avviamento early version |
| 10 |
118551440/0 |
Ass. Motorino Avviamento latest version |
| 11 |
112691100/0 |
Vite latest version |
| 11 |
112691100/0 |
Vite early version |
| 12 |
118550210/1 |
Ass. Carica Bobina early version |
| 12 |
118551441/0 |
Ass. Carica Bobina latest version |
| 13 |
118550209/1 |
Bobina Elettronica early version |
| 13 |
118551438/0 |
Bobina Elettronica latest version |
| 15 |
9400-0244-00 |
Candela |
| 16 |
118550208/1 |
Regolatore early version |
| 16 |
118551428/1 |
Regolatore latest version |
| 17 |
118550207/1 |
Cablaggio Regolatore early version |
| 17 |
118551439/0 |
Cablaggio Regolatore latest version |
| 18 |
118550331/1 |
Ass. Comando Acceleratore |
| 19 |
118550212/0 |
Fermaglio Cavo |
| 20 |
118550213/0 |
Molla |
| 21 |
118551219/0 |
Astina Acceleratore |
| 22 |
118551218/0 |
Astina Choke |
| 23 |
118551267/0 |
Staffa |
| 24 |
118551221/0 |
Asta Acceleratore |
| 25 |
118551277/0 |
Bullone |
| 26 |
118551515/0 |
Carburatore |
| 27 |
118550225/1 |
Tubo Sfiato |
| 28 |
118550202/2 |
Ass. Filtro Aria |
| 29 |
118550201/0 |
Manopolina |
| 30 |
118550199/0 |
Filtro Aria |
| 31 |
118550200/0 |
Coperchio Filtro Aria |
| 32 |
118550762/0 |
Guarnizione Filtro Aria |
| 33 |
112292102/0 |
Dado |
| 34 |
118551514/0 |
Tubo Carburante |
| 35 |
118550354/1 |
Filtro Carburante |
| 36 |
118551279/0 |
Prigioniero |
| 37 |
118551263/0 |
Guarnizione Collettore Cilindro |
| 38 |
118551265/0 |
Collettore Aspirazione |
| 39 |
118551262/0 |
Guarnizione Carburatore |
| 40 |
118551259/0 |
Protezione |
| 42 |
118551260/0 |
Protezione |
| 45 |
118550365/1 |
Kit Riparazione |
| 46 |
118550332/1 |
Spazzola |
| 47 |
118550440/0 |
Kit Riparazione Carburatore |
| 48 |
118550442/0 |
Kit Guarnizioni Carburatore |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.16 |

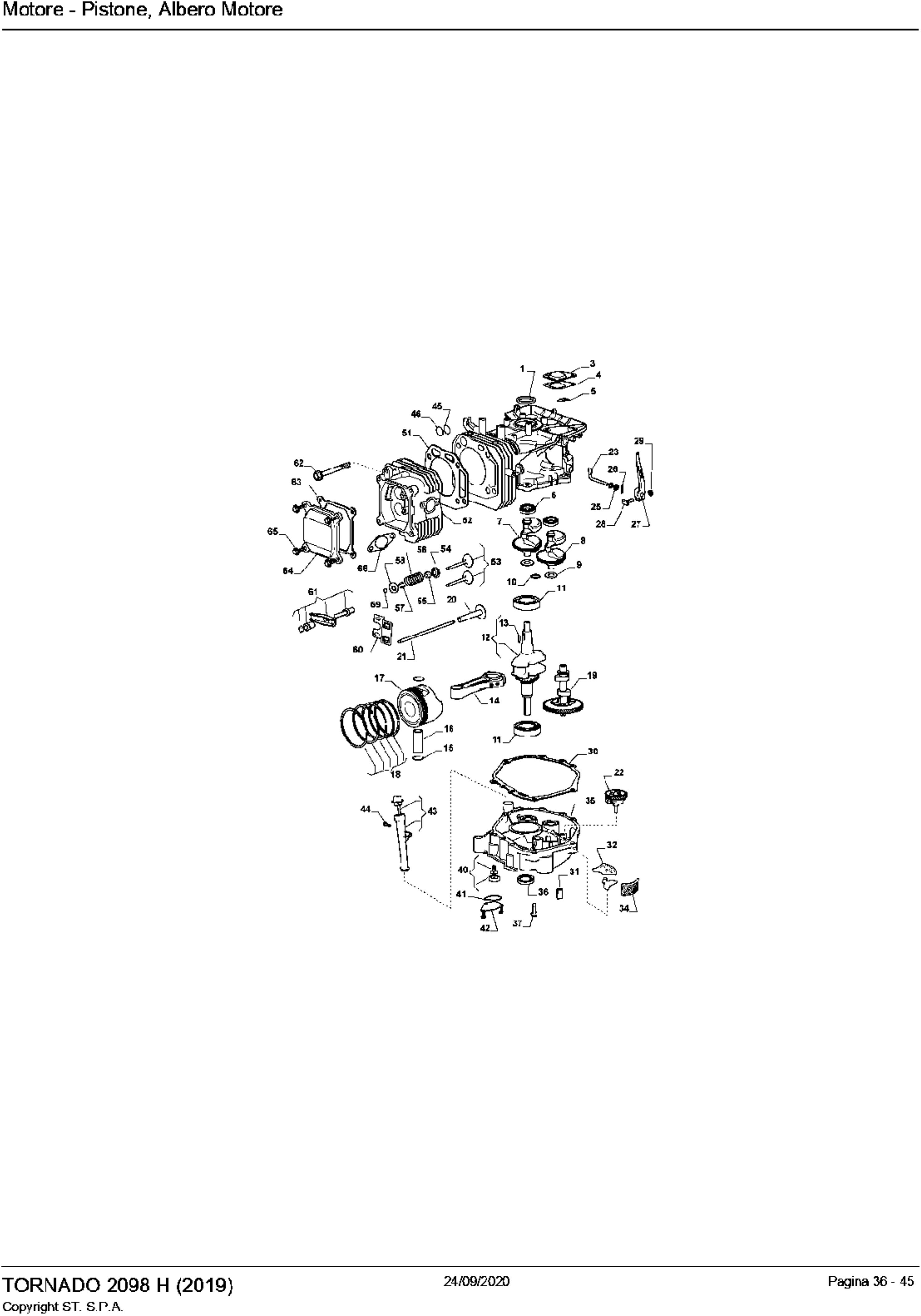

| 1 |
118550443/0 |
Anello Di Tenuta |
| 2 |
118551224/0 |
Carter Motore |
| 3 |
118551227/0 |
Coperchio |
| 4 |
118551229/0 |
Guarnizione |
| 5 |
118550303/0 |
Piastrina |
| 6 |
118551284/0 |
Cuscinetto |
| 7 |
118551242/0 |
Contrappeso |
| 8 |
118551243/0 |
Contrappeso |
| 9 |
118551282/0 |
Rondella |
| 10 |
118551286/0 |
O Ring |
| 11 |
118550227/0 |
Cuscinetto A Sfere |
| 12 |
118550232/0 |
Albero Motore |
| 13 |
118550288/0 |
Chiavetta Volano |
| 14 |
118550231/1 |
Ass. Biella Motore |
| 15 |
118551283/0 |
Fermo Spinotto |
| 16 |
118551241/0 |
Spinotto Pistone |
| 17 |
118551240/0 |
Pistone |
| 18 |
118550510/0 |
Ass. Fasce Elastiche |
| 19 |
118551511/0 |
Albero Camme |
| 20 |
118551252/0 |
Alzavalvole |
| 21 |
118550242/1 |
Ass. Aste Di Punteria |
| 22 |
118551506/0 |
Ass. Regolatore |
| 23 |
118551505/0 |
Albero Regolatore |
| 25 |
118551285/0 |
Anello Di Tenuta |
| 26 |
118550856/0 |
Coppiglia |
| 27 |
118551220/0 |
Leva Comando Acc. |
| 28 |
118550805/0 |
Vite |
| 29 |
118550806/0 |
Dado |
| 30 |
118550355/1 |
Guarnizione Carter Motore |
| 31 |
118551258/0 |
Gommino |
| 32 |
118551257/1 |
Coperchio |
| 34 |
118551256/1 |
Filtro Olio |
| 35 |
118551207/0 |
Carter Motore |
| 36 |
118550443/0 |
Anello Di Tenuta |
| 37 |
112691115/0 |
Vite |
| 40 |
118550224/1 |
Ass. Pompa Olio |
| 41 |
118551507/0 |
Guarnizione |
| 42 |
118550223/0 |
Coperchio Pompa Olio |
| 43 |
118550444/1 |
Ass. Tubo Livello Olio |
| 44 |
112674701/0 |
Vite |
| 45 |
118551230/0 |
Valvola Sfiato |
| 46 |
118551228/0 |
Coperchio |
| 51 |
118551236/0 |
Guarnizione |
| 52 |
118551231/0 |
Testa Cilindro |
| 53 |
118551289/0 |
Ass. Valvola Aspirazione + Scarico |
| 54 |
118551245/0 |
Piattello |
| 55 |
118551248/0 |
Guarnizione |
| 56 |
118550529/0 |
Molla Valvole |
| 57 |
118551247/0 |
Fermo Valvola |
| 58 |
118551246/0 |
Fermo |
| 59 |
118551244/0 |
Tappo Valvola |
| 60 |
118551255/0 |
Piastrina |
| 61 |
118551510/0 |
Set Bilancieri Valvole |
| 62 |
118551278/0 |
Vite |
| 63 |
118551531/0 |
Guarnizione Coperchio Valvole |
| 64 |
118551534/0 |
Coperchio Valvole |
| 65 |
118551535/0 |
Bullone |
| 66 |
118551272/0 |
Guarnizione Silenziatore |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.17 |

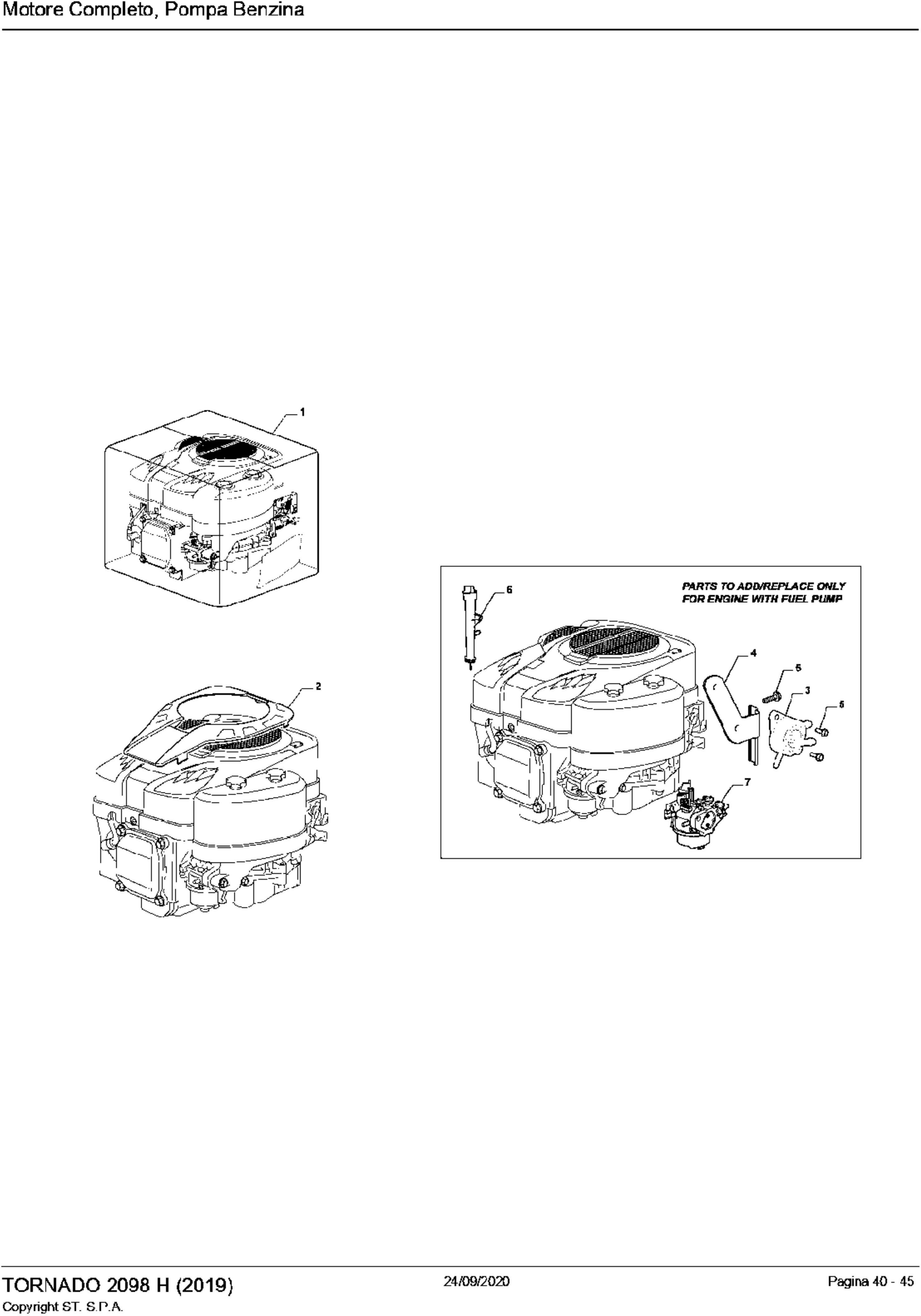

| 1 |
118550526/1 |
Motore Completo |
| 2 |
325055000/0 |
Cuffia, Rossa |
| 2 |
325055001/0 |
Anello Capottina, Gialla |
| 2 |
325055002/0 |
Cuffia, Nera |
| 3 |
118551578/0 |
Pompa Benzina |
| 4 |
118550348/1 |
Staffa Pompa Benzina |
| 5 |
112791400/0 |
Vite |
| 6 |
118550444/1 |
Ass. Tubo Livello Olio |
| 7 |
118550435/1 |
Carburatore |

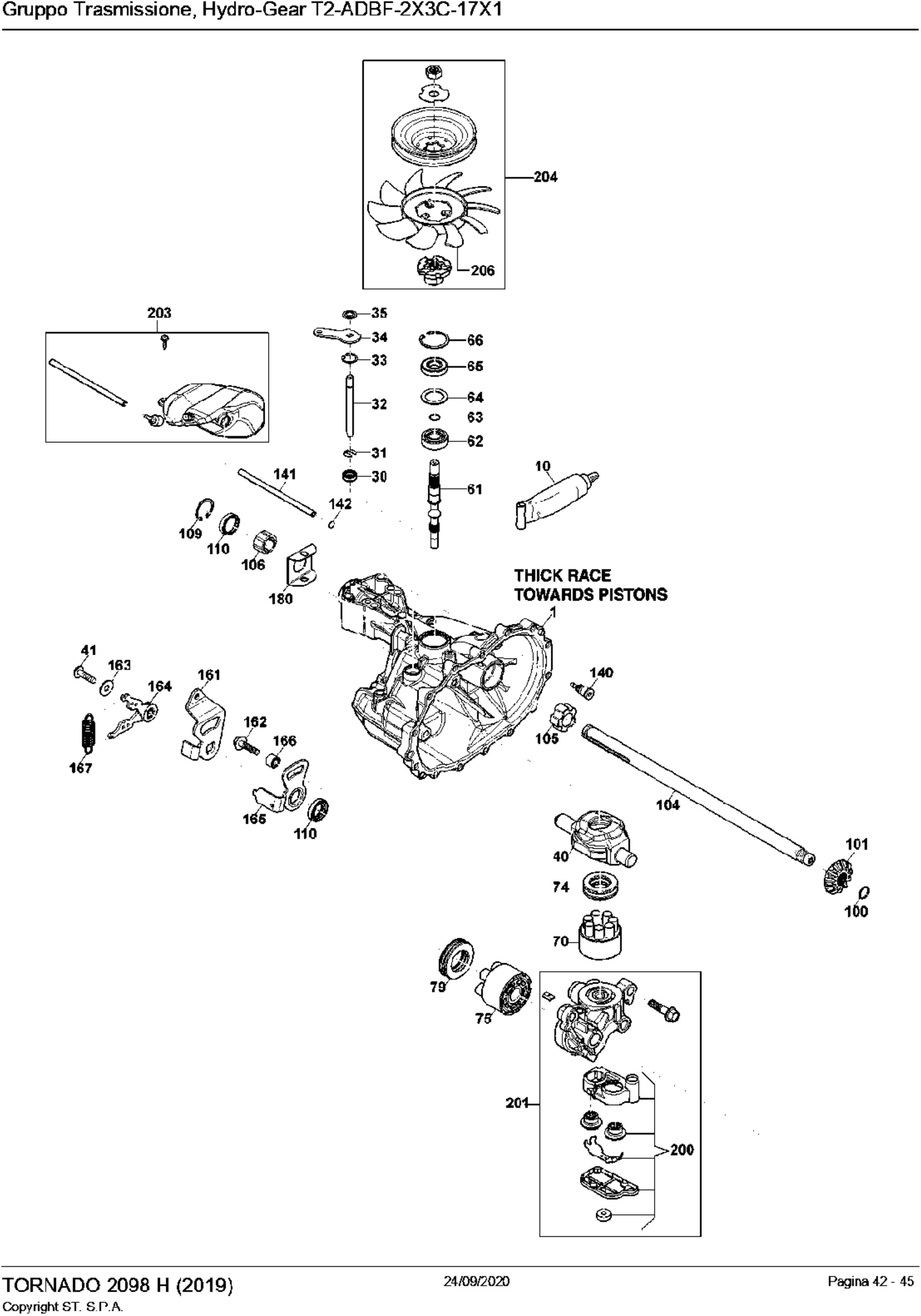

| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.18 |
| 1 |
118870120/0 |
Carter Principale |
| 10 |
1139-2022-01 |
Sealant |
| 30 |
118870079/0 |
Guarnizione |
| 31 |
118870081/0 |
Anello Elastico |
| 32 |
1139-2203-01 |
Asta |
| 33 |
118870080/0 |
Anello Elastico |
| 34 |
118870091/0 |
Leva |
| 35 |
118870082/0 |
Anello Elastico |
| 40 |
118870090/0 |
Piatto Oscillante |
| 41 |
118870083/0 |
Vite |
| 61 |
118870092/0 |
Albero |
| 62 |
1139-2001-01 |
Cuscinetto A Sfere |
| 63 |
1139-2003-01 |
Wire Retaining Ring |
| 64 |
1139-2004-01 |
Distanziale |
| 65 |
1139-2000-01 |
Lip Seal |
| 66 |
1139-2002-01 |
Anello Elastico |
| 70 |
118870125/0 |
Ass. modulo pompa |
| 74 |
118870093/0 |
Cuscinetto |
| 75 |
1139-2063-01 |
Cylinder Block |
| 79 |
1139-2021-01 |
Thrust Bearing |
| 100 |
118870072/0 |
Anello Elastico |
| 101 |
118870063/0 |
Ingranaggio |
| 104 |
118870113/0 |
Albero |
| 105 |
118870086/0 |
Boccola |
| 106 |
118870085/0 |
Boccola |
| 109 |
118870084/0 |
Anello Elastico |
| 110 |
1139-2204-01 |
Albero |
| 140 |
1139-2038-01 |
Fitting |
| 141 |
118870102/0 |
Tubo |
| 142 |
1139-2075-01 |
O-Ring |
| 161 |
118870103/0 |
Leva |
| 162 |
1139-2026-01 |
Bullone |
| 163 |
1139-2011-01 |
Rondella |
| 164 |
118870107/0 |
Ass. Leve |
| 165 |
118870108/0 |
Leva |
| 166 |
118870104/0 |
Boccola |
| 167 |
118870089/0 |
Molla |
| 180 |
118870112/0 |
Piastra |
| 200 |
118870123/0 |
Kit-Filtro |
| 201 |
118870127/0 |
Kit Sezione Centrale |
| 203 |
118870122/0 |
Kit-Vaso di Espansione |
| 204 |
118802723/0 |
Kit Ventola Puleggia |
| 206 |
118870130/0 |
Ventola |
| STIGA TORNADO 2098 H (2019) 2T0630481/ST1 PAG.19 |

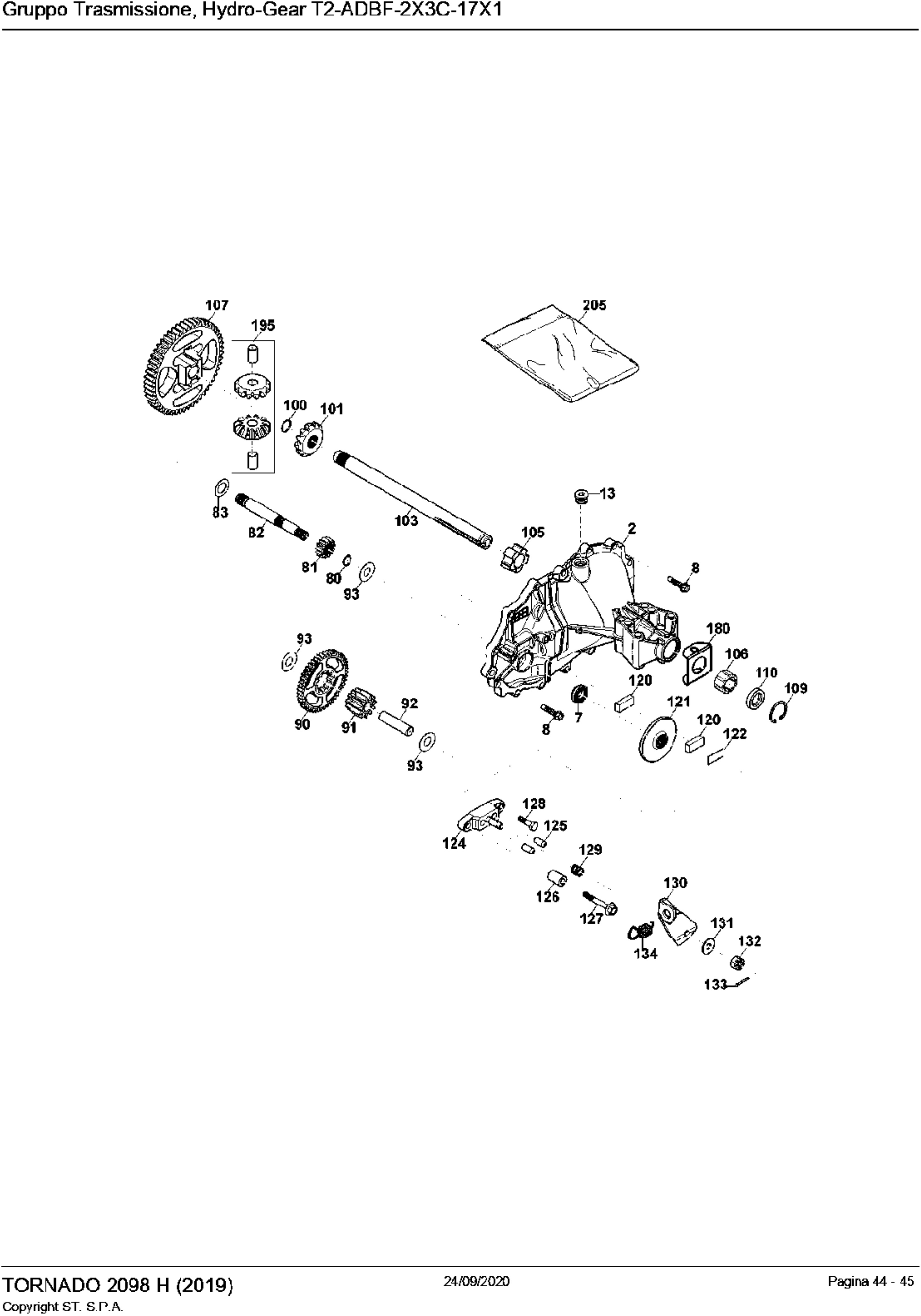

| 2 |
118870121/0 |
Carter Laterale |
| 7 |
118870111/0 |
Guarnizione |
| 8 |
1139-2042-01 |
Vite |
| 13 |
1139-2010-01 |
Plug |
| 80 |
118870070/0 |
Anello Elastico |
| 81 |
118870094/0 |
Ingranaggio |
| 82 |
118870095/0 |
Albero |
| 83 |
118870096/0 |
Rondella |
| 90 |
118870097/0 |
Ingranaggio |
| 91 |
118870098/0 |
Ingranaggio |
| 92 |
118870099/0 |
Perno |
| 93 |
1139-2016-01 |
Rondella |
| 103 |
118870114/0 |
Albero |
| 107 |
118870100/0 |
Ingranaggio |
| 120 |
118870066/0 |
Pastiglia Freno |
| 121 |
118870101/0 |
Freno |
| 122 |
118870067/0 |
Pastiglia Freno Supporto |
| 124 |
118870119/0 |
Pinza Freno |
| 125 |
118870069/0 |
Perno |
| 126 |
118870062/0 |
Distanziale |
| 127 |
118870077/0 |
Vite |
| 128 |
118870071/0 |
Bullone |
| 129 |
118870076/0 |
Molla |
| 130 |
118870088/0 |
Leva Freno |
| 131 |
1139-2011-01 |
Rondella |
| 132 |
118870068/0 |
Dado |
| 133 |
118870065/0 |
Perno |
| 134 |
118870078/0 |
Molla |
| 195 |
118870126/0 |
Kit-Ingranaggi e Perni |
| 205 |
118870124/0 |
Kit-Guarnizione |
English
