Ricambi Stayer per Troncatrice SCC315W

SKU: Stayer SCC315W
115,89 €
IVA inclusa

Ricambi Stayer per Troncatrice SCC315W

Ricambi originali STAYER con prezzi competitivi mai visti sul web, siamo un centro di assistenza autorizzato con servizio di riparazione in grado di risolvere rapidamente ogni problema di manutenzione e riparazione della Troncatrice SCC315W.
Ricambi Stayer per Troncatrice SCC315W
  • Ricambi Stayer per Troncatrice SCC315W

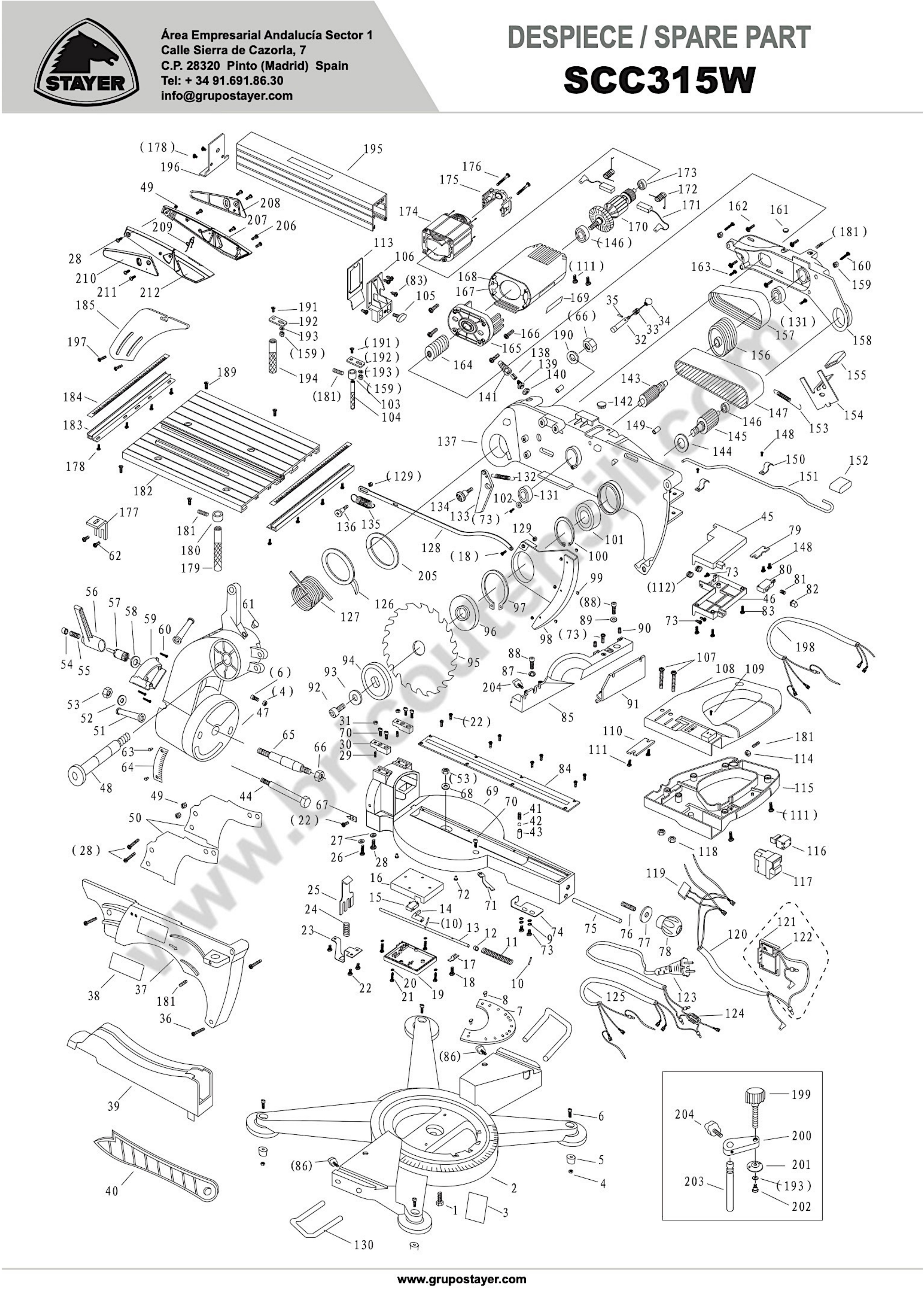

  • Ricambi Stayer per Troncatrice SCC315W - Esploso

Ricambi Stayer per Troncatrice SCC315W

SKU: Stayer SCC315W Condizione: Nuovo
115,89 €
IVA inclusa

Ricambi Stayer per Troncatrice SCC315W

Ricambi originali STAYER con prezzi competitivi mai visti sul web, siamo un centro di assistenza autorizzato con servizio di riparazione in grado di risolvere rapidamente ogni problema di manutenzione e riparazione della Troncatrice SCC315W.
settings 61 ricambi
description 1 vista esploso
picture_as_pdf Scarica Esploso PDF
CODICE ARTICOLO
Quantità
Di Solito Spediti in: 10/15 GG Lavorativi Circa

SPEDIZIONE IN:: Di Solito Spediti In: 10/15 GIORNI LAVORATIVI CIRCA
MAGGIORI INFO:: SOLO PER PRODUZIONE MADE IN SPAIN
Tipo Macchina: Troncatrice
verified_user
Prodotto Originale Garanzia del produttore inclusa
support_agent
Assistenza Tecnica Il nostro team ti aiuta nella scelta
Pagamenti sicuri e garantiti
Visa Mastercard PayPal Bonifico Pagamento alla consegna
Condividi questo prodotto

Conosci qualcuno che potrebbe aver bisogno di questo prodotto? Condividilo!

61 ricambi
Pagina 1 zoom_in Apri esploso local_shipping Di Solito Spediti In: 10/15 GIORNI LAVORATIVI CIRCA
Pos. Articolo Prezzo Acquista
2
photo_cameraImmagine in arrivo 5018.160 BASE 109,24 €
7
photo_cameraImmagine in arrivo 5018.164 PIASTRA ANGOLARE 4,47 €
13
photo_cameraImmagine in arrivo 5018.170 BARRA GUIDA 2,31 €
15
photo_cameraImmagine in arrivo 5018.172 INTERRUTTORE (UNO) HY50 3PIN 4,47 €
16
photo_cameraImmagine in arrivo 5018.173 COPERCHIO DELLA SCATOLA INTERRUTTORI 2,31 €
19
photo_cameraImmagine in arrivo 5018.176 SUPPORTO SCATOLA INTERRUTTORI 3,26 €
37
photo_cameraImmagine in arrivo 5018.194 CASSA DELLA LAMA 24,57 €
39
photo_cameraImmagine in arrivo 5018.195 PROTEZIONE INFERIORE 13,91 €
40
photo_cameraImmagine in arrivo 5018.196 SPINGERE IL BASTONE 4,47 €
45
photo_cameraImmagine in arrivo 5018.201 COPERTURA INTERRUTTORE PER MITRA 1,43 €
46
photo_cameraImmagine in arrivo 5018.202 SEDE INTERRUTTORE PER MITRA 1,52 €
47
photo_cameraImmagine in arrivo 5018.203 STAFFA 45,41 €
48
photo_cameraImmagine in arrivo 5018.204 SPILLO 4,47 €
50
photo_cameraImmagine in arrivo 5018.206 COPERTURA LAMA 4,31 €
55
photo_cameraImmagine in arrivo 5018.211 PICCOLA MOLLA 3,00 €
56
photo_cameraImmagine in arrivo 5018.212 MANIGLIA FISSATA 7,18 €
65
photo_cameraImmagine in arrivo 5018.221 BARRA DELLA POSIZIONE 3,43 €
69
photo_cameraImmagine in arrivo 5018.225 PIATTO GIREVOLE 68,68 €
75
photo_cameraImmagine in arrivo 5018.231 BARRA DI FISSAGGIO 1,69 €
77
photo_cameraImmagine in arrivo 5018.233 RONDELLA 1,25 €
78
photo_cameraImmagine in arrivo 5018.234 MANIGLIA 4,47 €
80
photo_cameraImmagine in arrivo 5018.236 SWITH (QUATTRO) KEDU HY50 4,47 €
84
photo_cameraImmagine in arrivo 5018.240 INSERTO BASE 2,73 €
85
photo_cameraImmagine in arrivo 5018.241 GUIDAPEZZO 27,21 €
91
photo_cameraImmagine in arrivo 5018.247 ESTENSIONE GUIDAPEZZO 8,42 €
94
photo_cameraImmagine in arrivo 5018.250 FLANGIA ESTERNA 4,47 €
96
photo_cameraImmagine in arrivo 5018.252 FLANGIA INTERNA 4,47 €
98
photo_cameraImmagine in arrivo 5018.254 PROTEZIONE TRASPARENTE 20,52 €
116
photo_cameraImmagine in arrivo 5018.269 INTERRUTTORE 10,48 €
117
photo_cameraImmagine in arrivo 5018.270 INTERRUTTORE 19,55 €
119
photo_cameraImmagine in arrivo 5018.272 CONDENSATORE 2,96 €
121+122
photo_cameraImmagine in arrivo 5018.528 SCATOLA SOFT START + SET SOFT START 3,69 €
122
photo_cameraImmagine in arrivo 5018.274 SOFT STARTER 17,42 €
127
photo_cameraImmagine in arrivo 5018.277 MOLLA 15,11 €
128
photo_cameraImmagine in arrivo 5018.278 COLLEGAMENTO 1,96 €
137
photo_cameraImmagine in arrivo 5018.287 TESTA DI SEGA 50,56 €
143
photo_cameraImmagine in arrivo 5018.290 RULLINO 14,38 €
144
photo_cameraImmagine in arrivo 5018.291 RONDELLA 1,43 €
145
photo_cameraImmagine in arrivo 5018.292 RULLINO DI USCITA 13,30 €
146
photo_cameraImmagine in arrivo 5018.293 6000 CUSCINETTI 4,70 €
147
photo_cameraImmagine in arrivo 5018.294 CINGHIA(1) HTD5M 300-20 25,79 €
151
photo_cameraImmagine in arrivo 5018.298 GANCIO 1,86 €
156
photo_cameraImmagine in arrivo 5018.303 PULEGGIA 19,72 €
157
photo_cameraImmagine in arrivo 5018.304 CINGHIA(2) 7PJ370 19,57 €
158
photo_cameraImmagine in arrivo 5018.305 SUPPORTO MOTORE 17,24 €
165
photo_cameraImmagine in arrivo 5018.312 COPERTURA CENTRALE 5,78 €
167
photo_cameraImmagine in arrivo 5018.314 CASA MOTORE 17,95 €
168
photo_cameraImmagine in arrivo 5018.315 COPERTURA MOTORE 13,30 €
170
photo_cameraImmagine in arrivo 5018.316 ROTORE 54,19 €
171
photo_cameraImmagine in arrivo 5018.317 SPAZZOLE IN CARBONE 13,73 €
173
photo_cameraImmagine in arrivo 5018.319 608 BEARIGN 4,52 €
174
photo_cameraImmagine in arrivo 5018.320 STATORE 59,34 €
175
photo_cameraImmagine in arrivo 5018.321 PORTA SPAZZOLA 4,47 €
182
photo_cameraImmagine in arrivo 5018.328 TAVOLO 42,40 €
183
photo_cameraImmagine in arrivo 5018.329 LISTELLO 8,59 €
184
photo_cameraImmagine in arrivo 5018.330 SCALA 3,27 €
185
photo_cameraImmagine in arrivo 5018.331 COLTELLO 5,22 €
194
photo_cameraImmagine in arrivo 5018.337 BARRA GUIDA 2,12 €
206to 211
photo_cameraImmagine in arrivo 5018.342 GRUPPO PROTETTIVO SUPERIORE 25,08 €
-108-115
photo_cameraImmagine in arrivo 5018.263 COPERTURA MANIGLIA + MANIGLIA 12,99 €
-105-106-113-195-196
photo_cameraImmagine in arrivo 5018.261 GUIDA 35,02 €

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ricambi Stayer per Troncatrice SCC315W

Ricambi originali STAYER con prezzi competitivi mai visti sul web, siamo un centro di assistenza autorizzato con servizio di riparazione in grado di risolvere rapidamente ogni problema di manutenzione e riparazione della Troncatrice SCC315W.

Nella tabella seguente, cercate il modello della Troncatrice ed il rispettivo codice del ricambio.
Stayer SCC315W
Stayer SCC315W Mitre Saw Spare Parts
Pos. Codice Descrizione
1 5018.159 Vite esagonale M8*30
2 5018.160 BASE
4 5018.161 DADO ESAGONALE M6
5 5018.162 PIEDINO IN GOMMA
6 5018.163 VITE ESAGONALE M6*20
7 5018.164 PIASTRA ANGOLARE
8 5018.165 5 RIVETTO
9 5018.166 5 RONDELLA MOLLA
10 5018.167 PERNO CAVO 2*20
11 5018.168 MOLLA
12 5018.169 SET DI RULLI 10*3,5
13 5018.170 BARRA GUIDA
14 5018.171 LEVA
15 5018.172 INTERRUTTORE (UNO) HY50 3PIN
16 5018.173 COPERCHIO DELLA SCATOLA INTERRUTTORI
17 5018.174 PEDANA A PRESSIONE
18 5018.175 VITE A CROCE M4*10
19 5018.176 SUPPORTO SCATOLA INTERRUTTORI
20 5018.177 4 RONDELLA PIATTA
21 5018.178 VITE M4*25
22 5018.179 VITE M4*8
23 5018.180 PIASTRA DI FISSAGGIO
24 5018.181 MOLLA
25 5018.182 PIASTRA DI SERRATURA
26 5018.183 VITE M4*16
27 5018.184 6 APPARTAMENTO
28 5018.185 VITE M5X16
29 5018.186 VITE M8X20
30 5018.187 PIASTRA ANGOLARE
31 5018.188 DADO M8 (SOTTILE)
32 5018.189 SPILLO
33 5018.190 MOLLA
34 5018.191 PALLA A MANO
35 5018.192 PERNO CAVO 3*16
36 5018.193 VITE M5*30
37 5018.194 CASSA DELLA LAMA
39 5018.195 PROTEZIONE INFERIORE
40 5018.196 SPINGERE IL BASTONE
41 5018.197 MOLLA
42 5018.198 8 SFERA IN ACCIAIO
43 5018.199 MANICA DI POSIZIONE
44 5018.200 BULLONE M8*85
45 5018.201 COPERTURA INTERRUTTORE PER MITRA
46 5018.202 SEDE INTERRUTTORE PER MITRA
47 5018.203 STAFFA
48 5018.204 SPILLO
49 5018.205 DADO M5
50 5018.206 COPERTURA LAMA
51 5018.207 PROTEZIONE CANNA
52 5018.208 8 RONDELLA
53 5018.209 DADO M8
54 5018.210 FISSARE LA COPERTURA
55 5018.211 PICCOLA MOLLA
56 5018.212 MANIGLIA FISSATA
57 5018.213 BLOCCO DI FISSAGGIO
58 5018.214 12 RONDELLA
59 5018.215 COPERTURA CAVO
60 5018.216 VITE M5*25
61 5018.217 SBARRA
62 5018.218 VITE M6*10
63 5018.219 RIVETTO
64 5018.220 SCALA
65 5018.221 BARRA DELLA POSIZIONE
66 5018.222 DADO M12
67 5018.223 INDICATORE DI BISELLATURA
68 5018.224 GRANDE RONDELLA
69 5018.225 PIATTO GIREVOLE
70 5018.226 VITE
71 5018.227 INDICATORE MITRA
72 5018.228 RONDELLA
73 5018.229 VITE
74 5018.230 PIASTRA DI SUPPORTO MITRA
75 5018.231 BARRA DI FISSAGGIO
76 5018.232 VITE
77 5018.233 RONDELLA
78 5018.234 MANIGLIA
79 5018.235 PIASTRA DI PRESSIONE(INTERRUTTORE)
80 5018.236 SWITH (QUATTRO) KEDU HY50
81 5018.237 MOLLA
82 5018.238 PULSANTE
83 5018.239 VITE
84 5018.240 INSERTO BASE
85 5018.241 GUIDAPEZZO
86 5018.242 VITE
87 5018.243 RONDELLA
88 5018.244 VITE
89 5018.245 RONDELLA
90 5018.246 VITE
91 5018.247 ESTENSIONE GUIDAPEZZO
92 5018.248 VITE
93 5018.249 VITE
94 5018.250 FLANGIA ESTERNA
95 5018.251 LAMA
96 5018.252 FLANGIA INTERNA
97 5018.253 MOLLA
98 5018.254 PROTEZIONE TRASPARENTE
99 5018.255 RONDELLA
100 5018.256 MOLLA
101 5018.257 CUSCINETTO
102 5018.258 RONDELLA
103 5018.259 BLOCCARE
104 5018.260 BARRA GUIDA
-105
-106
-113
-195
-196
5018.261 GUIDA
107 5018.262 VITE
-108
-115
5018.263 COPERTURA MANIGLIA + MANIGLIA
109 5018.264 VITE
110 5018.265 PIASTRA DI PRESSIONE DUE MANIGLIE
111 5018.266 VITE
112 5018.267 USCITA CABLAGGIO
114 5018.268 NOCE
116 5018.269 INTERRUTTORE
117 5018.270 INTERRUTTORE
118 5018.271 NOCE
119 5018.272 CONDENSATORE
120 CAVO MOTORE
121 5018.273 SCATOLA SOFT STARTER
122 5018.274 SOFT STARTER
121
+122
5018.528 SCATOLA SOFT START + SET SOFT START
123 CAVO
124 5018.275 INDUTTORE
125 CAVO DI TRASFERIMENTO FUNZIONI
126 5018.276 RONDELLA
127 5018.277 MOLLA
128 5018.278 COLLEGAMENTO
129 5018.279 NOCE
130 5018.280 STAFFA
131 5018.281 6201 CUSCINETTO
132 5018.282 MOLLA
133 5018.283 BLOCCO AUTOBLOCCANTE
134 5018.284 VITE(LUNGA)
135 5018.285 MOLLA
136 5018.286 VITE M4
137 5018.287 TESTA DI SEGA
138
to 141
5018.288 SET PROTEZIONE CAVO
142 5018.289 FERMATI UNO
143 5018.290 RULLINO
144 5018.291 RONDELLA
145 5018.292 RULLINO DI USCITA
146 5018.293 6000 CUSCINETTI
147 5018.294 CINGHIA(1) HTD5M 300-20
148 5018.295 VITE
149 5018.296 VITE
150 5018.297 PEDANA A PRESSIONE
151 5018.298 GANCIO
152 5018.299 PULSANTE
153 5018.300 MOLLA
154 5018.301 BLOCCO ROTORE
155 5018.302 RIVESTIMENTO AUTOBLOCCANTE PER ROTORE
156 5018.303 PULEGGIA
157 5018.304 CINGHIA(2) 7PJ370
158 5018.305 SUPPORTO MOTORE
159 5018.306 DADO M6
160 5018.307 VITE M6*50
161 5018.308 FERMO(DUE)
162 5018.309 VITE
163 5018.310 VITE
164 5018.311 PULEGGIA PICCOLA
165 5018.312 COPERTURA CENTRALE
166 5018.313 VITE
167 5018.314 CASA MOTORE
168 5018.315 COPERTURA MOTORE
169 ETICHETTA (TRE)
170 5018.316 ROTORE
171 5018.317 SPAZZOLE IN CARBONE
172 5018.318 MOLLA
173 5018.319 608 BEARIGN
174 5018.320 STATORE
175 5018.321 PORTA SPAZZOLA
176 5018.322 VITE
177 5018.323 BARRA SUPPORTO PIASTRA
178 5018.324 VITE
179 5018.325 BARRA DI GUIDA 1
180 5018.326 BARRA POSIZIONE ASCENSORE
181 5018.327 VITE
182 5018.328 TAVOLO
183 5018.329 LISTELLO
184 5018.330 SCALA
185 5018.331 COLTELLO
189 5018.332 VITE M6*16
190 5018.333 12*4
191 5018.334 VITE M6*12
192 5018.335 RONDELLA
193 5018.336 6 RONDELLA
194 5018.337 BARRA GUIDA
197 5018.338 VITE M6*12
198 5018.339 FILO DI COLLEGAMENTO (0,65 M0
199
to 204
5018.340 PARTI DEL SACCHETTO POLVERE
205 5018.341 RONDELLA (PICCOLA)
206
to 211
5018.342 GRUPPO PROTETTIVO SUPERIORE
Tutte le informazioni tecniche dei prodotti in questo catalogo si basano su informazioni tratte da fonti ufficiali, tra cui i siti web del produttore Stayer, che riteniamo affidabili. Purtroppo, anche i documenti ufficiali possono contenere errori o errori di stampa - non siamo in grado di confermare che tutti questi dati sono precisi e rappresentino realmente i fatti. La maggior parte dei produttori si riservano il diritto di modificare le caratteristiche dei prodotti o completare le descizioni senza preavviso. Si consiglia vivamente di utilizzare le informazioni pubblicate come informazioni di base soggette alla revisione del marchio Stayer. Si prega di chiarire i parametri importanti con un assistente alla vendita al momento dell'acquisto. Tutti i contenuti inclusi in questo catalogo sono di proprietà intellettuale di www.bricoutensili.com. E' vietata qualsiasi pubblicazione o riproduzione (totale o parziale) senza un riferimento alla pagina di origine.
Stayer SCC315W
6 Articoli

Scheda tecnica

SPEDIZIONE IN:
Di Solito Spediti In: 10/15 GIORNI LAVORATIVI CIRCA
Tipo Macchina
Troncatrice
MAGGIORI INFO:
SOLO PER PRODUZIONE MADE IN SPAIN

Riferimenti Specifici

Nuovo

Scarica

Esploso Stayer SCC315W

Esploso Stayer SCC315W

Scarica (742.62KB)

Potrebbe anche piacerti

Guida Pezzo per Troncatrice per Legno SCR 315W Saldi
Stayer SKU: 41041108
Guida Pezzo per Troncatrice per Legno SCR 315W Ricambio originale Stayer, Guida Pezzo per Troncatrice per Legno SCR 315W Ricambio per i seguenti prodotti: -  Troncatrice per Legno Stayer SCR 315W - Codice : 41041108
Ultimi articoli in magazzino 67,34 €
Commenti (0)
