| Makita EA3100T Spare Parts List |
| # |
Part Num. |
Descrizione |
| 1 |
MR00287010 |
GRUPPO CILINDRO |
| 2 |
MR00285541 |
GUARNIZIONE |
| 3 |
MR00261232 |
VITE M5x20 |
| 4 |
MR00286011 |
CARTER |
| 5 |
MR00285521 |
CUSCINETTO A SFERE |
| 6 |
MR00285626 |
PARAOLIO |
| 7 |
MR00261492 |
PARAOLIO |
| 8 |
MR00055185 |
ANELLO A SCATTO |
| 9 |
MR00285530 |
SPINOTTO PISTONE EA3100T/PS310TH |
| 10 |
MR00285529 |
*PIN EA3100T/PS310TH |
| 11 |
MR00261232 |
VITE A TAPPO M5X20 EA33100T/PS31 |
| 12 |
MR00285599 |
ALBERO MOTORECOMP EA3100T/PS31 |
| 13 |
MR00285049 |
PISTONE EA3100T/PS310TH |
| 14 |
MR00285590 |
FASCIA PISTONE EA3100T/PS310TH |
| 15 |
MR00285591 |
SPINOTTO PISTONE EA3100T/PS310TH |
| 16 |
MR00261037 |
CUSCINETTO A RULLI KBK8X11X11.8X1 |
| 17 |
MR00261576 |
CLIP PISTONE EA3100T/PS310TH |
| 18 |
MR00285554 |
MAGNETO ASS'Y EA3100T/PS310TH |
| 19 |
MR00288365 |
ROTORE ASS'Y EA3100T/PS310TH |
| 20 |
MR00285555 |
ROTORE MAGNETO EA3100T/PS310TH |
| 21 |
MR00285553 |
CRICCHETTO DI AVVIAMENTO EA3100T/PS310TH |
| 22 |
MR00285552 |
MOLLA EA3100T/PS310TH |
| 23 |
MR00020299 |
E-RING #4 EA3100T/PS310TH |
| 24 |
MR00285556 |
GRUPPO BOBINA ACCENSIONE EA3100T/P |
| 25 |
MR00286095 |
BOBINA ACCENSIONE EA3100T/PS310TH |
| 26 |
MR00286096 |
CAVO ASS'Y EA3100T/PS310TH |
| 27 |
MR00286097 |
CAVO EA3100T/PS310TH |
| 28 |
MR00261074 |
PLUG BOOT EA3100T/PS310TH |
| 29 |
MR00261075 |
CONNETTORE EA3100T/PS310TH |
| 30 |
MR00261072 |
TAPPO EA3100T/PS310TH |
| 31 |
MR00261076 |
CHIAVETTA 3X10 EA3100T/PS |
| 32 |
MR00285472 |
GUARNIZIONE EA3100T/PS310TH |
| 33 |
MR00262483 |
CANDELA NGK BPMR67 EA3100T |
| 34 |
MR00264223 |
VITE A TAPPO M5X40 EA3100T/PS310 |
| 35 |
MR00285535 |
GRUPPO FRIZIONE EA3100T/PS310TH |
| 36 |
MR00285655 |
GANASCIA FRIZIONE EA3100T/PS310TH |
| 37 |
MR00285656 |
MOLLA EA3100T/PS310TH |
| 38 |
MR00285537 |
RONDELLA 8X26XT2 EA3100T/PS310 |
| 39 |
MR00286238 |
TAMBURO FRIZIONE PER EA3100T |
| 40 |
MR00285624 |
CUSCINETTO AGO 10X13X13 EA310 |
| 41 |
MR00285833 |
SILENZIATORE ASS'Y EA3100T/PS310TH |
| 42 |
MR00281211 |
VITE M4X20 EA3100T/PS310 |
| 43 |
MR00261417 |
DADO M8 EA3100T/PS310TH |

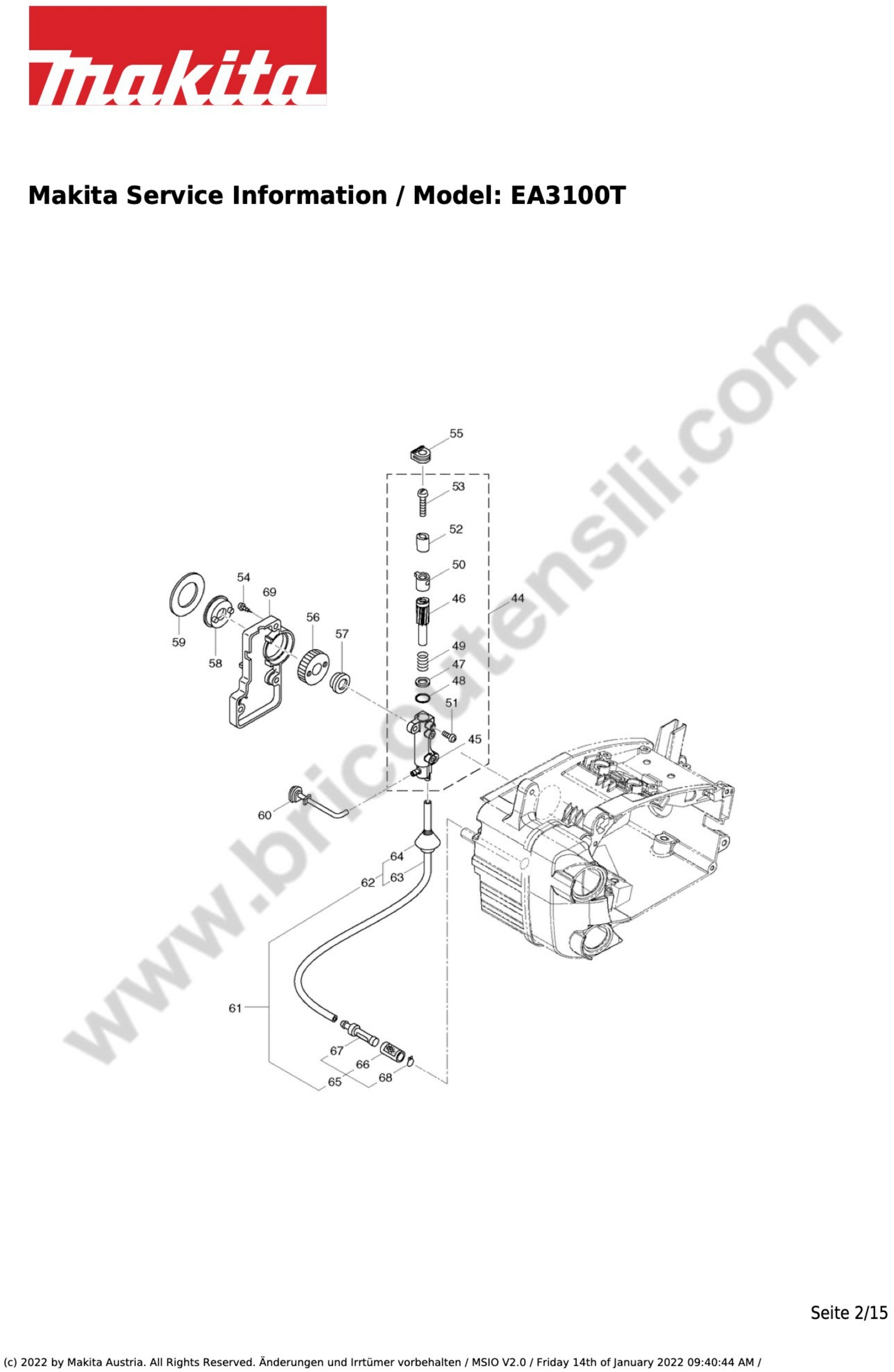

| 44 |
MR00286816 |
GRUPPO POMPA OLIO EA3100T/PS310 |
| 45 |
MR00285527 |
CORPO POMPA EA3100T/PS310TH |
| 46 |
MR00285550 |
INGRANAGGIO RUOTA EA3100T/PS310TH |
| 47 |
MR00286801 |
RONDELLA 6.5X9.8XT0.5 EA3100T/ |
| 48 |
MR00014759 |
O-RING EA3100T/PS310TH |
| 49 |
MR00285551 |
MOLLA EA3100T/PS310T |
| 50 |
MR00285534 |
TAPPO POMPA EA3100T/PS310TH |
| 51 |
MR00285630 |
VITE M3X8 EA3100T/PS310TH |
| 52 |
MR00288184 |
MANICA EA3100T/PS310TH |
| 53 |
MR00285617 |
VITE M4X25 EA3100T/PS310TH |
| 54 |
MR00285631 |
VITE M4X16 EA3100T/PS310TH |
| 55 |
MR00285528 |
GOMMINO PER EA3100T100T |
| 56 |
MR00286303 |
INGRANAGGIO A VITE SENZA FINE EA3100T/PS310TH |
| 57 |
MR00286843 |
BUSSOLA EA3100T/PS310TH |
| 58 |
MR00286305 |
BUSSOLA PER EA3100T |
| 59 |
MR00286241 |
RONDELLA EA3100T/PS310TH |
| 60 |
MR00285522 |
TUBO OLIO A EA3100T/PS310TH |
| 61 |
MR00286802 |
TUBO OLIO B ASS'Y EA3100T/PS31 |
| 62 |
MR00285523 |
TUBO OLIO B ASS'Y EA3100T/PS31 |
| 63 |
MR00265725 |
TUBO L=220 EA3100T/PS310TH |
| 64 |
MR00261339 |
GROMMET EA3100T/PS310TH |
| 65 |
MR00286818 |
GRUPPO FILTRO OLIO EA3100T/PS3 |
| 66 |
MR00285524 |
FILTRO OLIO EA3100T/PS310TH |
| 67 |
MR00285525 |
CORPO FILTRO OLIO EA3100T/PS310 |
| 68 |
MR00261117 |
CLIP EA3100T/PS310TH |
| 69 |
MR00285598 |
COPERCHIO POMPA OLIO EA3100T/PS310T |

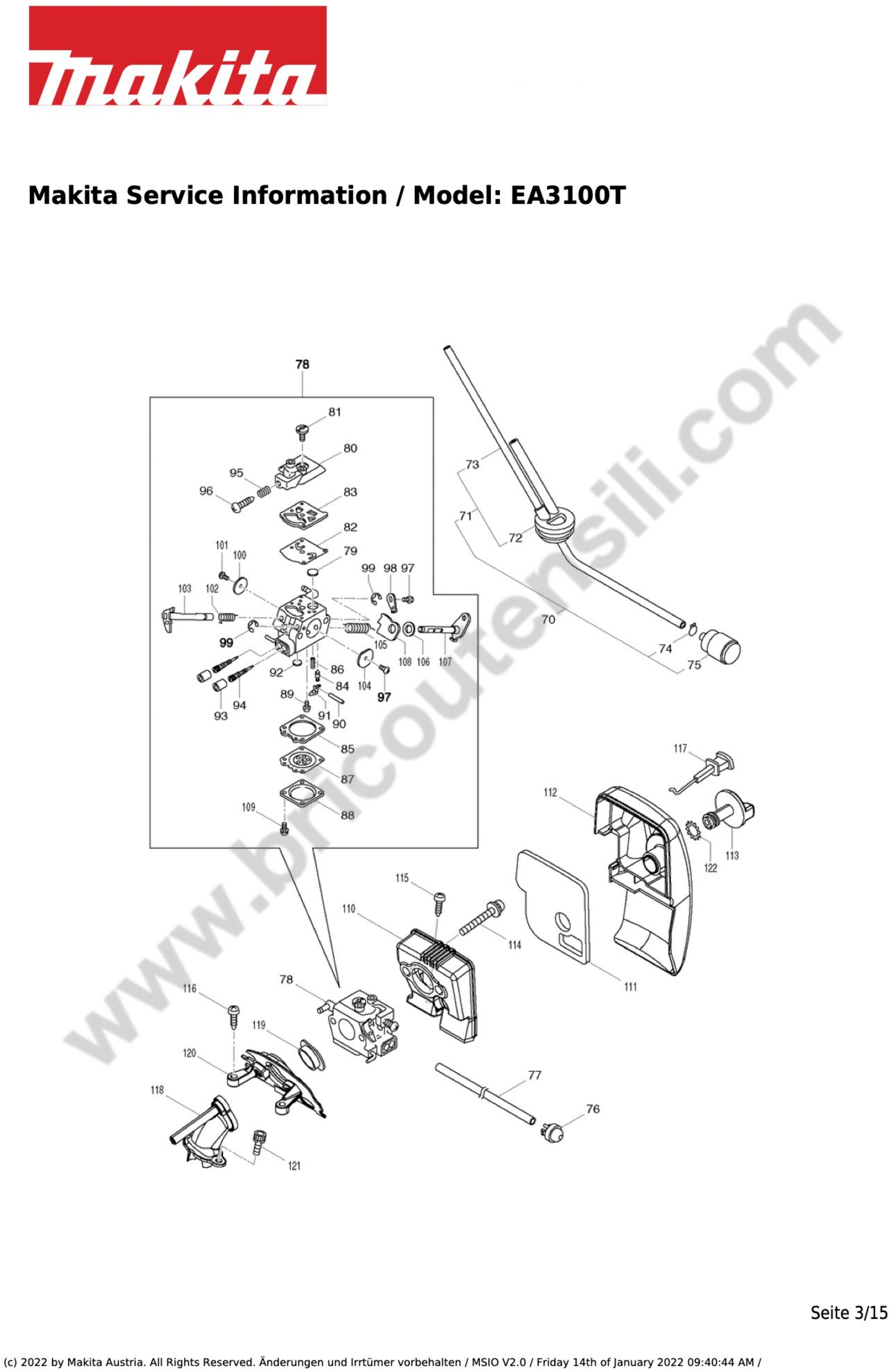

| 70 |
MR00285488 |
GRUPPO TUBO CARBURANTE EA3100T/PS310 |
| 71 |
MR00285489 |
TUBO ASS'Y EA3100T/PS310TH |
| 72 |
MR00285490 |
BOCCOLA CARBURANTE EA3100T/PS310TH |
| 73 |
MR00285491 |
TUBO CARBURANTE A 3X5 L=222 EA3100T |
| 74 |
MR00261117 |
CLIP EA3100T/PS310TH |
| 75 |
MR00264653 |
*GRUPPO FILTRO EA3100T/PS310T |
| 76 |
MR00282299 |
POMPA ADESCAMENTO PER EA3100T |
| 77 |
MR00285492 |
TUBO CARBURANTE B 2.4X5 L=145 EA31 |
| 78 |
MR00285643 |
GRUPPO CARBURATORE EA3100T/PS31 |
| 79 |
MR00261872 |
SCHERMO EA3100T/PS310T |
| 80 |
MR00287168 |
COPERCHIO POMPA EA3100T/PS310TH |
| 81 |
MR00287169 |
VITE EA3100T/PS310TH |
| 82 |
MR00287170 |
MEMBRANA EA3100T/PS310TH |
| 83 |
MR00287171 |
GUARNIZIONE EA3100T/PS310TH |
| 84 |
MR00262986 |
VALVOLA AD AGO EA3100T/PS310TH |
| 85 |
MR00263727 |
GUARNIZIONE EA3100T/PS310TH |
| 86 |
MR00287172 |
MOLLA EA3100T/PS310TH |
| 87 |
MR00283905 |
MISURATORE A MEMBRANA EA3100T/P |
| 88 |
MR00263726 |
PIASTRA DI COPERTURA EA3100T/PS310TH |
| 89 |
MR00287173 |
VITE EA3100T/PS310TH |
| 90 |
MR00262989 |
PERNO LEVA EA3100T/PS310TH |
| 91 |
MR00262990 |
LEVA EA3100T/PS310TH |
| 92 |
MR00287174 |
SPINA EA3100T/PS310TH |
| 93 |
MR00287251 |
TAPPO EA3100T/PS310TH |
| 94 |
MR00287252 |
AGO EA3100T/PS310TH |
| 95 |
MR00287178 |
MOLLA EA3100T/PS310TH |
| 96 |
MR00287179 |
VITE DI REGOLAZIONE DEL MINIMO EA3100T/PS3 |
| 97 |
MR00287180 |
VITE EA3100T/PS310TH |
| 98 |
MR00287181 |
LEVA EA3100T/PS310TH |
| 99 |
MR00287182 |
ANELLO EA3100T/PS310TH |
| 100 |
MR00287183 |
VALVOLA A FARFALLA EA3100T/PS310T |
| 101 |
MR00287184 |
VITE EA3100T/PS310TH |
| 102 |
MR00287185 |
MOLLA EA3100T/PS310TH |
| 103 |
MR00287186 |
ALBERO EA3100T/PS310TH |
| 104 |
MR00287187 |
VALVOLA ARIA EA3100T/PS310TH |
| 105 |
MR00287188 |
MOLLA EA3100T/PS310TH |
| 106 |
MR00287189 |
RONDELLA EA3100T/PS310TH |
| 107 |
MR00287190 |
ALBERO EA3100T/PS310TH |
| 108 |
MR00287191 |
LEVA EA3100T/PS310TH |
| 109 |
MR00287192 |
VITE EA3100T/PS310TH |
| 110 |
MR00285539 |
CORPO PULITORE EA3100T/PS310TH |
| 111 |
MR00285584 |
FILTRO ARIA PER EA3100T |
| 112 |
MR00285579 |
COPERCHIO FILTRO ARIA EA3100T |
| 113 |
MR00285540 |
MANOPOLA PER EA3100T |
| 114 |
MR00285633 |
VITE M5X45 EA3100T/PS310TH |
| 115 |
MR00285631 |
VITE M4X16 EA3100T/PS310TH |
| 116 |
MR00285631 |
VITE M4X16 EA3100T/PS310TH |
| 117 |
MR00285580 |
ASTA ARIA EA3100T/PS310TH |
| 118 |
MR00285495 |
ISOLANTE EA3100T/PS310TH |
| 119 |
MR00286782 |
ANELLO EA3100T/PS310TH |
| 120 |
MR00285497 |
PIASTRA EA3100T/PS310TH |
| 121 |
MR00285618 |
BULLONE M4X12 EA3100T/PS310TH |
| 122 |
MR00288404 |
RONDELLA EA3100T/PS310TH |

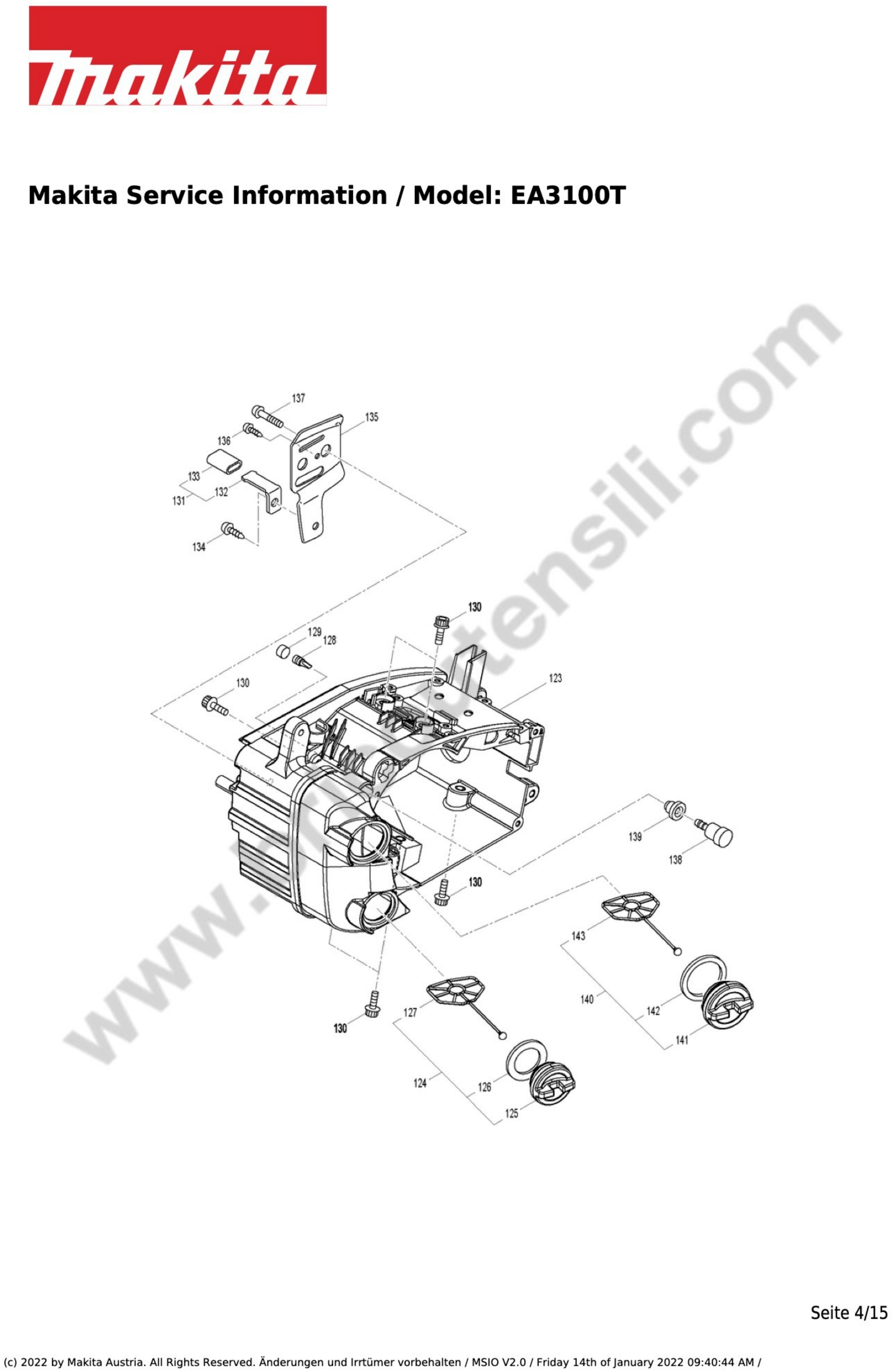

| 123 |
MR00285694 |
COPERCHIO CILINDRO PER EA3100T |
| 124 |
MR00285501 |
GRUPPO TAPPO OLIO EA3100T/PS310TH |
| 125 |
MR00285502 |
TAPPO OLIO EA3100T/PS310TH |
| 126 |
MR00285503 |
IMBALLO EA3100T/PS310TH |
| 127 |
MR00285504 |
SUPPORTO EA3100T/PS310TH |
| 128 |
MR00285574 |
RESPIRATORE EA3100T/PS310TH |
| 129 |
MR00285526 |
ELEMENTO EA3100T/PS310TH |
| 130 |
MR00285632 |
BULLONE M5X16 EA3100T/PS310TH |
| 131 |
MR00286803 |
CATENA CATENA ASS'Y EA3100T/P |
| 132 |
MR00285583 |
CATENA CATENA EA3100T/PS310TH |
| 133 |
MR00285585 |
TUBO 7X10.5 L=18 EA3100T/PS31 |
| 134 |
MR00285634 |
VITE M5X14 EA3100T/9S310TH |
| 135 |
MR00285531 |
PIASTRA DI GUIDA L EA3100T/PS310TH |
| 136 |
MR00285627 |
VITE M3X8 EA3100T/PS310TH |
| 137 |
MR00286804 |
VITE M5X20X8 EA3100T/PS310T |
| 138 |
MR00285832 |
RESPIRATORE ASS'Y EA3100T/PS310T |
| 139 |
MR00285573 |
GROMMET DI SFIATO EA3100T/PS31 |
| 140 |
MR00286051 |
GRUPPO TAPPO CARBURANTE EA3100T/PS310T |
| 141 |
MR00286052 |
TAPPO CARBURANTE EA3100T/PS310TH |
| 142 |
MR00286063 |
IMBALLO EA3100T/PS310TH |
| 143 |
MR00285504 |
SUPPORTO EA3100T/PS310TH |

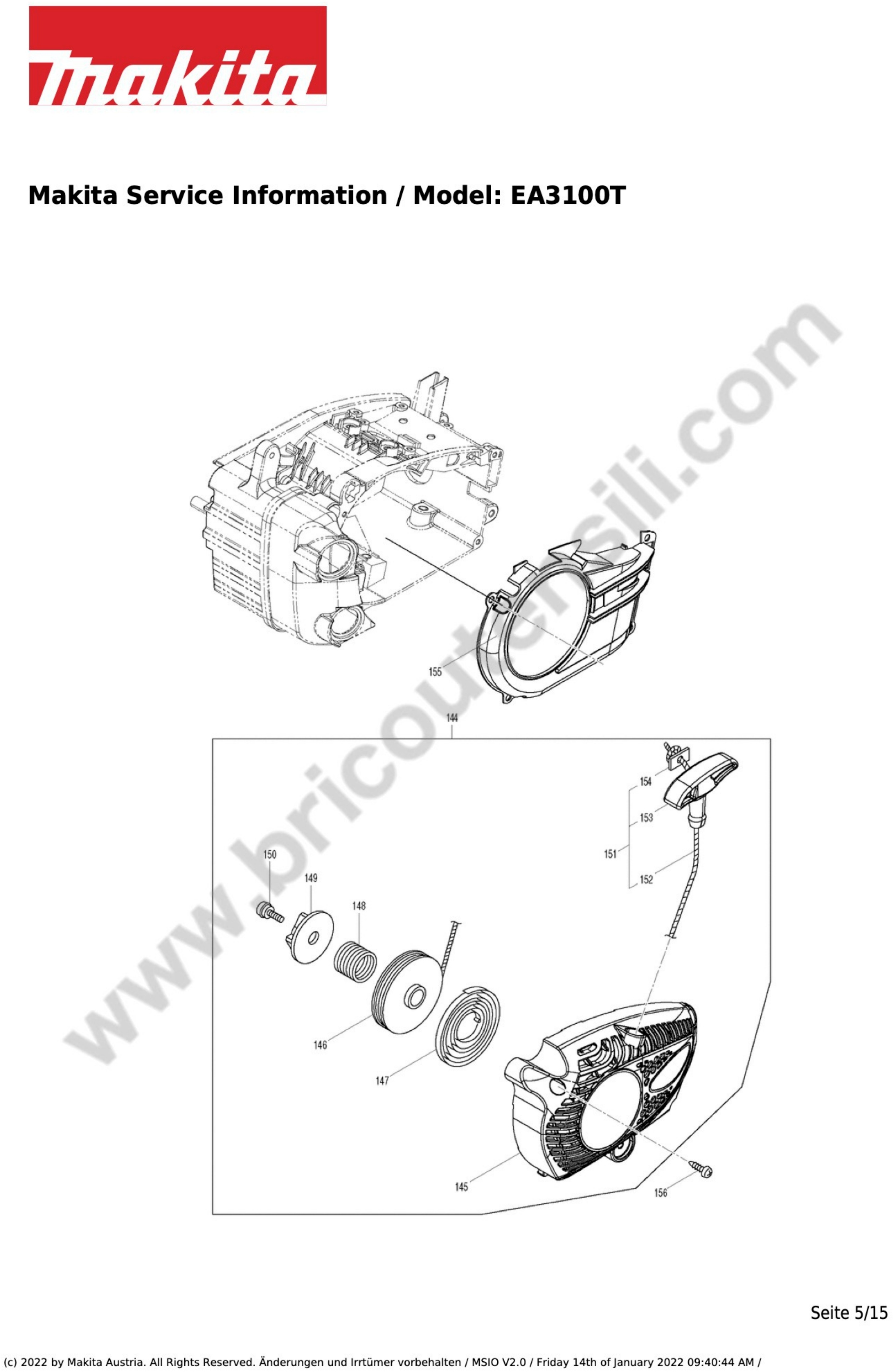

| 144 |
MR00288396 |
GRUPPO AVVIATORE COMPLETO EA3100T |
| 145 |
MR00288397 |
CUSTODIA AVVIAMENTO COMP EA3100T |
| 146 |
MR00283274 |
PULEGGIA AVVIAMENTO EA3100T/PS310TH |
| 147 |
MR00283275 |
MOLLA RIAVVOLGIMENTO |
| 148 |
MR00283276 |
MOLLA AMMORTIZZATORE EA3100T/PS310TH |
| 149 |
MR00285597 |
PIASTRA A CAMME EA3100T/PS310TH |
| 150 |
MR00267213 |
VITE EA3100T/PS310TH |
| 151 |
MR00285697 |
CORDA ASS'Y EA3100T/PS310TH |
| 152 |
MR00283279 |
CORDA AVVIAMENTO EA3100T/PS310TH |
| 153 |
MR00285581 |
MANOPOLA DI AVVIAMENTO EA3100T/PS310TH |
| 154 |
MR00283281 |
STOPPER CORDA EA3100T/PS310TH |
| 155 |
MR00285548 |
COPERTURA VENTOLA EA3100T/PS310TH |
| 156 |
MR00285631 |
VITE M4X16 EA3100T/PS310TH |

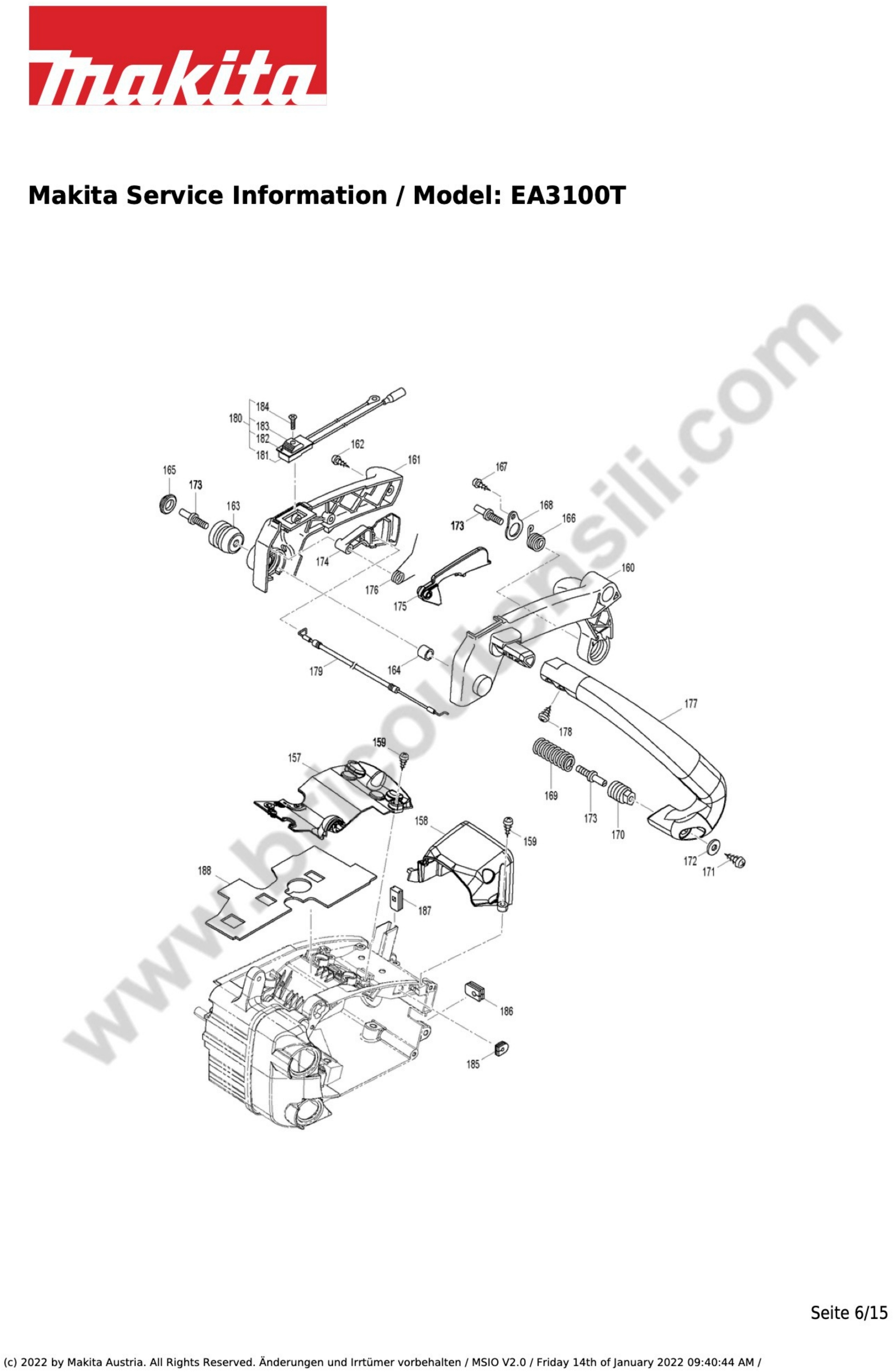

| 157 |
MR00285547 |
COPERTURA SUPERIORE EA3100T/PS310TH |
| 158 |
MR00286072 |
COPERCHIO CARBURATORE EA3100T/PS31 |
| 159 |
MR00285631 |
VITE M4X16 EA3100T/PS310TH |
| 160 |
MR00285620 |
BORSA CON IMPUGNATURA SUPERIORE EA3100T/PS31 |
| 161 |
MR00285621 |
COPERTURA IMPUGNATURA SUPERIORE EA3100T/PS31 |
| 162 |
MR00285635 |
VITE M4X14 EA3100T/PS310TH |
| 163 |
MR00285582 |
TAMPONE EA3100T/PS310TH |
| 164 |
MR00285565 |
TUBO EA3100T/PS310TH |
| 165 |
MR00285473 |
TAPPO EA3100T/PS310TH |
| 166 |
MR00285592 |
MOLLA EA3100T/PS310TH |
| 167 |
MR00285644 |
VITE M4X12 EA3100T/PS310TH |
| 168 |
MR00285645 |
SUPPORTO EA3100T/PS310TH |
| 169 |
MR00285593 |
MOLLA EA3100T/PS310TH |
| 170 |
MR00285604 |
PERNO EA3100T/PS310TH |
| 171 |
MR00285636 |
VITE M5X20 EA3100T/PS310TH |
| 172 |
MR00263743 |
RONDELLA 5.7X15.8XT2 EA3100T/PS |
| 173 |
MR00285474 |
BULLONE FERMO EA3100T/PS310TH |
| 174 |
MR00285602 |
LEVA ACCELERATORE PER EA3100T |
| 175 |
MR00285603 |
LEVA DI SICUREZZA EA3100T/PS310TH |
| 176 |
MR00285594 |
MOLLA EA3100T/PS310TH |
| 177 |
MR00285619 |
MANIGLIA LATERALE EA3100T/PS310TH |
| 178 |
MR00285634 |
VITE M5X14 EA3100T/9S310TH |
| 179 |
MR00285558 |
CAVO COMP EA3100T/PS310TH |
| 180 |
MR00286224 |
INTERRUTTORE ASS'Y EA3100T/PS310TH |
| 181 |
MR00286225 |
INTERRUTTORE EA3100T/PS310TH |
| 182 |
MR00286226 |
PIASTRINA |
| 183 |
MR00282171 |
MANOPOLA EA3100T/PS310TH |
| 184 |
MR00282172 |
VITE EA3100T/PS310TH |
| 185 |
MR00287300 |
ANELLO EA3100T/PS310TH |
| 186 |
MR00285549 |
ANELLO PER EA3100T |
| 187 |
MR00285642 |
ANELLO EA3100T/PS310TH |
| 188 |
MR00286002 |
GUARNIZIONE EA3100T/PS310TH |

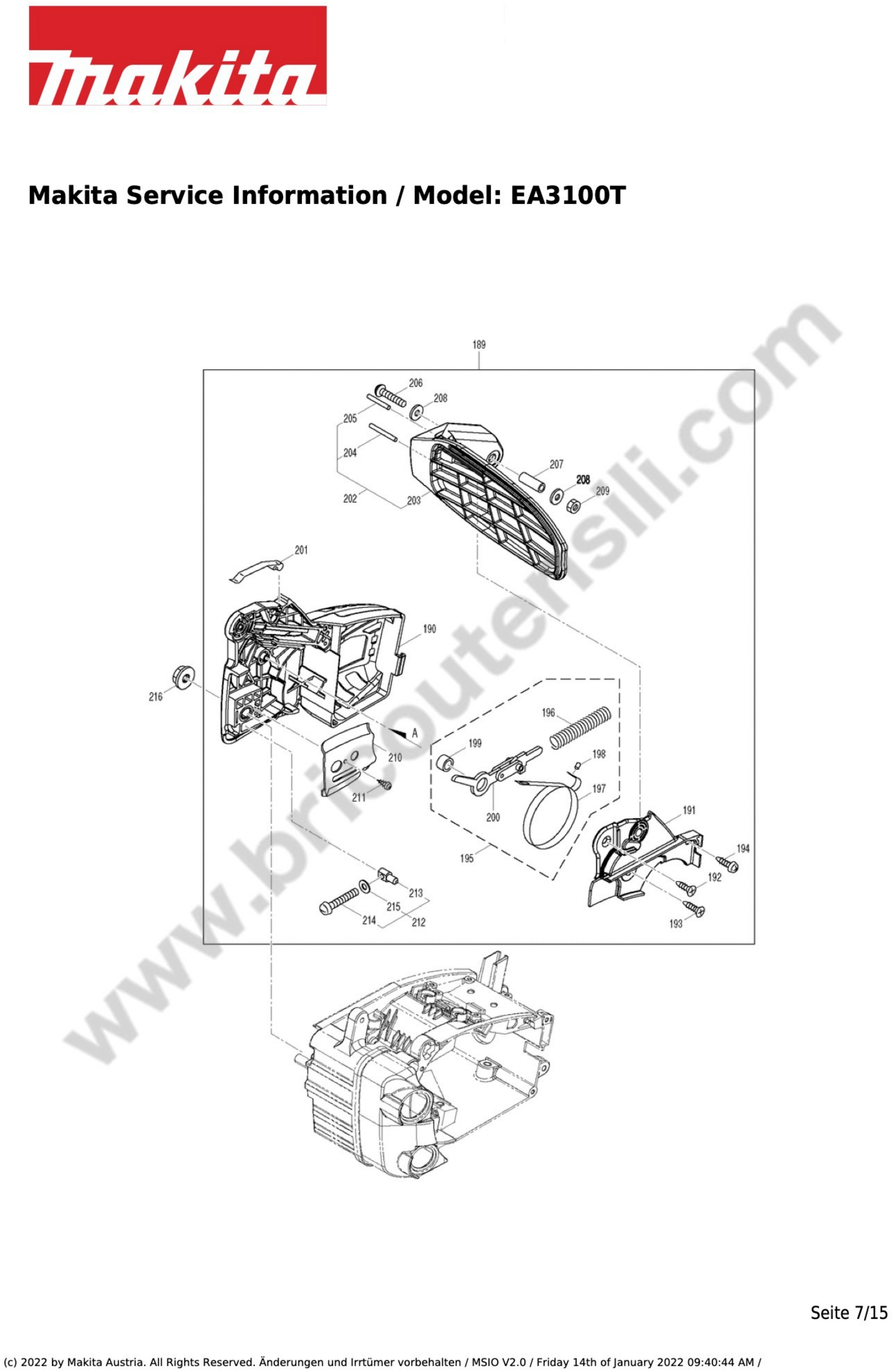

| 189 |
MR00288547 |
CATENA ASS'Y EA3100T |
| 190 |
MR00288543 |
PORTA CATENA EA3100T |
| 191 |
MR00288545 |
COPERTURA LATERALE EA3100 |
| 192 |
MR00285637 |
VITE M5X12 EA3100T/PS310TH |
| 193 |
MR00285639 |
VITE M4X14 EA3100T/PS310TH |
| 194 |
MR00285644 |
VITE M4X12 EA3100T/PS310TH |
| 195 |
MR00286823 |
FRENO CATENA |
| 196 |
MR00285605 |
MOLLA EA3100T/PS310TH |
| 197 |
MR00285572 |
FASCIA EA3100T/PS310TH |
| 198 |
MR00285560 |
PIN 3X9.8 EA3100T/PS310TH |
| 199 |
MR00285606 |
COLLO 8.2X12 L=7.2 EA3100T/P |
| 200 |
MR00285570 |
LEVA COMP EA3100T/PS310TH |
| 201 |
MR00285595 |
MOLLA DI RITORNO EA3100T/PS310TH |
| 202 |
MR00286057 |
PARTE ANTERIORE COMP EA3100T/PS31 |
| 203 |
MR00285578 |
PROTEZIONE ANTERIORE EA3100T/PS310TH |
| 204 |
MR00285563 |
PIN 3X29.8 EA3100T/PS310TH |
| 205 |
MR00286048 |
PIN 3X23.8L EA3100T/PS310TH |
| 206 |
MR00285638 |
VITE M5X30 EA3100T/PS310TH |
| 207 |
MR00285607 |
COLLO 5.2X7.5 L=22.5 EA3100T |
| 208 |
MR00286045 |
RONDELLA 5.3X15XT1.2 EA3100T/PS |
| 209 |
MR00285640 |
DADO M5X0.8 EA3100T/PS310TH |
| 210 |
MR00285532 |
PIASTRA DI GUIDA R EA3100T/PS310TH |
| 211 |
MR00285627 |
VITE M3X8 EA3100T/PS310TH |
| 212 |
MR00286060 |
GRUPPO TENDITORE EA3100T/PS310 |
| 213 |
MR00285564 |
BOSS EA3100T/PS310TH |
| 214 |
MR00285471 |
VITE M5X35 EA3100T/PS310TH |
| 215 |
MR00286004 |
*RONDELLA 5 EA3100T/PS310TH |
| 216 |
MR00283041 |
DADO M8 EA3100T/PS310TH |
| 217 |

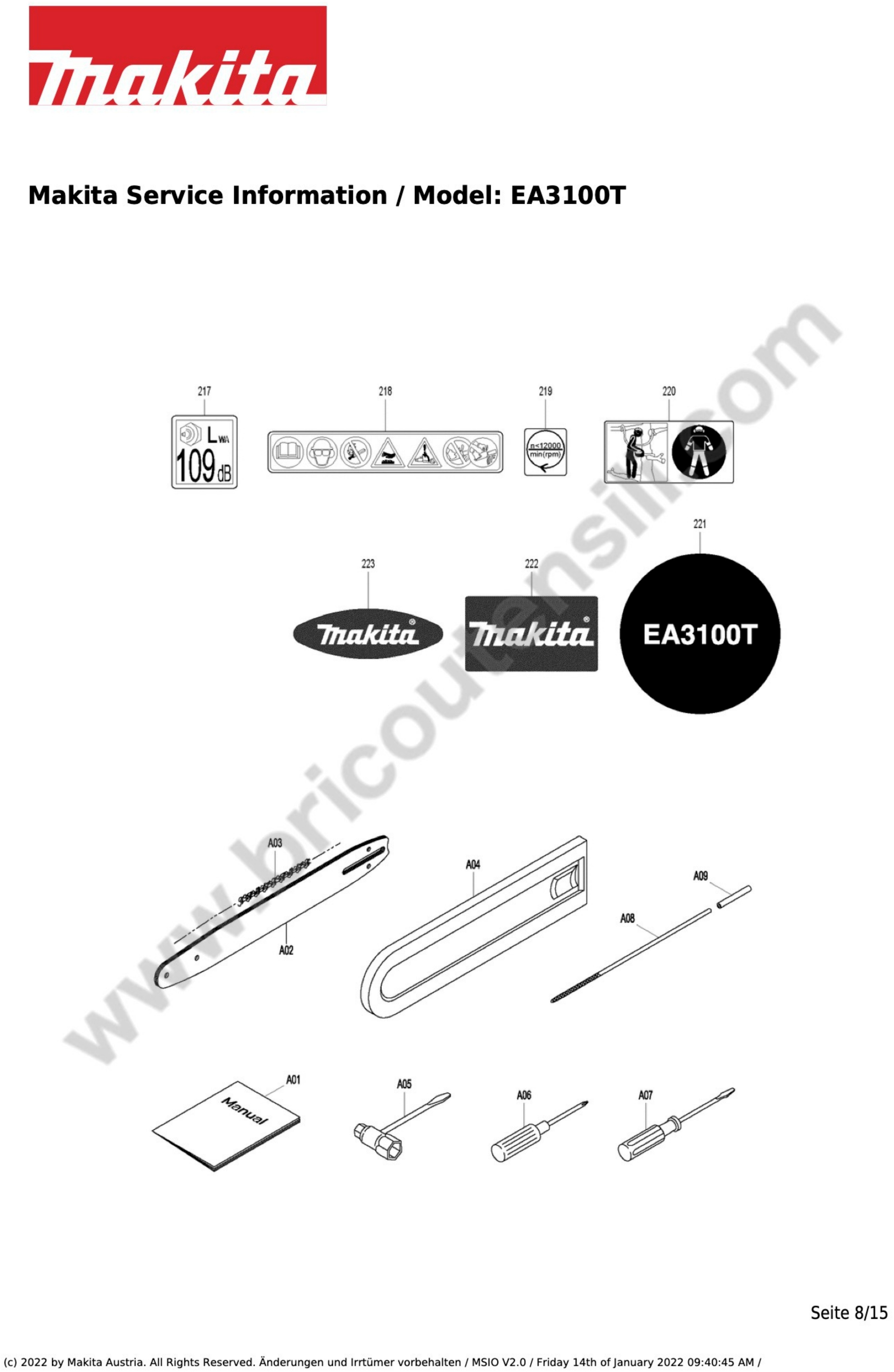

MR00287394 |
ETICHETTA/EA3100TPS310TH |
| 218 |
MR00287161 |
ETICHETTA/EA3100TPS310TH |
| 219 |
MR00287616 |
ETICHETTA/EA3100TPS310TH |
| 220 |
MR00287653 |
ETICHETTA/EA3100TPS310TH |
| 221 |
MR00288480 |
ETICHETTA MODELLO EA3100T |
| 222 |
MR00288481 |
ETICHETTA/LOGO MAKITA 1 EA3100T |
| 223 |
MR00288482 |
ETICHETTA/LOGO MAKITA X2 EA3100T |
| 0 |
0 |
CACCIAVITE EA3100T |
| 1001 |
MR00288625 |
ETICHETTA EA3100T |
| 1002 |
191G22-4 |
BARRA ROCCHETTO 3/8" X1,3MMX25CM |
| 1003 |
511492740 |
CATENA EXTRAGUARD MAGLIE 40 |
| 1004 |
791172-9 |
*LAMA A CATENA PS310TH/5012B |
| 1005 |
MR00285623 |
*LAMA A CATENA PS310TH |
| 1006 |
419559-0 |
COPERCHIO CATENA UC3530A/EA3201/EA |
| 1007 |
MR00285731 |
*CHIAVE A SCATOLA COMBI EA3100T/PS3 |
| 1008 |
MR00285732 |
CACCIAVITE EA3100T/PS310TH |
| 1009 |
MR00286865 |
CACCIAVITE EA3100T/PS310TH |
| 1010 |
MR00285729 |
LIMA EA3100T/PS310TH |
| 1011 |
MR00285730 |
MANICO LIMA EA3100T/PS310TH |
| 1012 |
MR00288821 |
COPERCHIO CATENA UC3530A/EA3201S35B EA3100T |
| 1013 |
MR00287622 |
TAG DI ATTENZIONE EA3100T/PS310TH |
English
