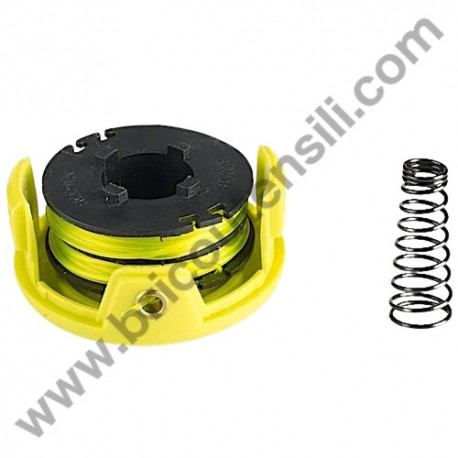

RYOBI RAC118 Dual Line Spool, Cap, and Spring (1.2mm)
Features
Compatible with: RLT3525S, RLT3525, and RLT3123.
Includes: Spool cap, dual-line spool, and spring (1.2mm line).
Technical Specifications
Line Diameter: 1.2mm (approx. 0.047")
Product Code: 5132002590
EAN Code: 4892210817662
Assembly Instructions
Here is the correct order for assembling or replacing the components on your Ryobi string trimmer. To ensure proper installation, insert the parts into the trimmer head starting from the inside out:
Spring: Insert this first into the center housing of the trimmer head. It provides the tension required for the "bump feed" mechanism.
Dual-Line Spool (1.2mm): Place the spool on top of the spring. Make sure the two lines are properly threaded through the side eyelets (slots) of the trimmer head.
Spool Cap (RAC118): Place the cap on last. Press down firmly to compress the spring and rotate it (or press the side clips) until it clicks securely into place.
RAC118 Summary
Compatibility: Ryobi RLT3525S, RLT3525, RLT3123.
Line Type: 1.2mm dual line (ideal for light grass and precision trimming).
Pro Tip: Before snapping the cap shut, make sure the ends of the line are pulled tight and aren't caught underneath the spool. This will prevent uneven vibrations during use.
