Product Description

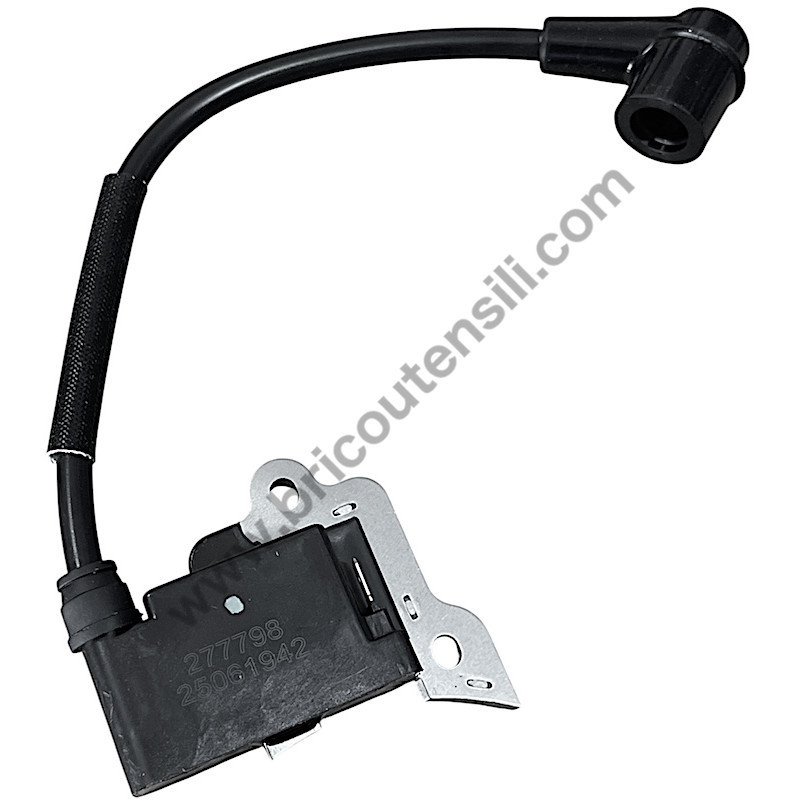

Instant Fire, Peak Performance: Genuine Maruyama Complete Ignition Coil
Make your outdoor power equipment roar back to life! Eliminate hard starts, power drops, and misfires with the genuine Maruyama Complete Ignition Coil Assembly (Part Number: 277798). This high-voltage ignition module includes all core components (including diagram references 46-50, such as the spark plug wire and protective boot) and is precision-calibrated to deliver a powerful, consistent electrical spark. It optimizes fuel combustion and maximizes engine efficiency even under heavy commercial loads.
Why choose a genuine Maruyama ignition coil?
Product Description
Instant Fire, Peak Performance: Genuine Maruyama Complete Ignition Coil
Make your outdoor power equipment roar back to life! Eliminate hard starts, power drops, and misfires with the genuine Maruyama Complete Ignition Coil Assembly (Part Number: 277798). This high-voltage ignition module includes all core components (including diagram references 46-50, such as the spark plug wire and protective boot) and is precision-calibrated to deliver a powerful, consistent electrical spark. It optimizes fuel combustion and maximizes engine efficiency even under heavy commercial loads.
Why choose a genuine Maruyama ignition coil?
Product Description
Instant Fire, Peak Performance: Genuine Maruyama Complete Ignition Coil
Make your outdoor power equipment roar back to life! Eliminate hard starts, power drops, and misfires with the genuine Maruyama Complete Ignition Coil Assembly (Part Number: 277798). This high-voltage ignition module includes all core components (including diagram references 46-50, such as the spark plug wire and protective boot) and is precision-calibrated to deliver a powerful, consistent electrical spark. It optimizes fuel combustion and maximizes engine efficiency even under heavy commercial loads.
Why choose a genuine Maruyama ignition coil?
Technical Specifications
Compatibility: Specifically tailored for professional Maruyama 2-stroke engines used on brushcutters, hedge trimmers, and mist blowers (always verify your exact model in the parts manual).
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s MARUYAMA websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to MARUYAMA brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
This spare part is used in the following machines:
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Safe Installation Instructions
Follow this precise sequence to install the new coil and set the critical air gap:
1
Preparation & Safety
Phase 1
Disconnect the old spark plug boot and ensure the stop switch is set to "OFF". Remove the upper plastic engine shroud to completely expose the flywheel and coil area.
2
Old Coil Removal
Phase 2
Disconnect the small ground/kill switch wire. Unscrew the mounting bolts holding the old coil in place, then remove the entire old assembly. Clean the area from dirt, grease, or carbon buildup.
3
Setting the Air Gap
Phase 3
Place the new Maruyama coil (277798) onto its mounts without tightening the bolts yet. Rotate the flywheel until the built-in magnets align directly with the poles of the coil. Insert a feeler gauge (or a thick business card, approx. 0.3-0.4 mm) between the flywheel magnets and the coil.
4
Tightening & Wiring
Phase 4
Let the magnets pull the coil tight against the thickness gauge, then securely torque down the mounting bolts. Slide the gauge out, reconnect the kill switch wire, snap the new boot onto the spark plug, and reassemble the engine shroud.
