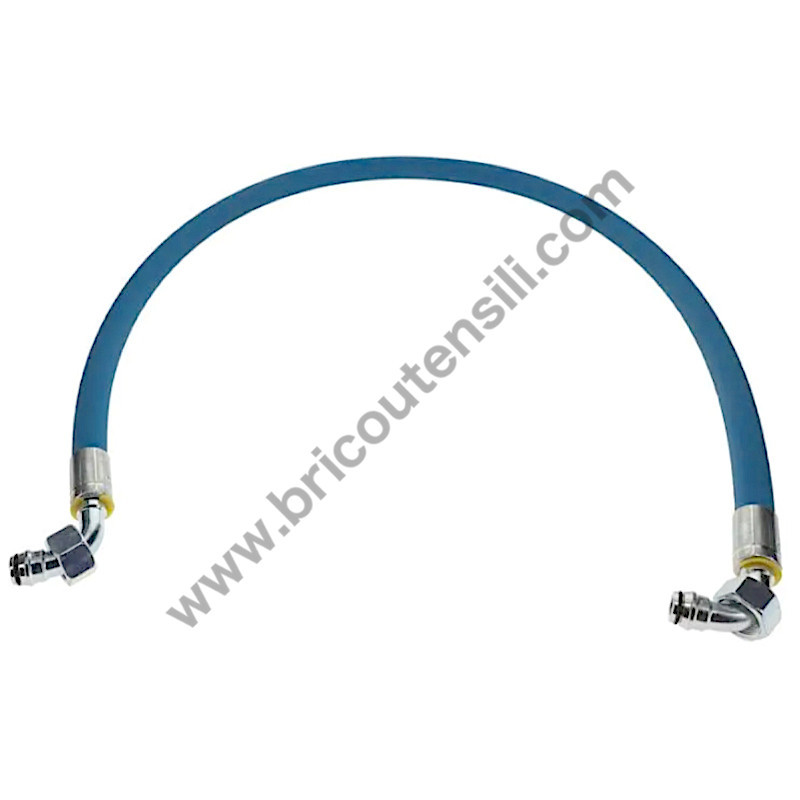

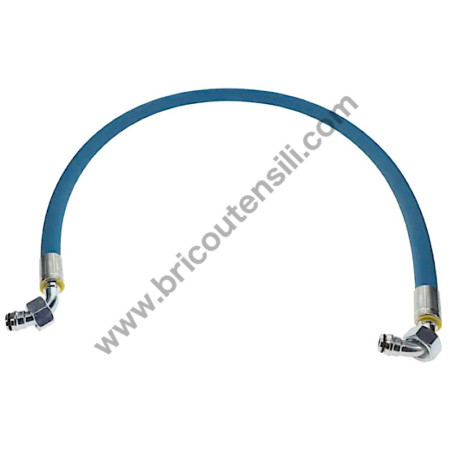

Atlas Copco 6245578300 FLEX HOSE LG1150 M22X1.5-DIN24

Flexible Hose 6245578300 – 1150 mm, M22 × 1.5, DIN24
The 6245578300 flexible hose assembly, listed under the original designation FLEXIBLE LG1150 M22X1.5-DIN24, is a replacement component featured in Atlas Copco spare parts catalogues.

This flexible hose is intended to provide a connection between components within a designated compressor circuit. Its flexible construction allows the hose to follow the required installation path and facilitates connection where a rigid pipe would not be suitable.

The nominal length and fitting configuration are key identification characteristics. Selecting a hose that matches the original equipment specifications helps ensure correct positioning and reduces the risk of mechanical stress, misalignment or installation difficulties.

Function and applications
The hose provides a flexible connection within the designated machine circuit. Its configuration must match the original installation, including the connection interfaces and the operating conditions of the system.

Typical applications include:
- Replacement of worn or damaged flexible hoses.
- Routine and corrective maintenance of compatible compressors.
- Restoration of the original connection layout.
- Maintenance procedures requiring a hose with the specified length and fitting arrangement.
The exact circuit function, including whether it carries compressed air, oil or another fluid, should be confirmed using the manufacturer's parts documentation for the specific compressor model.
Installation and technical recommendations
Before purchasing or installing the hose, verify the following parameters.

1. Part number compatibility

Confirm that part number 6245578300 is specified for the compressor model and serial number.

2. Hose length

The LG1150 designation indicates a nominal length of 1150 mm. Check the manufacturer's measurement convention against the original component.

3. M22 × 1.5 thread

The designation identifies a metric thread with a nominal diameter of 22 mm and a pitch of 1.5 mm. Verify the mating thread, sealing surfaces and fitting geometry before installation.

4. DIN24 fitting configuration

Refer to the technical drawing or official parts documentation to confirm the exact terminal design and sealing arrangement associated with the DIN24 designation.

5. Operating conditions

Ensure that the hose is suitable for the circuit's maximum operating pressure, temperature and working fluid.

6. Installation and inspection

Avoid twisting, excessive bending, abrasion and tensile loads on the fittings. Route the hose clear of moving parts and surfaces that could cause damage.

Installation must be performed by qualified personnel after the machine has been stopped, isolated from all energy sources and fully depressurized in accordance with the manufacturer's safety procedures.

Technical note: the hose material, internal diameter, maximum working pressure, temperature range and precise circuit function cannot be confirmed from the part designation alone. Consult the official technical documentation before specifying these values.
