Oil Separator 6221372550 for Oil-Injected Screw Compressors

Oil Separator 6221372550 for Oil-Injected Screw Compressors

Product Description:

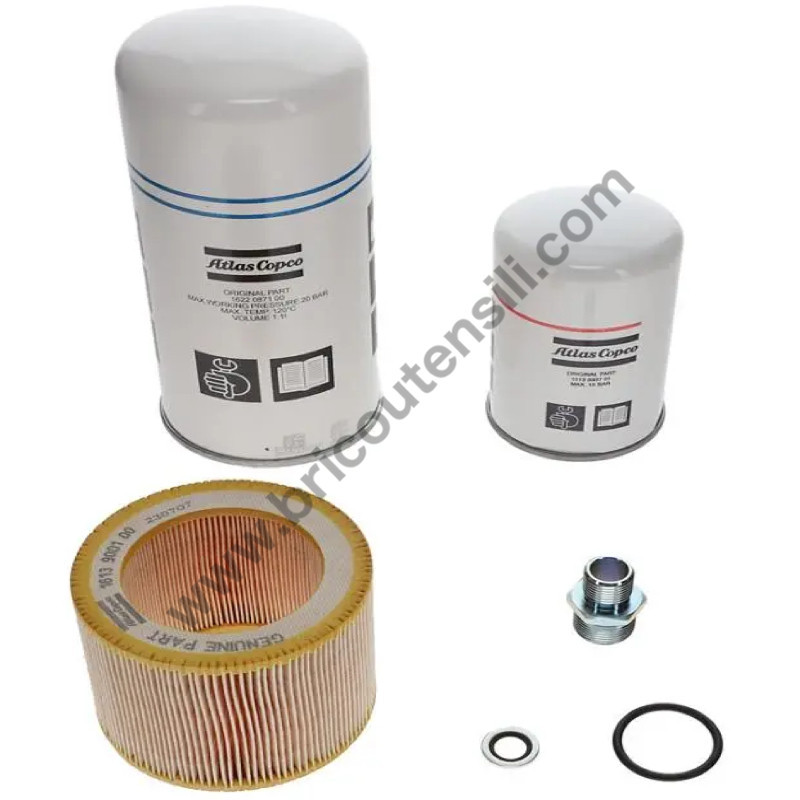

The GA5-11C Oil Separator Filter Kit is specially engineered for scheduled maintenance on oil-injected rotary screw air compressors manufactured in 2002. This kit plays a critical role in system efficiency by removing aerosolized oil particles and micro-droplets from compressed air, returning clean lubricant back into the cooling/lubrication circuit and delivering high-quality air downstream.

Operating with a clogged or degraded separator filter leads to excessive pressure drop ($\Delta P$), higher electrical consumption, and risk of oil carry-over into your compressed air piping.

- Technical & Maintenance Recommendations

- Replacement Interval: Replace the separator kit during routine service (typically every 2,000–4,000 operating hours or annually, depending on operating conditions and lubricant type).
- Static Grounding Check: Always ensure the static conductive staples/pins integrated into the separator gasket are correctly installed and making metal-to-metal contact with the vessel. This dissipates static electricity build-up, preventing internal sparks and potential fire hazards.
- Inspect the Scavenge Line: Clean or replace the scavenge line tube, orifice, and check valve when replacing the filter kit. A blocked scavenge line prevents collected oil from returning to the sump, causing severe oil carry-over into the air line.
- Complete Service Companion: Always replace the compressor lubricant, oil filter, and air inlet filter simultaneously to ensure contaminants do not prematurely plug the new separator element.

- Technical Specifications & Sales Info

- Weight: 1.66 kg
- Width: 210 mm
- Height: 120 mm
- Length: 220 mm
- Country of Origin: Germany (DE)
- Further Sales Information: G2-7 units: For serial numbers from ITJ510524 order 1837 0063 48 - See ECB CAII 0351.
