ABAC

ABAC A39B 270 CT4 Parts

SKU: ABAC A39B 270 CT4 4116007357
€15.36
VAT included

ABAC A39B 270 CT4 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A39B 270 CT4 4116007357 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
ABAC A39B 270 CT4 Parts
  • ABAC A39B 270 CT4 Parts
  • ABAC A39B 270 CT4 Parts Drawing Compressor Package
  • ABAC A39B 270 CT4 Parts Drawing Compressor Pump Unit
  • ABAC A39B 270 CT4 Parts Drawing Compressor Pump Unit Service Kits
  • ABAC A39B 270 CT4 Parts Drawing Compressor Pump Unit Lubricants
ABAC

ABAC A39B 270 CT4 Parts

SKU: ABAC A39B 270 CT4 4116007357 Condition: New
€15.36
VAT included

ABAC A39B 270 CT4 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A39B 270 CT4 4116007357 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 45 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
043
 photo_cameraImage coming soon 8973037580 Fan cover 4HP CI M100 €27.04
043
 photo_cameraImage coming soon 8973037861 Fan cover 4HP AL M100 €14.92
046
 photo_cameraImage coming soon 8973037575 Fan 4HP AH M100 50HZ €4.39
099
 photo_cameraImage coming soon 4116090651 Pump Unit €441.15
100
 photo_cameraImage coming soon 1127090003 Plug -receiver €1.18
104
 photo_cameraImage coming soon 6214343600 Handle €58.73
105
 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA 2236110537 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA €21.75
107
 photo_cameraImage coming soon 2236111480 Drain tap €11.80
108
 Pressure Reducer 1/2" for Air Compressors ABAC - BALMA 6214345100 Pressure Reducer 1/2" for Air Compressors ABAC - BALMA €58.68
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €10.14
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €7.87
112
 photo_cameraImage coming soon 6231943500 Fitting €11.13
114
 ABAC-BALMA Wheel Pin D.20MM 6214348500 ABAC-BALMA Wheel Pin D.20MM €2.76
117
 photo_cameraImage coming soon 2236105157 Knob €9.06
118
 photo_cameraImage coming soon 2236105466 Fitting €4.41
125
 photo_cameraImage coming soon 2901320282 Pulley Kit D150-1A-28 BUSH 1610 €45.70
126
 V-Belt A59 for Air Compressors ABAC - BALMA 6214632100 V-Belt A59 for Air Compressors ABAC - BALMA €10.07
131
 photo_cameraImage coming soon 2236112290 Pressure Switches 4V 3/8+MDR3/11-R3/10 10B €91.98
132
 photo_cameraImage coming soon 6256395600 Cable €69.59
135
 photo_cameraImage coming soon 6216128800 MOTOR HP 4 T V230/400 M100 €425.36
141
 photo_cameraImage coming soon 2236111660 Plastic Back Belt Guard PAT 38A / 39B €46.11
142
 Front Belt Guard for Air Compressor ABAC A29 50 CM2 2236111656 Front Belt Guard for Air Compressor ABAC A29 50 CM2 €29.22
145
 photo_cameraImage coming soon 2236112537 DELIVERY PIPE PAT38A/270 €21.80
152
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €6.89
153
 photo_cameraImage coming soon 1127080508 Pressure switch fitting €3.74
156
 photo_cameraImage coming soon 2236112587 Bracket €14.41
181
 photo_cameraImage coming soon 2236112088 KIT WHEEL D300 + 2 PIVOT BRAKE €123.57
350
 ABAC Flywheel Kit for Pump Unit A29B - PAT38 2901325050 ABAC Flywheel Kit for Pump Unit A29B - PAT38 €92.11
434
 photo_cameraImage coming soon 2236112174 Rear panel €216.28
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
004
 photo_cameraImage coming soon 2236111601 Crankshaft €72.80
030
 photo_cameraImage coming soon 0502210500 Bearing 6205 €8.74
034
 photo_cameraImage coming soon 6231630100 Oil Seal €2.87
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €15.18
310
 Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €35.92
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €34.95
340
 ABAC PAT24A-PAT38A Aftercooler Kit 2236112794 ABAC PAT24A-PAT38A Aftercooler Kit €15.68
345
 photo_cameraImage coming soon 2236112435 CYLINDER KIT PAT38 €71.94
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 2236111620 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 €56.47
360
 photo_cameraImage coming soon 2901325049 OIL LEVEL KIT €3.29
365
 ABAC Pump Unit PAT38 - NS19 Kit Crank Cover 2236112438 ABAC Pump Unit PAT38 - NS19 Kit Crank Cover €27.05
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
PK1
 Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €56.71
KM1
 ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €18.91
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €15.18
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €34.95
330
 ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.30
335
 ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €17.28
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 2236111620 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT38 - A39 €56.47
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €12.76
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €12.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC A39B 270 CT4 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A39B 270 CT4 4116007357 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
ABAC A39B 270 CT4 4116007357

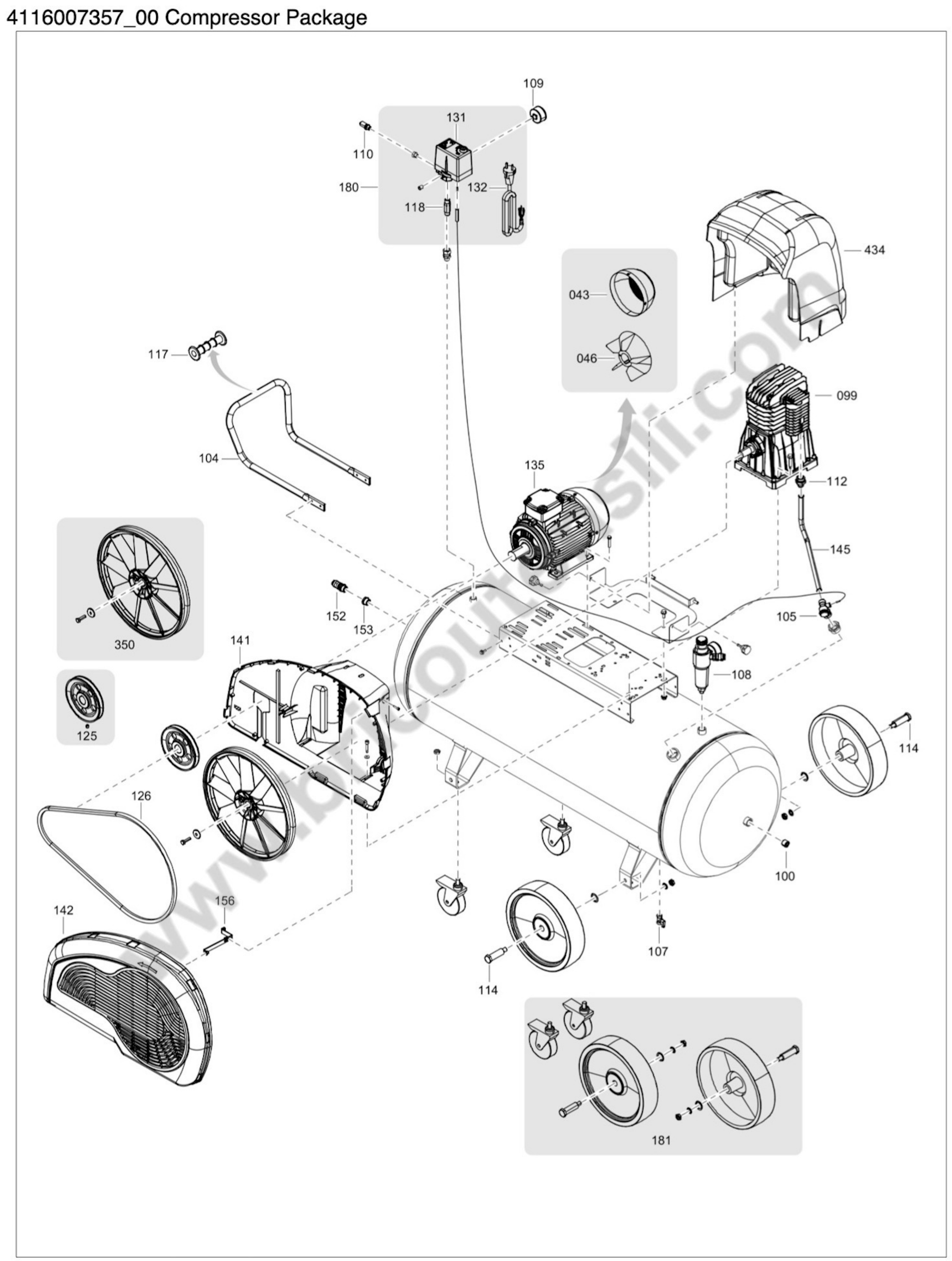

ABAC A39B 270 CT4 4116007357 Compressor Package Pag.1
Item Part No. Description
043 8973037861 Fan cover 4HP AL M100
043 8973037580 Fan cover 4HP CI M100
046 8973037933 Fan
046 8973037575 Fan 4HP AH M100 50HZ
099 4116090651 Pump Unit PAT38A SPARE GRAY
100 1127090003 Plug
104 6214343600 Handle
105 2236110537 Non return valve 3/4M-1/2M-1/8
107 2236111480 Ball valve 3/8+M
108 6214345100 Pressure reducer
109 6214345000 Pressure gauge 50 REAR 1/4 0/20
110 6210719900 Safety valve 3/8 TA-W 11B
112 6231943500 Delivery pipe fitting 3/4+ 1/2+C B 1000
114 6214348500 Wheel pin D20X59 HEX.
117 2236105157 Grip handler
118 2236105466 Pressure switch fitting
125 2901320282 Pulley kit D150-1A+BUSH-28 KIT
126 6214632100 Belt A59
131 2236112290 Pressure switch
132 6256395600 Pressure switch cable
135 6216128800 Motor MEC100 4HP 230/400V
141 2236111660 Beltguard rear PLASTIC PAT38A
142 2236111656 Beltguard front
145 2236112537 Delivery pipe
152 6231944100 Rapid fitting
153 1127080508 Reducer Fitting
156 2236112587 Bracket
180 2236111164 Pressure switch kit
181 2236112088 Wheels kit D300 + 2 PIVOT BRAKE
350 2901325050 Flywheel kit
434 2236112174 Rear panel

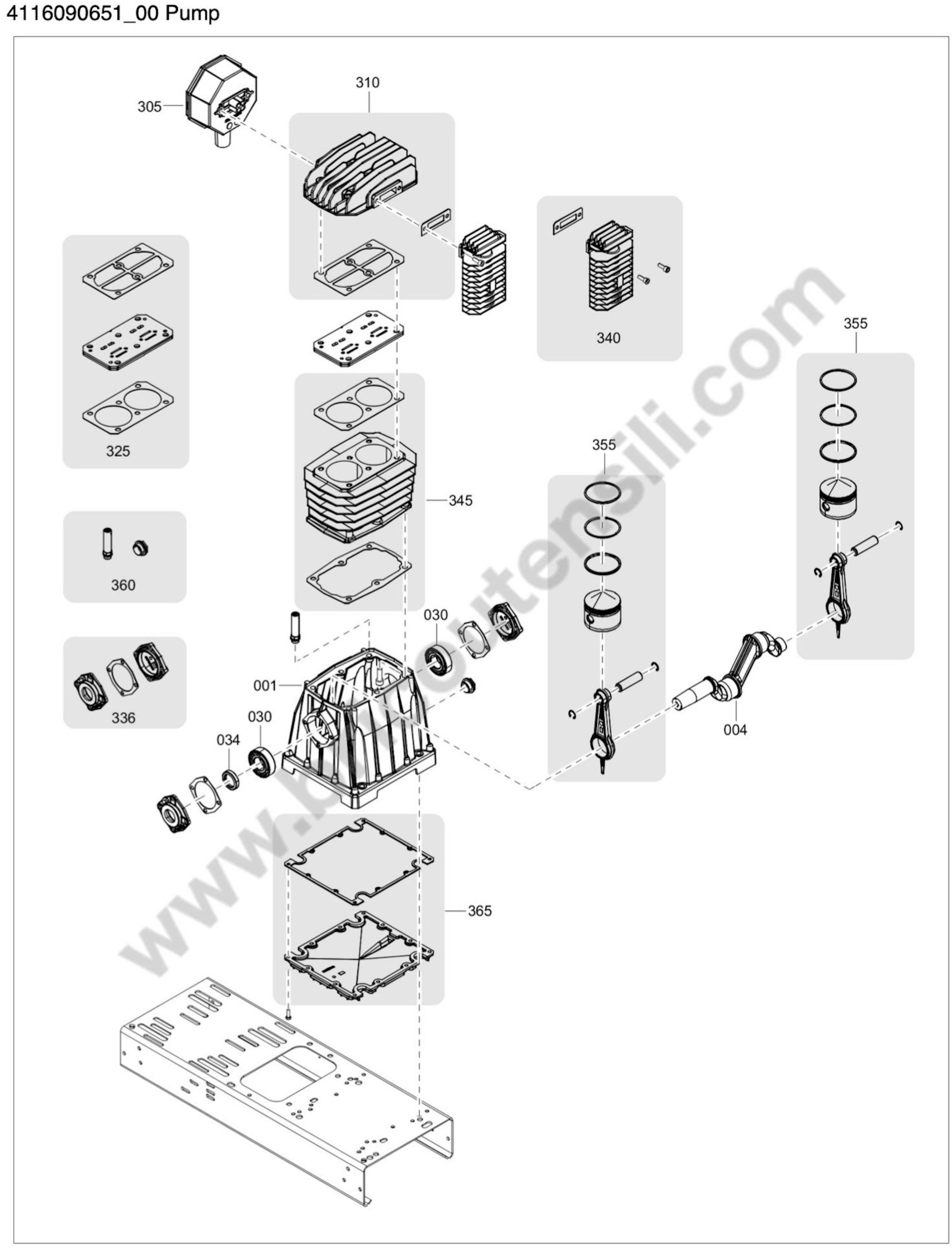

4116090651 Pump Pag.2
Item Part No. Description
001 2236111608 Crankcase
004 2236111601 Crankshaft
030 0502210500 Bearing 6205 C3
034 6231630100 Oil seal 35 X 25 X 7
305 2236112835 Air filter
310 2901325044 Cylinder head kit
325 2236112518 Valve plate kit
336 2236112436 Shaft seal kit
340 2236112794 Aftercooler kit
345 2236112435 Cylinder kit
355 2236111620 Conrod-piston kit
360 2901325049 Oil level kit
365 2236112438 Crankcase cover kit

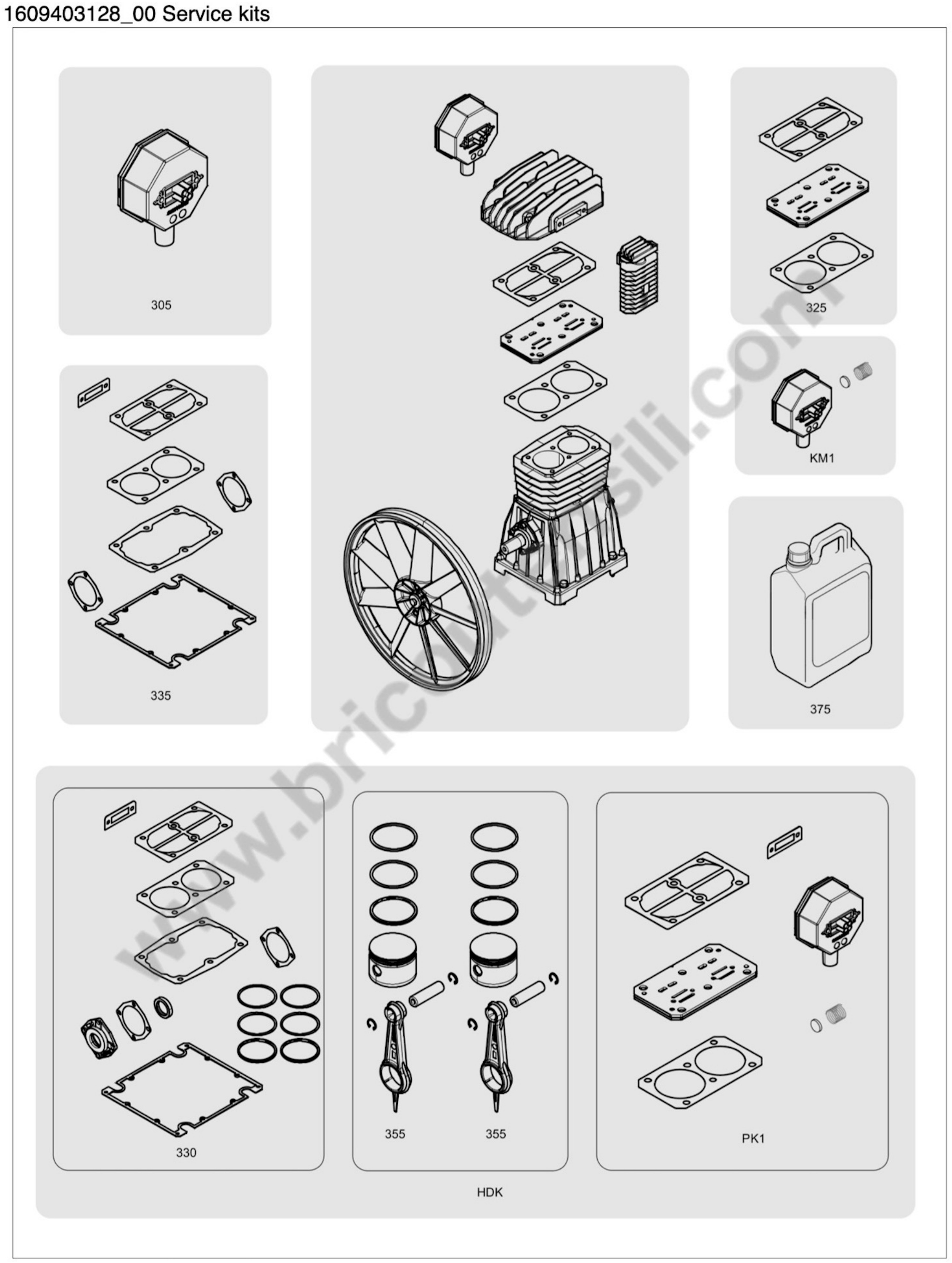

1609403128 Service kits Pag.3
Item Part No. Description
305 2236112835 Air filter
325 2236112518 Valve plate kit
330 2901325046 Upgrade kit
335 2901325045 All gasket kit
355 2236111620 Conrod-piston kit
375 1630020700 Can altair pro 1l
KM1 8973037864 Easy Kit
PK1 8973037657 Performance kit
HDK NA Heavy duty kit

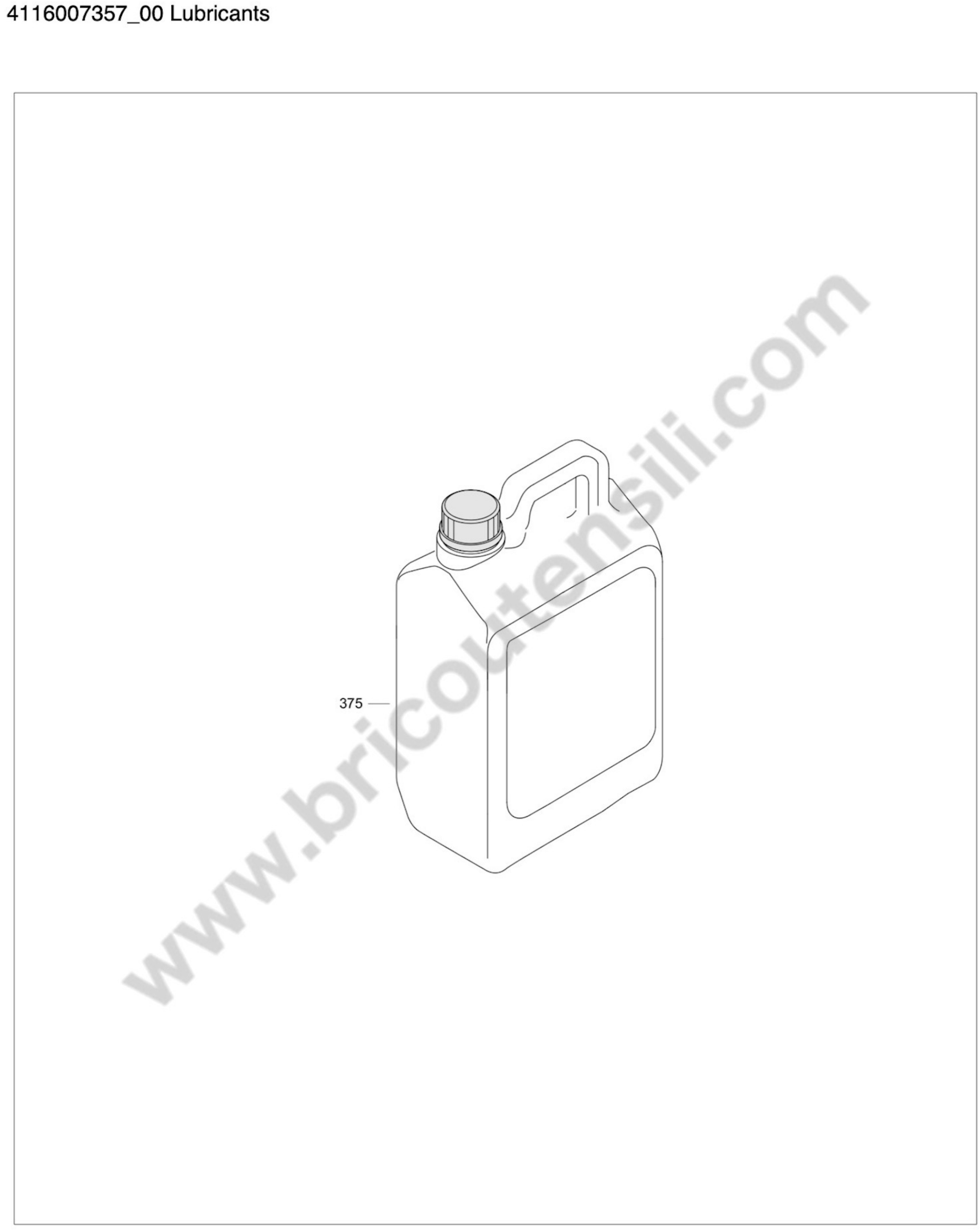

4116007357 Lubricants Pag.4
Item Part No. Description
375 1630020700 Can altair pro 1l
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
