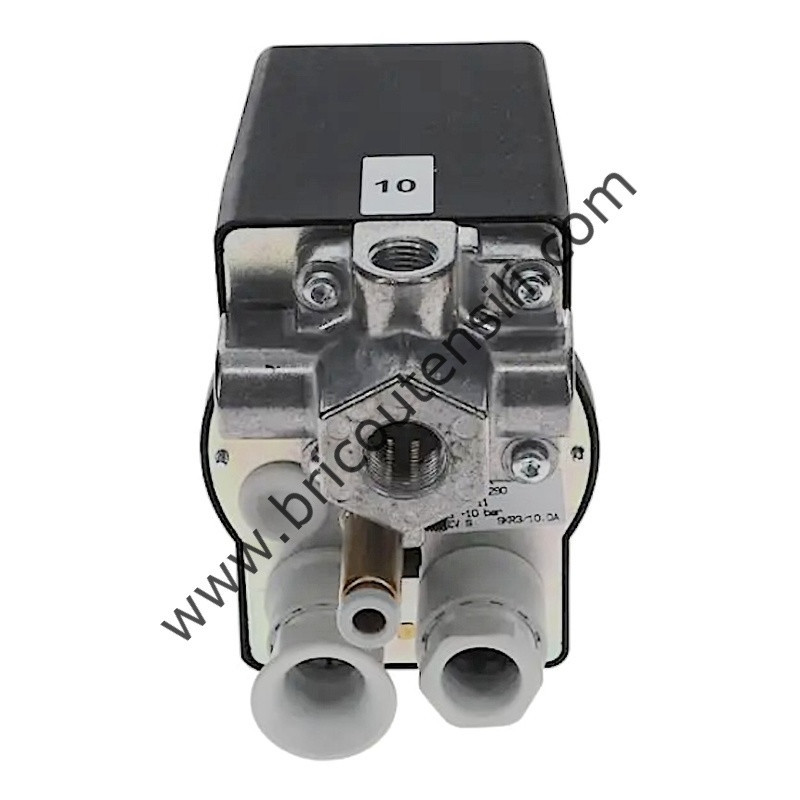

Original ABAC spare part - Pressure switch 4V 3/8+MDR3/11-R3/10 10B. Part number: 2236112290

Original ABAC 4-way pressure switch model MDR3/11 with R3/10 fitting, calibrated for a maximum pressure of 10 bar. An essential professional control component for the automatic and safe management of three-phase compressors (ideal for 4 to 5,5 HP powers).

Part for the following items:

• ABAC Pressure-Switches
• PRO B5900B 270 CT5.5 4116019770
• ABAC B3800BF-270 FT 4 4116019102
• ABAC A39B 270 CT4 4116007357
• PRO 270C4R 400 6270339910
• RCP-4961VNS 4116022884
• RCP-4961VNS 230 4116023920

Product description:

The ABAC 2236112290 pressure switch is a high-precision regulation device designed to monitor and manage compressor work cycles reliably. Featuring a 3/8" bottom connection and 1/4" side connections, it ensures a perfect seal and constant pressure control in compressed air systems. Dimensions: 210 mm (L) x 107 mm (W) x 205 mm (H).

• Original ABAC product
• 4-way configuration with MDR3/11 valve
• Suitable for three-phase systems (4-5.5 HP, 10 bar)
• Guaranteed compatibility for specific models
