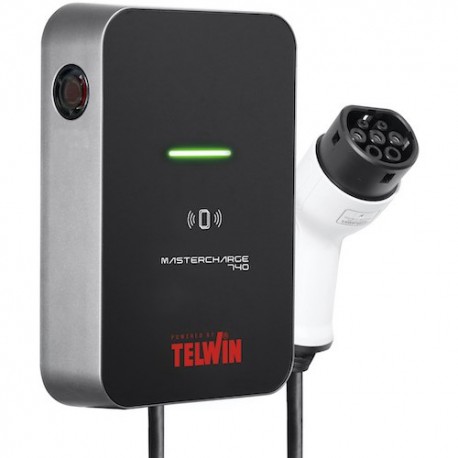

Charging Station for Electric Vehicles Mastercharge 740 Cod. 893002
MASTERCHARGE 740 230V
cod. 893002
Charging station for electric vehicles in AC alternating current (Mode 3).
Mastercharge is equipped with a built-in, 5-metre long charging cable with Type 2 connection and is suitable both for indoor and outdoor installations in protected zones (IP54, working temperature -20° C; +50° C).
Mastercharge can only be used via authentication with a RFID badge by authorised users only.
The charge status of the vehicle is always visible on the front led on the product.
Easy to install, Mastercharge is a plug-and-charge, safe and intuitive solution.
Features:
- 7,4 kW power (32A 230V singlephase);
- Mode 3 connection, Type 2 connector;
- 5-metre long cable;
- Activation via RFID badge (4 cards supplied);
- Rating IP54;
- Complies with LVD (EN 61851-1, EN 61851-22) and EMC (EN 61000-6-2, EN 61000-6-3) norms.
Technical data
- CODE 893002
- SINGLE PHASE MAINS VOLTAGE 230 V
- MAINS FREQUENCY 50 Hz
- MAX ABSORBED POWER 7,4 KW
- MAX CURRENT 32 A
- STAND-BY POWER 3
- EV CONNECTOR TYPE Type 2
- RECHARGE MODE Mode 3
- CABLE TYPE Case C
- PROTECTION DEGREE IP54
- OVERVOLTAGE CATEGORY III
- DIMENSIONS 32,5 x 21, 5 x 7,7 cm
- WEIGHT 4,5 kg
- EAN CODE 8056151818423
Ship on 10 Business days Approx.
