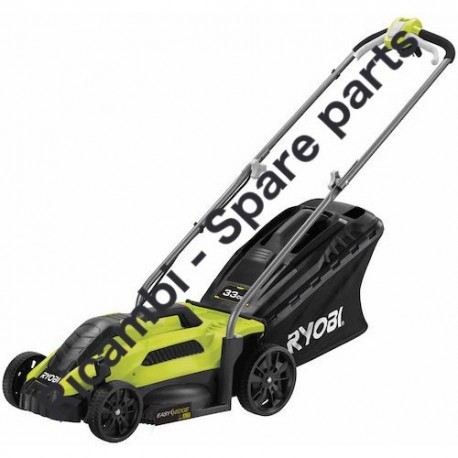

RYOBI RLM3313 Lawn Mower Parts

SKU: RYOBI RLM3313
€2.48
VAT included

RYOBI RLM3313 Lawn Mower Spare Parts

Fix Your Ryobi RLM3313 Lawn Mower. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Ryobi RLM3313
RYOBI RLM3313 Lawn Mower Parts
  • RYOBI RLM3313 Lawn Mower Parts
  • RYOBI RLM3313 Lawn Mower Parts Diagram

RYOBI RLM3313 Lawn Mower Parts

SKU: RYOBI RLM3313 Condition: New
€2.48
VAT included

RYOBI RLM3313 Lawn Mower Spare Parts

Fix Your Ryobi RLM3313 Lawn Mower. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Ryobi RLM3313
settings 82 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

73 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5131036998 SCREW Discontinued €2.41
2
photo_cameraImage coming soon 5131036504 PLASTIC ,GUARD FOR PLUG/099737 €3.96
3
photo_cameraImage coming soon 5131037000 CONNECTOR €7.83
4
photo_cameraImage coming soon 5131037001 COVER €2.69
5
photo_cameraImage coming soon 5131037002 SCREW €3.96
6
photo_cameraImage coming soon 5131037003 CONNECTOR €2.69
7
photo_cameraImage coming soon 5131037004 HOUSING €5.50
8
RYOBI RLM13E33S Switch Trigger 5131037006 RYOBI RLM13E33S Switch Trigger €4.07
9
photo_cameraImage coming soon 5131037005 TRIGGER €3.96
10
RYOBI RLM13E33S Switch 5131037007 RYOBI RLM13E33S Switch €10.21
11
photo_cameraImage coming soon 5131037008 SWITCH COVER  €3.96
12
photo_cameraImage coming soon 5131037009 HOUSING €6.27
13
photo_cameraImage coming soon 5131037010 SPRING €2.69
14
photo_cameraImage coming soon 5131037011 SWITCH BUTTON €3.96
15
photo_cameraImage coming soon 5131037012 TUBE €34.44
16
photo_cameraImage coming soon 5131042132 CORD GRIP €1.64
18
photo_cameraImage coming soon 5131042133 SCREW €5.50
19
photo_cameraImage coming soon 5131037017 TUBE €14.70
20
photo_cameraImage coming soon 5131037018 WING NUT €7.83
21
photo_cameraImage coming soon 5131037019 TUBE €14.70
23
photo_cameraImage coming soon 5131037021 SPRING €3.96
25
photo_cameraImage coming soon 5131037023 HOUSING €3.96
26
photo_cameraImage coming soon 5131036950 HANDLE €6.27
27
photo_cameraImage coming soon 5131036527 PLASTIC , MOTOR COVER/099737 €10.89
28
photo_cameraImage coming soon 5131036951 HOUSING CAP €30.92
29
photo_cameraImage coming soon 5131039251 MOTOR €113.39
30
photo_cameraImage coming soon 5131037028 BLOWER €5.50
31
photo_cameraImage coming soon 5131037029 DRIVING ROLL €9.55
32
photo_cameraImage coming soon 5131037030 PROTECTIVE CAP €3.96
33
photo_cameraImage coming soon 5131039255 NUT Item discontinued €4.73
34
photo_cameraImage coming soon 5131039256 BEARING Item discontinued €7.39
35
photo_cameraImage coming soon 5131039257 BRACKET €13.98
36
photo_cameraImage coming soon 5131039258 SPRING Item discontinued €4.73
37
photo_cameraImage coming soon 5131037035 STOP WASHER €3.96
38
photo_cameraImage coming soon 5131039260 SCREW Item discontinued €4.73
39
photo_cameraImage coming soon 5131039261 BEARING Item discontinued €7.39
40
photo_cameraImage coming soon 5131037038 SCREW €5.50
41
photo_cameraImage coming soon 5131037039 GUIDE WASHER €7.83
42
RYOBI RLM13E33S Driving Roll 5131037040 RYOBI RLM13E33S Driving Roll €14.19
43
RYOBI RLM13E33S Belt 4PJ457 5131037041 RYOBI RLM13E33S Belt 4PJ457 €16.25
44
RYOBI RLM13E33S Bearing 63022RS 5131037042 RYOBI RLM13E33S Bearing 63022RS €5.42
45
photo_cameraImage coming soon 5131037043 SCREW €3.96
47
RYOBI RLM13E33S Protective Cap 5131037045 RYOBI RLM13E33S Protective Cap €4.17
48
photo_cameraImage coming soon 5131037046 PLASTIC ,REAR WHEEL /099736 €14.82
49
photo_cameraImage coming soon 5131037047 BRACKET €3.96
51
photo_cameraImage coming soon 5131037049 HANDLE €3.96
53
photo_cameraImage coming soon 5131036949 AIR FLOW PLATE €7.81
54
photo_cameraImage coming soon 5131039270 HOUSING Item discontinued €61.74
55
photo_cameraImage coming soon 5131037053 PIN €3.96
56
photo_cameraImage coming soon 5131037052 SLEEVE €2.69
57
photo_cameraImage coming soon 5131033786 CONNECTOR €7.81
58
photo_cameraImage coming soon 5131033787 CONNECTOR €6.27
60
photo_cameraImage coming soon 5131033789 SPRING Item discontinued €4.73
62
photo_cameraImage coming soon 5131037056 PLASTIC ,REAR WHEEL /099736 €11.27
63
photo_cameraImage coming soon 5131037057 SHAFT €11.27
64
photo_cameraImage coming soon 5131037058 HANDLE €6.27
65
photo_cameraImage coming soon 5131037059 PIN €3.96
66
RYOBI RLM13E33S Clamping Flange 5131037060 RYOBI RLM13E33S Clamping Flange €4.07
67
RYOBI RLM13E33S Blade RAC420 Cm 33 5132002771 RYOBI RLM13E33S Blade RAC420 Cm 33 €21.66
68
photo_cameraImage coming soon 5131036557 BALDE BOLT M8*20/WHITE ZN-PLATED/099737 €3.96
69
photo_cameraImage coming soon 5131037062 DEFLECTOR €5.50
70
RYOBI RLM13E33S Housing 5131037063 RYOBI RLM13E33S Housing €8.06
71
photo_cameraImage coming soon 5131037064 SET COLLAR €3.96
73
photo_cameraImage coming soon 5131037066 READJUSTING SPRING €2.69
74
photo_cameraImage coming soon 5131037067 DOOR €15.46
75
photo_cameraImage coming soon 5131037068 HOUSING €3.96
76
photo_cameraImage coming soon 5131037069 FRAME €14.70
77
photo_cameraImage coming soon 5131037070 CAPACITOR CLIP €3.96
78
photo_cameraImage coming soon 5131037071 CAPACITOR CLIP €3.96
79
photo_cameraImage coming soon 5131037072 COVER €21.56
80
photo_cameraImage coming soon 5131037073 HANDLE €4.73
81
photo_cameraImage coming soon 5131037074 BEVEL INDICATOR €3.96
82
photo_cameraImage coming soon 5131042134 GRASS-CATCHING BAG €34.78

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

RYOBI RLM3313 Lawn Mower Spare Parts

Fix Your Ryobi RLM13313 Lawn Mower. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Ryobi RLM3313

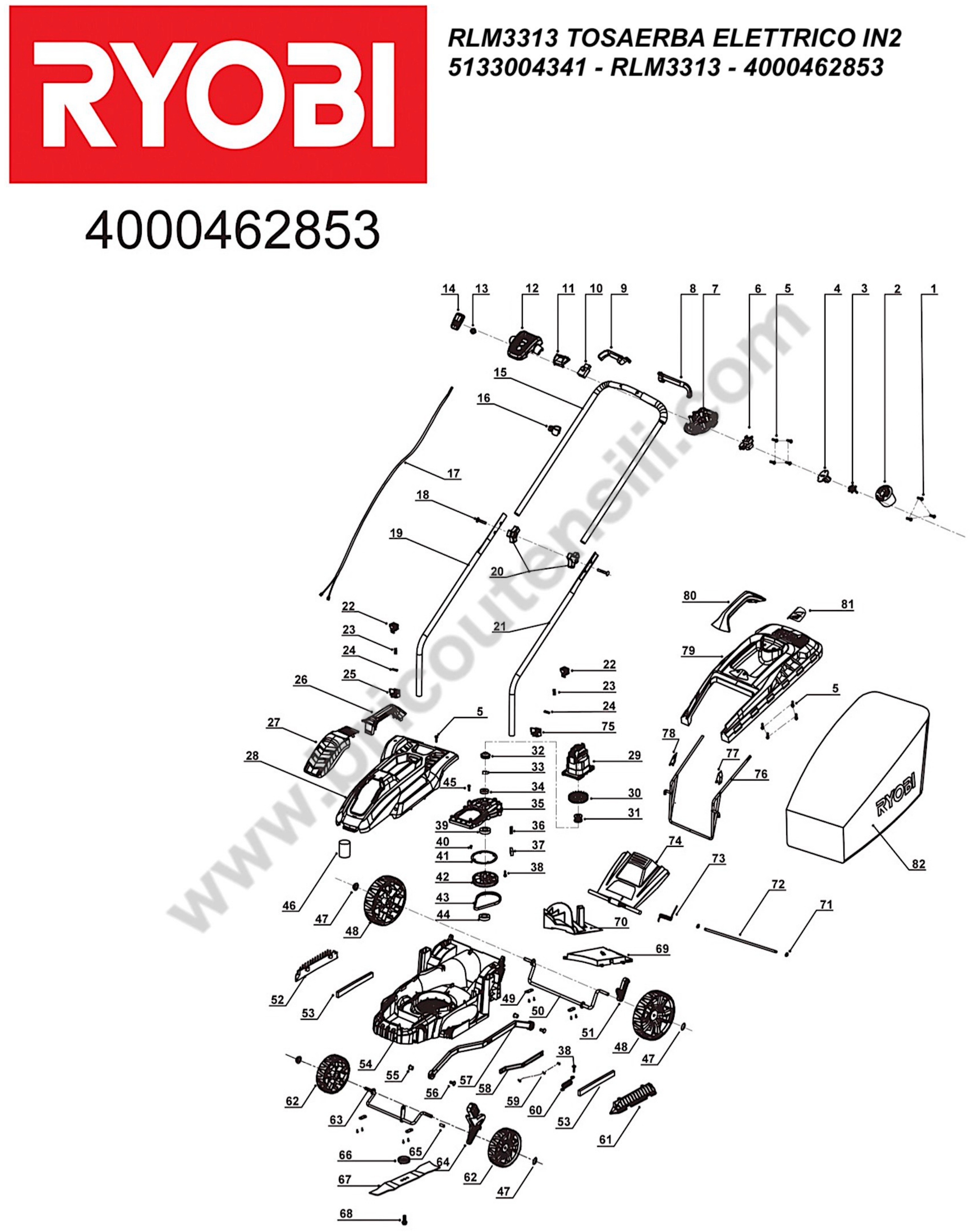

RLM3313 1300W 33CM LAWN MOWER EXCL IN2 PARTS
5133004341 - RLM3313 - 4000462853
Pag.1
# Part Num Description
1 5131036998 SCREW Item discontinued
2 5131036504 PLASTIC ,GUARD FOR PLUG/099737
3 5131037000 CONNECTOR
4 5131037001 COVER Item discontinued
5 5131037002 SCREW
6 5131037003 CONNECTOR
7 5131037004 HOUSING
8 5131037006 TRIGGER
9 5131037005 TRIGGER
10 5131037007 SWITCH
11 5131037008 SWITCH COVER
12 5131037009 HOUSING
13 5131037010 SPRING
14 5131037011 SWITCH BUTTON
15 5131037012 TUBE
16 5131042132 CORD GRIP
17 5131037015 WIRE Item discontinued
18 5131042133 SCREW
19 5131037017 TUBE
20 5131037018 WING NUT
21 5131037019 TUBE
22 5131037020 BUTTON Item discontinued
23 5131037021 SPRING Item discontinued
24 5131037022 PIN Item discontinued
25 5131037023 HOUSING
26 5131036950 HANDLE
27 5131036527 PLASTIC , MOTOR COVER/099737 Item discontinued
28 5131036951 HOUSING CAP
29 5131039251 MOTOR
30 5131037028 BLOWER
31 5131037029 DRIVING ROLL
32 5131037030 PROTECTIVE CAP
33 5131039255 NUT Item discontinued
34 5131039256 BEARING Item discontinued
35 5131039257 BRACKET
36 5131039258 SPRING Item discontinued
37 5131037035 STOP WASHER
38 5131039260 SCREW Item discontinued
39 5131039261 BEARING Item discontinued
40 5131037038 SCREW
41 5131037039 GUIDE WASHER
42 5131037040 DRIVING ROLL
43 5131037041 BELT
44 5131037042 BEARING
45 5131037043 SCREW
46 5131037044 BALANCE WEIGHT Item discontinued
47 5131037045 PROTECTIVE CAP
48 5131037046 WHEEL
49 5131037047 BRACKET
50 5131037048 SHAFT Item discontinued
51 5131037049 HANDLE
52 5131037050 AIR DEFLECTOR FENZ RIGHT Item discontinued
53 5131036949 AIR FLOW PLATE Item discontinued
54 5131039270 HOUSING Item discontinued
55 5131037053 PIN
56 5131037052 SLEEVE
57 5131033786 CONNECTOR
58 5131033787 CONNECTOR
59 5131033788 SCREW Item discontinued
60 5131033789 SPRING Item discontinued
61 5131037055 AIR DEFLECTOR RING Item discontinued
62 5131037056 WHEEL
63 5131037057 SHAFT
64 5131037058 HANDLE
65 5131037059 PIN
66 5131037060 CLAMPING FLANGE
68 5131036557 BALDE BOLT M8*20/WHITE ZN-PLATED/099737
69 5131037062 DEFLECTOR
70 5131037063 HOUSING
71 5131037064 SET COLLAR
72 5131037065 AXLE Item discontinued
73 5131037066 READJUSTING SPRING
74 5131037067 DOOR
75 5131037068 HOUSING
76 5131037069 FRAME
77 5131037070 CLIP
78 5131037071 CLIP
79 5131037072 COVER
80 5131037073 HANDLE
81 5131037074 INDICATOR
82 5131042134 GRASS-CATCHING BAG
Pag.2
67 5132002771 RAC420 33cm AC Mower Blade
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RYOBI RLM3313
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

RYOBI RLM3313 Parts Diagram

RYOBI RLM3313 Parts Diagram

Download (406.3KB)
