In the following table, look for the model of the Drill Driver and their spare part.

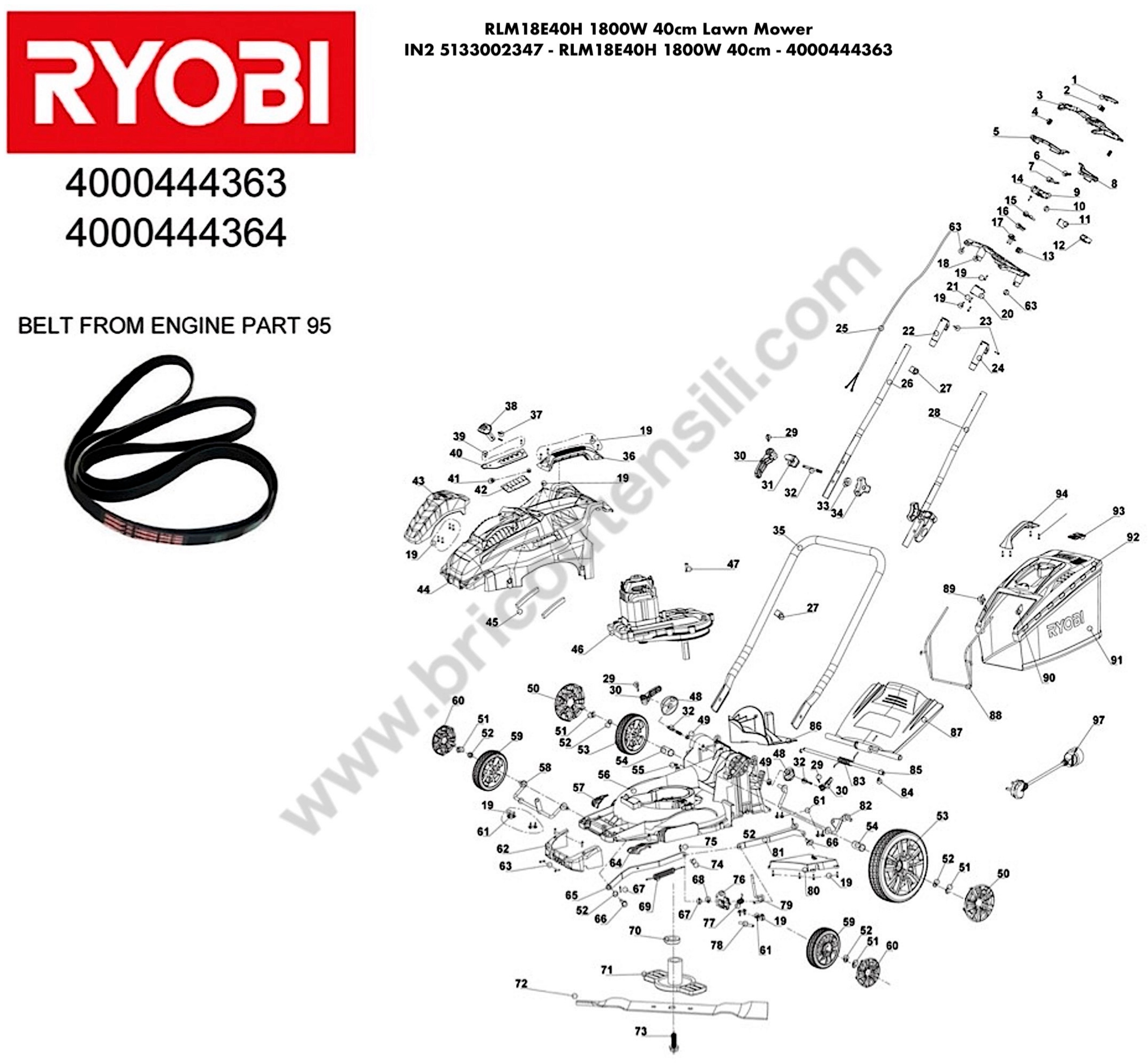

| RYOBI RLM18E40H 1800W 40cm Lawn Mower Spare Parts IN2 5133002347 - RLM18E40H 1800W 40cm - 4000444363 Pag.1 |
||
| # | Part Num. | Description |
| 1 | 5131036485 | PLASTIC , SAFETY BUTTON / 099737 |
| 2 | 5131036486 | METAL , SPRING FOR SAFETY BUTTON /099737 |
| 3 | 5131036487 | PLASTIC , UPPER ERGO HANLDE COVER/099737 |
| 4 | 5131036488 | METAL , SPRING FOR TRIGGER / 099737 |
| 5 | 5131036489 | PLASTIC, RIGHT TRIGGER/099737 |
| 6 | 5131036490 | MATEL, SPRING FOR SLIDE/099737 |
| 7 | 5131036491 | PLASTIC , SLIDE /099737 |
| 8 | 5131036492 | PLASTIC, LEFT TRIGGER/099737 Discontinued |
| 9 | 5131036493 | SWITCH_10(10)A/099737 |
| 10 | 5131036494 | ST SCREW 3XL10, OXIDE / 099737 |
| 11 | 5131036495 | PLASTIC, LEFT FIXURE OF SWITCH/099737 |
| 12 | 5131036496 | PLASTIC,FLASE SWITCH/099737 |
| 13 | 5131036497 | PLASTIC ,CORD SLEEVE/099737 |
| 14 | 5131036498 | PLASTIC, RIGHT FIXURE OF SWITCH/099737 |
| 15 | 5131036499 | PLASTIC,PARTITION PLATE FOR SLIDE/099737 Discontinued |
| 16 | 5131036500 | PLASTIC ,PLATE FOR PERESSING PULG/099737 |
| 17 | 5131036501 | VDE PLUG W/LEAD WIRE 2X1.0X80MM/099737 |
| 18 | 5131036502 | PLASTIC,LOWER ERGO HANLDE COVER / 099737 |
| 19 | 5131036503 | ST SCREW 4.2XL15, OXIDE / 099737 |
| 20 | 5131036504 | PLASTIC ,GUARD FOR PLUG/099737 |
| 21 | 5131036505 | ST SCREW 4.2XL35, OXIDE / 099737 |
| 22 | 5131036506 | PLASTC , RIGHT CONNECTOR/099737 |
| 23 | 5131036507 | ST SCREW 4XL12, OXIDE / 099737 |
| 24 | 5131036508 | PLASTC , LEFT CONNECTOR/099737 |
| 25 | 5131036509 | WIRE, LEAD WIRE WITH CAPACITOR/099736 |
| 26 | 5131036510 | METAL,RIGHT UPPER TBUE/099737 Discontinued |
| 27 | 5131036511 | PASTIC , CORD CLIP/099737 |
| 28 | 5131036512 | METAL,LEFT UPPER TBUE/099737 |
| 29 | 5131036513 | SPRING PIN OD4X25/099737 |
| 30 | 5131036514 | PLASTIC ,QUICK RELEASE FASTENER/099737 |
| 31 | 5131036515 | PLASTIC ,PRESS WASHER/099737 |
| 32 | 5131036516 | M SCREW STTEL CH BOLT M8X73/099737 |
| 33 | 5131036517 | PLASTIC ,WAHSER BLOCK/099737 |
| 34 | 5131036518 | WING NUTS WILL INSRET M8X8NUT/099737 |
| 35 | 5131036519 | MTEAL , LOWER TUBE /099736 Discontinued |
| 36 | 5131036520 | PLASTIC ,FRONT HANDLE/099736 |
| 37 | 5131036521 | CROSS-SHAPED SCREW M5XL12/099737 |
| 38 | 5131036522 | PLASTIC, HEIGHT ADJUST HANDLE / 099737 |
| 39 | 5131036523 | CROSS-SHAPED SCREW M5XL12/099737 Discontinued |
| 40 | 5131036524 | METAL, ADJSUT HEIGHT STEP PLATE/099737 Discontinued |
| 41 | 5131036525 | METAL , NUT M5/099737 |
| 42 | 5131036526 | RUBBER , DUST PROOF PLATE/099737 |
| 43 | 5131036527 | PLASTIC , MOTOR COVER/099737 Discontinued |
| 44 | 5131036528 | HOUSING |
| 45 | 5131036529 | AIR FOAM |
| 46 | 5131036530 | 1800W AC MOTOR ASSY |
| 47 | 5131036531 | ST SCREW 4.2XL18 OXIDE / 099736 |
| 48 | 5131036532 | PLASTIC , QUICK LOCK PRESS BLOCK/099737 |
| 49 | 5131036533 | METAL, INSERT NUT M8X8/099737 |
| 50 | 5131036534 | PLASTIC,REAR WHEEL COVER/099736 |
| 51 | 5131036535 | MTEAL ,E RING/099737 |
| 52 | 5131036536 | MEATEL ,FLAT WHSER ?10*?20x1.5 /099737 |
| 53 | 5131036537 | PLASTIC ,REAR WHEEL /099736 |
| 54 | 5131036538 | BUSHING FOR WHEEL/099736 |
| 55 | 5131036539 | PLASTIC,CORD PRESS PLATE/099736 |
| 56 | 5131036540 | PLASTIC, DECK/099736 |
| 57 | 5131036541 | PLASTIC ,RIGHT COMB/099736 Discontinued |
| 58 | 5131036542 | METAL,FRONT WHEEL AXLE/099736 |
| 59 | 5131036543 | PLASTIC,FRONT WHEEL /099736 |
| 60 | 5131036544 | PLASTIC,FRONT WHEEL COVER/099736 |
| 61 | 5131036545 | MATEL , PRESS PLATE _WHEEL / 099737 |
| 62 | 5131036546 | PLASTIC ?BUMPER/099736 |
| 63 | 5131036547 | ST SCREW 4.2XL12 OXIDE / 099736 Discontinued |
| 64 | 5131036548 | PLASTIC ,LEFT COMB/099736 Discontinued |
| 65 | 5131036549 | METAL, FRONT CONNECT ROD / 099737 |
| 66 | 5131036550 | PLASTIC , PIN 1 / 099736 |
| 67 | 5131036551 | METAL , SPLIT PIN / 099737 Discontinued |
| 68 | 5131036552 | MEATEL ,FLAT WHSER ?8*?20x1.5/099736 |
| 69 | 5131036553 | METAL ,RETENTION SPRING / 099737 Discontinued |
| 70 | 5131036554 | METAL,DUST PROOF BEARING 6902-2RS/099737 |
| 71 | 5131036555 | ADAPTER SHANK |
| 72 | 5131036556 | METAL, 40CM BLADE/099736 |
| 73 | 5131036557 | BALDE BOLT M8*20/WHITE ZN-PLATED/099737 |
| 74 | 5131036558 | PLASTIC ,PIN2/099736 |
| 75 | 5131036559 | METAL, BUTTERFLY PIN /099736 |
| 76 | 5131036560 | PLASTIC , ADJUST HEIGHT BRAKET / 099736 |
| 77 | 5131036561 | ADJUST HEIGHT TORSION SPRING/099737 |
| 78 | 5131036562 | METAL ,ADJUST HEIGHT AXLE / 099736 |
| 79 | 5131036563 | METAL, ADJUST HEIGHT ROD / 099736 |
| 80 | 5131036564 | PLASTIC ,REAR DISCHARGE BAFFLE / 099736 |
| 81 | 5131036565 | METAL ,REAR CONNECT ROD / 099737 Discontinued |
| 82 | 5131036566 | METAL ,REAR WHEEL AXIE / 099736 |
| 83 | 5131036567 | METAL, REAR DOOR TORSION SPRING / 099736 |
| 84 | 5131036568 | MATEL,E RING/099736 |
| 85 | 5131036569 | MTEAL ,REAR DOOR AXIE / 099736 |
| 86 | 5131036570 | PLASTIC ,MULCHING PLUG / 099736 |
| 87 | 5131036571 | PLASTIC, REAR DOOR/099736 |
| 88 | 5131036572 | METAL , GRASS BAG FRAME/099736 |
| 89 | 5131036573 | PLASTIC , GRASS BAG RIGHT PLUG / 099736 |
| 90 | 5131036574 | PLASTIC , GRASS BAG LEFT PLUG / 099736 |
| 91 | 5131036575 | GRASS BAG 50L / 099736 Discontinued |
| 92 | 5131036576 | PLASTIC , GRASS BAG TOP COVER / 099736 |
| 93 | 5131036577 | PLASTIC , BAG FULL INDICATIOR / 099737 |
| 94 | 5131036578 | PLASTIC , GRASS BAG HANDLE / 099737 |
| 95 | 5131037368 | BELT |
| 97 | 1000063920 | PART NOT DEATAILED |
| *** | 5132002773 | RAC421 40cm AC Mower Blade |
