RYOBI RCS3535B Petrol Chainsaw Parts

SKU: RYOBI RCS3535B
€2.77
VAT included

RYOBI RCS3535B Petrol Chainsaw Spare Parts

Fix Your Ryobi RCS3535B Petrol Chainsaw. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Ryobi RCS3535B Petrol Chainsaw

RYOBI RCS4040CB Petrol Chainsaw Parts
  • RYOBI RCS4040CB Petrol Chainsaw Parts
  • RYOBI RCS3535B Petrol Chainsaw Parts Diagram
TTI Industries

RYOBI RCS3535B Petrol Chainsaw Parts

SKU: RYOBI RCS3535B Condition: New
€2.77
VAT included

RYOBI RCS3535B Petrol Chainsaw Spare Parts

Fix Your Ryobi RCS3535B Petrol Chainsaw. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Ryobi RCS3535B Petrol Chainsaw

settings 104 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
Machine Type: Chain Saw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
104 spare parts

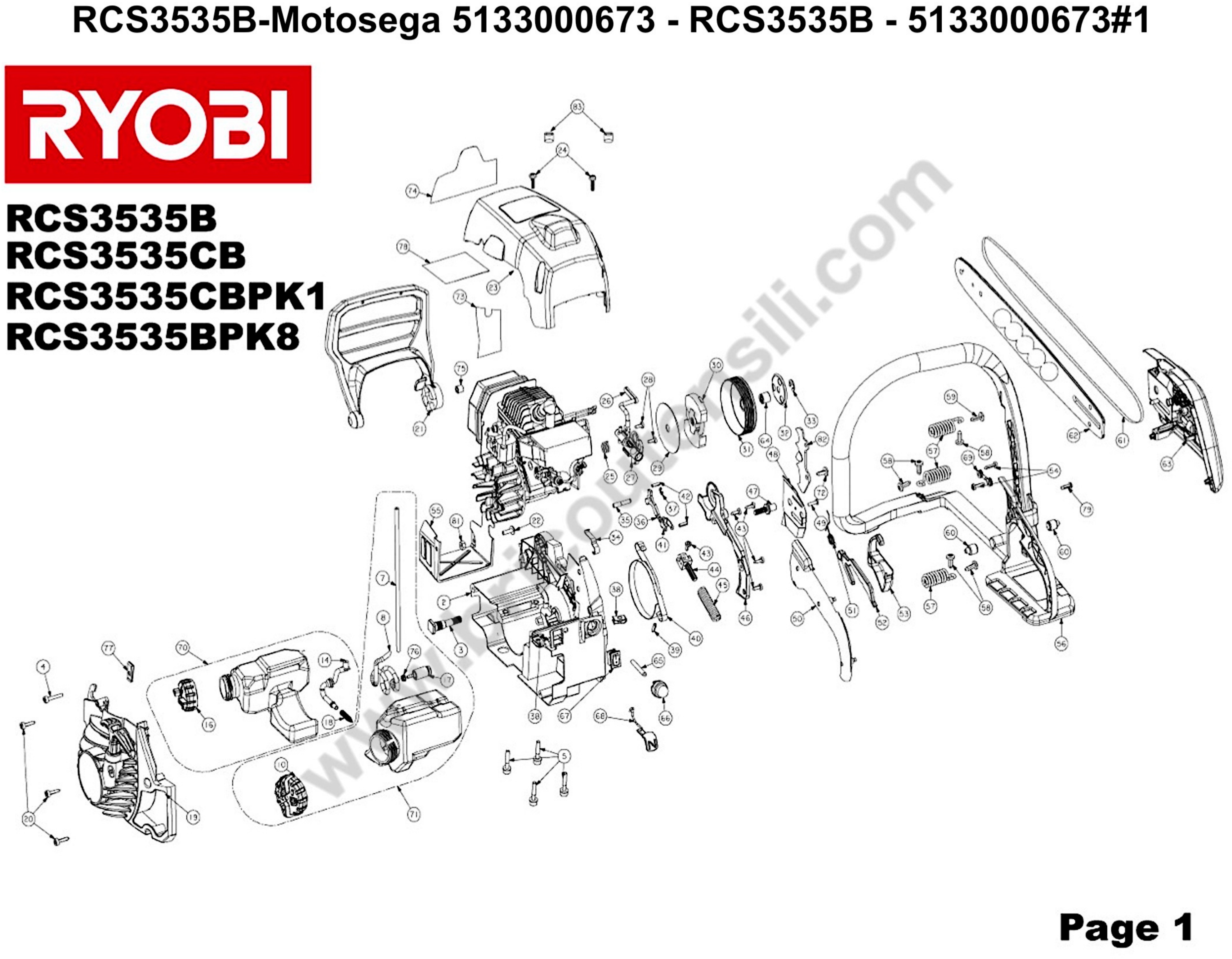

Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5131016175 SCREW €2.54
2
 photo_cameraImage coming soon 5131020391 FRAME - DISCONTINUED €0.10 Not available for order
3
 photo_cameraImage coming soon 5131016164 BOLT - DISCONTINUED €0.10 Not available for order
3
 photo_cameraImage coming soon 5131020388 GASKET - DISCONTINUED €7.39
4
 photo_cameraImage coming soon 5131020374 SCREW €2.54
4
 photo_cameraImage coming soon 5131020375 SCREW €2.54 Not available for order
5
 photo_cameraImage coming soon 5131016172 SCREW €2.54
5
 photo_cameraImage coming soon 5131027414 MUFFLER €76.15
6
 photo_cameraImage coming soon 5131015974 COIL €34.08
7
 photo_cameraImage coming soon 5131020385 NUT €1.73
7
 HOSE 5131020394 HOSE €3.38
8
 photo_cameraImage coming soon 5131016176 BOLT €1.73
8
 photo_cameraImage coming soon 5131020393 HOSE - DISCONTINUED €0.10 Not available for order
9
 photo_cameraImage coming soon 5131015926 STRIP-BAND €7.39
10
 photo_cameraImage coming soon 5131015998 COVER €9.01
10
 photo_cameraImage coming soon 5131028285 NUT €2.54
11
 photo_cameraImage coming soon 5131000876 WASHER €5.39
12
 photo_cameraImage coming soon 5131020392 ROTOR - DISCONTINUED €0.10 Not available for order
13
 photo_cameraImage coming soon 5131020414 SHORT BLOCK €89.09
14
 photo_cameraImage coming soon 5131016091 HOSE - DISCONTINUED €0.10 Not available for order
14
 photo_cameraImage coming soon 5131016170 SCREW - Discontinued €0.10 Not available for order
15
 photo_cameraImage coming soon 5131016140 HOUSING BOTTOM €15.49
16
 photo_cameraImage coming soon 5131015997 COVER - DISCONTINUED €0.10 Not available for order
17
 photo_cameraImage coming soon 5131001581 FILTER €4.96
18
 photo_cameraImage coming soon 5131036259 SPRING €2.54
19
 photo_cameraImage coming soon 5131027412 RECOIL STARTER - DISCONTINUED €0.10 Not available for order
20
 photo_cameraImage coming soon 5131016166 SCREW €2.54
21
 photo_cameraImage coming soon 5131027427 GUARD COVER - DISCONTINUED €0.10 Not available for order
22
 photo_cameraImage coming soon 5131017776 SCREW - DISCONTINUED €0.10 Not available for order
23
 photo_cameraImage coming soon 5131020373 CYLINDER - DISCONTINUED €0.10 Not available for order
24
 photo_cameraImage coming soon 5131001931 SPARK PLUG RCJ4 €8.58
24
 photo_cameraImage coming soon 5131016165 SCREW €2.54
25
 photo_cameraImage coming soon 5131016218 SPRING €2.54
25
 photo_cameraImage coming soon 5131026869 PLATE €5.78
26
 HOSE 5131016090 HOSE €5.78
26
 photo_cameraImage coming soon 5131026709 SCREW €1.73
27
 photo_cameraImage coming soon 5131015980 OIL PUMP €19.26
27
 photo_cameraImage coming soon 5131026710 INTAKE MANIFOLD €18.72
28
 photo_cameraImage coming soon 5131026724 CARBURETOR - DISCONTINUED €0.10 Not available for order
28
 photo_cameraImage coming soon 5131036241 SCREW €3.86
29
 photo_cameraImage coming soon 5131016131 WASHER €4.15
29
 photo_cameraImage coming soon 5131016276 AIR FILTER €5.78 Not available for order
30
 photo_cameraImage coming soon 5131016063 AIR FILTER €5.78
30
 photo_cameraImage coming soon 5131026708 CLUTCH DISC €12.24
31
 photo_cameraImage coming soon 5131020396 SPROCKET - DISCONTINUED €0.10 Not available for order
31
 photo_cameraImage coming soon 5131027326 SCREW €2.54
32
 photo_cameraImage coming soon 5131020372 WASHER €1.73
33
 photo_cameraImage coming soon 5131001044 RING €2.54
33
 photo_cameraImage coming soon 5131020402 CRANK ASSEMBLY - DISCONTINUED €0.10 Not available for order
34
 photo_cameraImage coming soon 5131020405 PLATE €4.96
34
 photo_cameraImage coming soon 5131036267 SPRING €3.05
35
 photo_cameraImage coming soon 5131011763 PIN - DISCONTINUED €0.10 Not available for order
35
 photo_cameraImage coming soon 5131020387 GASKET - DISCONTINUED €0.10 Not available for order
36
 photo_cameraImage coming soon 5131016216 PIVOT €4.96
36
 photo_cameraImage coming soon 5131020378 BRACKET €2.54
37
 photo_cameraImage coming soon 5131016234 CLAMP - DISCONTINUED €0.10 Not available for order
38
 photo_cameraImage coming soon 5131001028 U-NUT €2.54
38
 photo_cameraImage coming soon 5131020403 DUST SCREEN €2.54
39
 photo_cameraImage coming soon 5131001037 SPRING €5.78
39
 photo_cameraImage coming soon 5131020382 INSULATOR - DISCONTINUED €0.10 Not available for order
40
 photo_cameraImage coming soon 5131016130 BAND €5.78
40
 photo_cameraImage coming soon 5131020409 SPACER €5.78
41
 photo_cameraImage coming soon 5131016198 NUT €2.54
41
 photo_cameraImage coming soon 5131020383 LINK €2.54
42
 photo_cameraImage coming soon 5131001029 WASHER €2.54
42
 photo_cameraImage coming soon 5131001041 SPRING €2.54
43
 photo_cameraImage coming soon 5131036253 SCREW €1.54
44
 photo_cameraImage coming soon 5131016060 SLIDE €2.54
45
 photo_cameraImage coming soon 5131016215 SPRING - DISCONTINUED €0.10 Not available for order
46
 photo_cameraImage coming soon 5131016071 COVER €5.78
47
 photo_cameraImage coming soon 5131016071 COVER €5.78
48
 photo_cameraImage coming soon 5131016132 PLATE €2.54
49
 photo_cameraImage coming soon 5131017775 SCREW €0.10 Not available for order
50
 photo_cameraImage coming soon 5131016064 COVER - DISCONTINUED €0.10 Not available for order
51
 photo_cameraImage coming soon 5131016220 SPRING €2.54
52
 photo_cameraImage coming soon 5131020404 LOCKING PIN - DISCONTINUED €0.10 Not available for order
53
 photo_cameraImage coming soon 5131020408 RUBBER €2.54
54
 photo_cameraImage coming soon 5131044609 SCREW €1.54
55
 photo_cameraImage coming soon 5131020401 INSULATOR - DISCONTINUED €0.10 Not available for order
56
 photo_cameraImage coming soon 5131027425 HANDLE - DISCONTINUED €0.10 Not available for order
57
 photo_cameraImage coming soon 5131016221 SPRING €2.54
58
 photo_cameraImage coming soon 5131016177 SCREW €2.54
59
 photo_cameraImage coming soon 5131000997 SCREW €2.54
60
 photo_cameraImage coming soon 5131016089 INSULATION €2.54
62
 photo_cameraImage coming soon 5131027694 CSA045 35CM GUIDE BAR - DISCONTINUED €0.10 Not available for order
63
 photo_cameraImage coming soon 5131015993 HOUSING €34.01 Not available for order
64
 photo_cameraImage coming soon 5131001045 NEEDLE BEARING €9.01
65
 photo_cameraImage coming soon 5131020395 HOSE - DISCONTINUED €0.10 Not available for order
66
 photo_cameraImage coming soon 5131008384 PRIMMER BULB €7.81
67
 photo_cameraImage coming soon 5131016261 SWITCH €2.54
68
 photo_cameraImage coming soon 5131016062 ROD CHOKE €4.96
69
 photo_cameraImage coming soon 5131020379 WIRE - DISCONTINUED €0.10 Not available for order
70
 photo_cameraImage coming soon 5131027417 TANK €10.63
71
 photo_cameraImage coming soon 5131027418 TANK - DISCONTINUED €0.10 Not available for order
72
 photo_cameraImage coming soon 5131000991 SCREW €2.54
73
 photo_cameraImage coming soon 5131017988 DATA PLATE €2.54
74
 photo_cameraImage coming soon 5131017986 PLATE €2.54
75
 photo_cameraImage coming soon 5131036266 GUIDE SLEEVE €3.05
76
 photo_cameraImage coming soon 5131001133 CLAMP - DISCONTINUED €0.10 Not available for order
77
 photo_cameraImage coming soon 5131020386 NUT €2.54
78
 photo_cameraImage coming soon 5131017989 PLATE - DISCONTINUED €0.10 Not available for order
79
 photo_cameraImage coming soon 5131016184 SCREW €2.54
81
 photo_cameraImage coming soon 5131011758 NUT €2.54
82
 photo_cameraImage coming soon 5131016405 SPIKE - DISCONTINUED €2.57
83
 photo_cameraImage coming soon 5131020408 RUBBER €2.54

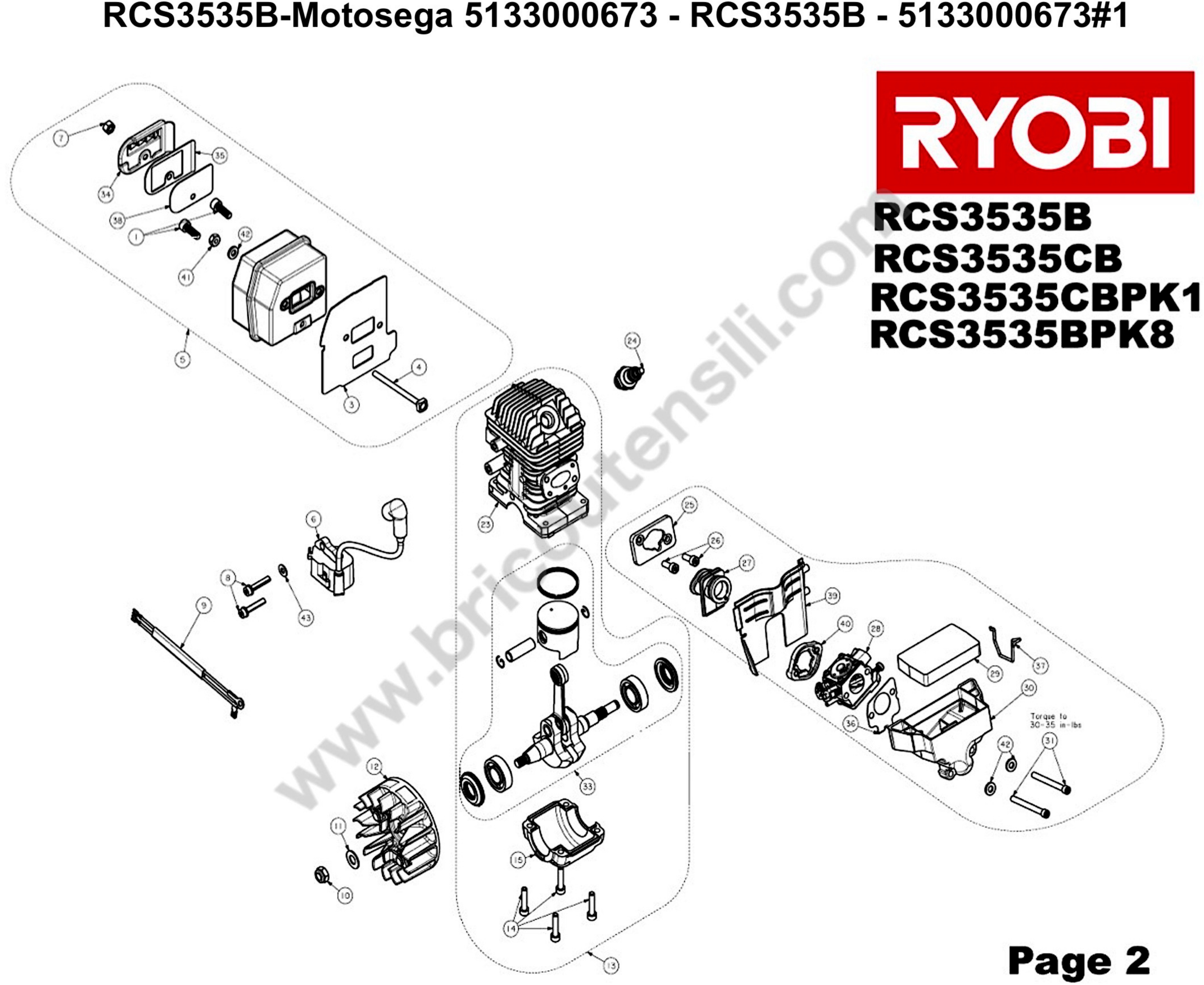

Page 2 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 5131016175 SCREW €2.54
3
 photo_cameraImage coming soon 5131020388 GASKET - DISCONTINUED €7.39
4
 photo_cameraImage coming soon 5131020374 SCREW €2.54
5
 photo_cameraImage coming soon 5131027414 MUFFLER €76.15
6
 photo_cameraImage coming soon 5131015974 COIL €34.08
7
 photo_cameraImage coming soon 5131020385 NUT €1.73
8
 photo_cameraImage coming soon 5131016176 BOLT €1.73
9
 photo_cameraImage coming soon 5131015926 STRIP-BAND €7.39
10
 photo_cameraImage coming soon 5131028285 NUT €2.54
11
 photo_cameraImage coming soon 5131000876 WASHER €5.39
12
 photo_cameraImage coming soon 5131020392 ROTOR - DISCONTINUED €0.10 Not available for order
13
 photo_cameraImage coming soon 5131020414 SHORT BLOCK €89.09
14
 photo_cameraImage coming soon 5131016170 SCREW - Discontinued €0.10 Not available for order
15
 photo_cameraImage coming soon 5131016140 HOUSING BOTTOM €15.49
23
 photo_cameraImage coming soon 5131020373 CYLINDER - DISCONTINUED €0.10 Not available for order
24
 photo_cameraImage coming soon 5131001931 SPARK PLUG RCJ4 €8.58
25
 photo_cameraImage coming soon 5131026869 PLATE €5.78
26
 photo_cameraImage coming soon 5131026709 SCREW €1.73
27
 photo_cameraImage coming soon 5131026710 INTAKE MANIFOLD €18.72
28
 photo_cameraImage coming soon 5131026724 CARBURETOR - DISCONTINUED €0.10 Not available for order
29
 photo_cameraImage coming soon 5131016276 AIR FILTER €5.78 Not available for order
30
 photo_cameraImage coming soon 5131016063 AIR FILTER €5.78
31
 photo_cameraImage coming soon 5131027326 SCREW €2.54
33
 photo_cameraImage coming soon 5131020402 CRANK ASSEMBLY - DISCONTINUED €0.10 Not available for order
34
 photo_cameraImage coming soon 5131020405 PLATE €4.96
35
 photo_cameraImage coming soon 5131020387 GASKET - DISCONTINUED €0.10 Not available for order
36
 photo_cameraImage coming soon 5131020378 BRACKET €2.54
37
 photo_cameraImage coming soon 5131016234 CLAMP - DISCONTINUED €0.10 Not available for order
38
 photo_cameraImage coming soon 5131020403 DUST SCREEN €2.54
39
 photo_cameraImage coming soon 5131020382 INSULATOR - DISCONTINUED €0.10 Not available for order
40
 photo_cameraImage coming soon 5131020409 SPACER €5.78
41
 photo_cameraImage coming soon 5131016198 NUT €2.54
42
 photo_cameraImage coming soon 5131001029 WASHER €2.54
500
 photo_cameraImage coming soon *** CSA044 CHAIN 35CM €0.10 Not available for order

Shipping and delivery information will be available shortly.

RYOBI RCS3535B Petrol Chainsaw Spare Parts

Fix Your Ryobi RCS3535B Petrol Chainsaw. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Ryobi Ryobi RCS3535B Petrol Chainsaw

RYOBI RCS3535B 35CC 14in CHAIN SAW GN2 EU Spare Parts
5133000673 - RCS3535B - 5133000673 Pag.1
Pos. Codice Description
2 5131020391 FRAME - DISCONTINUED
3 5131016164 BOLT - DISCONTINUED
4 5131020375 SCREW
5 5131016172 SCREW
7 5131020394 HOSE
8 5131020393 HOSE - DISCONTINUED
10 5131015998 COVER
14 5131016091 HOSE - DISCONTINUED
16 5131015997 COVER - DISCONTINUED
17 5131001581 FILTER
18 5131036259 SPRING
19 5131027412 RECOIL STARTER - DISCONTINUED
20 5131016166 SCREW
21 5131027427 GUARD COVER - DISCONTINUED
22 5131017776 SCREW - DISCONTINUED
24 5131016165 SCREW
25 5131016218 SPRING
26 5131016090 HOSE
27 5131015980 OIL PUMP
28 5131036241 SCREW
29 5131016131 WASHER
30 5131026708 CLUTCH DISC
31 5131020396 SPROCKET - DISCONTINUED
32 5131020372 WASHER
33 5131001044 RING
34 5131036267 SPRING
35 5131011763 PIN - DISCONTINUED
36 5131016216 PIVOT
37 5131016234 CLAMP - DISCONTINUED
38 5131001028 U-NUT
39 5131001037 SPRING
40 5131016130 BAND
41 5131020383 LINK
42 5131001041 SPRING
43 5131036253 SCREW
44 5131016060 SLIDE
45 5131016215 SPRING - DISCONTINUED
46 5131016071 COVER
47 5131016071 COVER
48 5131016132 PLATE
49 5131017775 SCREW
50 5131016064 COVER - DISCONTINUED
51 5131016220 SPRING
52 5131020404 LOCKING PIN - DISCONTINUED
53 5131020408 RUBBER
54 5131044609 SCREW
55 5131020401 INSULATOR - DISCONTINUED
56 5131027425 HANDLE - DISCONTINUED
57 5131016221 SPRING
58 5131016177 SCREW
59 5131000997 SCREW
60 5131016089 INSULATION
62 5131027694 CSA045 35CM GUIDE BAR - DISCONTINUED
63 5131015993 HOUSING
64 5131001045 NEEDLE BEARING
65 5131020395 HOSE - DISCONTINUED
66 5131008384 PRIMMER BULB
67 5131016261 SWITCH
68 5131016062 ROD CHOKE
69 5131020379 WIRE - DISCONTINUED
70 5131027417 TANK
71 5131027418 TANK - DISCONTINUED
72 5131000991 SCREW
73 5131017988 DATA PLATE
74 5131017986 PLATE
75 5131036266 GUIDE SLEEVE
76 5131001133 CLAMP - DISCONTINUED
77 5131020386 NUT
78 5131017989 PLATE - DISCONTINUED
79 5131016184 SCREW
81 5131011758 NUT
82 5131016405 BUMPER SPIKE PS06077
83 5131020408 RUBBER
Pag.2
1 5131016175 SCREW
3 5131020388 GASKET - DISCONTINUED
4 5131020374 SCREW
5 5131027414 MUFFLER
6 5131015974 COIL
7 5131020385 NUT
8 5131016176 BOLT
9 5131015926 STRIP-BAND
10 5131028285 NUT
11 5131000876 WASHER
12 5131020392 ROTOR - DISCONTINUED
13 5131020414 SHORT BLOCK
14 5131016170 SCREW
15 5131016140 HOUSING BOTTOM
23 5131020373 CYLINDER - DISCONTINUED
24 5131001931 SPARK PLUG RCJ4
25 5131026869 PLATE
26 5131026709 SCREW
27 5131026710 INTAKE MANIFOLD
28 5131026724 CARBURETOR - DISCONTINUED
29 5131016276 AIR FILTER
30 5131016063 AIR FILTER
31 5131027326 SCREW
33 5131020402 CRANK ASSEMBLY - DISCONTINUED
34 5131020405 PLATE
35 5131020387 GASKET - DISCONTINUED
36 5131020378 BRACKET
37 5131016234 CLAMP - DISCONTINUED
38 5131020403 DUST SCREEN
39 5131020382 INSULATOR - DISCONTINUED
40 5131020409 SPACER
41 5131016198 NUT
42 5131001029 WASHER
500 *** CSA044 CHAIN 35CM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RYOBI RCS3535B
6 Items

Data sheet

CHECK AEG S/N
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Chain Saw

Specific References

New

Download

RYOBI RCS3535B Parts Drawing

RYOBI RCS3535B Parts Drawing

Download (900.69KB)

You might also like

Ryobi RSDS1050-K 1050W Rotary Hammer
TTI Industries SKU: Ryobi RSDS1050-K
Ryobi RSDS1050-K 1050W Rotary Hammer
Ryobi RSDS1050-K SDS+ 1050W Rotary Hammer Characteristics - SDS+ 1050W Rotary hammer drill - Hammer drill with pneumatic mechanism that guarantees up to 3.6J EPTA impact - The 1050W motor allows exceptional performance - "L" design...
AVAILABLE €196.58
Details
Comments (0)
No customer reviews for the moment.
