Fix Your Ryobi RLM16E36H Lawn Mower. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Drill Driver and their spare part.

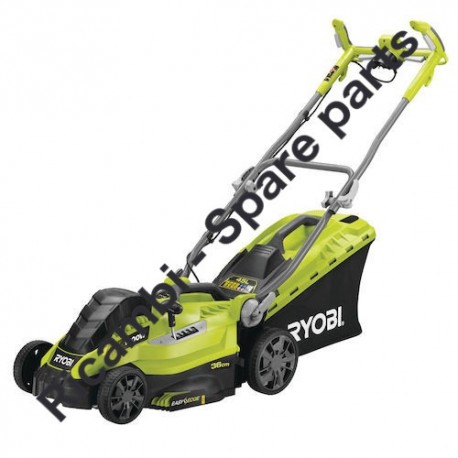

| RYOBI RLM16E36H 1600W 36cm Lawn Mower GB2 SPARE PARTS 5133002346 - RLM16E36H - 4000444362 |
||
| # | Part Num. | Description |
| 0 | 5131036981 | POWER CORD |
| 1 | 5131036485 | PLASTIC , SAFETY BUTTON / 099737 - DISCONTINUED |
| 2 | 5131036486 | METAL , SPRING FOR SAFETY BUTTON /099737 |
| 3 | 5131036487 | PLASTIC , UPPER ERGO HANLDE COVER/099737 |
| 4 | 5131036491 | PLASTIC , SLIDE /099737 |
| 5 | 5131036490 | MATEL, SPRING FOR SLIDE/099737 |
| 6 | 5131036499 | PLASTIC,PARTITION PLATE FOR SLIDE/099737 - DISCONTINUED |
| 7 | 5131036494 | ST SCREW 3XL10, OXIDE / 099737 |
| 8 | 5131036495 | PLASTIC, LEFT FIXURE OF SWITCH/099737 |
| 9 | 5131036496 | PLASTIC,FLASE SWITCH/099737 |
| 10 | 5131036493 | SWITCH_10(10)A/099737 |
| 11 | 5131036498 | PLASTIC, RIGHT FIXURE OF SWITCH/099737 |
| 12 | 5131036488 | METAL , SPRING FOR TRIGGER / 099737 |
| 13 | 5131036492 | PLASTIC, LEFT TRIGGER/099737 - DISCONTINUED |
| 14 | 5131036489 | PLASTIC, RIGHT TRIGGER/099737 - DISCONTINUED |
| 15 | 5131036497 | PLASTIC ,CORD SLEEVE/099737 |
| 16 | 5131036947 | WIRE |
| 17 | 5131036502 | PLASTIC,LOWER ERGO HANLDE COVER / 099737 |
| 18 | 5131036500 | PLASTIC ,PLATE FOR PERESSING PULG/099737 |
| 19 | 5131036501 | VDE PLUG W/LEAD WIRE 2X1.0X80MM/099737 |
| 20 | 5131036504 | PLASTIC ,GUARD FOR PLUG/099737 |
| 21 | 5131036503 | ST SCREW 4.2XL15, OXIDE / 099737 |
| 22 | 5131036505 | ST SCREW 4.2XL35, OXIDE / 099737 |
| 23 | 5131036508 | PLASTC , LEFT CONNECTOR/099737 |
| 24 | 5131036506 | PLASTC , RIGHT CONNECTOR/099737 |
| 25 | 5131036507 | ST SCREW 4XL12, OXIDE / 099737 |
| 26 | 5131036512 | METAL,LEFT UPPER TBUE/099737 |
| 27 | 5131036510 | METAL,RIGHT UPPER TBUE/099737 - DISCONTINUED |
| 28 | 5131036511 | PASTIC , CORD CLIP/099737 |
| 29 | 5131036514 | PLASTIC ,QUICK RELEASE FASTENER/099737 |
| 30 | 5131036516 | M SCREW STTEL CH BOLT M8X73/099737 |
| 31 | 5131036513 | SPRING PIN OD4X25/099737 |
| 32 | 5131036515 | PLASTIC ,PRESS WASHER/099737 |
| 33 | 5131036948 | TUBE - DISCONTINUED |
| 34 | 5131036518 | WING NUTS WILL INSRET M8X8NUT/099737 |
| 35 | 5131036517 | PLASTIC ,WAHSER BLOCK/099737 |
| 36 | 5131036521 | CROSS-SHAPED SCREW M5XL12/099737 - DISCONTINUED |
| 37 | 5131036524 | METAL, ADJSUT HEIGHT STEP PLATE/099737 - DISCONTINUED |
| 38 | 5131036525 | METAL , NUT M5/099737 |
| 39 | 5131036526 | RUBBER , DUST PROOF PLATE/099737 |
| 40 | 5131036532 | PLASTIC , QUICK LOCK PRESS BLOCK/099737 |
| 41 | 5131036533 | METAL, INSERT NUT M8X8/099737 |
| 42 | 5131036527 | PLASTIC , MOTOR COVER/099737 - DISCONTINUED |
| 43 | 5131036949 | AIR FLOW PLATE - DISCONTINUED |
| 44 | 5131036950 | HANDLE |
| 45 | 5131036951 | HOUSING CAP |
| 46 | 5131036952 | MOTOR ASSEMBLY |
| 57 | 5131036554 | METAL,DUST PROOF BEARING 6902-2RS/099737 |
| 58 | 5131036953 | HOUSING - DISCONTINUED |
| 59 | 5131036954 | CAP |
| 60 | 5131036955 | COVER |
| 61 | 5131036535 | MTEAL ,E RING/099737 |
| 62 | 5131036536 | MEATEL ,FLAT WHSER Φ10*Φ20x1.5 /099737 |
| 63 | 5131036956 | WHEEL |
| 64 | 5131036957 | AXLE |
| 65 | 5131036545 | MATEL , PRESS PLATE _WHEEL / 099737 |
| 66 | 5131036958 | CAP |
| 67 | 5131036555 | ADAPTER SHANK |
| 69 | 5131036557 | BALDE BOLT M8*20/WHITE ZN-PLATED/099737 |
| 70 | 5131036522 | PLASTIC, HEIGHT ADJUST HANDLE / 099737 |
| 71 | 5131036960 | BENT LEVER |
| 72 | 5131036961 | SCREW |
| 73 | 5131036561 | ADJUST HEIGHT TORSION SPRING/099737 - DISCONTINUED |
| 74 | 5131036553 | METAL ,RETENTION SPRING / 099737 - DISCONTINUED |
| 75 | 5131036549 | METAL, FRONT CONNECT ROD / 099737 |
| 76 | 5131036962 | BRACKET - DISCONTINUED |
| 77 | 5131036963 | AXLE |
| 78 | 5131036964 | PIN |
| 79 | 5131036565 | METAL ,REAR CONNECT ROD / 099737 - DISCONTINUED |
| 80 | 5131036965 | PIN |
| 81 | 5131036551 | METAL , SPLIT PIN / 099737 - DISCONTINUED |
| 82 | 5131036966 | COVER |
| 83 | 5131036967 | WHEEL |
| 84 | 5131036968 | AXLE |
| 85 | 5131036578 | PLASTIC , GRASS BAG HANDLE / 099737 |
| 86 | 5131036577 | PLASTIC , BAG FULL INDICATIOR / 099737 |
| 87 | 5131036969 | COVER |
| 88 | 5131036970 | PLUG |
| 89 | 5131036971 | PLUG |
| 90 | 5131036972 | DOOR |
| 91 | 5131036973 | TORSION SPRING |
| 92 | 5131036974 | AXLE |
| 93 | 5131036975 | CIRCLIP |
| 94 | 5131036976 | BAG |
| 95 | 5131036977 | FRAME |
| 96 | 5131036978 | PLUG |
| 97 | 5131036979 | AIR FLOW PLATE |
| 98 | 5131036980 | WASHER |
| 68 | 5132002718 | RAC414 36cm mower blade |
