RYOBI RLM15E36H Lawn Mower Parts

SKU: RYOBI RLM15E36H
€2.77
VAT included

RYOBI RLM15E36H Lawn Mower Spare Parts

Fix Your Ryobi RLM15E36H 1500W Lawn Mower. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

RYOBI RLM15E36H 1500W Lawn Mower.
RYOBI RLM15E36H Lawn Mower Parts
  • RYOBI RLM15E36H Lawn Mower Parts
  • RYOBI RLM15E36H Lawn Mower Parts - Drawing

RYOBI RLM15E36H Lawn Mower Parts

SKU: RYOBI RLM15E36H Condition: New
€2.77
VAT included

RYOBI RLM15E36H Lawn Mower Spare Parts

Fix Your Ryobi RLM15E36H 1500W Lawn Mower. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

RYOBI RLM15E36H 1500W Lawn Mower.
settings 92 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

82 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5131036485 PLASTIC , SAFETY BUTTON / 099737 €2.54
2
photo_cameraImage coming soon 5131036486 METAL , SPRING FOR SAFETY BUTTON /099737 €2.54
3
photo_cameraImage coming soon 5131036487 PLASTIC , UPPER ERGO HANLDE COVER/099737 €17.10
4
photo_cameraImage coming soon 5131036491 PLASTIC , SLIDE /099737 €2.54
5
photo_cameraImage coming soon 5131036490 MATEL, SPRING FOR SLIDE/099737 €2.54
7
photo_cameraImage coming soon 5131036494 ST SCREW 3XL10, OXIDE / 099737 €2.54
8
photo_cameraImage coming soon 5131036495 PLASTIC, LEFT FIXURE OF SWITCH/099737 €2.54
9
photo_cameraImage coming soon 5131036496 PLASTIC,FLASE SWITCH/099737 €2.54
10
photo_cameraImage coming soon 5131036493 SWITCH_10(10)A/099737 €13.87
11
photo_cameraImage coming soon 5131036498 PLASTIC, RIGHT FIXURE OF SWITCH/099737 €2.54
12
photo_cameraImage coming soon 5131036488 METAL , SPRING FOR TRIGGER / 099737 €2.54
14
photo_cameraImage coming soon 5131036489 PLASTIC, RIGHT TRIGGER/099737 €2.54
15
photo_cameraImage coming soon 5131036497 PLASTIC ,CORD SLEEVE/099737 €2.54
16
photo_cameraImage coming soon 5131036947 WIRE €9.01
17
photo_cameraImage coming soon 5131036502 PLASTIC,LOWER ERGO HANLDE COVER / 099737 €9.83
18
photo_cameraImage coming soon 5131036500 PLASTIC ,PLATE FOR PERESSING PULG/099737 €2.54
19
photo_cameraImage coming soon 5131036501 VDE PLUG W/LEAD WIRE 2X1.0X80MM/099737 €10.63
20
photo_cameraImage coming soon 5131036504 PLASTIC ,GUARD FOR PLUG/099737 €3.96
21
photo_cameraImage coming soon 5131036503 ST SCREW 4.2XL15, OXIDE / 099737 €2.54
22
photo_cameraImage coming soon 5131036505 ST SCREW 4.2XL35, OXIDE / 099737 €2.54
23
photo_cameraImage coming soon 5131036508 PLASTC , LEFT CONNECTOR/099737 €2.54
24
photo_cameraImage coming soon 5131036506 PLASTC , RIGHT CONNECTOR/099737 €2.54
25
photo_cameraImage coming soon 5131036507 ST SCREW 4XL12, OXIDE / 099737 €2.54
26
photo_cameraImage coming soon 5131036512 METAL,LEFT UPPER TBUE/099737 €15.49
28
photo_cameraImage coming soon 5131036511 PASTIC , CORD CLIP/099737 €2.54
29
photo_cameraImage coming soon 5131036514 PLASTIC ,QUICK RELEASE FASTENER/099737 €7.81
30
photo_cameraImage coming soon 5131036516 M SCREW STTEL CH BOLT M8X73/099737 €2.54
31
photo_cameraImage coming soon 5131036513 SPRING PIN OD4X25/099737 €2.54
32
photo_cameraImage coming soon 5131036515 PLASTIC ,PRESS WASHER/099737 €2.54
33
photo_cameraImage coming soon 5131036948 TUBE €29.23
34
photo_cameraImage coming soon 5131036518 WING NUTS WILL INSRET M8X8NUT/099737 €5.78
35
photo_cameraImage coming soon 5131036517 PLASTIC ,WAHSER BLOCK/099737 €2.54
38
photo_cameraImage coming soon 5131036525 METAL , NUT M5/099737 €2.54
39
photo_cameraImage coming soon 5131036526 RUBBER , DUST PROOF PLATE/099737 €4.96
40
photo_cameraImage coming soon 5131036532 PLASTIC , QUICK LOCK PRESS BLOCK/099737 €7.39
41
photo_cameraImage coming soon 5131036533 METAL, INSERT NUT M8X8/099737 €2.54
42
photo_cameraImage coming soon 5131036527 PLASTIC , MOTOR COVER/099737 €10.89
43
photo_cameraImage coming soon 5131036949 AIR FLOW PLATE €7.81
44
photo_cameraImage coming soon 5131036950 HANDLE €6.27
45
photo_cameraImage coming soon 5131036951 HOUSING CAP €30.92
46
photo_cameraImage coming soon 5131036952 MOTOR ASSEMBLY  €189.68
55
photo_cameraImage coming soon 5131040942 PULLEY €23.58
56
RYOBI RLM15E36H Belt 5PJ457 5131040943 RYOBI RLM15E36H Belt 5PJ457 €23.98
57
photo_cameraImage coming soon 5131036554 METAL,DUST PROOF BEARING 6902-2RS/099737 €4.96
59
photo_cameraImage coming soon 5131036954 CAP €1.73
60
photo_cameraImage coming soon 5131036955 COVER €5.78
61
photo_cameraImage coming soon 5131036535 MTEAL ,E RING/099737 €2.54
62
photo_cameraImage coming soon 5131036536 MEATEL ,FLAT WHSER ?10*?20x1.5 /099737 €2.54
63
photo_cameraImage coming soon 5131036956 PLASTIC ,REAR WHEEL /099736 €12.43
64
photo_cameraImage coming soon 5131036957 AXLE €18.72
65
photo_cameraImage coming soon 5131036545 MATEL , PRESS PLATE _WHEEL / 099737 €2.54
66
photo_cameraImage coming soon 5131036958 CAP €2.54
67
photo_cameraImage coming soon 5131036555 ADAPTER SHANK €4.96
68
RYOBI RLM13E33S Blade RAC420 Cm 33 5132002771 RYOBI RLM13E33S Blade RAC420 Cm 33 €21.66
69
photo_cameraImage coming soon 5131036557 BALDE BOLT M8*20/WHITE ZN-PLATED/099737 €3.96
70
photo_cameraImage coming soon 5131036522 PLASTIC, HEIGHT ADJUST HANDLE / 099737 €5.78
71
photo_cameraImage coming soon 5131036960 BENT LEVER €7.39
72
photo_cameraImage coming soon 5131036961 SCREW €2.54
73
photo_cameraImage coming soon 5131036561 ADJUST HEIGHT TORSION SPRING/099737 €4.73
75
photo_cameraImage coming soon 5131036549 METAL, FRONT CONNECT ROD / 099737 €12.24
77
photo_cameraImage coming soon 5131036963 AXLE €2.54
78
photo_cameraImage coming soon 5131036964 PIN €4.96
80
photo_cameraImage coming soon 5131036965 PIN €2.54
82
photo_cameraImage coming soon 5131036966 COVER €5.78
83
photo_cameraImage coming soon 5131036967 PLASTIC ,REAR WHEEL /099736 €21.95
84
photo_cameraImage coming soon 5131036968 AXLE €18.72
85
photo_cameraImage coming soon 5131036578 PLASTIC , GRASS BAG HANDLE / 099737 €4.96
86
photo_cameraImage coming soon 5131036577 PLASTIC , BAG FULL INDICATIOR / 099737 €2.54
87
photo_cameraImage coming soon 5131036969 COVER €20.33
88
photo_cameraImage coming soon 5131036970 PLUG €2.54
89
photo_cameraImage coming soon 5131036971 PLUG €2.54
90
photo_cameraImage coming soon 5131036972 DOOR €6.58
91
photo_cameraImage coming soon 5131036973 TORSION SPRING €2.54
92
photo_cameraImage coming soon 5131036974 AXLE €3.34
93
photo_cameraImage coming soon 5131036975 CIRCLIPS FOR HOLE DIA 35 €2.54
94
photo_cameraImage coming soon 5131036976 BAG €55.11
95
photo_cameraImage coming soon 5131036977 FRAME €17.10
96
photo_cameraImage coming soon 5131036978 PLUG €12.43
97
photo_cameraImage coming soon 5131036979 AIR FLOW PLATE €5.78
98
photo_cameraImage coming soon 5131036980 WASHER €2.54
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
***
RYOBI RLM15E36H RAC414 Blade 5132002718 RYOBI RLM15E36H RAC414 Blade €24.18
68
RYOBI RLM13E33S Blade RAC420 Cm 33 5132002771 RYOBI RLM13E33S Blade RAC420 Cm 33 €21.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

RYOBI RLM15E36H Lawn Mower Spare Parts

Fix Your Ryobi RLM15E36H 1500W Lawn Mower. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Ryobi RLM15E36H 1500W Lawn Mower

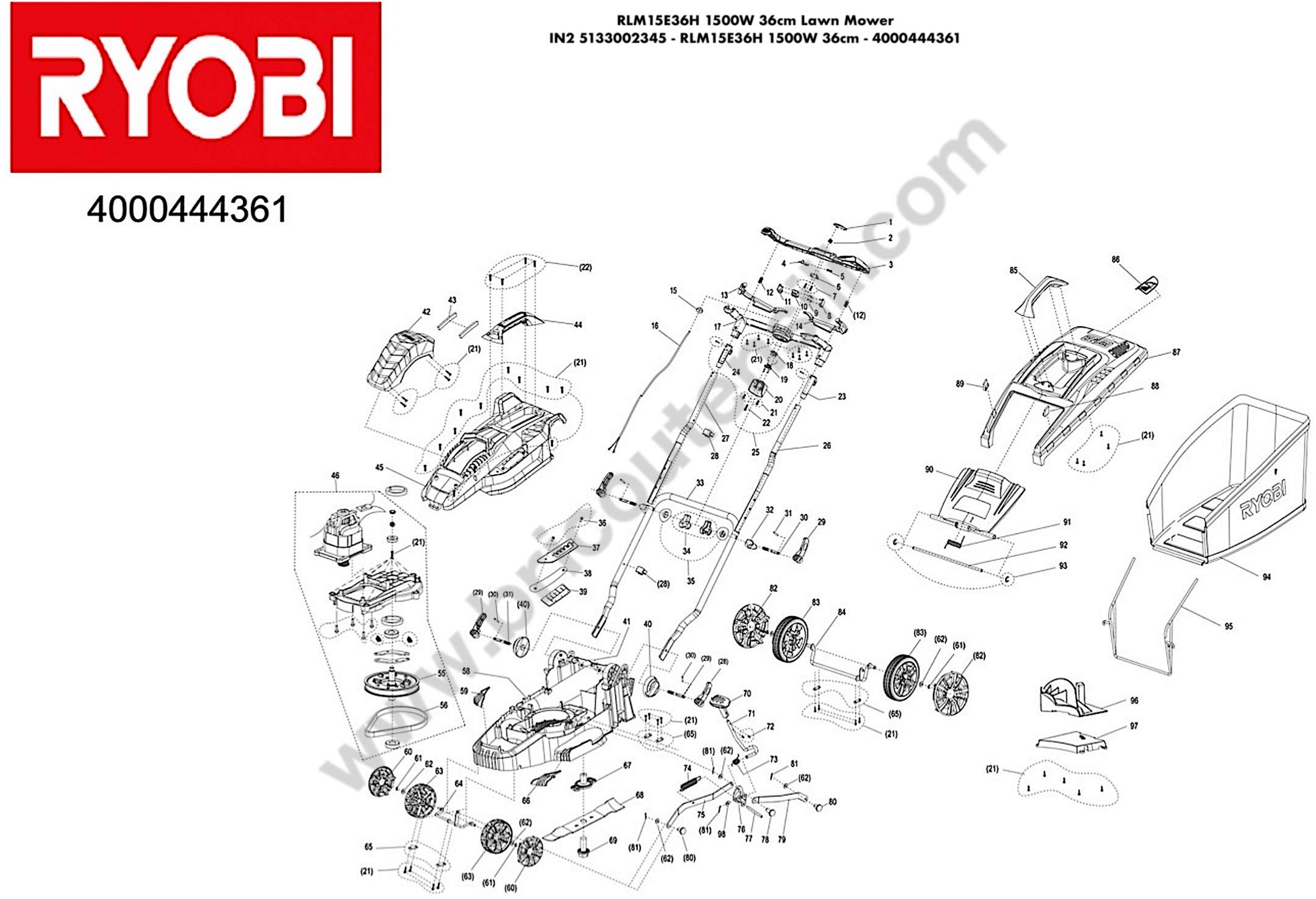

RLM15E36H 1500W 36cm Lawn Mower Spare Parts
IN2 5133002345 - RLM15E36H 1500W 36cm - 4000444361 Pag.1
# Part Num. Description
1 5131036485 PLASTIC , SAFETY BUTTON / 099737
2 5131036486 METAL , SPRING FOR SAFETY BUTTON /099737
3 5131036487 PLASTIC , UPPER ERGO HANLDE COVER/099737
4 5131036491 PLASTIC , SLIDE /099737
5 5131036490 MATEL, SPRING FOR SLIDE/099737
6 5131036499 PLASTIC,PARTITION PLATE FOR SLIDE/099737
7 5131036494 ST SCREW 3XL10, OXIDE / 099737
8 5131036495 PLASTIC, LEFT FIXURE OF SWITCH/099737
9 5131036496 PLASTIC,FLASE SWITCH/099737
10 5131036493 SWITCH_10(10)A/099737
11 5131036498 PLASTIC, RIGHT FIXURE OF SWITCH/099737
12 5131036488 METAL , SPRING FOR TRIGGER / 099737
13 5131036492 PLASTIC, LEFT TRIGGER/099737
14 5131036489 PLASTIC, RIGHT TRIGGER/099737
15 5131036497 PLASTIC ,CORD SLEEVE/099737
16 5131036947 WIRE
17 5131036502 PLASTIC,LOWER ERGO HANLDE COVER / 099737
18 5131036500 PLASTIC ,PLATE FOR PERESSING PULG/099737
19 5131036501 VDE PLUG W/LEAD WIRE 2X1.0X80MM/099737
20 5131036504 PLASTIC ,GUARD FOR PLUG/099737
21 5131036503 ST SCREW 4.2XL15, OXIDE / 099737
22 5131036505 ST SCREW 4.2XL35, OXIDE / 099737
23 5131036508 PLASTC , LEFT CONNECTOR/099737
24 5131036506 PLASTC , RIGHT CONNECTOR/099737
25 5131036507 ST SCREW 4XL12, OXIDE / 099737
26 5131036512 METAL,LEFT UPPER TBUE/099737
27 5131036510 METAL,RIGHT UPPER TBUE/099737
28 5131036511 PASTIC , CORD CLIP/099737
29 5131036514 PLASTIC ,QUICK RELEASE FASTENER/099737
30 5131036516 M SCREW STTEL CH BOLT M8X73/099737
31 5131036513 SPRING PIN OD4X25/099737
32 5131036515 PLASTIC ,PRESS WASHER/099737
33 5131036948 TUBE
34 5131036518 WING NUTS WILL INSRET M8X8NUT/099737
35 5131036517 PLASTIC ,WAHSER BLOCK/099737
36 5131036521 CROSS-SHAPED SCREW M5XL12/099737
37 5131036524 METAL, ADJSUT HEIGHT STEP PLATE/099737
38 5131036525 METAL , NUT M5/099737
39 5131036526 RUBBER , DUST PROOF PLATE/099737
40 5131036532 PLASTIC , QUICK LOCK PRESS BLOCK/099737
41 5131036533 METAL, INSERT NUT M8X8/099737
42 5131036527 PLASTIC , MOTOR COVER/099737
43 5131036949 AIR FLOW PLATE
44 5131036950 HANDLE
45 5131036951 HOUSING CAP
46 5131036952 MOTOR ASSEMBLY
55 5131040942 PULLEY
56 5131040943 BELT
57 5131036554 METAL,DUST PROOF BEARING 6902-2RS/099737
58 5131036953 HOUSING
59 5131036954 CAP
60 5131036955 COVER
61 5131036535 MTEAL ,E RING/099737
62 5131036536 MEATEL ,FLAT WHSER ?10*?20x1.5 /099737
63 5131036956 WHEEL
64 5131036957 AXLE
65 5131036545 MATEL , PRESS PLATE _WHEEL / 099737
66 5131036958 CAP
67 5131036555 ADAPTER SHANK
69 5131036557 BALDE BOLT M8*20/WHITE ZN-PLATED/099737
70 5131036522 PLASTIC, HEIGHT ADJUST HANDLE / 099737
71 5131036960 BENT LEVER
72 5131036961 SCREW
73 5131036561 ADJUST HEIGHT TORSION SPRING/099737
74 5131036553 METAL ,RETENTION SPRING / 099737
75 5131036549 METAL, FRONT CONNECT ROD / 099737
76 5131036962 BRACKET
77 5131036963 AXLE
78 5131036964 PIN
79 5131036565 METAL ,REAR CONNECT ROD / 099737
80 5131036965 PIN
81 5131036551 METAL , SPLIT PIN / 099737
82 5131036966 COVER
83 5131036967 WHEEL
84 5131036968 AXLE
85 5131036578 PLASTIC , GRASS BAG HANDLE / 099737
86 5131036577 PLASTIC , BAG FULL INDICATIOR / 099737
87 5131036969 COVER
88 5131036970 PLUG
89 5131036971 PLUG
90 5131036972 DOOR
91 5131036973 TORSION SPRING
92 5131036974 AXLE
93 5131036975 CIRCLIP
94 5131036976 BAG
95 5131036977 FRAME
96 5131036978 PLUG
97 5131036979 AIR FLOW PLATE
98 5131036980 WASHER
Accessories Pag.2
*** 5132002718 RAC414 36cm mower blade
68 5132002771 RAC420 33cm AC Mower Blade
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RYOBI RLM15E36H
4 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

RYOBI RLM15E36H Drawing

RYOBI RLM15E36H Drawing

Download (379.76KB)

You might also like

TTI Industries SKU: RYOBI RLM13E33S
RYOBI RLM13E33S Lawn Mower Spare Parts Fix Your Ryobi RLM13E33S 1300W Lawn Mower . All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
TTI Industries SKU: RYOBI RLM18E40H
RYOBI RLM18E40H Lawn Mower Spare Parts Fix Your Ryobi RLM18E40H 1800W Lawn Mower . All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
TTI Industries SKU: 5132002771
RYOBI RLM13E33S Blade RAC420 Cm 33 RYOBI Genuine Parts, Blade RAC420 Cm 33 for Lawnmower Ryobi RLM13E33S - RLM15E36H. Part for the following products: - 5133002343 4000444974 - RLM13E33S 1300W 33cm - RLM13E33S-Tosaerba IN2 -...
Last items in stock €21.66
TTI Industries SKU: 5131040943
RYOBI RLM15E36H Belt 5PJ457 RYOBI Genuine Parts, Poli-V Belt 5PJ457 for Lawnmower Ryobi RLM15E36H. Part for the following products: - 5133002345 4000444361 - RLM15E36H 1500W 36cm - RLM15E36H-Lawnmower IN2 - Code : 5131040943
AVAILABLE €23.98
TTI Industries SKU: 5132002718
RYOBI RLM15E36H RAC414 36Cm Blade RYOBI Genuine Parts, RAC414 36Cm Blade for Lawnmower Ryobi RLM15E36H. Part for the following products: - 5133002345 4000444361 - RLM15E36H 1500W 36cm - RLM15E36H-Lawnmower IN2 - Code :...
Last items in stock €24.18
Comments (0)
