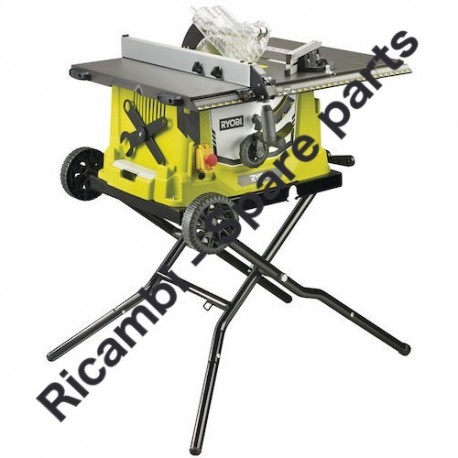

RYOBI RTS1800EF Table Saw Parts

Name: RYOBI RTS1800EF Table Saw Parts
Brand: TTI Industries
SKU: RYOBI RTS1800EF
Availability: InStock

SKU: RYOBI RTS1800EF

€2.77

VAT included

RYOBI RTS1800EF Table Saw+STD Spare Parts

Fix Your Ryobi RTS1800EF Table Saw + STD. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Ryobi RTS1800EF Table Saw + STD

159 spare parts

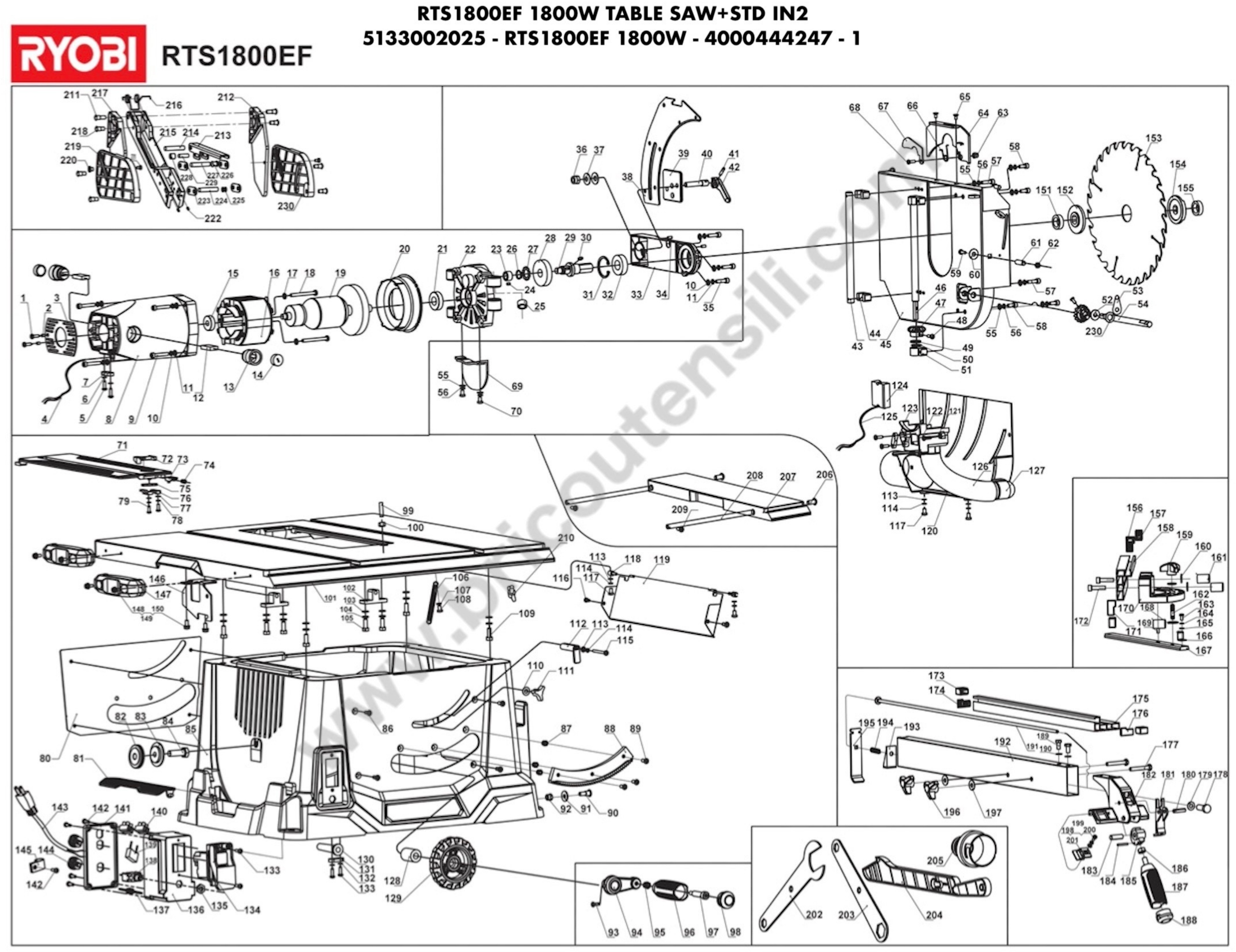

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
B15	Image coming soon	5131032526 FLAT WASHER DIA 5.3	€1.83
B07	Image coming soon	5131032551 HEXAGON FULL NUT M8	€1.83
B17	Image coming soon	5131032585 PAN HEAD SCREW M5X12	€2.69
B19	Image coming soon	5131032612 HEXAGON FULL NUT M6	€2.69
B09	Image coming soon	5131032621 SPRING WASHER Ø6	€1.83
B02	Image coming soon	5131032725 FLAT WASHER DIA,13,5	€2.69
B03	Image coming soon	5131032762 PLASTIC ,REAR WHEEL /099736	€26.71
B04	Image coming soon	5131032763 SHORT SLEEVE	€8.69
B05	Image coming soon	5131032764 REAR FEET 30	€18.13
B06	Image coming soon	5131032765 LONG SLEEVE	€12.98
B10	Image coming soon	5131032766 BIG WASHER 6,6	€2.69
B11	Image coming soon	5131032767 RAMWORK ASSEMBLY	€76.49
B12	Image coming soon	5131032768 HEX,SOCKET CAP SCREW M6X30	€1.83
B14	Image coming soon	5131032770 FIX BLOCK	€6.12
B18	Image coming soon	5131032771 HOOK	€2.69
B20	Image coming soon	5131032772 HOOK CAP	€6.12
B21	Image coming soon	5131032773 RIGHT SLIDING BUSHING	€5.26
B23	Image coming soon	5131032775 LEFT SLIDING BUSHING	€5.26
B24	Image coming soon	5131032776 MIDDLE SLEEVE	€6.12
B25	Image coming soon	5131032777 HEXAGON HEAD SCREW M12X130	€2.69
B26	Image coming soon	5131032778 HEXAGON FULL NUT M12	€6.12
B27	Image coming soon	5131032779 SHORT LEG	€15.56
B28	Image coming soon	5131032780 LEG CAP	€9.55
B29	Image coming soon	5131032781 HEAD SQUARE NECK BOLT M6X40	€5.26
B30	Image coming soon	5131032782 ADJUSTMENT LEG	€6.12
B31	Image coming soon	5131032783 NUT OF THE FEET	€2.69
B32	Image coming soon	5131032784 SHORT LEG 30	€6.12
B33	Image coming soon	5131032785 FRONT LEG 30	€18.13
B01	Image coming soon	5131033601 THREADED BOLT	€7.83
01	Image coming soon	5131032516 SCREW M4X8MM	€2.69
04	Image coming soon	5131032519 MOTOR CORD VC3X1.0X590MM	€9.55
06	Image coming soon	5131032521 SMALL WASHER DIA 4.3XDIA8X0.5T	€2.69
08	Image coming soon	5131032523 MOTOR HOUSING	€26.71
11	Image coming soon	5131032526 FLAT WASHER DIA 5.3	€1.83
12		5131032527 RYOBI RTS1800EF Carbon Brush	€13.37
15	Image coming soon	5131032530 DEEP GROOVE BALL BEARING 629-2Z	€9.55
16	Image coming soon	5131032531 STATOR ASSEMBLY	€83.37
19	Image coming soon	5131032534 ARMATURE ASSEMBLY	€106.53
20	Image coming soon	5131032535 AIR SEAL RING	€5.26
21	Image coming soon	5131032536 DEEP GROOVE BALL BEARING 6002-2Z	€9.55
22	Image coming soon	5131032537 GEAR BOX	€32.72
23	Image coming soon	5131032538 NEEDLE BEARING HK1010	€5.26
24	Image coming soon	5131032804 SCREW WITH FLAT POINT M5X6	€2.69
25	Image coming soon	5131032805 PRECISION SLIDING SLEEVE	€6.12
26	Image coming soon	5131032541 CIRCLIPS FOR SHAFT DIA 14	€2.69
27	Image coming soon	5131032542 WAVE SPRING WASHER DIA 14	€2.69
28	Image coming soon	5131032543 BIG GEAR 40CR	€16.43
29	Image coming soon	5131032544 OUTPUT SHAFT	€9.55
30	Image coming soon	5131032545 PARALLEL KEY 4X4X8	€2.69
31	Image coming soon	5131032546 CIRCLIPS FOR HOLE DIA 35	€2.69
32	Image coming soon	5131032547 DEEP GROOVE BALL BEARING 6003-2RS	€6.12
33	Image coming soon	5131032548 ACCEPTANCE	€12.98
34	Image coming soon	5131032549 PARALLEL PIN	€2.69
35	Image coming soon	5131032550 HEXGON SOCKET CAP SCREW M5X18	€2.69
36	Image coming soon	5131032551 HEXAGON FULL NUT M8	€1.83
38		5131032553 RYOBI RTS1800EF Splitting Wedge	€13.37
43	Image coming soon	5131032558 GUIDE POST	€7.83
44	Image coming soon	5131032559 GUIDE PAD	€2.69
46	Image coming soon	5131032561 ADJUSTMENT ROD	€7.83
47		5131032562 RYOBI RTS1800EF Bevel Gear	€7.53
49	Image coming soon	5131032564 FRICTION WASHER A	€2.69
51	Image coming soon	5131032566 FIX BLOCK	€8.69
52	Image coming soon	5131032567 FRICTION WASHER B	€2.69
53	Image coming soon	5131032807 SPRING HANGER	€2.69
54	Image coming soon	5131032569 ADJUSTMENT ROD	€4.40
55	Image coming soon	5131032526 FLAT WASHER DIA 5.3	€1.83
57	Image coming soon	5131032572 HEXGON SOCKET CAP SCREW M5X25	€2.69
58	Image coming soon	5131032573 HEXGON SOCKET CAP SCREW M5X16	€2.69
62	Image coming soon	5131032577 HEXAGON NUT M6	€2.69
70	Image coming soon	5131032585 PAN HEAD SCREW M5X12	€2.69
71	Image coming soon	5131032492 INSERT	€32.72
73	Image coming soon	5131032588 INSERT	€2.69
74	Image coming soon	5131032589 SPRING	€2.69
77	Image coming soon	5131032521 SMALL WASHER DIA 4.3XDIA8X0.5T	€2.69
80	Image coming soon	5131032595 CABINET SCALEBOARD	€10.41
82	Image coming soon	5131032597 BLADE STOCK KNOB	€2.69
83	Image coming soon	5131032598 WRENCH SEAT	€2.69
87	Image coming soon	5131032602 HEXAGON FULL NUT M5	€2.69
88	Image coming soon	5131032603 RACK	€6.12
91	Image coming soon	5131032679 FLAT WASHER DIA,8XDIA,32X2	€2.69
92	Image coming soon	5131032808 HEXAGON FULL NUT M6	€1.83
93	Image coming soon	5131032608 CABINET FEET	€3.53
94	Image coming soon	5131032610 PAN HEAD SCREW M6X16	€2.69
95	Image coming soon	5131032611 HAND WHEEL ARM	€7.83
96	Image coming soon	5131032612 HEXAGON FULL NUT M6	€2.69
97	Image coming soon	5131032613 HANDLE	€6.12
98	Image coming soon	5131032614 HANDLE SCREW	€2.69
99	Image coming soon	5131032615 HANDLE COVER	€2.69
100	Image coming soon	5131032616 SCREW WITH FLAT POINT M6X25	€1.83
102	Image coming soon	5131032618 MAIN TABLE	€260.17
105	Image coming soon	5131032621 SPRING WASHER Ø6	€1.83
112	Image coming soon	5131032628 BEVEL LOCK LEVER	€2.69
113	Image coming soon	5131032629 BEVEL INDICATOR	€2.69
114	Image coming soon	5131032842 BIG WASHER DIA,4,3	€1.83
117	Image coming soon	5131032633 PAN HEAD SCREW M4X8	€2.69
118	Image coming soon	5131032634 PAN HEAD SCREW M4X14	€1.83
120	Image coming soon	5131032636 FLAPPER	€6.12
121	Image coming soon	5131032637 DUST GUIDE PLATE	€18.13
122	Image coming soon	5131032516 SCREW M4X8MM	€2.69
124	Image coming soon	5131032758 SOFT START	€62.76
128	Image coming soon	5131032642 HANDLE SLEEVE	€2.69
132	Image coming soon	5131032521 SMALL WASHER DIA 4.3XDIA8X0.5T	€2.69
134	Image coming soon	5131032648 SWITCH	€58.46
135	Image coming soon	5131032649 RING OF CIRCUIT BREAKER	€7.83
136	Image coming soon	5131032650 SWITCH BOX	€9.55
137	Image coming soon	5131032651 INDUCTOR	€9.55
138	Image coming soon	5131032652 OVERLOAD PROTECTOR	€7.83
140	Image coming soon	5131032654 CORD CONNECTOR	€6.12
143	Image coming soon	5131032657 POWER CORD WITH VED PLUG	€23.29
150	Image coming soon	5131032585 PAN HEAD SCREW M5X12	€2.69
151	Image coming soon	5131032664 COMPOUND CUTTING PAD	€6.12
152	Image coming soon	5131032497 PRESSURE PLATE	€21.56
154	Image coming soon	5131032498 CLAMPING FLANGE	€21.56
155	Image coming soon	5131032668 BLADE NUT	€2.69
156	Image coming soon	5131032670 FRONT CAP	€2.69
157	Image coming soon	5131032671 KNOB	€2.69
158	Image coming soon	5131032672 SHORT FENCE	€9.55
159	Image coming soon	5131032673 KNOB	€6.12
160	Image coming soon	5131032674 WASHER DIA 6.4	€2.69
161	Image coming soon	5131032675 LOCK KNOB	€6.12
162	Image coming soon	5131032676 BOLTS WITH DOUBLE NIP	€2.69
163	Image coming soon	5131032633 PAN HEAD SCREW M4X8	€2.69
164	Image coming soon	5131032521 SMALL WASHER DIA 4.3XDIA8X0.5T	€2.69
166	Image coming soon	5131032680 POINTOR	€2.69
167	Image coming soon	5131032681 MITER GAUGE BAR	€7.83
168	Image coming soon	5131032679 FLAT WASHER DIA,8XDIA,32X2	€2.69
170	Image coming soon	5131032684 MITER GAUGE	€7.83
173	Image coming soon	5131032688 END CAP-1	€2.69
174	Image coming soon	5131032689 END CAP-2	€2.69
175	Image coming soon	5131032690 AUXILLIARY FENCE	€8.69
176	Image coming soon	5131032691 END CAP-3	€2.69
177	Image coming soon	5131032692 HEXAGON HEAD SCREW M6X35	€1.74
178	Image coming soon	5131032693 ADJUSTMENT NUT	€2.69
179	Image coming soon	5131032694 FLAT WASHER DIA 8.4	€2.69
180	Image coming soon	5131032695 PIN	€2.69
181	Image coming soon	5131032696 REAR PLATE	€6.12
182	Image coming soon	5131032697 FENCE BLOCK	€11.27
183	Image coming soon	5131032698 CAM PIN	€2.69
184	Image coming soon	5131032699 SPRING PIN,HEAVY TYPE DIA 3X25	€2.69
185	Image coming soon	5131032700 CAM	€6.12
186	Image coming soon	5131032577 HEXAGON NUT M6	€2.69
187	Image coming soon	5131032702 HANDLE	€2.69
188	Image coming soon	5131032703 HANDLE COVER	€2.69
189	Image coming soon	5131032704 HEXAGON HEAD SCREW M6X12	€5.26
191	Image coming soon	5131032706 CONNECT ROD	€7.83
192	Image coming soon	5131032707 RIP FENCE	€18.13
193	Image coming soon	5131032708 REAR INSERT PANEL	€2.69
194	Image coming soon	5131032709 SPRING FOR THE ROD	€2.69
195	Image coming soon	5131032710 REAR PANEL	€7.83
196	Image coming soon	5131032711 KNOB	€5.26
197	Image coming soon	5131032679 FLAT WASHER DIA,8XDIA,32X2	€2.69
198	Image coming soon	5131032633 PAN HEAD SCREW M4X8	€2.69
199	Image coming soon	5131032521 SMALL WASHER DIA 4.3XDIA8X0.5T	€2.69
201	Image coming soon	5131032716 BEVEL INDICATOR	€2.69
202	Image coming soon	5131032718 BIG WRENCH	€8.69
203	Image coming soon	5131032719 SMALL WRENCH	€7.83
204	Image coming soon	5131032494 SLIDE	€9.55
206	Image coming soon	5131032539 EXTEND SCREW PIN	€5.26
207	Image coming soon	5131032540 EXTENSION TABLE	€62.76
209	Image coming soon	5131032568 PAN HD SCREW WITH CROSS RECESSED MX8	€2.69
210	Image coming soon	5131032809 BUTTERFLY KNOB	€7.83
211	Image coming soon	5131032592 SCREW FOR BLADE GUARD	€2.69
212	Image coming soon	5131032630 FRONT LEFT PROTECT GUARD	€18.13
213	Image coming soon	5131032646 LOCK KNOB OF THE PROTECT GUARD	€2.69
214	Image coming soon	5131032714 LOCKKNOB SHAFT OF THE PROTECT GUARD	€5.26
215	Image coming soon	5131032701 SWINGING ARM OF THE PROTECT GUARD	€21.56
217	Image coming soon	5131032631 FRONT RIGHT PROTECT GUARD	€12.98
219		5131032678 RYOBI RTS1800EF Front Rear Protect Guard	€13.37
220	Image coming soon	5131032607 CONNECTOR SCREW OF PROTECT GUARD	€2.69
221	Image coming soon	5131032682 PAN HEAD SCREW M4X6	€2.69
222	Image coming soon	5131032712 SCREW WITH FLAT POINT M5X8	€2.69
223	Image coming soon	5131032686 LOCK LINKAGE OF THE PROTECT GUARD	€5.26
224	Image coming soon	5131032662 LINKAGE SHAFT SHORT BUSHING	€2.69
225	Image coming soon	5131032571 LINKAGE SHAFT LONG BUSHING	€2.69
230	Image coming soon	5131032761 FLAT WASHER DIA 10	€1.83
400	Image coming soon	5131032495 GUIDE RAIL	€74.79

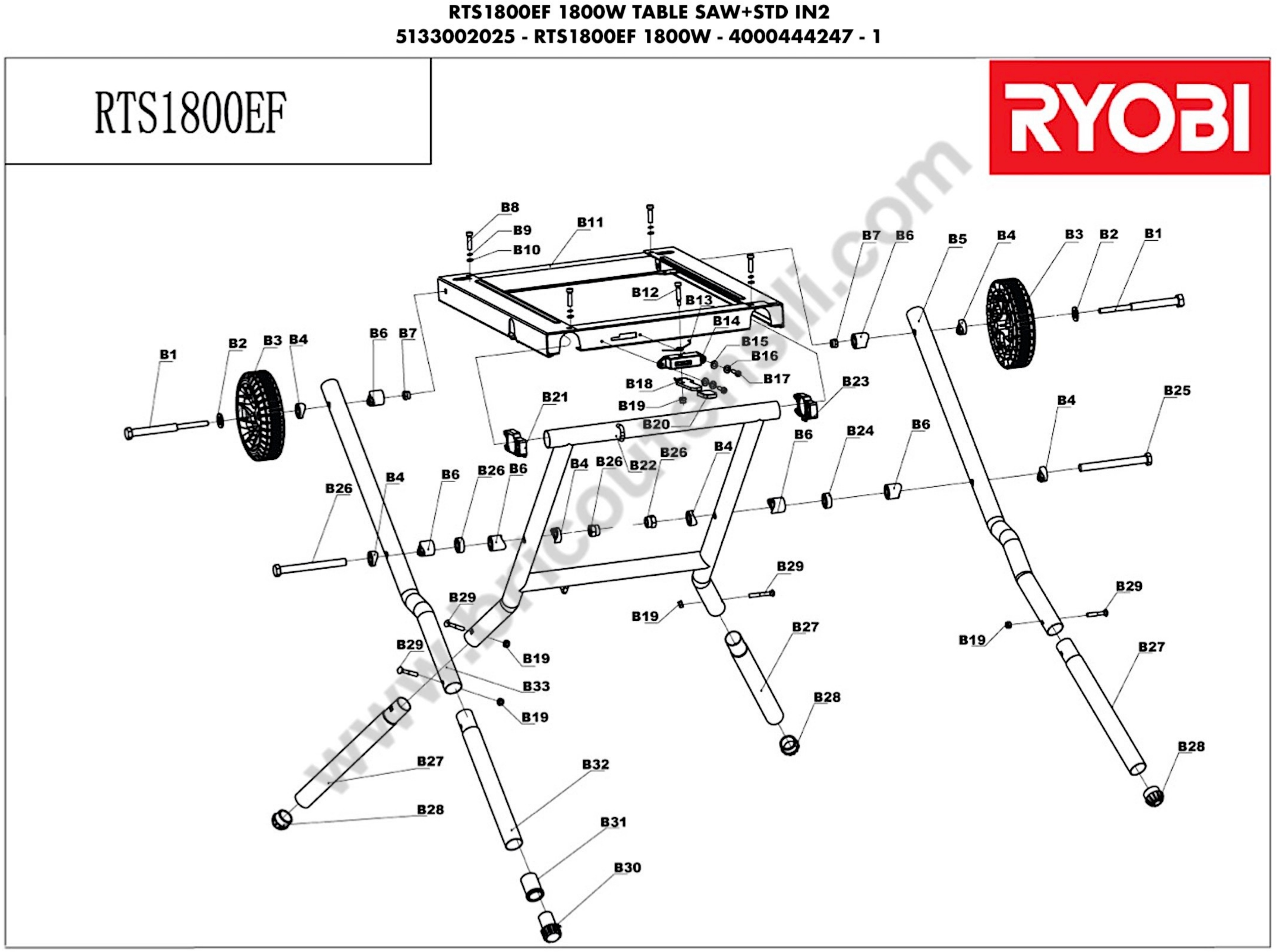

Page 2 View exploded Usually Ships in: 7/10 BUSINESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price
B10	Image coming soon	5131032766 BIG WASHER 6,6	€2.69
B11	Image coming soon	5131032767 RAMWORK ASSEMBLY	€76.49
B12	Image coming soon	5131032768 HEX,SOCKET CAP SCREW M6X30	€1.83
B14	Image coming soon	5131032770 FIX BLOCK	€6.12
B18	Image coming soon	5131032771 HOOK	€2.69
B20	Image coming soon	5131032772 HOOK CAP	€6.12
B21	Image coming soon	5131032773 RIGHT SLIDING BUSHING	€5.26
B23	Image coming soon	5131032775 LEFT SLIDING BUSHING	€5.26
B24	Image coming soon	5131032776 MIDDLE SLEEVE	€6.12
B25	Image coming soon	5131032777 HEXAGON HEAD SCREW M12X130	€2.69
B26	Image coming soon	5131032778 HEXAGON FULL NUT M12	€6.12
B27	Image coming soon	5131032779 SHORT LEG	€15.56
B28	Image coming soon	5131032780 LEG CAP	€9.55
B29	Image coming soon	5131032781 HEAD SQUARE NECK BOLT M6X40	€5.26
B30	Image coming soon	5131032782 ADJUSTMENT LEG	€6.12
B31	Image coming soon	5131032783 NUT OF THE FEET	€2.69
B32	Image coming soon	5131032784 SHORT LEG 30	€6.12
B33	Image coming soon	5131032785 FRONT LEG 30	€18.13

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

RYOBI RTS1800EF Table Saw+STD Spare Parts

Fix Your Ryobi RTS1800EF Table Saw + STD. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.

RTS1800EF 1800W TABLE SAW+STD IN2 5133002025 - RTS1800EF 1800W - 4000444247
#	Part Num.	Description
01	5131032516	SCREW M4X8MM
02	5131032517	THREADED PIN M4X6 Discontinued
03	5131032518	MOTOR END COVER Discontinued
04	5131032519	MOTOR CORD VC3X1.0X590MM
05	5131032520	PAN HEAD TAPPING SCREW ST4.2X16 Discontinued
06	5131032521	SMALL WASHER DIA 4.3XDIA8X0.5T
07	5131032522	CORD CLAMP Discontinued
08	5131032523	MOTOR HOUSING
09	5131032524	HEXAGON SOCKET CAP SCREW M5X35
10	5131032525	SPRING WASHER DIA 5 Discontinued
11	5131032526	FLAT WASHER DIA 5.3
12	5131032527	CARBON BRUSH
13	5131032528	BRUSH HOLDER Discontinued
14	5131032529	BRUSH COVER Discontinued
15	5131032530	DEEP GROOVE BALL BEARING 629-2Z
16	5131032531	STATOR ASSEMBLY
17	5131032532	FLAT WASHER DIA 5.5 Discontinued
18	5131032533	PAN HEAD TAPPING SCREW ST4.8X65 Discontinued
19	5131032534	ARMATURE ASSEMBLY
20	5131032535	AIR SEAL RING
21	5131032536	DEEP GROOVE BALL BEARING 6002-2Z
22	5131032537	GEAR BOX
23	5131032538	NEEDLE BEARING HK1010
24	5131032804	SCREW WITH FLAT POINT M5X6
25	5131032805	PRECISION SLIDING SLEEVE
26	5131032541	CIRCLIPS FOR SHAFT DIA 14
27	5131032542	WAVE SPRING WASHER DIA 14
28	5131032543	BIG GEAR 40CR
29	5131032544	OUTPUT SHAFT
30	5131032545	PARALLEL KEY 4X4X8
31	5131032546	CIRCLIPS FOR HOLE DIA 35
32	5131032547	DEEP GROOVE BALL BEARING 6003-2RS
33	5131032548	ACCEPTANCE
34	5131032549	PARALLEL PIN
35	5131032550	HEXGON SOCKET CAP SCREW M5X18
36	5131032551	HEXAGON FULL NUT M8
37	5131032552	LOCK WASHER Discontinued
38	5131032553	SPLITTING WEDGE
39	5131032554	PLATE Discontinued
40	5131032555	LOCK SHAFT Discontinued
41	5131032556	SPRING PINS,HEAVY TYPE DIA 4X18 Discontinued
42	5131032557	LOCK HANDLE
43	5131032558	GUIDE POST
44	5131032559	GUIDE PAD
45	5131032560	LOW BLADE GUARD Discontinued
46	5131032561	ADJUSTMENT ROD
47	5131032562	BEVEL GEAR
48	5131032563	PAN HEAD SCREW M4X20 Discontinued
49	5131032564	FRICTION WASHER A
50	5131032806	FRICTION WASHER Discontinued
51	5131032566	FIX BLOCK
52	5131032567	FRICTION WASHER B
53	5131032807	SPRING HANGER
54	5131032569	ADJUSTMENT ROD
55	5131032526	FLAT WASHER DIA 5.3
56	5131032525	SPRING WASHER DIA 5 Discontinued
57	5131032572	HEXGON SOCKET CAP SCREW M5X25
58	5131032573	HEXGON SOCKET CAP SCREW M5X16
59	5131032574	CARRIAGE BOLTS M6X50
60	5131032575	WAVE SPRING WASHER DIA 8
61	5131032576	SLEEVE Discontinued
62	5131032577	HEXAGON NUT M6
63	5131032578	HEXAGON FULL NUT M4
64	5131032579	SCALEBOARD
65	5131032580	HEAD TAPPING SCREW ST4.2X12
66	5131032581	SPRING
67	5131032582	SAFETY GUARD Discontinued
68	5131032583	PAN HEAD SCREW M4X12
69	5131032584	LOW GUARD Discontinued
70	5131032585	PAN HEAD SCREW M5X12
71	5131032492	INSERT
72	5131032587	KEY Discontinued
73	5131032588	INSERT
74	5131032589	SPRING
75	5131032590	LINKAGE Discontinued
76	5131032591	PLATE Discontinued
77	5131032521	SMALL WASHER DIA 4.3XDIA8X0.5T
78	5131032593	SPRING WASHER DIA 4 Discontinued
79	5131032594	PAN HEAD SCREW M4X10 Discontinued
80	5131032595	CABINET SCALEBOARD
81	5131032596	TOOL BOX COVER Discontinued
82	5131032597	BLADE STOCK KNOB
83	5131032598	WRENCH SEAT
84	5131032599	HEXAGON HEAD SCREW Discontinued
85	5131032600	CABINET Discontinued
86	5131032601	HEAD SCREW M4X6
87	5131032602	HEXAGON FULL NUT M5
88	5131032603	RACK
89	5131032604	HEAD SCREW M5X14 Discontinued
90	5131032605	SCREW Discontinued
91	5131032679	FLAT WASHER DIA,8XDIA,32X2
92	5131032808	HEXAGON FULL NUT M6
93	5131032608	CABINET FEET
94	5131032610	PAN HEAD SCREW M6X16
95	5131032611	HAND WHEEL ARM
96	5131032612	HEXAGON FULL NUT M6
97	5131032613	HANDLE
98	5131032614	HANDLE SCREW
99	5131032615	HANDLE COVER
100	5131032616	SCREW WITH FLAT POINT M6X25
101	5131032617	HEXAGON NUT M6 Discontinued
102	5131032618	MAIN TABLE
103	5131032619	ADJUSTMENT BLOCK Discontinued
104	5131032620	FLAT WASHER-A CLASS DIA 6.4 Discontinued
105	5131032621	SPRING WASHER Ø6
106	5131032622	HEXAGON HEAD SCREW M6X20 Discontinued
107	5131032623	SPRING Discontinued
108	5131032620	FLAT WASHER-A CLASS DIA 6.4 Discontinued
109	5131032625	HEXGON SOCKET CAP SCREW M6X12 Discontinued
110	5131032626	HEXAGON HEAD SCREW M6X25 Discontinued
111	5131032627	BIG FLAT WASHER DIA 6 Discontinued
112	5131032628	BEVEL LOCK LEVER
113	5131032629	BEVEL INDICATOR
114	5131032842	BIG WASHER DIA,4,3
115	5131032593	SPRING WASHER DIA 4 Discontinued
116	5131032632	PAN HEAD SCREW M4X50 Discontinued
117	5131032633	PAN HEAD SCREW M4X8
118	5131032634	PAN HEAD SCREW M4X14
119	5131032635	PIN Discontinued
120	5131032636	FLAPPER
121	5131032637	DUST GUIDE PLATE
122	5131032516	SCREW M4X8MM
123	5131032757	PRESSING LINE PLATE Discontinued
124	5131032758	SOFT START
125	5132032759	INNER WIRE FOR SOFT START Discontinued
126	5131032640	DUST HOSE Discontinued
127	5131032641	HOSE CONNECTOR-B Discontinued
128	5131032642	HANDLE SLEEVE
129	5131032643	HANDLE WHEEL Discontinued
130	5131032644	STRAIN RELIEF Discontinued
131	5131032645	CORD CLAMP Discontinued
132	5131032521	SMALL WASHER DIA 4.3XDIA8X0.5T
133	5131032520	PAN HEAD TAPPING SCREW ST4.2X16 Discontinued
134	5131032648	SWITCH
135	5131032649	RING OF CIRCUIT BREAKER
136	5131032650	SWITCH BOX
137	5131032651	INDUCTOR
138	5131032652	OVERLOAD PROTECTOR
139	5131032653	CAPACITANCE Discontinued
140	5131032654	CORD CONNECTOR
141	5131032655	SWITCH COVER Discontinued
142	5131032656	PAN HEAD TAPPING SCREW ST4.2X10
143	5131032657	POWER CORD WITH VED PLUG
144	5131032658	STRAIN RELIEF Discontinued
145	5131032659	CORD CLAMP Discontinued
146	5131032660	BLADE GUARD STOCK PLATE Discontinued
147	5131032760	SUPPORTING FOOT Discontinued
148	5131032661	FLAT WASHER DIA 5.5 Discontinued
149	5131032525	SPRING WASHER DIA 5 Discontinued
150	5131032585	PAN HEAD SCREW M5X12
151	5131032664	PAD
152	5131032497	PRESSURE PLATE
154	5131032498	CLAMPING FLANGE
155	5131032668	BLADE NUT
156	5131032670	FRONT CAP
157	5131032671	KNOB
158	5131032672	SHORT FENCE
159	5131032673	KNOB
160	5131032674	WASHER DIA 6.4
161	5131032675	LOCK KNOB
162	5131032676	BOLTS WITH DOUBLE NIP
163	5131032633	PAN HEAD SCREW M4X8
164	5131032521	SMALL WASHER DIA 4.3XDIA8X0.5T
165	5131032593	SPRING WASHER DIA 4 Discontinued
166	5131032680	POINTOR
167	5131032681	MITER GAUGE BAR
168	5131032679	FLAT WASHER DIA,8XDIA,32X2
169	5131032683	PIN Discontinued
170	5131032684	MITER GAUGE
171	5131032685	END CAP Discontinued
172	5131032617	HEXAGON NUT M6 Discontinued
173	5131032688	END CAP-1
174	5131032689	END CAP-2
175	5131032690	AUXILLIARY FENCE
176	5131032691	END CAP-3
177	5131032692	HEXAGON HEAD SCREW M6X35
178	5131032693	ADJUSTMENT NUT
179	5131032694	FLAT WASHER DIA 8.4
180	5131032695	PIN
181	5131032696	REAR PLATE
182	5131032697	FENCE BLOCK
183	5131032698	CAM PIN
184	5131032699	SPRING PIN,HEAVY TYPE DIA 3X25
185	5131032700	CAM
186	5131032577	HEXAGON NUT M6
187	5131032702	HANDLE
188	5131032703	HANDLE COVER
189	5131032704	HEXAGON HEAD SCREW M6X12
190	5131032705	EXT. TOOTH WASHER DIA 6 Discontinued
191	5131032706	CONNECT ROD
192	5131032707	RIP FENCE
193	5131032708	REAR INSERT PANEL
194	5131032709	SPRING FOR THE ROD
195	5131032710	REAR PANEL
196	5131032711	KNOB
197	5131032679	FLAT WASHER DIA,8XDIA,32X2
198	5131032633	PAN HEAD SCREW M4X8
199	5131032521	SMALL WASHER DIA 4.3XDIA8X0.5T
200	5131032593	SPRING WASHER DIA 4 Discontinued
201	5131032716	INDICATOR
202	5131032718	BIG WRENCH
203	5131032719	SMALL WRENCH
204	5131032494	SLIDE
205	5131032721	DUST PORT Discontinued
206	5131032539	EXTEND SCREW PIN
207	5131032540	EXTENSION TABLE
208	5131032565	EXTENSION BAR Discontinued
209	5131032568	PAN HD SCREW WITH CROSS RECESSED MX8
210	5131032809	BUTTERFLY KNOB
211	5131032592	SCREW FOR BLADE GUARD
212	5131032630	FRONT LEFT PROTECT GUARD
213	5131032646	LOCK KNOB OF THE PROTECT GUARD
214	5131032714	LOCKKNOB SHAFT OF THE PROTECT GUARD
215	5131032701	SWINGING ARM OF THE PROTECT GUARD
216	5131032663	PROTECT GUARD TORSION SPRING Discontinued
217	5131032631	FRONT RIGHT PROTECT GUARD
218	5131032715	SCREW ON THE PROTECT GUARD Discontinued
219	5131032678	FRONT REAR PROTECT GUARD
220	5131032607	CONNECTOR SCREW OF PROTECT GUARD
221	5131032682	PAN HEAD SCREW M4X6
222	5131032712	SCREW WITH FLAT POINT M5X8
223	5131032686	LOCK LINKAGE OF THE PROTECT GUARD
224	5131032662	LINKAGE SHAFT SHORT BUSHING
225	5131032571	LINKAGE SHAFT LONG BUSHING
226	5131032677	SHAFT OF THE BUSHING FOR PROTECT GUARD Discontinued
227	5131032713	CENTRAL SHAFT BUSHING Discontinued
228	5131032747	CENTRAL SHAFT Discontinued
229	5131032748	REAR LEFT PROTECT GUARD Discontinued
230	5131032761	FLAT WASHER DIA 10
300	5131032496	SETTING GAUGE Discontinued
400	5131032495	GUIDE RAIL
B01	5131033601	THREADED BOLT
B02	5131032725	FLAT WASHER DIA,13,5
B03	5131032762	WHEEL
B04	5131032763	SHORT SLEEVE
B05	5131032764	REAR FEET 30
B06	5131032765	LONG SLEEVE
B07	5131032551	HEXAGON FULL NUT M8
B08	5131032626	HEXAGON HEAD SCREW M6X25 Discontinued
B09	5131032621	SPRING WASHER Ø6
B10	5131032766	BIG WASHER 6,6
B11	5131032767	RAMWORK ASSEMBLY
B12	5131032768	HEX,SOCKET CAP SCREW M6X30
B13	5131032769	BRACKAGE SPRING Discontinued
B14	5131032770	FIX BLOCK
B15	5131032526	FLAT WASHER DIA 5.3
B16	5131032593	SPRING WASHER DIA 4 Discontinued
B17	5131032585	PAN HEAD SCREW M5X12
B18	5131032771	HOOK
B19	5131032612	HEXAGON FULL NUT M6
B20	5131032772	HOOK CAP
B21	5131032773	RIGHT SLIDING BUSHING
B22	5131032774	SUPPORT ASSY Discontinued
B23	5131032775	LEFT SLIDING BUSHING
B24	5131032776	MIDDLE SLEEVE
B25	5131032777	HEXAGON HEAD SCREW M12X130
B26	5131032778	HEXAGON FULL NUT M12
B27	5131032779	SHORT LEG
B28	5131032780	LEG CAP
B29	5131032781	HEAD SQUARE NECK BOLT M6X40
B30	5131032782	ADJUSTMENT LEG
B31	5131032783	NUT OF THE FEET
B32	5131032784	SHORT LEG 30
B33	5131032785	FRONT LEG 30

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference RYOBI RTS1800EF

Available 6 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

Condition New

Download

RYOBI RTS1800EF Drawing

Download (841.2KB)

TTI Industries SKU: Ryobi RSDS1050-K

Ryobi RSDS1050-K 1050W Rotary Hammer

Ryobi RSDS1050-K SDS+ 1050W Rotary Hammer Characteristics - SDS+ 1050W Rotary hammer drill - Hammer drill with pneumatic mechanism that guarantees up to 3.6J EPTA impact - The 1050W motor allows exceptional performance - "L" design...

AVAILABLE €196.58

Details

TTI Industries SKU: 5131042128

RYOBI RSDS1050-K Switch

RYOBI RSDS1050-K Switch RYOBI Genuine Parts, Switch Kit for Rotary Hammer RSDS1050-K. Part for the following products: - 5133004350 4000462753 - RSDS1050-K(EU) - RSDS1050-K_ROTARY HAMMER - 5133004351 4000462754 -...

AVAILABLE €17.37

Details

TTI Industries SKU: 5131042098

O-RING

RYOBI RSDS1050-K O-Ring 25x19,3x2,80 RYOBI Genuine Parts, O-Ring 25x19,3x2,80 for Rotary Hammer RSDS1050-K. Part for the following products: - 5133004350 4000462753 - RSDS1050-K(EU) - RSDS1050-K_ROTARY HAMMER - 5133004351...

AVAILABLE €2.77

Details

TTI Industries SKU: 5131042118

RYOBI RSDS1050-K Conrod-Piston Kit

RYOBI RSDS1050-K Conrod-Piston Kit RYOBI Genuine Parts, Conrod-Piston Kit Assembly for Rotary Hammer RSDS1050-K. Part for the following products: - 5133004350 4000462753 - RSDS1050-K(EU) - RSDS1050-K_ROTARY HAMMER - 5133004351...

AVAILABLE €11.61

Details

TTI Industries SKU: 5131032562

RYOBI RTS1800EF Bevel Gear

RYOBI RTS1800EF Bevel Gear RYOBI Genuine Parts, Bevel Gear for Table Saw RTS1800EF. Part for the following products: - 5133002022 4000444243 - RTS1800 - RTS1800 1800W TABLE SAW UK - 5133002024 4000444246 - RTS1800ES -...

Usually Ships in: 7/10 Business Days Approx. €7.53

Details

TTI Industries SKU: 5131032678

RYOBI RTS1800EF Front Rear Protect Guard

RYOBI RTS1800EF Front Rear Protect Guard RYOBI Genuine Parts, Front Rear Protect Guard for Table Saw RTS1800EF. Part for the following products: - 5133002025 4000444247 - RTS1800EF 1800W - RTS1800EF 1800W TABLE SAW+STD IN2...

AVAILABLE €13.37

Details

TTI Industries SKU: 5131032553

RYOBI RTS1800EF Splitting Wedge

RYOBI RTS1800EF Splitting Wedge RYOBI Genuine Parts, Bevel Gear for Table Saw RTS1800EF. Part for the following products: - 5133002022 4000444243 - RTS1800 - RTS1800 1800W TABLE SAW UK - 5133002024 4000444246 - RTS1800ES -...

Usually Ships in: 7/10 Business Days Approx. €13.37

Details

TTI Industries SKU: 5131032527

RYOBI RTS1800EF Carbon Brush

RYOBI RTS1800EF Carbon Brush RYOBI Genuine Parts, Carbon Brush for Table Saw RTS1800EF. Part for the following products: - 5133002022 4000444243 - RTS1800 - RTS1800 1800W TABLE SAW UK - 5133002024 4000444246 - RTS1800ES -...

AVAILABLE €13.37

Details

Comments (0)

Cart (0)

Subcategories

Subcategories

Subcategories

Power Tools Spare Parts

Garden Spare Parts

Air Compressor Spare Parts

Protezione & Edilizia

Impianti & Utensili

Casa & Giardino

RYOBI RTS1800EF Table Saw Parts

RYOBI RTS1800EF Table Saw+STD Spare Parts

RYOBI RTS1800EF Table Saw Parts

RYOBI RTS1800EF Table Saw+STD Spare Parts

RYOBI RTS1800EF Table Saw+STD Spare Parts

Data sheet

Specific References

Download

RYOBI RTS1800EF Drawing

You might also like

Products

News

Notes

Our company
