TTI Industries

RYOBI RSDS1050-K Rotary Hammer Parts

SKU: RYOBI RSDS1050-K
€2.77
VAT included

RYOBI RSDS1050-K Rotary Hammer Spare Parts

Fix Your Ryobi RSDS1050-K SDS+ 1050W Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

RYOBI RSDS1050-K
RYOBI RSDS1050-K Rotary Hammer Parts
  • RYOBI RSDS1050-K Rotary Hammer Parts
  • RYOBI RSDS1050-K Rotary Hammer Parts - Diagram
TTI Industries

RYOBI RSDS1050-K Rotary Hammer Parts

SKU: RYOBI RSDS1050-K Condition: New
€2.77
VAT included

RYOBI RSDS1050-K Rotary Hammer Spare Parts

Fix Your Ryobi RSDS1050-K SDS+ 1050W Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

RYOBI RSDS1050-K
settings 38 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
CODICE ARTICOLO
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

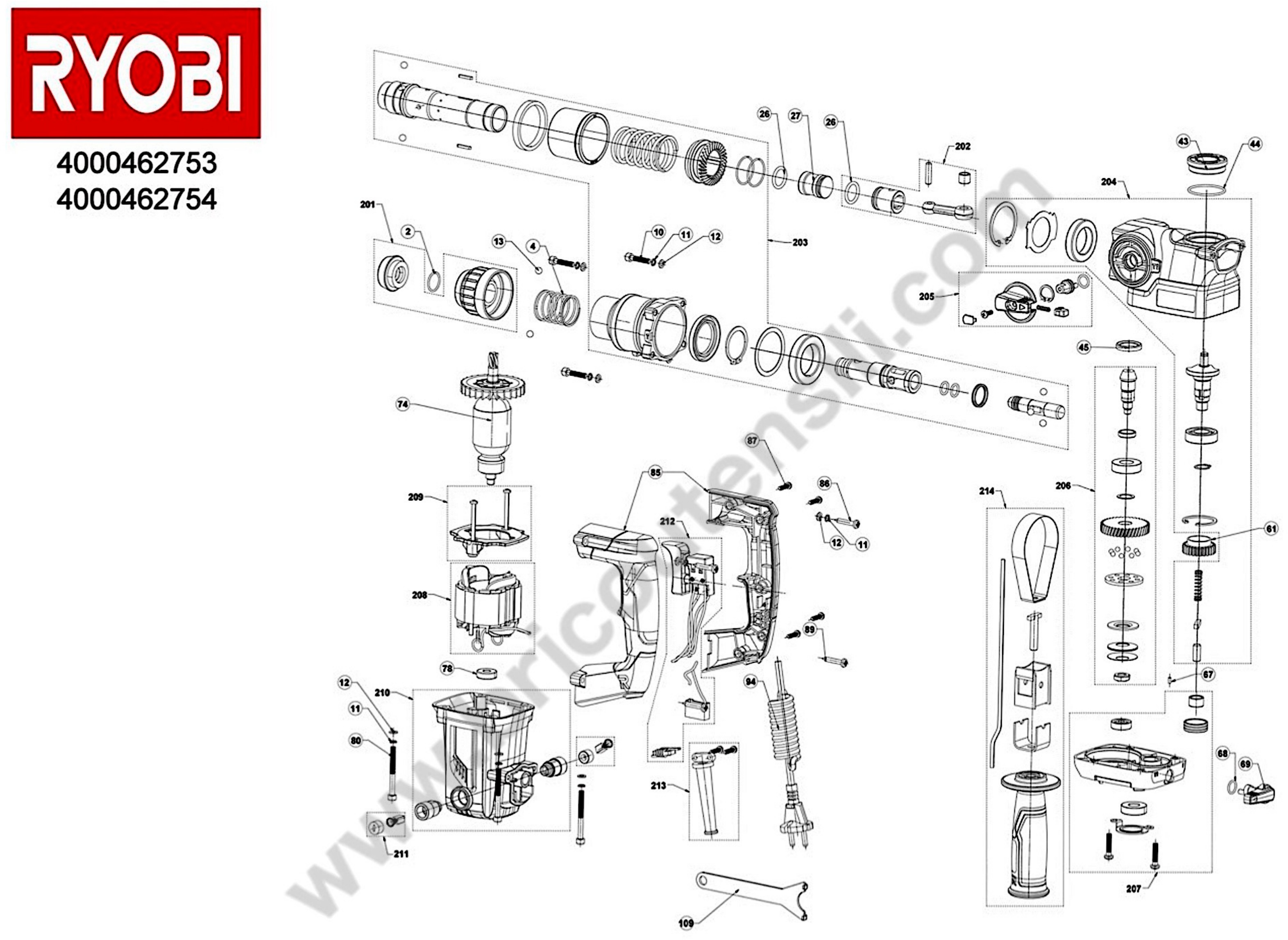

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 5131042092 RING €2.54
4
 photo_cameraImage coming soon 5131042093 SPRING €2.54
10
 photo_cameraImage coming soon 5131042094 SCREW €2.54
11
 photo_cameraImage coming soon 5131042095 SPRING WASHER €2.54
12
 photo_cameraImage coming soon 5131042096 WASHER €2.54
13
 photo_cameraImage coming soon 5131042097 BALL €2.54
26
 O-RING 5131042098 O-RING €2.77
27
 photo_cameraImage coming soon 5131042099 IMPACT BOLT €5.78
43
 photo_cameraImage coming soon 5131042100 COVER €2.54
44
 photo_cameraImage coming soon 5131042101 O-RING €2.54
45
 photo_cameraImage coming soon 5131042102 SEALING WASHER €2.54
61
 photo_cameraImage coming soon 5131042103 GEAR €7.39
67
 photo_cameraImage coming soon 5131042104 PIN €2.54
68
 photo_cameraImage coming soon 5131042105 O-RING €2.54
69
 photo_cameraImage coming soon 5131042106 KNOB €5.78
74
 photo_cameraImage coming soon 5131042107 ARMATURE €48.65
78
 photo_cameraImage coming soon 5131042108 BEARING €5.78
80
 photo_cameraImage coming soon 5131042109 SCREW €2.54
85
 photo_cameraImage coming soon 5131042110 HANDLE €25.19
86
 photo_cameraImage coming soon 5131042111 SCREW €2.54
87
 photo_cameraImage coming soon 5131042112 SCREW €2.54
89
 photo_cameraImage coming soon 5131042113 SCREW €2.54
94
 photo_cameraImage coming soon 5131042114 POWER CORD €20.33
109
 photo_cameraImage coming soon 5131042116 KEY €5.78
201
 photo_cameraImage coming soon 5131042117 DRILL CHUCK €7.39
202
 RYOBI RSDS1050-K Conrod-Piston Kit 5131042118 RYOBI RSDS1050-K Conrod-Piston Kit €11.61
203
 photo_cameraImage coming soon 5131042119 SPINDLE €90.71
204
 photo_cameraImage coming soon 5131042120 BEARING HOUSING €71.30
205
 photo_cameraImage coming soon 5131042121 TURNING KNOB €9.01
206
 photo_cameraImage coming soon 5131042122 OFFSET GEAR €25.19
207
 photo_cameraImage coming soon 5131042123 GEAR COVER €37.31
208
 photo_cameraImage coming soon 5131042124 FIELD LEAD GROMMET €53.50
209
 photo_cameraImage coming soon 5131042125 GUIDE €5.78
210
 photo_cameraImage coming soon 5131042126 MOTOR HOUSING €30.85
211
 RYOBI RSDS1050-K Carbon Brush Set 5131042127 RYOBI RSDS1050-K Carbon Brush Set €9.83
212
 RYOBI RSDS1050-K Switch 5131042128 RYOBI RSDS1050-K Switch €17.37
213
 photo_cameraImage coming soon 5131042129 CABLE ENTRY SLEEVE €2.54
214
 photo_cameraImage coming soon 5131042130 AUXILIARY HANDLE €21.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

RYOBI RSDS1050-K Rotary Hammer Spare Parts

Fix Your Ryobi RSDS1050-K SDS+ 1050W Rotary Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Ryobi RSDS1050-K SDS+ 1050W Rotary Hammer
RSDS1050-K(EU) 1050W SDS + DRILL IN2
5133004350 - RSDS1050-K(EU) - 4000462753
# Part number Description
2 5131042092 RING
4 5131042093 SPRING
10 5131042094 SCREW
11 5131042095 SPRING WASHER
12 5131042096 WASHER
13 5131042097 BALL
26 5131042098 O-RING
27 5131042099 IMPACT BOLT
43 5131042100 COVER
44 5131042101 O-RING
45 5131042102 SEALING WASHER
61 5131042103 GEAR
67 5131042104 PIN
68 5131042105 O-RING
69 5131042106 KNOB
74 5131042107 ARMATURE
78 5131042108 BEARING
80 5131042109 SCREW
85 5131042110 HANDLE
86 5131042111 SCREW
87 5131042112 SCREW
89 5131042113 SCREW
94 5131042114 POWER CORD
109 5131042116 KEY
201 5131042117 DRILL CHUCK
202 5131042118 PISTON W CONN. ROD
203 5131042119 SPINDLE
204 5131042120 BEARING HOUSING
205 5131042121 TURNING KNOB
206 5131042122 OFFSET GEAR
207 5131042123 GEAR COVER
208 5131042124 FIELD LEAD GROMMET
209 5131042125 GUIDE
210 5131042126 MOTOR HOUSING
211 5131042127 CARBON BRUSH SET
212 5131042128 SWITCH
213 5131042129 CABLE ENTRY SLEEVE
214 5131042130 AUXILIARY HANDLE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RYOBI RSDS1050-K
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

RYOBI RSDS1050-K Drawing

RYOBI RSDS1050-K Drawing

Download (366.61KB)
