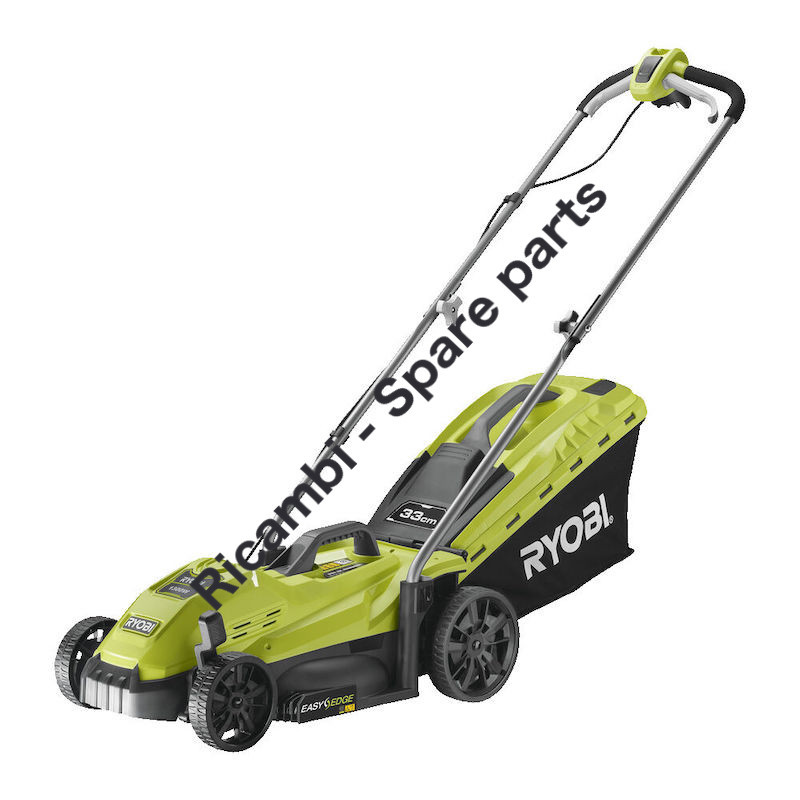

The Ryobi 1300W 33cm Lawnmower is compact and lightweight, the 33cm cutting path is ideal for easy manoeuvrability around the garden. Incorporating a powerful 1300W electric motor provides a powerful cut meaning you can finish the job quicker.
The Ryobi 1300W 33cm Lawnmower is compact and lightweight, the 33cm cutting path is ideal for easy manoeuvrability around the garden. Incorporating a powerful 1300W electric motor provides a powerful cut meaning you can finish the job quicker.
Shipping and delivery information will be available shortly.
The Ryobi 1300W 33cm Lawnmower is compact and lightweight, the 33cm cutting path is ideal for easy manoeuvrability around the garden. Incorporating a powerful 1300W electric motor provides a powerful cut meaning you can finish the job quicker.
In the following table, look for the model of the Drill Driver and their spare part.
| RLM3313A TOSAERBA ELETTRICO IN2 | ||
| 5133005405 - RLM3313A - 4000504334 | ||
| # | Part Num. | Description |
| 1 | 5131036998 | SCREW |
| 2 | 5131036504 | PLASTIC, GUARD FOR PLUG/099737 |
| 3 | 5131037000 | CONNECTOR |
| 4 | 5131037001 | CONNECTOR (32) |
| 5 | 5131037002 | SCREW |
| 6 | 5131037003 | INTERMEDIATE FLANGE |
| 7 | 5131037004 | HOUSING |
| 8 | 5131045830 | TRIGGER |
| 9 | 5131045831 | TRIGGER |
| 10 | 5131045832 | SWITCH |
| 11 | 5131037008 | SWITCH COVER |
| 12 | 5131037009 | HOUSING |
| 13 | 5131037010 | SPRING |
| 14 | 5131037011 | SWITCH BUTTON |
| 15 | 5131037012 | TUBE - Item discontinued |
| 16 | 5131042132 | CORD GRIP |
| 17 | 5131037015 | WIRE |
| 18 | 5131042133 | SCREW |
| 19 | 5131037017 | TUBE |
| 20 | 5131037018 | WING NUT |
| 21 | 5131037019 | TUBE |
| 22 | 5131037020 | BUTTON |
| 23 | 5131037021 | SPRING |
| 24 | 5131037022 | SPLIT PIN |
| 25 | 5131037023 | HOUSING |
| 26 | 5131045828 | HANDLE |
| 27 | 5131049309 | HOUSING |
| 28 | 5131049310 | SIDE PART |
| 29 | 5131049311 | SIDE PART |
| 30 | 5131039251 | MOTOR |
| 31 | 5131037028 | BLOWER |
| 32 | 5131037029 | DRIVING ROLL |
| 33 | 5131039255 | NUT |
| 34 | 5131039256 | BEARING |
| 35 | 5131039257 | BRACKET |
| 36 | 5131039258 | SPRING |
| 37 | 5131037035 | STOP WASHER |
| 38 | 5131039260 | SCREW |
| 39 | 5131039261 | BEARING |
| 40 | 5131037038 | SCREW |
| 41 | 5131037039 | GUIDE WASHER |
| 42 | 5131037040 | DRIVING ROLL |
| 43 | 5131037041 | BELT |
| 44 | 5131037042 | BEARING |
| 45 | 5131037043 | SCREW |
| 46 | 5131049312 | BALANCE WEIGHT (4) |
| 47 | 5131037045 | PROTECTIVE CAP |
| 48 | 5131037046 | WHEEL |
| 49 | 5131037047 | BRACKET |
| 50 | 5131037048 | AXLE |
| 51 | 5131037049 | HANDLE |
| 52 | 5131049314 | FOAM SLUG |
| 53 | 5131049315 | WASHER |
| 54 | 5131039270 | ABSOLUTE UNIT |
| 55 | 5131037053 | PIN |
| 56 | 5131037052 | SLEEVE |
| 57 | 5131033786 | CONNECTOR |
| 58 | 5131033787 | CONNECTOR |
| 59 | 5131033789 | SPRING |
| 60 | 5131037056 | WHEEL |
| 61 | 5131037057 | SHAFT |
| 62 | 5131037058 | HANDLE |
| 63 | 5131037060 | CLAMPING FLANGE |
| 64 | 5132002771 | RAC420 33cm AC Mower Blade |
| 65 | 5131045829 | SCREW |
| 66 | 5131037062 | DEFLECTOR |
| 67 | 5131037063 | HOUSING |
| 68 | 5131037064 | SET COLLAR |
| 69 | 5131037065 | AXLE |
| 70 | 5131037066 | READJUSTING SPRING |
| 71 | 5131037067 | DOOR |
| 72 | 5131037068 | HOUSING |
| 73 | 5131037069 | FRAME |
| 74 | 5131037070 | CLIP |
| 75 | 5131037071 | CLIP |
| 76 | 5131037072 | COVER |
| 77 | 5131037073 | HANDLE |
| 78 | 5131037074 | INDICATOR |
| 79 | 5131042134 | GRASS-CATCHING BAG |
| 80 | 5131049316 | SCREW |
