Genuine TTI Industries Replacement Part - FAN SPRAY LANCE Part Number: 5131041700

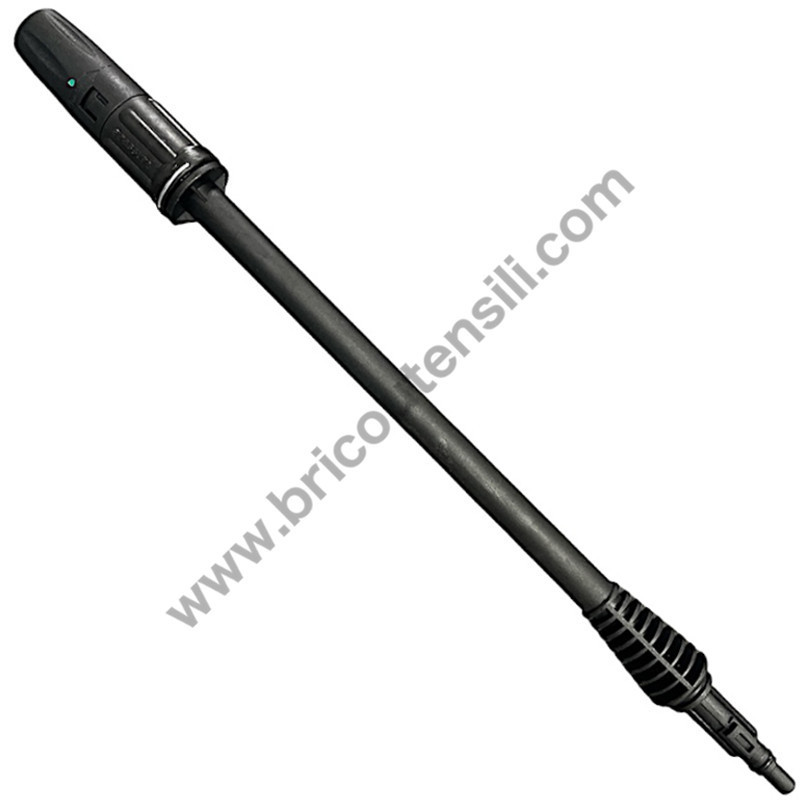

RYOBI Fan Spray Lance (5131041700)
The RYOBI Fan Spray Lance with part number 5131041700 is an original equipment manufacturer (OEM) replacement accessory specifically designed to optimize the performance of RYOBI RPW150XRB high-pressure washers (150 Bar model).

This lance is an essential tool for everyday cleaning, engineered to offer the perfect balance between impact force and washing width while protecting more delicate surfaces.

Technical Specifications and Compatibility

    Native Compatibility: Custom-designed for the RYOBI RPW150XRB model.

• 5133003741 4000462550 - RPW150XRB - RPW150XRB PRESSURE WASHER GB2
  5133003749 4000462549 - RPW150XRB - RPW150XRB PRESSURE WASHER IN2
  5133004488 4000462550 - RPW150XRB - RPW150XRB PRESSURE WASHER GB2

    Spray Geometry: The internal nozzle is shaped to transform the cylindrical water flow into a flat, fan-shaped blade of water. This distributes the 150 Bar pressure evenly across the entire width of the spray.

    Flow Adjustment: By twisting the nozzle head, you can adjust the width of the fan or the intensity of the spray (from narrow to wide-angle), allowing you to quickly switch from heavy-duty washing to rinsing.

    Quick Connect: Equipped with the original Ryobi bayonet coupling system, which ensures secure locking onto the trigger gun with no pressure leaks.

Main Applications (What it is used for)
Unlike the turbo lance (which features a highly aggressive rotating jet), the fan spray lance is extremely versatile and is used for:

•     Car and Motorcycle Washing: Ideal for soaping and rinsing the bodywork, windows, and plastic parts of vehicles without the risk of damaging the paintwork or seals.
•     Wooden Surfaces: Perfect for cleaning patios, teak flooring, pergola structures, and wooden garden furniture, where an overly concentrated jet could lift the wood fibers.
•     Cleaning Windows and Fixtures: Allows you to wash large outdoor windows, roller shutters, and PVC or aluminum blinds quickly and uniformly.
•     Routine Floor Maintenance: Removing dust, fresh mud, and light dirt from courtyards, terraces, and pedestrian walkways.

Operating and Maintenance Tips

    Safety Distance: When washing delicate surfaces (wood, car paint), start spraying from a distance of about 30-40 cm, gradually moving closer until the desired cleaning effect is achieved.

•     Nozzle Cleaning: If you notice a distorted or intermittent spray pattern, the nozzle may be clogged with a particle of limescale or sand. Use the metal pin (usually supplied with the pressure washer) to clear the front hole while the machine is turned off.

    Storage: Avoid subjecting the nozzle tip to heavy impacts and store it in a frost-protected location during winter.
