Rurmec Spare Parts for Core-Drill EVP23
We have the original Spares RURMEC Spare Parts for
Diamond Core-Drill EVP23 the diagram, parts list and tool repair that help you need to get your tools running like new again.
Fix Your
Diamond Core-Drill EVP23. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

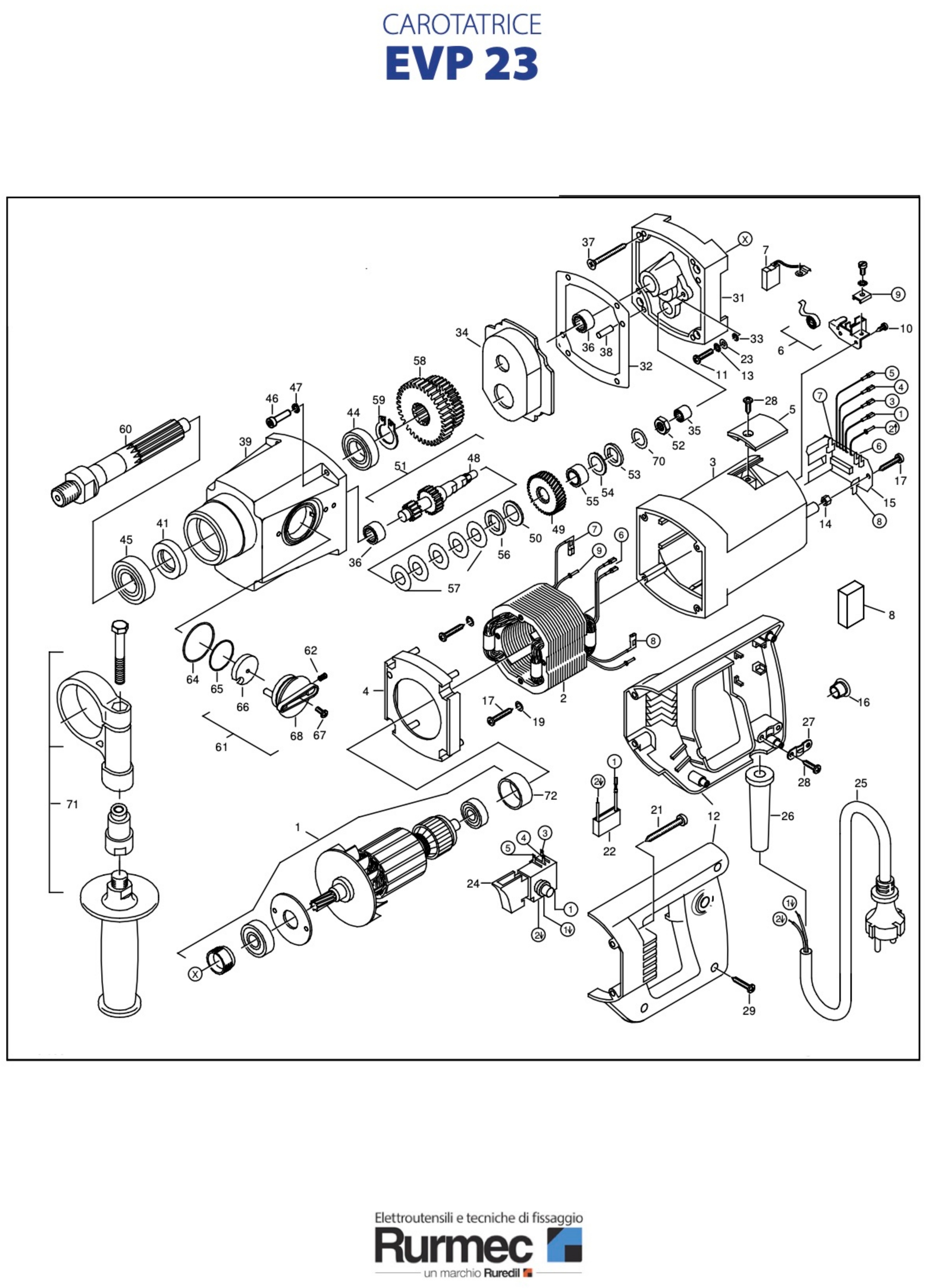

In the following table, look for the model of the Core-drill and the respective parts of the code.

| DIAMOND CORE DRILL EVP 23 331.700.1 |
| # |
Part Num. |
Description |
| X |
337.023 |
SPIRAL BUSH EVP20 / 22/23 |
| 1 |
331.701 |
ARMATURE ASSY |
| 2 |
331.602 |
FIELD EVP25 |
| 3 |
331.603 |
MOTOR HOUSING EVP25 / 22 RSL150 |
| 4 |
331.604 |
AIR CONVEYOR EVP25 / 22 |
| 5 |
331.605 |
CARBON BRUSH COVER |
| 6 |
332.506 |
CARBON BRUSH HOLDER ASSY |
| 7 |
331.707 |
CARBON BRUSH EVP 23/22 |
| 8 |
331.608 |
INSERT |
| 10 |
331.015 |
SCREW HC 2,9X13 |
| 11 |
331.611 |
SCREW M4X16 EVP25 / 23/22 |
| 12 |
337.004 |
HANDLE COVER |
| 13 |
332.556 |
WASHER |
| 14 |
331.614 |
PLASTIC NUT M5 |
| 15 |
331.715 |
ELECTRONIC UNIT |
| 16 |
331.716 |
PLUG |
| 17 |
331.616 |
SCREW HC 4.2X25 |
| 19 |
331.617 |
SAFETY WASHER S6 |
| 21 |
332.516 |
SCREW HC 4,8X45 |
| 22 |
331.622 |
CAPACITOR |
| 23 |
331.623 |
WASHER A4.3 |
| 24 |
337.006 |
SWITCH EVP20 / 22/23/25 |
| 25 |
337.001 |
POWER CORD EVP20 / 23 |
| 26 |
331.626 |
CORD ARMOR |
| 27 |
331.627 |
CABLE GLAND |
| 28 |
331.628 |
SCREW HC 4,2X13 |
| 29 |
331.629 |
SCREW HC 4,2X22 |
| 31 |
331.731 |
GEAR BOX COVER |
| 32 |
331.732 |
GEAR BOX GASKET |
| 33 |
331.633 |
O-RING 3.68 x 1.78 NBR |
| 34 |
331.734 |
GREASE COVER |
| 35 |
332.555 |
BALL BEARING HK 0810 |
| 36 |
331.736 |
BALL BEARING HK 1210 |
| 37 |
331.637 |
SCREW 4,5X50 |
| 38 |
332.532 |
PLUG 5X16 |
| 39 |
331.739 |
GEAR HOUSING |
| 41 |
331.741 |
SEAL RING 20X35X7 |
| 44 |
331.744 |
BALL BEARING 6904 2RS |
| 45 |
331.745 |
BALL BEARING 6004 2RS |
| 46 |
331.646 |
SCREW M5 x 20 EVP25 |
| 47 |
331.647 |
SPRING RING 5 |
| 48 |
331.748 |
INTERMEDIATE SHAFT EVP23 |
| 49 |
331.749 |
CLUTCH WHEEL EVP23 |
| 50 |
331.750 |
FRICTION WASHER EVP23 / 22 |
| 51 |
331.751 |
CLUTCH ASSY EVP23 |
| 52 |
332.572 |
HEX NUT BM10 / 1 |
| 53 |
331.753 |
GUIDE WASHER |
| 54 |
331.754 |
BRONZE DISC |
| 55 |
331.370 |
BALL BEARING 1208T |
| 56 |
331.652 |
DRIVE WASHER |
| 57 |
331.757 |
SPRING WASHER |
| 58 |
331.758 |
SPROCKET EVP23 |
| 59 |
331.759 |
SEEGER 19/1 |
| 60 |
331.760 |
TOOL HOLDER SHAFT EVP23 |
| 61 |
331.761 |
SELECTOR ASSY EVP23 |
| 62 |
331.762 |
PIN |
| 64 |
331.764 |
O-RING 36X1.5 NBR |
| 65 |
331.765 |
O-RING 28X1 NBR |
| 66 |
331.766 |
PLATE |
| 67 |
331.767 |
SCREW M3X12 |
| 68 |
331.768 |
SELECTOR EVP23 |
| 70 |
331.770 |
SPRING WASHER 25X12,2X1,25 |
| 71 |
331.771 |
SIDE HANDLE |
| 72 |
332.502 |
BALL BEARING HOLDER |
