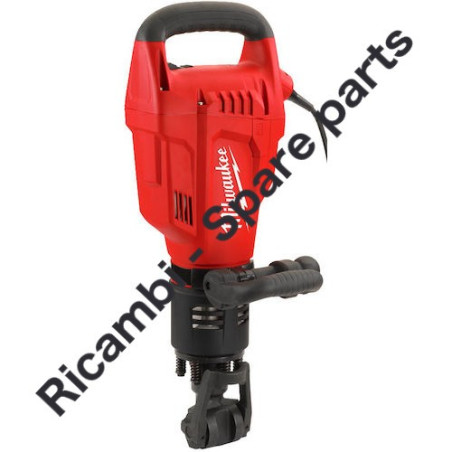

Milwaukee K1528H Demolition Hammer Parts

SKU: Milwaukee K1528H
€26.09
VAT included

Milwaukee K1528H Demolition Hammer Spare Parts

Fix Your Milwaukee K1528H Demolition Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Milwaukee K1528H Demolition Hammer Parts
  • Milwaukee K1528H Demolition Hammer Parts
  • Milwaukee K1528H Demolition Hammer Parts Diagram
TTI Industries

Milwaukee K1528H Demolition Hammer Parts

SKU: Milwaukee K1528H Condition: New
€26.09
VAT included

Milwaukee K1528H Demolition Hammer Spare Parts

Fix Your Milwaukee K1528H Demolition Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 88 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN: Usually Ships in 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
Machine Type: Demolition Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
88 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 7/10 BUSINESS DAYS

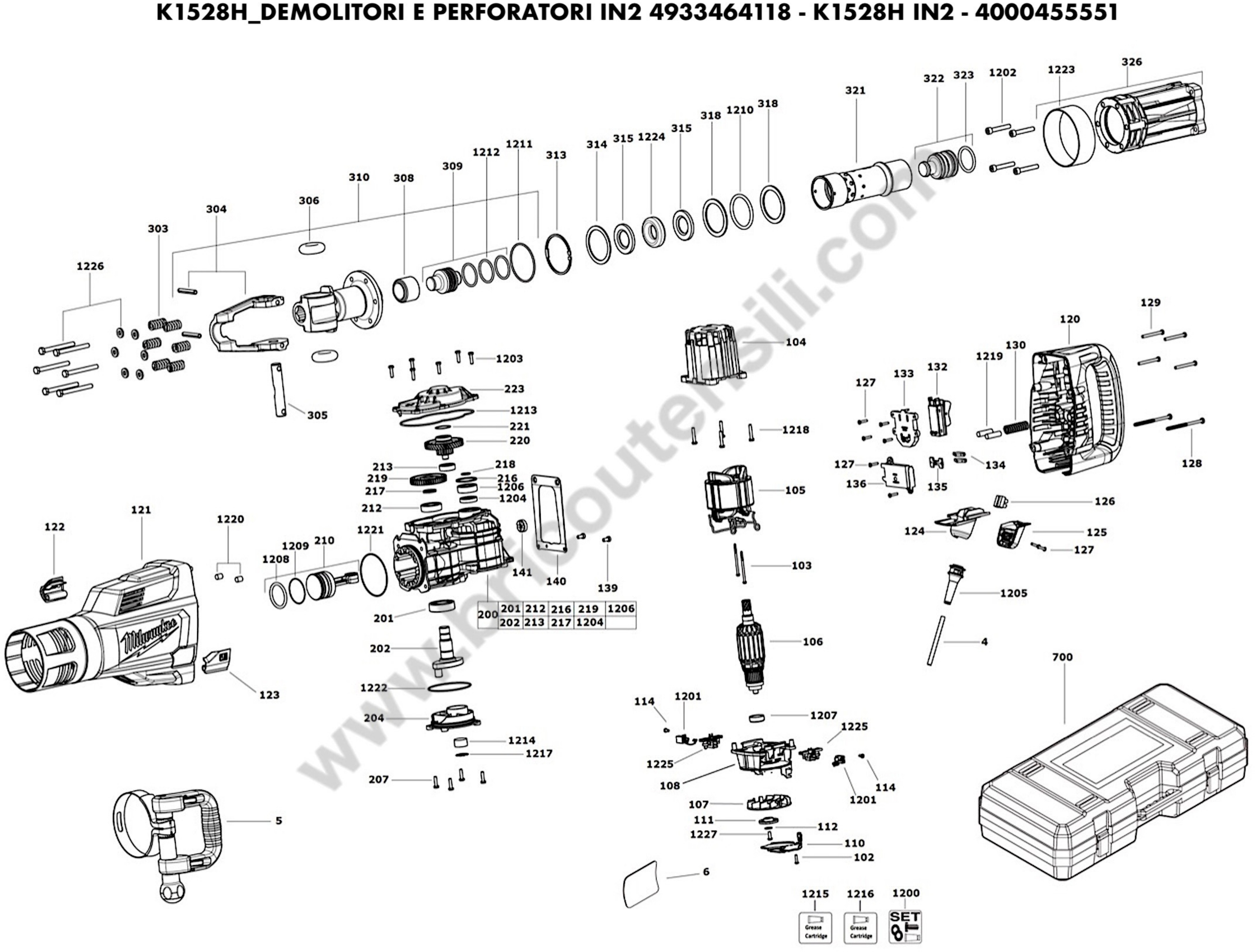

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 CONNECTION CABLE 4931624696 CONNECTION CABLE €27.19
5
 photo_cameraImage coming soon 4931455093 HANDLE €89.57
6
 photo_cameraImage coming soon 4931463105 RATING PLATE €2.01
102
 photo_cameraImage coming soon 4931624537 SCREW €3.40
103
 photo_cameraImage coming soon 4931339996 SCREW €3.40
104
 photo_cameraImage coming soon 4931455573 MOTOR HOUSING €13.43
105
 photo_cameraImage coming soon 4931455516 FIELD EF.TRANSISTOR €76.24
106
 photo_cameraImage coming soon 4931455515 ARMATURE €121.42
107
 photo_cameraImage coming soon 4931455525 FAN €10.92
108
 photo_cameraImage coming soon 4931455064 BRUSH MODULE €12.00
110
 photo_cameraImage coming soon 4931463938 HOLDER €8.15
111
 photo_cameraImage coming soon 4931487401 MAGNET.DISC FASTEN. €14.38
112
 photo_cameraImage coming soon 4931455939 WASHER €2.27
114
 photo_cameraImage coming soon 4931624538 SCREW €3.40
120
 photo_cameraImage coming soon 4931455577 HANDLE €81.45
121
 photo_cameraImage coming soon 4931455536 MOTOR HOUSING €103.95
122
 photo_cameraImage coming soon 4931455959 SERVICING LID €4.43
123
 photo_cameraImage coming soon 4931455958 SERVICING LID €4.43
124
 photo_cameraImage coming soon 4931455934 GUIDE PIECE €8.03
125
 photo_cameraImage coming soon 4931455997 HOUSING COVER €5.15
126
 photo_cameraImage coming soon 4931463903 TERMINAL STRIP €4.43
127
 photo_cameraImage coming soon 4931618253 SCREW €3.51
128
 photo_cameraImage coming soon 4931455992 SCREW €3.71
129
 photo_cameraImage coming soon 4931468965 SCREW €1.62
130
 photo_cameraImage coming soon 4931463951 PRESSURE SPRING €13.80
132
 photo_cameraImage coming soon 4931455009 SWITCH €37.61
133
 photo_cameraImage coming soon 4931455526 SWITCH RETAINER €5.15
134
 photo_cameraImage coming soon 4931398114 LIGHT PIPE €5.15
135
 photo_cameraImage coming soon 4931455937 HOLDER €2.27
136
 photo_cameraImage coming soon 4931487494 ELECTRONIC €101.63
139
 photo_cameraImage coming soon 4931455938 SCREW €2.27
140
 photo_cameraImage coming soon 4931455512 SPRING €13.08
141
 photo_cameraImage coming soon 4931455587 SPRING €3.71
200
 photo_cameraImage coming soon 4931455893 GEAR BOX €188.68
201
 photo_cameraImage coming soon 4931455896 GROOV. BALL BEARING €13.80
202
 photo_cameraImage coming soon 4931455077 CRANK WHEEL €89.57
204
 photo_cameraImage coming soon 4931455081 COVER €9.48
207
 photo_cameraImage coming soon 4931624541 SCREW €2.27
210
 photo_cameraImage coming soon 4931455906 PISTON €60.76
212
 photo_cameraImage coming soon 4931455897 GROOV. BALL BEARING €10.92
213
 photo_cameraImage coming soon 4931455895 GROOV. BALL BEARING €6.59
216
 photo_cameraImage coming soon 4931455928 PROTECTION WASHER €2.27
217
 photo_cameraImage coming soon 4931455951 SPACER €2.27
218
 photo_cameraImage coming soon 4931605204 RING D471 17X1 €2.27
219
 photo_cameraImage coming soon 4931455058 WHEEL €28.02
220
 photo_cameraImage coming soon 4931455055 GEAR €82.59
221
 photo_cameraImage coming soon 4931881678 DISC 31,7X26,5X0,4 €2.27
223
 photo_cameraImage coming soon 4931455892 GEAR BOX COVER €30.38
303
 photo_cameraImage coming soon 4931463959 PRESSURE SPRING €6.45
304
 photo_cameraImage coming soon 4931468942 HOLDING BRACKET €107.46
305
 photo_cameraImage coming soon 4931455903 LOCKING BOLT €18.50
306
 photo_cameraImage coming soon 4931463967 DAMPING RING €23.22
308
 photo_cameraImage coming soon 4931463943 STOP WASHER €40.72
309
 photo_cameraImage coming soon 4931455079 SNAP DIE €53.27
310
 photo_cameraImage coming soon 4931455594 TOOL ACCEPTANCE €506.45
313
 photo_cameraImage coming soon 4931455990 PROTECTION WASHER €2.64
314
 photo_cameraImage coming soon 4931455989 ATTACHMENT RING €4.54
315
 photo_cameraImage coming soon 4931455068 THRUST COLLAR €15.96
318
 photo_cameraImage coming soon 4931463992 ATTACHMENT RING €5.18
321
 photo_cameraImage coming soon 4931455590 SPINDLE SLEEVE €221.55
322
 photo_cameraImage coming soon 4931455596 PERCUSSION BODY €86.39
323
 photo_cameraImage coming soon 4931455926 PISTONRING €5.81
326
 photo_cameraImage coming soon 4931455947 GEAR BOX ASSY €111.40
700
 photo_cameraImage coming soon 4931463094 CARRYING CASE €211.39
1200
 photo_cameraImage coming soon 4931468749 MAINTENANCE SET €179.68
1201
 photo_cameraImage coming soon 4931468438 CARBON BRUSH SET €33.42
1202
 photo_cameraImage coming soon 4931463944 SCREW €2.64
1203
 photo_cameraImage coming soon 4931624541 SCREW €2.27
1205
 photo_cameraImage coming soon 4931392174 PROTECTING COVER €4.76
1206
 photo_cameraImage coming soon 4931455898 BALL BEARING €9.48
1207
 photo_cameraImage coming soon 4931455066 RUBBER SLEEVE €2.27
1208
 photo_cameraImage coming soon 4931455926 PISTONRING €5.81
1209
 photo_cameraImage coming soon 4931455908 PISTONRING €2.01
1210
 photo_cameraImage coming soon 4931455913 PISTONRING €2.64
1211
 photo_cameraImage coming soon 4931463969 PISTONRING €2.01
1212
 photo_cameraImage coming soon 4931463929 SEAL RING €4.54
1213
 photo_cameraImage coming soon 4931455539 SEAL €7.31
1214
 photo_cameraImage coming soon 4931455541 FELT €3.71
1215
 photo_cameraImage coming soon 4931432782 GREASE TUBE €13.80
1216
 photo_cameraImage coming soon 4931455865 GREASE €23.79
1217
 photo_cameraImage coming soon 4931455961 RING €2.27
1218
 photo_cameraImage coming soon 4931624075 SCREW D 912 AM 5X50 €2.27
1219
 photo_cameraImage coming soon 4931455542 DAMPING ELEMENT €2.99
1221
 photo_cameraImage coming soon 4931468797 PISTONRING €2.27
1222
 photo_cameraImage coming soon 4931455917 PISTONRING €2.27
1223
 photo_cameraImage coming soon 4931463941 GUIDE SLEEVE €6.45
1224
 photo_cameraImage coming soon 4931455067 CATCH DISC €18.76
1225
 photo_cameraImage coming soon 4931463990 BRUSH HOLDER €13.08
1226
 photo_cameraImage coming soon 4931468943 REPAIR KIT €81.32
1227
 photo_cameraImage coming soon 4931455991 SCREW €2.27

Shipping and delivery information will be available shortly.

Milwaukee K1528H Demolition Hammer Spare Parts

Fix Your Milwaukee K1528H Demolition Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
Milwaukee K1528H Demolition Hammer

Milwaukee K1528H 16KG BREAKER IN2 PARTS
4933464118 - K1528H IN2 - 4000455551
# Part. Num. Description
4 4931624696 CONNECTION CABLE
5 4931455093 HANDLE
6 4931463105 RATING PLATE
102 4931624537 SCREW
103 4931339996 SCREW
104 4931455573 MOTOR HOUSING
105 4931455516 FIELD EF.TRANSISTOR
106 4931455515 ARMATURE
107 4931455525 FAN
108 4931455064 BRUSH MODULE
110 4931463938 HOLDER
111 4931487401 MAGNET.DISC FASTEN.
112 4931455939 WASHER
114 4931624538 SCREW
120 4931455577 HANDLE
121 4931455536 MOTOR HOUSING
122 4931455959 SERVICING LID
123 4931455958 SERVICING LID
124 4931455934 GUIDE PIECE
125 4931455997 HOUSING COVER
126 4931463903 TERMINAL STRIP
127 4931618253 SCREW
128 4931455992 SCREW
129 4931468965 SCREW
130 4931463951 PRESSURE SPRING
132 4931455009 SWITCH
133 4931455526 SWITCH RETAINER
134 4931398114 LIGHT PIPE
135 4931455937 HOLDER
136 4931487494 ELECTRONIC
139 4931455938 SCREW
140 4931455512 SPRING
141 4931455587 SPRING
200 4931455893 GEAR BOX
201 4931455896 GROOV. BALL BEARING
202 4931455077 CRANK WHEEL
204 4931455081 COVER
207 4931624541 SCREW
210 4931455906 PISTON
212 4931455897 GROOV. BALL BEARING
213 4931455895 GROOV. BALL BEARING
216 4931455928 PROTECTION WASHER
217 4931455951 SPACER
218 4931605204 RING D471 17X1
219 4931455058 WHEEL
220 4931455055 GEAR
221 4931881678 DISC 31,7X26,5X0,4
223 4931455892 GEAR BOX COVER
303 4931463959 PRESSURE SPRING
304 4931468942 HOLDING BRACKET
305 4931455903 LOCKING BOLT
306 4931463967 DAMPING RING
308 4931463943 STOP WASHER
309 4931455079 SNAP DIE
310 4931455594 TOOL ACCEPTANCE
313 4931455990 PROTECTION WASHER
314 4931455989 ATTACHMENT RING
315 4931455068 BACK-PRESSURE RING
318 4931463992 ATTACHMENT RING
321 4931455590 SPINDLE SLEEVE
322 4931455596 PERCUSSION BODY
323 4931455926 PISTONRING
326 4931455947 GEAR BOX ASSY
700 4931463094 CARRYING CASE
1200 4931468749 MAINTENANCE SET
1201 4931468438 CARBON BRUSH SET
1202 4931463944 SCREW
1203 4931624541 SCREW
1205 4931392174 PROTECTING COVER
1206 4931455898 BALL BEARING
1207 4931455066 RUBBER SLEEVE
1208 4931455926 PISTONRING
1209 4931455908 PISTONRING
1210 4931455913 PISTONRING
1211 4931463969 PISTONRING
1212 4931463929 SEAL RING
1213 4931455539 SEAL
1214 4931455541 FELT
1215 4931432782 GREASE TUBE
1216 4931455865 GREASE
1217 4931455961 RING
1218 4931624075 SCREW D 912 AM 5X50
1219 4931455542 DAMPING ELEMENT
1221 4931468797 PISTONRING
1222 4931455917 PISTONRING
1223 4931463941 GUIDE SLEEVE
1224 4931455067 CORE LIFTER RING
1225 4931463990 BRUSH HOLDER
1226 4931468943 REPAIR KIT
1227 4931455991 SCREW
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Milwaukee websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Milwaukee brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Milwaukee K1528H
6 Items

Data sheet

SHIPPING IN
Usually Ships in 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Demolition Hammer
CHECK AEG S/N
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

Milwaukee K1528H Parts Diagram

Milwaukee K1528H Parts Diagram

Download (430.49KB)

You might also like

Milwaukee K500S Switch
TTI Industries SKU: 4931375458
Milwaukee K500S Switch
Milwaukee K500S Switch Milwaukee Genuine Part, Switch for Demolition Hammers Milwaukee - AEG Part for the following products: - 4933398220 4000398258 - K500S - K500S CHIPPING HAMMER IN2 - 4933405365 4000405366 - K950S -...
AVAILABLE €19.55
Details
Milwaukee K500S Brush Holder
TTI Industries SKU: 4931381694
Milwaukee K500S Brush Holder
Milwaukee K500S Carbon Brush Holder Milwaukee Genuine Part, Carbon Brush Holder for Demolition Hammers Milwaukee - AEG Part for the following products: - 4933375720 4000417173 - K900S - K900S CHIPPING HAMMER IN2 -...
AVAILABLE €6.80
Details
Milwaukee K900S Piston Complete
TTI Industries SKU: 4931375380
Milwaukee K900S Piston Complete
Milwaukee K900S Piston Complete Milwaukee Genuine Part, Piston Complete for Combi Hammer K900S. Part for the following products: - 4933405365 4000405366 - K950S - K950S SDS-Max COMBI HAMMER IN2 - 4933449390 4000417173 - K900S...
AVAILABLE €12.92
Details
Milwaukee K500S Ball Bearing 609LBT
TTI Industries SKU: 4931341741
Milwaukee K500S Ball Bearing 609LBT
Milwaukee K500S Ball Bearing 609LBT Milwaukee Genuine Part, Ball Bearing 609LBT for Demolition Hammers Milwaukee - AEG Part for the following products: - 4933375720 4000417173 - K900S - K900S CHIPPING HAMMER IN2 - 4933398220...
AVAILABLE €7.48
Details
Milwaukee K500S Ball Bearing 6002DL
TTI Industries SKU: 4931398189
Milwaukee K500S Ball Bearing 6002DL
Milwaukee K500S Ball Bearing 6002DL Milwaukee Genuine Part, Ball Bearing 6002DL for Demolition Hammers Milwaukee - AEG Part for the following products: - 4933375720 4000417173 - K900S - K900S CHIPPING HAMMER IN2 -...
AVAILABLE €8.16
Details
Milwaukee SDS-Max Pointed Flat Chisels - 4932343734
TTI Industries SKU: SDS-Max-Pointed-Flat
Milwaukee SDS-Max Pointed Flat Chisels
SDS-Max Pointed Flat Chisels MILWAUKEE® SDS-Max chisel bits offer powerful performance, penetrating concrete and making them the ideal choice for demolition work. The self-sharpening SDS-Max SLEDGE™ chisels are...
build View Spare Parts
Fix Your Power Tool! Original TTI 4931624696 Power Cord
TTI Industries SKU: 4931624696
CONNECTION CABLE
Original TTI Industries spare part - CONNECTION CABLE. Part number: 4931624696 Product Description The Original Power Supply Cable (Part Number: 4931624696) is a premium replacement component manufactured by TTI Industries...
AVAILABLE €27.19
Details
Comments (0)
No customer reviews for the moment.
