Metabo

Metabo Spare Parts for Multi Sander FMS 200 Intec - 00065000

SKU: Metabo FMS 200 Intec - 00065000
€18.86
VAT included

Metabo Spare Parts for Multi Sander FMS 200 Intec - 00065000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Multi Sander FMS 200 Intec - 00065000.

Multi Sander FMS 200 Intec
Metabo Spare Parts for Multi Sander FMS 200 Intec - 00065000
  • Metabo Spare Parts for Multi Sander FMS 200 Intec - 00065000
  • Metabo Spare Parts for Multi Sander FMS 200 Intec - 00065000
Metabo

Metabo Spare Parts for Multi Sander FMS 200 Intec - 00065000

SKU: Metabo FMS 200 Intec - 00065000 Condition: New
€18.86
VAT included

Metabo Spare Parts for Multi Sander FMS 200 Intec - 00065000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Multi Sander FMS 200 Intec - 00065000.

Multi Sander FMS 200 Intec
settings 33 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

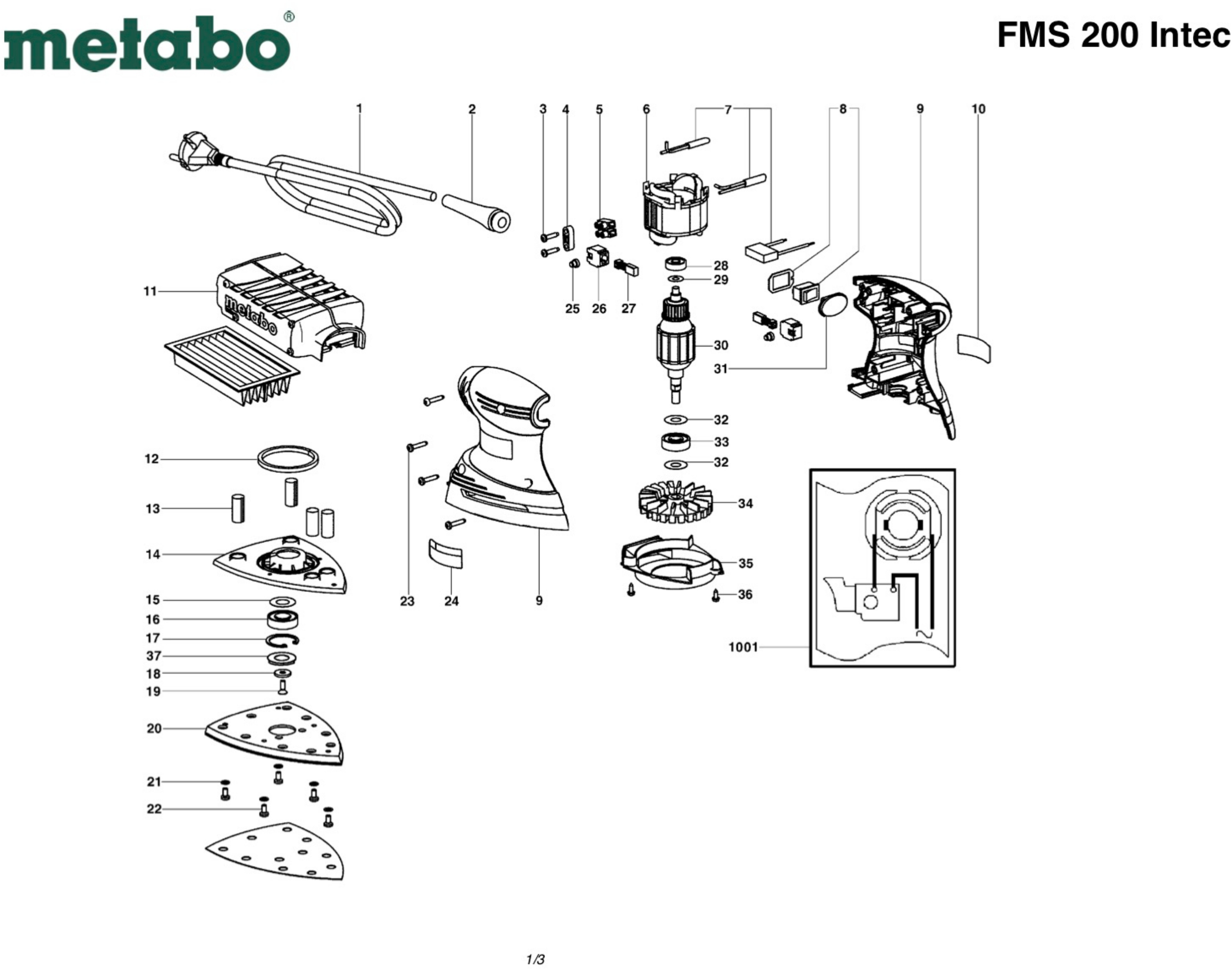

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Power Cord for Angle Grinder Metabo W 7-115 34448588 Power Cord for Angle Grinder Metabo W 7-115 €19.80
2
 photo_cameraImage coming soon 34410114 Cable sleeve €2.55
3
 photo_cameraImage coming soon 14112345 Fillister head screw €1.56
4
 photo_cameraImage coming soon 34339297 Cable clip €1.56
5
 photo_cameraImage coming soon 34305014 Terminal rail €1.74
6
 photo_cameraImage coming soon 31101058 Field coil assembly w.field coil,230V €18.67
7
 photo_cameraImage coming soon 34449686 Strand set condensor €2.48
8
 photo_cameraImage coming soon 34340838 Switch €3.20
9
 photo_cameraImage coming soon 34339266 Case and Cover €23.06
12
 photo_cameraImage coming soon 34407088 Felt seal €1.56
13
 photo_cameraImage coming soon 34409769 Swivel pin €1.56
14
 photo_cameraImage coming soon 31541616 Sander plate Suction nozzle €18.67
15
 photo_cameraImage coming soon 14115630 Washer €1.56
16
 photo_cameraImage coming soon 14311144 Ball bearing, 12x28x8 €23.75
17
 photo_cameraImage coming soon 14118036 Retaining ring €1.74
18
 photo_cameraImage coming soon 33900695 Washer €1.56
19
 photo_cameraImage coming soon 14111218 Countersunk screw €1.56
20
 Sanding Plate for Multi Sander Metabo FMS 200 Intec 33916071 Sanding Plate for Multi Sander Metabo FMS 200 Intec €22.46
21
 photo_cameraImage coming soon 14115041 Serrated lock washer €1.77
22
 photo_cameraImage coming soon 14111322 Fillister head screw €1.75
23
 photo_cameraImage coming soon 14112343 Fillister head screw €1.57
25
 photo_cameraImage coming soon 34409768 Rubber plug €3.20
26
 photo_cameraImage coming soon 31604070 Brush holder complete €1.56
27
 photo_cameraImage coming soon 31604069 Carbon brush set €9.90
28
 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 14311517 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 €7.95
29
 photo_cameraImage coming soon 14115629 Washer €1.57
30
 Metabo FSR 200 Intec Armature 230V 31000899 Metabo FSR 200 Intec Armature 230V €26.46
31
 photo_cameraImage coming soon 34409764 Switch guard €1.56
32
 photo_cameraImage coming soon 14115107 Washer €1.74
33
 photo_cameraImage coming soon 14311499 Ball bearing, 9x26x8 €14.39
34
 photo_cameraImage coming soon 33000175 Fan €8.79
36
 photo_cameraImage coming soon 14111990 Self-tapp. fill. h. screw €1.65
37
 photo_cameraImage coming soon 34409788 Rubber packing €1.56

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Multi Sander FMS 200 Intec - 00065000

We are METABO original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Multi Sander FMS 200 Intec - 00065000.

In the following table, look for the model of the Sander and the respective parts of the code.
Multi Sander FMS 200 Intec

 Multi Sander FMS 200 Intec 00065000
# Part Num. Description
1 34448588 Cable with CEE plug
2 34410114 Cable protection
3 14112345 Screw
4 34339297 Cable holder
5 34305014 2-pole terminal block
6 31101058 Stator field, 230V
7 34449686 Faston series Capacitor
8 34340838 Complete switch
9 34339266 Case and Cover
10 33812053 Metabo nameplate, FMS 200 Intec
11 31604072 Polishing machine suction nozzle
12 34407088 Felt seal
13 34409769 Sander pin
14 31541616 Sander plate Suction nozzle
15 14115630 Washer
16 14311144 Bearing 12x 28x 8
17 14118036 Locking ring
18 33900695 Washer
19 14111218 Flat countersunk head screw
20 33916071 Sanding Plate cpl.
21 14115041 Wave washer
22 14111322 Screw
23 14112343 Screw
24 33804765 Data plate
25 34409768 Rubber cap
26 31604070 Carbon Brush holder commuter guide
27 31604069 Self-sticking Carbon brushes
28 14311517 Bearing, 6x19x6
29 14115629 Washer
30 31000899 Armature compl. 230 V
31 34409764 Switch protection
32 14115107 Washer
33 14311499 Bearing 9x 26x 8
34 33000175 Fan
35 34339269 Air conveyor
36 14111990 Head screw with cap
37 34409788 Rubber gasket
1001 33850450 Label
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo FMS 200 Intec - 00065000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Drawing Metabo FMS 200 Intec

Drawing Metabo FMS 200 Intec

Download (362.77KB)
