MECCANICA BENASSI S.R.L.

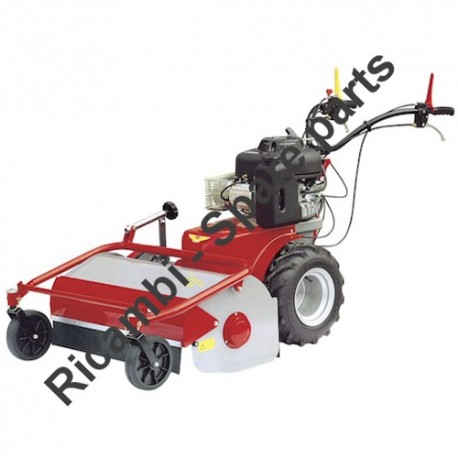

Meccanica Benassi Spare Parts for Flail Mower TR 80 Special

SKU: TR 80 Special 03-06 da 354-660-4
€5.72
VAT included

Meccanica Benassi Spare Parts for Flail Mower TR 80 Special

Meccanica Benassi Genuine spare parts or replacement parts for to repair Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4.

Fix Your Flail Mowers TR 80 Special All Spares are original and can be supplied at Low and discounted prices For Shipping Our Spares are Genuine Parts and Come with a Full Guarantee
Meccanica Benassi Spare Parts for Flail Mower TR 80 Special
  • Meccanica Benassi Spare Parts for Flail Mower TR 80 Special
  • Meccanica Benassi Spare Parts for Flail Mower TR 80 Special
  • Meccanica Benassi Spare Parts for Flail Mower TR 80 Special
  • Meccanica Benassi Spare Parts for Flail Mower TR 80 Special
  • Meccanica Benassi Spare Parts for Flail Mower TR 80 Special
  • Meccanica Benassi Spare Parts for Flail Mower TR 80 Special
  • Meccanica Benassi Spare Parts for Flail Mower TR 80 Special
  • Meccanica Benassi Spare Parts for Flail Mower TR 80 Special
MECCANICA BENASSI S.R.L.

Meccanica Benassi Spare Parts for Flail Mower TR 80 Special

SKU: TR 80 Special 03-06 da 354-660-4 Condition: New
€5.72
VAT included

Meccanica Benassi Spare Parts for Flail Mower TR 80 Special

Meccanica Benassi Genuine spare parts or replacement parts for to repair Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4.

Fix Your Flail Mowers TR 80 Special All Spares are original and can be supplied at Low and discounted prices For Shipping Our Spares are Genuine Parts and Come with a Full Guarantee
settings 133 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
133 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

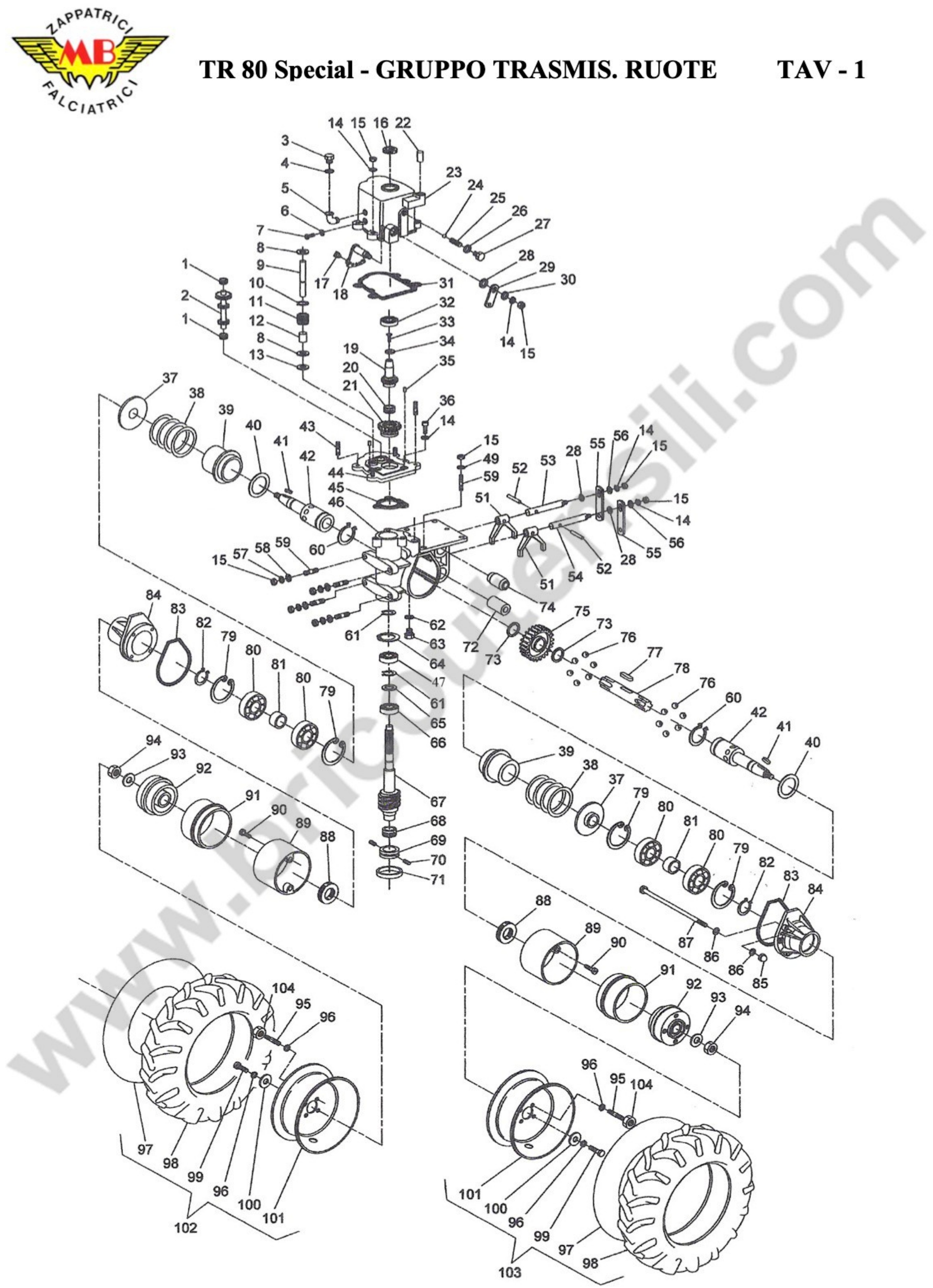

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31901150 Needle roller bearing 14-20-12 €5.56
2
 photo_cameraImage coming soon 6FC41500 2nd speed gear Z 11-18-11 €106.46
3
 photo_cameraImage coming soon 30601040 Breather hose €3.02
5
 photo_cameraImage coming soon 36861010 Bend pipe M F 1/4 x1 / 4 Gas €7.29
9
 photo_cameraImage coming soon 6GH09800 RM pin €16.47
11
 photo_cameraImage coming soon 6FC41400 Reverse Gear Z = 15 €54.24
12
 photo_cameraImage coming soon 32201110 sint. Bush GLYCODUR F 10 x 12 x 20 €2.19
16
 Oil Seal 35x20x6/7 for Motorhoe Meccanica Benassi RL 7 30101620 Oil Seal 35x20x6/7 for Motorhoe Meccanica Benassi RL 7 €4.37
17
 Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300 6GF00900 Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300 €12.95
19
 photo_cameraImage coming soon 6GS15500 Primary pinion Z 18 €87.08
20
 photo_cameraImage coming soon 32101030 Needle bearing 12 x 17 x 13 €12.39
21
 photo_cameraImage coming soon 6FC41600 Sliding gear Z 25 €80.55
22
 photo_cameraImage coming soon 32201080 Bushing 12 -14 - 25 €3.02
23
 photo_cameraImage coming soon 6CI15700 Gear box €158.32
25
 photo_cameraImage coming soon 6FU03400 Spring €2.19
27
 photo_cameraImage coming soon 6LD015T0 Spring guide cap €5.10
28
 Oil Seal 12x19x5 for Rototiller Meccanica Benassi RL 300 - RL 300 L 30101050 Oil Seal 12x19x5 for Rototiller Meccanica Benassi RL 300 - RL 300 L €3.65
29
 photo_cameraImage coming soon 6FL095T0 Gear lever €6.49
32
 photo_cameraImage coming soon 32501350 Ball bearing 20x42x12 €8.31
34
 photo_cameraImage coming soon 6HC121T0 Special washer €1.33
37
 photo_cameraImage coming soon 6HC13100 Special washer €11.37
38
 photo_cameraImage coming soon 6FU16800 Spring €4.84
39
 photo_cameraImage coming soon 6FC42600 Collar €48.10
40
 photo_cameraImage coming soon 6HP04430 Thickness 405 x 52 €2.39
42
 photo_cameraImage coming soon 6BA02800 Half shaft €104.23
43
 photo_cameraImage coming soon 6GP00800 PRISONER M 8x40 (15LD315 / 350) Honda €2.09
44
 photo_cameraImage coming soon 6CO13800 Gearbox cover €73.21
46
 photo_cameraImage coming soon 6CI16400 Central body €204.22
51
 photo_cameraImage coming soon 6DF06000 Release fork €42.38
53
 photo_cameraImage coming soon 6BF14500 Right fork holder rod €16.47
54
 photo_cameraImage coming soon 6BF14400 Left fork holder rod €16.47
59
 photo_cameraImage coming soon 6GP10100 stud M 8 x 32 €2.26
63
 photo_cameraImage coming soon 6LD013T0 Oil cap €3.12
64
 photo_cameraImage coming soon 38011470 Seeger E47 €1.37
66
 photo_cameraImage coming soon 32501400 Bearing 20x47x14 (6204) €12.41
67
 photo_cameraImage coming soon 6FC41700 Worm Screw €139.13
68
 photo_cameraImage coming soon 31901550 Needle roller bearing 28-35-16 €12.39
69
 photo_cameraImage coming soon 6BQ14000 Bushing €32.40
71
 photo_cameraImage coming soon 30131220 Blind sealing ring €6.27
72
 photo_cameraImage coming soon 6BQ13900 Bushing €13.63
73
 photo_cameraImage coming soon 6HP08140 Thickness 272 x 39 x 1 €3.02
74
 photo_cameraImage coming soon 6BQ14200 Bushing €15.26
75
 photo_cameraImage coming soon 6CC14800 Crown z = 30 €169.54
78
 photo_cameraImage coming soon 6BA02900 Shaft €79.14
79
 photo_cameraImage coming soon 38011520 Seeger I52 €1.44
80
 photo_cameraImage coming soon 32501600 Ball bearing 25x52x15 €14.13
81
 photo_cameraImage coming soon 6CT25500 Spacer €3.41
83
 photo_cameraImage coming soon 6DS05260 Gasket €1.37
84
 photo_cameraImage coming soon 6CO14700 Side cover €60.15
85
 photo_cameraImage coming soon 3300103T Blind nut M 8 €1.58
89
 photo_cameraImage coming soon 6GQ012C0 Hub protection €7.90
91
 photo_cameraImage coming soon 6GQ07400 Hub protection extension €7.71
92
 photo_cameraImage coming soon 6FV08500 Wheel holder €49.75
95
 photo_cameraImage coming soon 6GP03400 Stud M 10x35 €2.09
97
 photo_cameraImage coming soon 31101160 INNER TUBE 16 x 65 x 8 €28.93
98
 photo_cameraImage coming soon 31601460 Cover €132.79
100
 photo_cameraImage coming soon 6HC114T0 Special washer €2.13
101
 photo_cameraImage coming soon 31201300 Wheel rim 16 x 65 x 8 €77.70
102
 photo_cameraImage coming soon 5HD078B0 Right wheel Ass'y €228.29
103
 photo_cameraImage coming soon 5HD077B0 Left wheel Assìy €228.29
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

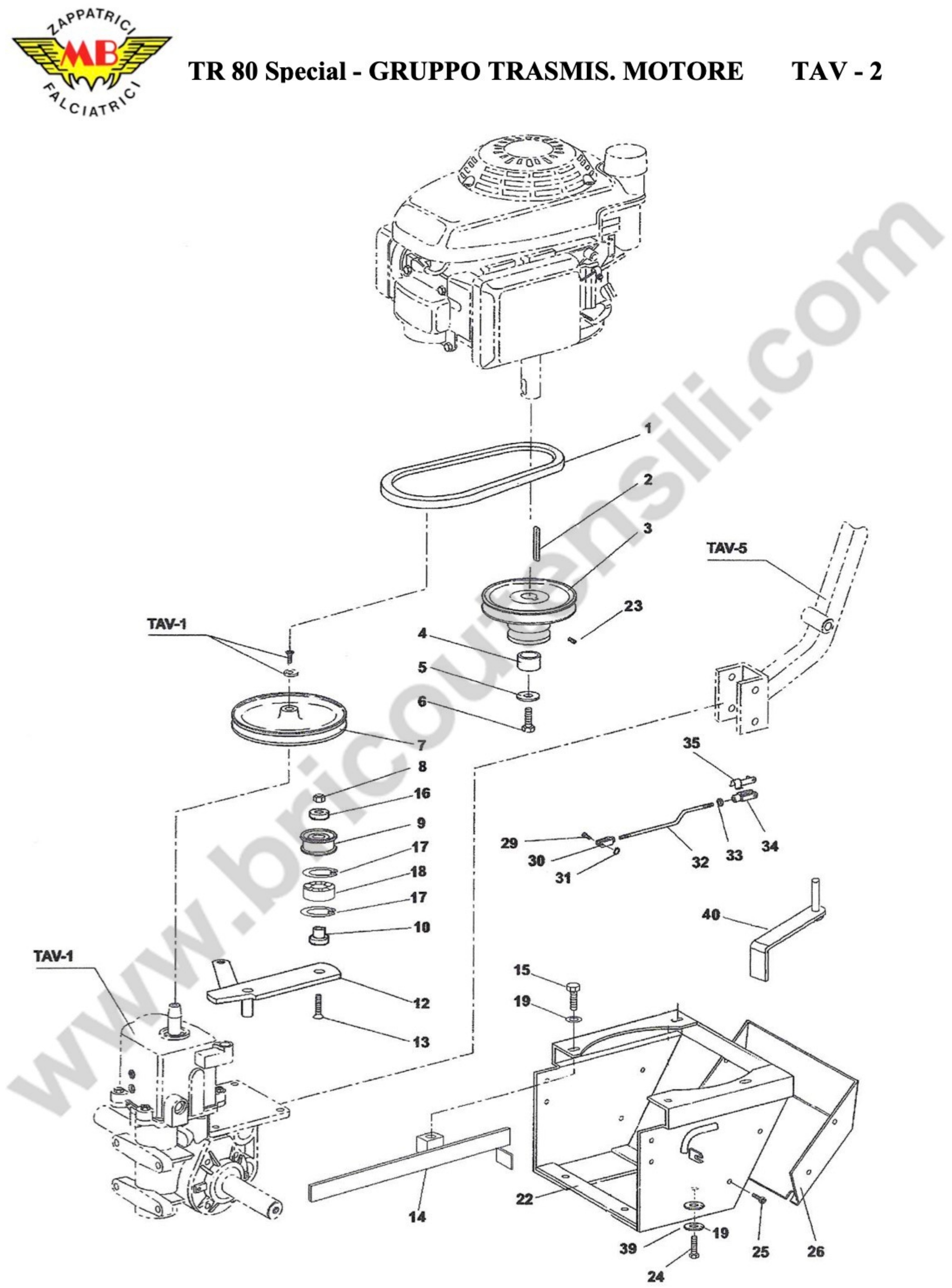

Esploso pagina 2
Pos. Item Price Buy
1
 Drive Belt Powerated 4L 6830 for Flail Mowers M. Benassi TR 80 Special 31001500 Drive Belt Powerated 4L 6830 for Flail Mowers M. Benassi TR 80 Special €46.50
2
 photo_cameraImage coming soon 6HL01600 Key 63 X 63 X 37 €6.27
3
 photo_cameraImage coming soon 5GV01500 Engine pulley €56.67
6
 photo_cameraImage coming soon 39345350 Screw TE 7/16 - 20 L = 1 "(254 mm) €3.02
10
 Idler Pulley Sapcer for Motorhoe Meccanica Benassi RL 350 6CT256T0 Idler Pulley Sapcer for Motorhoe Meccanica Benassi RL 350 €6.57
17
 photo_cameraImage coming soon 38011400 SEEGER I 40 €1.24
18
 photo_cameraImage coming soon 32541050 BEARING 6203 2RS 17X40X12 €15.81
34
 photo_cameraImage coming soon 3405107T Clamp M 8 €10.35
35
 photo_cameraImage coming soon 3420107T Quick fixing €3.41
40
 photo_cameraImage coming soon 6HQ046T01 Belt support bracket €9.33
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

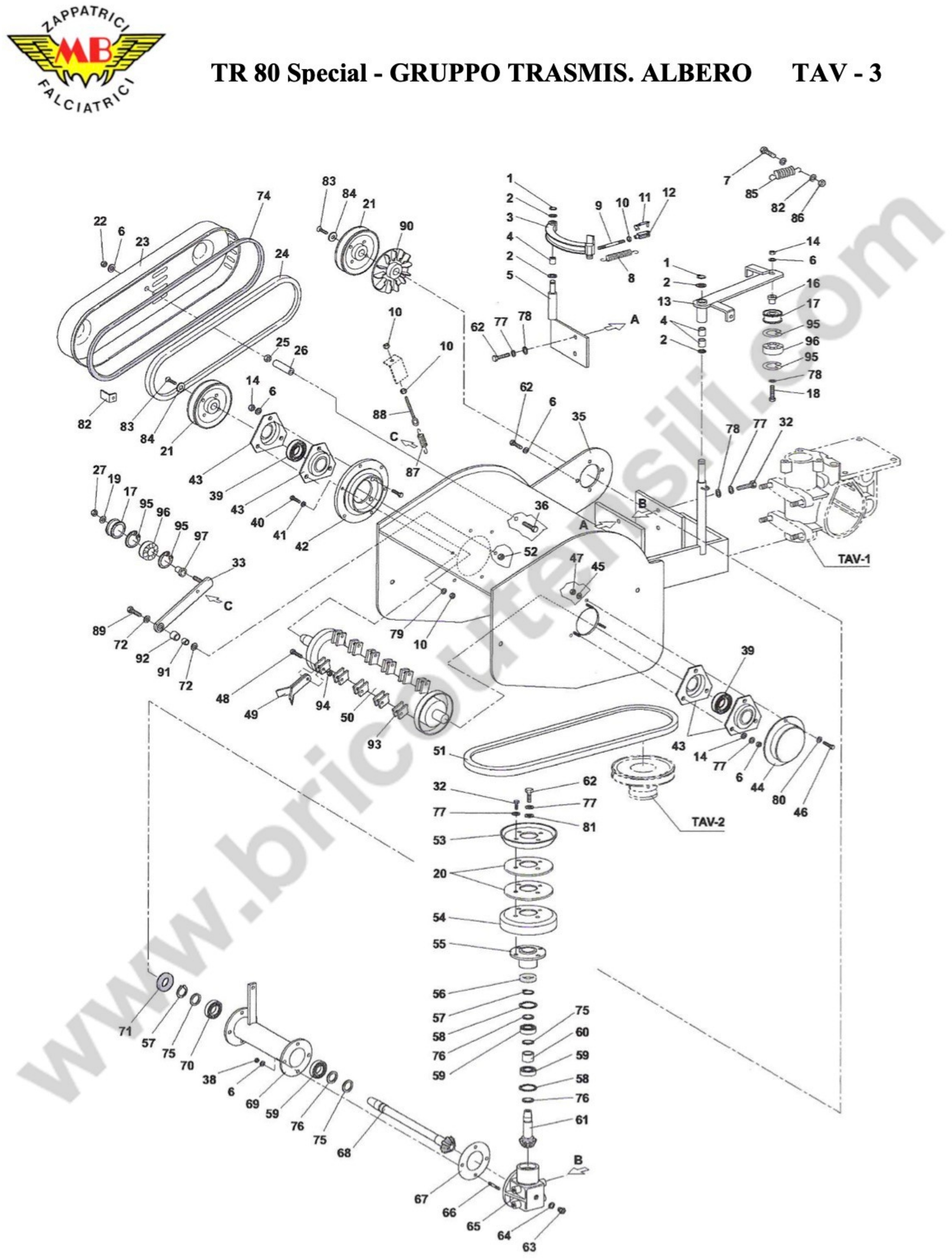

Esploso pagina 3
Pos. Item Price Buy
3
 photo_cameraImage coming soon 5DL02300 Blade shaft brake €65.46
4
 photo_cameraImage coming soon 32201080 Bushing 12 -14 - 25 €3.02
8
 photo_cameraImage coming soon 6FU15600 Spring €7.10
9
 photo_cameraImage coming soon 6GI053T0 Threaded rod €2.80
11
 photo_cameraImage coming soon 3420106T Quick fixing €3.82
13
 photo_cameraImage coming soon 5BT078T0 Tensioner arm €78.72
21
 photo_cameraImage coming soon 5GV01400 Shaft pulley €51.38
22
 photo_cameraImage coming soon 3300103T Blind nut M 8 €1.58
23
 photo_cameraImage coming soon 6CB02100 Belt guard €88.15
24
 Belt Powerated 5L 6942 for Flail Mowers M. Benassi TR 80 Special 31001540 Belt Powerated 5L 6942 for Flail Mowers M. Benassi TR 80 Special €66.37
26
 photo_cameraImage coming soon 6CT245T0 Spacer €6.88
36
 photo_cameraImage coming soon 3930360T Screw TE M 8x75 €1.37
39
 photo_cameraImage coming soon 32561010 Ball Bearing €25.66
43
 photo_cameraImage coming soon 38121010 Holders (with sheet metal flange) €14.85
48
 photo_cameraImage coming soon 6LM09300 Special screw €3.12
49
 Knife 30x4 for Flail Mowers Meccanica Benassi TR 80 Special 6CM14700 Knife 30x4 for Flail Mowers Meccanica Benassi TR 80 Special €9.42
50
 photo_cameraImage coming soon 5BA014C0 Blade holder shaft €566.45
51
 Belt Powerated 5L 6945 for Flail Mowers M. Benassi TR 80 Special 31001560 Belt Powerated 5L 6945 for Flail Mowers M. Benassi TR 80 Special €66.51
55
 photo_cameraImage coming soon 6FV08200 Flange holder hub €68.91
56
 photo_cameraImage coming soon 30101850 O ring 20-47-8 €3.82
58
 photo_cameraImage coming soon 38011470 Seeger E47 €1.37
59
 photo_cameraImage coming soon 32501400 Bearing 20x47x14 (6204) €12.41
60
 photo_cameraImage coming soon 6CT24400 Short bevel Sprocket spacer €5.25
61
 photo_cameraImage coming soon 6GS15600 Short bevel Sprocket Z13 €161.57
63
 photo_cameraImage coming soon 38601160 Oil level cap M14 x 15 €3.62
65
 photo_cameraImage coming soon 6CI15900 Helical bevel gear box €163.81
66
 photo_cameraImage coming soon 6GP10100 stud M 8 x 32 €2.26
68
 photo_cameraImage coming soon 6GS16400 Sprocket z-15 m-3 €224.63
70
 photo_cameraImage coming soon 32501350 Ball bearing 20x42x12 €8.31
71
 photo_cameraImage coming soon 30101800 Oil Seal 20-42-7 €3.82
74
 photo_cameraImage coming soon 34501150 Gasket sv1160 €3.21
81
 photo_cameraImage coming soon 6HC055T0 Special washer €1.78
84
 photo_cameraImage coming soon 36901120 Cup washer ø 10 €1.37
85
 photo_cameraImage coming soon 6FU170T0 Spring €11.79
88
 photo_cameraImage coming soon 3869102T Tensioner arm €4.23
90
 photo_cameraImage coming soon 6GV03200 Fan €20.56
92
 photo_cameraImage coming soon 32201140 bushing GLY PG121412F €3.62
93
 photo_cameraImage coming soon 4GC03000 Blade holder bracket €11.37
93
 photo_cameraImage coming soon 4GC03100 Blade holder bracket €9.33
96
 photo_cameraImage coming soon 32541050 BEARING 6203 2RS 17X40X12 €15.81
98
 photo_cameraImage coming soon 31401030 Key 4x4x16 €1.37
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

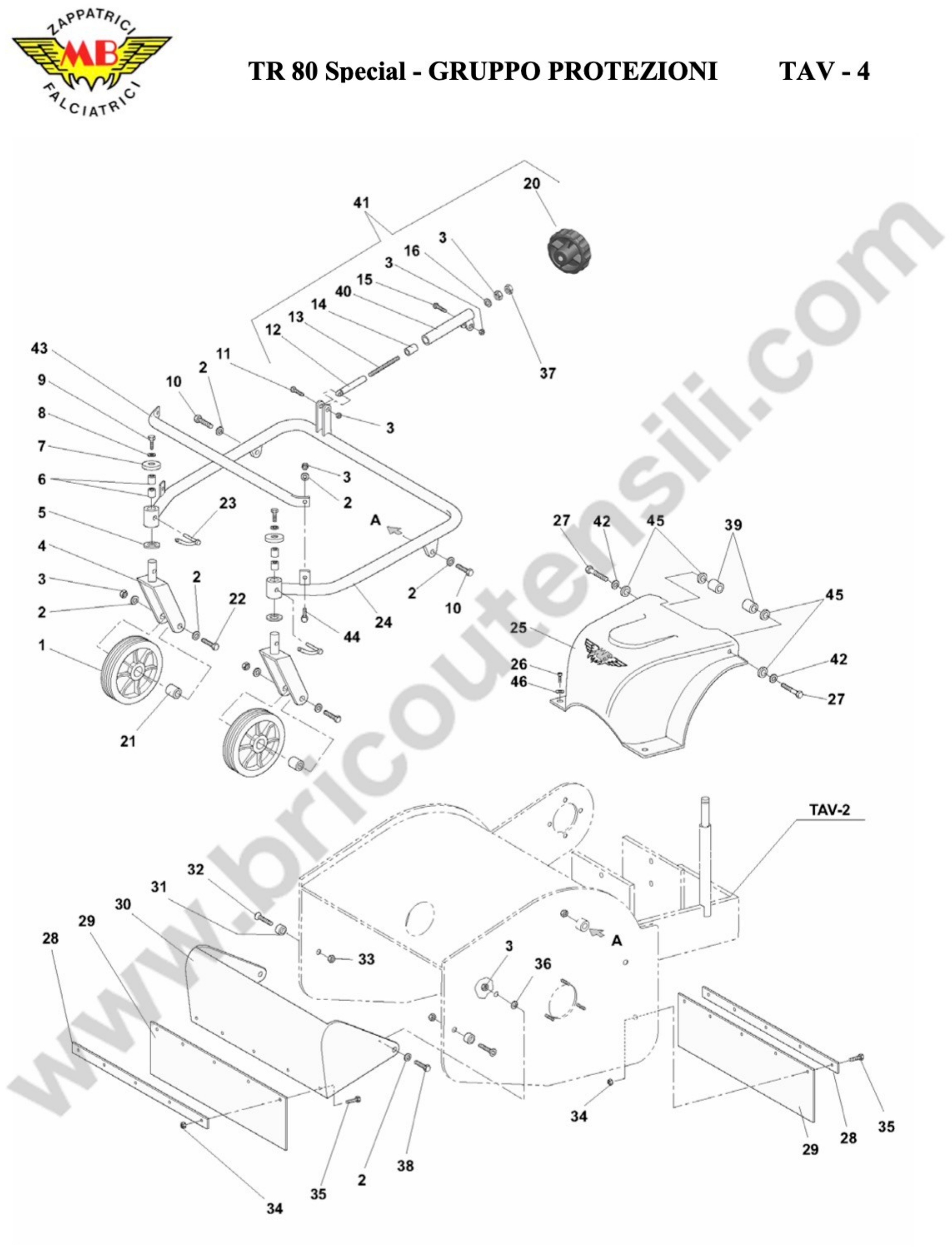

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 37551130 Wheel ge 200 to 20 €19.28
6
 photo_cameraImage coming soon 32201120 Sintered bushing 20-23-20 €3.21
7
 photo_cameraImage coming soon 6CO140T0 Dust cover €17.58
14
 photo_cameraImage coming soon 6BQ13800 Bushing €5.45
20
 photo_cameraImage coming soon 36601210 Knob €12.39
21
 photo_cameraImage coming soon 4GH04200 Pin wheel €6.60
22
 photo_cameraImage coming soon 3930367T Screw TE M 8x85 €1.58
23
 photo_cameraImage coming soon 3816101T Fixing pin Ø 8 €3.21
29
 photo_cameraImage coming soon 6BN03600 Safety guard €24.22
31
 photo_cameraImage coming soon 6CT24000 Stop spacer €4.23
36
 photo_cameraImage coming soon 6CT242T0 Busching sleeve €3.31
39
 photo_cameraImage coming soon 6BQ14300 Spacer bushing €4.84
40
 photo_cameraImage coming soon 5HT419T0 Support tube €41.99
41
 photo_cameraImage coming soon 6BF137PA Throttle lever ass'y €139.54
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

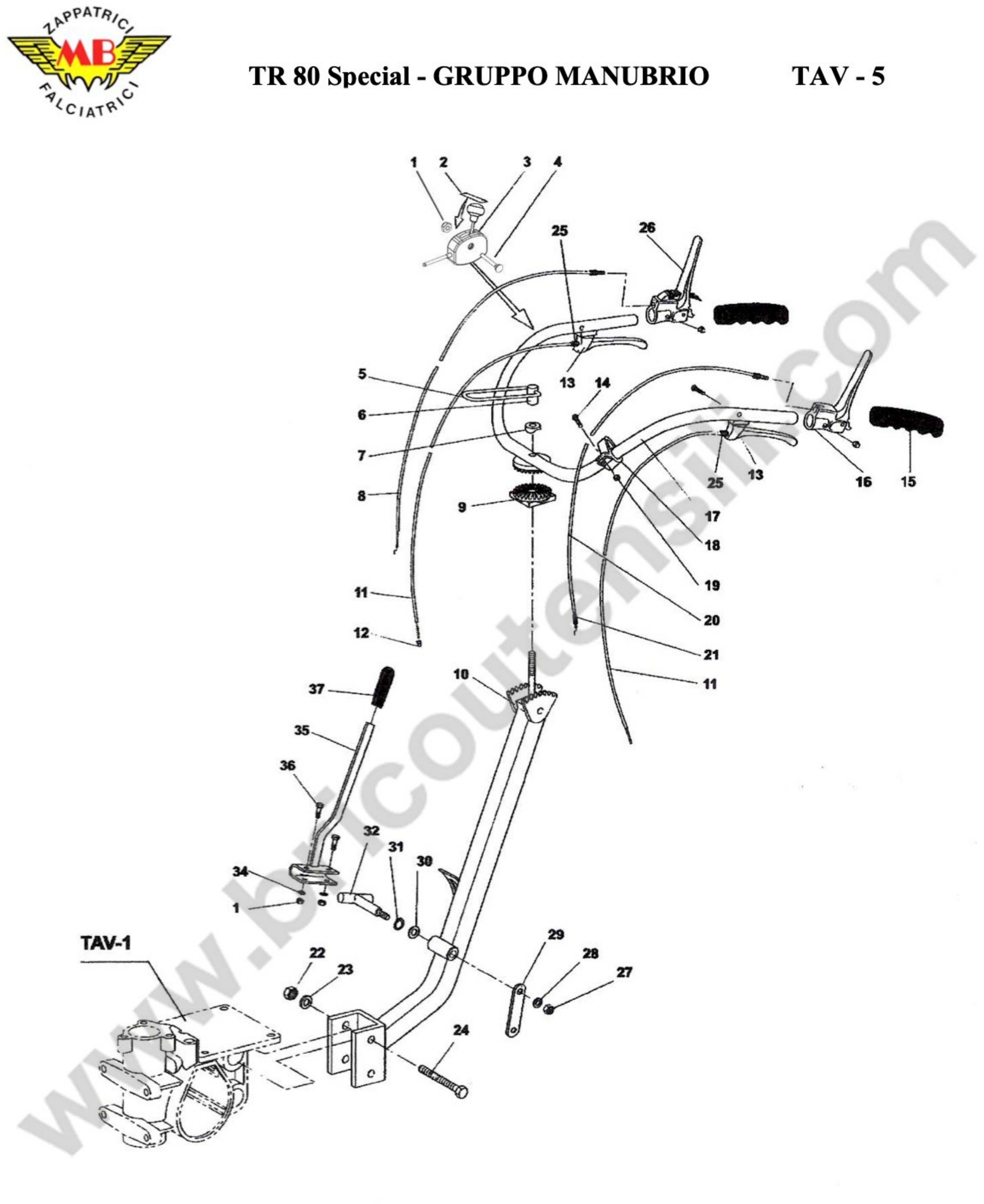

Esploso pagina 5
Pos. Item Price Buy
3
 Throttle Lever Ass'y for Flail Mowers M. Benassi TR 80 Special 35701340 Throttle Lever Ass'y for Flail Mowers M. Benassi TR 80 Special €37.95
5
 photo_cameraImage coming soon 6FU008T0 Lever spring €4.67
6
 photo_cameraImage coming soon 6CS008T0 Threaded bush €7.09
7
 photo_cameraImage coming soon 6HC025T0 Washer €6.65
8
 Blade Disengagement Cable for Flail Mowers M. Benassi TR 80 Special 6DG19700 Blade Disengagement Cable for Flail Mowers M. Benassi TR 80 Special €17.37
11
 Wheel Disengagement Cable for Flail Mowers M. Benassi TR 80 Special 6DG20700 Wheel Disengagement Cable for Flail Mowers M. Benassi TR 80 Special €15.68
13
 photo_cameraImage coming soon 35401220 Wheel release lever €34.64
15
 Rubber Grip for Motorhoe Mec. Benassi RL 328 Special 35601060 Rubber Grip for Motorhoe Mec. Benassi RL 328 Special €4.74
16
 Stop Lever for Tiller Meccanica Benassi RL 3 [1+1] - 03-07 35401190 Stop Lever for Tiller Meccanica Benassi RL 3 [1+1] - 03-07 €38.53
18
 photo_cameraImage coming soon 33801210 Cable tie €2.97
20
 photo_cameraImage coming soon 6DG18900 Grafting thread €28.65
24
 photo_cameraImage coming soon 3930430T Screw TE M 10 x 75 €1.88
26
 Blade Control Lever for Flail Mowers M. Benassi TR 80 Special 35401230 Blade Control Lever for Flail Mowers M. Benassi TR 80 Special €30.19
37
 photo_cameraImage coming soon 36601180 Knob 20 x 5 €4.43
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

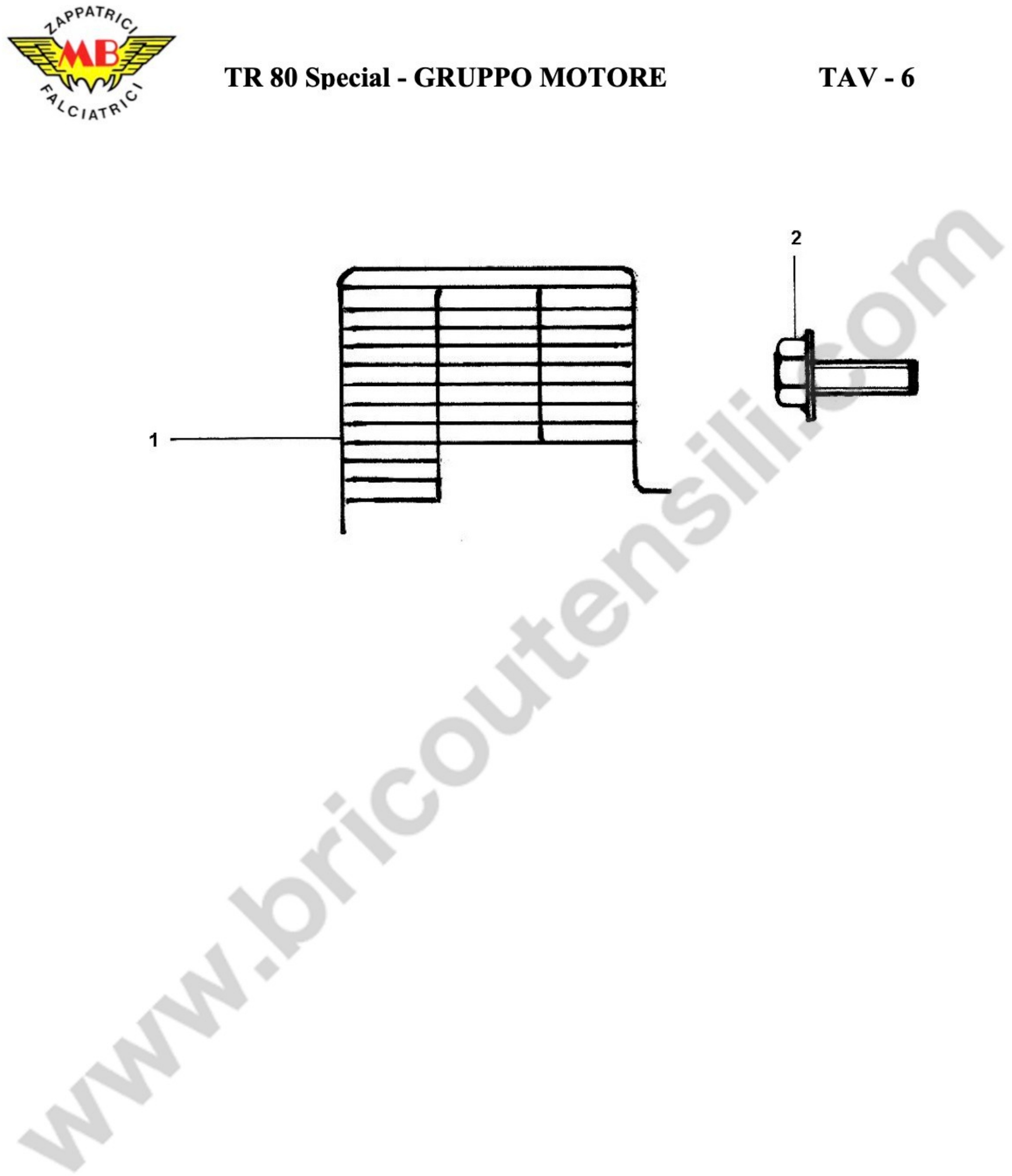

Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 6GQ101T0 Muffler guard €46.69
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

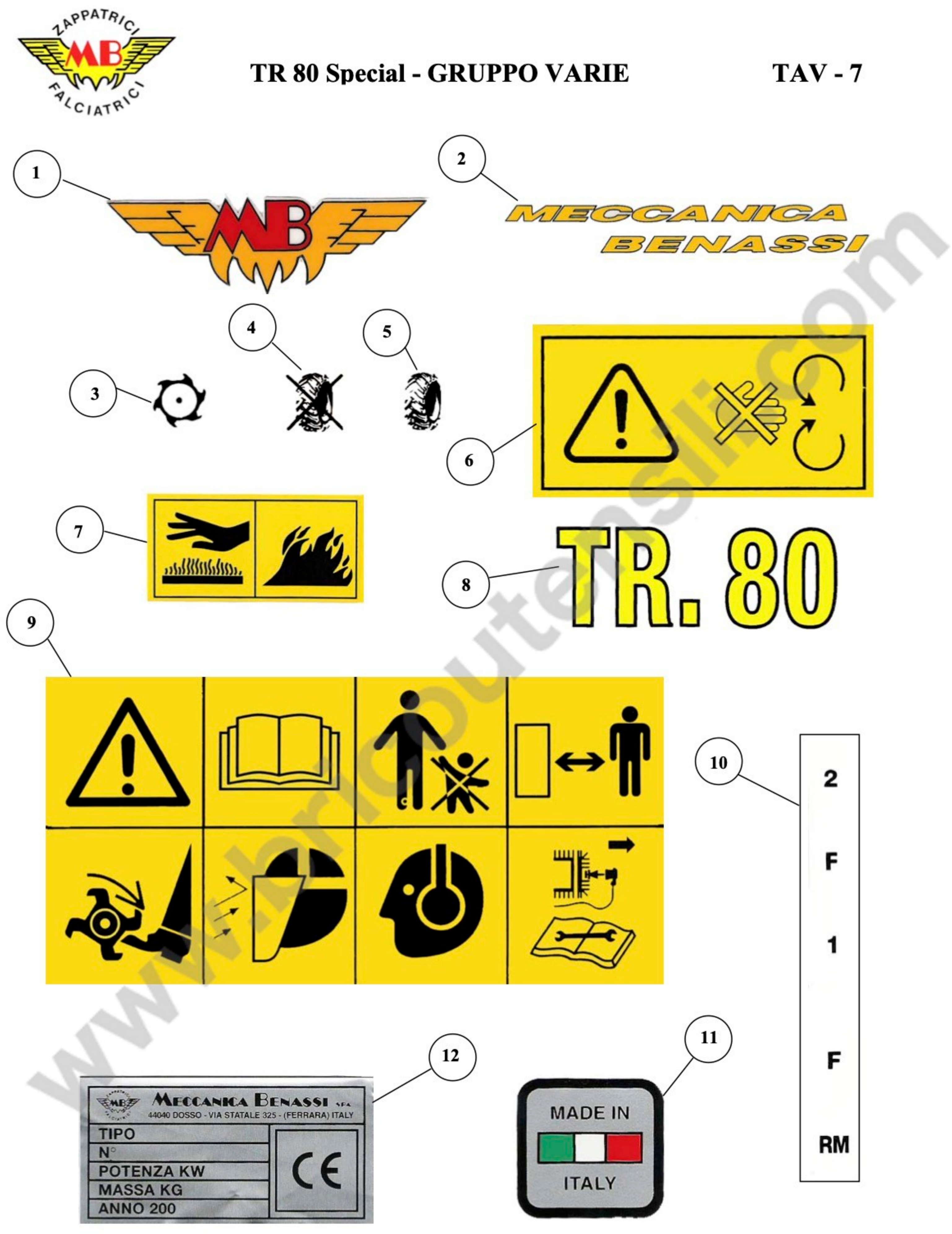

Esploso pagina 7
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Meccanica Benassi Spare Parts for Flail Mower TR 80 Special

Fix Your Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4.
All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee

In the following table, look for the model of the Tiller and the respective parts of the code
TR 80 Special 03-06 da 354-660-4

Flail Mower TR 80 Special - 03-06 from code 354 till 660-4
GRUPPO TRASMISSIONE RUOTE TAV - 1 Pag.1
# Part Num. Description
1 31901150 Needle roller bearing 14-20-12
2 6FC41500 2nd speed gear Z 11-18-11
3 30601040 Breather hose
4 6HC00900 Washer 10x18
5 36861010 Bend pipe M F 1/4 x1 / 4 Gas
6 6HC00150 Washer 6 x 10
7 3970390T Screw TC M 6 x 10
8 6HP01100 Thickness 141 x 20 - 02 - 03 - 05
9 6GH09800 RM pin
10 38001100 Seeger E10
11 6FC41400 Reverse Gear Z = 15
12 32201110 Bushing
13 6HP00400 Spacer 102 x 16 - 02 -03 - 05
14 37101080 Washer Ø 8
15 3290106T Nut M 8
16 30101620 Oil Seal 20 - 35 - 7
17 6GF00900 Skate
18 5HG01600 Sector marks gears - DISCONTINUED
19 6GS15500 Primary pinion Z 18
20 32101030 Needle roller bearing
21 6FC41600 Sliding gear Z 25
22 32201080 Bushing 12 -14 - 25
23 6CI15700 Gear box
24 38101150 Steel Ball 11/32
25 6FU03400 Spring Ø10
26 6HC00920 Washer 14 - 20
27 6LD015T0 Spring guide cap
28 30101050 O ring 12 - 19 - 5
29 6FL095T0 Gear lever
30 6HP00660 Thickness 03
31 6DS19240 Side cover gasket
32 32501350 Ball bearing 20-42-12
33 39502950 Screw TSPEI M 8 x 16
34 6HC121T0 Special washer
35 38311010 Plug Ø 6
36 3940365T Screw TCEI M 8 x 20
37 6HC13100 Special washer
38 6FU16800 Spring
39 6FC42600 Collar
40 6HP04430 Thickness 405 x 52
41 31401400 Key 6 x 6 x 20
42 6BA02800 Half shaft
43 6GP00800 Stud M 8 x 40
44 6CO13800 Gearbox cover
45 6DS19360 Gasket
46 6CI16400 Central body
47 6CT26100 Spacer
49 3730105T Grower washer Ø8
51 6DF06000 Release fork
52 38191010 Spring Pin
53 6BF14500 Right fork holder rod
54 6BF14400 Left fork holder rod
55 6FL100TO Lever
56 6HP00650 Thickness 121 x 20 x 88
57 37301050 Washer Ø8 heavy type
58 3700106T Washer Ø8
59 6GP10100 stud M 8 x 32
60 38001400 Seeger E40
61 38001200 Seeger E20
62 37460010 Aluminum washer
63 6LD013T0 Oil cap
64 38011470 Seeger I47
65 6HP02650 Thickness 20-30-08
66 32501400 Ball bearing 20-47-14
67 6FC41700 Worm Screw
68 31901550 Needle roller bearing 28-35-16
69 6BQ14000 Bushing
70 39112500 Screw STEI with cylindrical end
71 30131220 Blind sealing ring
72 6BQ13900 Bushing
73 6HP08140 Thickness 272 x 39 x 1
74 6BQ14200 Bushing
75 6CC14800 Crown z = 30
76 38101170 Steel Ball Ø10
77 31401690 Key 8 x 7 x 22
78 6BA02900 Shaft
79 38011520 Seeger I52
80 32501600 Ball Bearing 25 x 52 x 15
81 6CT25500 Spacer
82 38001250 Seeger E25
83 6DS05260 Gasket
84 6CO14700 Side cover
85 3300103T Blind nut M 8
86 6HC03630 Copper washer
87 3930389T Tie rod M 8 x 180
88 30102300 O ring 25 x 52 x 8
89 6GQ012C0 Hub protection
90 3940276T Screw TCEI M 6 x 22
91 6GQ07400 Hub protection extension
92 6FV08500 Wheel holder
93 3700109T Washer Ø14
94 3323107T Self-locking nut M 14 x 15
95 6GP03400 Stud M 10x35
96 3730106T Washer Ø10
97 31101160 INNER TUBE 16 x 65 x 8
98 31601460 Cover
99 3931370T Screw TE M 10 x 20
100 6HC114T0 Special washer
101 31201300 Wheel rim 16 x 65 x 8
102 5HD078B0 Right wheel Ass'y
103 5HD077B0 Left wheel Assìy
104 3290107T Nut M 10
TR 80 Special - GRUPPO TRASMISSIONE MOTORE TAV - 2 Pag.2
1 31001500 OPTIBELT TX X13 belt
2 6HL01600 Key 63 X 63 X 37
3 5GV01500 Engine pulley
5 6HC12900 Special washer
6 39345350 Screw TE 7/16 - 20 L = 1 "(254 mm)
7 5GV011T0 Transmission pulley
8 3322104T Self-locking nut M 8 low
9 6BU004T0 Idler
10 6CT256T0 Idler Pulley Spacer
12 5BT077T0 Tensioner arm
13 3930320T Screw TE M 8x35
14 5HQ03300 Belt guide bracket
15 3930326T Screw TE M 8 x 40 UNI 5737 for motor fix
16 3701130T Washer 8-24
17 38011400 Seeger I40
18 32541050 Ball Bearing 6203-2RS
19 3700106T Flat washer ø 8
22 5HT43900 Engine bracket
23 39103350 Screw STEI M 8 x 14
24 3931295T Screw TE M 8 x 25
25 3972103T Self-tapping screw TC 42 x 16
26 6CO14200 Cover
29 6GH03100 Pin
30 6DF05700 Clamp M 8
31 38021040 Seeger ø 5, 7
32 6GI05000 Threaded stud
33 3294106T Nut M 8 low
34 3405107T Clamp M 8
35 3420107T Quick fixing
39 3730105T Washer Ø8
40 6HQ046T01 Belt support bracket
TR 80 Special - GRUPPO TRASMISSIONE ALBERO TAV - 3 Pag.3
1 38001120 Seeger E 12
2 6HP00600 Thickness
3 5DL02300 Blade shaft brake
4 32201080 Bushing 12-14-25
5 5HT41700 Brake Holder
7 6FT01300 Clamp
6 3700106T Washer Ø8
8 6FU15600 Spring
9 6GI053T0 Threaded rod
10 3292104T Nut M6
11 3420106T Quick fixing
12 6DF054T0 Clamp M6
13 5BT078T0 Tensioner arm
14 3320104T self-locking nut M8
16 6CT25600 Spacer
17 6BU004T0 Idler
18 3931305T Screw TE M8 x35
19 3700107T Washer Ø10
20 6HP07100 Thicknesses
21 5GV01400 Shaft pulley
22 3300103T Blind nut M8
23 6CB02100 Belt guard
24 31001540 Blade shaft belt
25 3294106T Nut M8 h 5
26 6CT245T0 Spacer
27 3322105T Low self-locking nut M 10
32 3931290T Screw TE M8 x 20
33 5BT076T0 Tensioner arm
35 5GQ04700 Forage harvester housing
36 3930360T Screw TE M 8x75
38 3290106T Nut M8
39 32561010 Ball Bearing
40 3931225T Screw TE M6 x16
41 3730103T Washer Ø6
42 5CO01100 Side cover
43 38121010 Holders (with sheet metal flange)
44 6CO14100 Cover
45 3730102T Washer Ø5
46 3931180T Screw TE M5 x 16
47 3292103T Nut M5
48 6LM09300 Special screw
49 6CM14700 Blade
50 5BA014C0 Blade holder shaft
51 31001560 Bevel gear belt
52 33201030 Self-locking nut M6
53 6GV011T0 Upper half pulley
54 6GV017T0 Lower half pulley
55 6FV08200 Flange holder hub
56 30101850 O ring 20-47-8
57 38001200 Seeger E 20
58 38011470 Seeger I 47
59 32501400 Ball Bearing 20-47-14 6204
60 6CT24400 Short bevel Sprocket spacer
61 6GS15600 Short bevel Sprocket Z13
62 3931295T Screw TE M8 x 25
63 38601160 Oil level cap M14 x 15
64 In dotazione Fiber washer
65 6CI15900 Helical bevel gear box
66 6GP10100 Stud M8 x 32
67 6DS19400 Gasket sp 05
68 6GS16400 Sprocket z-15 m-3
69 5HT41800 Pulley bracket
70 32501350 Ball Bearing 20-42-12 6004
71 30101800 Oil Seal 20-42-7
72 3701120T Washer Ø 65 -18
73 3294106T Low nut M10
74 34501150 Gasket sv1160
75 6HP02600 SHIM
76 6HP04200 SHIM
77 3730105T Washer Ø8
78 3701130T Washer Ø8 - 24
79 3700104T Washer Ø6
80 3700103T Washer Ø5
81 6HC055T0 Special washer
82 3700105T Washer Ø7
83 39313700 Screw TE M 10 x 20
84 36901120 Cup washer ø 10
85 6FU170T0 Spring
86 3290105T Nut M7
87 6FU165T0 Belt tensioner spring
88 3869102T Tensioner arm
89 3930180T Screw TE M6 x 35
90 6GV03200 Fan
91 6CT25400 Bush ø 65 x 12 L = 125
92 32201140 bushing GLY PG121412F
93 4GC03000 Blade holder bracket
93 4GC03100 Blade holder bracket
94 33221110 Self-lock (inner metal) Nut M 10
95 38011044 Seeger
96 32541050 Ball Bearing 6203-2RS
97 6CT25700 Spacer
98 31401030 Key 4x4x16
TR 80 Special - GRUPPO PROTEZIONI TAV - 4 Pag.4
1 37551130 Wheel
2 3700106T Bevel washer 8
3 3322104T self-locking Nut M 8
4 5DF06800 Wheel fork holder
5 6HP02640 Shaving
6 32201120 Sintered bushing 20-23-20
7 6CO140T0 Dust cover
8 3730105T Washer Ø 8
9 3931285T Screw TE M 8 x 16
10 3930330T Screw TE M 8 x 45
11 3930335T Screw M 8 x 50
12 6BF13700 Adjust rod
13 5LF18700 Stud M8 x 32
14 6BQ13800 Bushing
15 3931300T Screw TE M 8 x 30
16 6HP00860 Shaving
20 36601210 Knob
21 4GH04200 Wheel pin
22 3930367T Screw TE M 8x85
23 3816101T Fixing pin Ø 8
24 5HT42500 Support wheels
25 6GQ09600 Engine belt guard
26 39311750 Screw TE M 5x12
27 3930165T Screw TE M 5x50
28 6GL02800 Safety guard plate
29 6BN03600 Safety guard
30 6GQ09900 Mobile protection
31 6CT24000 Stop spacer
32 3450245T Screw TSPEI M 6 x 25
33 3322103T self-locking nut M 6
34 3320102T self-locking nut M 5
35 3931180T Screw TE M 5 x 16
36 6CT242T 0 Busching sleeve
37 3294108T Nut M 12 low
38 3931295T Screw TE M 8 x 25
39 6BQ14300 Spacer bushing
40 5HT419T0 Support tube
41 6BF137PA Throttle lever ass'y
42 3701115T Flat washer Ø5x20
43 6GG00600 Safety tube
44 3931290T Screw TE M 8 x 20
45 6HC03800 Rubber washer
46 37011100 Flat washer Ø5x15
TR 80 Special - GRUPPO MANUBRIO TAV - 5 Pag.5
1 3322103T Nut M 6 self-locking
2 In dotazal manettino Label, Throttle lever
3 35701340 Throttle lever
4 In dotazal manettino Screw M 6
5 6FU008TO Lever spring
6 6CS008TO Special nut
7 6HC025TO Special washer
8 6DG19700 Blade disengagement cable
9 6HZ01200 Toothed support
10 5HT42400 Handlebar support
11 6DG20700 Wheel disengagement cable
12 6DT00900 Wire guide
13 35401220 Wheel release lever
14 3970325T Screw TCCI M 5 x 16
15 35601060 RUBBER GRIP
16 35401190 Engine stop lever
17 5HR14600 Handlebars
18 33801210 Cable tie
19 3290103T Nut M 5 h5
20 6DG18900 Transmission disengagement Cable
21 6FU15500 Spring
22 3290107T Nut M 10
23 3700107T Washer
24 3930430T Screw TE M 10 x 75
25 6HB00400 Control M 8
26 35401230 Blade control lever with lock
27 3292106T Nut M 8 h 65
28 3710108T Washer ø 8
29 6FL09700 Gear lever
30 6HP01200 Shim ø 142 x 24
31 38001140 Seeger E 14
32 5HE00600 Return, gear lever
34 3700104T Washer ø 6
35 5FL10000 Gear shift lever
36 3930180T Screw TE M 6 x 35
37 36601180 Knob 20 x 5
TR 80 Special - GRUPPO MOTORE TAV - 6 Pag.6
1 6GQ101T0 Muffler guard
2 39441010 Screw
TR 80 Special - GRUPPO VARIE TAV - 7 Pag.7
1 33402370 Front decal M B
2 33406220 LABEL, Meccanica Benassi
3 33406890 LABEL,, shaft
4 33406900 LABEL,, Transmission disengagement
5 33406910 LABEL, Transmission
6 33406800 LABEL, warnings
7 33406300 LABEL, warnings
8 33406870 LABEL, TR 80
9 33406920 Label, General warnings
10 33406930 LABEL, gears
11 33406940 LABEL made in Italy
12 33406230 LABEL CE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts Most of the manufacturers reserve the right to change the product characteristics or complement without notice We strongly recommend using the published information as a basic information subject to Alpina brand review Please refine the important parameters by the selling assistant when making a purchase All content included in this catalog is the intellectual property of wwwbricoutensilicom Any publication or copying (full or partial) without a reference to the source page is prohibited
TR 80 Special 03-06 da 354-660-4
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Drawing TR 80 Special

Drawing TR 80 Special

Download (1.32MB)

You might also like

Stop Lever for Tiller Meccanica Benassi RL 3 [1+1] - 03-07
MECCANICA BENASSI S.R.L. SKU: 35401190
Stop Lever for Tiller Meccanica Benassi RL 3 [1+1] - 03-07
Stop Lever for Tiller Meccanica Benassi RL 3 [1+1] - 03-07 Genuine spare part Meccanica Benassi, Stop Lever (RED) Belt for Petrol Rotary Tiller RL 3 [1+1] - 03-07. Part for the following Items: -  Rotary Tiller RL 3 [1+1] - 03-07 -...
AVAILABLE €38.53
Details
Lever Assy for Roto-Tiller Meccanica Benassi RL 328 Special
MECCANICA BENASSI S.R.L. SKU: 35401170
Lever Assy for Roto-Tiller Meccanica Benassi RL 328 Special
Lever Assy for Roto-Tiller Meccanica Benassi RL 328 Special Genuine spare part Meccanica Benassi, Lever Assy for Roto-Tiller Meccanica Benassi RL 328 Special. Part for the following Items: -  Roto-Tiller RL 328 Special - Handle Assy...
AVAILABLE €50.92
Details
Stop Engine Cable for Roto-Tiller Meccanica Benassi RL 328 Special
MECCANICA BENASSI S.R.L. SKU: 6DG20600
Stop Engine Cable for Roto-Tiller Meccanica Benassi RL 328 Special
Stop Engine Cable for Roto-Tiller Meccanica Benassi RL 328 Special Genuine spare part Meccanica Benassi, Stop Engine Cable for Roto-Tiller Meccanica Benassi RL 328 Special. Part for the following Items: -  Roto-Tiller RL 328 Special...
Last items in stock €17.00
Details
Drive Belt for Motorhoe Meccanica Benassi RL 341
MECCANICA BENASSI S.R.L. SKU: 31001650
Drive Belt for Motorhoe Meccanica Benassi RL 341
Drive Belt for Motorhoe Meccanica Benassi RL 341 Genuine spare part Meccanica Benassi, Drive Belt for Petrol Motorhoe RL 341 10-2012. Part for the following Items: -  Motorhoe RL 341 10-2012 - Code: 31001650
on 7/10 Business Days Approx €44.75
Details
Drive Belt for Motorhoe Meccanica Benassi Motorhoe RL 7
MECCANICA BENASSI S.R.L. SKU: 31001550
Drive Belt for Motorhoe Meccanica Benassi Motorhoe RL 7
Drive Belt for Motorhoe Meccanica Benassi Motorhoe RL 7 Genuine spare part Meccanica Benassi, Drive Belt GATES 4L 6849  (Green)*  for Petrol Motorhoe Motorhoe RL 7 03-05 IT Part for the...
on 7/10 Business Days Approx €46.35
Details
Transmission Oil Dipstick for Motorhoe Meccanica Benassi RL 7
MECCANICA BENASSI S.R.L. SKU: 30601050
Transmission Oil Dipstick for Motorhoe Meccanica Benassi RL 7
Transmission Oil Dipstick for Motorhoe Meccanica Benassi RL 7 Genuine spare part Meccanica Benassi, Transmission Oil Dipstick for Petrol Motorhoe Motorhoe RL 7 03-05 IT Part for the following Items: -  Motorhoe RL 7 03-05 IT - Code:...
Last items in stock €8.25
Details
Drive Belt Powerated 5L 6942 for Flail Mowers M. Benassi TR 80 Special
MECCANICA BENASSI S.R.L. SKU: 31001540
Belt Powerated 5L 6942 for Flail Mowers M. Benassi TR 80 Special
Belt Powerated 5L 6942 for Flail Mowers Meccanica Benassi TR 80 Special Genuine spare part Meccanica Benassi, Belt GATES Powerated 5L 6942  (Green)*  for Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4 Part for the...
on 7/10 Business Days Approx €66.37
Details
Belt Powerated 5L 6945 for Flail Mowers M. Benassi TR 80 Special
MECCANICA BENASSI S.R.L. SKU: 31001560
Belt Powerated 5L 6945 for Flail Mowers M. Benassi TR 80 Special
Belt Powerated 5L 6945 for Flail Mowers Meccanica Benassi TR 80 Special Genuine spare part Meccanica Benassi, Belt GATES Powerated 5L 6945  (Green)*  for Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4 Part for the...
on 7/10 Business Days Approx €66.51
Details
Throttle Lever Ass'y for Flail Mowers M. Benassi TR 80 Special
MECCANICA BENASSI S.R.L. SKU: 35701340
Throttle Lever Ass'y for Flail Mowers M. Benassi TR 80 Special
Throttle Lever Ass'y for Flail Mowers Meccanica Benassi TR 80 Special Genuine spare part Meccanica Benassi, Throttle Lever Ass'y for Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4 Part for the following Items: -  Flail...
on 7/10 Business Days Approx €37.95
Details
Blade Control Lever for Flail Mowers M. Benassi TR 80 Special
MECCANICA BENASSI S.R.L. SKU: 35401230
Blade Control Lever for Flail Mowers M. Benassi TR 80 Special
Blade Control Lever for Flail Mowers Meccanica Benassi TR 80 Special Genuine spare part Meccanica Benassi, Blade Control Lever with Lock for Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4 Part for the following Items: -...
on 7/10 Business Days Approx €30.19
Details
Idler Pulley Sapcer for Motorhoe Meccanica Benassi RL 350
MECCANICA BENASSI S.R.L. SKU: 6CT256T0
Idler Pulley Sapcer for Motorhoe Meccanica Benassi RL 350
Pre-Assembled Idler Pulley Sapcer for Motorhoe Meccanica Benassi RL 350 Genuine spare part Meccanica Benassi, Pre-Assembled Idler Pulley Sapcer for Petrol Motorhoe RL 350 from SN.4500457 Part for the following Items: -  Motorhoe RL...
on 7/10 Business Days Approx €6.57
Details
Blade Disengagement Cable for Flail Mowers M. Benassi TR 80 Special
MECCANICA BENASSI S.R.L. SKU: 6DG19700
Blade Disengagement Cable for Flail Mowers M. Benassi TR 80 Special
Blade Disengagement Cable for Flail Mowers Meccanica Benassi TR 80 Special Genuine spare part Meccanica Benassi, Blade Disengagement Cable for Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4 Part for the following Items: -...
on 7/10 Business Days Approx €17.37
Details
Wheel Disengagement Cable for Flail Mowers M. Benassi TR 80 Special
MECCANICA BENASSI S.R.L. SKU: 6DG20700
Wheel Disengagement Cable for Flail Mowers M. Benassi TR 80 Special
Wheel Disengagement Wheel for Flail Mowers Meccanica Benassi TR 80 Special Genuine spare part Meccanica Benassi, Blade Disengagement Cable for Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4 Part for the following Items: -...
on 7/10 Business Days Approx €15.68
Details
Oil Seal 35x20x6/7 for Motorhoe Meccanica Benassi RL 7
MECCANICA BENASSI S.R.L. SKU: 30101620
Oil Seal 35x20x6/7 for Motorhoe Meccanica Benassi RL 7
Oil Seal 35x20x6/7 for Motorhoe Meccanica Benassi RL 7 Genuine spare part Meccanica Benassi, Oil Seal 35x20x6/7 for Petrol Motorhoe RL 7 - Flail Mowers TR 80 Special Part for the following Items: -  Motorhoe RL 7 03-05 IT -  Flail...
on 7/10 Business Days Approx €4.37
Details
Rubber Handle for Motorhoe Mec. Benassi RL 328 Special
MECCANICA BENASSI S.R.L. SKU: 35601060
Rubber Grip for Motorhoe Mec. Benassi RL 328 Special
Rubber Grip for Motorhoe Mec. Benassi RL 328 Special Genuine spare part Meccanica Benassi, Rubber Grip for Motorhoe Meccanica Benassi RL 328 Special - RL 341 - RL 1 - RL 3 - RL 7 Part for the following Items: -  Motorhoe RL 328...
on 7/10 Business Days Approx €4.74
Details
Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300
MECCANICA BENASSI S.R.L. SKU: 6GF00900
Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300
Gears Sector Shoe for Motorhoe Meccanica Benassi RL 300 - RL 300 L Genuine spare part Meccanica Benassi, Gears Sector Shoe for Petrol Motorhoe RL 300 - RL 300 L.  Part for the following Items: -  MOTORHOE RL 300 - RL 300 L -...
on 7/10 Business Days Approx €12.95
Details
Knife 30x4 for Flail Mowers Meccanica Benassi TR 80 Special
MECCANICA BENASSI S.R.L. SKU: 6CM14700
Knife 30x4 for Flail Mowers Meccanica Benassi TR 80 Special
Knife 30x4 for Flail Mowers Meccanica Benassi TR 80 Special Genuine spare part Meccanica Benassi, Knife 30x4 for Flail Mowers TR 80 Special - 03-06 from code 354 till 660-4 Part for the following Items: -  Flail Mowers TR 80 Special -...
on 7/10 Business Days Approx €9.42
Details
Comments (0)
