FIAC spa

FIAC Spare Parts for Piston Air Compressor Apollo 100

SKU: Fiac Apollo 100
€477.05
VAT included

FIAC Spare Parts for Piston Air Compressor Apollo 100

FIAC original spare parts for to replace broken parts for to fix Piston Air Compressor Apollo 100.

Fix Your Piston Air Compressor Apollo 100. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
FIAC Spare Parts for Piston Air Compressor Apollo 100
  • FIAC Spare Parts for Piston Air Compressor Apollo 100
  • FIAC Spare Parts for Piston Air Compressor Apollo 100
FIAC spa

FIAC Spare Parts for Piston Air Compressor Apollo 100

SKU: Fiac Apollo 100 Condition: New
€477.05
VAT included

FIAC Spare Parts for Piston Air Compressor Apollo 100

FIAC original spare parts for to replace broken parts for to fix Piston Air Compressor Apollo 100.

Fix Your Piston Air Compressor Apollo 100. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 65 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
59 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

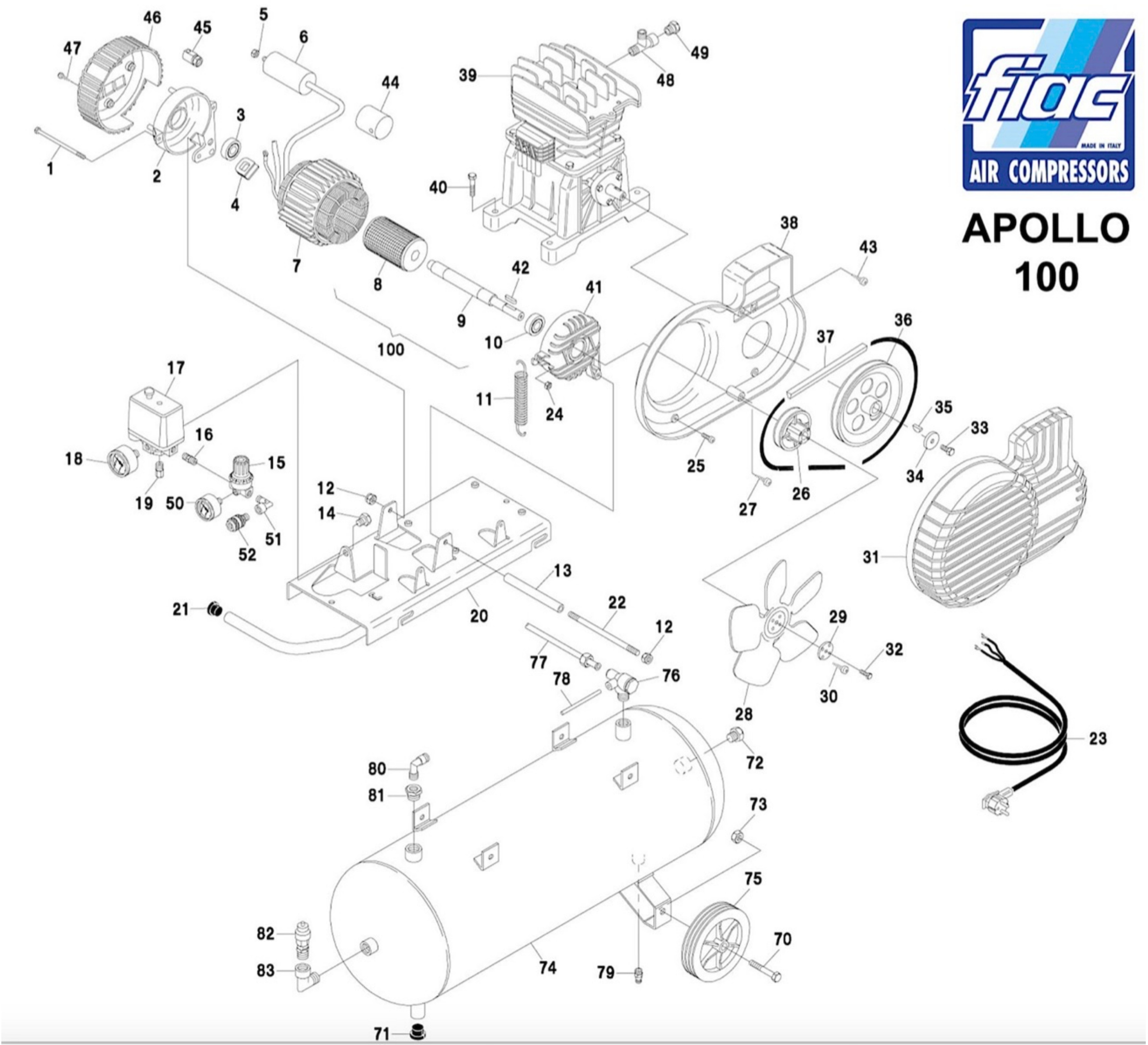

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 7640080000 Cover €26.18
3
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
4
 photo_cameraImage coming soon 7500030000 CABLE GUIDE €4.05
5
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
6
 Capacitor 60 mf for Pump Units CCS 245 - 335 7310360000 Capacitor 60 mf for Pump Units CCS 245 - 335 €39.93
7
 photo_cameraImage coming soon 4012930000 Stator €463.16
8
 photo_cameraImage coming soon 7660120000 Rotor €70.25
9
 photo_cameraImage coming soon 7580150000 ELECTRIC CRANKSHAFT HP.2 €43.99
11
 Spring A 693 for Pump Unit Fiac CCS 245 7160060000 Spring A 693 for Pump Unit Fiac CCS 245 €8.80
13
 photo_cameraImage coming soon 7230060000 Tube Rilsan Ø12X10 €10.80
14
 Brass Cap M1/4" for Pump Units Fiac 7090090000 Brass Cap M1/4" for Pump Units Fiac €4.42
15
 Pressure Regulator for Air Compressor Apollo 100 7100530000 Pressure Regulator for Air Compressor Apollo 100 €29.87
16
 photo_cameraImage coming soon 7081090000 Fitting 1/4 "MM €5.87
17
 photo_cameraImage coming soon 7250360000 Pressure Switch €38.56
18
 FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
19
 photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €6.64
20
 photo_cameraImage coming soon 5011060008 BASE €99.32
21
 photo_cameraImage coming soon 7360020000 Grommet Ø16 €1.85
22
 photo_cameraImage coming soon 7015290000 ROD M6X130 €9.11
23
 photo_cameraImage coming soon 7329070000 Power Cord €29.80
24
 photo_cameraImage coming soon 7020200000 Nut M6 UNI-5587 €1.48
25
 photo_cameraImage coming soon 7012090000 Screw M5X12 UNI-8112 €1.52
26
 Motor Fan Pulley for Pump Unit FIAC CCS 7408530000 Motor Fan Pulley for Pump Unit FIAC CCS €38.70 Not available for order
28
 Motor Fan for Pump Unit FIAC CCS 7200080000 Motor Fan for Pump Unit FIAC CCS €35.55
29
 FIAC Fan Washer for Pump Units CCS 7038080000 FIAC Fan Washer for Pump Units CCS €4.44
30
 photo_cameraImage coming soon 7012060000 Screw M4X12 UNI-8112 €1.52
31
 photo_cameraImage coming soon 7151060000 Carena plastic top €23.70
32
 photo_cameraImage coming soon 7011420000 Screw M6X16 UNI-5739 €1.52
33
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
34
 photo_cameraImage coming soon 7030270000 Washer 8 5X30X4 UNI-6593 €1.52
35
 photo_cameraImage coming soon 7051500000 Tab 4X6,5 €1.48
36
 Motor Fan Pulley for Pump Unit FIAC CCS 7408520000 Motor Fan Pulley for Pump Unit FIAC CCS €39.88
37
 Notched Belt for Pumping Units CCS 245 7371090000 Notched Belt for Pumping Units CCS 245 €11.42
38
 photo_cameraImage coming soon 7151070000 Plastic bottom HOUSING €23.70
39
 photo_cameraImage coming soon 9110930000 Pumping Unit AB 268 €249.76
40
 photo_cameraImage coming soon 7012200000 Screw M8x35 UNI-8112 €1.23
41
 photo_cameraImage coming soon 7640070000 Cover - DISCONTINUED €20.90
43
 photo_cameraImage coming soon 7012240000 Screw M5X15 UNI-8112 €5.34
45
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
46
 photo_cameraImage coming soon 7151130000 Carena plastic €10.23
48
 photo_cameraImage coming soon 7082700000 Fitting "T" 3 / 8F-1 / 2M.SV-1 / 2M €13.98
49
 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS 7196010000 Start Valve M 3/8 " 1.5 bar for Pumping Unit Fiac CCS-GM-GMS €10.13
50
 photo_cameraImage coming soon 7110010000 Manometer €18.67
51
 photo_cameraImage coming soon 7080180000 The 1/4 MF Connection €8.35
52
 photo_cameraImage coming soon 7130010000 Line Valve M1/4" €12.10
70
 Fiac Wheel Pin M10x60 7018290000 Fiac Wheel Pin M10x60 €4.35
71
 Rubber Foot for Air Compressor FIAC Cosmos 50 7360040000 Rubber Foot for Air Compressor FIAC Cosmos 50 €4.34
72
 photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
74
 photo_cameraImage coming soon 5153790008 100lt tank €693.46
75
 photo_cameraImage coming soon 7260050000 Wheel Ø150X30 F15 €7.55
76
 Check Valve MM 1/2"-DX for Air Compressors 7190090000 Check Valve MM 1/2"-DX for Air Compressors €29.61
77
 photo_cameraImage coming soon 7233900000 Tube feeding €25.38
78
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
79
 Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
80
 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 7084240000 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 €12.09
81
 photo_cameraImage coming soon 7085190000 3/8 "-1/4" MF €15.97
82
 FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
83
 FIAC Apollo 100 L Joint 7080130000 FIAC Apollo 100 L Joint €12.86
100
 Motor Armature (Rotor) for Pump Unit FIAC CCS 245 4280710000 Motor Armature (Rotor) for Pump Unit FIAC CCS 245 €115.84

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Apollo 100

Fix Your Piston Air Compressor Apollo 100. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the type of the air compressor and the respective parts of the code.
Fiac Apollo 100

Air Compressor Apollo 100
# Part Num. Description
1 7015140000 Tensor M6X130
2 7640080000 Cover
3 7060010000 Bearing 6203 ZZ 17:40:12 QE6
4 7500030000 Fairlead
5 7020070000 Nut M8 UNI-5587
6 7310360000 Capacitor 60 uF 400V - Repl. by 7310550000
7 4012930000 Stator
8 7660120000 Armature
9 7580150000 SHAFT ELECTRIC HP.2 BRAND.
10 7060010000 Bearing 6203 ZZ 17:40:12 QE6
11 7160060000 A spring 693
12 7021030000 Nut M8 UNI-7473
13 7230060000 Rilsan tube Ø12X10
14 7090090000 Cap M1 / ​​4 "Brass
15 7100530000 Pressure regulator
16 7081090000 Fitting 1/4 "MM
17 7250360000 Pressure switch
18 7110060000 Gauge
19 7084220000 Fitting DIR.M1 / 4 "-6 QUICK
20 5011060008 Base
21 7360020000 Rubber Ø16
22 7015290000 Tensor
23 7329070000 Alimentation cable
24 7020200000 Nut M6 UNI-5587
25 7012090000 Screw M5x12 UNI-8112
26 7408530000 Pulley Øp75 1 "A" F.16  - DISCONTINUED
27 7012130000 Ø Screw 4,8X22 UNI-6954
28 7200080000 Cooler Fan
29 7038080000 Fan Washer
30 7012060000 Screw M4X12 UNI-8112
31 7151060000 Hull plastic top
32 7011420000 Screw M6X16 UNI-5739
33 7011090000 Screw M8x20 UNI-5739
34 7030270000 Washer Ø8,5X30X4 UNI-6593
35 7051500000 Tang 4X6,5
36 7408520000 Pulley Øp160 1 "A"
37 7371090000 Belt SPZX 750
38 7151070000 Hull plastic bottom
39 9110930000 Fiac Spare Parts for Pump unit AB 268
40 7012200000 Screw M8x35 UNI-8112
41 7640070000 Cover
42 7051240000 Tab "A 5X5X22" UNI 6604-69
43 7012240000 Screw M5X15 UNI-8112
44 7311000000 Capacitor cover Ø45x65
45 7501050000 Cable locks
46 7151130000 Plastic fairing
47 7012060000 Screw M4X12 UNI-8112
48 7082700000 "T" junction 3 / 8F-1 / 2M.SV-1 / 2M
49 7196010000 Start valve M3 / 8 "1.5 bar
50 7110010000 Gauge
51 7080180000 Fitting "L" 1/4 MF
52 7130010000 Tap M1 / ​​4 "
70 7018290000 Pin wheel
71 7360040000 Rubber Ø22
72 7090030000 Cap 1/2
73 7020250000 Nut M10 DIN-6923
74 5153790008 Tank 100lt
75 7260050000 Wheel Ø150X30 F15
76 7190090000 Check valve MM 1/2 "-DX
77 7233900000 Tube feeding
78 7230010000 Rilsan tube Ø6X4
79 7130160000 Bleeding tap M3 / 8 "
80 7084240000 The connection M1 / ​​4 "- Ø6
81 7085190000 3/8 "-1/4" MF
82 7192090000 Valve Sic. 3/8 "10,4BAR
83 7080130000 The fitting 1 / 2-3 / 8MF
100 4280710000 Armature
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac Apollo 100
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fiac Apollo 100

Diagram Fiac Apollo 100

Download (654.95KB)
