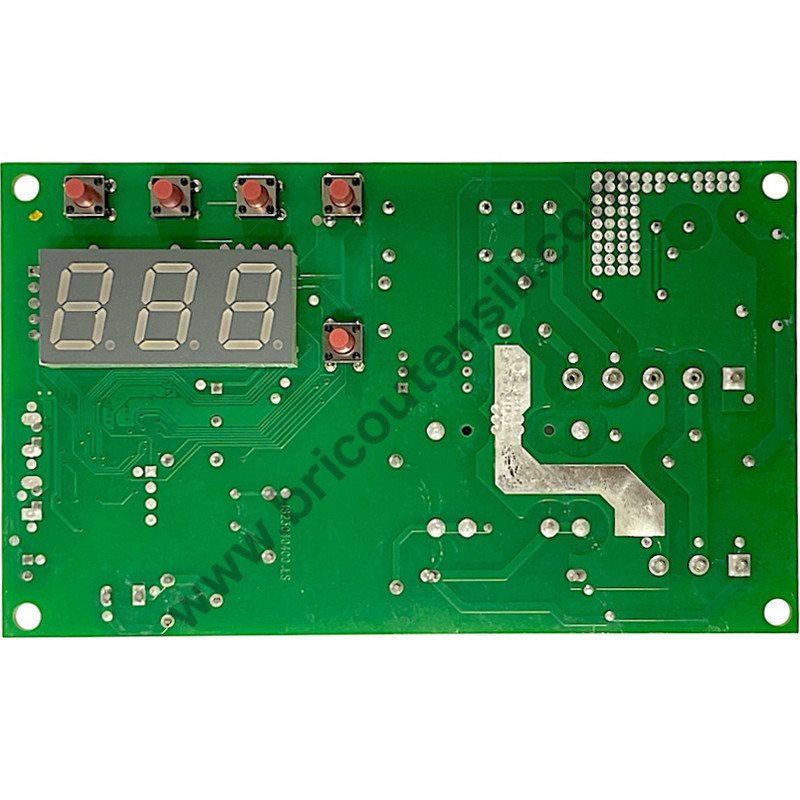

FIAC 230V ELECTRONIC CONTROLLER

Technical Description

The 230V Electronic Controller (Part Number: 1127560047, formerly 7566260071) is a compact control module designed for the precise management of 230V electrical systems. Thanks to its compact dimensions and the reliability of its internal components, this device is ideal for integration into electrical control panels or within equipment requiring automated load control.

    Compatibility: Part number 1127560047 replaces the previous reference 7566260071, ensuring full compatibility with applications that used the obsolete version.

•     Installation: It is recommended that installation be performed by qualified personnel, in compliance with current electrical safety regulations.
•     Scope of Application: Typically used in industrial automation, professional appliances, or heating/ventilation systems.
• Critical points for compatibility and installation:

    Firmware/Configuration Verification: Compressor controllers often require specific configuration (pressure parameters, discharge times, alarm logic) which may not be identical between the old and new component. Ensure that the received component is already pre-programmed for your specific FIAC compressor model.

•     Wiring Diagram: Do not assume that the pinout is identical. Although the new code replaces the old one, always consult the electrical diagram found in the maintenance manual of your specific machine.
•     Connected Sensors: The controller manages inputs from sensors (pressure, temperature). Check that existing probes (which you may need to retain) are compatible with the new module.
• What I recommend doing now:
•     Compare labels: Check if the precise compressor model is indicated on the new part, or if there is a serial code that matches yours.
•     Consult the manual: Retrieve the technical manual for your specific FIAC compressor model. Look for the "Electronic Board Replacement" or "Controller" section.
•     Check wiring: Before connecting power, use a multimeter to verify that outputs and inputs correspond to what is indicated in your compressor's electrical diagram.

If the compressor exhibits a specific error or abnormal behavior (e.g., does not start or goes into lockout immediately), you may need to enter the configuration menu to set the correct factory parameters.
