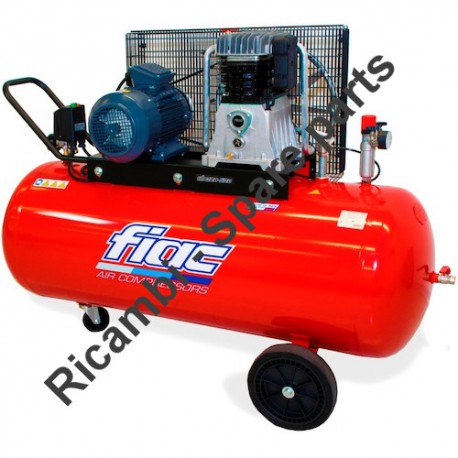

FIAC Spare Parts for Piston Air Compressor AB300/515

SKU: Fiac AB300/515
€361.53
VAT included

FIAC Spare Parts for Piston Air Compressor AB300/515

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB300/515.
FIAC Spare Parts for Piston Air Compressor AB300/515
  • FIAC Spare Parts for Piston Air Compressor AB300/515
  • FIAC Spare Parts for Piston Air Compressor AB300/515

FIAC Spare Parts for Piston Air Compressor AB300/515

SKU: Fiac AB300/515 Condition: New
€361.53
VAT included

FIAC Spare Parts for Piston Air Compressor AB300/515

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB300/515.
settings 29 spare parts

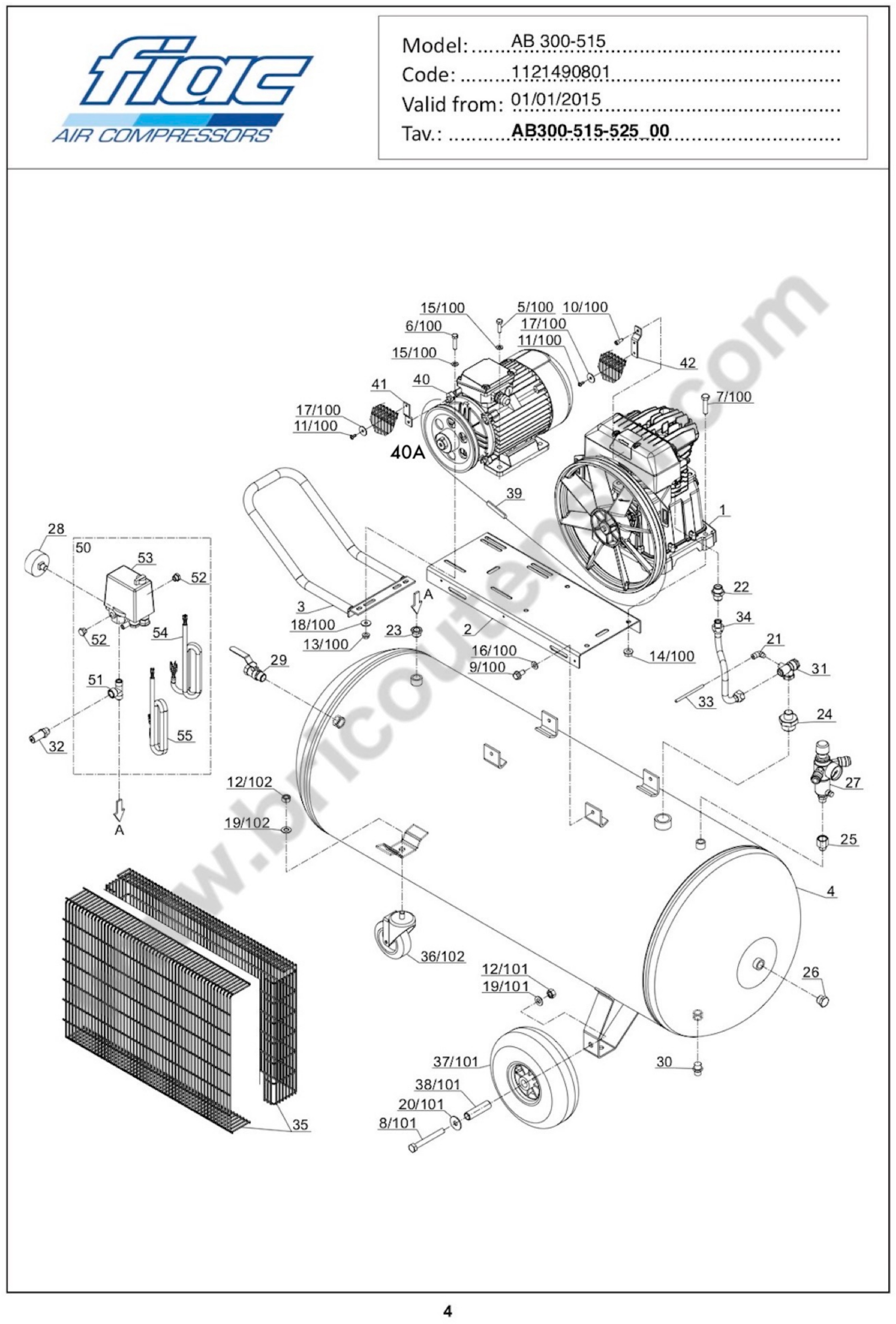

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

29 spare parts
Pos. Item Price Buy
1
photo_cameraImage coming soon 1123020004 PUMP UNIT AB 515 €345.74
2
photo_cameraImage coming soon 5010940008 BASE €126.26
3
photo_cameraImage coming soon 5140090008 HANDLE €59.03
4
photo_cameraImage coming soon 5150440008 TANK €454.74
21
”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 7080140000 ”L” joint for RILSAN hose (M) D.6 for Air Compressor Michelin MCX 6 €9.07
22
photo_cameraImage coming soon 7081040000 Joint €4.16
23
Joint 1/2"F-3/8"M for Air Compressor Fiac AB300/515 7085460000 Joint 1/2"F-3/8"M for Air Compressor Fiac AB300/515 €7.48
24
photo_cameraImage coming soon 7085240000 Fitting 1 "-1 / 2" MM €11.09
26
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
27
Pressure Regulator 950/2/Bayonet-M 1/2''-0/12 Bar 7100440000 Pressure Regulator 950/2/Bayonet-M 1/2''-0/12 Bar €51.79
28
FIAC Manometer for Air Compressor AB300 7110060000 FIAC Manometer for Air Compressor AB300 €21.31
29
photo_cameraImage coming soon 7130150000 MF ball valve 1/2 " €23.60
30
Drain Tap 3/8" for Air COmpressors FIAC 7130160000 Drain Tap 3/8" for Air COmpressors FIAC €12.14
31
Check Valve F-M 1/2''-1/2'' for Air Compressors 7190010000 Check Valve F-M 1/2''-1/2'' for Air Compressors €27.64
32
FIAC Safety Valve M3/8 10,4Bar 7192090000 FIAC Safety Valve M3/8 10,4Bar €26.58
33
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
34
photo_cameraImage coming soon 7238600000 FEEDING TUBE €17.71
35
photo_cameraImage coming soon 4170130000 Belt guard kit €124.60
39
FIAC CRS 15-20 Belt SPZX 1400 7371310000 FIAC CRS 15-20 Belt SPZX 1400 €59.40
40A
photo_cameraImage coming soon 1127400593 PULLEY D150 1SPZ €30.91
40
photo_cameraImage coming soon 7380840000 Three-phase motor €525.92
41
photo_cameraImage coming soon 7458150000 BRACKET €5.18
42
photo_cameraImage coming soon 7459670000 BRACKET €16.81
50
photo_cameraImage coming soon 4056520000 PRESSURE SWITCH KIT €111.29
51
photo_cameraImage coming soon 7082690000 A fitting "T" 8.3 MFM €13.84
52
photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
53
photo_cameraImage coming soon 7250880000 PRESSURE SWITCH €74.23
54
photo_cameraImage coming soon 7328690000 Cable Pressure Switch / Motor €28.67
55
photo_cameraImage coming soon 7328700000 power cable €30.04

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor AB300/515

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the Air Compressor AB300/515.
In the following table, look for the type of the air compressor and the respective parts of the code .
Air Compressor AB300/515.

Piston Air Compressor AB300/515
# Part Num. Description
1 1123020004 PUMP UNIT AB 515
2 5010940008 BASE
3 5140090008 HANDLE
4 5150440008 TANK
21 7080140000 JOINT L M / 18-TUBE6
22 7081040000 FITTING MM1 / 2X1 / 2 SVM
23 7085460000 FITTING 1/2 "F-3/8" M
24 7085240000 REDUCER MM 1X1 / 2
25 7085460000 FITTING 1/2 "F-3/8" M
26 7090030000 CAP M1 / 2
27 7100440000 PRESSURE REDUCER
28 7110060000 GAUGE
29 7130150000 DRAIN VALVE 1/2
30 7130160000 M3 / 8 PURGE TAP
31 7190010000 MF 1/2 RETURN VALVE
32 7192090000 SAFETY VALVE M3 / 8 - 10.4 BAR
33 7230010000 RILSAN TUBE
34 7238600000 FEEDING TUBE
35 4170130000 BELT GUARD KIT
39 7371310000 BELT SPZX 1400
40 7380840000 THREE PHASE MOTOR MEC100L - B3
40A 1127400593 PULLEY D150 1SPZ
41 7458150000 BRACKET
42 7459670000 BRACKET
50 4056520000 PRESSURE SWITCH KIT - 1127250088 - 1127080269
1127090007-2 - 1127250088 - 1127320869 - 1127320870 - 1127460001
51 7082690000 FITTING
52 7090070000 CAP M1 / 4
53 7250880000 PRESSURE SWITCH
54 7328690000 PRESSURE / MOTOR CABLE
55 7328700000 POWER CABLE
SPARE PARTS AB 515
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
