FIAC Spare Parts for Air Compressor Pump Unit AB 415

Name: FIAC Spare Parts for Air Compressor Pump Unit AB 415
Brand: FIAC spa
SKU: Fiac AB415 - 9700003004
Availability: InStock

SKU: Fiac AB415 - 9700003004

€48.84

VAT included

FIAC Spare Parts for Air Compressor Pump Unit AB 415

FIAC Genuine Spare Parts or replacements parts for to repair components for piston Air Compressors Pump units, AB 415 - 9700003004 - data validità - da 29/04/2014.

36 spare parts

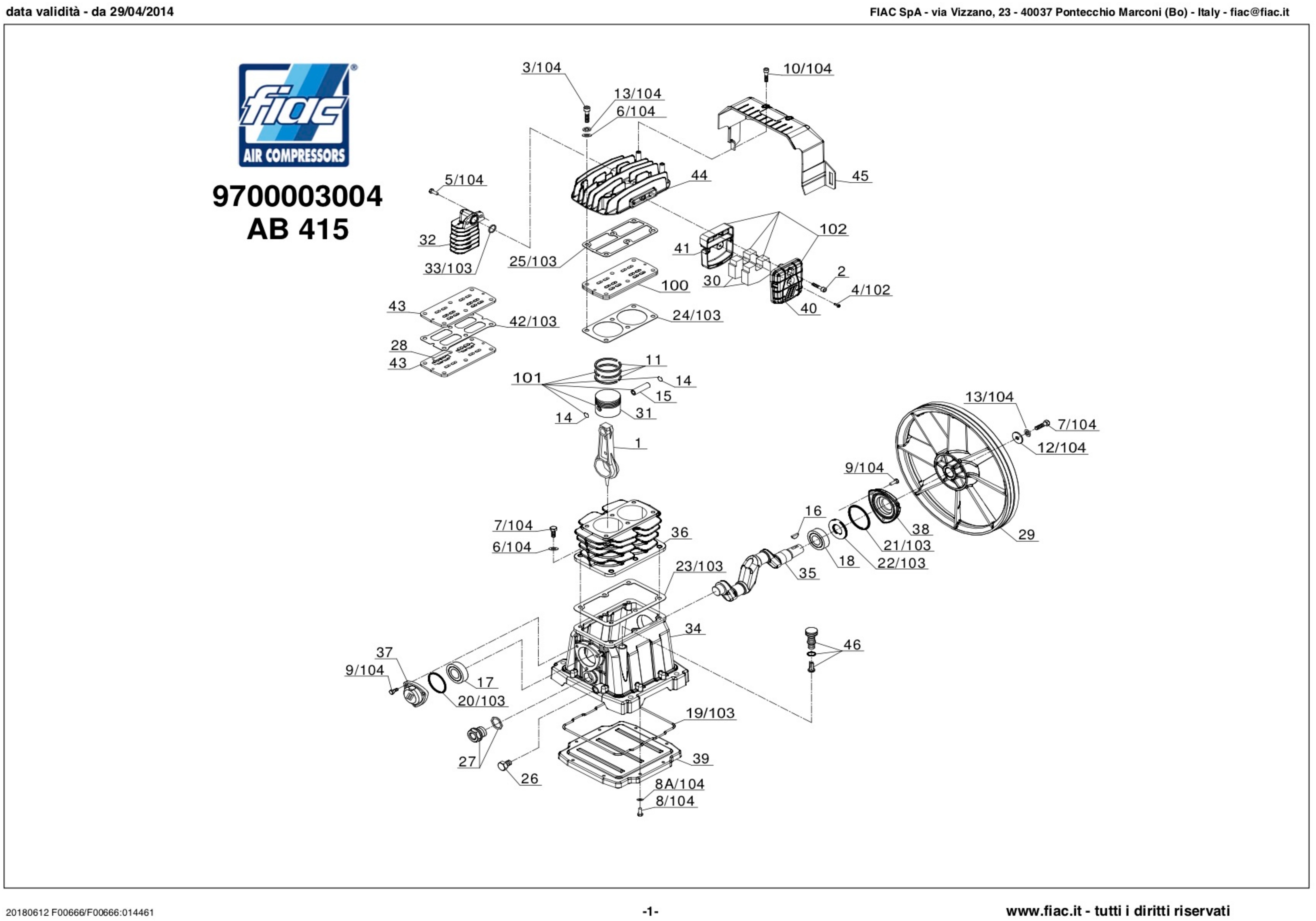

Page 1 View exploded Usually Ships in: 10/15 BUSINESS DAYS

Pos.		Item	Price	Buy
1		9105450240 Connecting Rod for Pump Unit Fiac AB 415	€24.05
5	Image coming soon	7011040000 Screw M6X20 UNI-5739	€1.52
6	Image coming soon	7030030000 Washer 8 UNI-6592	€1.42
7	Image coming soon	7012220000 Screw M8X 25 UNI-8112	€1.52
9	Image coming soon	7011460000 Screw M6X16 TAP-TITE	€1.48
10	Image coming soon	7012090000 Screw M5X12 UNI-8112	€1.52
11		4080070000 FIAC Pump Unit AB415 Piston Ring Kit	€48.85
15	Image coming soon	7050110000 Pin 015X55	€4.23
16		7051510000 FIAC Woodruf Metric Key 5x7,5	€6.42
17		7060060000 Crank Shaft Ball Bearing 6205 for Pump Unit FIAC AB 360	€17.31
18	Image coming soon	7060150000 bearing 6206	€41.13
22		7071130000 Oil Seal for Pumping Units FIAC AB 671-AB 901-981	€5.89
24		7079800000 AB415 Pump Unit Cylinder-Valve Plate Gasket	€10.13
25		7079820000 FIAC AB415 Pump Unit Valve Plate-Head Gasket	€9.02
27		9700000408 FIAC Pump Unit AB268 Oil Sight Glass	€7.04
28		7198150000 FIAC AB415 Valve Reed 9,78x48x0,25	€2.04
29		7201010000 Flywheel for Pumping unit Fiac AB 410-510-512	€168.83
30		7210680000 FIAC AB415 Filter Element	€7.30
31		7220090000 FIAC Pump Unit AB415 Piston D.65MM	€30.23
32	Image coming soon	9700002651 Cooler	€19.04
33		9100270280 O_ring	€4.47
34	Image coming soon	9105450010 Crankcase	€102.81
35		9105450250 Crankshaft for Pump Unit Fiac AB 415	€61.19	Not available for order
36	Image coming soon	9105450060 Cylinder	€107.55
37		9105450070 FIAC Pump Unit AB415 Front Cover	€6.38
38		9105450080 Fiac AB415 Rear Cover	€7.79
39	Image coming soon	9105450090 Carter cover	€14.32
42		9105450150 Plate Gasket AB415 Copper Th.	€7.28
43	Image coming soon	9105450170 Valve plate	€85.42
44		9105450180 Fiac AB415 Head	€62.65
45		7153140000 FIAC AB415-425-525 Air Conveyor	€12.86
46		9700001377 Oil Filler Neck Komplett for Pump Units FIAC	€13.60
100	Image coming soon	4231260000 Valve plate kit	€71.99
101		9700002940 FIAC Pump Unit AB415 Piston Kit	€31.97
102		4250130000 Air Filter Kit for Pump Unit Fiac AB 415	€22.18
103		4081990000 FIAC Pump Unit AB415 Gaskets Kit	€46.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Air Compressor Pump Unit AB 415

FIAC Genuine Spare Parts or replacements parts for to repair components for piston Air Compressors Pump units, AB 415 - 9700003004 - data validità - da 29/04/2014.

In the following table, look for the model of the pumping unit and the respective parts code.

Pumping Unit AB 415 validity date - 29/04/2014
#	Part Num.	Description
1	9105450240	Conrod Ab 415
2	1129702097	Screw T.E. M8X20zinc.
3	1129704092	Screw T.E. M8X40zinc.
4	7012110000	Screw 0 4,2X16 UNI-6954
5	7011040000	Screw M6X20 UNI-5739
6	7030030000	Washer 08 UNI-6592
7	7012220000	Screw MSX 25 UNI-8112
8	1129700531	Screw M5X18 UNI7687
9	7011460000	M6X16 TAP-TITE screw
10	7012090000	Screw M5X12 UNI-8112
11	4080070000	Piston Ring kit
12	1129701300	8.5X30X4 washer
13	1129704077	Washer 08
14	7041410000	Seeger 015
15	7050110000	Pin 015X55
16	7051510000	Tab 5X7.5
17	7060060000	6205 bearing
18	7060150000	Bearing 6206
19	1127070052	0-ring
20	1129701392	O_ring
21	1129701393	0_ring
22	7071130000	Oil seal MM 30X47X7
23	1127070979	seal
24	7079800000	Cylinder-Valve Plate Gasket
25	7079820000	Valve Plate - Head Gasket
26	1129702582	1/4 "M cap
27	9700000408	Oil sight glass
28	7198150000	Valve reed 9,78x48x0,25
29	7201010000	They fly
30	7210680000	Filter element
31	7220090000	Piston 65MM
32	9700002651	Chiller
33	9100270280	0-ring 130
34	9105450010	Carter
35	9105450250	Crankshaft
36	9105450060	Cylinder
37	9105450070	Front cover
38	9105450080	Rear cover
39	9105450090	Carter cover
40	1129101582	Filter cover
41	1129101583	Filter support
42	9105450150	Plate Gasket AB415 Copper Th.
43	9105450170	Valve plate
44	9105450180	Head
45	7153140000	Air conveyor Ab 415-425-525
46	9700001377	Oil Filler Neck Komplett
8A	9701192003	WASHER D5
100	4231260000	Valve plate kit
101	9700002940	Piston Kit
102	4250130000	Intake filter kit
103	4081990000	Gaskets kit
104	1129702939	screw kit
