FIAC spa

FIAC Spare Parts for Piston Air Compressor Cosmos 255 S

SKU: COSMOS 255S - 10/01/2011
€1.48
VAT included

FIAC Spare Parts for Piston Air Compressor Cosmos 255 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type COSMOS COSMOS 255 S - 9102330100.

FIAC Spare Parts for Piston Air Compressor Cosmos 255 S
  • FIAC Spare Parts for Piston Air Compressor Cosmos 255 S
  • FIAC Spare Parts for Piston Air Compressor Cosmos 255 S - Diagram
FIAC spa

FIAC Spare Parts for Piston Air Compressor Cosmos 255 S

SKU: COSMOS 255S - 10/01/2011 Condition: New
€1.48
VAT included

FIAC Spare Parts for Piston Air Compressor Cosmos 255 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type COSMOS COSMOS 255 S - 9102330100.

settings 76 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
67 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

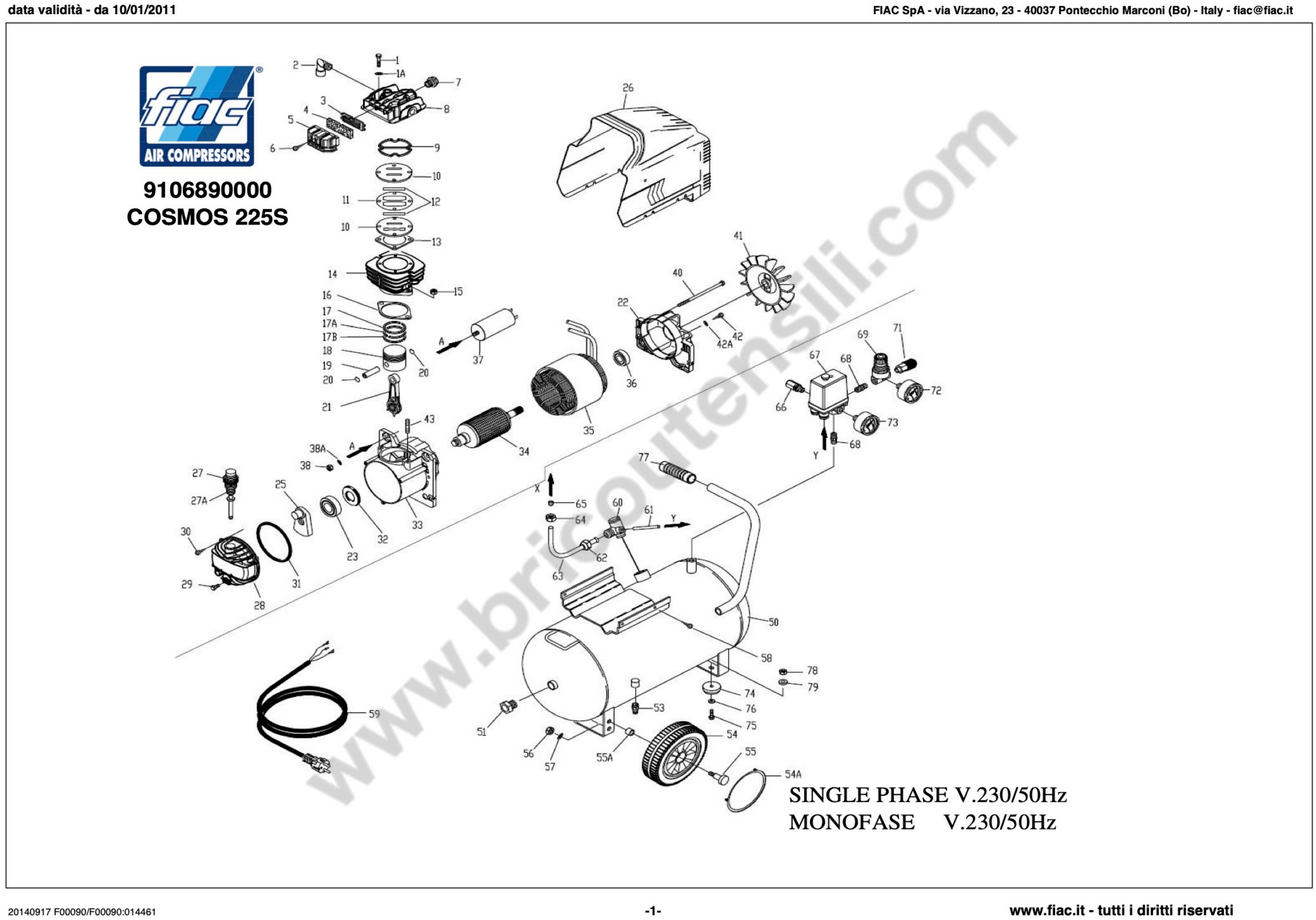

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 7084040000 Fitting "L" M3 / 8 " €9.84
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
 Start Valve for Pumping Units GM 9100010190 Start Valve for Pumping Units GM €7.89
8/1
 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 9100010310 Head Plate Gasket for Pumping Units Fiac GM 192-193-244 €4.34
8
 Head for Air Compressors FIAC COSMOS S 225-255 9101410070 Head for Air Compressors FIAC COSMOS S 225-255 €30.64
9
 Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410080 Head Gasket for Air Compressors FIAC COSMOS S 225-255 €2.91
10
 photo_cameraImage coming soon 9100010240 plate €27.84
11
 Valves Plate Gasket for Pumping units FIAC GM 142-143 9100010080 Valves Plate Gasket for Pumping units FIAC GM 142-143 €4.34
12
 photo_cameraImage coming soon 9100010370 valve €4.23
13
 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410090 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 €1.51
14
 photo_cameraImage coming soon 9101410060 cylinder €25.56
15
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
16
 Cylinder Gasket for Pumping Units FIAC GM 142 7078150000 Cylinder Gasket for Pumping Units FIAC GM 142 €2.94
17
 Piston Ring AC42 for Air Compressors Fiac 225S - 255S 9100580020 Piston Ring AC42 for Air Compressors Fiac 225S - 255S €6.15
017A
 photo_cameraImage coming soon 9100580030 segment ROS42 €9.51
017B
 photo_cameraImage coming soon 9100580040 segment ROF42 €9.51
18
 photo_cameraImage coming soon 9100580050 piston €15.99
19
 photo_cameraImage coming soon 9100580090 pin €3.91
20
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
21
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
22
 photo_cameraImage coming soon 9101720040 cap €21.68
23
 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
25
 photo_cameraImage coming soon 9101410050 crank €20.54
26
 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S 9100030090 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S €31.27
27
 Dipstick level Oil for Pump Unit and Compressors GM-Cosmos 9100010170 Dipstick level Oil for Pump Unit and Compressors GM-Cosmos €10.47
027A
 photo_cameraImage coming soon 9700010215 O-Ring Oil Stick €3.92
28
 photo_cameraImage coming soon 9101410020 crankcase cover €14.64
29
 photo_cameraImage coming soon 7012160000 screw €1.48
30
 photo_cameraImage coming soon 9700010187 screw M5x14 €1.44
31
 O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 9700000016 O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 €2.29
32
 Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
33
 photo_cameraImage coming soon 9101720030 CARTER GM 142 STATOR ALL. H75 €55.91
34
 photo_cameraImage coming soon 9101720020 ROTOR D.54,2X75 GM 142 €44.00
35
 photo_cameraImage coming soon 9101720010 Stator €192.64
36
 photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
37
 Capacitor 25 mf for Air Compressors 7310590000 Capacitor 25 mf for Air Compressors €26.97
038A
 photo_cameraImage coming soon 9700010184 washer Ø8 €1.44
40
 photo_cameraImage coming soon 9100010060 prisoner M6x139 €1.48
41
 Motor Fan for Pumping Units GM 142-192 9100010200 Motor Fan for Pumping Units GM 142-192 €15.06
42
 photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
43
 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S 9100010050 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S €1.28
51
 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S 9100010750 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S €5.39
53
 Drain Valve D. 3/8" for Air Compressors Fiac COSMOS 225 S-255 S 9700000324 Drain Valve D. 3/8" for Air Compressors Fiac COSMOS 225 S-255 S €7.17
54
 photo_cameraImage coming soon 9700001091 WHEEL MCX20  --> 7290290000 D.175F15 €13.30
57
 photo_cameraImage coming soon 7030140000 Washer Ø12 UNI-6592 €4.23
58
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
59
 photo_cameraImage coming soon 9700001301 power cable €41.94
60
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
61
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
62
 Aluminium Pipe Nut 3/8" for Air Compressor FIAC COSMOS 225-255 S 9700000327 Aluminium Pipe Nut 3/8" for Air Compressor FIAC COSMOS 225-255 S €2.48
63
 Aluminium Pipe for Air Compressor FIAC COSMOS 255 S 9700000343 Aluminium Pipe for Air Compressor FIAC COSMOS 255 S €12.15
64
 Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S 9700000325 Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S €2.84
65
 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
66
 FIAC Safety Valve M1-4-9Bar 9700000303 FIAC Safety Valve M1-4-9Bar €10.71
67
 Pressure Switch 10 BAR CE for FIAC Air Compressors 9700000388 Pressure Switch 10 BAR CE for FIAC Air Compressors €42.54
68
 FIAC Joint for COSMOS 225 S 9700000330 FIAC Joint for COSMOS 225 S €7.19
69
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
71
 photo_cameraImage coming soon 9700000276 universal tap €16.78
72
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
73
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95
74
 FIAC Rubber Foot D.40X15 F.7 7360140000 FIAC Rubber Foot D.40X15 F.7 €5.17
77
 photo_cameraImage coming soon 9100930130 knob €5.45
78
 photo_cameraImage coming soon 7021010000 Nut M6-7473 UNI €1.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Piston Air Compressor Cosmos 255 S

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components of the type COSMOS COSMOS 255 S - 9102330100.

In the following table , look for the type of the air compressor and the respective parts of the code .
COSMOS 255 S - 10/01/2011

COSMOS 255 S data validità - da 10/01/2011
# Part Num. Description
1 7011220000 Screw M6X40 UNI-5737
2 7084040000 Fitting "L" M3/8"
3 7458340000 filter plate
4 7210010000 filter element
5 7210430000 filter Cover
6 7012100000 screw Ø3,9X16
7 9100010190 valve start
8 9101410070 head
8/1 9100010310 Cylinder head gasket - FOR NEW HEAD ONLY
9 9101410080 Cylinder head gasket
10 9100010240 plate
11 9100010080 gasket
12 9100010370 valve
13 9101410090 gasket
14 9101410060 cylinder
15 7020070000 Nut M8 UNI-5587
16 7078150000 gasket
17 9100580020 segment AC42
18 9100580050 piston
19 9100580090 pin
20 7041010000 Seeger Ø12
21 5050150008 piston rod
22 9101720040 cap
23 7060200000 bearing 6204
25 9101410050 crank
26 9100030090 Hull in plastic
27 9100010170 Oil dipstick
28 9101410020 crankcase cover
29 7012160000 screw
30 9700010187 screw M5x14
31 9700000016 O-Ring (110,7X3,53)
32 9100270150 Oil seal Ø20x47x7
33 9101720030 CARTER GM 142 STATOR ALL. H75
34 9101720020 ROTOR D.54,2X75 GM 142
35 9101720010 STAT.AVV.GM 142 H75 ALLUM.
36 7060010000 Bearing 6203 ZZ 17:40:12 QE6
37 7310590000 Capacitor MF.25 V450
38 9700010188 nut M8
40 9100010060 prisoner M6x139
41 9100010200 Fan raff.
42 7013060000 Screw M4X8 UNI-8112
43 9100010050 prisoner
50 9700001723 tank
51 9100010750 Cap M1/2"
53 9700000324 drain tap
54 9700001091 WHEEL MCX20 ---> 7290290000 --> 1127260029
55 9700001748 Screw M12 × D15
56 7020100000 Nut M12 UNI-5588
57 7030140000 Washer Ø12 UNI-6592
58 7012290000 Screw M5X20 TAP-TITE
59 9700001301 power cable
60 7190180000 Check valve MM 1.2 "x3/8"-sx
61 7230010000 Rilsan tube Ø6X4
62 9700000327 Nut 3/8"
63 9700000343 tube feeding
64 9700000325 nut M10
65 7041070000 Ogiva tube Ø10
66 9700000303 Safety Valve M1 / 4-9 bar
67 9700000388 pressure
68 9700000330 Fitting MM 1/4 "
69 7100640000 Pressure reducer
71 9700000276 universal tap
72 7110240000 Gauge Ø40-1/8"
73 7110300000 Gauge Ø50-1/4"
74 7360140000 Rubber foot
75 7010350000 Screw M6X22 UNI-5931
76 7030190000 Washer Ø6,4X18X1,5 UNI-6593
77 9100930130 knob
78 7021010000 Nut M6-7473 UNI
79 9700010186 washer Ø6
001A 9700010186 washer Ø6
017A 9100580030 segment ROS42
017B 9100580040 segment ROF42
027A 9700010215 O-RING X OILDIPSTICK
038A 9700010184 washer Ø8
042A 9700010183 washer OD 4
054A 9700001721 wheel cover
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
