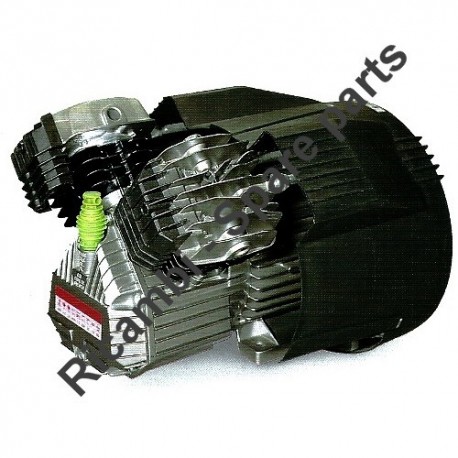

FIAC spa

FIAC Spare Parts for Pump Unit VX 214

SKU: Fiac VX214
€448.08
VAT included

FIAC Spare Parts for Pump Unit VX 214

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Pump Unit VX 214 validity date - from 05/12/2005.

FIAC Spare Parts for Pump Unit VX 214
  • FIAC Spare Parts for Pump Unit VX 214
  • FIAC Spare Parts for Pump Unit VX 214
FIAC spa

FIAC Spare Parts for Pump Unit VX 214

SKU: Fiac VX214 Condition: New
€448.08
VAT included

FIAC Spare Parts for Pump Unit VX 214

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Pump Unit VX 214 validity date - from 05/12/2005.

settings 55 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts

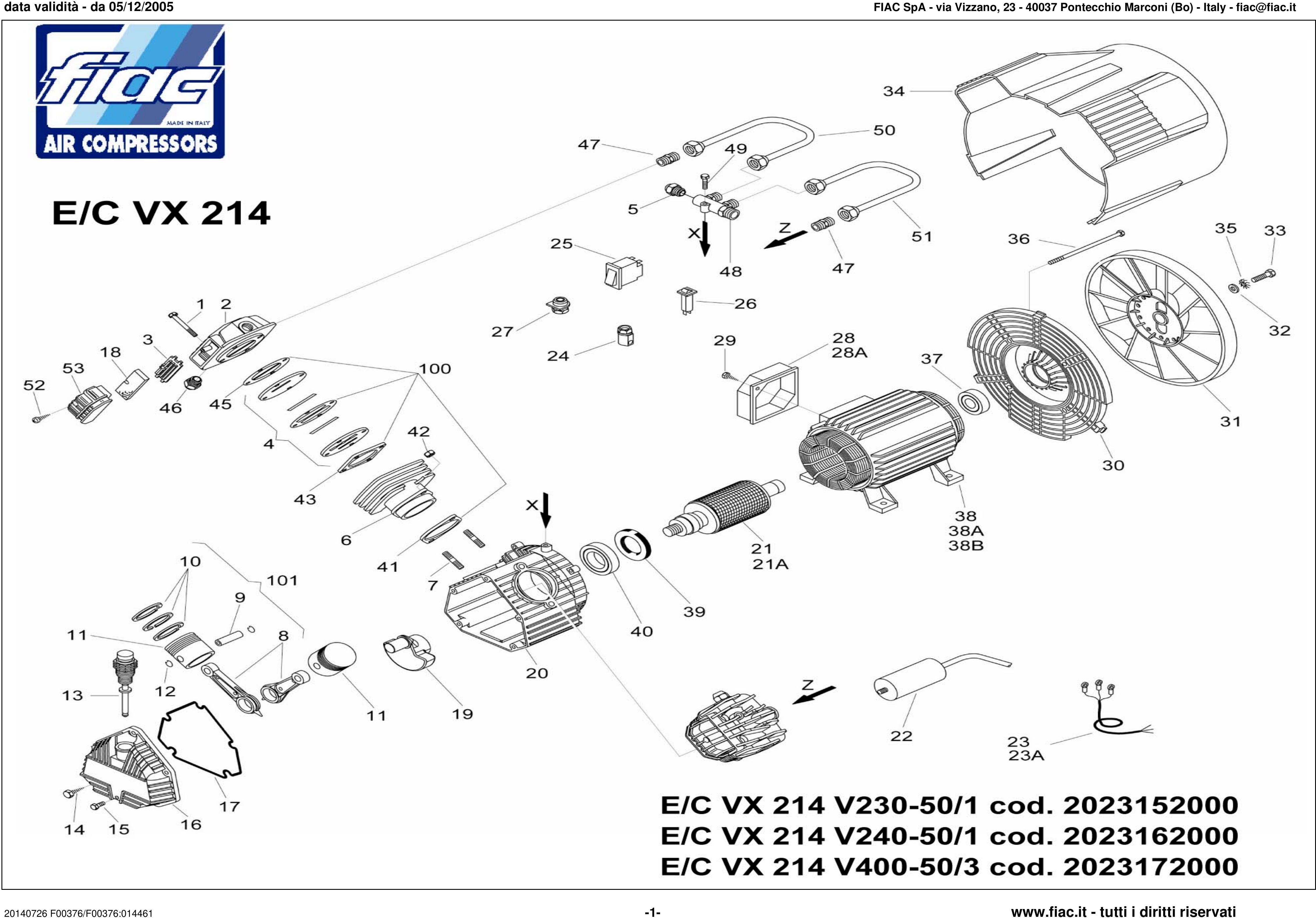

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
 photo_cameraImage coming soon 5030250008 Head €57.22
3
 Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
 Valves Plate Kit for Puming Units Fiac VX 214-254-304 7459490000 Valves Plate Kit for Puming Units Fiac VX 214-254-304 €30.64
5
 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 7196020000 Start Valve M1/4" 1,5 B for Pump Unit Fiac VS 204 €10.00
6
 photo_cameraImage coming soon 7575370000 Cylinder €61.52
7
 Fiac Stud M.8X35X14X16 7015020000 Fiac Stud M.8X35X14X16 €1.52
8
 Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
9
 photo_cameraImage coming soon 7050210000 8X38 pin Ø12 €4.12
10
 Piston Rings for Pumping Units FIAC VX 214-422-AB 525 4080230000 Piston Rings for Pumping Units FIAC VX 214-422-AB 525 €26.39
11
 photo_cameraImage coming soon 7220260000 Piston €24.91
12
 Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
13
 photo_cameraImage coming soon 4070010000 COOLER AND / V.CRS / NewsI 5.5 / 7.5 STD €819.32
15
 photo_cameraImage coming soon 7011460000 Screw M6X16 TAP-TITE €1.48
16
 photo_cameraImage coming soon 7650010000 Crankcase cover €28.94
17
 Motor Carter Gasket for Pumping Units FIAC VX 7078440000 Motor Carter Gasket for Pumping Units FIAC VX €7.53
18
 Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
19
 photo_cameraImage coming soon 5041400008 Removable Crank €49.91
20
 photo_cameraImage coming soon 5070180008 Crankshaft housing €125.56
22
 Fiac VX194 Capacitor 32 µF 7310420000 Fiac VX194 Capacitor 32 µF €35.65
23
 photo_cameraImage coming soon 7329900000 Cable Pressure / Motor €15.66
24
 photo_cameraImage coming soon 7501050000 Cable locks €4.48
25
 photo_cameraImage coming soon 7410450000 TERMIC.WEBER-UNIMATWTT22-551 "4.5A €128.46
26
 photo_cameraImage coming soon 7410470000 Prot. Thermal singl. 10A €7.17
27
 photo_cameraImage coming soon 7501060000 Cable locks €1.52
28
 photo_cameraImage coming soon 7382340000 Terminal cover €4.34
29
 photo_cameraImage coming soon 7012020000 Screw Ø3,9X12,7 DIN-7981 €1.52
31
 FIAC Pump Units VS-VX-GMS Fan 7200340000 FIAC Pump Units VS-VX-GMS Fan €29.81
32
 photo_cameraImage coming soon 7038020000 Washer Ø8X30X3 UNI-6593 €1.52
33
 photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
34
 FIAC Motor Cover for Series VS-VX 7150370000 FIAC Motor Cover for Series VS-VX €36.88
35
 photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
36
 photo_cameraImage coming soon 7015100000 Guy M6X185 €1.44
37
 photo_cameraImage coming soon 7060030000 Bearing 6204 20-47-14 2RS1- €17.12
38
 photo_cameraImage coming soon 4011350000 CARC MOT GMV 191 V220 / 50HZ S / Morset €519.41
39
 Fiac VX214 Oil Seal 4062-10 SMIM 7071160000 Fiac VX214 Oil Seal 4062-10 SMIM €7.45
40
 photo_cameraImage coming soon 7060070000 Bearing 6007 €24.51
41
 Cylinder Gasket for Pumping Units FIAC GM 142 7078150000 Cylinder Gasket for Pumping Units FIAC GM 142 €2.94
42
 photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
45
 Fiac Pump Unit GM 143 Head Plate Gasket 7078580000 Fiac Pump Unit GM 143 Head Plate Gasket €4.34
46
 photo_cameraImage coming soon 7090200000 Cap 3/8 FIL.CILINDR.IN BRASS €3.68
47
 photo_cameraImage coming soon 7081100000 3/8 " €8.35
48
 photo_cameraImage coming soon 7089950000 Collector €25.04
49
 photo_cameraImage coming soon 7010120000 Screw M6X25 UNI-5931 €1.40
50
 FIAC Copper Pipe Right for Series VX 7237010000 FIAC Copper Pipe Right for Series VX €26.95
51
 photo_cameraImage coming soon 7237020000 Copper pipe €25.42
52
 photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
53
 Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
100
 Gasket Set for Pumping Units FIAC VX 194-214-254-402 4082150000 Gasket Set for Pumping Units FIAC VX 194-214-254-402 €15.23
101
 FIAC VX360 Conrod-Piston Kit 4191130000 FIAC VX360 Conrod-Piston Kit €62.35
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

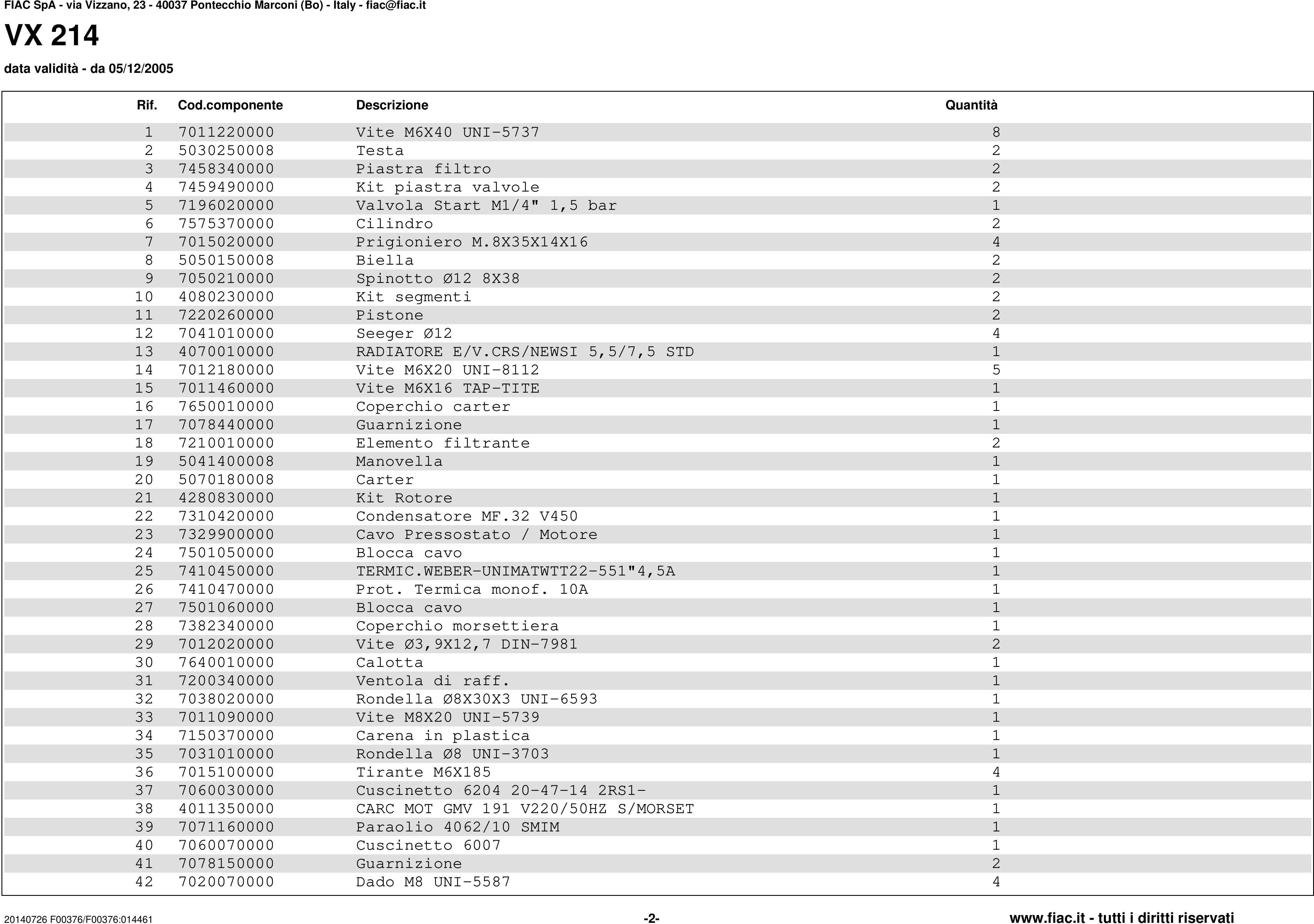

Esploso pagina 2
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

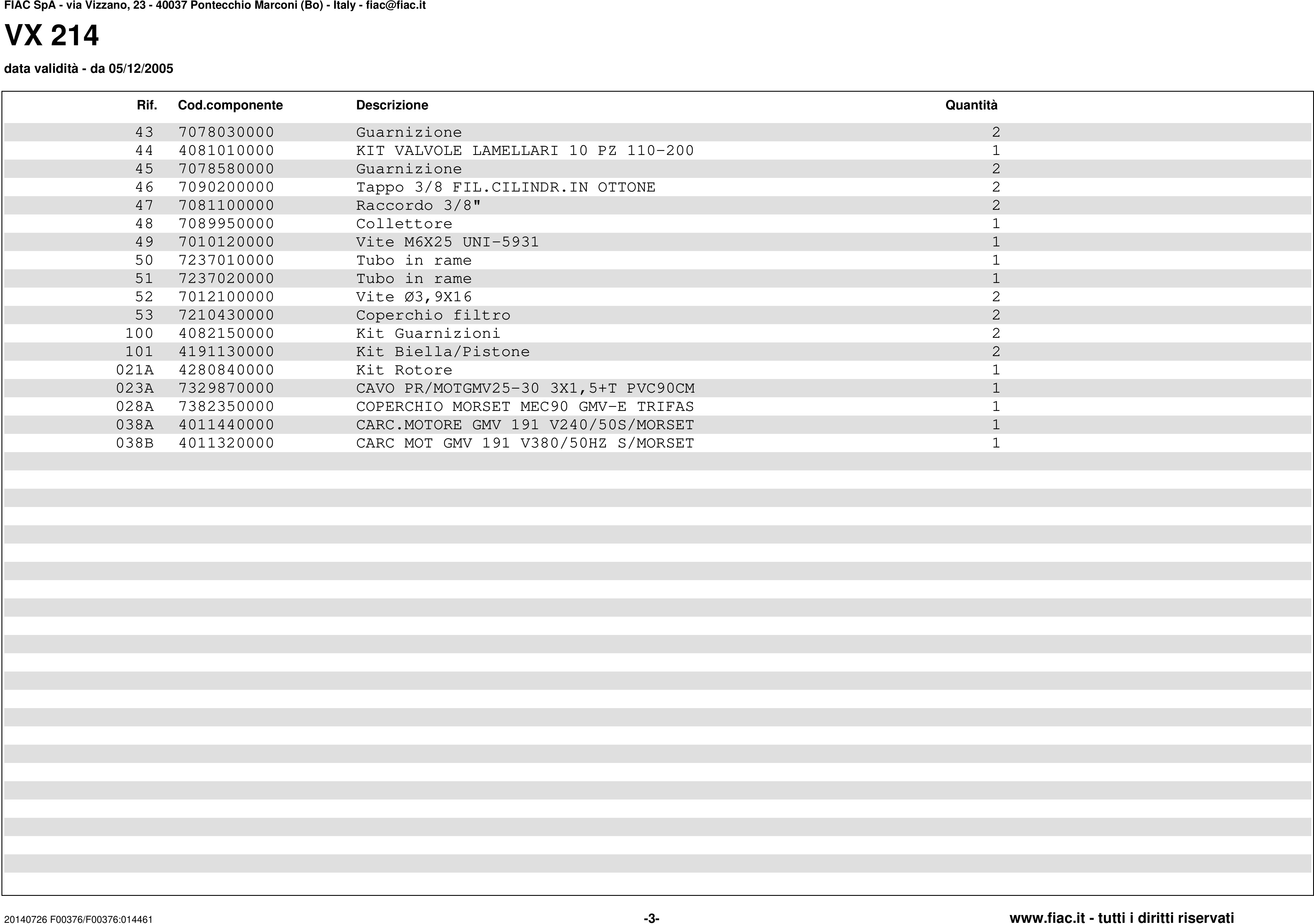

Esploso pagina 3
Pos. Item Price Buy
023A
 photo_cameraImage coming soon 7329870000 PR WIRE / MOTGMV25-30 3X1,5 + T PVC90CM €22.13
028A
 photo_cameraImage coming soon 7382350000 COVER Morset MEC90 GMV-E TRIFAS €4.34
038B
 photo_cameraImage coming soon 4011320000 CARC MOT GMV 191 V380 / 50HZ S / Morset €414.09
038A
 photo_cameraImage coming soon 4011440000 HOUSING MOTOR GMV 191 V240 / 50 S / TERMINALS €178.45
44
 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM 4081010000 Flap Valves Kit 10 pcs for Puming Units Fiac VX-GM €10.82

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit VX 214

Genuine Parts FIAC for piston Air Compressors and spare parts for the repair or replacement of components for direct driven lubricared Pump Unit VX 214 validity date - from 05/12/2005.

In the following table , look for the model of the pumping unit and the respective parts of the code .
Pump Unit VX 214 validity date - from 05/12/2005

VX 214 validity date - from 05/12/2005
1 7011220000 Screw M6X40 UNI-5737
2 5030250008 Head
3 7458340000 Plate filter
4 7459490000 Kit valve plate
5 7196020000 Start valve M1 / ​​4 "1.5 bar
6 7575370000 Cylinder
7 7015020000 Stud M.8X35X14X16
8 5050150008 Connecting Rod
9 7050210000 8X38 pin Ø12
10 4080230000 Piston Ring Kit
11 7220260000 Piston
12 7041010000 Seeger Ø12
13 4070010000 COOLER AND / V.CRS / NewsI 5.5 / 7.5 STD
14 7012180000 Screw M6X20 UNI-8112
15 7011460000 Screw M6X16 TAP-TITE
16 7650010000 Crankcase cover
17 7078440000 Gasket
18 7210010000 Filter element
19 5041400008 Removable Crank
20 5070180008 Sump
21 4280830000 Rotor Kit
22 7310420000 Capacitor MF.32 V450
23 7329900000 Cable Pressure / Motor
24 7501050000 Block Cable
25 7410450000 TERMIC.WEBER-UNIMATWTT22-551 "4.5A
26 7410470000 Thermal Protection single phase 10A
27 7501060000 Block Cable
28 7382340000 Terminal cover
29 7012020000 Screw Ø3,9X12,7 DIN-7981
30 7640010000 Cover
31 7200340000 Cooling fan
32 7038020000 Washer Ø8X30X3 UNI-6593
33 7011090000 Screw M8X20 UNI-5739
34 7150370000 Carena plastic
35 7031010000 Washer Ø8 UNI-3703
36 7015100000 tie rod M6X185
37 7060030000 Bearing 6204 20-47-14 2RS1-
38 4011350000 CARC MOT GMV 191 V220 / 50HZ S / Morset
39 7071160000 Oil seal 4062/10 SMIM
40 7060070000 Bearing 6007
41 7078150000 Gasket
42 7020070000 Nut M8 UNI-5587
43 7078030000 Gasket
44 4081010000 KIT FLAP VALVE 10 PZ 110-200
45 7078580000 Gasket
46 7090200000 Cap 3/8 THREAD CYLINDER BRASS
47 7081100000 Fitting 3/8"
48 7089950000 Collector
49 7010120000 Screw M6X25 UNI-5931
50 7237010000 Copper pipe
51 7237020000 Copper pipe
52 7012100000 Screw Ø3,9X16
53 7210430000 Filter Cover
100 4082150000 Kits
101 4191130000 Kit Conrod / piston
021A  4280840000 Rotor Kit
023A  7329870000 PR WIRE / MOTGMV25-30 3X1,5 + T PVC90CM
028A  7382350000 COVER TERMINALS MEC90 GMV-E TRIFAS
038A  4011440000 HOUSING MOTOR GMV 191 V240 / 50S / Morset
038B  4011320000 HOUSING MOTOR GMV 191 V380 / 50HZ S / Morset
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac VX214
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Fiac VX 214

Diagram Fiac VX 214

Download (322.27KB)
