The EASY electronic board (FIAC code 1127430385, formerly 7433850000) is a control component designed for FIAC's NEW SILVER series screw compressors.
Technical Description: EASY Electronic Board (FIAC
The EASY electronic board (FIAC code 1127430385, formerly 7433850000) is a control component designed for FIAC's NEW SILVER series screw compressors.
Technical Description: EASY Electronic Board (FIAC
The EASY electronic board (FIAC code 1127430385, formerly 7433850000) is a control component designed for FIAC's NEW SILVER series screw compressors.
Technical Description: EASY Electronic Board (FIAC

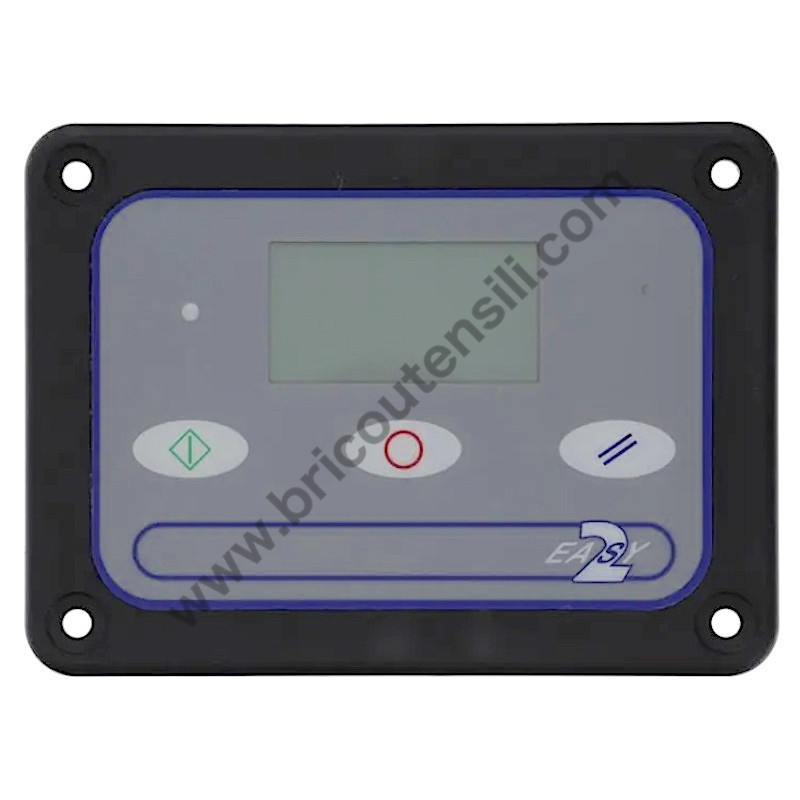

The EASY electronic control board (Item code 1127430385, formerly 7433850000) is an original spare part manufactured by FIAC S.p.A., specifically engineered for the management and control of NEW SILVER series rotary screw compressors. This component acts as the central control unit (PLC) and is responsible for monitoring operational parameters, managing loading/unloading cycles, controlling temperatures, and signaling any malfunctions or maintenance requirements via the user interface. The board is optimized to ensure the compressor's energy efficiency and to protect the electric motor and pneumatic components during continuous operation.
| Caratteristica / Feature | Descrizione / Description |
| Produttore / Manufacturer | FIAC S.p.A. |
| Compatibilità / Compatibility | Serie Compressori a vite NEW SILVER |
| Funzione / Function | Unità di controllo centrale (PLC) / Central Control Unit |
| Monitoraggio / Monitoring | Pressione, Temperatura, Ore di lavoro, Allarmi / Pressure, Temp, Hours, Alarms |
| Codice Ricambio / Part Number | 1127430385 (ex 7433850000) |
It is installed on all compressors of the NEW SILVER SERIES (before 2021, from 5.5 Hp to 20 Hp).
Maintenance Tips
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s FIAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to FIAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
This spare part is used in the following machines:
Shipping and delivery information will be available shortly.
Installation Procedure
Replacing an electronic board requires precision to avoid damaging sensitive components.Disconnect: Unplug the unit or switch off the main power breaker. Wait a few minutes to allow any internal capacitors to fully discharge.Access: Remove the compressor protection panels to access the electrical cabinet where the control board is housed. Document Wiring: Before disconnecting wires from the old board, it is highly recommended to take a photograph or label each connector to ensure they are reconnected to the exact same terminals on the new unit.Removal: Unscrew the mounting hardware and carefully remove the old board, avoiding contact with soldered electronic components (sensitive to electrostatic discharge).Installation: Position the new board (1127430385), secure it with the screws, and reconnect all cables according to your previously noted map.Verification and Setup: Close the electrical cabinet. After installation, software configuration or parameter settings (such as maintenance time limits or display settings) may be required to ensure the board communicates correctly with the compressor.
---
Installation Procedure (English)
Replacing an electronic board requires precision to avoid damaging sensitive components.
Note: If you encounter any difficulties during configuration or if the compressor does not start after the replacement, we recommend consulting the specific technical manual for your NEW SILVER compressor model or contacting an authorized FIAC service center.
