Ceccato Compressori

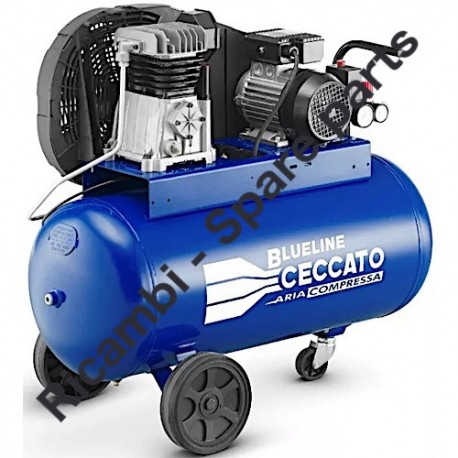

CECCATO BELTAIR PRO 90C2M 230/1/50 Parts

SKU: 90C2M 230/1/50 4116028274
€8.65
VAT included

CECCATO BELTAIR PRO 90C2M 230/1/50 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor Ceccato BELTAIR PRO 90C2M 230/1/50 - 4116028274 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

CECCATO BELTAIR PRO 90C2M 230/1/50 Parts
  • CECCATO BELTAIR PRO 90C2M 230/1/50 Parts
  • CECCATO BELTAIR PRO 90C2M 230/1/50 Parts Drawing
  • CECCATO BELTAIR PRO 90C2M 230/1/50 Parts Drawing - 1
  • CECCATO BELTAIR PRO 90C2M 230/1/50 Parts Drawing - 2
  • CECCATO BELTAIR PRO 90C2M 230/1/50 Parts Drawing - 3
Ceccato Compressori

CECCATO BELTAIR PRO 90C2M 230/1/50 Parts

SKU: 90C2M 230/1/50 4116028274 Condition: New
€8.65
VAT included

CECCATO BELTAIR PRO 90C2M 230/1/50 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor Ceccato BELTAIR PRO 90C2M 230/1/50 - 4116028274 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

settings 51 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

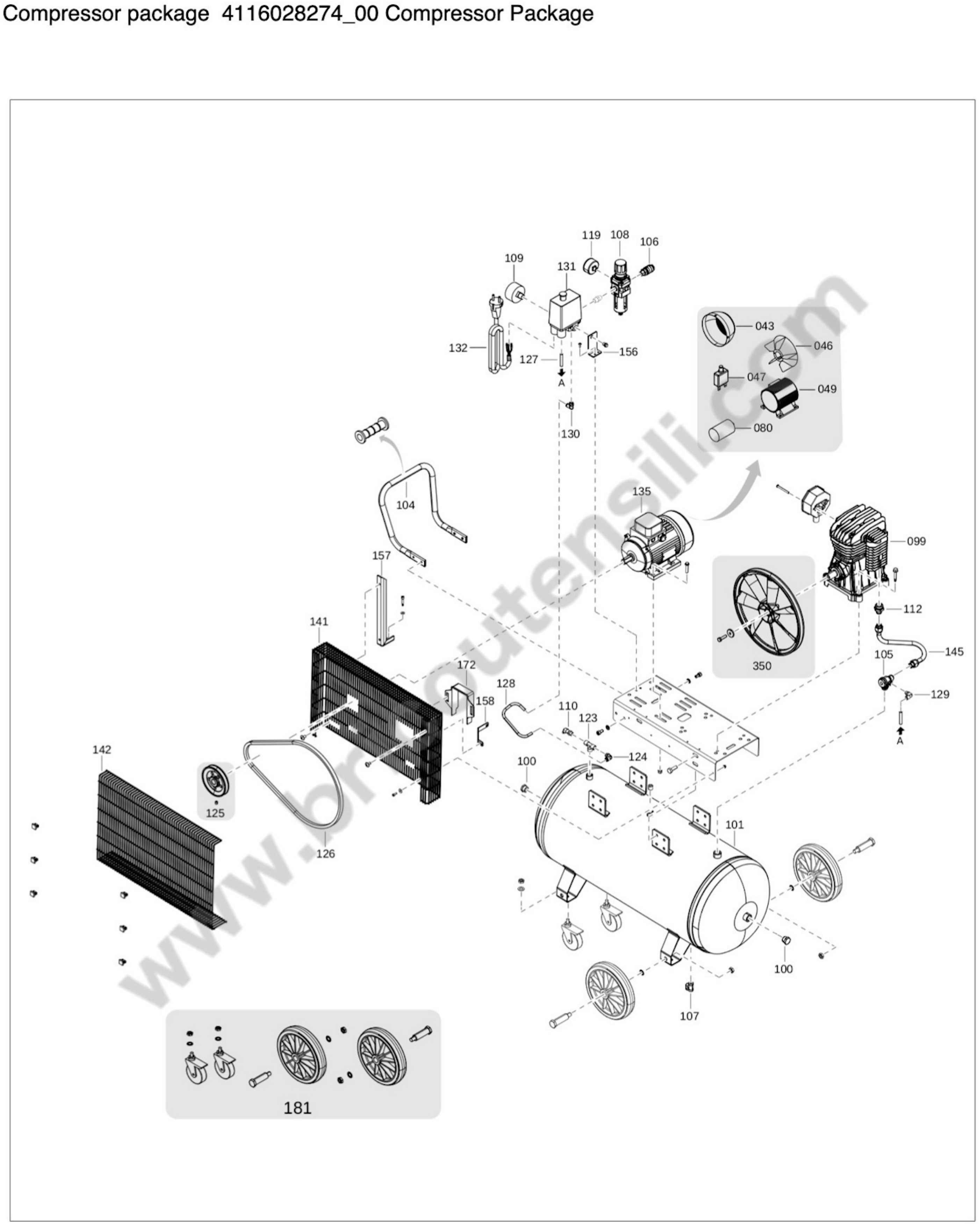

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
43
 photo_cameraImage coming soon 1127380666 Conveyor €12.11
46
 photo_cameraImage coming soon 1127380665 Motor fan €12.11
47
 photo_cameraImage coming soon 1127380671 Thermal protector €4.43
49
 photo_cameraImage coming soon 1127380688 Motor cover €7.81
80
 photo_cameraImage coming soon 1127310063 Capacitor 35MF Hp2/3 MEC80-HK €29.12
80
 photo_cameraImage coming soon 1127380664 Capacitor MF100/350V Starting HP2 €27.30
99
 photo_cameraImage coming soon 4116090646 Pump €311.97
100
 photo_cameraImage coming soon 1127090003 Plug -receiver €1.18
105
 BALMA Non Return Valve 1/2+M 1/2+M R 6210719000 BALMA Non Return Valve 1/2+M 1/2+M R €14.99
106
 photo_cameraImage coming soon 1126000188 Universal coupling €7.60
107
 Drain Tap 3/8" for Air Compressors ABAC - BALMA 6210717800 Drain Tap 3/8" for Air Compressors ABAC - BALMA €12.31
108
 photo_cameraImage coming soon 1129701321 Pressure reducer €44.32
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €10.14
110
 photo_cameraImage coming soon 1127190297 Safety valve €16.49
112
 photo_cameraImage coming soon 6231943500 Fitting €11.13
119
 photo_cameraImage coming soon 1127110024 PRESSURE GAUGE €16.38
123
 photo_cameraImage coming soon 1127080203 Tee fitting €11.20
124
 photo_cameraImage coming soon 2236100249 Elbow fitting Sup.Rap. 1/4 M x8 9053583 €11.80
125
 photo_cameraImage coming soon 2901320246 Pulley €21.11
126
 photo_cameraImage coming soon 2236111469 Belt €7.28
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €6.89
128
 photo_cameraImage coming soon 0070600205 Rilsan tube €9.09
129
 photo_cameraImage coming soon 2236100216 Head drain valve €3.29
130
 photo_cameraImage coming soon 2236114898 Elbow fitting Sup.Rap. 1/4 M x8 9053583 €8.42
131
 Pressure Switch 8 BAR CE for Compressor ABAC B26-50 CM2 1127250074 Pressure Switch 8 BAR CE for Compressor ABAC B26-50 CM2 €27.75
135
 photo_cameraImage coming soon 1127380486 Electric motor €237.04
141
 photo_cameraImage coming soon 2236114395 Beltguard rear €56.74
142
 photo_cameraImage coming soon 2236114852 Beltguard front €48.17
145
 photo_cameraImage coming soon 2236114891 Delivery pipes €17.62
156
 photo_cameraImage coming soon 1127170119 Bracket €4.86
157
 photo_cameraImage coming soon 2236114413 Bracket €20.47
158
 photo_cameraImage coming soon 2236116767 Beltguard bracket €27.52
172
 photo_cameraImage coming soon 1127240115 Flywheel protection €1.41
181
 photo_cameraImage coming soon 2236117427 Wheels kit €105.57
350
 Flywheel Kit for Pump Unit A29B 2901325048 Flywheel Kit for Pump Unit A29B €39.17
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

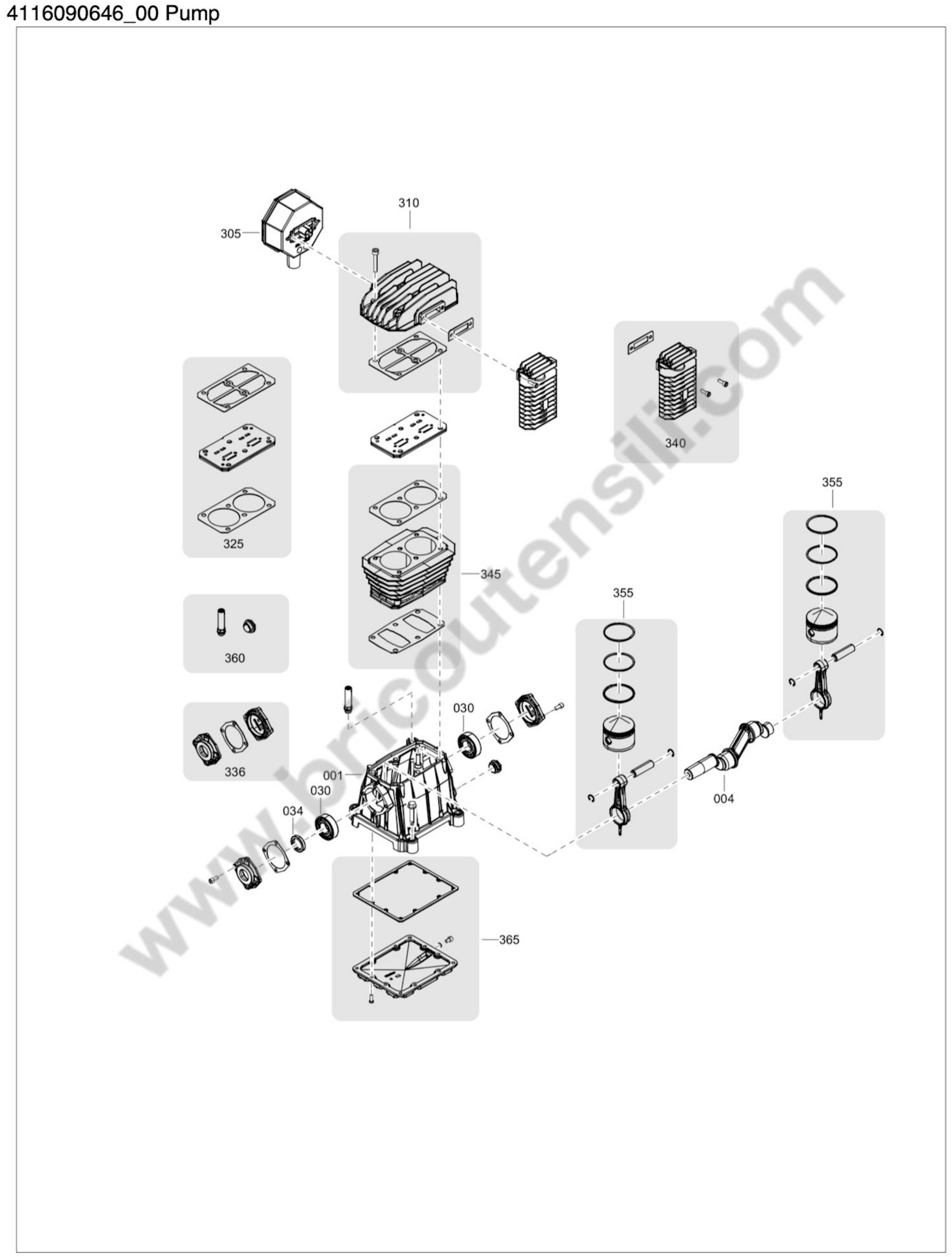

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 2236111600 Crankshaft €36.15
30
 photo_cameraImage coming soon 0502210500 Bearing 6205 €8.74
34
 photo_cameraImage coming soon 6231630100 Oil Seal €2.87
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €15.18
310
 Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €35.92
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €34.95
340
 ABAC PAT24A-PAT38A Aftercooler Kit 2236112794 ABAC PAT24A-PAT38A Aftercooler Kit €15.68
345
 photo_cameraImage coming soon 2236112434 CYLINDER KIT PAT24 €60.68
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 2236111619 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 €26.83
360
 OIL LEVEL KIT 2901325049 OIL LEVEL KIT €3.29
365
 photo_cameraImage coming soon 2236112437 BOTTOM CRANKCASE COVER KIT PAT 24 €27.80
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

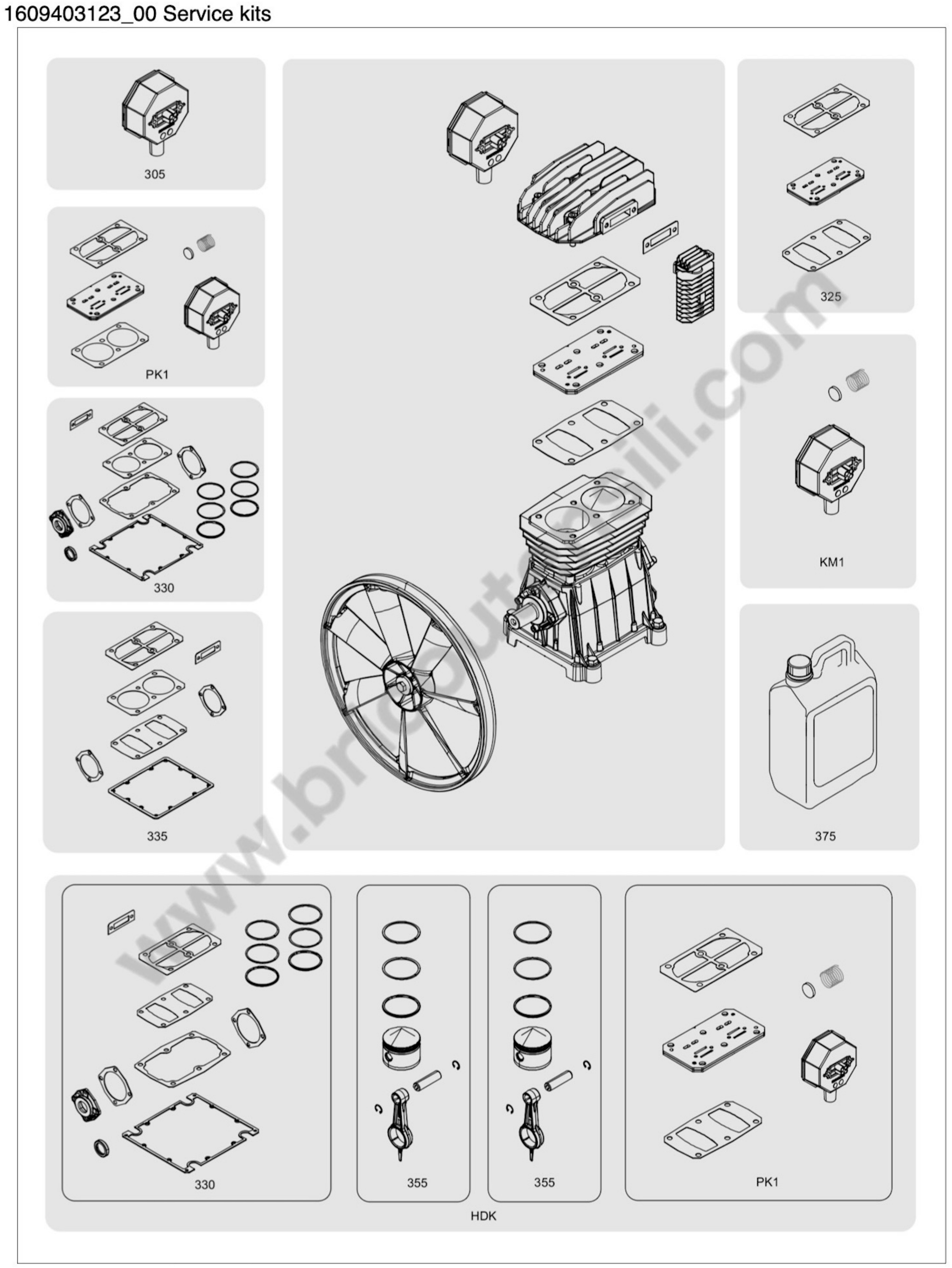

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
PK1
 Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €56.71
KM1
 ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €18.91
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €15.18
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €34.95
330
 ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.30
335
 ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €17.28
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 2236111619 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 €26.83
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €12.76
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

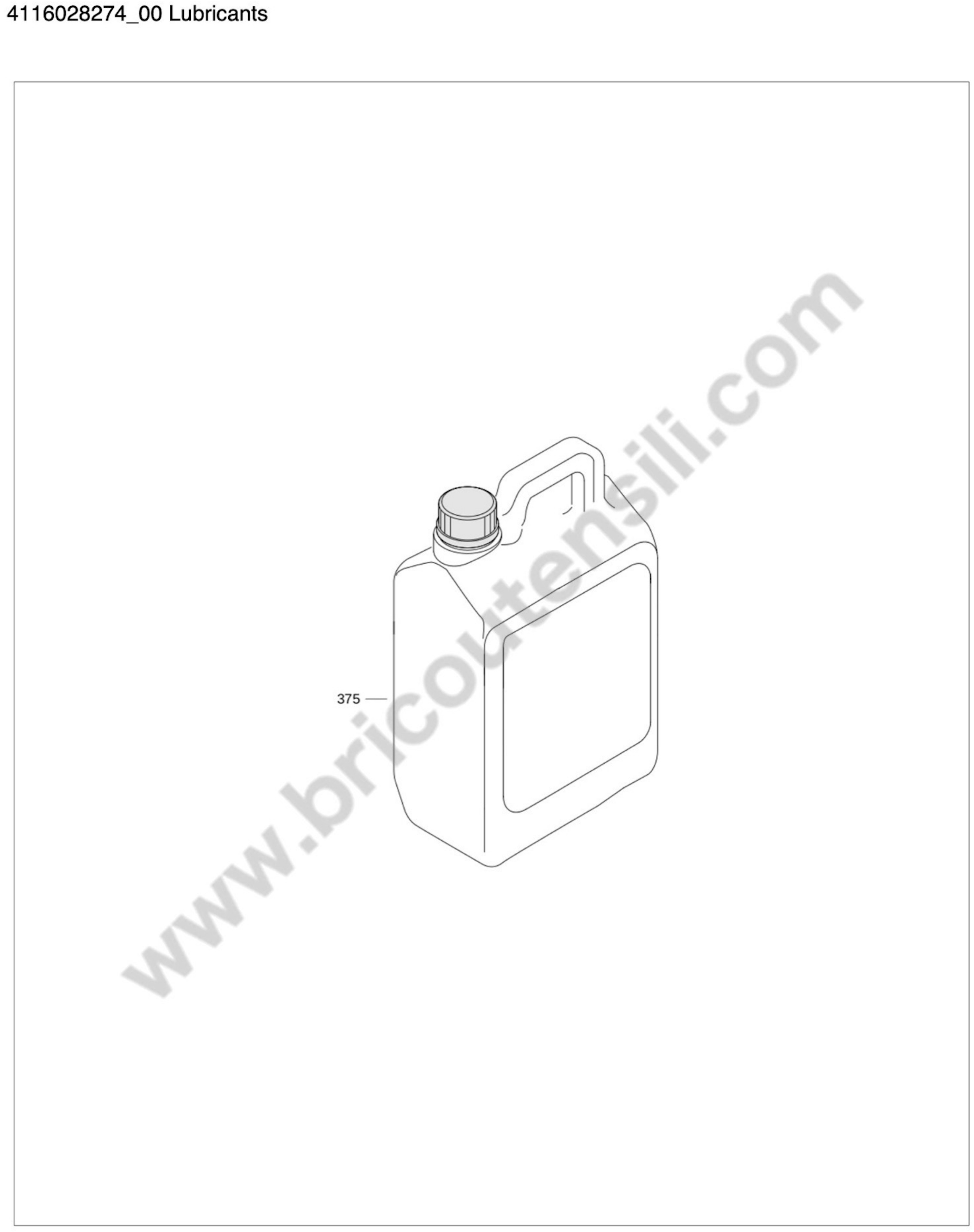

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €12.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

CECCATO BELTAIR PRO 90C2M 230/1/50 Spare Parts

Rely on our experience and our professionalism, take care of your Air Compressor Ceccato BELTAIR PRO 90C2M 230/1/50 - 4116028274 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
CECCATO BELTAIR PRO 90C2M 230/1/50

CECCATO BELTAIR PRO 90C2M 230/1/50 4116028274
Compressor_package Pag.1
#
Part Num.
 Description
43
1127380666
 Fan cover
46
1127380665
 Fan
47
1127380671
 Thermal protector
49
1127380688
 Electrical box
80
1127310063
 Capacitor
80
1127380664
 Capacitor
99
4116090646
 Pump
100
1127090003
 Plug
101
2236116103
 Receiver
104
2236117463
 Handle Kit
105
6210719000
 Check valve
106
1126000188
 Universal coupling
107
6210717800
 Ball valve
108
1129701321
 Pressure reducer
109
6214345000
 Pressure gauge
110
1127190297
 Safety valve
112
6231943500
 Delivery pipe fitting
119
1127110024
 Pressure gauge
123
1127080203
 Tee fitting
124
2236100249
 Elbow fitting
125
2901320246
 Pulley kit
126
2236111469
 Belt
127
2236112998
 Rilsan Tube
128
0070600205
 Plastic tube
129
2236100216
 Elbow fitting
130
2236114898
 Elbow fitting
131
1127250074
 Pressure Switch
132
2236106738
 Pressure switch cable
135
1127380486
 Motor
141
2236114395
 Beltguard rear
142
2236114852
 Beltguard front
145
2236114891
 Delivery pipe
156
1127170119
 Bracket
157
2236114413
 Bracket
158
2236116767
 Beltguard bracket
172
1127240115
 Flywheel protection
181
2236117427
 Wheels kit
350
2901325048
 Flywheel kit
Compressor PUMP Pag.2
#
Part Num.
 Description
1
2236111607
 Crankcase
4
2236111600
 Crankshaft
30
0502210500
 Bearing
34
6231630100
 Oil seal
305
2236112835
 Air filter
310
2901325044
 Cylinder head kit
325
2236112518
 Valve plate kit
336
2236112436
 Shaft seal kit
340
2236112794
 Aftercooler kit
345
2236112434
 Cylinder kit
355
2236111619
 Conrod-piston kit
360
2901325049
 Oil level kit
365
2236112437
 Crankcase cover kit
Pump Service kits Pag.3
#
Part Num.
 Description
305
2236112835
 Air filter
325
2236112518
 Valve plate kit
330
2901325046
 Upgrade kit
335
2901325045
 All gasket kit
355
2236111619
 Conrod-piston kit
375
1630020700
 Can altair pro 1l
KM1
8973037864
 Easy Kit
PK1
8973037657
 Performance kit
HDK
NA
 Heavy duty kit
Pump Oil Pag.4
375 1630020700 Altair Oil Pro 1LT
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s CECCATO websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to CECCATO brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
90C2M 230/1/50 4116028274
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

BELTAIR PRO 90C2M 230/1/50 Diag.

BELTAIR PRO 90C2M 230/1/50 Diag.

Download (890.02KB)

You might also like

Pump Unit for Air Compressor ABAC A29B BLUE
ABAC SKU: ABAC B2800 6218741800
Pump Unit ABAC NS11 - B2800
Pump Unit for Air Compressor ABAC NS11 - B2800 Pump Unit for ABAC Air Compressors with Belt Transmission from 27 to 200 liters Tanks, single-stage lubricated.  Description: Lubricated Single-Stage Belt Drive Pump...
Last items in stock €183.27
Details
Pump Unit ABAC NS18 - B3800
ABAC SKU: ABAC B3800 4116090004
Pump Unit ABAC NS18 - B3800
Pump Unit for Air Compressor ABAC NS18 - B3800 Pump Unit for ABAC Air Compressors with Belt Transmission from 50 to 200 liters Tanks, single-stage lubricated.  Description: Lubricated Single-Stage Belt Drive Pump...
AVAILABLE €269.33
Details
Pump Unit ABAC A39B SPARE BLU
ABAC SKU: PAT38A SPARE GRAY 4116090651
Pump Unit ABAC A39B SPARE BLU
Pump Unit for Air Compressor ABAC PAT38A SPARE GRAY Pump Unit for ABAC Air Compressors with Belt Transmission from 100 to 200 liters Tanks, single-stage lubricated.  Description: PAT38A SPARE GRAY Lubricated Single-Stage...
on 10 Business Days Approx. €465.27
Details
Pump Unit ABAC NS29S - B4900B
ABAC SKU: ABAC NS29S - B4900B 6218739600
Pump Unit ABAC NS29S - B4900B
Pump Unit for Air Compressor ABAC NS29S - B4900B Pump Unit for ABAC Air Compressors with Belt Transmission from 100 - 200 - 300 liters Tanks, single-stage lubricated.  Description: Lubricated Two-Stage Belt Drive...
Out-of-Stock €534.88
Details
Pump Unit ABAC B5900B -5%
ABAC SKU: ABAC B5900B 6218740200
Pump Unit ABAC B5900B
Pump Unit for Air Compressor ABAC B5900B Pump Unit for ABAC Air Compressors with Belt Transmission from 200 - 300 - 500 liters Tanks, Two-stage lubricated.  Description: Lubricated Two-Stage Belt Drive Pump...
on 10 Business Days Approx. €698.11 €734.85
Details
Pump Unit ABAC B6000 Silenced Air Filter -5%
ABAC SKU: ABAC B6000 6218741500
Pump Unit ABAC B6000 Silenced Air Filter
Pump Unit for Air Compressor ABAC B6000 Silenced Air Filter Pump Unit for ABAC Air Compressors with Belt Transmission from 300 - 500 liters Tanks, Two-stage lubricated.  Description: Lubricated Two-Stage Belt...
AVAILABLE €759.28 €799.24
Details
Pump Unit ABAC B6000 Mushroom air Filter -10%
ABAC SKU: ABAC B6000 6218740100
Pump Unit ABAC B6000 Mushroom air Filter
Pump Unit for Air Compressor ABAC B6000 Mushroom air Filter Pump Unit for ABAC Air Compressors with Belt Transmission from 300 - 500 liters Tanks, Two-stage lubricated.  Description: Lubricated Two-Stage Belt...
Last items in stock €758.28 €842.53
Details
35MF Capacitor for Pump Units ABAC - BALMA
ABAC SKU: 6229021500
35MF Capacitor for Pump Units ABAC - BALMA
35MF Capacitor for Pump Units ABAC - BALMA Genuine Part ABAC BALMA, Capacitor 35MF per Motors for Air Compressors ABAC - BALMA. In addition to quality spare parts, this includes professional service by...
AVAILABLE €40.01
Details
Poli-V Belt PJ307 for Pump Units ABAC - BALMA OL195 - OM195
ABAC SKU: 2236108133
Poli-V Belt PJ307 for Pump Units ABAC - BALMA OL195 - OM195
Poli-V Belt PJ307 for Pump Units ABAC - BALMA OL195 - OM195 ABAC Genuine Part, Poli-V Belt PJ307 for Pump Units ABAC - BALMA OL195 - OM195 and Air Compressor VENTO - OL195/6 Lt HP 1,5 LUNA - 4116021727. Ricambio per i seguenti...
on 7/10 Business Days Approx. €28.35
Details
Safety Valve 1/4 8 BAR for Pump Units ABAC L20 - FC2
ABAC SKU: 6210719500
Safety Valve 1/4 8 BAR for Pump Units ABAC L20 - FC2
Safety Valve 1/4 8 BAR for Pump Units ABAC L20 - FC2 ABAC Genuine Part, Safety Valve 1/4 CE for Air Compressors 8 BAR, POLE POSITION L20 - Montecarlo FC2/50 CM 2.   Part for the following products:...
on 7/10 Business Days Approx. €12.59
Details
ABAC Valve Plate Kit for Pump Unit O20P
ABAC SKU: 1120002068
ABAC Valve Plate Kit for Pump Unit O20P
ABAC Valve Plate Kit for Pump Unit O20P ABAC Genuine Part, Valve Plate + Gaskets, for ABAC Pump Unit O20P.  Part for the following products: - Gasket Kit B-Plate -  Air Compressor START ROLLCAGE...
on 7/10 Business Days Approx. €35.61
Details
Capacitor 25 mf for ABAC Air Compressors
ABAC SKU: 1127310059
Capacitor 25 mf for ABAC Air Compressors
Capacitor 25 mf for ABAC Air Compressors Original part ABAC, Capacitor 25 mf 450 V for Air Compressors 6-10-24-50 liters, with pumping units with electric motor 750-1300-1500W. Part for the following products: - For all types of...
Last items in stock €26.98
Details
Manometer Ø50-1/4" for Air Compressors ABAC
ABAC SKU: 1127110030
Pressure Gauge Ø50-1/4 for Air Compressors ABAC
Pressure Gauge Ø50-1/4" for Air Compressors ABAC Genuine part ABAC, Pressure Gauge Ø50-1/4" for Air Compressors B26-50 CM2 - B26B/90 CM3 - START ROLLCAGE O20P. Parts for the following items: - ABAC...
AVAILABLE €19.94
Details
ABAC PAT38A-NS19S Aftercooler Kit
ABAC SKU: 2901325047
ABAC PAT24-PAT38 Aftercooler Kit
ABAC PAT24/PAT38 Aftercooler Kit Original part ABAC, Aftercooler Kit for Pump Unit PAT24/PAT38. Part for the following products: -  ABAC PAT38A NS19S -  ABAC PAT24/A29/NS12 - PAT38/A39/NS19 -  ABAC A29B 100...
AVAILABLE €35.94
Details
CECCATO Safety Valve 3-8 TA-W 11BAR
ABAC SKU: 6210720000
CECCATO Safety Valve 3-8 TA-W 11BAR
CECCATO Safety Valve 3/8 TA-W 11BAR ABAC Genuine Part, Safety Valve 3/8 TA-W 11BAR for Air Compressors CECCATO - ABAC - BALMA. Part for the following products: -  CECCATO 90C2MR 4116024046 -  CECCATO...
AVAILABLE €11.95
Details
Comments (0)
