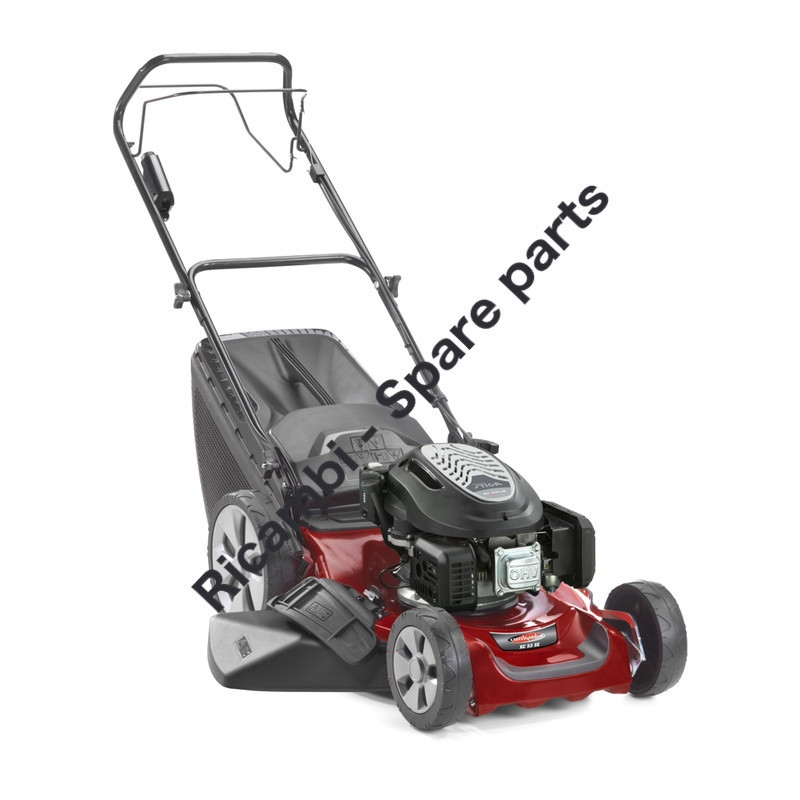

Castelgarden Spare Parts for XC 53 SE Lawn Mower
€0.12
VAT included
Castelgarden Spare Parts for Lawnmower XC 53 SE
We are Distributors of Original CASTELGARDEN Spare Parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair problem of the Lawnmower XC 53 SE/2L0536543/C24.
Castelgarden Spare Parts for XC 53 SE Lawn Mower
€0.12
VAT included
Castelgarden Spare Parts for Lawnmower XC 53 SE
We are Distributors of Original CASTELGARDEN Spare Parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly solve any maintenance and repair problem of the Lawnmower XC 53 SE/2L0536543/C24.
settings
201 Spare parts
description
13 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
201 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381005195/2 Right Bracket | €7.22 | |
|
2
|
|
381005197/2 Left Bracket | €7.22 | |
|
3
|
|
112727802/0 Screw | €1.54 | |
|
4
|
|
322545213/0 Plate | €1.96 | |
|
5
|
|
322600310/0 Door | €5.04 | |
|
6
|
|
322108329/0 Rear Conveyor | €20.06 | |
|
7
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
8
|
|
322060250/1 Belt Guard | €10.78 | |
|
9
|
|
112728903/0 Screw | €1.40 | |
|
10
|
|
322140251/0 Mulching Deflector | €13.44 | |
|
11
|
|
381005618/0 Grey Chassis | €197.18 | |
|
12
|
|
322820077/1 Cap | €1.54 | |
|
13
|
|
119035000/0 O-Ring | €5.04 | |
|
14
|
|
112728450/0 Screw | €1.54 | |
|
15
|
|
322034002/0 Washing Connection | €1.67 | |
|
16
|
|
118737886/0 Cap | €1.15 |
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381302947/0 Front Wheel Axle | €29.44 | |
|
2
|
|
322785305/1 Support | €2.66 | |
|
3
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
4
|
|
322869735/0 Height Adjustment Control Rod | €15.56 | |
|
5
|
|
122519823/0 Pin | €2.24 | |
|
6
|
|
112000930/0 Benzing Ring ø6 | €1.54 | |
|
7
|
|
122450494/0 Spring | €4.77 | |
|
8
|
|
381302849/1 Rear Wheel Axle | €50.46 | |
|
9
|
|
381003458/1 Height Adjustment Lever | €10.78 | |
|
10
|
|
122534131/0 Pin | €1.54 | |
|
11
|
|
122446192/0 Spring | €2.12 | |
|
12
|
|
112154510/0 Self-Locking Nut M6 | €1.54 | |
|
13
|
|
322785500/0 Support | €1.82 | |
|
14
|
|
181003140/0 Drive Unit | €66.64 | |
|
15
|
|
122753000/0 Pin | €1.54 | |
|
16
|
|
122570133/0 Right Pinion | €8.09 | |
|
17
|
|
122570134/0 Left Pinion | €7.50 | |
|
18
|
|
112608600/0 Seeger | €1.54 | |
|
19
|
|
322042067/0 Bushing | €4.20 | |
|
20
|
|
112521371/0 Washer | €1.54 | |
|
22
|
|
135063801/0 V-Belt | €8.98 | |
|
23
|
|
122430254/0 Spring | €4.06 | |
|
24
|
|
322778473/1 Bracket | €2.12 | |
|
25
|
|
112728699/0 Screw | €1.54 | |
|
28
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
30
|
|
122601909/0 Pulley | €5.61 |
Page 3
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
112735410/0 Screw | €1.54 | |
|
2
|
|
322226279/0 Black Front Cover | €29.04 | |
|
2
|
|
322226314/0 Red Front Cover Castelgarden for lawn mower | €9.17 | |
|
2
|
|
322226318/0 Black Front Cover Castelgarden for lawn mower | €11.98 | |
|
3
|
|
322055524/1 Insert | €3.78 | |
|
4
|
|
322393742/1 Handle | €7.09 |
Page 4
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381006785/0 Handle, Lower Part Black | €25.51 | |
|
2
|
|
112155000/0 Self-Locking Nut M8 | €1.54 | |
|
3
|
|
112521350/0 Washer | €1.54 | |
|
4
|
|
112369500/0 Elastic Disc | €1.40 | |
|
5
|
|
112760605/0 Screw | €3.38 | |
|
6
|
|
381008691/0 Screws Outfit | €8.56 | |
|
7
|
|
133320504/0 Cable Clamp | €1.96 | |
|
8
|
|
118390020/0 Cable Clamp | €1.82 |
Page 5
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381007571/2 Upper Handle Black with rubber grip | €39.26 | |
|
2
|
|
122430313/0 Guide Spring | €3.92 | |
|
3
|
|
112521330/0 Flat Washer - M6x12x1,6 | €1.54 | |
|
4
|
|
112154510/0 Self-Locking Nut M6 | €1.54 | |
|
5
|
|
118390020/0 Cable Clamp | €1.82 | |
|
6
|
|
181003363/1 Black Engine Brake Lever | €14.86 | |
|
7
|
|
181030087/0 Engine Brake Cable | €13.37 | |
|
8
|
|
112727783/0 Screw | €1.67 | |
|
9
|
|
112154510/0 Self-Locking Nut M6 | €1.54 | |
|
10
|
|
181003364/0 Drive Control Lever | €15.14 | |
|
11
|
|
381030172/0 Drive Control Cable | €34.01 | |
|
12
|
|
322551685/0 Cable Fixing Plate ø22 | €7.50 |
Page 6
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
112728702/0 Screw | €1.54 | |
|
2
|
|
133320022/0 Cable Tie | €1.54 | |
|
3
|
|
322076570/1 Battery Safety Key | €5.45 | |
|
4
|
|
381600407/0 Ignition Switch | €85.52 |
Page 7
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381007416/2 Wheel Ø 200 | €17.53 | |
|
1
|
|
381007416/3 Wheel Ø 200 Castelgarden for lawn mower | €17.53 | |
|
2
|
|
119216035/0 Bearing | €3.50 | |
|
3
|
|
322110643/0 Grey Hub Cap | €2.53 | |
|
4
|
|
112521350/0 Washer | €1.54 | |
|
5
|
|
112155000/0 Self-Locking Nut M8 | €1.54 | |
|
5
|
|
112293203/0 Flanged Nut Castelgarden for lawn mower | €1.16 | |
|
6
|
|
381007417/3 Wheel Ø 280 | €37.78 | |
|
7
|
|
322120115/0 Driving Gear | €37.78 | Not available for order |
|
8
|
|
112728706/0 Screw - Self-Threading Torx PT K40x16 | €1.54 | |
|
9
|
|
322110644/0 Grey Hub Cap | €3.38 | |
|
10
|
|
322600145/0 Wheel Protection | €1.67 | |
|
11
|
|
322600240/0 Wheel Protection | €5.33 | |
|
12
|
|
381007472/2 Wheel | €37.78 |
Page 8
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
322108309/1 Side Discharge Chute | €11.36 | |
|
2
|
|
381008161/1 Side Discharge Assembly | €11.48 | |
|
3
|
|
112727803/0 Screw | €1.54 | |
|
4
|
|
322806659/0 Fulcrum Pin | €0.01 | |
|
5
|
|
112154510/0 Self-Locking Nut M6 | €1.54 | |
|
6
|
|
118203853/0 Cap | €2.66 | |
|
7
|
|
122450456/1 Spring | €3.23 | |
|
8
|
|
122517869/1 Pin | €3.78 | |
|
9
|
|
112604896/0 Crown Fastener | €1.54 | |
|
10
|
|
122517876/0 Pin | €1.40 | |
|
11
|
|
322783013/0 Safety Catch | €0.01 | |
|
12
|
|
122450493/0 Spring | €1.33 |
Page 9
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
112735108/1 Screw | €2.12 | |
|
2
|
|
1111-9180-01 Hub With Pulley, Crankshaft Ø 25 | €9.19 | |
|
2
|
|
122465608/3 Hub With Pulley, Crankshaft Ø 25 Castelgarden for lawn mower | €9.19 | |
|
3
|
|
1111-9293-01 Blade | €24.00 | |
|
3
|
|
181004459/0 Blade Castelgarden for lawn mower | €16.09 | |
|
4
|
|
122160400/0 Elastic Disc | €1.82 | |
|
5
|
|
112523080/0 Washer | €1.54 | |
|
6
|
|
112735698/0 Screw | €1.82 | |
|
7
|
|
112139150/0 Key, Crankshaft Ø 25 | €2.12 |
Page 10
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
322486497/0 Door | €1.54 | |
|
2
|
|
322486496/0 Grass Catcher, Upper Part | €30.84 | |
|
3
|
|
322486150/1 Grass Catcher, Lower Right Part | €21.02 | |
|
3
|
|
322486434/0 Grass Catcher, Lower Right Part Castelgarden for lawn mower | €23.13 | |
|
4
|
|
322486151/1 Grass Catcher, Lower Left Part | €21.46 | |
|
4
|
|
322486435/0 Grass Catcher, Lower Left Part Castelgarden for lawn mower | €23.13 | |
|
5
|
|
122450479/0 Spring | €3.38 | |
|
6
|
|
122517884/0 Pin | €5.04 | |
|
7
|
|
322600355/1 Black Stone Guard | €12.20 | |
|
8
|
|
322109594/0 Black Stone Guard Fulcrum Support | €6.03 | |
|
9
|
|
112728697/0 Screw - Self-Threading Torx PT K50x16 | €1.54 | |
|
10
|
|
381008735/0 Plastic Pin Kit | €2.24 |
Page 11
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 12
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
Page 13
zoom_in View exploded
local_shipping Usually Ships in 10/15 BUSINESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
118552675/0 Complete Engine | €317.26 | |
|
2
|
|
118120067/0 Battery | €65.78 | |
|
3
|
|
118204152/1 Battery Charger | €53.28 | |
|
11
|
|
322055631/0 Grey Cowling | €3.78 | |
|
12
|
|
322055632/0 Shroud, Yellow | €6.72 | |
|
13
|
|
322055628/0 Grey Cowling | €5.04 | |
|
201
|
|
1111-9234-01 Engine oil, SAE 30 - 0.6 L | €0.00 | Not available for order |
|
201
|
|
1111-9237-01 10W-30 4 stroke oil 0,6 lt | €0.00 | Not available for order |
|
201
|
|
1111-9244-01 Engine oil, SAE 30 - 0.6 L Castelgarden for lawn mower | €7.98 | |
|
202
|
|
1111-9235-01 SAE 30 4 STROKE OIL 1 LT | €0.00 | Not available for order |
|
203
|
|
1111-9236-01 Engine oil, SAE 30 - 1.4 L | €0.00 | Not available for order |
|
203
|
|
1111-9238-01 10W-30 4 STROKE OIL 1,4 L | €0.00 | Not available for order |
|
203
|
|
1111-9245-01 Engine oil, SAE 30 - 1.4 L Castelgarden for lawn mower | €15.96 |
Shipping and delivery information will be available shortly.
Castelgarden Spare Parts for XC 53 SE Lawnmower
We are Distributors of genuine CASTELGARDEN spare parts and an authorized service center. We guarantee low prices and a professional repair service able to advise you on purchasing the most suitable spare part to quickly resolve any maintenance and repair problem for the XC 53 SE Lawnmower/2L0536543/C24.
| XC 53 SE/2L0536543/C24 Lawnmower | ||
|---|---|---|
| Chassis Pag.1 | ||
| # | Part Num. | Description |
| 1 | 381005195/2 | Right Bracket |
| 2 | 381005197/2 | Left Bracket |
| 3 | 112727802/0 | Screw |
| 4 | 322545213/0 | Plate |
| 5 | 322600310/0 | Door |
| 6 | 322108329/0 | Rear Deflector |
| 7 | 112728697/0 | Screw - Self-tapping Torx PT K50x16 |
| 8 | 322060250/1 | Belt Guard |
| 9 | 112728903/0 | Screw |
| 10 | 322140251/0 | Mulching Deflector |
| 11 | 381005618/0 | Grey Deck |
| 12 | 322820077/1 | Cap |
| 13 | 119035000/0 | O-Ring |
| 14 | 112728450/0 | Screw |
| 15 | 322034002/0 | Washing Connection |
| 16 | 118737886/0 | Cap |
| Height of Cut Adjustment Pag.2 | ||
| # | Part Num. | Description |
| 1 | 381302947/0 | Front Wheel Axle |
| 2 | 322785305/1 | Support |
| 3 | 112728697/0 | Screw - Self-tapping Torx PT K50x16 |
| 4 | 322869735/0 | Height Adjustment Control Rod |
| 5 | 122519823/0 | Pin |
| 6 | 112000930/0 | Benzing Ring ø6 |
| 7 | 122450494/0 | Spring |
| 8 | 381302849/1 | Rear Wheel Axle |
| 9 | 381003458/1 | Height Adjustment Lever |
| 10 | 122534131/0 | Pin |
| 11 | 122446192/0 | Spring |
| 12 | 112154510/0 | Self-Locking Nut M6 |
| 13 | 322785500/0 | Support |
| 14 | 181003140/0 | Drive Unit |
| 15 | 122753000/0 | Pin |
| 16 | 122570133/0 | Right Pinion |
| 17 | 122570134/0 | Left Pinion |
| 18 | 112608600/0 | Circlip |
| 19 | 322042067/0 | Bushing |
| 20 | 112521371/0 | Washer |
| 22 | 135063801/0 | V-Belt |
| 23 | 122430254/0 | Spring |
| 24 | 322778473/1 | Bracket |
| 25 | 112728699/0 | Screw |
| 28 | 112728697/0 | Screw - Self-tapping Torx PT K50x16 |
| 30 | 122601909/0 | Pulley |
| Mask Pag.3 | ||
| # | Part Num. | Description |
| 1 | 112735410/0 | Screw |
| 2 | 322226279/0 | Red Front Cover |
| 2 | 322226314/0 | Red Front Cover |
| 2 | 322226318/0 | Black Front Cover |
| 3 | 322055524/1 | Insert |
| 4 | 322393742/1 | Handle |
| Handle, Lower Part Pag.4 | ||
| # | Part Num. | Description |
| 1 | 381006785/0 | Lower Handle, Black |
| 2 | 112155000/0 | Self-Locking Nut M8 |
| 3 | 112521350/0 | Washer |
| 4 | 112369500/0 | Spring Washer |
| 5 | 112760605/0 | Screw |
| 6 | 381008691/0 | Screws Outfit |
| 7 | 133320504/0 | Cable Clamp |
| 8 | 118390020/0 | Cable Clamp |
| Handle, Upper Part Pag.5 | ||
| # | Part Num. | Description |
| 1 | 381007571/2 | Upper Handle Black with rubber grip |
| 2 | 122430313/0 | Guide Spring |
| 3 | 112521330/0 | Flat Washer - M6x12x1.6 |
| 4 | 112154510/0 | Self-Locking Nut M6 |
| 5 | 118390020/0 | Cable Clamp |
| 6 | 181003363/1 | Engine Brake Lever Black |
| 7 | 181030087/0 | Engine Brake Cable |
| 8 | 112727783/0 | Screw |
| 9 | 112154510/0 | Self-Locking Nut M6 |
| 10 | 181003364/0 | Drive Control Lever |
| 11 | 381030172/0 | Drive Control Cable |
| 12 | 322551685/0 | Cable Fastening Plate ø22 |
| Electric Starter Controls Pag.6 | ||
| # | Part Num. | Description |
| 1 | 112728702/0 | Screw |
| 2 | 133320022/0 | Cable Tie |
| 3 | 322076570/1 | Battery Safety Key |
| 4 | 381600407/0 | Ignition Switch |
| Wheels and Hub Caps Pag.7 | ||
| # | Part Num. | Description |
| 1 | 381007416/2 | Wheel Ø 200 |
| 1 | 381007416/3 | Wheel Ø 200 |
| 2 | 119216035/0 | Bearing |
| 3 | 322110643/0 | Grey Hub Cap |
| 4 | 112521350/0 | Washer |
| 5 | 112155000/0 | Self-Locking Nut M8 |
| 5 | 112293203/0 | Flanged Nut |
| 6 | 381007417/3 | Wheel Ø 280 |
| 7 | 322120115/0 | Driving Crown |
| 8 | 112728706/0 | Screw - Self-tapping Torx PT K40x16 |
| 9 | 322110644/0 | Grey Hub Cap |
| 10 | 322600145/0 | Wheel Protection |
| 11 | 322600240/0 | Wheel Protection |
| 12 | 381007472/2 | Wheel |
| Side Discharge Pag.8 | ||
| # | Part Num. | Description |
| 1 | 322108309/1 | Side Discharge Chute |
| 2 | 381008161/1 | Side Discharge Assembly |
| 3 | 112727803/0 | Screw |
| 4 | 322806659/0 | Fulcrum Pin |
| 5 | 112154510/0 | Self-Locking Nut M6 |
| 6 | 118203853/0 | Cap |
| 7 | 122450456/1 | Spring |
| 8 | 122517869/1 | Pin |
| 9 | 112604896/0 | Crown Fastener |
| 10 | 122517876/0 | Pin |
| 11 | 322783013/0 | Safety Lock |
| 12 | 122450493/0 | Spring |
| Blade Pag.9 | ||
| # | Part Num. | Description |
| 1 | 112735108/1 | Screw |
| 2 | 1111-9180-01 | Blade Hub (Ø 25) |
| 2 | 122465608/3 | Hub With Pulley, Crankshaft Ø 25 |
| 3 | 1111-9293-01 | Mulching Blade (STIGA Pack) |
| 3 | 181004459/0 | Blade |
| 4 | 122160400/0 | Spring Washer |
| 5 | 112523080/0 | Washer |
| 6 | 112735698/0 | Screw |
| 7 | 112139150/0 | Key, Crankshaft Ø 25 |
| Grass Catcher Pag.10 | ||
| # | Part Num. | Description |
| 1 | 322486497/0 | Door |
| 2 | 322486496/0 | Grass Catcher, Upper Part |
| 3 | 322486150/1 | Grass Catcher, Lower Right Part |
| 3 | 322486434/0 | Grass Catcher, Lower Right Part |
| 4 | 322486151/1 | Grass Catcher, Lower Left Part |
| 4 | 322486435/0 | Grass Catcher, Lower Left Part |
| 5 | 122450479/0 | Spring |
| 6 | 122517884/0 | Pin |
| 7 | 322600355/1 | Black Stone Guard |
| 8 | 322109594/0 | Black Stone Guard Fulcrum Support |
| 9 | 112728697/0 | Screw - Self-tapping Torx PT K50x16 |
| 10 | 381008735/0 | Plastic Pin Kit |
| Engine - Carburetor, Tank Pag.11 | ||
| # | Part Num. | Description |
| 1 | 118551788/0 | Air Conveyor |
| 2 | 112292102/0 | Nut |
| 3 | 118551469/0 | Starter Assembly |
| 4 | 118550907/0 | Pin |
| 5 | 118550906/0 | Pin |
| 6 | 112791500/0 | Screw - TE M6x25 |
| 7 | 118551474/0 | Electronic Coil |
| 8 | 1111-9206-01 | Spark Plug (Rc12Yc) |
| 9 | 112789000/0 | Screw |
| 10 | 118551456/0 | Choke Control |
| 11 | 118551459/0 | Rod |
| 12 | 118551352/0 | Retainer |
| 13 | 118552610/0 | Carburetor |
| 14 | 118550930/0 | Stud |
| 15 | 118550929/0 | Gasket |
| 16 | 118552513/0 | Thermal Spacer |
| 17 | 118550927/0 | Gasket |
| 18 | 118551124/0 | Gasket |
| 19 | 118551462/0 | Air Filter Assembly |
| 20 | 118550257/0 | Air Filter |
| 21 | 118551463/0 | Air Filter Cover |
| 22 | 112292102/0 | Nut |
| 23 | 118551479/0 | Breather Tube |
| 24 | 118551480/1 | Fuel Hose |
| 25 | 118550918/0 | Hose Clamp |
| 26 | 118550314/0 | Fuel Filter |
| 28 | 118551455/0 | Fuel Cap |
| 29 | 118552647/0 | Screw |
| 30 | 118551457/0 | Throttle Rod |
| 31 | 118550933/0 | Throttle Control Lever |
| 32 | 118551458/0 | Spring |
| 33 | 118550930/0 | Stud |
| 34 | 118550898/0 | Muffler Gasket |
| 35 | 118551465/0 | Muffler |
| 36 | 118551466/0 | Muffler Guard |
| 37 | 118550806/0 | Nut |
| 38 | 118552542/0 | Bracket |
| 40 | 118551452/0 | Tank |
| Engine - Piston, Crankshaft Pag.12 | ||
| # | Part Num. | Description |
| 1 | 118550336/0 | Nut |
| 2 | 118551470/0 | Flywheel Assembly with Weights |
| 3 | 118551277/0 | Bolt |
| 4 | 112791500/0 | Screw - TE M6x25 |
| 5 | 118551521/0 | Flywheel Brake Assembly |
| 6 | 118551522/0 | Spring |
| 7 | 118550300/0 | Oil Seal |
| 8 | 118552646/0 | Screw |
| 9 | 118552526/0 | Cover |
| 10 | 118552527/0 | Gasket |
| 11 | 112790500/0 | Screw |
| 12 | 118552516/0 | Plate |
| 12 | 118552533/0 | Gear |
| 13 | 118552583/0 | Crankshaft Assembly |
| 14 | 118550288/0 | Flywheel Key |
| 16 | 118551448/0 | Camshaft |
| 18 | 112789000/0 | Screw |
| 19 | 118551460/0 | Governor Assembly |
| 20 | 118552541/0 | Governor Shaft |
| 22 | 118550935/0 | Oil Seal |
| 23 | 118550856/0 | Cotter Pin |
| 24 | 118552654/0 | Oil Seal |
| 25 | 118552569/0 | Crankcase |
| 26 | 118551117/0 | Gasket |
| 27 | 118551535/0 | Bolt |
| 28 | 118552647/0 | Screw |
| 29 | 118552577/0 | Valve Cover |
| 30 | 118550892/0 | Gasket |
| 31 | 118550893/0 | Valve Rocker Arm Set |
| 32 | 118550894/0 | Plate |
| 33 | 118550895/0 | Retainer |
| 34 | 118550896/0 | Spring |
| 35 | 118550910/0 | Intake + Exhaust Valve Assembly |
| 36 | 118551449/0 | Valve Lifter |
| 37 | 118551251/0 | Push Rod |
| 38 | 118552551/0 | Piston |
| 39 | 118552553/0 | Piston Ring Set |
| 40 | 118550915/0 | Piston Pin |
| 41 | 118550914/0 | Pin Retainer |
| 42 | 118551446/0 | Connecting Rod Assembly |
| 43 | 112791500/0 | Screw - TE M6x25 |
| 44 | 118551444/0 | Oil Level Tube Assembly |
| 45 | 112791500/0 | Screw - TE M6x25 |
| 46 | 118552511/0 | Starter Motor Assembly |
| 47 | 118552510/0 | Starter Cables |
| 48 | 118551477/1 | Battery Support |
| 49 | 118552522/0 | Support |
| Complete Engine, Engine Cover Pag.13 | ||
| # | Part Num. | Description |
| 1 | 118552675/0 | Complete Engine |
| 2 | 118120067/0 | Battery |
| 3 | 118204152/1 | Battery Charger |
| 11 | 322055631/0 | Grey Cowling |
| 12 | 322055632/0 | Shroud, Yellow |
| 13 | 322055628/0 | Grey Cowling |
| 201 | 1111-9234-01 | Do not use for Italian Market |
| 201 | 1111-9237-01 | Do not use for Italian Market |
| 201 | 1111-9244-01 | Engine oil, SAE 30 - 0.6 L |
| 202 | 1111-9235-01 | Do not use for Italian Market |
| 203 | 1111-9236-01 | Do not use for Italian Market |
| 203 | 1111-9238-01 | Do not use for Italian Market |
| 203 | 1111-9245-01 | Engine oil, SAE 30 - 1.4 L |
All technical product information in this catalog is based on information taken from official sources, including the Castelgarden manufacturer's websites, which we believe to be reliable. Unfortunately, even official documents may contain errors or misprints - we are unable to confirm that all of these data are accurate and truly represent the facts. Most manufacturers reserve the right to modify product specifications or supplement descriptions without prior notice. We strongly recommend using the published information as basic information subject to review by the Castelgarden brand. Please clarify important parameters with a sales assistant at the time of purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or reproduction (in whole or in part) without a reference to the source page is prohibited.
2L0536543/C24-ST1-2026
Data sheet
- Machine Type
- Lawn Mowers
- SHIPPING IN
- Usually Ships in 10/15 BUSINESS DAYS
- CHECK ITEM CODE OR S/N
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Specific References
Comments (0)
No customer reviews for the moment.
