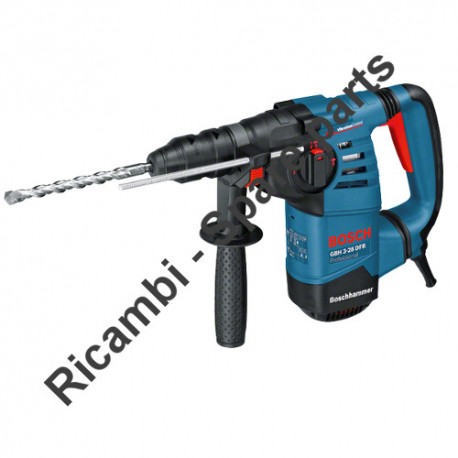

Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR

SKU: Bosch GBH 3-28 DFR 3611B4A000
€3.11
VAT included

Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR

Bosch genuine spare parts or replacements parts for to repair Rotary Hammer Bosch GBH 3-28 DFR - 3611B4A000.

Bosch GBH 3-28 DFR 3611B4A000
Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR
  • Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR
  • Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR

Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR

SKU: Bosch GBH 3-28 DFR 3611B4A000 Condition: New
€3.11
VAT included

Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR

Bosch genuine spare parts or replacements parts for to repair Rotary Hammer Bosch GBH 3-28 DFR - 3611B4A000.

Bosch GBH 3-28 DFR 3611B4A000
settings 111 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

109 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 1614220117 Field 230V €22.34
3/13
photo_cameraImage coming soon 1610905032 groove ball bearing 7x19x6 €5.35
4/101
photo_cameraImage coming soon 1614490015 Connecting Cable €2.84
4/102
photo_cameraImage coming soon 1614490016 Connecting Cable €2.84
7
Fastening Clamp for Angle grinder Bosch GWS 6-115 1601302017 Fastening Clamp for Angle grinder Bosch GWS 6-115 €1.09
9
photo_cameraImage coming soon 1611110Z42 Manufacturer's nameplate GBH 3-28 DFR €2.35
11
photo_cameraImage coming soon 1611110Z43 Reference Plate €2.35
14
photo_cameraImage coming soon 1610905044 groove ball bearing €10.46
16
photo_cameraImage coming soon 1614336064 Brush Plate €23.39
17
photo_cameraImage coming soon 1614465011 Suppression Filter €6.52
19
photo_cameraImage coming soon 1611329024 Switch Contact €1.68
26/71
photo_cameraImage coming soon 1610100016 Guide Disc €4.16
26/56
O-Ring 17,0x3,0 MM Green for Rotary Hammer Bosch GBH 3-28 DFR 1610210121 O-Ring 17,0x3,0 MM Green for Rotary Hammer Bosch GBH 3-28 DFR €2.76
26/27
photo_cameraImage coming soon 1610311019 Striker €29.51
26/29
photo_cameraImage coming soon 1613105020 Piston Pin €5.35
26
photo_cameraImage coming soon 16170006A5 Hammer Piston €67.78
32/40
O-Ring 10,5x2,7 mm for Hammers Bosch GBH 36V-VF-LI 1610210046 O-Ring 10,5x2,7 mm for Hammers Bosch GBH 36V-VF-LI €1.67
32/30
Red Knob Switch for Hammers Bosch GBH 36V-VF-LI 1612026035 Red Knob Switch for Hammers Bosch GBH 36V-VF-LI €1.67
32
Clamp Handle Black for Rotary Hammer Bosch GBH 3-28 DFR 1612026151 Clamp Handle Black for Rotary Hammer Bosch GBH 3-28 DFR €16.80
32/50
photo_cameraImage coming soon 1614611006 Compression Spring €4.71
32/20
Driver Pin for Rotary Hammer Bosch GBH 3-28 DFR 1614690009 Driver Pin for Rotary Hammer Bosch GBH 3-28 DFR €3.71
39
photo_cameraImage coming soon 1615808102 Gear Cover BLUE €13.98
45
photo_cameraImage coming soon 1610591046 Air-Deflector Ring €2.35
47
photo_cameraImage coming soon 1610283047 Rotary shaft lip seal €16.04
48/1
photo_cameraImage coming soon 1610210208 O-Ring 24,0x2,0 MM €2.13
48
photo_cameraImage coming soon 1610290102 Bearing Ring €8.15
49
photo_cameraImage coming soon 1615700044 End Shield €2.77
52/18
photo_cameraImage coming soon 1610290098 Clutch Sleeve €4.58
52/52
photo_cameraImage coming soon 1615108154 Cover BLACK €9.82
53
photo_cameraImage coming soon 1610210245 O-Ring €3.80
54
Intermediate Ring for Angle Grinder Bosch GWS 6-115 1600502023 Intermediate Ring for Angle Grinder Bosch GWS 6-115 €3.04
55
photo_cameraImage coming soon 1610210206 Seal ring 63,0x5,0 MM €7.24
63/64
photo_cameraImage coming soon 1610390069 Bushing €18.61
63/63
photo_cameraImage coming soon 1610910063 Needle bearing Ø30xØ37x12 MM €5.78
66
photo_cameraImage coming soon 1610202021 Plain bearing €20.15
68
photo_cameraImage coming soon 1610283036 Rotary shaft lip seal €30.94
74
photo_cameraImage coming soon 1613435037 Thread-forming tap. Screw €1.42
75
Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
76
photo_cameraImage coming soon 2603490027 Torx Oval-Head Screw 4x40 €15.53
77
photo_cameraImage coming soon 1613490017 Thread-forming tap. Screw M4x30 DIN7500-1 T-20 €20.15
78/1
photo_cameraImage coming soon 1610102086 Shim 0,3mm €1.96
78/1
photo_cameraImage coming soon 1610102087 Shim 0,15mm €1.96
78/1
photo_cameraImage coming soon 1610102090 Shim 0,45mm €1.73
79
photo_cameraImage coming soon 1613435023 Thread-forming tap. Screw €15.53
80
photo_cameraImage coming soon 1613435038 Lens Head Screw €1.42
81/193
photo_cameraImage coming soon 1612026126 Switch-Pawl RED €2.84
81/80
photo_cameraImage coming soon 1615133033 Handle BLUE €11.18
82
photo_cameraImage coming soon 16170006AE Handle Cover BLACK €12.53
83/194
photo_cameraImage coming soon 1610099013 Screw Plate BLACK €2.35
83/83
photo_cameraImage coming soon 1614690008 Leaf Spring €5.54
85
photo_cameraImage coming soon 1615500404 Cover €2.84
96
photo_cameraImage coming soon 1614601046 Retaining ring €1.62
100
photo_cameraImage coming soon 1610026003 Damping rubber €1.42
113
Switching Panel for Rotary Hammer Bosch GBH 3-28 DFR 1616325002 Switching Panel for Rotary Hammer Bosch GBH 3-28 DFR €15.97
120
photo_cameraImage coming soon 160202508Y Auxiliary Handle €26.88
120/124
photo_cameraImage coming soon 1611316021 Clamping Band Ø50 MM €7.49
120/120
photo_cameraImage coming soon 1612025058 Auxiliary Handle M8 BLACK €6.82
120/125
photo_cameraImage coming soon 1613490001 T-Head Bolt M8x80 MM €20.80
120/802
photo_cameraImage coming soon 1617000685 index turning toolholder €5.35
130
photo_cameraImage coming soon 1616333049 Gear Sleeve €43.27
135
photo_cameraImage coming soon 1614601067 Retaining ring €17.06
199/188
photo_cameraImage coming soon 1610209008 Grip-Spring Tensioning E €2.86
199/199
photo_cameraImage coming soon 1610284002 Bellows €5.54
199/43
photo_cameraImage coming soon 1612099002 Rocker Arm €2.01
199/44
photo_cameraImage coming soon 1614611025 Rocker Foot BLACK €2.36
200
photo_cameraImage coming soon 1610284007 Bellows €5.54
321/38
Catch Disc for Rotary Hammer Bosch GBH 3-28 DFR 1600A008AG Catch Disc for Rotary Hammer Bosch GBH 3-28 DFR €3.89
321/72
photo_cameraImage coming soon 1604601027 Retaining ring €15.53
321/87
photo_cameraImage coming soon 1604601028 Retaining ring A22 DIN 7993 €15.53
321/42
photo_cameraImage coming soon 1610102084 Thrust Ring €32.48
321/34
photo_cameraImage coming soon 1610190067 Supporting Disc €18.61
321/58
photo_cameraImage coming soon 1610210105 O-Ring 18,0x3,5 MM €24.77
321/60
photo_cameraImage coming soon 1610210209 O-Ring 9,5x3,5 MM €17.06
321/59
photo_cameraImage coming soon 1610283039 Rotary shaft lip seal €5.77
321/46
photo_cameraImage coming soon 1610390068 Guide Bushing €41.72
321/33
photo_cameraImage coming soon 1610590020 Holding Jacket €29.40
321/37
photo_cameraImage coming soon 1613100019 Straight Pin DIN6325-2,5x12-RIKO €17.06
321/28
photo_cameraImage coming soon 1613124097 Striker Pin €26.88
321/86
photo_cameraImage coming soon 1614601034 Retaining ring €18.61
321/50
photo_cameraImage coming soon 1614615008 Compression Spring €27.86
321/22
photo_cameraImage coming soon 1616312004 Cylindrical Gear €37.10
321
photo_cameraImage coming soon 16170006BV Toolholder €150.18
390/91
photo_cameraImage coming soon 1610200033 Thrust ring €3.05
390/89
photo_cameraImage coming soon 1610499059 Guide Sleeve €4.93
390/90
photo_cameraImage coming soon 1610590016 Collar Sleeve €4.93
390/97
photo_cameraImage coming soon 1614601047 Retaining ring €1.62
390/95
photo_cameraImage coming soon 1614643016 Compression Spring €2.19
661
Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
688
photo_cameraImage coming soon 1613001009 Depth-Gauge SW 6x210 MM €9.00
801
photo_cameraImage coming soon 1617000689 Motor Housing BLUE €67.78
803
photo_cameraImage coming soon 1617000690 Armature 230V €137.57
805
photo_cameraImage coming soon 1607000392 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €23.53
808
photo_cameraImage coming soon 1601106035 Nameplate 26x42 MM €2.53
811
photo_cameraImage coming soon 1607000485 Carbon-Brush Set 10 x 1 617 000 525 €130.01
811
Carbon Brushes for Hammers Bosch GBH2-23RE-2-26DFR 1617000525 Carbon Brushes for Hammers Bosch GBH2-23RE-2-26DFR €13.57
818
photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
820
photo_cameraImage coming soon 1617000691 Intermediate Flange €49.18
821
photo_cameraImage coming soon 16170006BU Tool Holding Fixture €89.79
824
photo_cameraImage coming soon 1617000A38 Jack Shaft €102.67
825/203
Front Hood for Hammer Bosch GBH-PBH 1610508047 Front Hood for Hammer Bosch GBH-PBH €2.89
825
photo_cameraImage coming soon 1617000895 Tool Holding Fixture €89.29
826/137
photo_cameraImage coming soon 1610109019 Rubber Disc €1.31
828
photo_cameraImage coming soon 16170006A7 Striker Pin €67.78
830
photo_cameraImage coming soon 1617000698 Gear Sleeve €50.97
840
photo_cameraImage coming soon 1617000699 Impact Mechanism Housing BLACK €75.53
890
photo_cameraImage coming soon 1617000V41 Guide Sleeve €13.42
42464
Switch for Demolition Hammer Bosch GBH 3-28 DFR 1617200127 Switch for Demolition Hammer Bosch GBH 3-28 DFR €40.06
42493
photo_cameraImage coming soon 1616610104 Fan €8.18
42525
photo_cameraImage coming soon 1600703034 Grommet Ø7,3-Ø8,6x66 MM €2.58

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Rotary Hammer Bosch GBH 3-28 DFR

Bosch genuine spare parts or replacements parts for to repair Rotary Hammer Bosch GBH 3-28 DFR - 3611B4A000.

In the following table, look for the model of the Hammer and the respective parts of the code.
Bosch GBH 3-28 DFR 3611B4A000

Rotary Hammer Bosch GBH 3-28 DFR/3 611 B4A 000
# Part Num. Description
2 1614220117 Field 230V
42493 1616610104 Fan
3/13 1610905032 groove ball bearing 7x19x6
42464 1617200127 Switch
42525 1600703034 Grommet Ø7,3-Ø8,6x66 MM
4/101 1614490015 Connecting Cable
4/102 1614490016 Connecting Cable
7 1601302017 Fastening Clamp
9 1611110Z42 Manufacturer's nameplate GBH 3-28 DFR
11 1611110Z43 Reference Plate
14 1610905044 groove ball bearing
16 1614336064 Brush Plate
17 1614465011 Suppression Filter
19 1611329024 Switch Contact
26 16170006A5 Hammer Piston
26/27 1610311019 Striker
26/29 1613105020 Piston Pin
26/56 1610210121 O-Ring 17,0x3,0 MM GREEN
26/71 1610100016 Guide Disc
32 1612026151 Clamp Handle BLACK
32/20 1614690009 Driver Pin
32/30 1612026035 Switch Button RED
32/40 1610210046 O-Ring 10,5x2,7 MM
32/50 1614611006 Compression Spring
39 1615808102 Gear Cover BLUE
45 1610591046 Air-Deflector Ring
47 1610283047 Rotary shaft lip seal
48 1610290102 Bearing Ring
48/1 1610210208 O-Ring 24,0x2,0 MM
49 1615700044 End Shield
52/18 1610290098 Clutch Sleeve
52/52 1615108154 Cover BLACK
53 1610210245 O-Ring
54 1600502023 Intermediate Ring
55 1610210206 Seal ring 63,0x5,0 MM
63/63 1610910063 Needle bearing Ø30xØ37x12 MM
63/64 1610390069 Bushing
66 1610202021 Plain bearing
68 1610283036 Rotary shaft lip seal
74 1613435037 Thread-forming tap. Screw
75 2603490023 Torx Oval-Head Screw 4x20
76 2603490027 Torx Oval-Head Screw 4x40
77 1613490017 Thread-forming tap. Screw M4x30 DIN7500-1 T-20
78/1 1610102086 Shim 0,3mm
78/1 1610102087 Shim 0,15mm
78/1 1610102090 Shim 0,45mm
79 1613435023 Thread-forming tap. Screw
80 1613435038 Lens Head Screw
81/80 1615133033 Handle BLUE
81/193 1612026126 Switch-Pawl RED
82 16170006AE Handle Cover BLACK
83/83 1614690008 Leaf Spring
83/194 1610099013 Screw Plate BLACK
85 1615500404 Cover
96 1614601046 Retaining ring
100 1610026003 Damping rubber
113 1616325002 Switching Panel
120 160202508Y Auxiliary Handle
120/120 1612025058 Auxiliary Handle M8 BLACK
120/124 1611316021 Clamping Band Ø50 MM
120/125 1613490001 T-Head Bolt M8x80 MM
120/802 1617000685 index turning toolholder
130 1616333049 Gear Sleeve
135 1614601067 Retaining ring
199/43 1612099002 Rocker Arm
199/44 1614611025 Rocker Foot BLACK
199/188 1610209008 Grip-Spring Tensioning E
199/199 1610284002 Bellows
200 1610284007 Bellows
321 16170006BV Toolholder
321/22 1616312004 Cylindrical Gear
321/28 1613124097 Striker Pin
321/33 1610590020 Holding Jacket
321/34 1610190067 Supporting Disc
321/37 1613100019 Straight Pin DIN6325-2,5x12-RIKO
321/38 1600A008AG Catch Disk
321/42 1610102084 Thrust Ring
321/46 1610390068 Guide Bushing
321/50 1614615008 Compression Spring
321/58 1610210105 O-Ring 18,0x3,5 MM
321/59 1610283039 Rotary shaft lip seal
321/60 1610210209 O-Ring 9,5x3,5 MM
321/72 1604601027 Retaining ring
321/86 1614601034 Retaining ring
321/87 1604601028 Retaining ring A22 DIN 7993
390/89 1610499059 Guide Sleeve
390/90 1610590016 Collar Sleeve
390/91 1610200033 Backup ring
390/95 1614643016 Compression Spring
390/97 1614601047 Retaining ring
661 1615430010 Grease Tube 30 ML
688 1613001009 Depth-Gauge SW 6x210 MM
801 1617000689 Motor Housing BLUE
803 1617000690 Armature 230V
805 1607000392 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
808 1601106035 Nameplate 26x42 MM
811 1617000525 Carbon-Brush Set
811 1607000485 Carbon-Brush Set 10 x 1 617 000 525
818 2603410001 Socket head cap screw M3x6,5-4.8
820 1617000691 Intermediate Flange
821 16170006BU Tool Holding Fixture
824 1617000A38 Jack Shaft
825 1617000895 Tool Holding Fixture
825/203 1610508047 Protective Cap
826/136 1610205014 Felt Disc
826/137 1610109019 Rubber Disc
828 16170006A7 Striker Pin
830 1617000698 Gear Sleeve
840 1617000699 Impact Mechanism Housing BLACK
890 1617000V41 Guide Sleeve
895 1615438426 Lock for 1 615 438 395
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 3-28 DFR 3611B4A000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GBH 3-28 DFR

Diagram Bosch GBH 3-28 DFR

Download (107.02KB)

You might also like

Bosch SKU: Bosch GWS20-230
Angle grinder Bosch GWS20-230 Angule grinder machine Blue Line. Power Consumption 2000 W. Power Output 1200 W
Last items in stock €177.15
Bosch SKU: GBH 3-28 DFR SDS Plus 061124A000
Hammer Bosch GBH 3-28 DFR SDS Plus 800W Maximum performance with low vibration - High feed in drilling and chiselling performance 20% higher than other rotary hammers in its class - Replaceable spindle to move rapidly from the impact...
Bosch SKU: 1615430010
Grease Tube 30 ML for Bosch Hammer GBH-GSH Genuine spare parts Bosch, Grease Tube 30 ML for Bosch Hammer GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH...
on 7/10 Business Days Approx €9.33
Bosch SKU: 1610508047
Front Hood for Hammer Bosch GBH-PBH Original parts Bosch, Front Hood for Hammer Bosch GBH 36 VF-LI/3 611 J01 R00 - GBH 36 V-LI/3 611 J00 R00 - GBH 3-28 DFR/3 611 B4A 000 - GBH 2-26 DFR/0 611 254 703 - GBH 2-23 RE/3 611 B50 400 - PBH...
Last items in stock €2.89
Bosch SKU: 1617200127
Switch for Demolition Hammer Bosch GBH 3-28 DFR Bosch original part, Switch for Demolition Hammer Bosch GBH 3-28 DFR/3 611 B4A 000 Part for the following products: - Demolition Hammer Bosch GBH 3-28 DFR...
Last items in stock €40.06
Bosch SKU: 1612026151
Clamp Handle Black for Rotary Hammer Bosch GBH 3-28 DFR Bosch original part, Clamp Handle Black for Rotary Hammer Bosch GBH 3-28 DFR/3 611 B4A 000 - GBH 2-20 D/3611B5A400. Part for the following products: - Rotary Hammer GBH 2-20...
AVAILABLE €16.80
Bosch SKU: 1614690009
Driver Pin for Rotary Hammer Bosch GBH 3-28 DFR Bosch original part, Driver Pin for Rotary Hammers Bosch GBH 3-28 DFR/3 611 B4A 000 - GBH 2-20 D/3611B5A400. Part for the following products: - Rotary Hammer GBH 3-28 DFR/3 611 B4A 000 -...
AVAILABLE €3.71
Bosch SKU: 1616325002
Switching Panel for Rotary Hammer Bosch GBH 3-28 DFR Bosch original part, Switching Panel for Rotary Hammers Bosch GBH 3-28 DFR/3 611 B4A 000. Part for the following products: - Rotary Hammer Bosch GBH 3-28 DFR/3611B4A000 - Demolition...
Last items in stock €15.97
Bosch SKU: 1610210121
O-Ring 17,0x3,0 MM Green for Rotary Hammer Bosch GBH 3-28 DFR Bosch original part, O-Ring 17,0x3,0 MM Green for Rotary Hammer GBH 3-28 DFR - 3-28 DRE - PBH 300 E Part for the following products: -  3611B4A000 GBH 3-28 DFR - Rotary...
on 7/10 Business Days Approx. €2.76
Comments (0)
