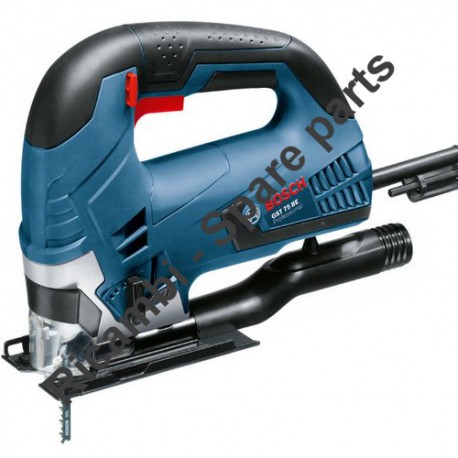

Bosch Spare Parts for Jig Saw GST 75 BE

SKU: Bosch GST 75 BE - 0603382704
€32.15
VAT included

Bosch Spare Parts for Jig Saw GST 75 BE

Bosch original spare parts for to replace broken parts for to fix Jig Saw GST 75 BE - 0603382704.

Jig Saw GST 75 BE - 0603382704
Bosch Spare Parts for Jig Saw GST 75 BE
  • Out-of-Stock
  • Bosch Spare Parts for Jig Saw GST 75 BE
  • Bosch Spare Parts for Jig Saw GST 75 BE
Bosch

Bosch Spare Parts for Jig Saw GST 75 BE

SKU: Bosch GST 75 BE - 0603382704 Condition: New
€32.15
VAT included

Bosch Spare Parts for Jig Saw GST 75 BE

Bosch original spare parts for to replace broken parts for to fix Jig Saw GST 75 BE - 0603382704.

Jig Saw GST 75 BE - 0603382704
settings 47 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
Machine Type: Jigsaw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 2604220655 Expanding Polar 220-240V €0.00 Not available for order
3
 photo_cameraImage coming soon 2604011234 Armature 220-240V €57.28
3/50
 Fan for Hammer Drill Bosch GSB 18-2 RE 2606610029 Fan for Hammer Drill Bosch GSB 18-2 RE €3.60
4
 photo_cameraImage coming soon 2607200581 Switch Opens Closes €24.34 Not available for order
6
 photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
13
 photo_cameraImage coming soon 2600905021 Rigid bearing 9x24x7 BALL €8.48
14
 Flanged Bearing for Jig Saw Bosch GST 75 BE 2605805008 Flanged Bearing for Jig Saw Bosch GST 75 BE €6.04
16
 photo_cameraImage coming soon 2604337085 As a stand brush holder €9.70
25
 photo_cameraImage coming soon 2603105080 Adjustment Bolt €2.38
29
 photo_cameraImage coming soon 2600914022 Needle roller bearings €6.04
30
 photo_cameraImage coming soon 2600101048 Washer Compensation 0.5 MM €1.16
32
 Shim mm 0.5 for Jig Saw Bosch GST 75 BE 2600101077 Shim mm 0.5 for Jig Saw Bosch GST 75 BE €1.16
33
 photo_cameraImage coming soon 2601923012 A lever Intaglio €3.60
35
 photo_cameraImage coming soon 2603105091 Adjustment Bolt €2.38
36
 photo_cameraImage coming soon 2600100588 Washer Compensation 0.5 MM €1.16
37
 photo_cameraImage coming soon 2601098060 Counterweight €9.70 Not available for order
38
 photo_cameraImage coming soon 1903201054 Roll 4x15,8 MM €0.00 Not available for order
40
 photo_cameraImage coming soon 2600780147 Rod Lift €0.00 Not available for order
41
 photo_cameraImage coming soon 2605801038 Bearing Radente €6.04
42
 photo_cameraImage coming soon 2604613004 Compression spring €1.16
43
 photo_cameraImage coming soon 2603201089 Roll €4.82
44
 photo_cameraImage coming soon 2603105084 Adjustment Bolt €1.16
46
 photo_cameraImage coming soon 2602317037 Profiled strip €0.00 Not available for order
47
 Base Plate Fixing for Jigsaw Bosch PST650L-680E-680EL 2600040003 Base Plate Fixing for Jigsaw Bosch PST650L-680E-680EL €2.38
48
 Socket Head Cap Screw for Jigsaw Bosch PST 650 2603413034 Socket Head Cap Screw for Jigsaw Bosch PST 650 €1.16
58
 photo_cameraImage coming soon 2601321051 Lever Roller €0.00 Not available for order
59
 photo_cameraImage coming soon 2917550101 Cylindrical pin DIN 6325-4m6x20 €0.00 Not available for order
60
 photo_cameraImage coming soon 2601015077 PLATE SEAL €1.16
64
 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE 2600590006 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE €2.38
65
 photo_cameraImage coming soon 2601038111 Element Crash €0.00 Not available for order
67
 photo_cameraImage coming soon 2602026096 Switching element €1.16
69
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.16
71
 photo_cameraImage coming soon 2608040148 Shell To Handle €4.82
75
 photo_cameraImage coming soon 2605510169 Hood €0.00 Not available for order
78
 photo_cameraImage coming soon 2603105088 Safety pin €1.16
82
 photo_cameraImage coming soon 2604448127 Connection Cable L = 220 MM WHITE €0.00 Not available for order
219
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.16
801
 photo_cameraImage coming soon 2605105929 Shell casing BLUE €31.66
805
 photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.44
808
 photo_cameraImage coming soon 2601117575 Nameplate Indictor €2.38
809
 photo_cameraImage coming soon 2601116649 Targa manufacturing €2.38
816/070
 Carbon Brushes for Rotorbital Sander Bosch PEX 270 A 2604321925 Carbon Brushes for Rotorbital Sander Bosch PEX 270 A €8.48
826
 photo_cameraImage coming soon 2605807936 Beam Carrier €21.90 Not available for order
827
 photo_cameraImage coming soon 2606320904 On the eccentric gear €21.90 Not available for order
834
 photo_cameraImage coming soon 2916640001 Ring DIN held 471-4x0,4-FSt €0.00 Not available for order
839
 Retaining Spring DIN 471-8x0,8 FSt for Jig Saw Bosch GST 75 BE 2916640005 Retaining Spring DIN 471-8x0,8 FSt for Jig Saw Bosch GST 75 BE €1.16
891
 photo_cameraImage coming soon 2603410046 Screw Phillips M3x5 €2.38
895
 photo_cameraImage coming soon 2601320027 Closing €2.38

Shipping and delivery information will be available shortly.

Bosch Spare Parts for Jig Saw GST 75 BE

Bosch original spare parts for to replace broken parts for to fix Jig Saw GST 75 BE - 0603382704.

In the following table, look for the model of the jig Saw and the respective parts of the code.
Bosch GST 75 BE - 0603382704

GST 75 BE/0 603 382 704
# Part Num. Description
2 2604220655 Expanding Polar 220-240V
3 2604011234 Armature 220-240V
3/50 2606610029 Fan
4 2607200581 Switch Opens Closes
6 2600703017 Nozzle Ø6.4 MM-Ø7,2x76
13 2600905021 Rigid bearing 9x24x7 BALL
14 2605805008 A support flange
16 2604337085 As a stand brush holder
25 2603105080 Adjustment Bolt
29 2600914022 Needle roller bearings
30 2600101048 Washer Compensation 0.5 MM
32 2600101077 Washer Compensation 0.5 MM
33 2601923012 A lever Intaglio
35 2603105091 Adjustment Bolt
36 2600100588 Washer Compensation 0.5 MM
37 2601098060 Counterweight
38 1903201054 Roll 4x15,8 MM
40 2600780147 Rod Lift
41 2605801038 Bearing Radente
42 2604613004 Compression spring
43 2603201089 Roll
44 2603105084 Adjustment Bolt
45
46 2602317037 Profiled strip
47 2600040003 Plate Fasteners
48 2603413034 Socket Head Screw
58 2601321051 Lever Roller
59 2917550101 Cylindrical pin DIN 6325-4m6x20
60 2601015077 PLATE SEAL
64 2600590006 Cap Crash
65 2601038111 Element Crash
67 2602026096 Switching element
69 2603490022 A Torx Head Sego 4x16
71 2608040148 Shell To Handle
75 2605510169 Hood
78 2603105088 Safety pin
82 2604448127 Connection Cable L = 220 MM WHITE
219 2603490022 A Torx Head Sego 4x16
801 2605105929 Shell casing BLUE
805 1607000386 Line Connection EU 230V
4,15m 2 x 1.0mm H05 RN-F
808 2601117575 Nameplate Indictor
809 2601116649 Targa manufacturing
816/070 2604321925 Brushes series
826 2605807936 Beam Carrier
827 2606320904 On the eccentric gear
834 2916640001 Ring DIN held 471-4x0,4-FSt
839 2916640005 Ring DIN held 471-8x0,8 FSt
891 2603410046 Screw Phillips M3x5
895 2601320027 Closing

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of
Bosch GST 75 BE - 0603382704

Data sheet

SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
Machine Type
Jigsaw

Specific References

New

Download

Diagram Bosch GST 75 BE

Diagram Bosch GST 75 BE

Download (90.44KB)
