Bosch genuine replacement parts for to replace broken parts for to fix Angle Grinder GWS 22-230 JH - 3601H82200.

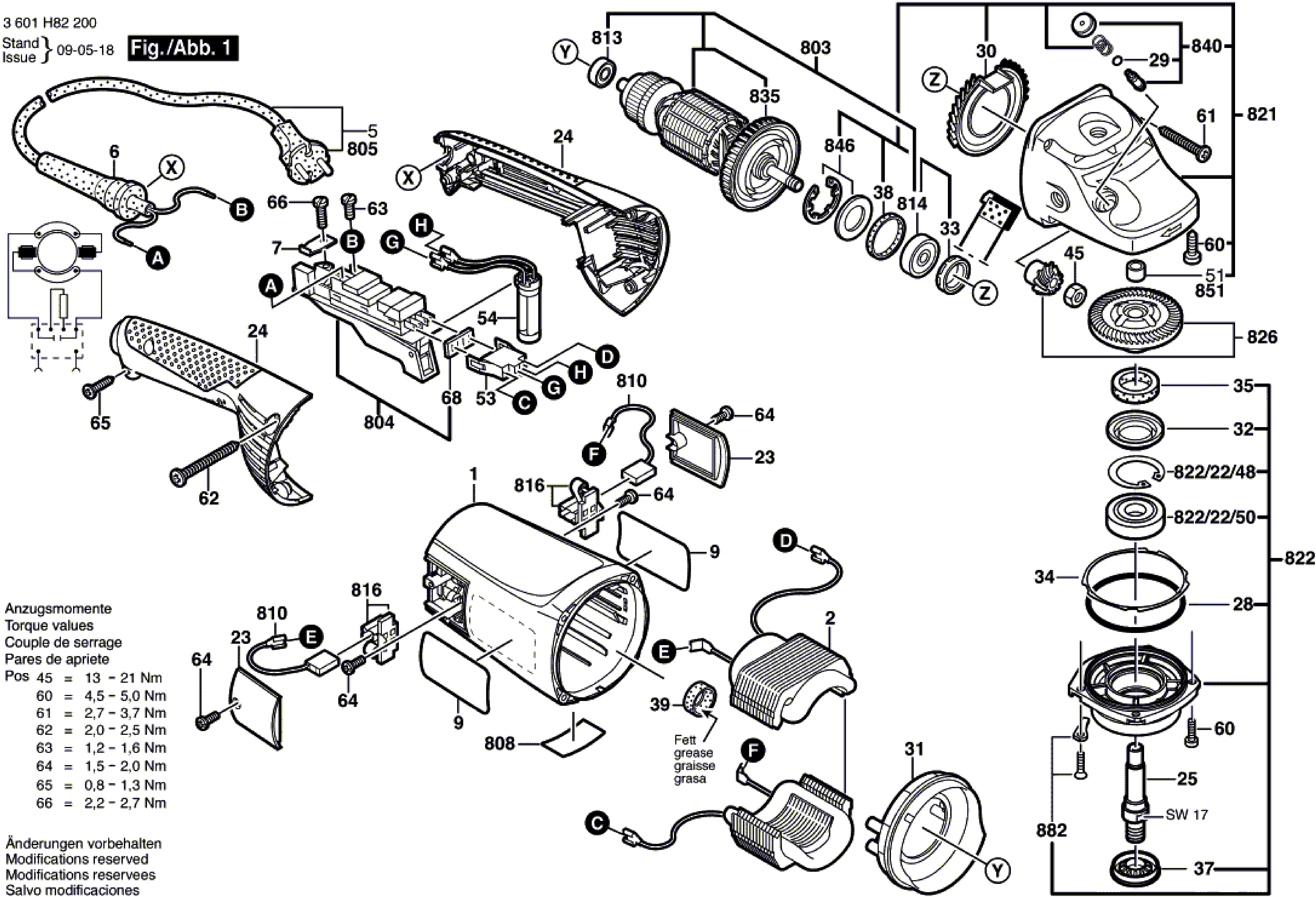

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder GWS 22-230 JH/3 601 H82 200 | ||
| # | Part Num. | Description |
| 1 | 1605108275 | Motor Housing |
| 2 | 1604220445 | Field 230V |
| 6 | 1600703036 | Grommet Ø10,5-Ø11,0x100 MM |
| 7 | 1601302018 | Fastening Clamp |
| 9 | 1601118D11 | Manufacturer's nameplate |
| 23 | 1605500206 | Sealing cap BLUE |
| 24 | 1605132149 | Handle BLUE |
| 25 | 1603523113 | Grinding Spindle M14, SW17 |
| 28 | 1600210033 | O-Ring 79,0x1,78 MM |
| 29 | 1600210045 | O-Ring 8,0x1,0 MM |
| 30 | 1600591029 | Air Distributor |
| 31 | 1600591028 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal 18,7 MM |
| 34 | 1600190020 | Shim 0,15 MM THICK |
| 34 | 1600190021 | Shim 0,3 MM THICK |
| 34 | 1600190022 | Shim 0,1 MM THICK |
| 34 | 1600190037 | Shim 0,2 MM THICK |
| 34 | 1600190038 | Shim 0,25 MM THICK |
| 34 | 1600190039 | Shim 0,35 MM THICK |
| 34 | 1600190040 | Shim 0,4 MM THICK |
| 35 | 1600205034 | Felt Washer |
| 37 | 1600290036 | Seal ring BLACK |
| 38 | 1600206020 | Rubber Ring 7 MM WIDE |
| 39 | 1600206030 | Rubber Ring |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 53 | 1605190068 | Socket Housing |
| 54 | 1604503015 | Wirewound Resistor |
| 60 | 1603435023 | Thread-forming tap. Screw TT M5x18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8x38-C-Z-ST |
| 62 | 1603435060 | Tapping Screw 4,8x55 |
| 63 | 1603410014 | Pan head screw M4x10 MM |
| 64 | 1603435042 | Self-Cutting Screw St3,9x12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9x19-C-Z-ST |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9x16-F |
| 68 | 1601006011 | Sealing Plate |
| 651 | 1605510407 | Protective Cover Ø230 MM |
| 803 | 1604011296 | Armature 230V |
| 804 | 1607000479 | On-Off Switch |
| 805 | 1607000227 | Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F |
| 808 | 1601106032 | Nameplate 26x52 MM |
| 810 | 1607014171 | Carbon-Brush Set |
| 810 | 1607000480 | Carbon-Brush Set 10 x 1 607 014 171 |
| 813 | 1600905011 | Deep-Groove Ball Bearing 8x22x7 |
| 814 | 1600905028 | Deep-Groove Ball Bearing |
| 816 | 1604336048 | Brush Holder |
| 821 | 1607000C03 | Gear Housing |
| 822 | 1607000C22 | Bearing Flange Ø230 MM |
| 822/22/48 | 1600119010 | Spring retaining ring |
| 822/22/50 | 1600905026 | Deep-Groove Ball Bearing 17x40x12 |
| 826 | 1619P02776 | Bevel Gear Set |
| 835 | 1606610142 | Fan |
| 840 | 1607000354 | Push-Button |
| 846 | 1607000342 | Retaining Washer |
| 851 | 2600910001 | Needle bearing Ø14 MM |
| 882 | 1619P06597 | Stopper |
| 890 | 1600210039 | O-Ring 20,35x1,78 MM |
| 891 | 1602025022 | Auxiliary Handle M14 BLACK |
| 891/1 | 1602025051 | Auxiliary Handle M14 BLACK |
| 892 | 1607950061 | Pin-Type Face-Wrench |
| 893 | 2605703014 | Clamping-Flange Ø22,3xØ42 MM |
| 894 | 1603345043 | Round Nut M14 |
| 896 | 1603340027 | Fast Locking Flange M14, SDS-CLIC |
