FIAC spa

Black & Decker Air Compressor CP2525 9102420100 Spare Parts

SKU: Black&Decker CP 2525 9102420200
€277.08
VAT included

Black & Decker Air Compressor CP2525 9102420100 Spare Parts

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 2525 9102420100 Validity date - from 09/02/2004.

Black & Decker Air Compressor CP2525 9102420100 Spare Parts
  • Black & Decker Air Compressor CP2525 9102420100 Spare Parts
  • Black & Decker Air Compressor CP2525 9102420100 Spare Parts - Drawing
FIAC spa

Black & Decker Air Compressor CP2525 9102420100 Spare Parts

SKU: Black&Decker CP 2525 9102420200 Condition: New
€277.08
VAT included

Black & Decker Air Compressor CP2525 9102420100 Spare Parts

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 2525 9102420100 Validity date - from 09/02/2004.

settings 24 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
24 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

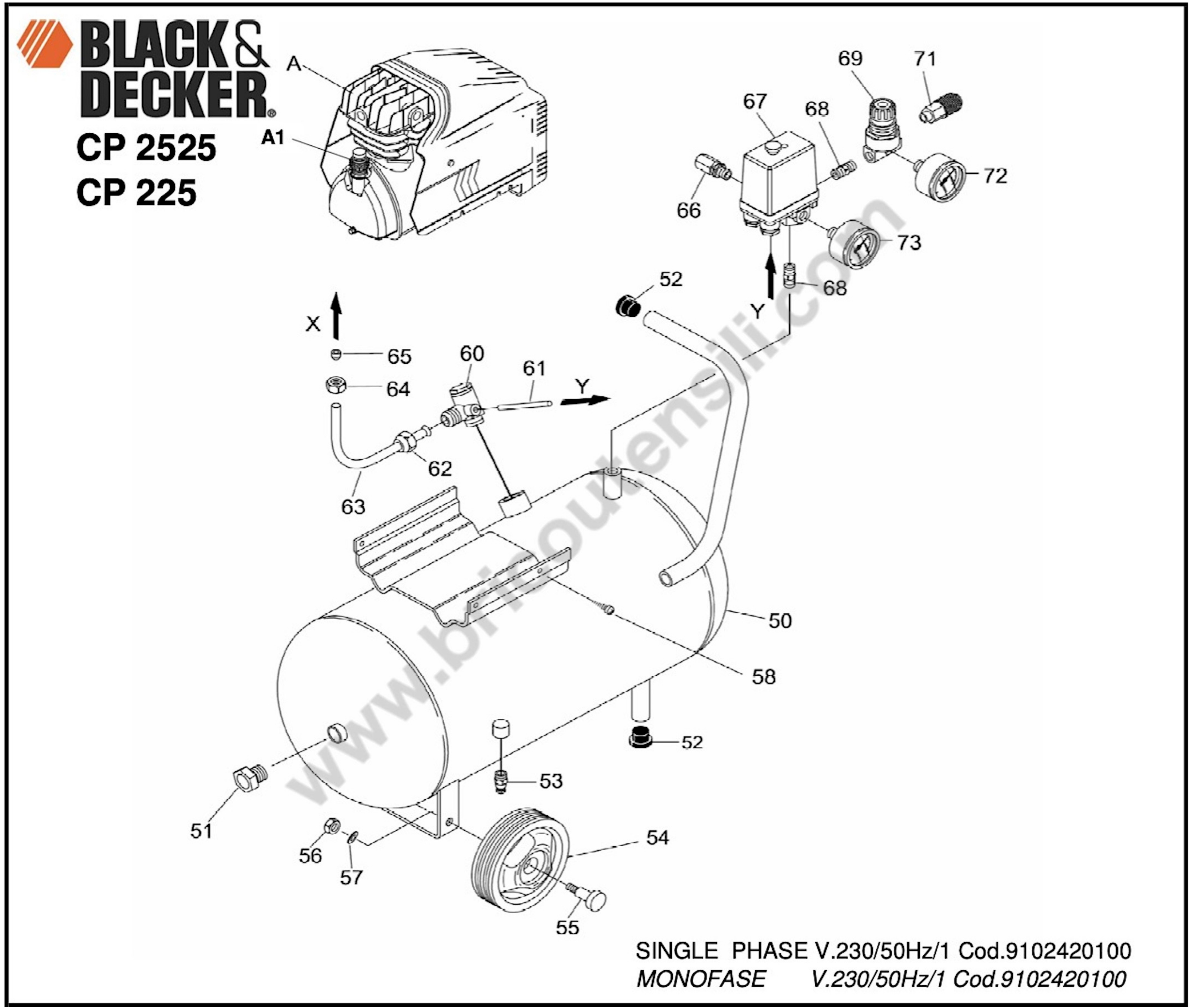

Esploso pagina 1
Pos. Item Price Buy
Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP 7181150000 Dipstick level Oil for Pump Unit and Compressors GM-MB-MCX-CP €10.95
50
 photo_cameraImage coming soon 5153950008 24lt tank €269.02
51
 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S 9100010750 Tank Cap for Pumping Unit Fiac Cosmos 225S-250S €5.39
52
 Rubber Footh for Air Compressors Black & Decker CP 2525 - CP 5050 9100010380 Rubber Footh for Air Compressors Black & Decker CP 2525 - CP 5050 €9.12
53
 Drain Valve D. 3/8" for Air Compressors Fiac COSMOS 225 S-255 S 9700000324 Drain Valve D. 3/8" for Air Compressors Fiac COSMOS 225 S-255 S €7.17
54
 Wheel D.125x30 for Air Compressor Black&Decker CP2525 9100010450 Wheel D.125x30 for Air Compressor Black&Decker CP2525 €14.37
55
 Wheel Pin 15MM for Air Compressor Black&Decker CP2525 9100010390 Wheel Pin 15MM for Air Compressor Black&Decker CP2525 €2.20
56
 photo_cameraImage coming soon 7020080000 Nut M10 UNI-5588 €1.45
57
 photo_cameraImage coming soon 7030040000 Washer Ø10 UNI-6592 €1.45
58
 photo_cameraImage coming soon 7012290000 Screw M5X20 TAP-TITE €24.21
59
 photo_cameraImage coming soon 9100010400 power cable €12.65
60
 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
61
 Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
62
 Aluminium Pipe Nut 3/8" for Air Compressor FIAC COSMOS 225-255 S 9700000327 Aluminium Pipe Nut 3/8" for Air Compressor FIAC COSMOS 225-255 S €2.48
63
 Aluminium Pipe for Air Compressor FIAC COSMOS 225 S 9700000342 Aluminium Pipe for Air Compressor FIAC COSMOS 225 S €12.15
64
 Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S 9700000325 Aluminium Pipe Nut M 10 for Air Compressor FIAC COSMOS 225-255 S €2.84
65
 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 7041070000 Aluminium Pipe Ø10 Bushing for Air Compressors FIAC COSMOS S 225-255 €4.37
66
 FIAC Safety Valve M1-4-9Bar 9700000303 FIAC Safety Valve M1-4-9Bar €10.71
67
 Pressure Switch 10 BAR CE for FIAC Air Compressors 9700000388 Pressure Switch 10 BAR CE for FIAC Air Compressors €42.54
68
 FIAC Joint for COSMOS 225 S 9700000330 FIAC Joint for COSMOS 225 S €7.19
69
 Pressure Regulator for Air Compressor 25/50 lt 7100640000 Pressure Regulator for Air Compressor 25/50 lt €25.40
71
 photo_cameraImage coming soon 9700000276 universal tap €16.78
72
 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
73
 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX 7110300000 Pressure Gauge Ø50-1/4" for Air Compressors Fiac Cosmos-ECU-FX €19.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Black & Decker Air Compressor CP2525 9102420100 Spare Parts

Genuine Parts Black & Decker for piston Air Compressors and spare parts for to repair or replacement components for Air Compressor CP 2525 9102420100 Validity date - from 09/02/2004.

In the following table, look for the type of the air compressor and the respective parts of the code.
Black&Decker CP 2525 9102420100

CP 2525 9102420100 Validity date - from 01/05/2009
#
 Part Num. Description
A 9102420100 PUMP UNIT GM 142 ALUMINIUM V230/50 H75
50 5153950008 24lt tank
51 9100010750 Cap M1/2"
52 9100010380 Rubber
53 9700000324 Drain Valve 3/8"
54 9100010450 WHEEL FOR 24LT.
55 9100010390 wheel Pin
56 7020080000 Nut M10 UNI-5588
57 7030040000 Washer Ø10 UNI-6592
58 7012290000 Screw M5X20 TAP-TITE
59 9100010400 power cable
60 7190180000 Check valve MM 1.2"x3/8" -sX
61 7230010000 Rilsan tube Ø6X4
62 9700000327 Nut 3/8"
63 9700000342 Feeding Pipe
64 9700000325 nut M10
65 7041070000 Ogiva tube Ø10
66 9700000303 Valve sic. M1 / 4-9 bar
67 9700000388 pressure
68 9700000330 Fitting MM 1/4"
69 7100640000 Pressure reducer
71 9700000276 universal tap
72 7110240000 Gauge Ø40-1/8"
73 7110300000 Gauge Ø50-1/4"
A1 7181150000 Oil dipstick
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Black&Decker CP 2525 9102420200
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Black & Decker CP2525 Drawing

Black & Decker CP2525 Drawing

Download (314.9KB)
