FIAC Spare Parts for Pump Unit GM 142 Aluminium

SKU: Fiac GM142 - Aluminium
€1.48
VAT included

FIAC Spare Parts for Pump Unit GM 142 Aluminium

Distribution and Sale at attractive prices of FIAC Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Pump Unit GM 142 Aluminium 09-06-18

FIAC Spare Parts for Puming Unit GM 142 Aluminium
  • FIAC Spare Parts for Puming Unit GM 142 Aluminium
  • FIAC Spare Parts for Puming Unit GM 142 Aluminium - Drawing

FIAC Spare Parts for Pump Unit GM 142 Aluminium

SKU: Fiac GM142 - Aluminium Condition: New
€1.48
VAT included

FIAC Spare Parts for Pump Unit GM 142 Aluminium

Distribution and Sale at attractive prices of FIAC Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Pump Unit GM 142 Aluminium 09-06-18

settings 44 spare parts

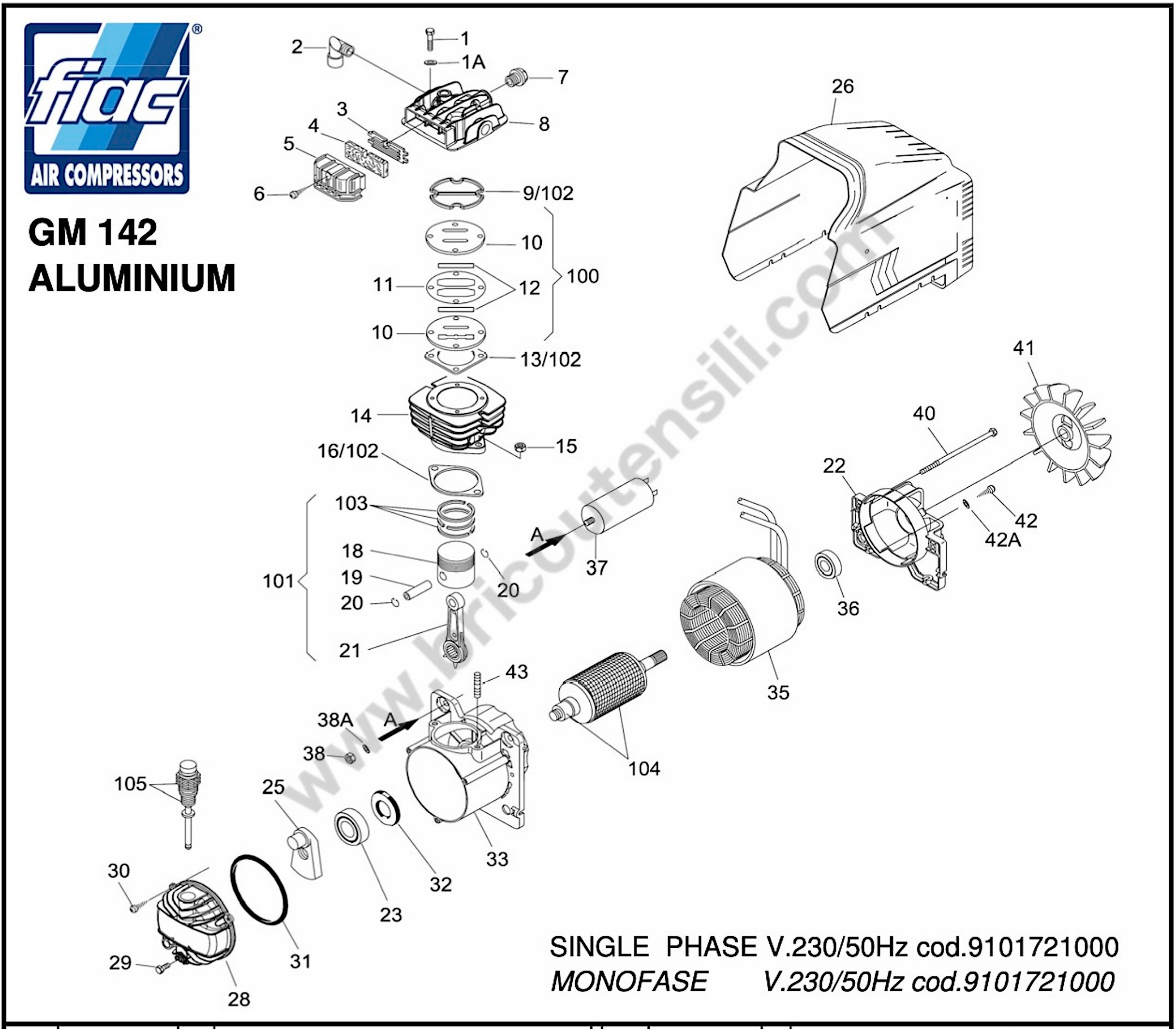

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 7011220000 Screw M6X40 UNI-5737 €1.44
2
photo_cameraImage coming soon 7084040000 Fitting "L" M3 / 8 " €9.84
3
Filter Plate for Pumping Uniti and Air Compressor Fiac 7458340000 Filter Plate for Pumping Uniti and Air Compressor Fiac €1.52
4
Air Filter Element for Pumping Units Fiac VX - VS - GM 7210010000 Air Filter Element for Pumping Units Fiac VX - VS - GM €4.37
5
Air Filter Cover for Pump Units FIAC Series VS - VX 7210430000 Air Filter Cover for Pump Units FIAC Series VS - VX €4.34
6
photo_cameraImage coming soon 7012100000 Screw Ø3,9X16 €1.38
7
Start Valve for Pumping Units GM 9100010190 Start Valve for Pumping Units GM €7.89
8
Head for Air Compressors FIAC COSMOS S 225-255 9101410070 Head for Air Compressors FIAC COSMOS S 225-255 €30.64
9
Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410080 Head Gasket for Air Compressors FIAC COSMOS S 225-255 €2.91
10
photo_cameraImage coming soon 9100010240 plate €27.84
11
Valves Plate Gasket for Pumping units FIAC GM 142-143 9100010080 Valves Plate Gasket for Pumping units FIAC GM 142-143 €4.34
12
photo_cameraImage coming soon 9100010370 valve €4.23
13
Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 9101410090 Cylinder Head Gasket for Air Compressors FIAC COSMOS S 225-255 €1.51
14
photo_cameraImage coming soon 9101410060 cylinder €25.56
15
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
16
Cylinder Gasket for Pumping Units FIAC GM 142 7078150000 Cylinder Gasket for Pumping Units FIAC GM 142 €2.94
18
photo_cameraImage coming soon 9100580050 piston €15.99
19
photo_cameraImage coming soon 9100580090 pin €3.91
20
Circlip for Pumping Units Fiac VX 194-VX 214 7041010000 Circlip for Pumping Units Fiac VX 194-VX 214 €1.52
21
Conrod for Pump Units FIAC GM-VX 5050150008 Conrod for Pump Units FIAC GM-VX €27.33
22
photo_cameraImage coming soon 9101720040 cap €21.68
23
Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 7060200000 Crank Shaft Ball Bearing 6204 for Pump Unit FIAC AB 360 €12.86
25
photo_cameraImage coming soon 9101410050 crank €20.54
26
Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S 9100030090 Pump Unit PVC Cover for Air Compressors Fiac Cosmos 225-255 S €31.27
28
photo_cameraImage coming soon 9101410020 crankcase cover €14.64
29
photo_cameraImage coming soon 7012160000 screw €1.48
30
photo_cameraImage coming soon 9700010187 screw M5x14 €1.44
31
O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 9700000016 O-Ring (110,7X3,53) for Pump Unit FIAC GM 142 €2.29
32
Oil Seal for Pumping Units FIAC AB248-338-360 9100270150 Oil Seal for Pumping Units FIAC AB248-338-360 €4.30
33
photo_cameraImage coming soon 9101720030 CARTER GM 142 STATOR ALL. H75 €55.91
35
photo_cameraImage coming soon 9101720010 Stator €192.64
36
photo_cameraImage coming soon 7060010000 Bearing 6203 ZZ 17:40:12 QE6 €13.55
37
Capacitor 25 mf for Air Compressors 7310590000 Capacitor 25 mf for Air Compressors €26.97
38A
photo_cameraImage coming soon 9700010184 washer Ø8 €1.44
40
photo_cameraImage coming soon 9100010060 prisoner M6x139 €1.48
41
Motor Fan for Pumping Units GM 142-192 9100010200 Motor Fan for Pumping Units GM 142-192 €15.06
42
photo_cameraImage coming soon 7013060000 Screw M4X8 UNI-8112 €1.48
43
Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S 9100010050 Stud Bolt M8x35x14x16 for Air Compressor Fiac Cosmos 225 S €1.28
100
Valve Plate Kit for Pump Unit FIAC GM 142 7459480000 Valve Plate Kit for Pump Unit FIAC GM 142 €26.28
101
Fiac Conrod-Piston Kit D.42MM 4190330000 Fiac Conrod-Piston Kit D.42MM €66.03
102
Gaskets Set for Pump Unit FIAC GM 142 - GM 145 4082380000 Gaskets Set for Pump Unit FIAC GM 142 - GM 145 €6.43
103
Piston Rings for Pump Unit FIAC Series GM 4080010000 Piston Rings for Pump Unit FIAC Series GM €28.26
104
photo_cameraImage coming soon 9101720060 Cranckshaft with rotor €50.87
105
photo_cameraImage coming soon 9700010061 Dipstick €10.13

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

FIAC Spare Parts for Pump Unit GM 142 Aluminium

Distribution and Sale at attractive prices of FIAC Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Pump Unit GM 142 Aluminium 09-06-18.

In the following table, look for the model of the Pumping Unit and the respective parts of the code .
Fiac GM 142 - Aluminium

GM 142 ALUMINIUM 09-06-18
SINGLE PHASE V.230/50Hz cod.9101721000
MONOFASE V.230/50Hz cod.9101721000
# Part Num. Description
1 7011220000 Screw
1A 9700010186 washer
2 7084040000 Joint
3 7458340000 Plate
4 7210010000 Filtering element
5 7210430000 Intatake filter
6 7012100000 Screw
7 9100010190 START valve 1.7Bar
8 9101410070 Head
9 9101410080 Gasket
10 9100010240 Valve plate
11 9100010080 Gasket
12 9100010370 Valve
13 9101410090 Gasket
14 9101410060 Cylinder
15 7020070000 Nut - Dado M8 UNI 5587
16 7078150000 Gasket 1mm
18 9100580050 Piston
19 9100580090 Piston pin
20 7041010000 Seeger D12
21 5050150008 Con rod
22 9101720040 Rear Cover
23 7060200000 Bearing
25 9101410050 Counter weight
26 9100030090 Plastic schroud Black
28 9101410020 Carter cover
29 7012160000 Screw
30 9700010187 Screw
31 9700000016 O-Ring (110,7X3,53)
32 9100270150 Oil seal
33 9101720030 Cranckcase
35 9101720010 Stator
36 7060010000 Bearing
37 7310590000 Capacitor
38 9700010188 Nut M8
38A 9700010184 washer D8
40 9100010060 Tension rod M6x138x25
41 9100010200 Fan
42 7013060000 Screw
42A 9700010183 washer D4
43 9100010050 Stud bolt M8x36
100 7459480000 Set of valve plate
101 4190330000 Conrod-Piston Kit
102 4082380000 Set of gaskets
103 4080010000 Piston ring Kit
104 9101720060 Cranckshaft with rotor
105 9700010061 Oil dipstick+O-ring Kit Green
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Fiac websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Fiac brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Fiac GM142 - Aluminium
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Fiac GM 142 Aluminium Drawing

Fiac GM 142 Aluminium Drawing

Download (406.56KB)
