Ama Spare Parts for Lawnmower Mulching RTM 521

SKU: RTM 521 - 90014
€3.59
VAT included

Ama Spare Parts for Lawnmower Mulching RTM 521

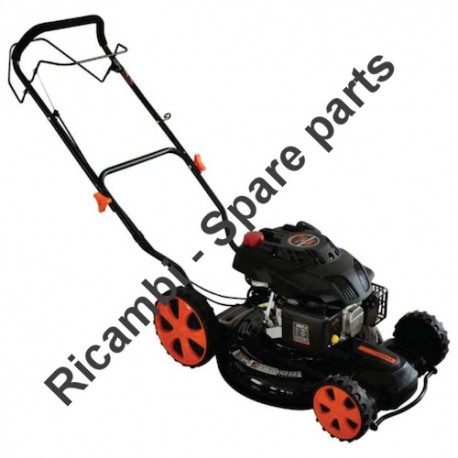

Ama original spare parts for replacing damaged parts or repairing the Self-Propelled Lawnmower 4-stroke Petrol engine MVGT475 139 cc Mulching Mode RTM 521 - 90014.

Fix Your Self-Propelled Lawnmower. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
Ama Spare Parts for Lawnmower Mulching RTM 521
  • Ama Spare Parts for Lawnmower Mulching RTM 521
  • Ama Spare Parts for Lawnmower Mulching RTM 521

Ama Spare Parts for Lawnmower Mulching RTM 521

SKU: RTM 521 - 90014 Condition: New
€3.59
VAT included

Ama Spare Parts for Lawnmower Mulching RTM 521

Ama original spare parts for replacing damaged parts or repairing the Self-Propelled Lawnmower 4-stroke Petrol engine MVGT475 139 cc Mulching Mode RTM 521 - 90014.

Fix Your Self-Propelled Lawnmower. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 49 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 90332 Upper handrail €40.24
3
photo_cameraImage coming soon 90338 Self-propelled Lever €15.12
4
photo_cameraImage coming soon 90278 Foam pipe €11.11
5
AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €5.50
6
Engine Stop Cable for Self-Propelled Lawnmower AMA RT522 84830 Engine Stop Cable for Self-Propelled Lawnmower AMA RT522 €17.48
7
photo_cameraImage coming soon 90352 Selfpropelled cable €9.35
8
photo_cameraImage coming soon 90313 Brake Cable Assy plate €6.66
12
AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
16
Lower Handle Bolt for Lawnmower AMA RT522 89893 Lower Handle Bolt for Lawnmower AMA RT522 €3.03
18
photo_cameraImage coming soon 90334 Lower handrail €35.81
21
photo_cameraImage coming soon 90317 Left handle bracket €13.40
22
photo_cameraImage coming soon 90318 Right handle bracket €13.40
23
photo_cameraImage coming soon 90342 Deck €198.42
24
photo_cameraImage coming soon 90328 Rear connection plate €18.73
25
photo_cameraImage coming soon 73201 Height adjustment ball €3.49
26
photo_cameraImage coming soon 90347 Rear drive assy. €53.67
27
AMA RTT521 Rear Wheel 89887 AMA RTT521 Rear Wheel €22.55
28
photo_cameraImage coming soon 89879 Outer cover of hub €6.65
29
photo_cameraImage coming soon 84904 Rear wheel axle sleeve €6.43
30
photo_cameraImage coming soon 90350 Selfpropelled assy. €140.87
31
photo_cameraImage coming soon 90306 V-belt €11.01
32
Lock Ring for Lawnmower AMA RT521 79423 Lock Ring for Lawnmower AMA RT521 €0.34
33
photo_cameraImage coming soon 90307 Selfpropelled spring €1.75
34
Four-Stroke Engine Model Mvg 475 For Lawnmower AMA Garden RMG380264000 Four-Stroke Engine Model Mvg 475 For Lawnmower AMA Garden €239.67
35
M8X25/8.8 Engine Bolt for Lawnmowers AMA 88628 M8X25/8.8 Engine Bolt for Lawnmowers AMA €0.89
36
photo_cameraImage coming soon 90323 Blade Adapter Assy €35.44
37
photo_cameraImage coming soon 90321 Blade €41.05
38
photo_cameraImage coming soon 90308 Blade washer €4.94
39
Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
40
photo_cameraImage coming soon 90298 Dust proof board €3.92
41
photo_cameraImage coming soon 90283 Rear shield €14.33
43
photo_cameraImage coming soon 90297 Belt cover €3.61
44
photo_cameraImage coming soon 90264 Front cover €29.12
45
photo_cameraImage coming soon 90346 Front drive assy €36.39
46
Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 89919 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 €16.61
47
Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 89920 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 €17.68
48
Ratchet Washer for Lawnmower AMA RT521 89889 Ratchet Washer for Lawnmower AMA RT521 €1.23
51
photo_cameraImage coming soon 89885 Wheel assy €17.48
52
photo_cameraImage coming soon 90296 Inner cover of hub €2.96
53
Outer Cover of Hub for Lawnmower AMA RT521 89876 Outer Cover of Hub for Lawnmower AMA RT521 €5.15
54
photo_cameraImage coming soon 90325 Height Adjustment Pull Rod €4.47
55
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €6.12
59
photo_cameraImage coming soon 90319 Left handle bracket €13.40
60
photo_cameraImage coming soon 90320 Left handle bracket €13.40
61
photo_cameraImage coming soon 90310 Rear drive bracket €2.41
62
Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
63
photo_cameraImage coming soon 90265 Grass clearing plate €17.90
67
photo_cameraImage coming soon 90295 Inner cover of hub €2.30
68
photo_cameraImage coming soon 90315 Limit plate €18.73

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower Mulching RTM 521

Ama original spare parts for replacing damaged parts or repairing the Self-Propelled Lawnmower 4-stroke Petrol engine MVGT475 139 cc Mulching Mode RTM 521 - 90014.

Fix Your Self-Propelled Lawnmower. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Fix Your Power Tool. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

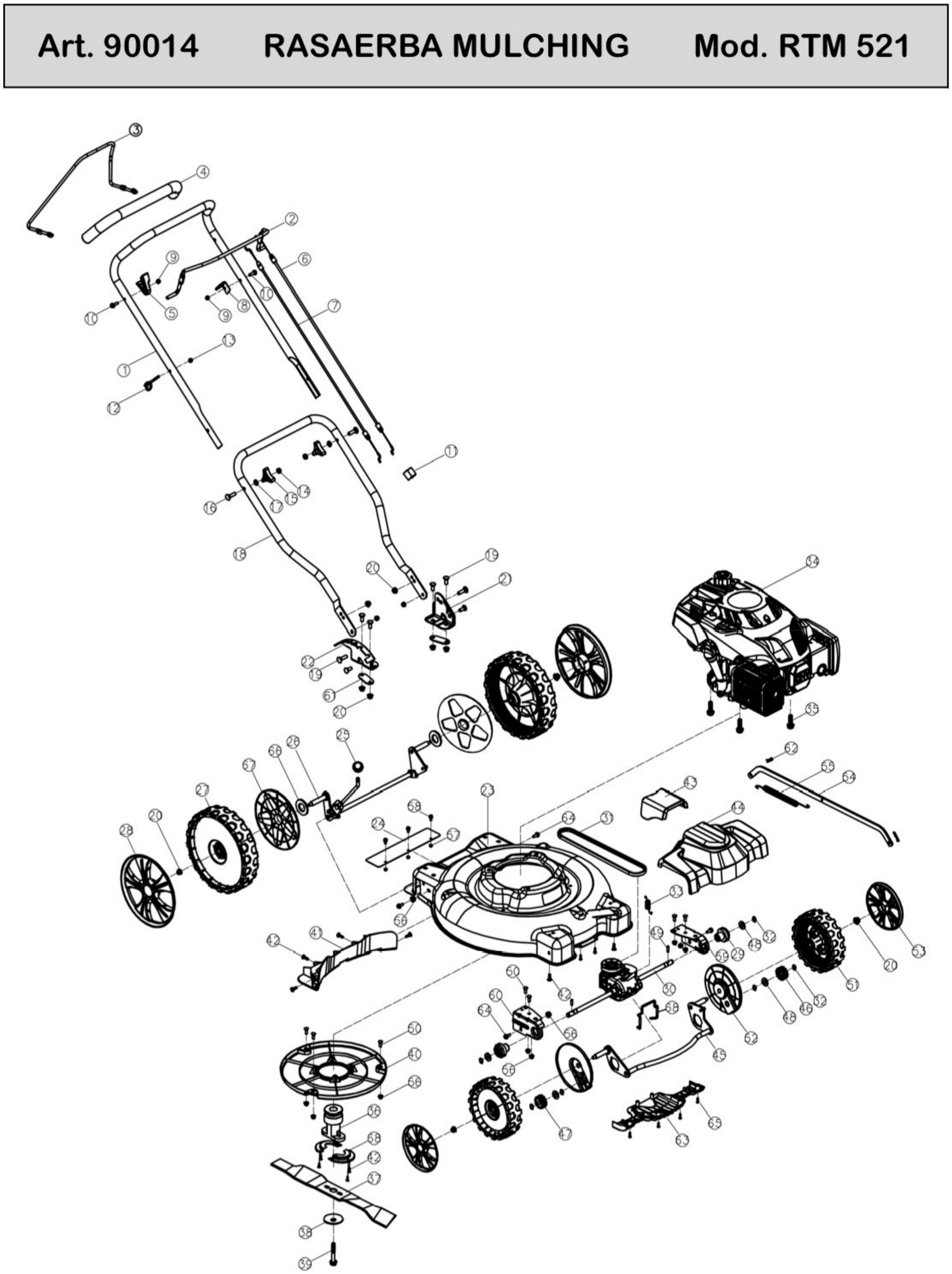

MVGT475 139 cc Mulching Mode RTM 521 - 90014

Lawnmower Mulching RTM 521 - 90014
# Part Num. Description
1 90332 Upper handrail
2 84857 Stop lever
3 90338 Self-propelled Lever
4 90278 Foam pipe
5 89399 Plastic stopper
6 84830 Engine Brake cable
7 90352 Selfpropelled cable
8 90313 Brake Cable Assy plate
9 M6/8.8 nut
10 M6x30/8.8 nut
11 90266 Fastener
12 88568 Rope Guide
13 88564 M6 cap nut
14 M8/8.8 nut
15 90258 Triangle knob
16 89893 Heterotypic Carriage Bolt M8X50/8.8
17 Φ8.4xΦ16x1.6 washer
18 90334 Lower handrail
19 M8X20/8.8 nut
20 89450 GB6187.1-M8/8.8 nut
21 90317 Left handle bracket
22 90318 Right handle bracket
23 90342 Deck
24 90328 Rear connection plate
25 73201 Height adjustment ball
26 90347 Rear drive assy.
27 89887 Wheel assy.
28 89879 Outer cover of hub
29 84904 Bush
30 90350 Selfpropelled assy.
31 90306 Li737 belt
32 79423 Φ12 washer
33 90307 Selfpropelled spring
34 RMG380264000 T475 ENGINE
35 88628 M8X25/8.8 bolt
36 90323 Blade Adapter Assy
37 90321 Blade
38 90308 Blade washer
39 84815 3/8-24UNF-2B bolt
40 90298 Dust proof board
41 90283 Rear shield
42 ST6.3X18 bolt
43 90297 Belt cover
44 90264 Front cover
45 90346 Front drive assy
46 89919 Ratchet Wheel L
47 89920 Ratchet Wheel R
48 89889 Washer
49 90303 Rachet pin
50 GB/T-14 M6X18 bolt
51 89885 Wheel assy
52 90296 Inner cover of hub
53 89876 Outer cover of hub
54 90325 Height Adjustment Pull Rod
55 73221 Pull Spring for Pull Rod
56 M6 GB/T6183 nut
57 M5/8.8 nut
58 M5X10/8.8 bolt
59 90319 Left handle bracket
60 90320 Left handle bracket
61 90310 Rear drive bracket
62 88625 Pin
63 90265 Grass clearing plate
64 M6X14/8.8 bolt
65 ST4.2X14 bolt
66 88633 Washer
67 90295 Inner cover of hub
68 90315 Limit plate
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RTM 521 - 90014
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Ama RTM 521

Diagram Ama RTM 521

Download (517.48KB)
