A.M.A. S.p.A.

Ama Spare Parts for Lawnmower RTT531B

SKU: Ama Garden RTT531B - 89545
€6.12
VAT included

Ama Spare Parts for Lawnmower RTT531B

Ama original spare parts for to fix damaged parts of the Self-Propelled Lawnmower, 53cm cut and 161 CC Briggs & Stratton petrol engine. Mulching mode, collection, rear and side discharge RTT531B - 89545.
Ama Spare Parts for Lawnmower RTT531
  • Online only
  • Ama Spare Parts for Lawnmower RTT531
  • Ama Spare Parts for Lawnmower RTT531B
  • Ama Spare Parts for Lawnmower RTT531B
  • Ama Spare Parts for Lawnmower RTT531B
  • Ama Spare Parts for Lawnmower RTT531B
  • Ama Spare Parts for Lawnmower RTT531B
  • Ama Spare Parts for Lawnmower RTT531B
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower RTT531B

SKU: Ama Garden RTT531B - 89545 Condition: New
€6.12
VAT included

Ama Spare Parts for Lawnmower RTT531B

Ama original spare parts for to fix damaged parts of the Self-Propelled Lawnmower, 53cm cut and 161 CC Briggs & Stratton petrol engine. Mulching mode, collection, rear and side discharge RTT531B - 89545.
settings 70 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Foam Rubber Handle Grip for Lawnmower AMA RS421 88566 Foam Rubber Handle Grip for Lawnmower AMA RS421 €11.90
2
 photo_cameraImage coming soon 89398 Stop lever €14.50
3
 photo_cameraImage coming soon 90338 Self-propelled Lever €15.12
4
 photo_cameraImage coming soon 89925 Upper handrail €55.96
5
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
7
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70
10
 AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €5.50
11
 Engine Stop Cable for Self-Propelled Lawnmower AMA RT522 84830 Engine Stop Cable for Self-Propelled Lawnmower AMA RT522 €17.48
12
 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H 84836 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H €17.48
13
 Lower Handle Bolt for Lawnmower AMA RT522 89893 Lower Handle Bolt for Lawnmower AMA RT522 €3.03
15
 photo_cameraImage coming soon 90257 Triangle knob €6.49
17
 photo_cameraImage coming soon 89926 Lower handrail €16.60
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 90503 Deck welding assy. €241.35
4
 photo_cameraImage coming soon 90504 Pipe connector nut €3.83
5
 photo_cameraImage coming soon 89515 Cable stopper €2.52
6
 photo_cameraImage coming soon 90505 Left handle bracket €13.95
7
 photo_cameraImage coming soon 90509 Right handle bracket €13.95
10
 photo_cameraImage coming soon 89870 Rear baffer €35.46
13
 photo_cameraImage coming soon 84938 Rear drive right bracket €3.08
14
 photo_cameraImage coming soon 84939 Rear drive left bracket €3.08
16
 photo_cameraImage coming soon 89921 Baseplate for rubber dust shield €11.03
18
 photo_cameraImage coming soon 89869 Rear discharge base €10.07
21
 photo_cameraImage coming soon 89923 Right pedestal for front drive €5.38
22
 photo_cameraImage coming soon 89924 Left pedestal for front drive €5.38
25
 photo_cameraImage coming soon 90507 Front bumper €18.90
28
 photo_cameraImage coming soon 89863 Deck front mask €24.19
29
 photo_cameraImage coming soon 90508 Height Adjustment Pull Rod €17.89
31
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €6.12
33
 photo_cameraImage coming soon 89862 Mulching plug €19.91
34
 Four-Stroke Engine Model Mvg 675 For Lawnmower AMA Garden 88456 Four-Stroke Engine Model Mvg 675 For Lawnmower AMA Garden €332.48
35
 photo_cameraImage coming soon 89839 Side discharge cover €11.70
36
 photo_cameraImage coming soon 90506 Mulching board €6.59
37
 photo_cameraImage coming soon 89899 Mulch board spring €3.72
38
 photo_cameraImage coming soon 90590 Bracket plate for defelctor €3.17
39
 photo_cameraImage coming soon 88583 Mulch Shaft €1.99
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 89930 Front drive assy. €37.48
2
 photo_cameraImage coming soon 89873 Inner cover of hub €6.05
3
 photo_cameraImage coming soon 90591 Flat washer €3.93
4
 photo_cameraImage coming soon 90592 Wheel assy. €20.17
5
 photo_cameraImage coming soon 89891 Bearing €3.93
7
 photo_cameraImage coming soon 89877 Outer cover of hub €3.59
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 89932 Rear drive assy. €37.48
2
 photo_cameraImage coming soon 89866 Height adjustment ball €1.70
3
 Gear Box Bush for Lawnmower AMA RT521-RT522 84984 Gear Box Bush for Lawnmower AMA RT521-RT522 €7.83 Not available for order
4
 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H 84985 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H €7.61
5
 photo_cameraImage coming soon 89872 Inner cover of hub €6.05
6
 photo_cameraImage coming soon 90487 Selfpropelled assy. €80.12
7
 Lock Ring for Lawnmower AMA RT521 79423 Lock Ring for Lawnmower AMA RT521 €0.34
9
 Ratchet Pin for Self-Propelled Lawnmowers RTT531 - RTT531B 90488 Ratchet Pin for Self-Propelled Lawnmowers RTT531 - RTT531B €4.95
10
 photo_cameraImage coming soon 90387 Ratchet Wheel R €17.49
11
 photo_cameraImage coming soon 90386 Ratchet Wheel L €17.51
12
 Rear Wheel Ass'y for Self-Propelled Lawnmowers RTT531 - RTT531B 90489 Rear Wheel Ass'y for Self-Propelled Lawnmowers RTT531 - RTT531B €29.90
13
 photo_cameraImage coming soon 90314 Brake spring €9.49
15
 photo_cameraImage coming soon 89878 Outer cover of hub €3.59
16
 Drive V-Belt for Lawnmowers AMA RTT531 - RTT531B 89897 Drive V-Belt for Lawnmowers AMA RTT531 - RTT531B €17.48
17
 AMA Self-Propelled Spring for RTT531 - RTT531B 84848 AMA Self-Propelled Spring for RTT531 - RTT531B €10.39
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 5
Pos. Item Price Buy
1
 AMA RTT531B Cover Spring 90492 AMA RTT531B Cover Spring €3.76
2
 AMA RTT531 Cover Spring 90493 AMA RTT531 Cover Spring €3.76
3
 photo_cameraImage coming soon 90593 Shaft for rear discharge cover €4.57
4
 photo_cameraImage coming soon 90494 Fabric grass bag €68.86
5
 AMA RTT531 Deflector 90496 AMA RTT531 Deflector €13.99
6
 photo_cameraImage coming soon 90497 Top of grass box €40.10
10
 photo_cameraImage coming soon 90528 Handle cover €4.66
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 6
Pos. Item Price Buy
1
 AMA RTT531 Belt Cover 89880 AMA RTT531 Belt Cover €15.99
2
 photo_cameraImage coming soon 89915 Press board for belt cover €2.91
3
 photo_cameraImage coming soon 89916 Press board for belt cover €2.91
5
 Blade Boss for Self-Propelled Lawnmowers RTT531 - RTT531B 90417 Blade Boss for Self-Propelled Lawnmowers RTT531 - RTT531B €23.80
6
 Blade 53 cm for Self-Propelled Lawnmowers RTT531 - RTT531B 90416 Blade 53 cm for Self-Propelled Lawnmowers RTT531 - RTT531B €35.94
7
 photo_cameraImage coming soon 90308 Blade washer €4.94
8
 Blade Bolt for Self-Propelled Lawnmowers RTT531 - RTT531B 90594 Blade Bolt for Self-Propelled Lawnmowers RTT531 - RTT531B €4.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower RTT531B

Ama original spare parts for to fix damaged parts of the Self-Propelled Lawnmower, 53cm cut and 161 CC Briggs & Stratton petrol engine. Mulching mode, collection, rear and side discharge RTT531B - 89545.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
RTT531B - 89545

Self-Propelled Lawnmower RTT531B - 89545

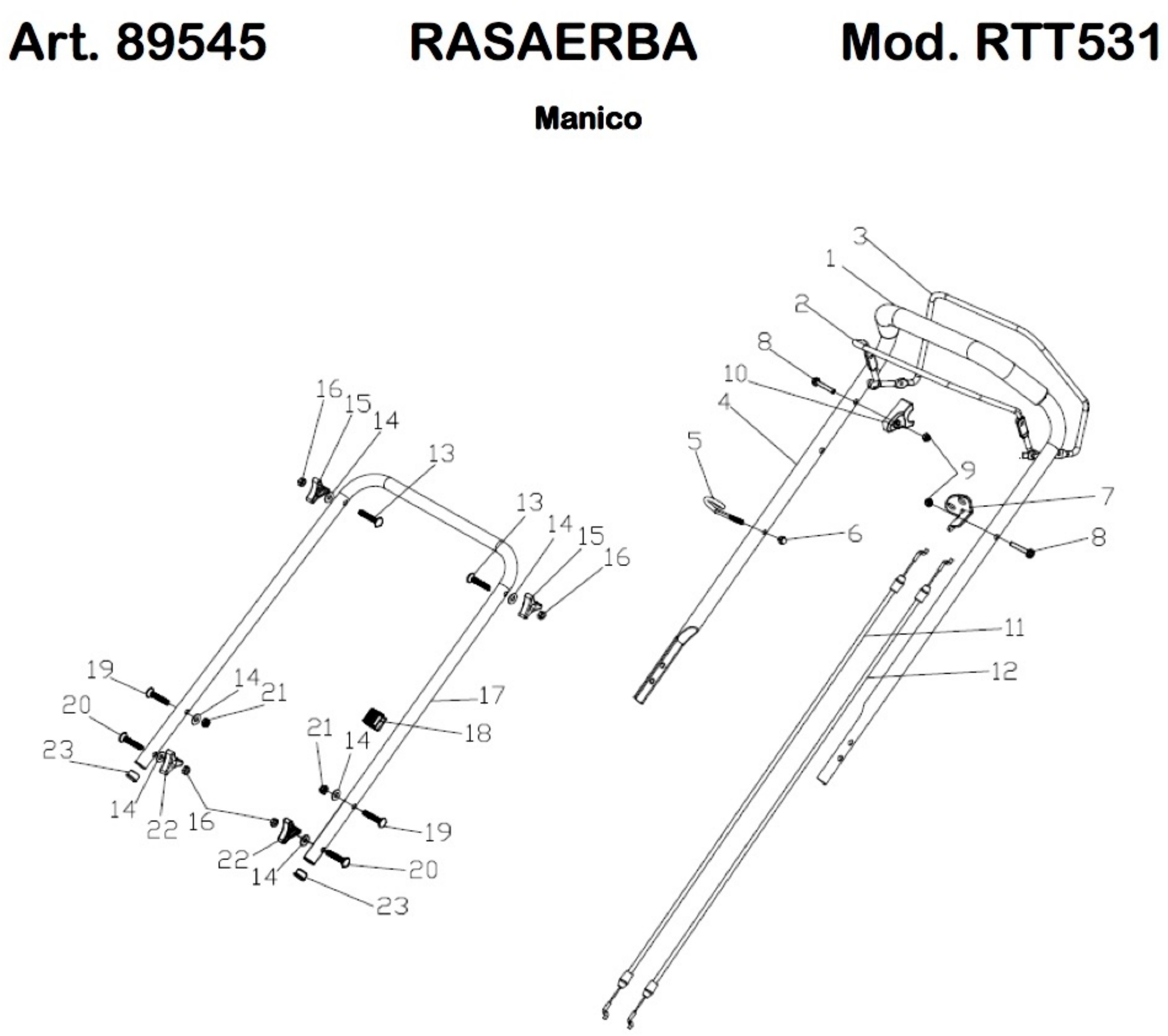

Handle Pag.1
# Part Num. Description
1 88566 Foam Rubber Handle Grip
2 89398 Stop lever
3 90338 Self-propelled Lever
4 89925 Upper handrail
5 88568 Rope Guide
7 84822 Brake Cable Assy plate
10 89399 Plastic stopper
11 84830 Engine Brake cable
12 84836 Selfpropelled cable
13 89893 Heterotypic carriage bolts
15 90257 Triangle knob
17 89926 Lower handrail
18 90266 Fastener
22 90256 Triangle knob
23 89867 Handrail stopper

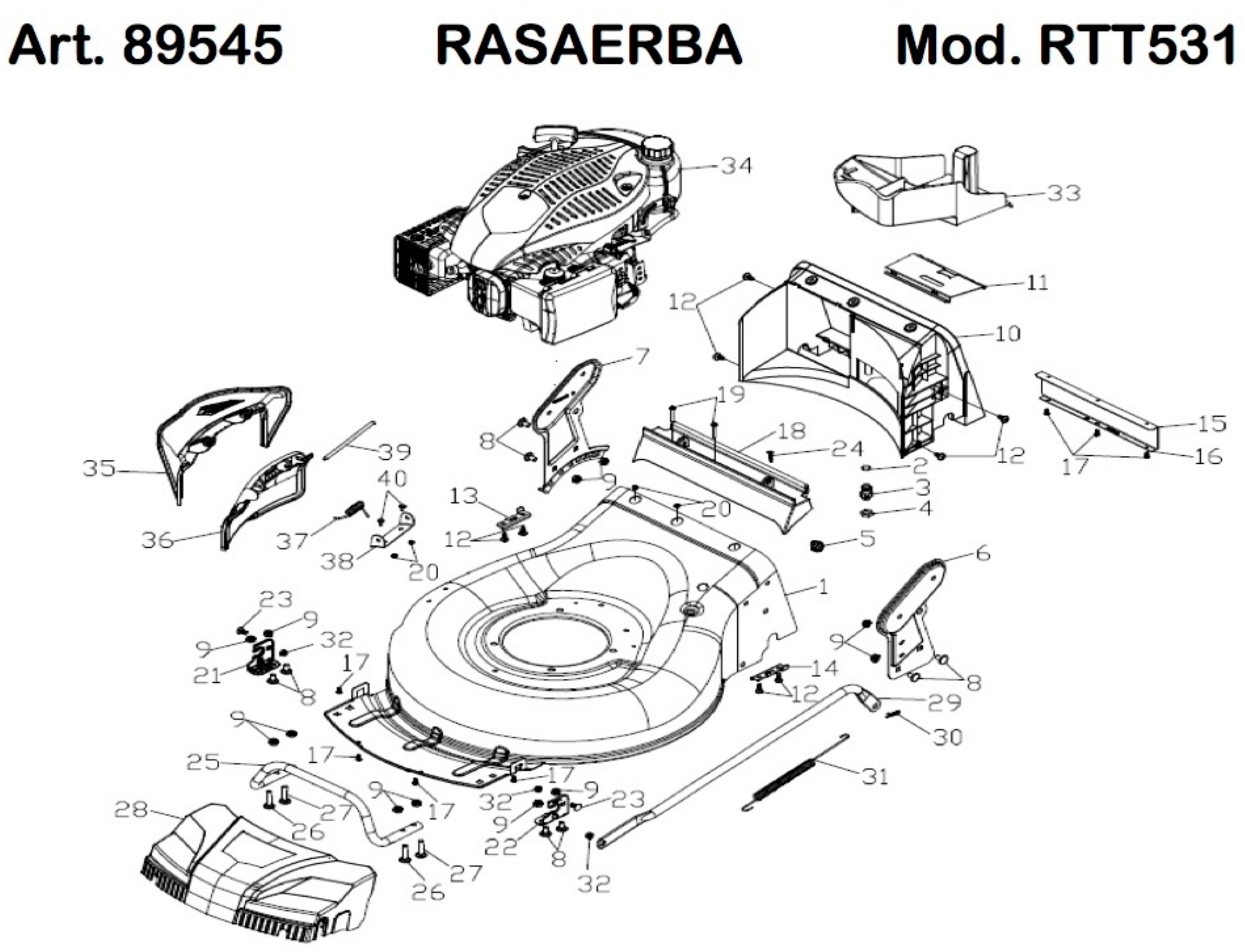

Chassis Pag.2
1 90503 Deck welding assy.
3 89447 Inlet
4 90504 Pipe connector nut
5 89515 Cable stopper
6 90505 Left handle bracket
7 90509 Right handle bracket
10 89870 Rear baffer
11 89914 Rear Baffle
13 84938 Rear drive right bracket
14 84939 Rear drive left bracket
15 89882 Rubber dust proof board
16 89921 Baseplate for rubber dust shield
18 89869 Rear discharge base
21 89923 Right pedestal for front drive
22 89924 Left pedestal for front drive
25 90507 Front bumper
28 89863 Deck front mask
29 90508 Height Adjustment Pull Rod
31 73221 Pull Spring for Pull Rod
33 89862 Mulching plug
34 88456 Petrol engine
35 89839 Side discharge cover
36 90506 Mulching board
37 89899 Mulch board spring
38 90590 Bracket plate for defelctor
39 88583 Mulch Shaft

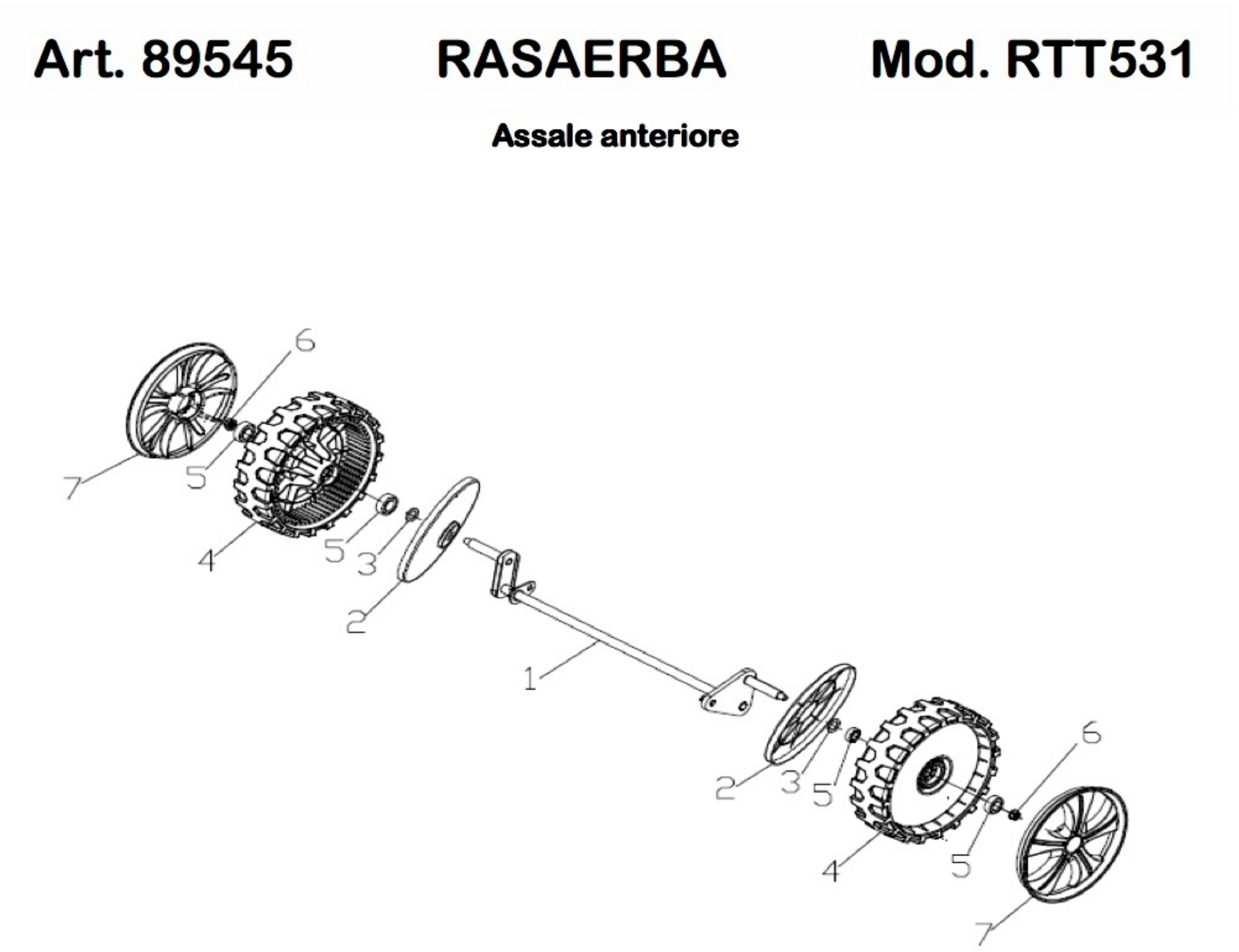

Front Axle Pag.3
1 89930 Front drive assy.
2 89873 Inner cover of hub
3 90591 Flat washer
4 90592 Wheel assy.
5 89891 Bearing
6 89450 Self-locking nut
7 89877 Outer cover of hub

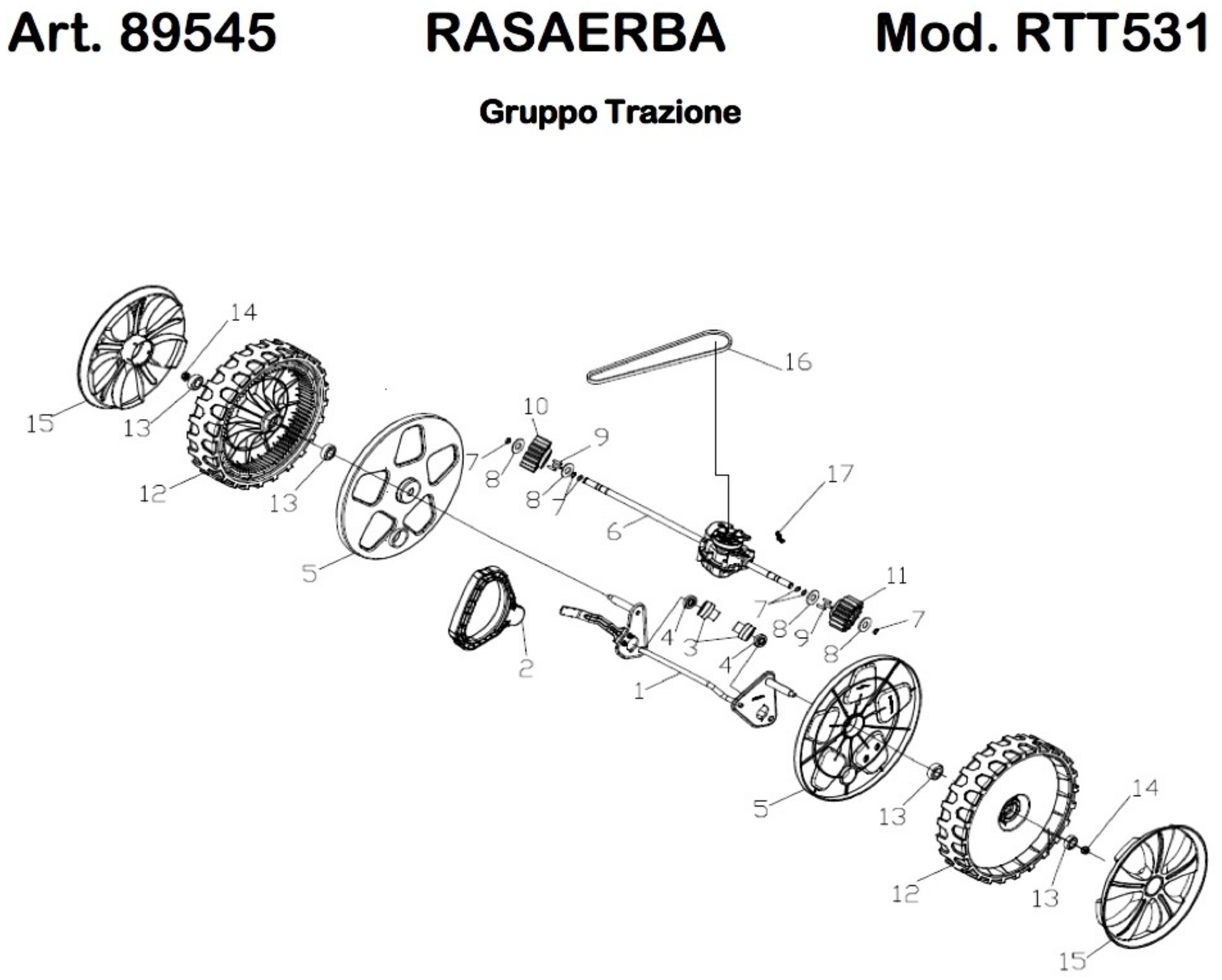

Traction Group Pag.4
1 89932 Rear drive assy.
2 89866 Height adjustment ball
3 84984 Bush
4 84985 Bearing
5 89872 Inner cover of hub
6 90487 Selfpropelled assy.
7 79423 Spring washer
8 89890 Selfpropelled ratchet washer
9 90488 Ratchet pin
10 90387 Ratchet Wheel R
11 90386 Ratchet Wheel L
12 90489 Wheel assy.
13 90314 Bearing
14 89450 Self-locking nut
15 89878 Outer cover of hub
16 89897 Drive V-Belt
17 84848 Selfpropelled spring

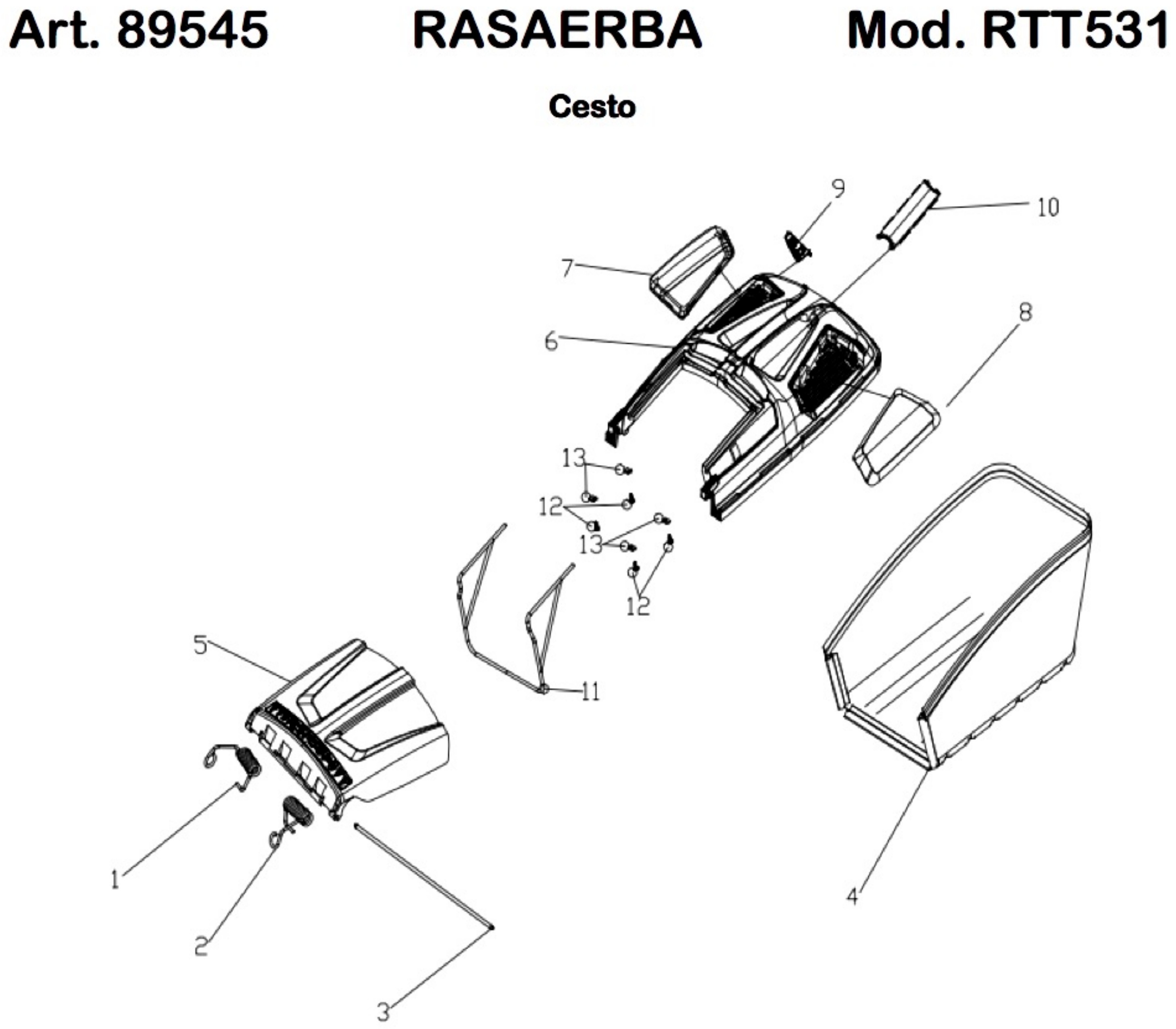

Grass Bag Pag.5
1 90492 Right Cover spring
2 90493 Left Cover spring
3 90593 Shaft for rear discharge cover
4 90494 Fabric grass bag
5 90496 Rear discharge cover
6 90497 Top of grass box
7 90498 Rubber dust proof board
8 90499 Rubber dust proof board
9 90524 Air-out board of fabric grass bag
10 90528 Handle cover
11 90529 Plastic top frame
12 90512 Phillips flat head self tapping screw
13 90513 Blade washer

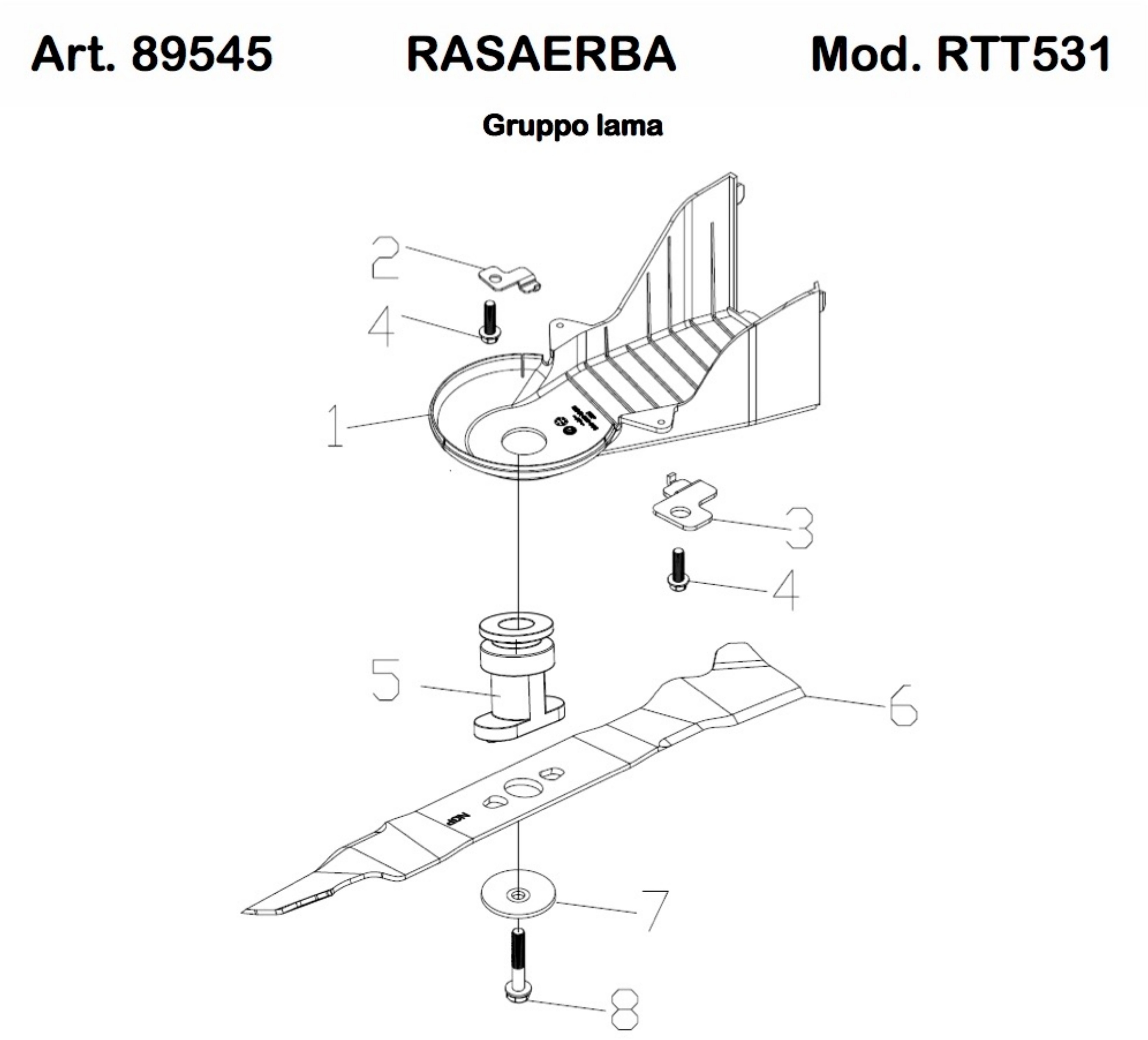

Blade Pag.6
1 89880 Belt cover
2 89915 Press board for belt cover
3 89916 Press board for belt cover
5 90417 Blade Boss
6 90416 Blade 53 cm
7 90308 Blade washer
8 90594 Inch hex flange bolts
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama Garden RTT531B - 89545
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA RTT531B

Diagram AMA RTT531B

Download (648.79KB)

You might also like

Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled...
Last items in stock €17.48
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
Last items in stock €6.12
Details
Lower Handle Bolt for Lawnmower AMA RT522
A.M.A. S.p.A. SKU: 89893
Lower Handle Bolt for Lawnmower AMA RT522
Lower Handle Bolt for Lawnmower AMA RT522 Genuine part AMA, Lower Handle Heterotypic Carriage Bolt 8x50 for Self-Propelled Lawnmowers RTE 521 - RT522 - RT522B - RTT531 - RTT531B - RTV521 - NRT-461 - NRT-461B. Part for the following...
Last items in stock €3.03
Details
Gear Box Bush for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84984
Gear Box Bush for Lawnmower AMA RT521-RT522
Gear Box Bush for Lawnmower AMA RT521-RT522 Genuine part AMA, Gear Box Bush for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
Out-of-Stock €7.83
Details
Drive V-Belt for Lawnmowers AMA RTT531 - RTT531B
A.M.A. S.p.A. SKU: 89897
Drive V-Belt for Lawnmowers AMA RTT531 - RTT531B
Drive V-Belt for Lawnmowers AMA RTT531 - RTT531B Genuine replacement part AMA Garden , Drive V-Belt for Self-Propelled Lawnmowers RTT531 89530 - RTT531B 89545 - Redback RB501 90550. Parts for the...
Last items in stock €17.48
Details
Lock Ring for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 79423
Lock Ring for Lawnmower AMA RT521
Lock Ring for Lawnmower AMA RT521 Genuine part AMA, Axe Lock Ring Ø 12 for Self-Propelled Lawnmower AMA AMA RT521 - RT522 - RTT531 - RTT531B. Part for the following products: -  Lawnmower RT521 - 89509 -  Lawnmower RT522 - 89535 -...
on 7/10 Business Days Approx €0.34
Details
Foam Rubber Handle Grip for Lawnmower AMA RS421
A.M.A. S.p.A. SKU: 88566
Foam Rubber Handle Grip for Lawnmower AMA RS421
Foam Rubber Handle Grip for Lawnmower AMA RS421 Genuine part AMA, Foam Rubber Handle Grip for Lawnmowers AMA RS421 - NRS-421 Parts for the following products: -  Lawnmower AMA RS421 - 89501 -  Lawnmower AMA NRS-421 - 90876 -...
on 7/10 Business Days Approx. €11.90
Details
AMA RTT531 Cover Spring
A.M.A. S.p.A. SKU: 90493
AMA RTT531 Cover Spring
AMA Lawnmower RTT531 Cover Spring Genuine replacement part AMA Garden, Cover Spring SX for Self-Propelled Lawnmowers RTT531 - RTT531B - NRT-535. Parts for the following products: -  Self-Propelled...
AVAILABLE €3.76
Details
AMA RTT531B Cover Spring
A.M.A. S.p.A. SKU: 90492
AMA RTT531B Cover Spring
AMA Lawnmower RTT531B Cover Spring Genuine replacement part AMA Garden, Cover Spring DX for Self-Propelled Lawnmowers RTT531 - RTT531B - NRT-535. Parts for the following products: -  Self-Propelled...
AVAILABLE €3.76
Details
AMA RS421Starter Rope Stop
A.M.A. S.p.A. SKU: 88568
AMA RS421Starter Rope Stop
AMA Starter Rope Stop for Lawnmower RS421 Original AMA Spare Part, Starter Rope Stop for the following lawnmowers: RS421, Playcut LT52H, RT461B, Push Lawnmower RS421, NRS-421. Part for the following products: - Push Lawnmower RS421...
Last items in stock €3.72
Details
AMA RTT531 Belt Cover
A.M.A. S.p.A. SKU: 89880
AMA RTT531 Belt Cover
AMA Lawnmower RTT531 Belt Cover Original spare parts AMA Garden, Belt Cover for Lawnmower RTT531 - RTT531B - NRT535. Parts for the following products: -  Lawnmower RTT531 - 89530 -  Lawnmower RTT531B - 89545...
Last items in stock €15.99
Details
AMA RTT531B Deflector
A.M.A. S.p.A. SKU: 90496
AMA RTT531 Deflector
AMA Lawnmower RTT531 Deflector Original spare parts AMA Garden, Rear deflector for Lawnmower RTT531 - RTT531B. Parts for the following products: -  Lawnmower RTT531 - 89530 -  Lawnmower RTT531B -...
Last items in stock €13.99
Details
AMA Lever Guard for RTE 521
A.M.A. S.p.A. SKU: 89399
AMA Lever Guard for RTE 521
AMA Lever Guard for Lawmmower RTE 521 Genuine replacement part AMA Garden, Plastic Lever Guard for Lawnmower RTE521 - RS421 - RS461. Part for the following products: -  Lawnmower Ama RS421 - 89501...
AVAILABLE €5.50
Details
Comments (0)
