A.M.A. S.p.A.

Ama Spare Parts for Lawnmower RTE521

SKU: Ama RTE 521 - 90010
€3.59
VAT included

Ama Spare Parts for Lawnmower RTE521

Ama genuine spare parts for replace or to fix damaged parts of Self-Propelled Lawnmower, with electric start and Petrol engine MVGT680Li 196 cc. AMA RTE 521 - 90010.
Ama Spare Parts for Lawnmower RTE521
  • Online only
  • Ama Spare Parts for Lawnmower RTE521
  • Ama Spare Parts for Lawnmower RTE521
  • Ama Spare Parts for Lawnmower RTE521
  • Ama Spare Parts for Lawnmower RTE521
  • Ama Spare Parts for Lawnmower RTE521
  • Ama Spare Parts for Lawnmower RTE521
  • Ama Spare Parts for Lawnmower RTE521
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower RTE521

SKU: Ama RTE 521 - 90010 Condition: New
€3.59
VAT included

Ama Spare Parts for Lawnmower RTE521

Ama genuine spare parts for replace or to fix damaged parts of Self-Propelled Lawnmower, with electric start and Petrol engine MVGT680Li 196 cc. AMA RTE 521 - 90010.
settings 75 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
75 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
*
 photo_cameraImage coming soon 90270 BATTERY €103.98
*
 photo_cameraImage coming soon 90271 CHARGER €43.66
1
 photo_cameraImage coming soon 90301 Battery cover €7.39
2
 photo_cameraImage coming soon 90293 Dash board €20.88
3
 photo_cameraImage coming soon 90292 Starting button €4.80
7
 photo_cameraImage coming soon 90286 Fastener €6.35
9
 photo_cameraImage coming soon 90285 Pressing line plate €8.00
11
 photo_cameraImage coming soon 90294 Lower cover for dash board €9.82
12
 photo_cameraImage coming soon 90302 Insert plate cable €6.73
13
 AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €5.50
15
 photo_cameraImage coming soon 90276 Adjust ment cover plate €3.39
16
 photo_cameraImage coming soon 90326 Hang buckle €5.57
18
 Engine Stop Cable for Self-Propelled Lawnmower AMA RT522 84830 Engine Stop Cable for Self-Propelled Lawnmower AMA RT522 €17.48
19
 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H 84836 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H €17.48
21
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70
22
 photo_cameraImage coming soon 90335 Stop lever €11.57
23
 photo_cameraImage coming soon 90339 Self-propelled Lever €16.12
24
 photo_cameraImage coming soon 90279 Foam pipe €4.40
25
 photo_cameraImage coming soon 90331 Upper handrail €16.79
28
 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 88571 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 €0.54
29
 Lower Handle Bolt for Lawnmower AMA RT522 89893 Lower Handle Bolt for Lawnmower AMA RT522 €3.03
30
 photo_cameraImage coming soon 90257 Triangle knob €6.49
32
 photo_cameraImage coming soon 84973 Lower handrail €36.06
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 90341 Deck welding assy. €205.29
4
 photo_cameraImage coming soon 89448 Pipe connector nut €1.39
5
 photo_cameraImage coming soon 89515 Cable stopper €2.52
6
 photo_cameraImage coming soon 88360 Left handle bracket €13.40
7
 photo_cameraImage coming soon 88361 Rigth handle bracket €13.40
10
 photo_cameraImage coming soon 88362 Height adjustment board €6.96
11
 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H 84976 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H €2.56
13
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €6.12
14
 photo_cameraImage coming soon 84977 Height Adjustment Pull Rod €4.47
15
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
18
 AMA NRT-52X Mulching Plug 88244 AMA NRT-52X Mulching Plug €12.87
19
 photo_cameraImage coming soon 90260 Petrol engine €257.62
21
 photo_cameraImage coming soon 84979 Mulching board €23.59
22
 Side Discharge Cover for Lawnmower AMA RT521-RT522 88246 Side Discharge Cover for Lawnmower AMA RT521-RT522 €15.67
23
 photo_cameraImage coming soon 88418 Mulch Shaft €1.97
24
 photo_cameraImage coming soon 84981 Mulch board spring €3.47
27
 photo_cameraImage coming soon 90262 Front mask €17.05
28
 photo_cameraImage coming soon 90263 Front mask €17.05
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 84990 Front drive assy. €36.39
2
 photo_cameraImage coming soon 89885 Wheel assy €17.48
3
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
5
 Outer Cover of Hub for Lawnmower AMA RT521 89876 Outer Cover of Hub for Lawnmower AMA RT521 €5.15
6
 photo_cameraImage coming soon 90261 Front bracket fastener €6.70
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 73201 Height adjustment ball €3.49
1
 Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 84982 Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 €55.29
2
 photo_cameraImage coming soon 90348 Selfpropelled assy. €126.78
3
 photo_cameraImage coming soon 90284 Rear wheel axle sleeve €4.47
4
 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H 84985 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H €7.61
6
 Inner Wheel Cover for Lawnmower AMA RT521 89874 Inner Wheel Cover for Lawnmower AMA RT521 €8.38 Not available for order
7
 Lock Ring for Lawnmower AMA RT521 79423 Lock Ring for Lawnmower AMA RT521 €0.34
8
 Ratchet Washer for Lawnmower AMA RT521 89889 Ratchet Washer for Lawnmower AMA RT521 €1.23
9
 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 89919 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 €16.61
10
 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 89920 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 €17.68
11
 Ratchet Pin for Lawnmower AMA NRT-521 90304 Ratchet Pin for Lawnmower AMA NRT-521 €0.72
12
 AMA RTT521 Rear Wheel 89887 AMA RTT521 Rear Wheel €22.55
13
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
15
 photo_cameraImage coming soon 89879 Outer cover of hub €6.65
16
 Drive Group Spring for Self-Propelled Lawnmower AMA RT521-RT522 84986 Drive Group Spring for Self-Propelled Lawnmower AMA RT521-RT522 €2.57
17
 Belt for Self-Propelled Lawnmower AMA LT 52H 84818 Belt for Self-Propelled Lawnmower AMA LT 52H €4.80
18
 Rear Wheel Axle Sleeve for Lawnmowers AMA RT521 89871 Rear Wheel Axle Sleeve for Lawnmowers AMA RT521 €1.54
19
 photo_cameraImage coming soon 90314 Brake spring €9.49
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 5
Pos. Item Price Buy
3
 photo_cameraImage coming soon 90299 Filter net of grass bag €21.88
4
 photo_cameraImage coming soon 90259 Fabric grass bag €66.78
5
 photo_cameraImage coming soon 84837 Rear discharge cover €22.95
6
 photo_cameraImage coming soon 88419 Shaft for rear discharge cover €4.29
7
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.16
9
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
10
 photo_cameraImage coming soon 89883 Rear discharge cover dust proof €3.92
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 6
Pos. Item Price Buy
1
 Blade Holder for Self-Propelled Lawnmower AMA LT 52H 84844 Blade Holder for Self-Propelled Lawnmower AMA LT 52H €28.62
2
 Blade for Self-Propelled Lawnmowers AMA RT521-RT522 84935 Blade for Self-Propelled Lawnmowers AMA RT521-RT522 €32.44
3
 photo_cameraImage coming soon 90308 Blade washer €4.94
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
5
 Belt Guard Bushing for Lawnmowers AMA RT521-RT522 84988 Belt Guard Bushing for Lawnmowers AMA RT521-RT522 €4.34
8
 Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 84989 Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 €17.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower RTE521

Ama genuine spare parts for replace or to fix damaged parts of Self-Propelled Lawnmower, with electric start and Petrol engine MVGT680Li 196 cc. AMA RTE 521 - 90010.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama RTE 521 - 90010

Ama Garden Self-Propelled Lawnmower RTE 521 - 90010

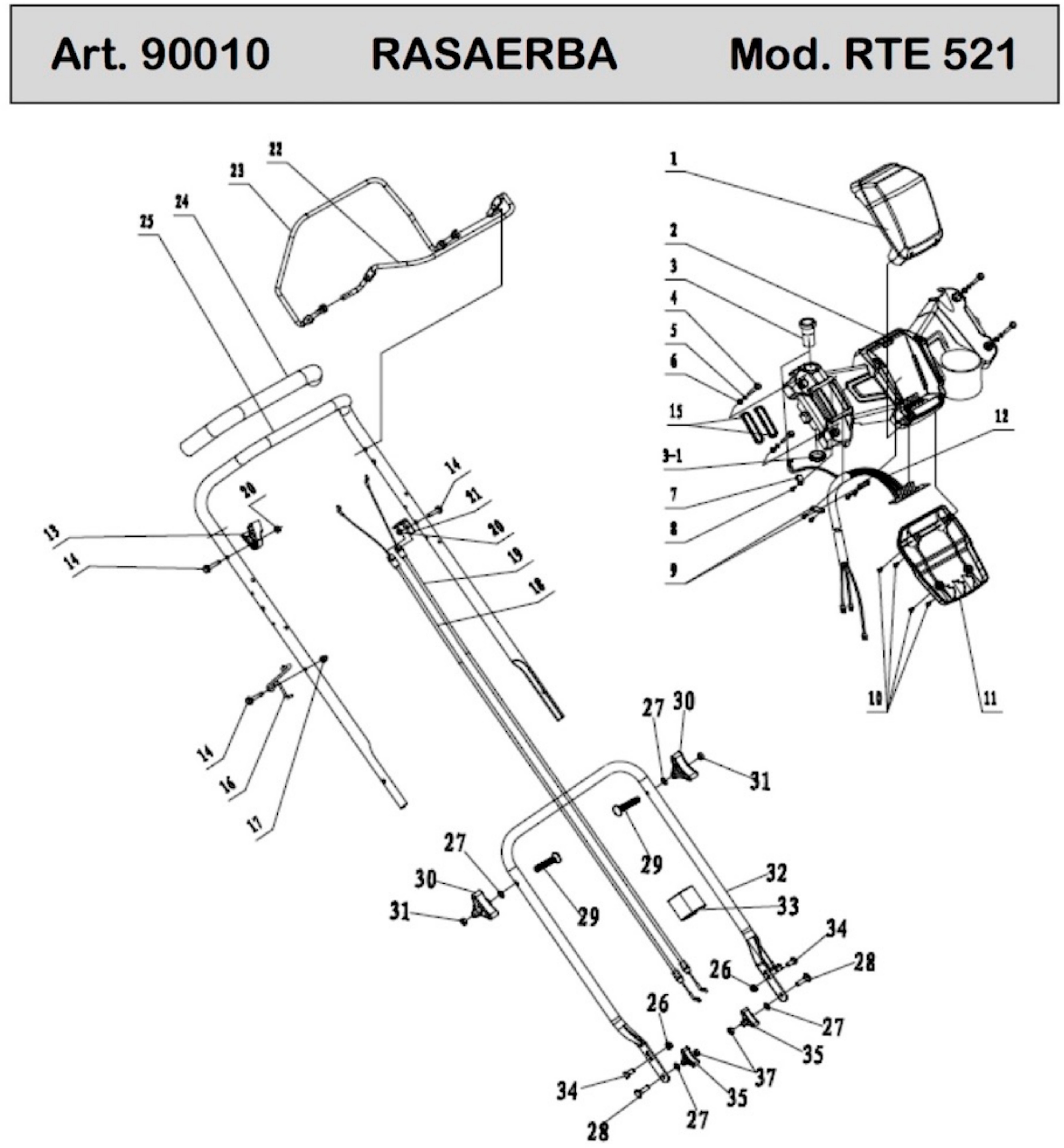

Handle Pag.1
# Part Num. Description
1 90301 Battery cover
2 90293 Dash board
3 90292 Starting button
4 Bolt M5 x 30
5 Flat washer
6 Self-locking nut
7 90286 Fastener
8 Bolt ST3.5X14
9 90285 Pressing line plate
10 Bolt ST4.2X12
11 90294 Lower cover for dash board
12 90302 Insert plate cable
13 89399 Lever guard
14 Hex flange bolts
15 90276 Adjust ment cover plate
16 90326 Hang buckle
17 88564 Cap nut
18 84830 Engine Brake cable
19 84836 Selfpropelled cable
20 Self-locking nut
21 84822 Brake Cable Assy plate
22 90335 Stop lever
23 90339 Self-propelled Lever
24 90279 Foam pipe
25 90331 Upper handrail
26 Hex lock nut
27 Flat washer
28 88571 Half round head square neck bolts
29 89893 heterotypic carriage bolts
30 90257 Triangle knob
31 Hexagon nut
32 84973 Lower handrail
33 90266 Fastener
34 Hexagon head bolts
35 90256 Triangle knob
37 Hexagon nut
* 90270 BATTERY
* 90271 CHARGER

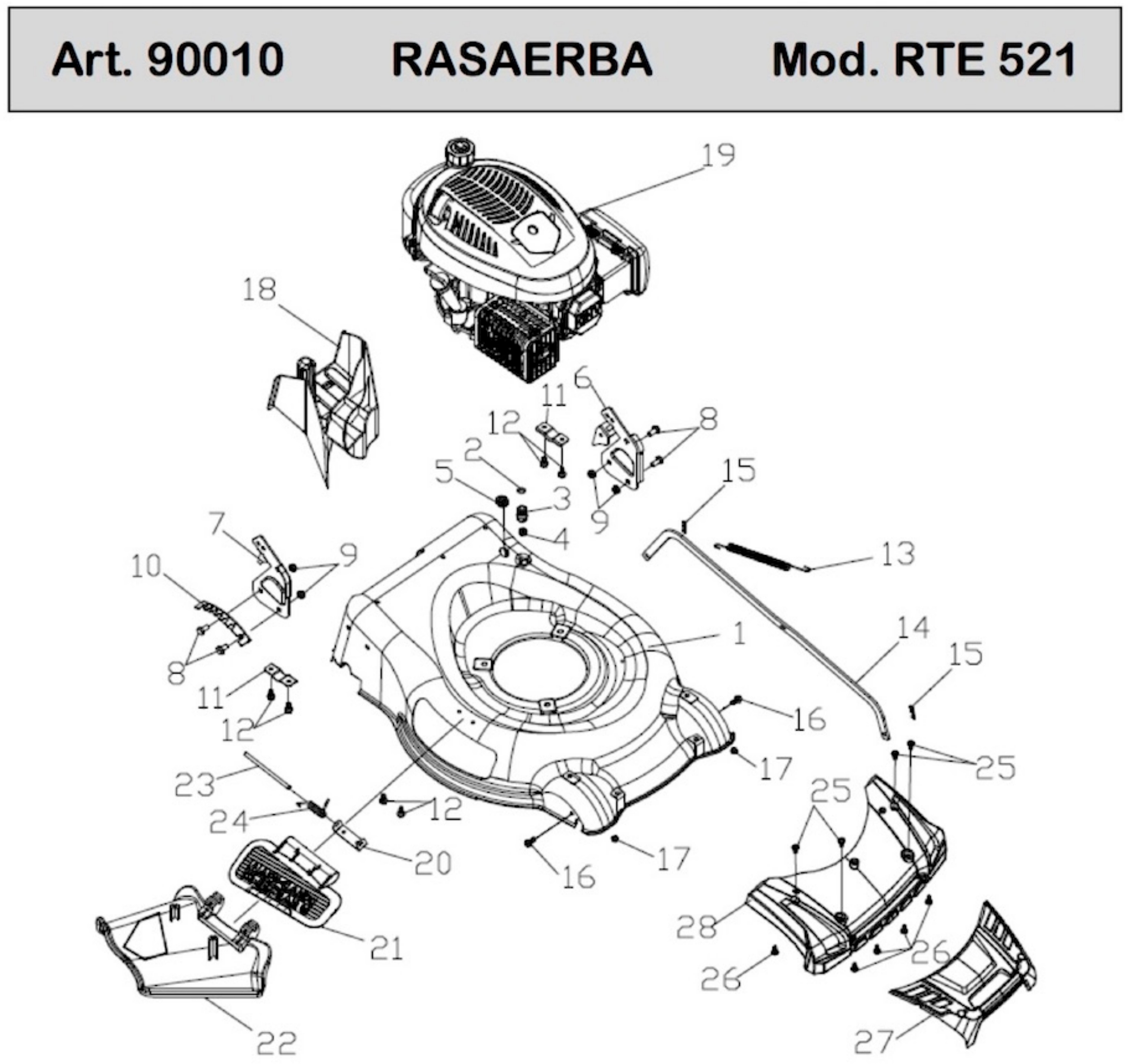

Casing Pag.2
1 90341 Deck welding assy.
3 89447 inlet
4 89448 Pipe connector nut
5 89515 Cable stopper
6 88360 Left handle bracket
7 88361 Right handle bracket
10 88362 height adjustment board
11 84976 Rear drive bracket
13 73221 Pull Spring for Pull Rod
14 84977 Height Adjustment Pull Rod
15 88625 R type pin
18 88244 Mulching plug
19 90260 Petrol engine
20 90316 Bracket plate for defelctor
21 84979 Mulching board
22 88246 Side discharge cover
23 88418 Mulch Shaft
24 84981 Mulch board spring
27 90262 Front mask
28 90263 Front mask

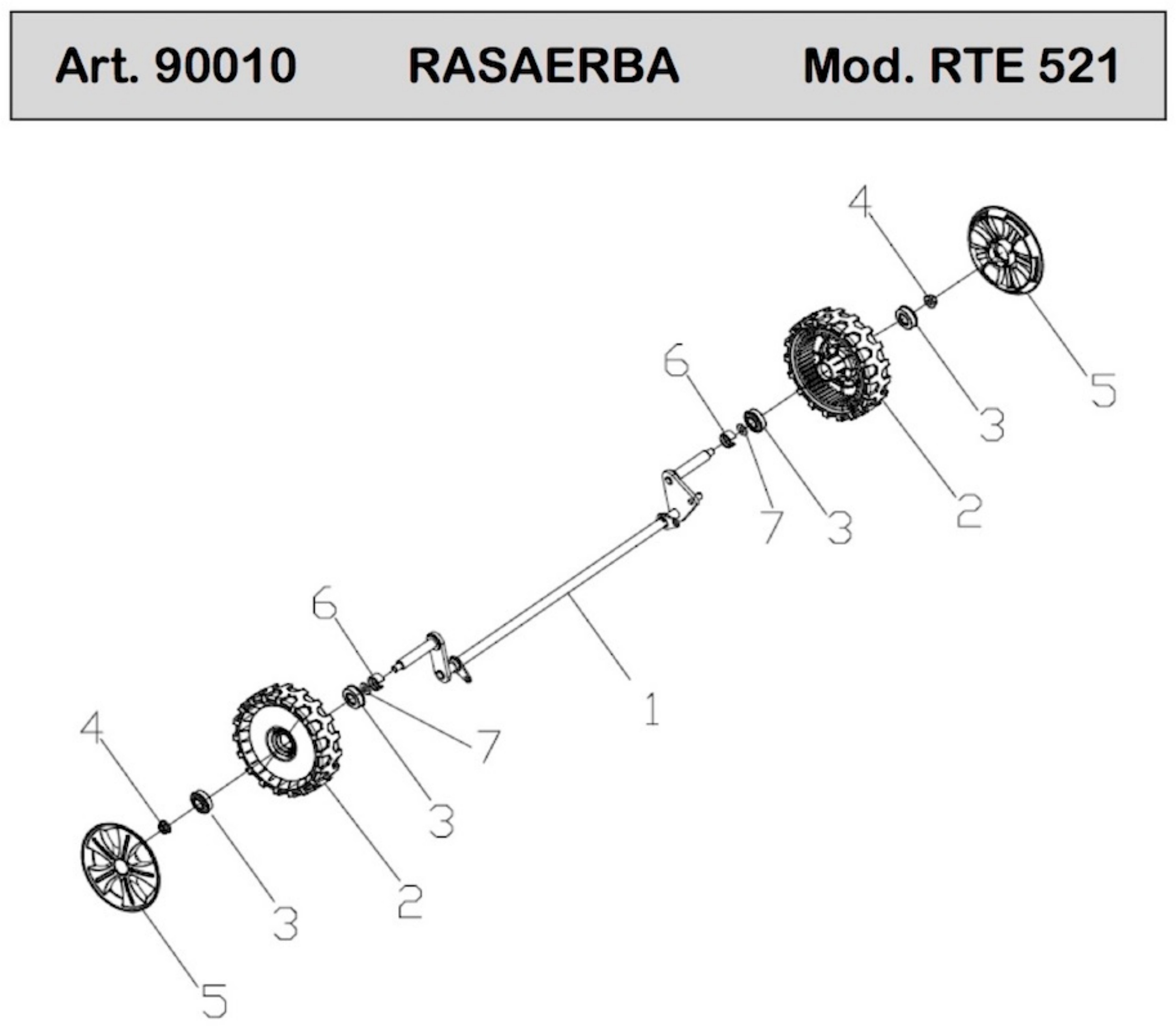

Front Axle Pag.3
1 84990 Front drive assy.
2 89885 Wheel assy.
3 73848 Wheel punch bearing
4 89450 Self-locking nut
5 89876 Outer cover of hub
6 90261 Front bracket fastener
7 Flat washer

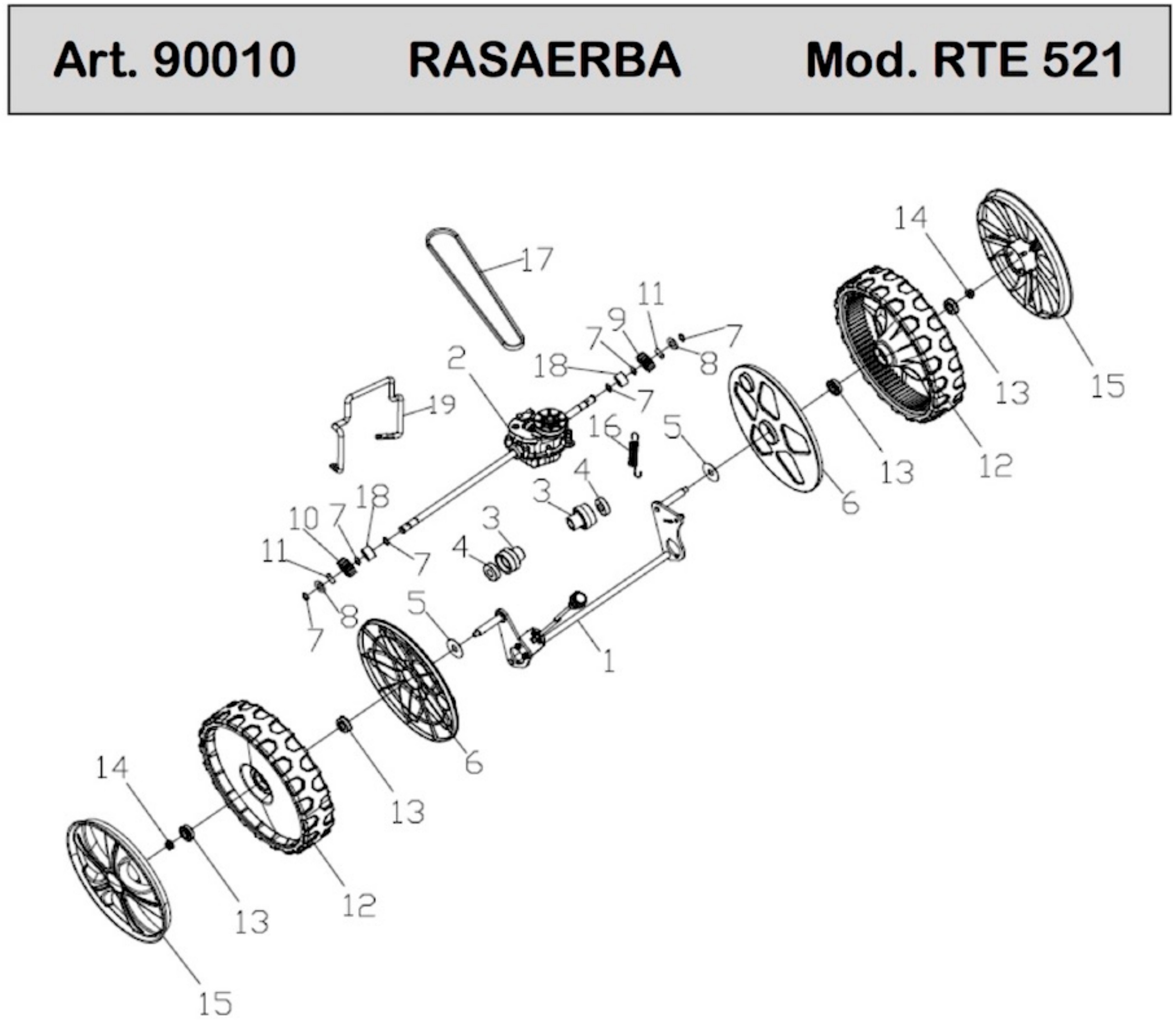

Traction Pag.4
1 84982 Rear drive assy.
1 73201 Height adjustment ball
2 90348 Selfpropelled assy.
3 90284 Rear wheel axle sleeve
4 84985 Bearing
5 88633 Gasket
6 89874 Inner wheel cover
7 79423 Spring washer
8 89889 Selfpropelled ratchet washer
9 89919 Ratchet Wheel L
10 89920 Ratchet Wheel R
11 90304 Ratchet pin
12 89887 Wheel assy.
13 73848 wheel punch bearing
14 89450 Self-locking nut
15 89879 Outer cover of hub
16 84986 Selfpropelled spring
17 84818 V-Belt
18 89871 Rear wheel axle sleeve
19 90314 Brake spring

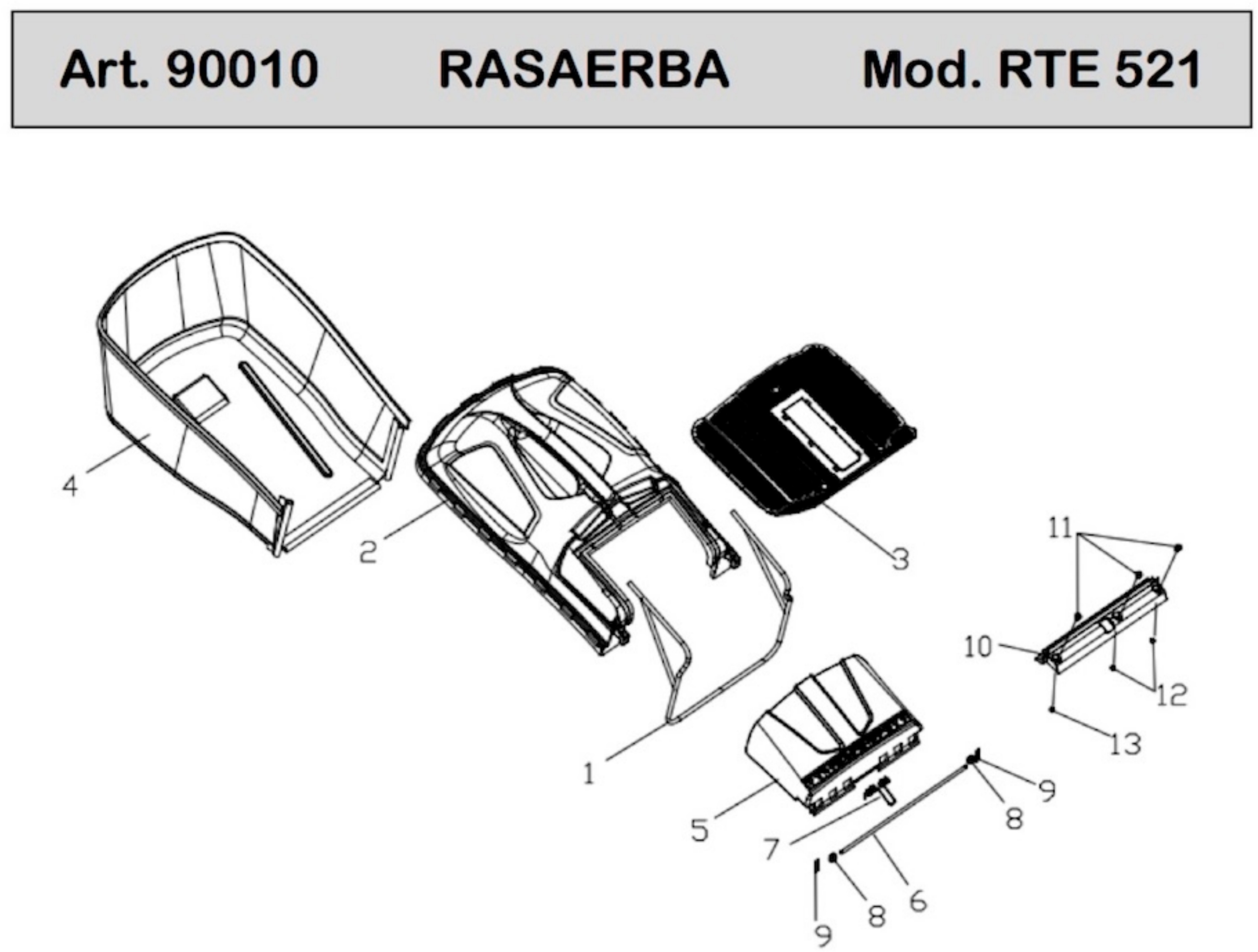

Grass Bag Pag.5
1 84840 Frame
2 84838 Grass Catcher Cover Substituted by --> 9258
3 90299 Filter net of grass bag
4 90259 Fabric grass bag
5 84837 Rear discharge cover
6 88419 Shaft for rear discharge cover
7 84987 Cover spring
8 Lock washer
9 88625 R type pin
10 89883 Rear discharge cover dust proof
11 Bolt
12 Self-locking nut
13 88420 Cap nut

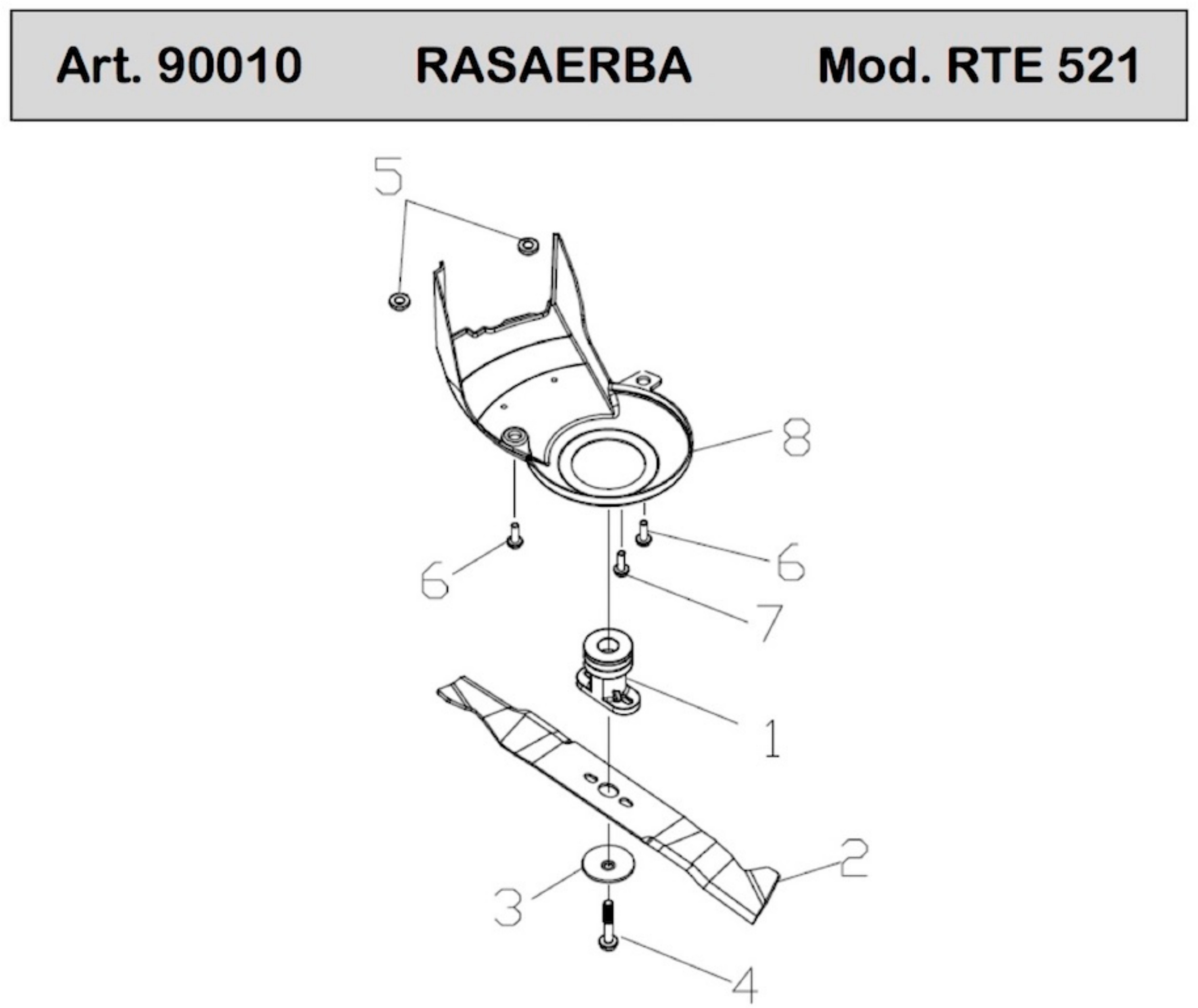

Blade Pag.6
1 84844 Blade Adapter Assy
2 84935 Blade
3 90308 Blade washer
4 84815 Inch hex flange bolts
5 84988 Chassis bushing
6 Hex flange bolts
7 Hex flange bolts
8 84989 Belt cover
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama RTE 521 - 90010
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA RTE521

Diagram AMA RTE521

Download (623.66KB)

You might also like

Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
A.M.A. S.p.A. SKU: 73848
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 Genuine part AMA, Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 - Lawnmowers AMA RS421 - RS461. Part for the following products: - Lawnmowers AMA RT521...
Last items in stock €7.61
Details
Belt for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84818
Belt for Self-Propelled Lawnmower AMA LT 52H
Belt for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, V-Belt for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled...
Last items in stock €4.80
Details
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84935
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
Blade for Self-Propelled Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Blade for Self-Propelled Lawnmowers AMA RT521 - RT522 - LT 52H - LTS 52H Parts for the following products: -...
Last items in stock €32.44
Details
Pin for Lawnmower AMA RT522-RS421
A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
AVAILABLE €0.34
Details
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84844
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
Blade Holder for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Blade Holder for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Last items in stock €28.62
Details
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled...
Last items in stock €17.48
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.16
Details
Side Discharge Cover for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88246
Side Discharge Cover for Lawnmower AMA RT521-RT522
Side Discharge Cover for Lawnmower AMA RT521-RT522 Genuine part AMA, Side Discharge Cover for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: - Self-Propelled...
Last items in stock €15.67
Details
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88571
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 Genuine part AMA, Half Round Head Square Neck Bolt for Self-Propelled Lawnmower AMA RT521 - RT522 - LT 52H. Part for the following products: - Lawnmower RS461 - Self-Propelled...
AVAILABLE €0.54
Details
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84972
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522
Upper Handle Triangle Knob for Lawnmower AMA RT521-RT522 Genuine part AMA, Upper Handle Triangle Knob for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: - Lawnmower AMA RS421...
AVAILABLE €3.58
Details
Outer Cover of Hub for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 89876
Outer Cover of Hub for Lawnmower AMA RT521
Outer Cover of Hub for Lawnmower AMA RT521 Genuine replacement part AMA, Outer Cover of Hub for Lawnmowers RT521 - RT522 - RTE521 - RTV521 - RT522B. Part for the following products:...
AVAILABLE €5.15
Details
Cable Clamp Grommet for Lawnmower AMA
A.M.A. S.p.A. SKU: 88247
Cable Clamp Grommet for Lawnmower AMA
Cable Clamp Grommet for Lawnmower AMA Genuine part AMA, Cable Clamp Grommet for Lawnmowers AMA RS421 - RS461 - RT521 - RT522 - LT 52H - RT522B - NRS-421 - NRS-461. Part for the following products: - Push Lawnmover RS421 - 89501 - Push...
AVAILABLE €2.64
Details
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84988
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
Belt Guard Bushing for Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Belt Guard Bushing for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
Last items in stock €4.34
Details
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84982
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 Genuine part AMA, Rear Wheel Axe Complete for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: -  Lawnmower RT521 - 89509...
Last items in stock €55.29
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
Last items in stock €6.12
Details
Lower Handle Bolt for Lawnmower AMA RT522
A.M.A. S.p.A. SKU: 89893
Lower Handle Bolt for Lawnmower AMA RT522
Lower Handle Bolt for Lawnmower AMA RT522 Genuine part AMA, Lower Handle Heterotypic Carriage Bolt 8x50 for Self-Propelled Lawnmowers RTE 521 - RT522 - RT522B - RTT531 - RTT531B - RTV521 - NRT-461 - NRT-461B. Part for the following...
Last items in stock €3.03
Details
Inner Wheel Cover for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 89874
Inner Wheel Cover for Lawnmower AMA RT521
Inner Wheel Cover for Lawnmower AMA RT521 Genuine replacement part AMA, Inner Wheel Cover for Lawnmowers RT521 - RT522 - RTE521 - RTV521 - RT522B. Part for the following products: -  Self Propelled Lawnmower AMA RT521 - 89509 -  Self...
Out-of-Stock €8.38
Details
Rear Wheel Axle Sleeve for Lawnmowers AMA RT521
A.M.A. S.p.A. SKU: 89871
Rear Wheel Axle Sleeve for Lawnmowers AMA RT521
Rear Wheel Axle Sleeve for Lawnmowers AMA RT521 Genuine replacement part AMA, Rear Wheel Axle Sleeve for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products:...
AVAILABLE €1.54
Details
Lock Ring for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 79423
Lock Ring for Lawnmower AMA RT521
Lock Ring for Lawnmower AMA RT521 Genuine part AMA, Axe Lock Ring Ø 12 for Self-Propelled Lawnmower AMA AMA RT521 - RT522 - RTT531 - RTT531B. Part for the following products: -  Lawnmower RT521 - 89509 -  Lawnmower RT522 - 89535 -...
on 7/10 Business Days Approx €0.34
Details
Ratchet Pin for Lawnmower AMA NRT-521
A.M.A. S.p.A. SKU: 90304
Ratchet Pin for Lawnmower AMA NRT-521
Ratchet Pin for Lawnmower AMA NRT-521 Genuine part AMA, Ratchet Pin for Self-Propelled Lawnmower AMA RTE 521 - RTV 521 - NRT-461 - NRT-522 Part for the following products: -  Self-Propelled Lawnmower NRT-521 - 90860 -  Self-Propelled...
on 7/10 Business Days Approx €0.72
Details
AMA RTT521 Rear Wheel
A.M.A. S.p.A. SKU: 89887
AMA RTT521 Rear Wheel
AMA Lawnmower RTT521 Rear Wheel Genuine replacement part AMA Garden, Rear Wheel Ass'y for Self-Propelled Lawnmowers RT521 - RT522 - RT522B. Parts for the following products: -  Lawnmower RT521 - 89509...
Last items in stock €22.55
Details
AMA NRT-52X Mulching Plug
A.M.A. S.p.A. SKU: 88244
AMA NRT-52X Mulching Plug
AMA Lawnmower NRT-52X Mulching Plug Original spare part AMA Garden, Mulching Plug for Lawmower NRT-52X - RT522 - RT522B. Parts for the following products: -  Lawnmower NRT-52X - 92635 - ...
Last items in stock €12.87
Details
AMA Lever Guard for RTE 521
A.M.A. S.p.A. SKU: 89399
AMA Lever Guard for RTE 521
AMA Lever Guard for Lawmmower RTE 521 Genuine replacement part AMA Garden, Plastic Lever Guard for Lawnmower RTE521 - RS421 - RS461. Part for the following products: -  Lawnmower Ama RS421 - 89501...
AVAILABLE €5.50
Details
Comments (0)
