A.M.A. S.p.A.

Ama Spare Parts for Bruschcutter Playcut BC 350

SKU: Ama Playcut BC 350 - 79373
€2.43
VAT included

Ama Spare Parts for Bruschcutter Playcut BC 350

Ama original spare parts for the replacement of engine parts or parts of the Drive Shaft or to fix damaged and worn components of the Bruschcutter Playcut BC 350 - 79373.

Fix Your Bruschcutter Playcut BC 350. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Ama Spare Parts for Bruschcutter Playcut BC 350
  • Ama Spare Parts for Bruschcutter Playcut BC 350
  • Ama Spare Parts for Bruschcutter Playcut BC 350
  • Ama Spare Parts for Bruschcutter Playcut BC 350
A.M.A. S.p.A.

Ama Spare Parts for Bruschcutter Playcut BC 350

SKU: Ama Playcut BC 350 - 79373 Condition: New
€2.43
VAT included

Ama Spare Parts for Bruschcutter Playcut BC 350

Ama original spare parts for the replacement of engine parts or parts of the Drive Shaft or to fix damaged and worn components of the Bruschcutter Playcut BC 350 - 79373.

Fix Your Bruschcutter Playcut BC 350. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 56 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
47 spare parts

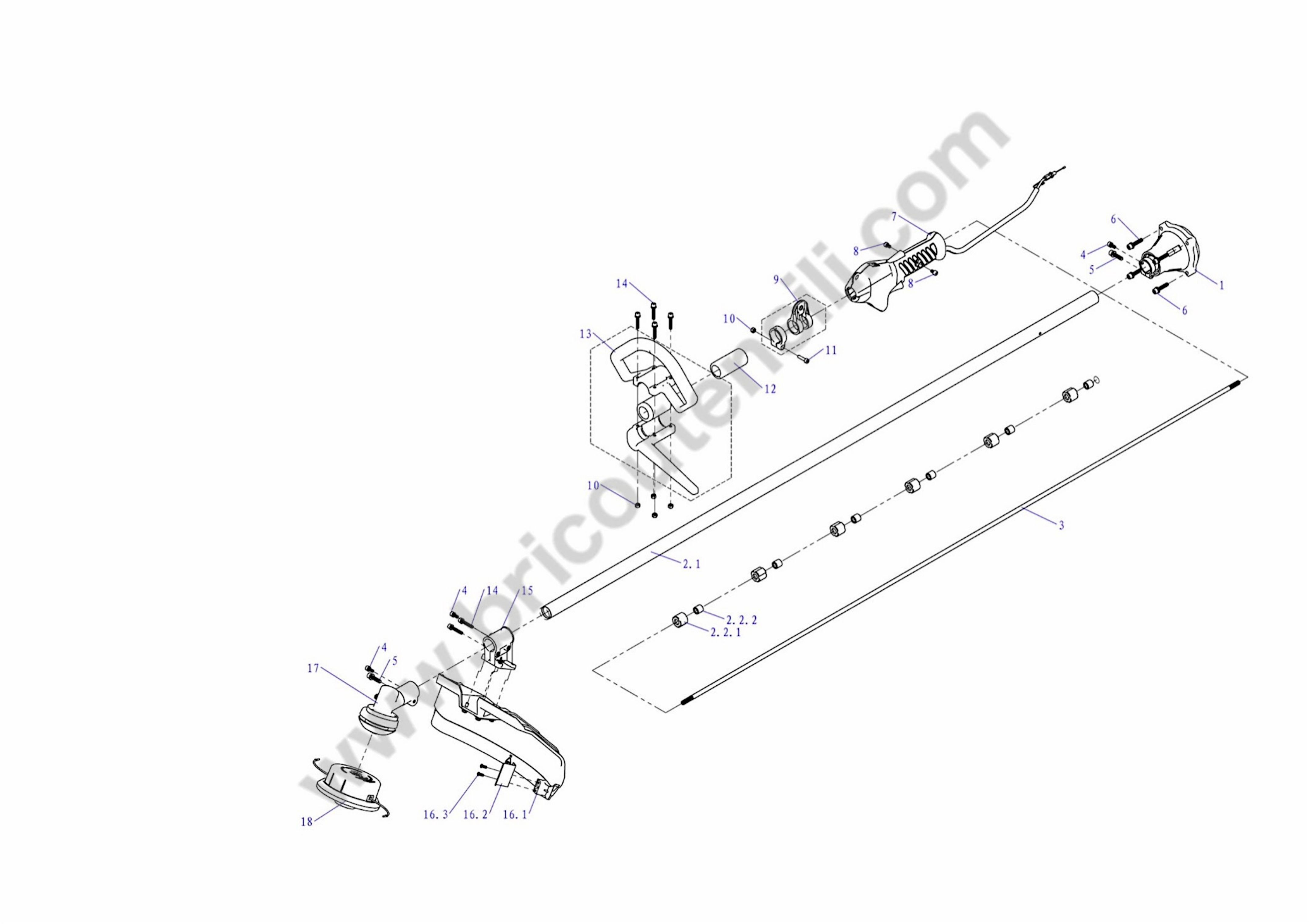

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Clutch Drum Ass'y for Brushcutter AMA Playcut BC 350 79953 Clutch Drum Ass'y for Brushcutter AMA Playcut BC 350 €34.77
2
 External Drive Shaft Cpl for Brushcutters Kawasaki KBC 35-KBC 45 79954 External Drive Shaft Cpl for Brushcutters Kawasaki KBC 35-KBC 45 €23.96
3
 Drive Shaft for Brushcutter AMA Playcut BC 260 79945 Drive Shaft for Brushcutter AMA Playcut BC 260 €16.73
7
 Throttle Handle Assy for Brushcutter AMA Playcut BC 450 79946 Throttle Handle Assy for Brushcutter AMA Playcut BC 450 €22.20
9
 photo_cameraImage coming soon 79947 Belt Connecter Assy €5.24
12
 photo_cameraImage coming soon 79948 Sponge end plug for tube €1.97
13
 photo_cameraImage coming soon 79949 P type handle €17.02
15
 Safety Guard Braket for Brushcutters AMA Playcut 79950 Safety Guard Braket for Brushcutters AMA Playcut €5.72
16,2
 photo_cameraImage coming soon 79951 Nylon line cutting blade €3.88
16,1
 photo_cameraImage coming soon 79955 Protection guard assy €15.02
17
 Gear Box for Brushcutter Kawasaki KBC 53BP 79952 Gear Box for Brushcutter Kawasaki KBC 53BP €40.21

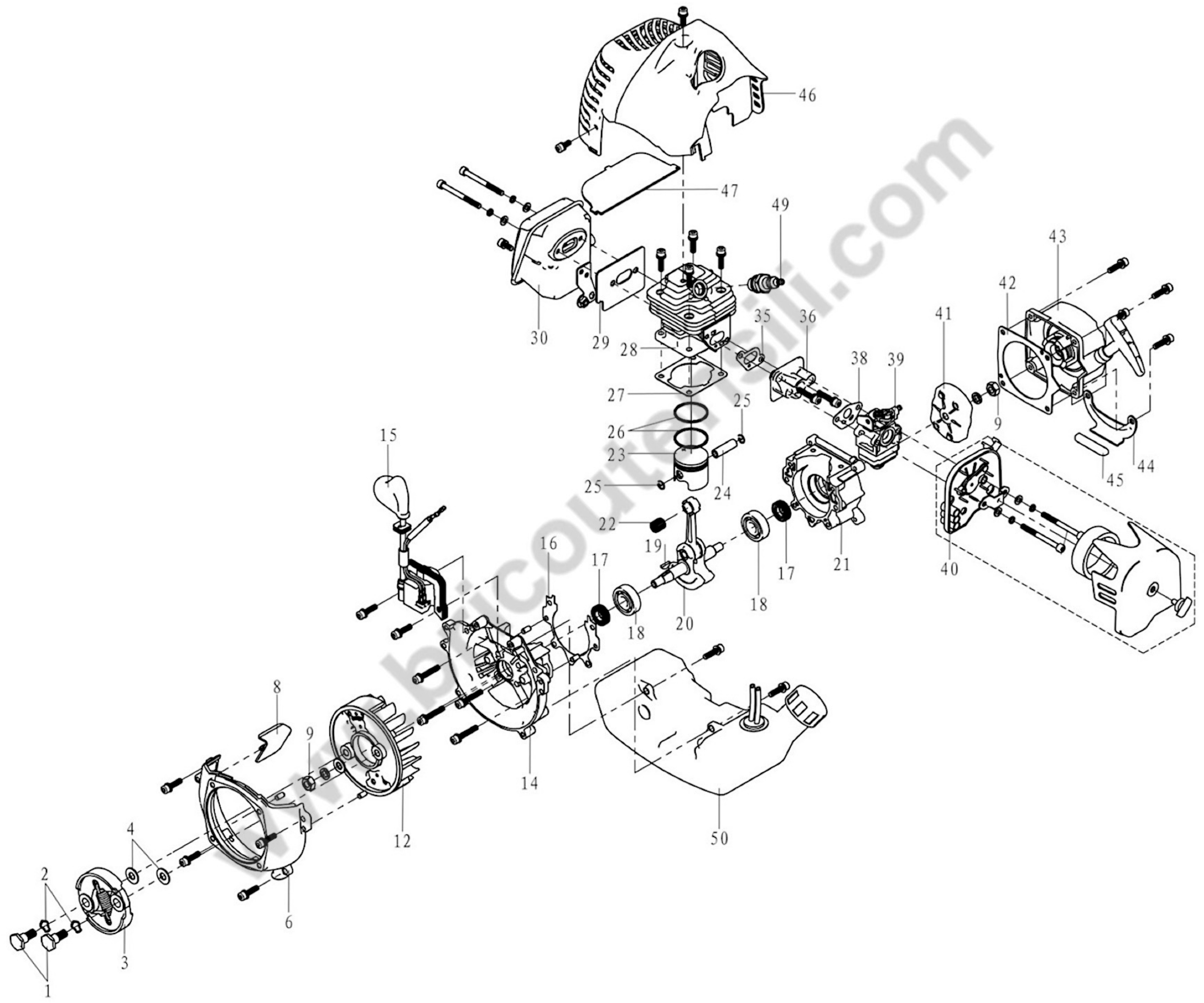

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 79840 Screw axes €1.27
2
 Alluminium Pipe Shaft for Brushcutter AMA Playcut BC 350 79954 Alluminium Pipe Shaft for Brushcutter AMA Playcut BC 350 €28.62
2
 External Drive Shaft Cpl for Brushcutters Kawasaki KBC 35-KBC 45 79954 External Drive Shaft Cpl for Brushcutters Kawasaki KBC 35-KBC 45 €23.96
3
 Clutch Ass'y for Brushcutters AMA Playcut BC 350 - 450 79842 Clutch Ass'y for Brushcutters AMA Playcut BC 350 - 450 €19.40
6
 photo_cameraImage coming soon 79844 Fly wheel cover €4.50
12
 Flywheel for Brushcutter AMA Playcut BC 350 79847 Flywheel for Brushcutter AMA Playcut BC 350 €31.98
14
 Crankshaft Housing Flywheel Side for Brushcutter AMA Playcut BC 350 79848 Crankshaft Housing Flywheel Side for Brushcutter AMA Playcut BC 350 €19.40
15
 Ignition Coil for Brushcutter AMA Playcut BC 350 79849 Ignition Coil for Brushcutter AMA Playcut BC 350 €28.62
17
 photo_cameraImage coming soon 79810 Oil seal TC12x22x7 €2.30
18
 photo_cameraImage coming soon 79851 Bearing 6201 €3.04
20
 photo_cameraImage coming soon 79853 Crankshaft €26.38
21
 photo_cameraImage coming soon 79854 Back-half crankshaft case €13.72
22
 photo_cameraImage coming soon 79855 Needle bearing-small head €3.04
23
 photo_cameraImage coming soon 79856 Piston €10.33
24
 photo_cameraImage coming soon 79857 Piston pin €2.30
25
 photo_cameraImage coming soon 79858 Piston pin check ring €1.56
26
 AMA BC 350 Piston Ring 79859 AMA BC 350 Piston Ring €4.63
27
 photo_cameraImage coming soon 79860 Cylinder gasket €1.59
28
 photo_cameraImage coming soon 79861 Cylinder €44.56
30
 photo_cameraImage coming soon 79863 Muffler €22.82
35
 Thermal Flange Gasket for Brushcutter AMA Playcut BC 350 79968 Thermal Flange Gasket for Brushcutter AMA Playcut BC 350 €0.50
36
 photo_cameraImage coming soon 79864 Inlet pipe €3.76
38
 photo_cameraImage coming soon 79971 Carburator gasket €247.12
40
 AMA Air Filter Ass'y for Brushcutter Playcut BC 350 79970 AMA Air Filter Ass'y for Brushcutter Playcut BC 350 €10.07
41
 Starter Cup Ass'y for Brushcutter AMA Playcut BC 350 79865 Starter Cup Ass'y for Brushcutter AMA Playcut BC 350 €8.30
42
 photo_cameraImage coming soon 79866 Starter gasket €2.30
43
 Easy-Start Starter for Brushcutters AMA Playcut 79867 Easy-Start Starter for Brushcutters AMA Playcut €22.86
44
 photo_cameraImage coming soon 79868 Fuel tank holding plate €1.27
46
 photo_cameraImage coming soon 79871 Engine case cover €13.72
47
 photo_cameraImage coming soon 79872 Engine case cover baffle €1.27
49
 Spark Plug NGK BM6A 08070 Spark Plug NGK BM6A €3.26
50
 photo_cameraImage coming soon 79873 Fuel tank assy €23.33
51
 photo_cameraImage coming soon 79874 Cap €1.29
52
 photo_cameraImage coming soon 79875 Fuel pipe assy €2.08
53
 photo_cameraImage coming soon 79876 Foam element €2.39
54
 photo_cameraImage coming soon 79877 Air filter cover €2.46

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Bruschcutter Playcut BC 350

Fix Your Bruschcutter Playcut BC 350 - 79373. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Bruschcutter and the respective parts of the code.
Bruschcutter Playcut BC 350 - 79373

Bruschcutter Playcut BC 350 Trasmission Pag.1
# Part Num. Description
1 79953 Clutch Drum assy
2 79954 Aluminum shaft Φ26x1500
3 79945 Hardness axes Φ8x1520
7 79946 Throttle handle assy C
9 79947 Belt Connecter Assy
12 79948 Sponge end plug for tube
13 79949 P type handle
15 79950 Protection guard bracke
16,1 79955 Protection guard assy
16,2 79951 Nylon line cutting blade
17 79952 Gear Case
Bruschcutter Playcut BC 350 Engine Pag.2
1 79840 Screw axes
2 79841 Wave washer
3 79842 Clutch
4 79843 Washer B
6 79844 Fly wheel cover
8 79845 Baffle
9 79846 M8 nut
12 79847 Fly wheel
14 79848 Front-half crankshaft case
15 79849 Ignition coil
16 79850 Crankshaft gasket
17 79810 Oil seal TC12x22x7
18 79851 Bearing 6201
19 79852 Half-round key 3*5*13
20 79853 Crankshaft
21 79854 Back-half crankshaft case
22 79855 Needle bearing-small head
23 79856 Piston
24 79857 Piston pin
25 79858 Piston pin check ring
26 79859 Piston ring
27 79860 Cylinder gasket
28 79861 Cylinder
29 79862 Muffler gasket
30 79863 Muffler
35 79968 Inlet gasket
36 79864 Inlet pipe
38 79971 Carburator gasket
39 79869 Carburator
40 79970 Air filter assy
41 79865 Starter catch plate
42 79866 Starter gasket
43 79867 Easy-start starter
44 79868 Fuel tank holding plate
45 79870 Holding plate rubber gasket
46 79871 Engine case cover
47 79872 Engine case cover baffle
49 08070 Spark plug BM6A
50 79873 Fuel tank assy
51 79874 Cap
52 79875 Fuel pipe assy
53 79876 Foam element
54 79877 Air filter cover
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama Playcut BC 350 - 79373
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

AMA Playcut BC 350 Drawing

AMA Playcut BC 350 Drawing

Download (448.64KB)
