Alpina Spare Parts for Battery Lawn Mower BL 410 Li

SKU: BL 410 Li/295441064/A19-2019
€1.55
VAT included

Alpina Spare Parts for Battery Lawn Mower BL 410 Li

Alpina Genuine spare parts or replacement parts for to repair Battery Lawn Mower BL 410 Li/295441064/A19-2019.

Battery Lawn Mower BL 410 Li/295441064/A19-2019
Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li
  • Alpina Spare Parts for Battery Lawn Mower BL 410 Li

Alpina Spare Parts for Battery Lawn Mower BL 410 Li

SKU: BL 410 Li/295441064/A19-2019 Condition: New
€1.55
VAT included

Alpina Spare Parts for Battery Lawn Mower BL 410 Li

Alpina Genuine spare parts or replacement parts for to repair Battery Lawn Mower BL 410 Li/295441064/A19-2019.

Battery Lawn Mower BL 410 Li/295441064/A19-2019
settings 114 spare parts
description 9 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

81 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 112728699/0 Screw €1.66
4
photo_cameraImage coming soon 322108302/0 Rear Conveyor Assy €22.05
4
Rear Baffle for Lawnmower Alpina BL 460 322108392/0 Rear Baffle for Lawnmower Alpina BL 460 €22.71
5
photo_cameraImage coming soon 112728699/0 Screw €1.66
6
photo_cameraImage coming soon 322545213/0 Plate €2.04
7
photo_cameraImage coming soon 381005139/0 Left Bracket €6.75
8
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
9
photo_cameraImage coming soon 381005137/0 Right Bracket €6.75
10
photo_cameraImage coming soon 322060241/1 Belt Carter €8.70
11
photo_cameraImage coming soon 322140240/1 Mulching Deflector As Optional €9.31
12
photo_cameraImage coming soon 112728531/0 Screw €1.54
13
photo_cameraImage coming soon 322820077/1 Cap From 01-september-2016 €1.66
14
photo_cameraImage coming soon 112728450/0 Screw €1.72
15
photo_cameraImage coming soon 119035000/0 Ring Or €5.26
16
photo_cameraImage coming soon 322034002/0 Washing Connection €1.76
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322545189/0 Plate €1.65
2
photo_cameraImage coming soon 322735597/0 Left Height Adjustment €2.20
2
photo_cameraImage coming soon 322735597/1 Sector, Height Adjustment €2.58
3
photo_cameraImage coming soon 381005141/0 Wheel Support €9.84
3
photo_cameraImage coming soon 381005159/0 Wheel Support €12.01
3
photo_cameraImage coming soon 381005253/0 Wheel Support €10.18
4
photo_cameraImage coming soon 381003354/0 Lever, Height Adjustment €7.10
5
photo_cameraImage coming soon 122519811/0 Pin €1.65
6
photo_cameraImage coming soon 112521350/0 Washer €1.74
7
photo_cameraImage coming soon 112155000/0 Nut €1.66
8
photo_cameraImage coming soon 322545211/0 Plate €2.43
9
photo_cameraImage coming soon 322735595/0 Sector, Height Adjustment L. €2.81
9
photo_cameraImage coming soon 322735595/1 Sector, Height Adjustment €2.89
10
photo_cameraImage coming soon 322600247/0 Protection, Wheel €4.40
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006737/0 Handle Lower Part €26.23
2
photo_cameraImage coming soon 112819110/0 Screw €1.66
3
photo_cameraImage coming soon 122671651/0 Washer €2.11
4
Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
5
photo_cameraImage coming soon 112293200/0 Nut €1.74
6
photo_cameraImage coming soon 133320504/0 Cable clamp €2.04
7
photo_cameraImage coming soon 112818900/0 Screw €1.66
9
Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
10
photo_cameraImage coming soon 112293200/0 Nut €1.74
11
photo_cameraImage coming soon 112155000/0 Nut €1.66
12
photo_cameraImage coming soon 112521350/0 Washer €1.74
13
photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
14
photo_cameraImage coming soon 112760605/0 Screw €3.52
15
photo_cameraImage coming soon 381008692/0 Outfit, Screws €8.87
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 322322881/1 Black Motor Brake Lever €10.20
4
photo_cameraImage coming soon 322230350/2 Fulcrum €1.81
5
photo_cameraImage coming soon 122450115/0 Spring €1.47
6
photo_cameraImage coming soon 322785144/1 Support €2.70
7
photo_cameraImage coming soon 112728701/0 Screw €1.47
8
photo_cameraImage coming soon 122192000/1 Clamp €1.62
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381007448/1 Wheel - Short Hub €11.70
2
photo_cameraImage coming soon 119216035/0 Bearing €4.51
3
photo_cameraImage coming soon 322110636/0 Hub Cap Grey €2.73
5
photo_cameraImage coming soon 381007448/1 Wheel - Short Hub €11.70
6
photo_cameraImage coming soon 119216035/0 Bearing €4.51
9
photo_cameraImage coming soon 322110636/0 Hub Cap Grey €2.73
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112139440/0 Key €1.27
2
photo_cameraImage coming soon 322463190/0 Hub Ø 17 €9.37
3
Mulching Blade L.409,5 mm for Lawnmower Alpina BL 410 181004341/3 Mulching Blade L.409,5 mm for Lawnmower Alpina BL 410 €17.59
4
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E 381004352/1 Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E €3.90
5
photo_cameraImage coming soon 112583500/0 Grower €1.64
6
photo_cameraImage coming soon 112293200/0 Nut €1.74
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
photo_cameraImage coming soon 122450464/0 Spring €1.96
3
photo_cameraImage coming soon 322109556/0 Stone Guard Supp. Cover Yellow €4.16
3
photo_cameraImage coming soon 322109557/0 Stone Guard Supp. Cover Grey €24.62
4
photo_cameraImage coming soon 112728699/0 Screw €1.66
5
photo_cameraImage coming soon 322600206/1 Stone Guard, Black €23.52
5
photo_cameraImage coming soon 322600214/1 Stone Guard, Yellow €12.91
5
photo_cameraImage coming soon 322600216/1 Stone Guard, Grey €13.29
6
photo_cameraImage coming soon 181006409/0 Textile Grasscatcher Frame €37.51
7
photo_cameraImage coming soon 181002319/0 Textile Grasscatcher Black €54.01
8
Alpina BL460 Stone Guard Ass'y Black 381008163/0 Alpina BL460 Stone Guard Ass'y Black €25.35
8
photo_cameraImage coming soon 381008164/0 Yellow Stone guard Assy €26.11
9
photo_cameraImage coming soon 381008735/0 Kit plastic pin €2.32
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
15
Screw Tx M5x25 for Chainsaw Alpina AC 27 T 123878121/0 Screw Tx M5x25 for Chainsaw Alpina AC 27 T €1.70
16
photo_cameraImage coming soon 2312100 Washer €1.50
17
photo_cameraImage coming soon 2123050 Screw €1.58
18
photo_cameraImage coming soon 2123210 SCREW €3.38
19
photo_cameraImage coming soon 112793600/0 Screw €1.53
20
photo_cameraImage coming soon 112727810/0 Screw €1.79
24
Alpina AL3 46 SG Screw 112728706/0 Alpina AL3 46 SG Screw €1.65

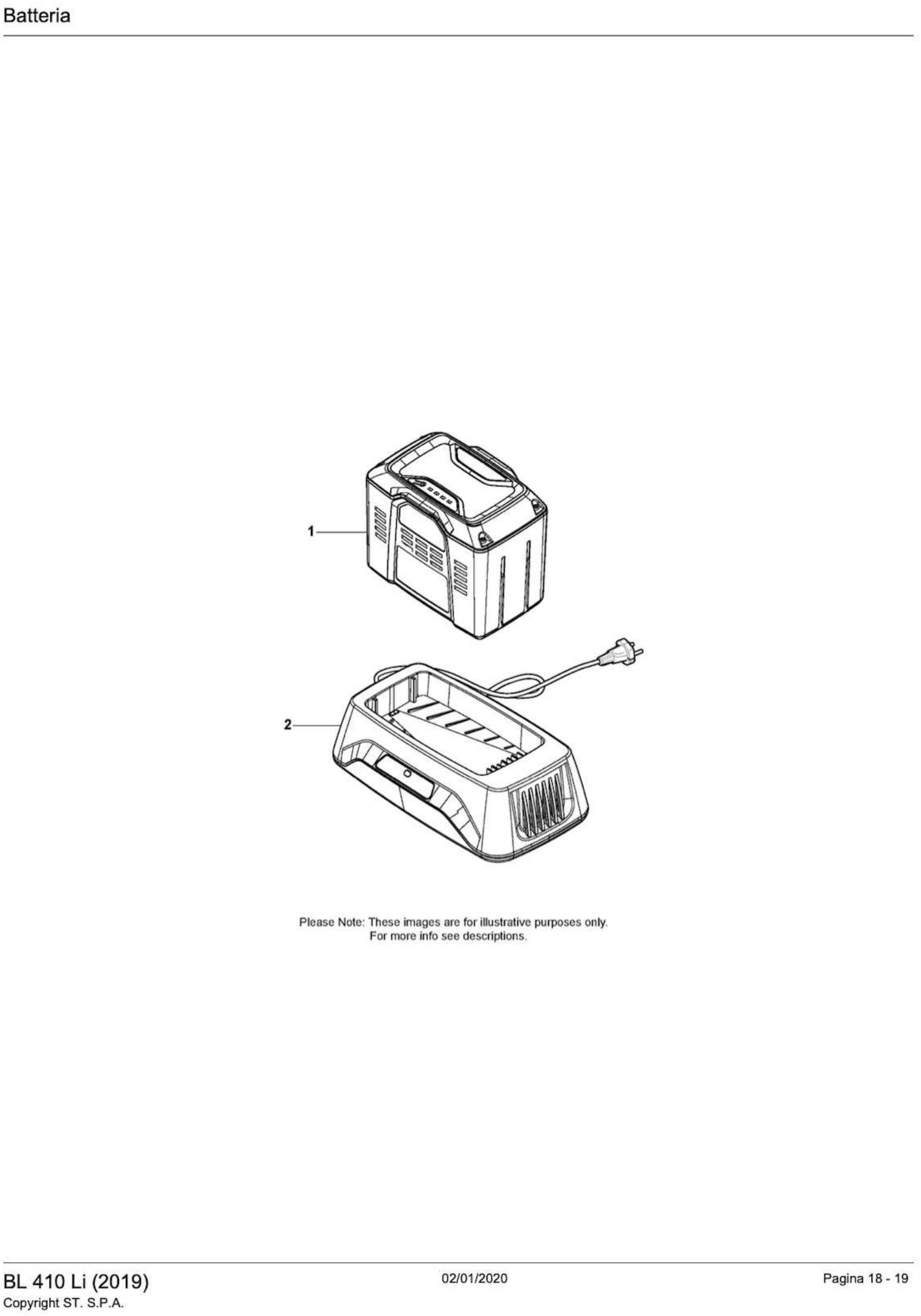

Page 9 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Battery Lawn Mower BL 410 Li

Alpina Genuine spare parts or replacement parts for to repair Battery Lawn Mower BL 410 Li/295441064/A19-2019.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
Battery Lawn Mower BL 410 Li/295441064/A19-2019

Battery Lawn Mower BL 410 Li/295441064/A19-2019

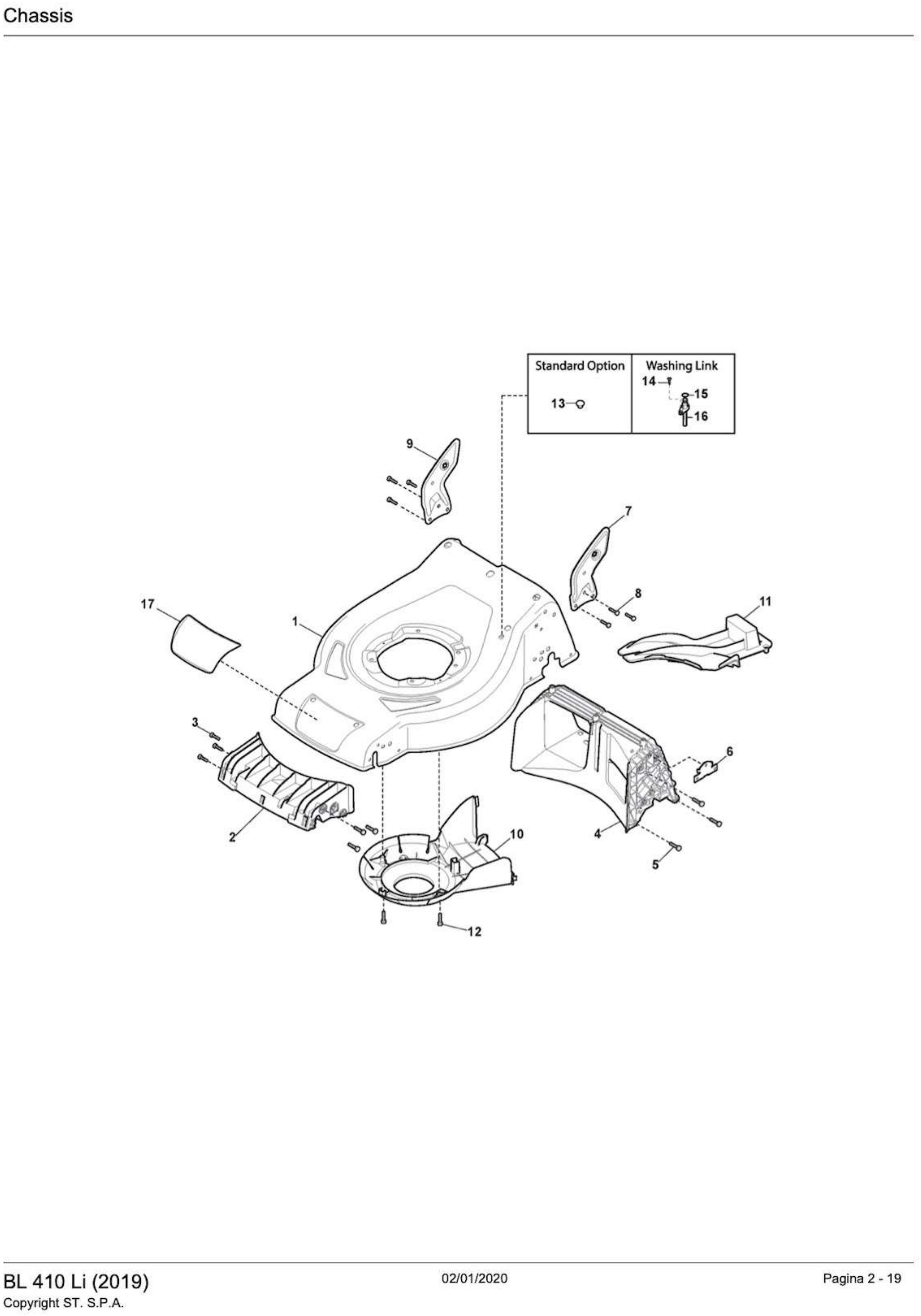

Chassis Pag.1
# Part Num. Description
1 381004946/0 Black chassis
2 322108300/2 Front Baffle
3 112728699/0 Screw
4 322108302/0 Rear Baffle To 31-August-2017
4 322108392/0 Rear Baffle From 01-September-2018
5 112728699/0 Screw
6 322545213/0 Plate
7 381005139/0 Left bracket
8 112727801/0 Screw
9 381005137/0 Right bracket
10 322060241/1 Belt Carter
11 322140240/1 Mulching Deflector
12 112728531/0 Screw
13 322820077/1 Plug
14 112728450/0 Screw
15 119035000/0 Or ring
16 322034002/0 Water washing connection
17 322055604/0 Insert

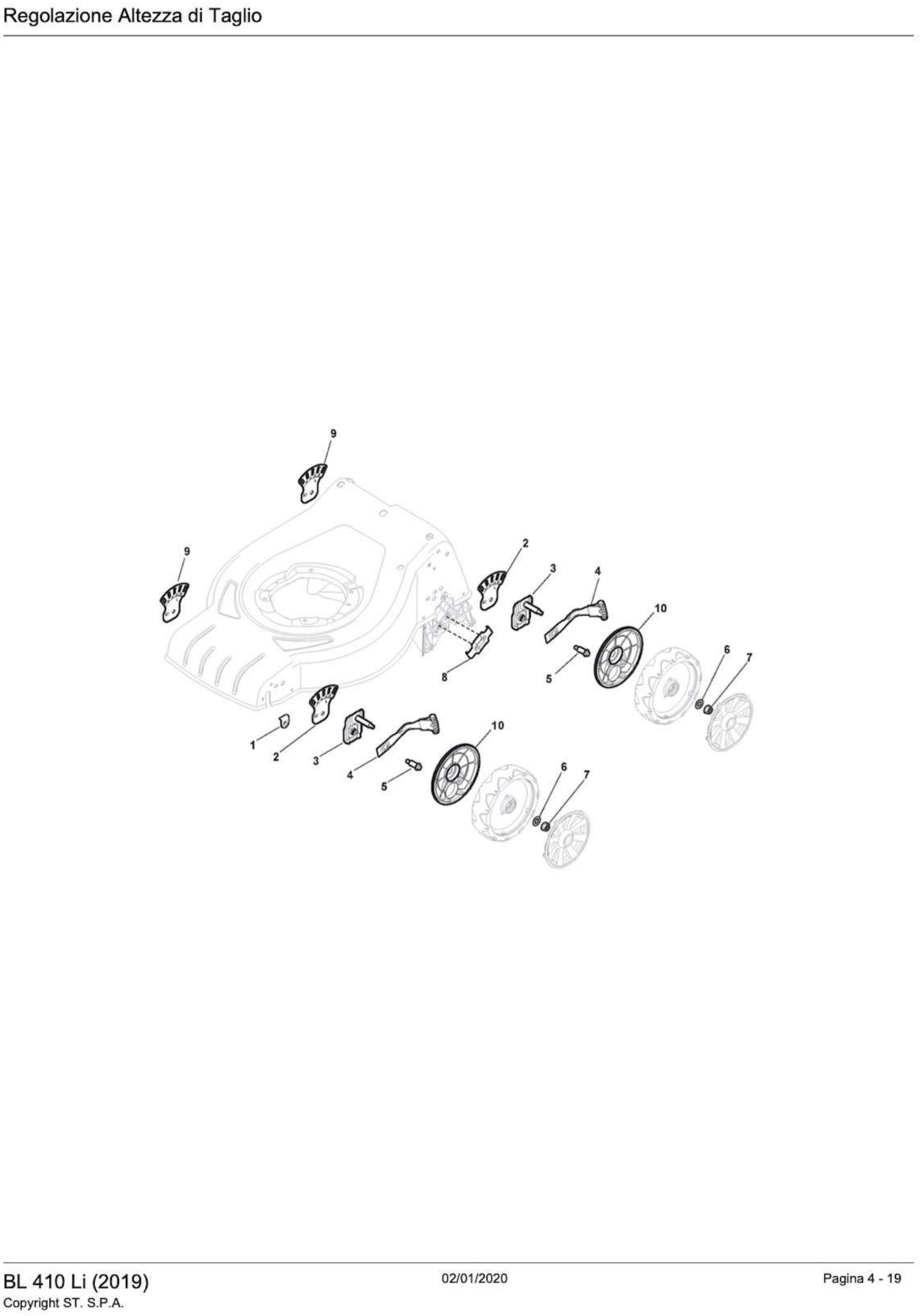

Height Adjustment Pag.2
1 322545189/0 Plate
2 322735597/0 Left Height Adjustment Sector
2 322735597/1 Height Adjustment Sector
3 381005141/0 Wheel support
3 381005159/0 Wheel support
3 381005253/0 Wheel support
4 381003354/0 Height Adjustment Lever
5 122519811/0 Pin
6 112521350/0 Washer
7 112155000/0 Nut
8 322545211/0 Plate
9 322735595/0 Right Height Adjustment Sector
9 322735595/1 Height Adjustment Sector
10 322600247/0 Wheel protection

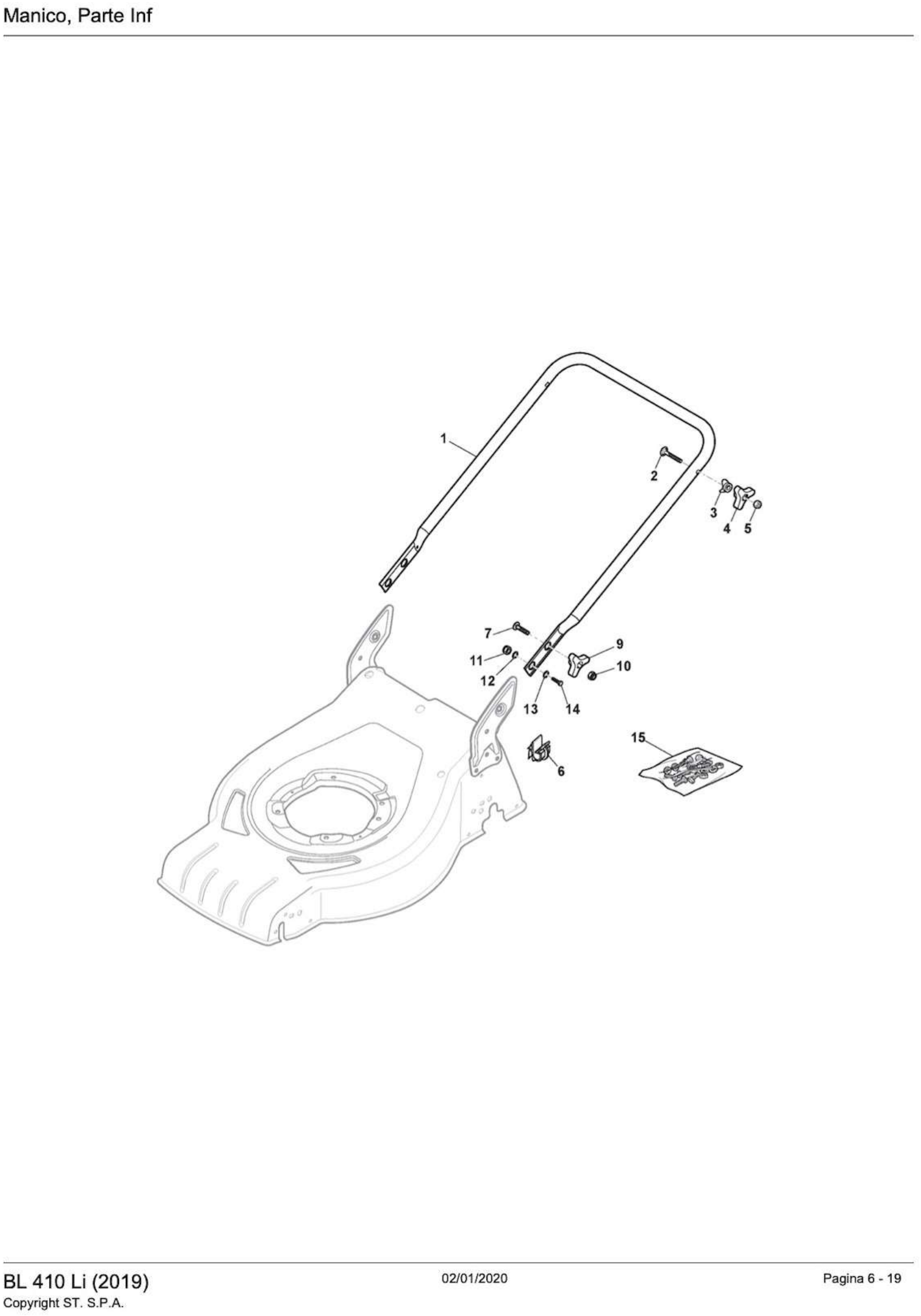

Handle, Lower Side Pag.3
1 381006737/0 Handle, Lower Side
2 112819110/0 Screw
3 122671651/0 Washer
4 322399840/0 Yellow knob
5 112293200/0 Nut
6 133320504/0 Cable clamp
7 112818900/0 Screw
9 322399840/0 Yellow knob
10 112293200/0 Nut
11 112155000/0 Nut
12 112521350/0 Washer
13 112369500/0 Elastic disc
14 112760605/0 Screw
15 381008692/0 Screws Kit

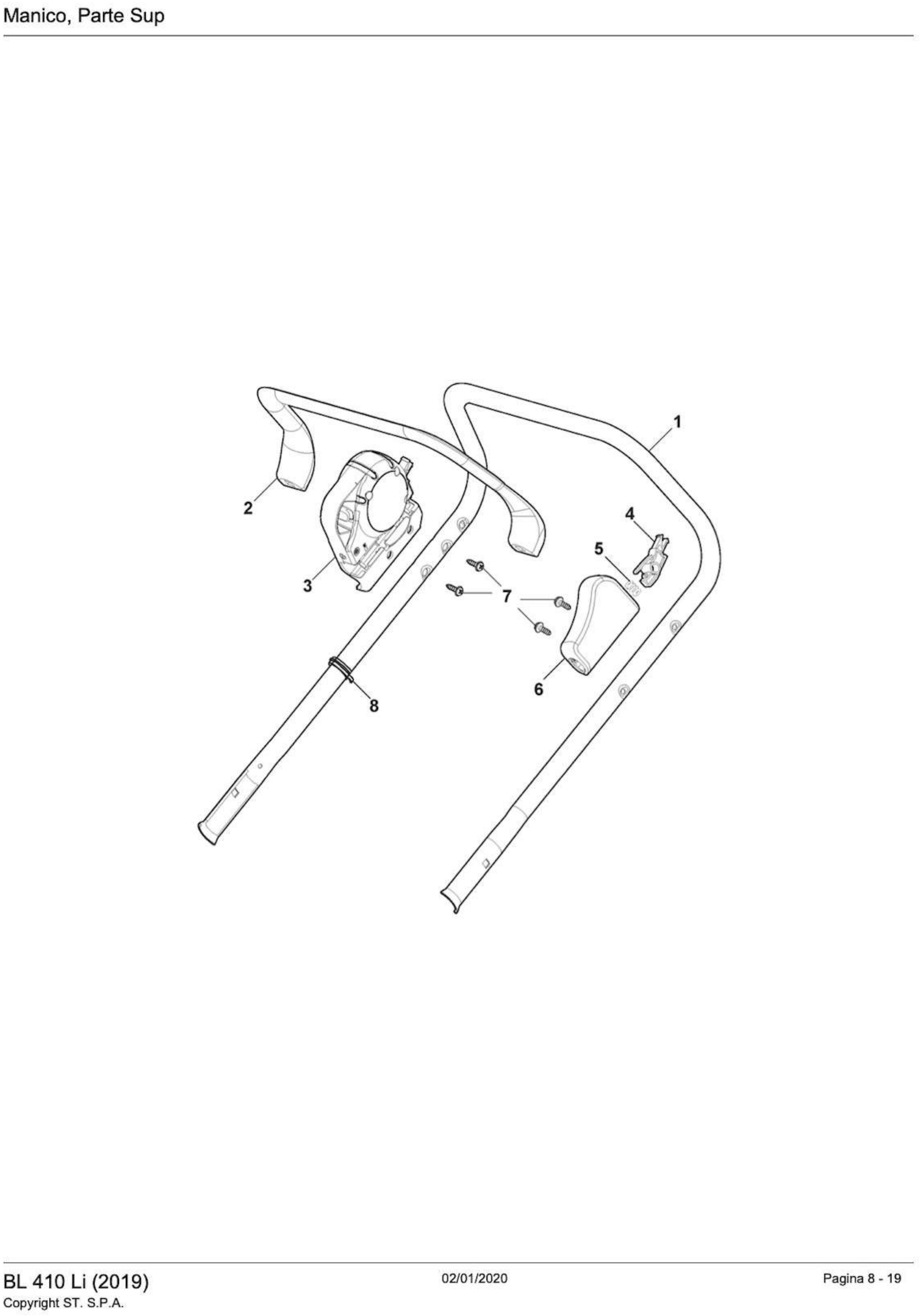

Handle, Upper Side Pag.4
1 381007644/0 Handle, Upper Side
2 322322881/1 Black Motor Brake Lever
2 322322881/2 Black Motor Brake Lever
3 381600575/1 Motor protection - Battery
4 322230350/2 Fulcrum
5 122450115/0 Spring
6 322785144/1 Support
7 112728701/0 Screw
8 122192000/1 Cable tie

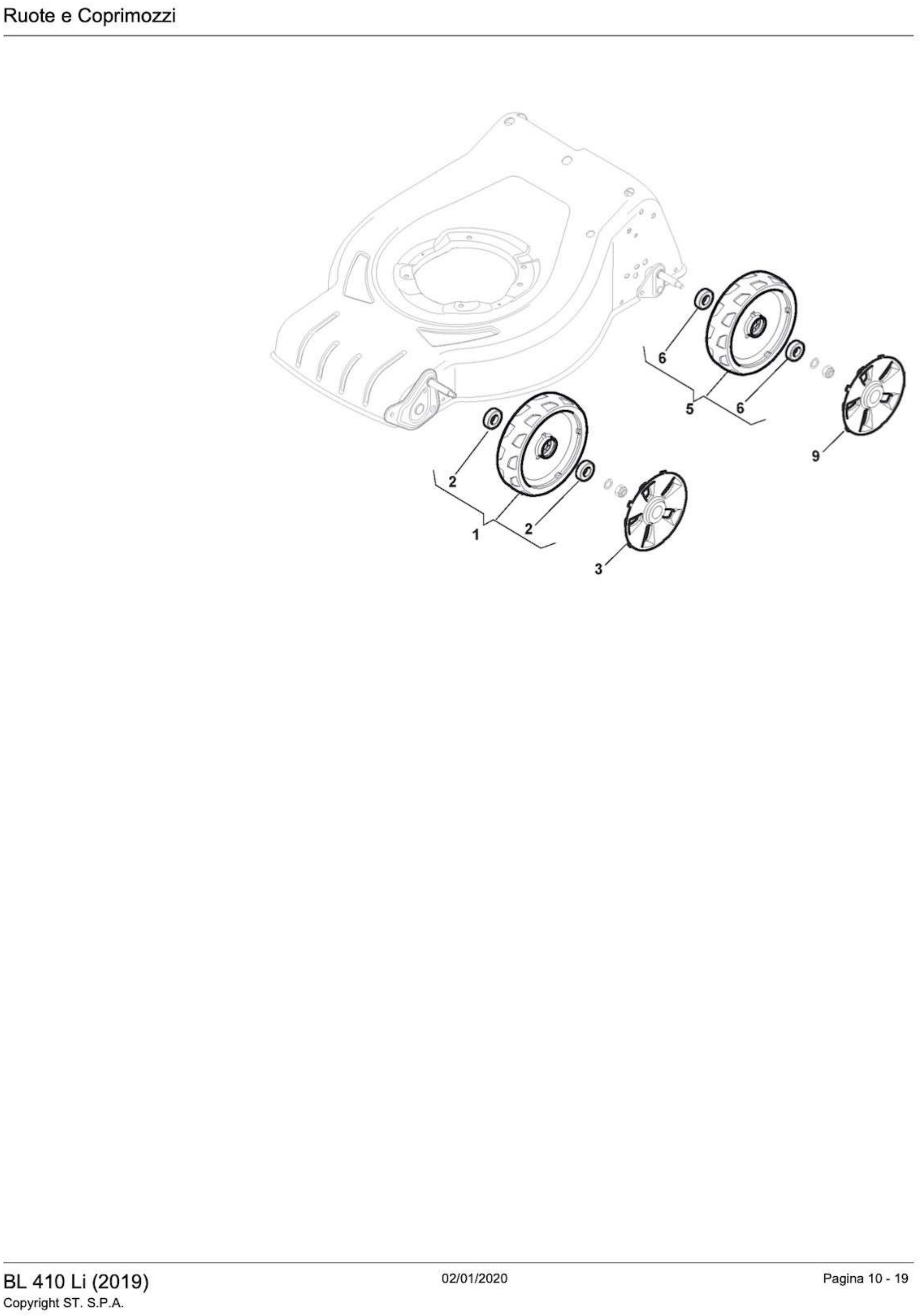

Wheel Pag.5
1 381007447/1 Wheel - Long Hub
1 381007448/0 Wheel - Short Long
1 381007448/1 Wheel - Short Long
2 119216035/0 Bearing
3 322110636/0 Gray hubcap
5 381007447/1 Wheel - Long Hub
5 381007448/0 Wheel - Short Long
5 381007448/1 Wheel - Short Long
6 119216035/0 Bearing
9 322110636/0 Gray hubcap

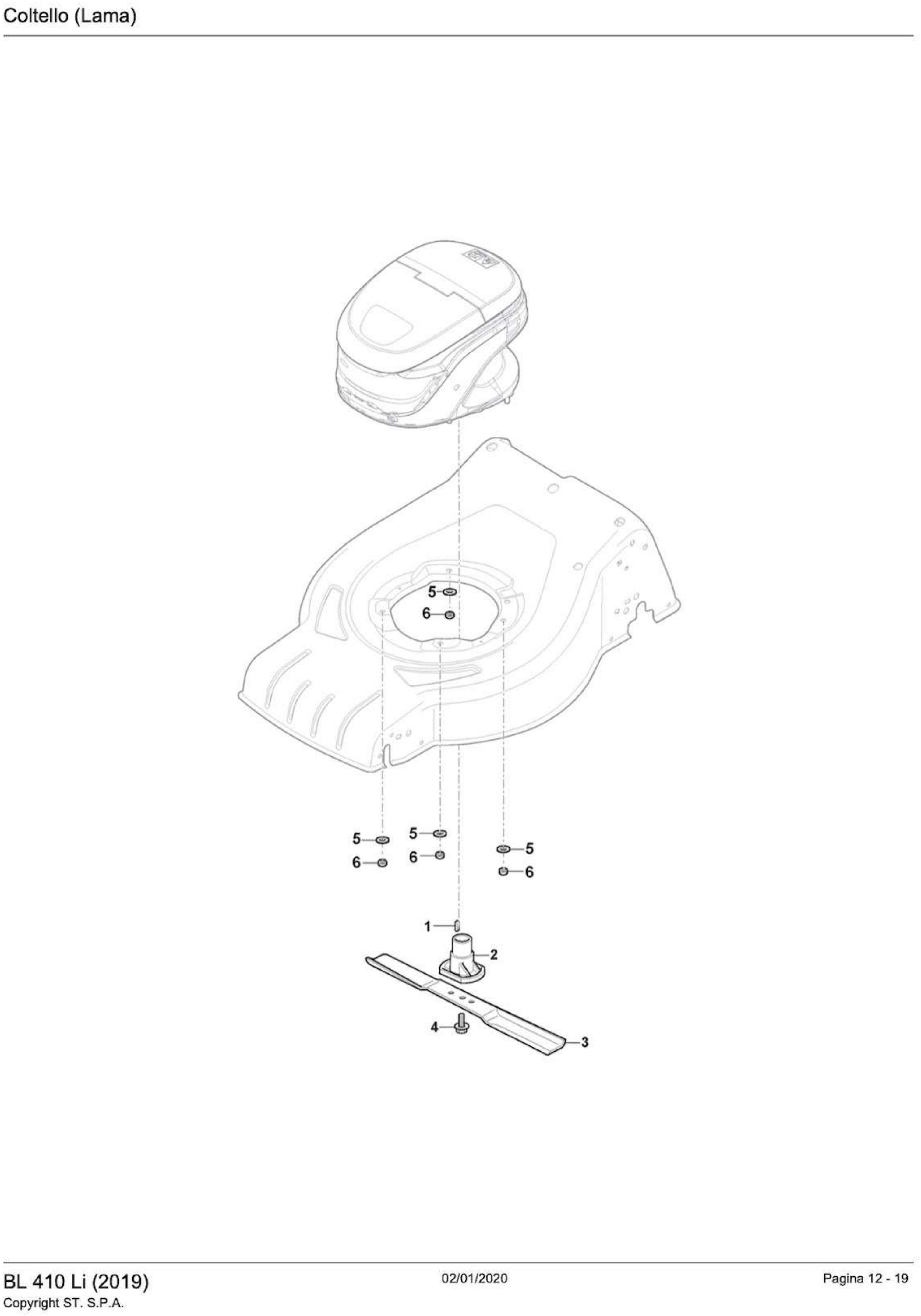

Blade Pag.6
1 112139440/0 Woodruff
2 322463190/0 Hub Ø 17
3 181004341/3 Mulching blade
4 381004352/1 Screw
5 112583500/0 Grower
6 112293200/0 Nut
Bag Pag.7
1 322785331/0 Black Stones Guard Support
2 122450464/0 Spring
3 322109556/0 Cover Stones, Yellow
3 322109557/0 Stones cover, Gray
4 112728699/0 Screw
5 322600206/1 Black stone guard
5 322600214/1 Yellow stone guard
5 322600216/1 Gray stone guard
6 181006409/0 Frame bag
6 181006409/1 Frame bag
7 181002319/0 Bag, Canvas
8 381008163/0 Stone Guard Black
8 381008164/0 Stone Guard Yellow
8 381008166/0 Stone Guard Grey
9 381008735/0 Plastic Pin
Motor Pag.8
1 118810832/0 Security Key
2 118810842/0 Battery Housing Kit
3 118810843/0 Carter kit
4 118810835/0 60V Motor Kit
5 118810836/0 Motor cable
6 118810837/0 PCB Vers. Thrust-Traction Mec.
7 118810844/0 Parts Kit
10 322110022/0 Front Cover Lower Gray
11 322110024/0 Black Front Cover
12 322110029/0 Gray Cover Side Left
13 322110028/0 Gray Cover Side Right
14 322110023/0 Rear Gray Cover
15 123878121/0 Screw
16 2312100 Washer
17 2123050 Screw
18 2123210 Screw
19 112793600/0 Screw
20 112727810/0 Screw
21 381270013/0 Complete Engine Assy
22 322722833/0 Lower protection
22 322722860/0 Lower protection
23 322722834/0 Upper protection
23 322722861/0 Upper protection
24 112728706/0 Screw
Battery Pag.9
1 276014608/ST1 Battery 60V - 4Ah
1 276015608/ST1 Battery 60V - 5Ah
2 276020608/ST1 Charge Battery 60V - EU plug
2 276020618/ST1 Charge Battery 60V - BS plug
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BL 410 Li/295441064/A19-2019
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina BL 410 Li

Diagram Alpina BL 410 Li

Download (405.91KB)

You might also like

GGP Italy SKU: 112727801/0
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment Original replacement part Alpina, Screw TCB Torx M6x20 Acc.8.8 ZNN III for Lawnmower Cutting Height Adjustment. Part for the following products: - 148 SP FOUR (2010) - 148...
AVAILABLE €1.74
GGP Italy SKU: 381004352/1
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E Original replacement part Alpina, Blade Boss Hub Bolt for Electric Lawnmower AL1 38 E - AL1 42 E - AL3 46 E - FL 41 LE. Part for the following...
Last items in stock €3.90
GGP Italy SKU: 123878121/0
Screw Tx M5x25 for Chainsaw Alpina AC 27 T Original replacement part Alpina, Screw Tx M5x25 for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31  - Stiga SPR 276. Part for the...
AVAILABLE €1.70
GGP Italy SKU: 322108392/0
Rear Baffle for Lawnmower Alpina BL 460 Original part Alpina, Plastic Rear Baffle From 01-September-2018 for Lawnmowers BL 460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 510 SHQ. Part for the...
Last items in stock €22.71
GGP Italy SKU: 181004341/3
Mulching Blade L.409,5 mm for Lawnmower Alpina BL 410 Original replacement part Alpina, Mulching Blade L.409,5 mm R/TD/CA 43 for Lawnmower Alpina BL 410 - BL 410 LI - Castor FL 41 LE. Part for the...
AVAILABLE €17.59
GGP Italy SKU: 381008163/0
Alpina BL460 Stone Guard Ass'y Black Original replacement part Alpina, Stone Guard Ass'y Black for BL460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 410 LI - Mountfield SP46. Part for the following products: - BL460 -...
Last items in stock €25.35
GGP Italy SKU: 112728706/0
Alpina Lawnower AL3 46 SG Screw Genuine replacement part Alpina, Screw Torx Wn1451 K40X16 for Lawnower AL3 46 SG - AL3 46 SBQ. Part for the following products: -  Lawnower Mountfield S481...
AVAILABLE €1.65
Comments (0)
