TTI Industries

AEG PN11E Combi Hammer Parts

SKU: AEG PN11E
€24.36
VAT included

AEG PN11E Combi Hammer Parts

Fix Your PN11E Combi Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

AEG PN11E Combi Hammer
AEG PN11E Combi Hammer Parts
  • AEG PN11E Combi Hammer Parts
  • AEG PN11E Combi Hammer Parts Diagram
TTI Industries

AEG PN11E Combi Hammer Parts

SKU: AEG PN11E Condition: New
€24.36
VAT included

AEG PN11E Combi Hammer Parts

Fix Your PN11E Combi Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

AEG PN11E Combi Hammer
settings 86 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
86 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

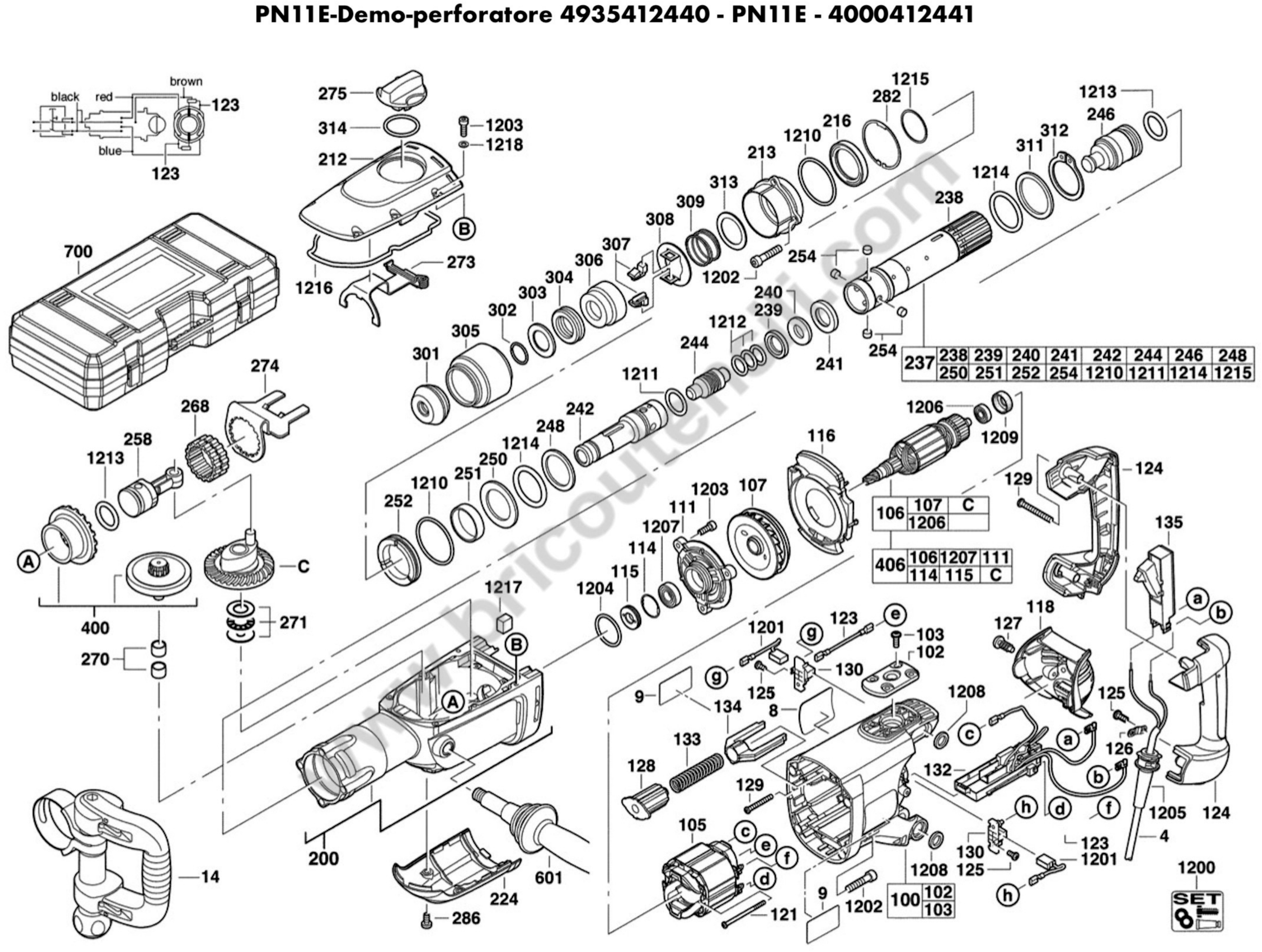

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 4931624696 CONNECTION CABLE €25.34
14
 photo_cameraImage coming soon 4931398534 HANDLE €70.06
100
 photo_cameraImage coming soon 4931412429 HOUSING MOTOR SIDE €51.27
102
 photo_cameraImage coming soon 4931375531 SECURED WASHER €25.64
103
 photo_cameraImage coming soon 4931624213 SCREW €2.99
105
 photo_cameraImage coming soon 4931442746 ELECTRIC FIELD €50.59
106
 photo_cameraImage coming soon 4931432415 REPAIR KIT €242.45
107
 Milwaukee K900S Fan 4931375474 Milwaukee K900S Fan €17.72
111
 photo_cameraImage coming soon 4931426434 BEARING END PLATE €21.02
114
 photo_cameraImage coming soon 4931890311 LOCKING RING €5.15
115
 photo_cameraImage coming soon 4931375489 SEAL RING €5.15
116
 photo_cameraImage coming soon 4931375515 AIR DEFLECTOR RING €5.88
118
 photo_cameraImage coming soon 4931412430 SERVICING LID €10.20
121
 photo_cameraImage coming soon 4931339996 SCREW €2.27
123
 photo_cameraImage coming soon 4931624263 WIRE €5.15
124
 photo_cameraImage coming soon 4931412431 PAIR HANDLE SHELLS €23.06
125
 photo_cameraImage coming soon 4931624538 SCREW €2.27
126
 photo_cameraImage coming soon 4931256500 CABLE COLLAR €5.30
127
 photo_cameraImage coming soon 4931624537 SCREW €3.51
128
 photo_cameraImage coming soon 4931375477 THRUST PIECE €4.43
129
 photo_cameraImage coming soon 4931622765 SCREW N874101-1 SHR C-K5X45/20 KOMBITORX €3.51
130
 Milwaukee K500S Brush Holder 4931381694 Milwaukee K500S Brush Holder €6.34
132
 Milwaukee K900S Electronic 4931409105 Milwaukee K900S Electronic €65.97
133
 photo_cameraImage coming soon 4931375529 PRESSURE SPRING €2.99
134
 photo_cameraImage coming soon 4931375530 TRANSITION PIECE €2.99
135
 Milwaukee Hammer K700S Switch 4931375454 Milwaukee Hammer K700S Switch €32.79
200
 photo_cameraImage coming soon 4931412446 GEAR BOX €191.96
212
 photo_cameraImage coming soon 4931426459 GEAR BOX COVER €66.46
213
 photo_cameraImage coming soon 4931375569 SEAL RETAINER €5.88
216
 photo_cameraImage coming soon 4931624205 SEAL RING €5.15
237
 photo_cameraImage coming soon 4931375378 SPINDLE €303.60
238
 photo_cameraImage coming soon 4931426172 SPINDLE SLEEVE €105.69
239
 photo_cameraImage coming soon 4931375411 THRUST COLLAR €9.48
240
 photo_cameraImage coming soon 4931375412 THRUST COLLAR €5.15
241
 photo_cameraImage coming soon 4931409791 ATTACHMENT RING €5.88
242
 photo_cameraImage coming soon 4931426173 DRIVER €74.10
244
 photo_cameraImage coming soon 4931375573 SNAP DIE €28.95
246
 photo_cameraImage coming soon 4931455429 PERCUSSION BODY €61.56
248
 photo_cameraImage coming soon 4931375416 ATTACHMENT RING €5.15
250
 photo_cameraImage coming soon 4931375418 WASHER €4.43
251
 photo_cameraImage coming soon 4931375419 BALL RACE €8.04
252
 photo_cameraImage coming soon 4931375420 THRUST COLLAR €8.04
254
 photo_cameraImage coming soon 4931463952 DRIVER €2.99
258
 Milwaukee K900S Piston Complete 4931375380 Milwaukee K900S Piston Complete €21.63
268
 Milwaukee Set Collar for K900S 4931396199 Milwaukee Set Collar for K900S €5.15
270
 AEG KH5E Needle Bearing 4931621847 AEG KH5E Needle Bearing €8.28
271
 photo_cameraImage coming soon 4931409549 THRUST BEARING €10.92
273
 photo_cameraImage coming soon 4931375583 ADJUSTING PLATE €5.44
274
 photo_cameraImage coming soon 4931375401 LOCKING PLATE €8.91
275
 photo_cameraImage coming soon 4931375546 LEVER €8.76
282
 photo_cameraImage coming soon 4931624235 RING OF CIRCUIT BREAKER €6.60
286
 photo_cameraImage coming soon 4931624658 SCREW €2.27
301
 photo_cameraImage coming soon 9170350243 END COVER CAP €6.60
302
 photo_cameraImage coming soon 9170319040 SPRING RING €2.27
303
 photo_cameraImage coming soon 4931409820 DAMPING ELEMENT €16.70
304
 photo_cameraImage coming soon 4931375775 DAMPING RING €7.31
305
 photo_cameraImage coming soon 9170316570 Chuck Cover €8.04
306
 photo_cameraImage coming soon 4931409842 INTERLOCK SLEEVE €18.86
307
 photo_cameraImage coming soon 4931468789 INTERLOCK ELEMENT €17.41
308
 photo_cameraImage coming soon 4931375770 INTERLOCK PLATE €21.02
309
 photo_cameraImage coming soon 4931375594 PRESSURE SPRING €5.15
313
 photo_cameraImage coming soon 4931375595 DISC €5.15
314
 photo_cameraImage coming soon 4931622166 O-RING N874701 26X3 €2.27
400
 Milwaukee K900S Repair Kit 4931432420 Milwaukee K900S Repair Kit €153.37
406
 photo_cameraImage coming soon 4931432415 REPAIR KIT €242.45
406
 photo_cameraImage coming soon 4931432416 REPAIR KIT €243.89
601
 photo_cameraImage coming soon 4931375516 HANDLE €49.29
700
 photo_cameraImage coming soon 4931412420 CARRYING CASE €96.35
1200
 photo_cameraImage coming soon 4931375659 MAINTENANCE SET €103.25
1201
 Milwaukee K900S Carbon Brush Set 4931375556 Milwaukee K900S Carbon Brush Set €17.43
1202
 photo_cameraImage coming soon 4931624234 SCREW €2.27
1203
 photo_cameraImage coming soon 4931624276 SCREW D 912 M5X16 8.8SSI €2.27
1204
 photo_cameraImage coming soon 4931624237 SEAL RING €5.15
1205
 photo_cameraImage coming soon 4931392174 PROTECTING COVER €5.30
1206
 Milwaukee K500S Ball Bearing 609LBT 4931341741 Milwaukee K500S Ball Bearing 609LBT €8.28
1207
 Milwaukee K500S Ball Bearing 6002DL 4931398189 Milwaukee K500S Ball Bearing 6002DL €9.02
1208
 photo_cameraImage coming soon 4931624170 SEAL RING €5.15
1209
 photo_cameraImage coming soon 4931317212 RUBBER SLEEVE €2.27
1210
 photo_cameraImage coming soon 4931624156 SEAL RING N874701 28X5 €5.15
1211
 photo_cameraImage coming soon 4931624161 SEAL RING N874701 28X5 €5.15
1212
 photo_cameraImage coming soon 4931624155 SEAL RING N874701 28X5 €5.15
1213
 photo_cameraImage coming soon 4931624158 SEAL RING N874701 28X5 €5.15
1214
 photo_cameraImage coming soon 4931624157 SEAL RING N874701 28X5 €5.15
1215
 photo_cameraImage coming soon 4931624153 SPRING RING N874268 SW 20 €5.15
1216
 photo_cameraImage coming soon 4931375506 GASKET €5.15
1217
 photo_cameraImage coming soon 4931375508 FELT €4.43
1218
 photo_cameraImage coming soon 4931603515 SEALING WASHER €2.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG PN11E Combi Hammer Parts

Fix Your PN11E Combi Hammer. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
AEG PN11E Hammer

PN11E SDS-M COMBI HAMMER IN2 Parts
4935412440 - PN11E - 4000412441
# Part Num. Description
4 4931624696 CONNECTION CABLE
8 4931412445 RATING PLATE Item discontinued
9 4931412435 NAME PLATE Item discontinued
14 4931398534 HANDLE
100 4931412429 HOUSING MOTOR SIDE
102 4931375531 SECURED WASHER
103 4931624213 SCREW
105 4931442746 ELECTRIC FIELD
106 4931432415 ARMATURE
106 4931432415 REPAIR KIT
107 4931375474 FAN
111 4931426434 BEARING END PLATE
114 4931890311 LOCKING RING
115 4931375489 SEAL RING
116 4931375515 AIR DEFLECTOR RING
118 4931412430 SERVICING LID
121 4931339996 SCREW
123 4931624263 WIRE
124 4931412431 PAIR HANDLE SHELLS
125 4931624538 SCREW
126 4931256500 CABLE COLLAR
127 4931624537 SCREW
128 4931375477 THRUST PIECE
129 4931622765 SCREW N874101-1 SHR C-K5X45/20 KOMBITORX (5)
130 4931381694 BRUSH HOLDER
132 4931409105 ELECTRONIC
133 4931375529 PRESSURE SPRING
134 4931375530 TRANSITION PIECE
135 4931375454 SWITCH
200 4931412446 GEAR BOX
212 4931426459 GEAR BOX COVER
213 4931375569 SEAL RETAINER
216 4931624205 SEAL RING
224 4931412438 GEAR COVER Item discontinued
237 4931375378 SPINDLE
238 4931426172 SPINDLE SLEEVE
239 4931375411 BACK-PRESSURE RING
240 4931375412 BACK-PRESSURE RING
241 4931409791 ATTACHMENT RING
241 4931409791 ATTACHMENT RING
242 4931426173 DRIVER
244 4931375573 SNAP DIE
246 4931455429 PERCUSSION BODY
248 4931375416 ATTACHMENT RING
250 4931375418 WASHER
251 4931375419 BALL RACE
252 4931375420 THRUST COLLAR
254 4931463952 DRIVER
258 4931375380 PISTON COMPL,
268 4931396199 SET COLLAR
270 4931621847 NEEDLE BEARING
271 4931409549 THRUST BEARING
273 4931375583 ADJUSTING PLATE
274 4931375401 LOCKING PLATE
275 4931375546 LEVER
282 4931624235 RETAINING RING
286 4931624658 SCREW
301 9170350243 END COVER CAP
302 9170319040 SPRING RING
303 4931409820 DAMPING ELEMENT
304 4931375775 DAMPING RING
305 9170316570 Chuck Cover
306 4931409842 INTERLOCK SLEAVE
307 4931468789 INTERLOCK ELEMENT
308 4931375770 INTERLOCK PLATE
309 4931375594 PRESSURE SPRING
313 4931375595 DISC
314 4931622166 O-RING N874701 26X3
400 4931432420 REPAIR KIT
406 4931432416 REPAIR KIT
406 4931432415 REPAIR KIT
601 4931375516 HANDLE
700 4931412420 CARRYING CASE
1200 4931375659 MAINTENANCE SET
1201 4931375556 CARBON BRUSH SET
1202 4931624234 SCREW
1203 4931624276 SCREW D 912 M5X16 8,8SSI
1204 4931624237 SEAL RING
1205 4931392174 PROTECTING COVER
1206 4931341741 BALL BEARING
1207 4931398189 GROOVED BALL BEAR,
1208 4931624170 SEAL RING
1209 4931317212 RUBBER SLEEVE
1210 4931624156 SEAL RING N874701 28X5
1211 4931624161 SEAL RING N874701 28X5
1212 4931624155 SEAL RING N874701 28X5
1213 4931624158 SEAL RING N874701 28X5
1214 4931624157 SEAL RING N874701 28X5
1215 4931624153 SPRING RING N874268 SW 20
1216 4931375506 GASKET
1217 4931375508 FELT
1218 4931603515 SEALING WASHER
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AEG PN11E
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

AEG PN11E Parts Diagram

AEG PN11E Parts Diagram

Download (605.35KB)

You might also like

AEG BBH 18C 18V Compact Hammer
TTI Industries SKU: AEG BBH 18C 18V
AEG BBH 18C 18V Compact Hammer
AEG BBH 18C 18V 4-Mode SDS-Plus Compact Hammer - Compact and powerful 4-mode SDS plus optimised for fixing applications up to 16mm - Ergonomic design with pistol grip reduces user fatigue in over head and one handed applications -...
Last items in stock €185.65
Details
AEG L1820S 18V 2,0 AH Battery
TTI Industries SKU: 4935472275
AEG L1820S 18V 2,0 AH Battery
AEG L1820S 18V 2,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 2,0Ah pack provides ultimate portability and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €84.60
Details
AEG L1840S 18V 4,0 AH Battery
TTI Industries SKU: 4935478636
AEG L1840S 18V 4,0 AH Battery
AEG L1840S 18V 4,0 AH PROLITHIUM-ION™ Battery - Product variations: x1 - AEG 4,0Ah pack provides extended runtime and power in a compact package - Compatible with all AEG PRO18V powertools - Light weight and compact design...
Usually Ships in: 7/10 Business Days Approx. €152.87
Details
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
TTI Industries SKU: 4935478945
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries
AEG SET LL1850SHD Battery Charger kit + 2 18V 5.0 Ah HD Batteries - Battery Charger kit + 2 18V 5.0 Ah HD Batteries - SET LL1850SHD - Product variations: x1 - New HD battery technology that allows you to reach a higher level of...
Usually Ships in: 7/10 Business Days Approx. €273.06
Details
AEG BBH18 Maintenance Set
TTI Industries SKU: 4931433265
AEG BBH18 Maintenance Set
AEG BBH18 Maintenance Set AEG Genuine Part, Maintenance Set for BBH18 Rotary Hammer. Part for the following products: - 4935408275 4000431334 - BBH18LI-302C - BBH18LI-302C BTY. ROTARY HAMMER IN2 - 4935408275 4000467462 -...
AVAILABLE €53.14
Details
AEG BBH18 Carbon Brush Set
TTI Industries SKU: 290627001
AEG BBH18 Carbon Brush Set
AEG BBH18 Carbon Brush Set AEG Genuine Part, Carbon Brush Set for BBH18 Rotary Hammer. Part for the following products: - 4935408275 4000467462 - BBH18LI-302C - BBH18LI-302C BTY. ROTARY HAMMER IN2 - 4935408275...
AVAILABLE €19.61
Details
AEG BBH18 Switch
TTI Industries SKU: 4931435094
AEG BBH18 Switch
AEG BBH18 Switch AEG Genuine Part, Switch for BBH18 Rotary Hammer. Part for the following products: - 4935408275 4000431334 - BBH18LI-302C - BBH18LI-302C BTY. ROTARY HAMMER IN2 - 4935408275 4000467462 - BBH18LI-302C -...
AVAILABLE €64.53
Details
AEG BBH18 Terminal Strip
TTI Industries SKU: 4931435093
AEG BBH18 Terminal Strip
AEG BBH18 Terminal Strip AEG Genuine Part, Terminal Strip for BBH18 Rotary Hammer. Part for the following products: - 4935408275 4000431334 - BBH18LI-302C - BBH18LI-302C BTY. ROTARY HAMMER IN2 - 4935408275 4000467462 -...
AVAILABLE €11.79
Details
AEG BBH18 Terminal Strip Plate
TTI Industries SKU: 4931440001
AEG BBH18 Terminal Strip Plate
AEG BBH18 Terminal Strip Plate AEG Genuine Part, Terminal Strip Plate for BBH18 Rotary Hammer. Part for the following products: - 4935408275 4000467462 - BBH18LI-302C - BBH18LI-302C BTY. ROTARY HAMMER IN2 - 4935408330...
AVAILABLE €5.57
Details
AEG KH26E Cylinder
TTI Industries SKU: 692717001
AEG KH26E Cylinder
AEG Rotary Hammer KH26E Cylinder AEG Genuine Part, Cylinder for Rotary Hammers Milwaukee - AEG Part for the following products: - 4935408275 4000467462 - BBH18LI-302C - BBH18LI-302C BTY. ROTARY HAMMER IN2 - 4935428180...
AVAILABLE €19.61
Details
Milwaukee K900S Carbon Brush Set
TTI Industries SKU: 4931375556
Milwaukee K900S Carbon Brush Set
Milwaukee K900S Carbon Brush Set Milwaukee Genuine Part, Carbon Brush Set for Combi Hammer K900S - K950S. Part for the following products: - 4933405365 4000405366 - K950S - K950S SDS-Max COMBI HAMMER IN2 - 4933449390...
AVAILABLE €17.43
Details
Milwaukee K900S Electronic
TTI Industries SKU: 4931409105
Milwaukee K900S Electronic
Milwaukee K900S Electronic Milwaukee Genuine Part, Electronic Assembly for Combi Hammer K900S - K950S. Part for the following products: Milwaukee - 4933405365 4000405366 - K950S - K950S SDS-Max COMBI HAMMER IN2 -...
Usually Ships in: 7/10 Business Days Approx. €65.97
Details
Milwaukee K900S Fan
TTI Industries SKU: 4931375474
Milwaukee K900S Fan
Milwaukee K900S Fan Milwaukee Genuine Part, Fan for Combi Hammer K900S - K950S. Part for the following products: - 4933405365 4000405366 - K950S - K950S SDS-Max COMBI HAMMER IN2 - 4933449390 4000417173 - K900S SDS-M...
AVAILABLE €17.72
Details
Milwaukee K900S Repair Kit
TTI Industries SKU: 4931432420
Milwaukee K900S Repair Kit
Milwaukee K900S Repair Kit Milwaukee Genuine Part, Repair Kit for Combi Hammer K900S. Part for the following products: - 4933405365 4000405366 - K950S - K950S SDS-Max COMBI HAMMER IN2 - 4933449390 4000417173 -...
AVAILABLE €153.37
Details
Comments (0)
