TTI Industries

ARMATURE

SKU: 4931435401
€59.88
VAT included

Original TTI Industries spare part - ARMATURE Part number: 4931435401

Product Description

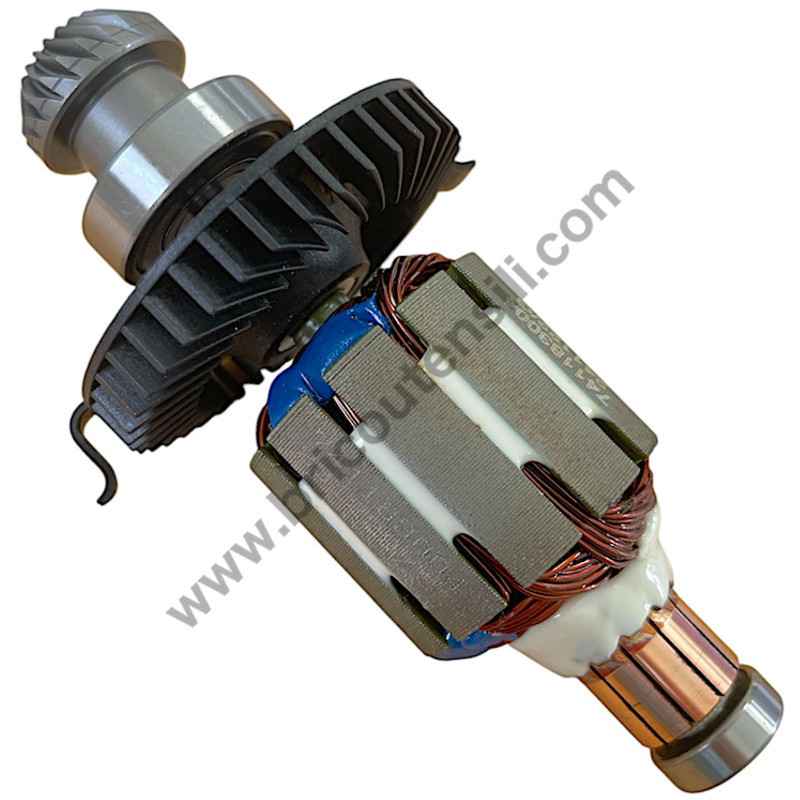

The genuine TTI Industries Armature (Part Number: 4931435401) is the central rotating component (rotor) of the electric motor, engineered specifically for cordless power tools manufactured by AEG Power Tools (and compatible brands under the Techtronic Industries group, such as Milwaukee).

Fix Your AEG Tool | Genuine 4931435401 Armature Replacement
  • Fix Your AEG Tool | Genuine 4931435401 Armature Replacement
  • Fix Your AEG Tool | Genuine 4931435401 Armature Replacement
TTI Industries

ARMATURE

SKU: 4931435401 Condition: New
€59.88
VAT included

Original TTI Industries spare part - ARMATURE Part number: 4931435401

Product Description

The genuine TTI Industries Armature (Part Number: 4931435401) is the central rotating component (rotor) of the electric motor, engineered specifically for cordless power tools manufactured by AEG Power Tools (and compatible brands under the Techtronic Industries group, such as Milwaukee).

Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook

Original TTI Industries spare part - ARMATURE Part number: 4931435401

Product Description

The genuine TTI Industries Armature (Part Number: 4931435401) is the central rotating component (rotor) of the electric motor, engineered specifically for cordless power tools manufactured by AEG Power Tools (and compatible brands under the Techtronic Industries group, such as Milwaukee).

  • 4935431931 4000431932 - BEWS18-115XLI-302C - BEWS18-115XLI-302C BTY.ANGLE GRINDER IN2
  • 4935431931 4000446468 - BEWS18-115XLI-302C - BEWS18-115XLI-302C BTY.ANGLE GRINDER IN2
  • 4935431991 4000431992 - BEWS18-125XLI-302C - BEWS18-125XLI-302C BTY.ANGLE GRINDER IN2
  • 4935431991 4000446477 - BEWS18-125XLI-302C - BEWS18-125XLI-302C BTY.ANGLE GRINDER IN2
  • 4935431998 4000431992 - BEWS18-125X - BEWS18-125X-0 BTY. ANGLE GRINDER XXX
  • 4935431998 4000446477 - BEWS18-125X - BEWS18-125X-0 BTY. ANGLE GRINDER XXX
  • 4935433319 4000431932 - BEWS18-115X - BEWS18-115X-0 BTY. ANGLE GRINDER XXX
  • 4935433319 4000446468 - BEWS18-115X - BEWS18-115X-0 BTY. ANGLE GRINDER XXX
  • 4935443460 4000431992 - BEWS18-125XLI-402C - BEWS18-125XLI-402C BTY.ANGLE GRINDER IN2
  • 4935443460 4000446477 - BEWS18-125XLI-402C - BEWS18-125XLI-402C BTY.ANGLE GRINDER IN2
  • 4935443463 4000431932 - BEWS18-115XLI-402C - BEWS18-115XLI-402C BTY.ANGLE GRINDER IN2
  • 4935443463 4000446468 - BEWS18-115XLI-402C - BEWS18-115XLI-402C BTY.ANGLE GRINDER IN2
  • 4935451936 4000446468 - BEWS18-115X-0 - BEWS18-115X-0 BUN/18V A. GRINDER XXX

As a genuine OEM (Original Equipment Manufacturer) replacement part, it guarantees perfect dynamic balancing, maximum magnetic efficiency, and full compliance with the power tool’s original thermal and electrical specifications. This prevents anomalous vibrations and overheating that could compromise the stator's integrity.

  •     Manufacturer: TTI Industries (Techtronic Industries)
  •     Application Brand: AEG
  •     Part Number: 4931435401
  •     Component Type: Armature / Rotor for brushed motors

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

4931435401
4 Items

Specific References

New

This spare part is used in the following machines:

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Replacement Instructions (Technical Guide)

WARNING: Always disconnect the power plug from the electrical outlet before starting any repair work. Repairs should be carried out by qualified personnel or experienced technicians.

  •     Carbon Brush Removal:
        Before opening the motor housing, unscrew the brush caps or remove the carbon brushes. This prevents them from breaking or scratching the commutator of the new armature during extraction and installation.

    Opening the Housing:

  •     Unscrew the main body/handle screws and the front gear housing screws. Carefully separate the plastic clamshells, taking note of internal wire routing.
  •     Extracting the Armature Assembly:
        Slide the old armature out of the stator by pulling it forward along with the gear case assembly. Remove the rear bearing sleeve or rubber ring if it remains stuck inside the plastic housing seat.

    Stator Inspection:
    Before inserting the new part, clean dust and carbon debris from inside the stator tunnel. Visually check the stator windings to ensure there are no burn marks or signs of short-circuiting.

    Preparing and Installing the New Armature (4931435401):

  •         Check for bearings and the drive gear/pinion on the new shaft. If they are not pre-installed, you will need to transfer them from the old shaft using an appropriate bearing puller.
  •         Gently slide the new armature into the stator core until it aligns perfectly and mates correctly with the front gear assembly.

    Reassembly & Testing:
    Reassemble the housing shells, ensuring no wires are pinched. Reinsert the carbon brushes (installing a fresh set of brushes is highly recommended when replacing the armature). Rotate the chuck/spindle by hand to ensure smooth rotation before plugging the tool in for a no-load low-speed test run.
