ABAC

ABAC A29B 200 CM3 Parts

SKU: A29B 200 CM3 4116024534
€2.71
VAT included

ABAC A29B 200 CM3 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A29B 200 CM3 4116024534 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
ABAC A29B 200 CM3 Parts
  • ABAC A29B 200 CM3 Parts
  • ABAC A29B 200 CM3 Parts
  • ABAC A29B 200 CM3 Parts
  • ABAC A29B 200 CM3 Parts
  • ABAC A29B 200 CM3 Parts
ABAC

ABAC A29B 200 CM3 Parts

SKU: A29B 200 CM3 4116024534 Condition: New
€2.71
VAT included

ABAC A29B 200 CM3 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A29B 200 CM3 4116024534 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 49 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts

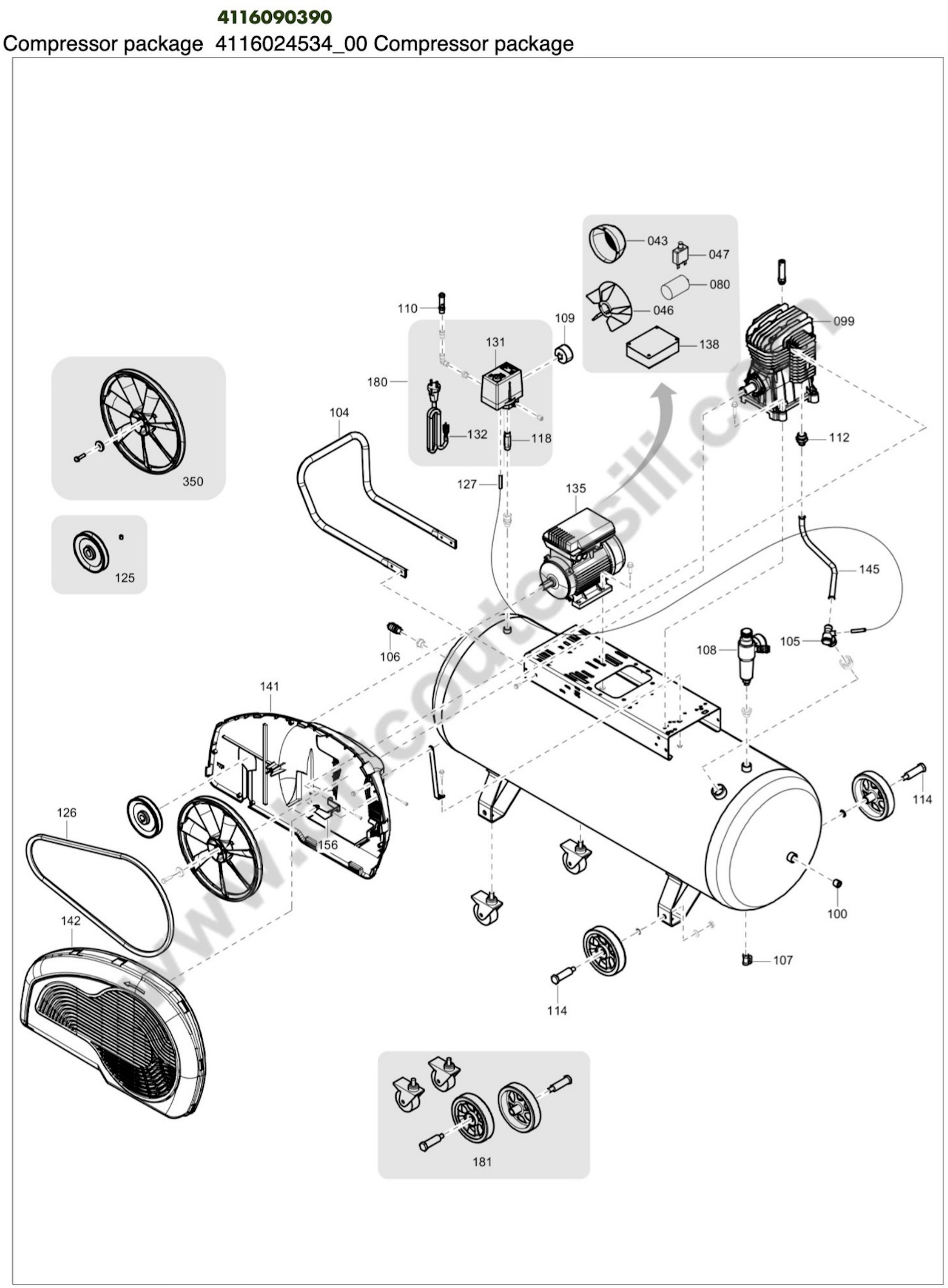

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
043
 photo_cameraImage coming soon 8973037914 Motor cover €2.71
046
 photo_cameraImage coming soon 8973035645 mec 80 Motor Fan €7.23
047
 ABAC Circuit Breaker 12A 8973036605 ABAC Circuit Breaker 12A €18.83
080
 photo_cameraImage coming soon 8973037928 Capacitor 55MF €45.89
099
 photo_cameraImage coming soon 4116090646 Pump €311.96
100
 photo_cameraImage coming soon 1127090003 Plug -receiver €5.45
104
 photo_cameraImage coming soon 6214343600 Handle €58.73
105
 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA 2236110537 Non Return Valve 3/4" M 1/2" M for Air Compressors ABAC - BALMA €21.75
106
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €11.00
107
 photo_cameraImage coming soon 2236111480 Drain tap €12.14
108
 Pressure Reducer Mignon 3/8" for Air Compressors ABAC - BALMA 6214344200 Pressure Reducer Mignon 3/8" for Air Compressors ABAC - BALMA €44.42
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €12.35
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €12.35
112
 photo_cameraImage coming soon 6231943500 Fitting €10.69
114
 ABAC-BALMA Wheel Pin D.20MM 6214348500 ABAC-BALMA Wheel Pin D.20MM €5.30
118
 photo_cameraImage coming soon 2236105466 Fitting €4.41
125
 ABAC Pulley D120-1A H19 2901320250 ABAC Pulley D120-1A H19 €29.91
126
 photo_cameraImage coming soon 6214631100 Belt A55 €9.94
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €4.48
131
 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 2236106647 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 €43.51
132
 photo_cameraImage coming soon 6256395100 Cable €21.81
135
 photo_cameraImage coming soon 2236112854 Motor €390.16
138
 photo_cameraImage coming soon 8973037912 KIT CAPACITOR HOLD. VEMAT €22.01
141
 ABAC A29B 50 CM3 Belt Guard Rear 2236111658 ABAC A29B 50 CM3 Belt Guard Rear €38.89
142
 Front Belt Guard for Air Compressor ABAC A29 50 CM2 2236111656 Front Belt Guard for Air Compressor ABAC A29 50 CM2 €29.22
145
 photo_cameraImage coming soon 2236111080 Delivery pipe €15.24
156
 photo_cameraImage coming soon 2236112586 Beltguard bracket €18.63
350
 Flywheel Kit for Pump Unit A29B 2901325048 Flywheel Kit for Pump Unit A29B €59.59

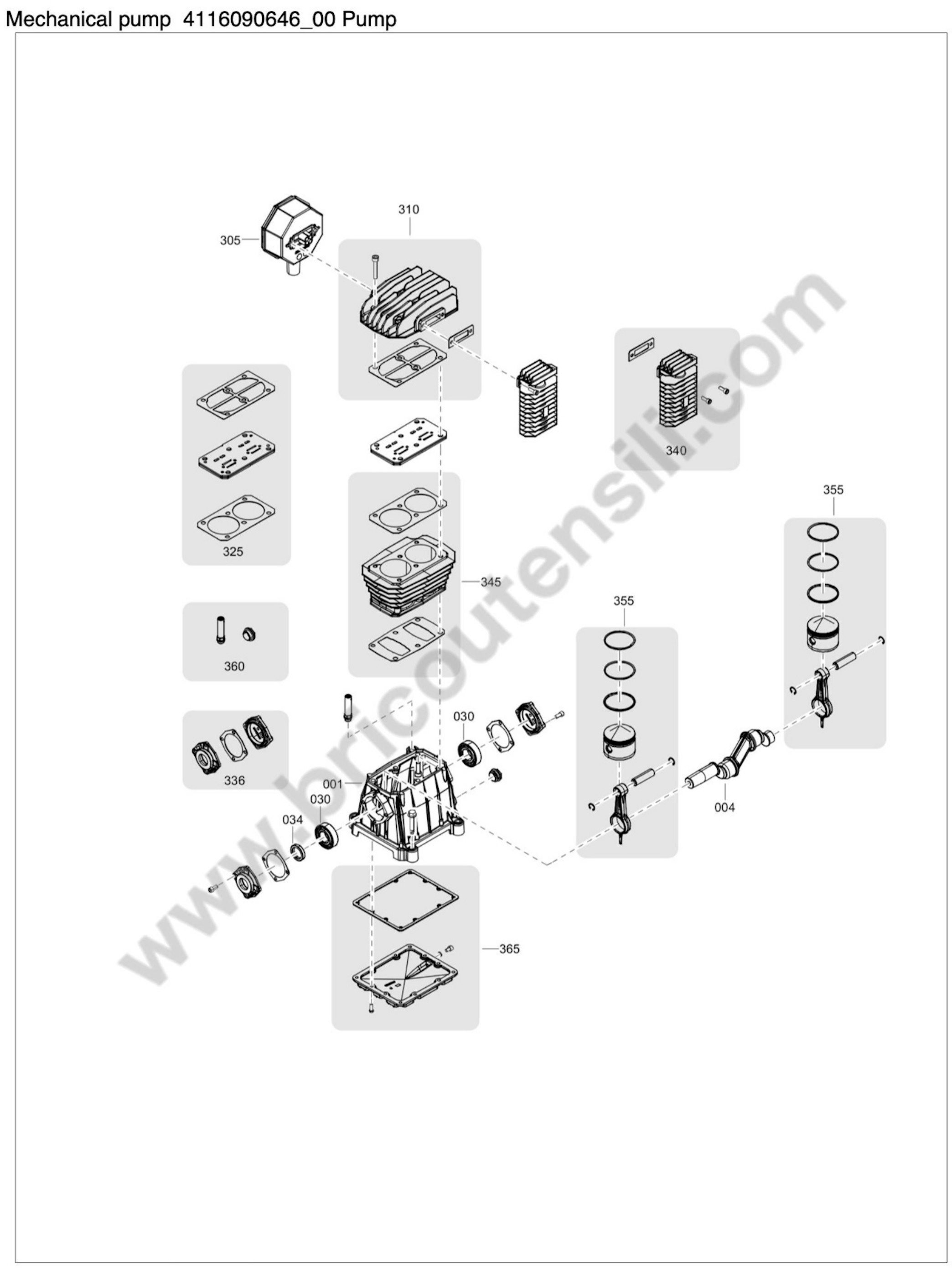

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
004
 photo_cameraImage coming soon 2236111600 Crankshaft €89.06
030
 photo_cameraImage coming soon 0502210500 Bearing 6205 €19.22
034
 photo_cameraImage coming soon 6231630100 Oil Seal €4.89
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €16.99
310
 Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €71.50
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €46.73
340
 ABAC PAT24A-PAT38A Aftercooler Kit 2236112794 ABAC PAT24A-PAT38A Aftercooler Kit €16.75
345
 photo_cameraImage coming soon 2236112434 CYLINDER KIT PAT24 €70.17
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 2236111619 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 €56.70
360
 photo_cameraImage coming soon 2901325049 OIL LEVEL KIT €16.26
365
 photo_cameraImage coming soon 2236112437 BOTTOM CRANKCASE COVER KIT PAT 24 €27.80

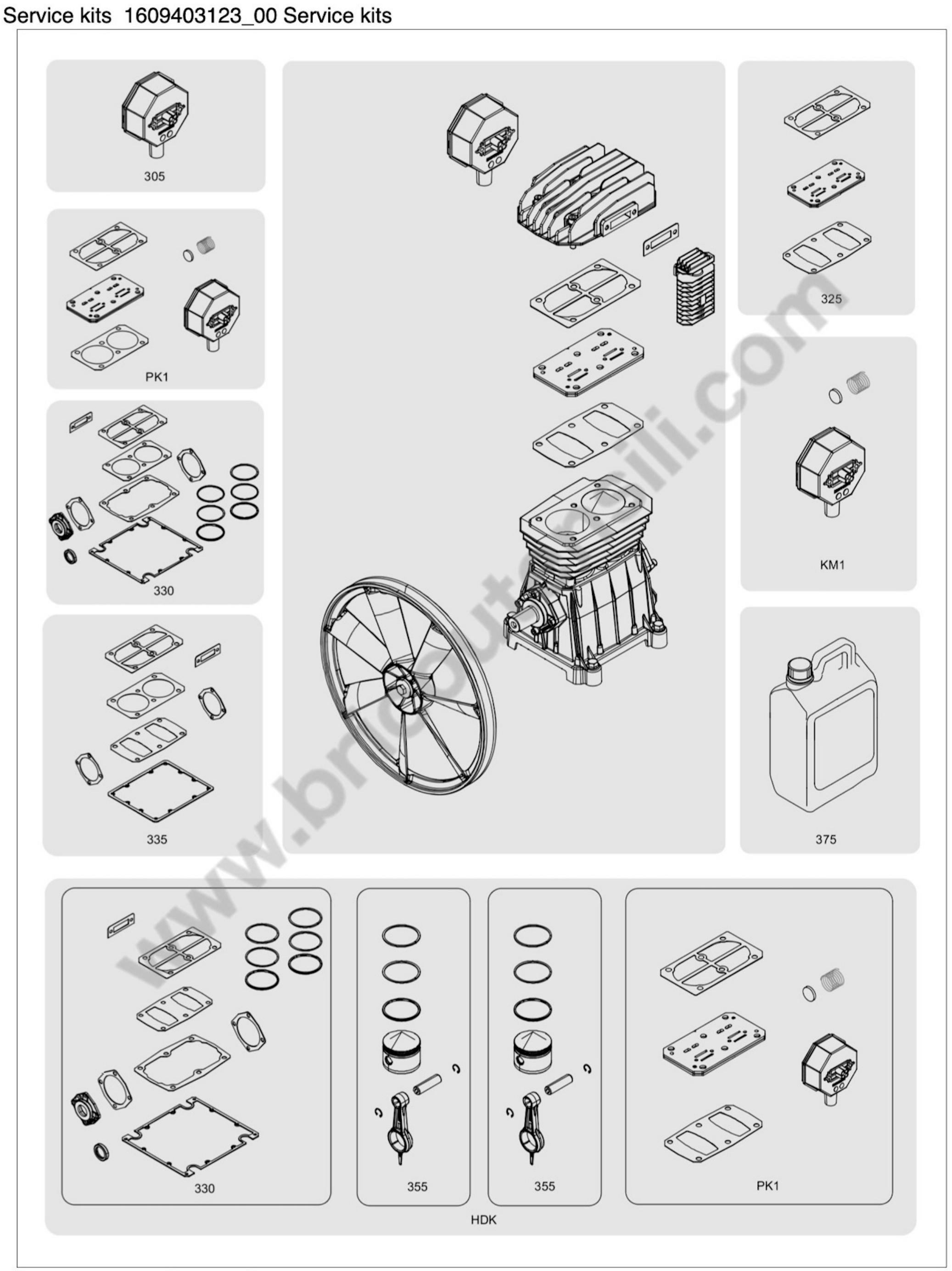

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
Pos. Item Price Buy
PK1
 Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €65.74
KM1
 ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €22.13
330
 ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.54
335
 ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €38.15
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €16.34

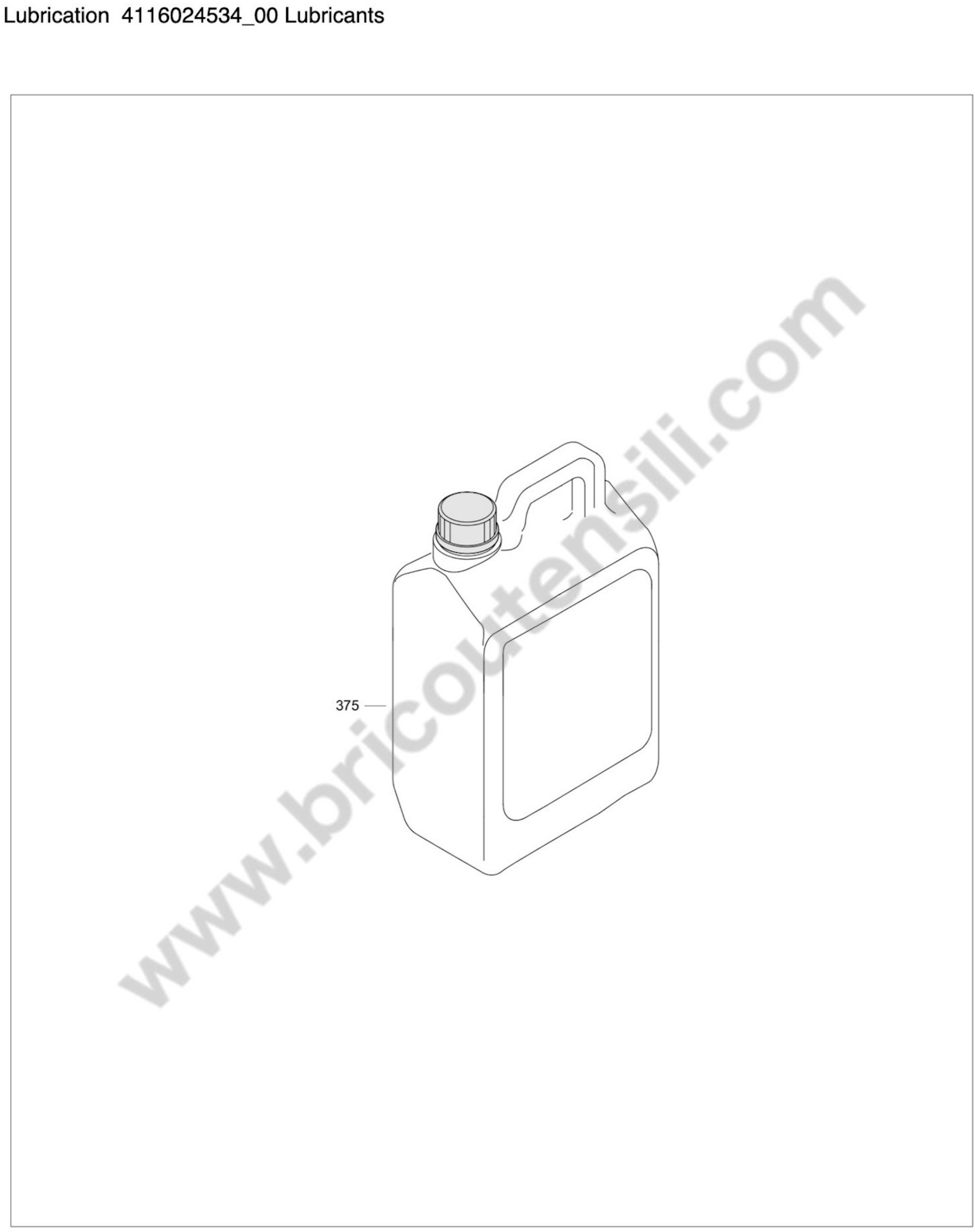

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 4
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC A29B 200 CM3 Spare Parts

Rely on our experience and our professionalism, take care of your ABAC A29B 200 CM3 4116024534 Air Compressor by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
A29B 200 CM3 4116024534

Compressor A29B 200 CM3 4116024534_00 BLU
4116090390 YELLOW Compressor package Pag.1
# Part Nr. Description
043 8973037914 Motor cover
046 8973035645 Fan
047 8973036605 Thermal protector
080 8973037928 Capacitor 55MF
099 4116090646 Pump Unit
100 1127090003 Plug
104 6214343600 Handle
105 2236110537 Non return valve
106 6231944100 Rapid fitting
107 2236111480 Ball valve
108 6214344200 Pressure reducer
109 6214345000 Pressure gauge
110 6210719900 Safety valve
112 6231943500 Delivery pipe fitting
114 6214348500 Wheel pin
118 2236105466 Pressure switch fitting
125 2901320250 Pulley kit
126 6214631100 Belt
127 2236112998 Rilsan Tube
131 2236106647 Pressure Switch
132 6256395100 Pressure switch cable
135 2236112854 Motor
138 8973037912 Electrical box
141 2236111658 Beltguard rear
142 2236111656 Beltguard front
145 2236111080 Delivery pipe
156 2236112586 Bracket
180 2236112680 Pressure switch kit
181 2236102726 Wheels kit
350 2901325048 Flywheel Kit
Mechanical pump 4116090646_00 Pump Pag.2
# Part Nr. Description
001 2236111607 Crankcase
004 2236111600 Crankshaft
030 0502210500 Bearing
034 6231630100 Oil seal
305 2236112835 Air Filter Complete
310 2901325044 Cylinder head kit
325 2236112518 Valve plate kit
336 2236112436 Shaft seal kit
340 2236112794 Aftercooler kit
345 2236112434 Cylinder kit
355 2236111619 Conrod-piston kit
360 2901325049 Oil level kit
365 2236112437 Crankcase cover kit
Service kits 1609403123_00 Service kits Pag.3
# Part Nr. Description
305 2236112835 Air Filter Complete
325 2236112518 Valve Plate Kit
330 2901325046 Upgrade Kit
335 2901325045 KIT JOINT PAT24/PAT38
355 2236111619 KIT CONN.ROD-PISTON PAT24
375 1630020700 Altair Pro - Piston Compressor Oil - 1 liter
KM1 8973037864 KIT PERFORMANCE LIGHT PAT24/38
PK1 8973037657 Performance Kit
HDK NA Heavy duty kit
Lubrication 4116024534_00 Lubricants Pag.4
# Part Nr. Description
375 1630020700 Altair Pro - Piston Compressor Oil - 1 liter
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
A29B 200 CM3 4116024534
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

ABAC A29B 200 CM3 Diagram

ABAC A29B 200 CM3 Diagram

Download (963.19KB)
