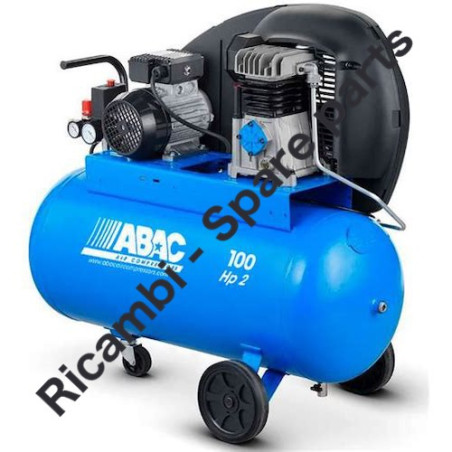

ABAC

ABAC Parts for Air Compressor A29 100 CM2 E1

SKU: A29 100 CM2 E1 - 4116024562
€2.71
VAT included

ABAC Parts for Air Compressor A29 100 CM2 E1 - 4116024562

Rely on our experience and our professionalism, take care of your ABAC AIR Compressor A29 100 CM2 E1 - 4116024562 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
ABAC Parts for Air Compressor A29 100 CM2 E1
  • ABAC Parts for Air Compressor A29 100 CM2 E1
  • ABAC Parts Diagram for Air Compressor A29 100 CM2 E1
  • ABAC Parts Diagram for Air Compressor A29 100 CM2 E1 - 1
  • ABAC Parts Diagram for Air Compressor A29 100 CM2 E1 - 2
  • ABAC Parts Diagram for Air Compressor A29 100 CM2 E1 - 3
ABAC

ABAC Parts for Air Compressor A29 100 CM2 E1

SKU: A29 100 CM2 E1 - 4116024562 Condition: New
€2.71
VAT included

ABAC Parts for Air Compressor A29 100 CM2 E1 - 4116024562

Rely on our experience and our professionalism, take care of your ABAC AIR Compressor A29 100 CM2 E1 - 4116024562 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 43 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

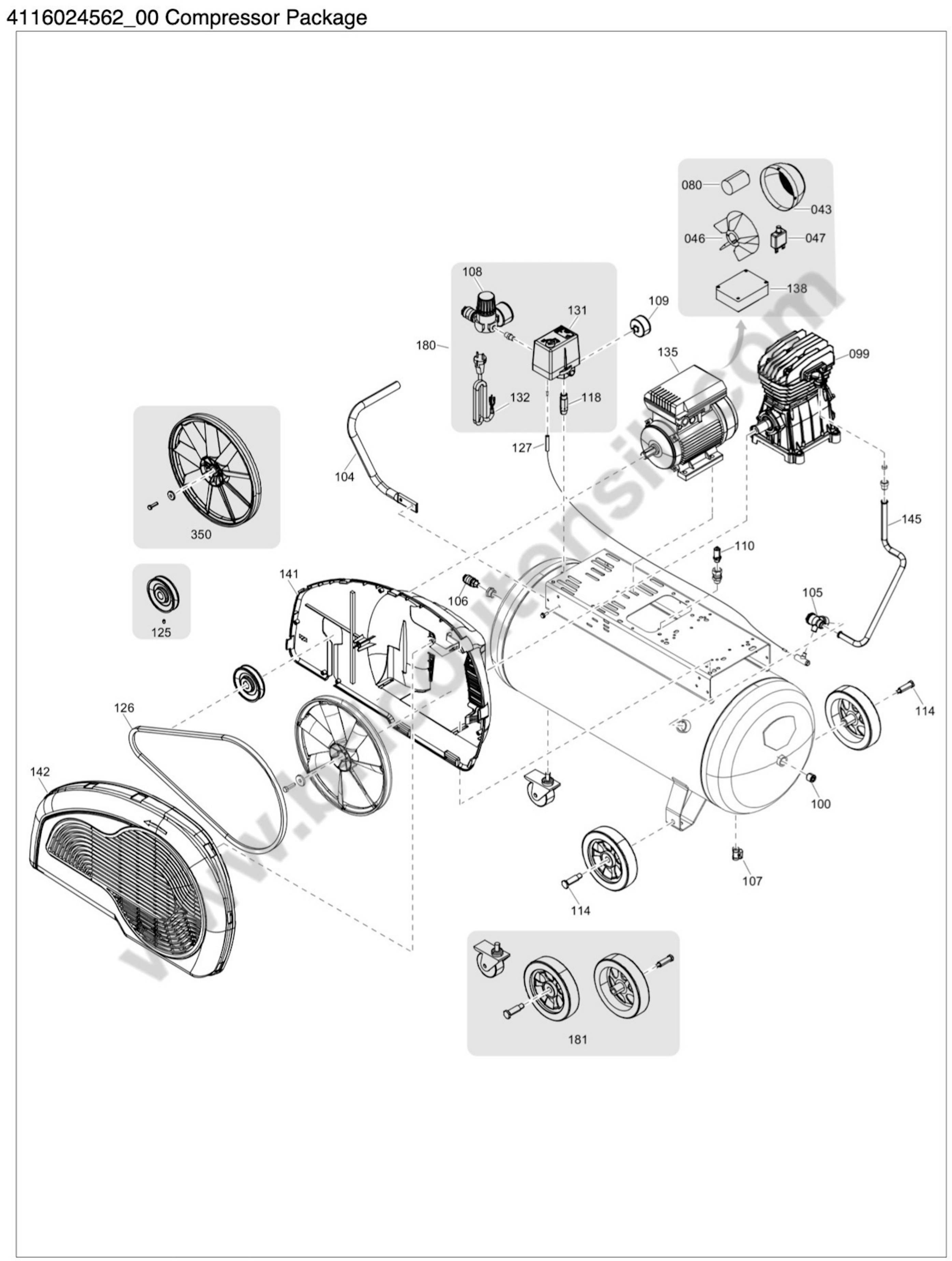

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
043
 photo_cameraImage coming soon 8973037914 Motor cover €9.28
046
 photo_cameraImage coming soon 8973035645 mec 80 Motor Fan €10.14
047
 photo_cameraImage coming soon 8973037936 Thermal protector €17.66
080
 photo_cameraImage coming soon 8973036636 Capacitor €13.48
099
 photo_cameraImage coming soon 4116090644 pump €300.87
100
 photo_cameraImage coming soon 1127090003 Plug -receiver €1.18
104
 photo_cameraImage coming soon 6214343300 Handle €14.32
105
 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP 2236110535 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP €51.99
106
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €6.89
107
 photo_cameraImage coming soon 2236111480 Drain tap €11.80
108
 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA 6214344100 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA €24.90
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €10.14
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €7.87
114
 ABAC Wheel Pin D.15MM 6214348000 ABAC Wheel Pin D.15MM €2.52
118
 photo_cameraImage coming soon 2236105466 Fitting €4.41
125
 photo_cameraImage coming soon 2901320246 Pulley €21.11
126
 V-Belt A53 for Air Compressors ABAC - BALMA 0367102100 V-Belt A53 for Air Compressors ABAC - BALMA €10.07
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €6.89
131
 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 2236106647 Pressure Switch 3/8 + MDR1 for Compressor A29B 50 CM3 €35.33
132
 photo_cameraImage coming soon 6256395100 Cable €22.13
135
 photo_cameraImage coming soon 2236113724 MOTOR HP 2 M V230 50HZ MEC 80 €322.64
138
 KIT CAPACITOR HOLD. VEMAT 8973037912 KIT CAPACITOR HOLD. VEMAT €17.76
141
 Back Belt Guard for Air Compressor ABAC A29 50 CM2 2236111657 Back Belt Guard for Air Compressor ABAC A29 50 CM2 €37.78
142
 Front Belt Guard for Air Compressor ABAC A29 50 CM2 2236111656 Front Belt Guard for Air Compressor ABAC A29 50 CM2 €29.22
145
 ABAC B2800-100 PLUS CM2 Delivery Pipe 6245575700 ABAC B2800-100 PLUS CM2 Delivery Pipe €13.95
181
 photo_cameraImage coming soon 2236111326 100 LT LINE (1 PIVOT WHEEL) €65.51
350
 Flywheel Kit for Pump Unit A29B 2901325048 Flywheel Kit for Pump Unit A29B €39.17
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

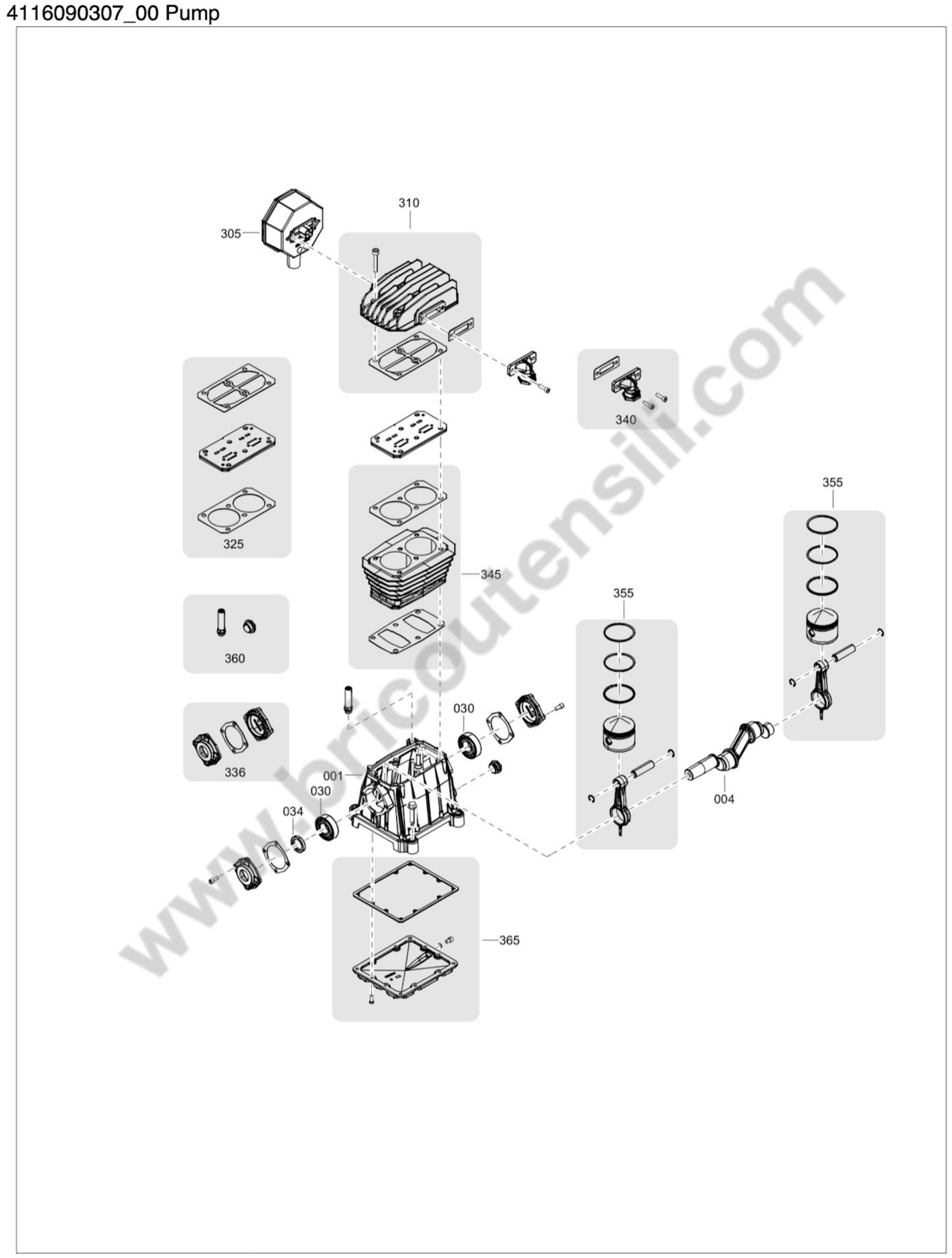

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
004
 photo_cameraImage coming soon 2236111600 Crankshaft €36.15
030
 photo_cameraImage coming soon 0502210500 Bearing 6205 €8.74
034
 photo_cameraImage coming soon 6231630100 Oil Seal €2.87
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €15.18
310
 Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €35.92
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €34.95
340
 ABAC PAT24-PAT38 Aftercooler Kit 2901325047 ABAC PAT24-PAT38 Aftercooler Kit €35.94
345
 photo_cameraImage coming soon 2236112434 CYLINDER KIT PAT24 €60.68
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 2236111619 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 €26.83
360
 photo_cameraImage coming soon 2901325049 OIL LEVEL KIT €3.29
365
 photo_cameraImage coming soon 2236112437 BOTTOM CRANKCASE COVER KIT PAT 24 €27.80
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

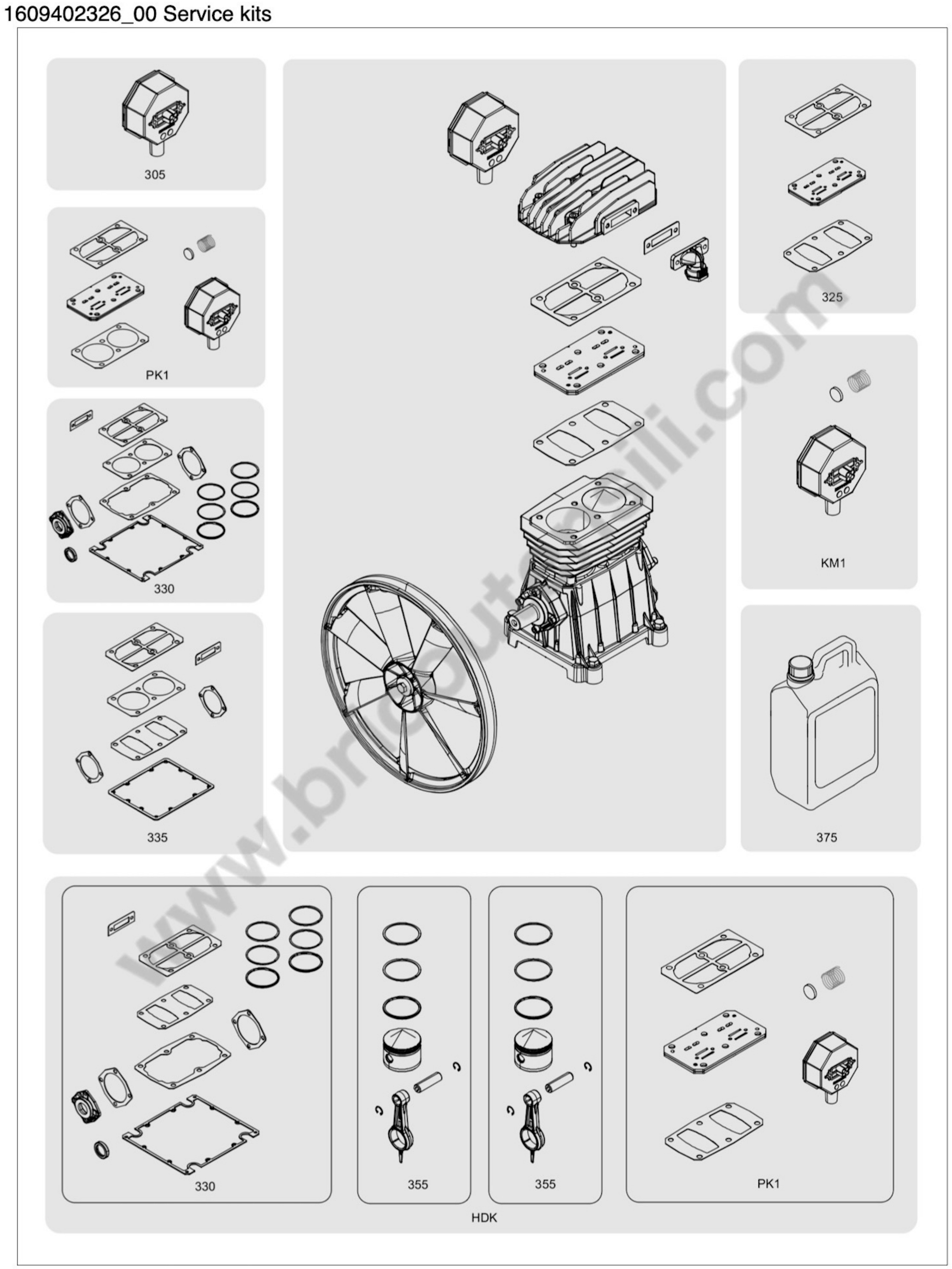

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
PK1
 Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €56.71
KM1
 ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €18.91
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €15.18
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €34.95
330
 ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.30
335
 ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €17.28
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 2236111619 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 €26.83
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €12.76
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

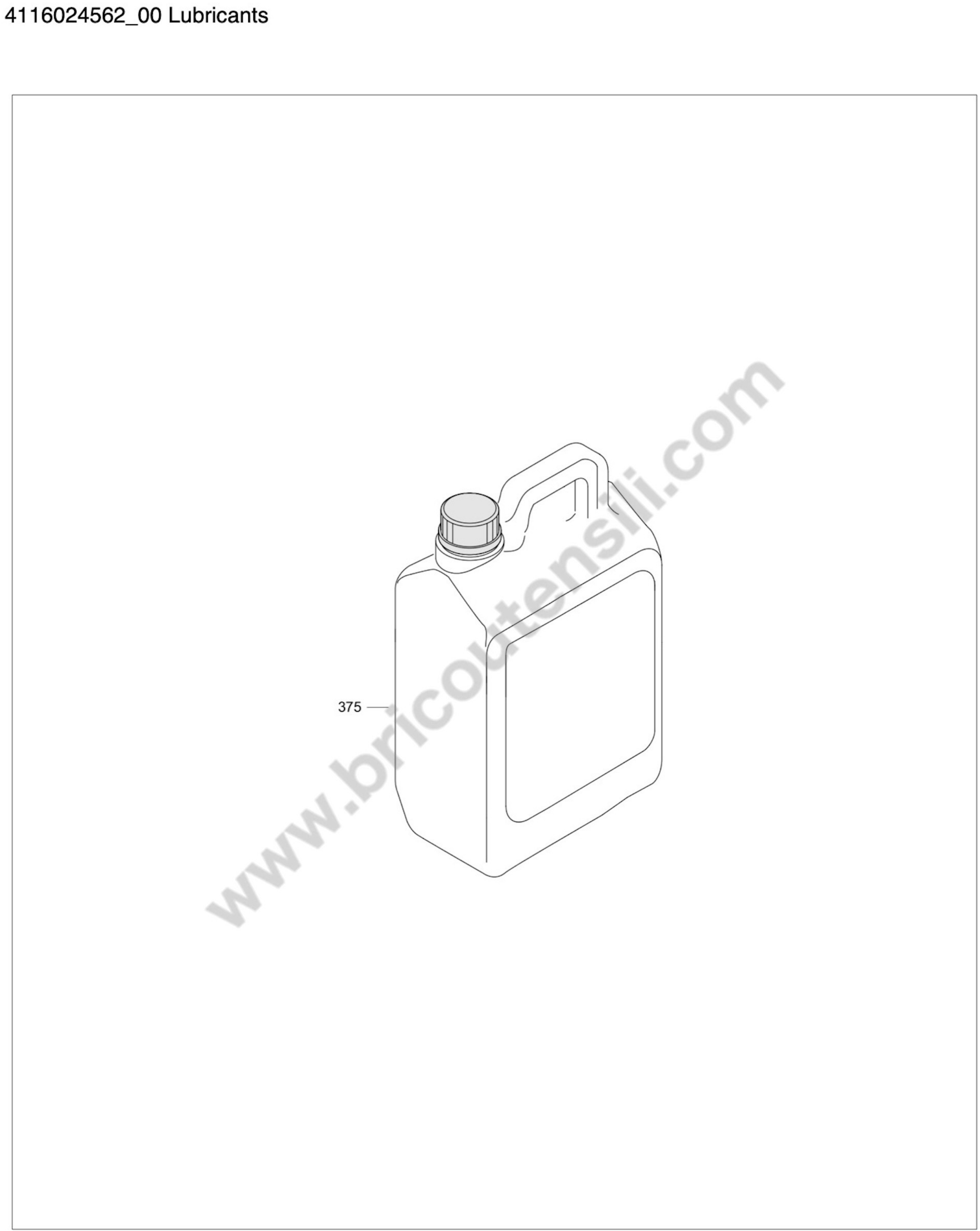

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €12.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC Parts for Air Compressor A29 100 CM2 E1 - 4116024562

Rely on our experience and our professionalism, take care of your ABAC AIR Compressor A29 100 CM2 E1 - 4116024562 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
AIR Compressor A29 100 CM2 E1 - 4116024562

ABAC AIR Compressor A29 100 CM2 E1 - 4116024562 Spare Parts List
4116024562_00 Compressor Package Pag.1
# Part No. Description
043 8973037914 Motor cover
046 8973035645 Fan
047 8973037936 Thermal protector
080 8973036636 Capacitor
099 4116090644 Pump PAT24 SPARE GRAY
100 1127090003 Plug
104 6214343300 Handle
105 2236110535 Non return valve
106 6231944100 Quick Coupling 1/4" M.
107 2236111480 BALL VALVE 3/8+M
108 6214344100 Pressure reducer MICRO REDUCER 1/4 A 1R
109 6214345000 Gauge 50MM
110 6210719900 Safety valve
114 6214348000 Wheel pin
118 2236105466 Pressure switch fitting EXTENTION 3/8+
125 2901320246 PULLEY D90-1A H19+DOWEL KIT
126 0367102100 Belt A53
127 2236112998 TUBE PNEUMATIC 6X4 PA6 BLACK
131 2236106647 Pressure switch 3/8+ MDR1
132 6256395100 Pressure switch cable 3G1,5 L=2000 SCHUKO H07R
135 2236113724 MOTOR MEC80 2HP 50HZ 230V
138 8973037912 KIT CAPACITOR HOLD. VEMAT
141 2236111657 Belt guard PLASTIC REAR PAT24
142 2236111656 Belt guard PLASTIC FRONT PAT24
145 6245575700 AIR DEL.PIPE B 2800/100
180 2236110792 Pressure switch kit
181 2236111326 KIT WHEEL D175 + PIVOT70
350 2901325048 Flywheel kit PAT24
4116090307_00 Pump Pag.2
Item Part No. Name
001 2236111607 Crankcase
004 2236111600 CRANKSHAFT MACHINED PAT24
030 0502210500 Bearing 6205
034 6231630100 ANGUS GASKET 35 X 25 X 7
305 2236112835 Air filter V2 PAT24/38
310 2901325044 Cylinder head kit PAT24/PAT38
325 2236112518 Valve plate kit PAT24/38
336 2236112436 Shaft seal kit
340 2901325047 Aftercooler kit PAT24/PAT38
345 2236112434 Cylinder kit PAT24
355 2236111619 Conrod-piston kit LP PAT24
360 2901325049 Oil level kit PAT24/PAT38
365 2236112437 Crankcase cover kit PAT24
1609402326_00 Service kits Pag.3
# Part No. Description
305 2236112835 KIT AIR FILTER V.2 PAT24/38
325 2236112518 Valve plate kit PAT24/38
330 2901325046 Upgrade kit PAT24/PAT38
335 2901325045 Gasket kit PAT24/PAT38
355 2236111619 Conrod-piston kit PAT24
375 1630020700 Can altair pro 1l
KM1 8973037864 PERFORMANCE KIT LIGHT PAT24/38
PK1 8973037657 PERFORMANCE KIT PAT 24/38
HDK NA Heavy duty kit
4116024562_00 Lubricants Pag.4
375 1630020700 Can altair pro 1l
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
A29 100 CM2 E1 - 4116024562
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

ABAC A29 100 CM2E1 Parts Diagram

ABAC A29 100 CM2E1 Parts Diagram

Download (976.81KB)
