ABAC

ABAC Parts for Air Compressor A29 50 CM2

SKU: A29 50 CM2 - 4116024262
€263.72
VAT included

ABAC Parts for Air Compressor A29 50 CM2 - 4116024262

Rely on our experience and our professionalism, take care of your ABAC Air Compressor A29 50 CM2 - 4116024262 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
ABAC Parts for Air Compressor 50 Lt Montecarlo L20
  • ABAC Parts for Air Compressor 50 Lt Montecarlo L20
  • ABAC Parts for Air Compressor 50 Lt Montecarlo L20
  • ABAC Parts for Air Compressor 50 Lt Montecarlo L20
ABAC

ABAC Parts for Air Compressor A29 50 CM2

SKU: A29 50 CM2 - 4116024262 Condition: New
€263.72
VAT included

ABAC Parts for Air Compressor A29 50 CM2 - 4116024262

Rely on our experience and our professionalism, take care of your ABAC Air Compressor A29 50 CM2 - 4116024262 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.
settings 55 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

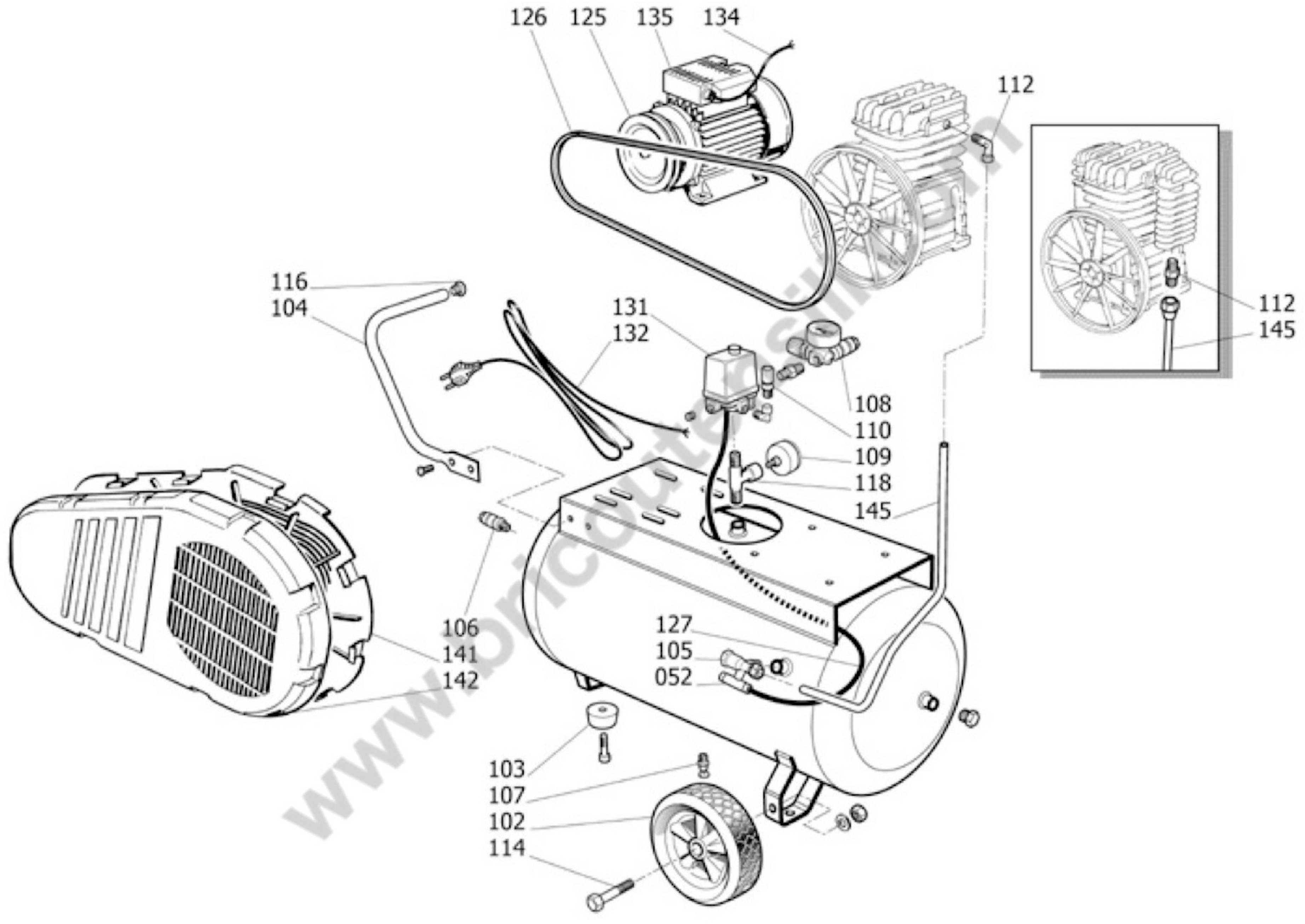

Esploso pagina 1
Pos. Item Price Buy
99
 photo_cameraImage coming soon 4116090295 Pump €256.20
99
 photo_cameraImage coming soon 4116090307 Pump €248.59
100
 photo_cameraImage coming soon 1127090003 Plug -receiver €5.45
102
 ABAC A29 50 CM2 Wheel D.150X30 6214347300 ABAC A29 50 CM2 Wheel D.150X30 €16.05
103
 photo_cameraImage coming soon 6214345500 Pivot wheel - front pin €7.07
104
 photo_cameraImage coming soon 6214343300 Handle €14.32
105
 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP 2236110535 ABAC Non-Return Valve 3/4" Male 10 mm Tube for Air Compressors 2HP €51.99
106
 photo_cameraImage coming soon 2236112708 Line valve 1/2” M quick coupling €10.63
106
 Drain Tap 3/8" for Air Compressors ABAC - BALMA 6210717800 Drain Tap 3/8" for Air Compressors ABAC - BALMA €12.31
106
 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA 6231944100 Quick Coupling 1/4" M for Air Compressors ABAC - BALMA €11.00
107
 photo_cameraImage coming soon 2236111480 Drain tap €12.14
108
 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA 6214344100 Pressure Reducer MICRO 1/4 A 1R for Air Compressors ABAC - BALMA €24.90
109
 Gauge 50MM for Air Compressors ABAC - BALMA 6214345000 Gauge 50MM for Air Compressors ABAC - BALMA €12.35
110
 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B 6210719900 ABAC Safety Valve 3/8" 11 Bar for Pump Unit A29B €12.35
112
 photo_cameraImage coming soon 6214349700 Fitting €1.93
114
 ABAC Wheel Pin D.15MM 6214348000 ABAC Wheel Pin D.15MM €2.52
118
 photo_cameraImage coming soon 6275613400 Fitting €13.42
125
 photo_cameraImage coming soon 2901320246 Pulley €21.11
126
 photo_cameraImage coming soon 367102100 B 2800B €9.50
127
 Rilsan Tube PA6 PE3030UK 6X4 Black 2236112998 Rilsan Tube PA6 PE3030UK 6X4 Black €4.48
132
 photo_cameraImage coming soon 2236106733 Cable €25.14
132
 photo_cameraImage coming soon 6256395300 Cord €23.59
135
 photo_cameraImage coming soon 2236113724 MOTOR HP 2 M V230 50HZ MEC 80 €322.64
136
 photo_cameraImage coming soon 8973036609 Motor Overload €17.86
141
 Back Belt Guard for Air Compressor ABAC A29 50 CM2 2236111657 Back Belt Guard for Air Compressor ABAC A29 50 CM2 €37.78
142
 Front Belt Guard for Air Compressor ABAC A29 50 CM2 2236111656 Front Belt Guard for Air Compressor ABAC A29 50 CM2 €29.22
145
 ABAC A29 50 CM2 Delivery Pipe 2236112506 ABAC A29 50 CM2 Delivery Pipe €18.19
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

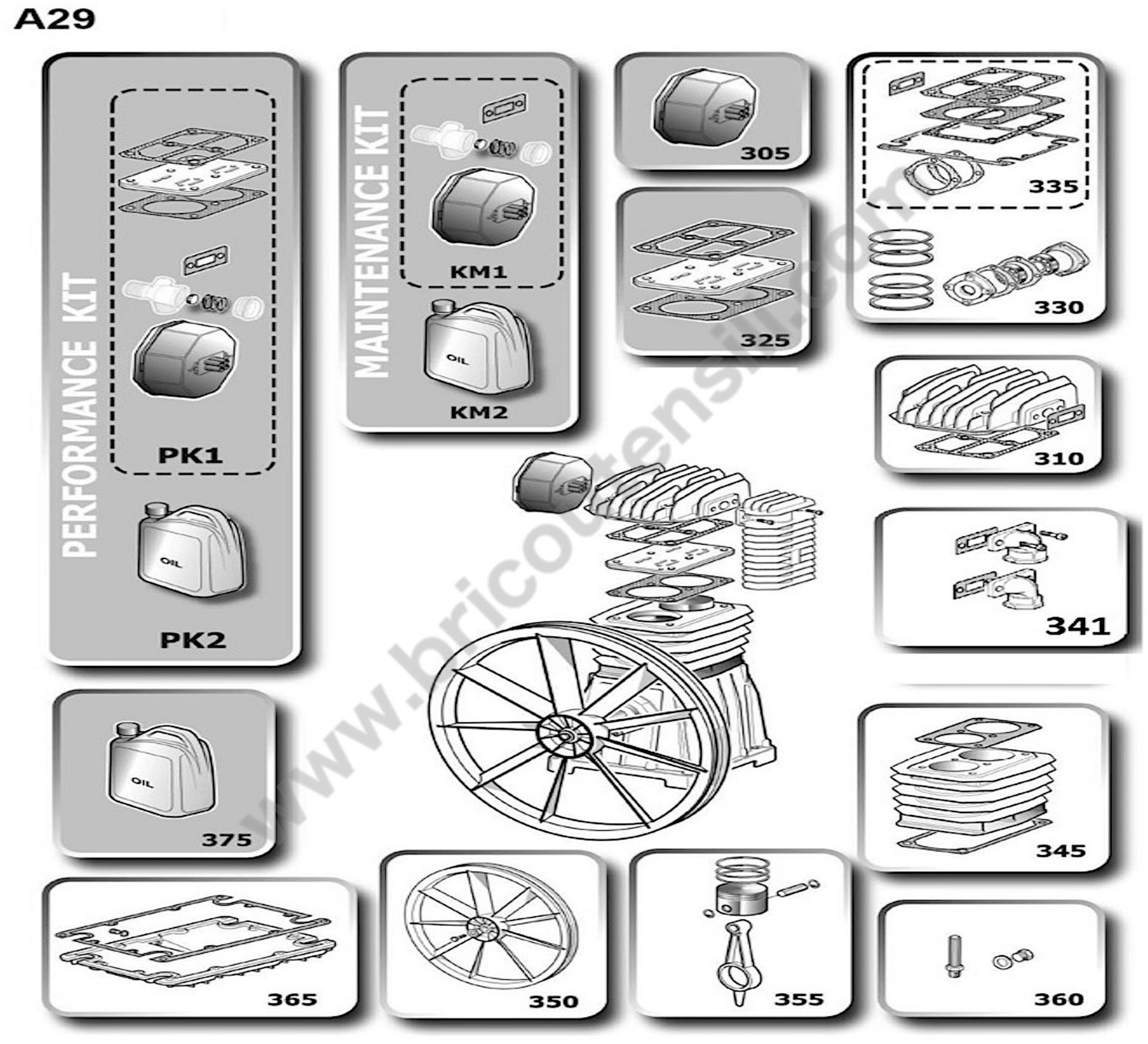

Esploso pagina 2
Pos. Item Price Buy
ABAC Can Altair Plus Synthetic Oil 5L 6215715800 ABAC Can Altair Plus Synthetic Oil 5L €82.29
da 2 pz: €4.11 da 4 pz: €8.23
photo_cameraImage coming soon 6215716300 Oil bottle €19.44
Performance Kit for Pump Units ABAC PAT24-PAT38 8973037657 Performance Kit for Pump Units ABAC PAT24-PAT38 €65.74
ABAC Maintenance Kit for Pump Unit A29B - A39B 8973037864 ABAC Maintenance Kit for Pump Unit A29B - A39B €22.13
305
 ABAC Air Filter for Pump Unit A29B - A39B 2236112735 ABAC Air Filter for Pump Unit A29B - A39B €15.15
305
 Air Filter Kit for Pump Units ABAC PAT24-PAT38 2236112835 Air Filter Kit for Pump Units ABAC PAT24-PAT38 €16.99
310
 Cylinder Head Kit for Pump Unit ABAC A29B 2901325044 Cylinder Head Kit for Pump Unit ABAC A29B €71.50
325
 Valve Plate Kit for Pump Unit ABAC A29B 2236112518 Valve Plate Kit for Pump Unit ABAC A29B €46.73
330
 ABAC Upgrade Kit for Pump Unit A29B - A39B 2901325046 ABAC Upgrade Kit for Pump Unit A29B - A39B €48.54
335
 ABAC Gasket Kit for Pump Unit A29 2901325045 ABAC Gasket Kit for Pump Unit A29 €38.15
340
 ABAC PAT24-PAT38 Aftercooler Kit 2901325047 ABAC PAT24-PAT38 Aftercooler Kit €35.94
341
 photo_cameraImage coming soon 2236112795 Female connection kit €63.65
345
 photo_cameraImage coming soon 2236112434 CYLINDER KIT PAT24 €70.17
350
 Flywheel Kit for Pump Unit A29B 2901325048 Flywheel Kit for Pump Unit A29B €59.59
355
 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 2236111619 ABAC Conrod Piston Kit Ass'y for Pump Unit PAT24 - A29 - NS12 €56.70
360
 photo_cameraImage coming soon 2901325049 OIL LEVEL KIT €16.26
365
 photo_cameraImage coming soon 2236112437 BOTTOM CRANKCASE COVER KIT PAT 24 €27.80
375
 photo_cameraImage coming soon 1630020700 ALTAIR PRO 1L €16.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ABAC Parts for Air Compressor A29 50 CM2 - 4116024262

Rely on our experience and our professionalism, take care of your ABAC Air Compressor A29 50 CM2 - 4116024262 by choosing only original spare parts. Buy in total safety and pay without worries all spare parts needed for maintenance are Guaranteed Original.

In the following table, look for the spare parts of the ABAC Air Compressor and the corresponding code.
Montecarlo L20 - 1129100023
AIR COMPRESSOR ABAC A29 50 CM2 - 4116024262 Pag.1
Nr. PART NUM. Description
99 4116090307 Pump
99 4116090295 Pump 14/11/12
99 4116090307 Pump 26/04/21
100 1127090003 Plug -receiver 20/10/19
102 6214347300 Wheel
102 2236112027 Wheel 12/11/12
102 6214347300 Wheel 27/09/12
103 6214345500 Pivot wheel - front pin
103 6214345500 Pivot wheel - front pin 12/11/12
103 6214345500 Pivot wheel - front pin 27/09/12
104 6214343300 Handle
105 2236110535 Non return valve 08/04/12
106 6231944100 Quick Coupling 1/4" M.
106 6210717800 Drain Tap 3/8" 01/06/12
106 2236112708 Tap 05/11/13
107 2236111480 Drain tap
108 6214344100 Pressure reducer
109 6214345000 Gauge 50MM
110 6210719900 Safety valve
112 6214349700 Fitting
113 6214349500 Fitting
114 6214348000 Wheel pin
114 2236112033 Wheel pin 12/11/12
114 2236112031 Wheel pin 16/10/12
114 6214348000 Wheel pin 27/09/12
115 2236100750 Snap ring 31/05/97
115 2236100750 Snap ring 31/05/97
116 6214344600 Plug
118 6275613400 Fitting
125 6224179900 Pulley 11/09/12
125 2901320246 Pulley 21/07/19
126 367102100 Belt
127 2236112998 Rilsan tube
127 2236112998 Rilsan tube 18/12/15
131 2236110614 Pressure switch
132 2236106733 Cable
132 6256395300 Cable 20/04/17
135 2236113724 Motor
135 2236113724 Motor 07/01/18
135 2236112951 Motor 28/02/18
136 8973036609 Star-delta starter 07/01/18
136 8973036609 Star-delta starter 28/02/18
141 2236111657 Belt guard
142 2236111656 Belt guard
145 2236112506 Delivery pipe
145 2236111144 Delivery pipe 20/11/13
AIR COMPRESSOR ABAC A29 50 CM2 - 4116024262 Pag.2
Nr. PART NUM. Description
305 2236112835 Air filter 04/02/15
305 2236112835 Air filter 04/02/15
305 2236112835 Air filter 14/11/12
305 2236112835 Air filter 04/02/15
305 2236112735 Air filter 14/11/12
305 2236112735 Air filter 26/04/21
310 2901325044 Cylinder head kit 26/04/21
310 2901325044 Cylinder head kit 14/11/12
310 2901325044 Cylinder head kit
325 2236112518 Valve plate kit 14/11/12
325 2236112518 Valve plate kit 26/04/21
325 2236112518 Valve plate kit
330 2901325046 Upgrade kit 26/04/21
330 2901325046 Upgrade kit 14/11/12
335 2901325045 Gasket kit 26/04/21
335 2901325045 Gasket kit 14/11/12
335 2901325045 Gasket kit
340 2901325047 Aftercooler kit 26/04/21
341 2236112795 Female connection kit 14/11/12
345 2236112434 Cylinder kit 14/11/12
345 2236112434 Cylinder kit 26/04/21
345 2236112434 Cylinder kit
350 2901325048 Flywheel kit
355 2236111619 Conrod-piston kit LP 14/11/12
355 2236111619 Conrod-piston kit LP 26/04/21
355 2236111619 Conrod-piston kit LP
355 2236111619 Conrod-piston kit LP 18/04/13
355 2236111619 Conrod-piston kit LP 07/02/12
360 2901325049 Oil level kit 26/04/21
360 2901325049 Oil level kit 14/11/12
360 2901325049 Oil level kit
365 2236112437 Crankcase cover kit 14/11/12
365 2236112437 Crankcase cover kit 26/04/21
365 2236112437 Crankcase cover kit
375 1630020700 Oil can 14/11/12
375 1630020700 Oil can 26/04/21
375 1630020700 Oil can
KM1 8973037864 Maintenance kit 14/11/12
KM1 8973037864 Maintenance kit 26/04/21
KM2 ORDER OIL SEPARATELY 14/11/12
KM2 1630020700 OIL ALTAIR PRO 1L 26/04/21
KM2 ORDER OIL SEPARATELY
PK1 8973037657 Performance kit 26/04/21
PK1 8973037657 Performance kit 14/11/12
PK1 8973037657 Performance kit
PK2 ORDER OIL SEPARATELY 26/04/21
PK2 6215716300 OIL ALTAIR 1L 14/11/12
PK2 6215715800 OIL ALTAIR PLUS 5L
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ABAC websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ABAC brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
A29 50 CM2 - 4116024262
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram ABAC A29 50 CM2

Diagram ABAC A29 50 CM2

Download (752.8KB)
