Volpi&Bottoli by VIBI Sprayer

Volpi & Bottoli Parts for Blower Tornado 2002

€85.23
VAT included

Volpi & Bottoli Parts for Blower Tornado 2002

Genuine parts for to repair Blower Tornado 2002. Compact and robust, the blower shoulder TORNADO 2002 is characterized by the excellent value
between weight and power.

Volpi & Bottoli Parts for Blower Tornado 2002
  • Volpi & Bottoli Parts for Blower Tornado 2002
  • Volpi & Bottoli Parts for Blower Tornado 2002
  • Volpi & Bottoli Parts for Blower Tornado 2002
  • Volpi & Bottoli Parts for Blower Tornado 2002
  • Volpi & Bottoli Parts for Blower Tornado 2002
  • Volpi & Bottoli Parts for Blower Tornado 2002
Volpi&Bottoli by VIBI Sprayer

Volpi & Bottoli Parts for Blower Tornado 2002

Condition: New
€85.23
VAT included

Volpi & Bottoli Parts for Blower Tornado 2002

Genuine parts for to repair Blower Tornado 2002. Compact and robust, the blower shoulder TORNADO 2002 is characterized by the excellent value
between weight and power.

settings 54 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts
Page 1 zoom_in View exploded

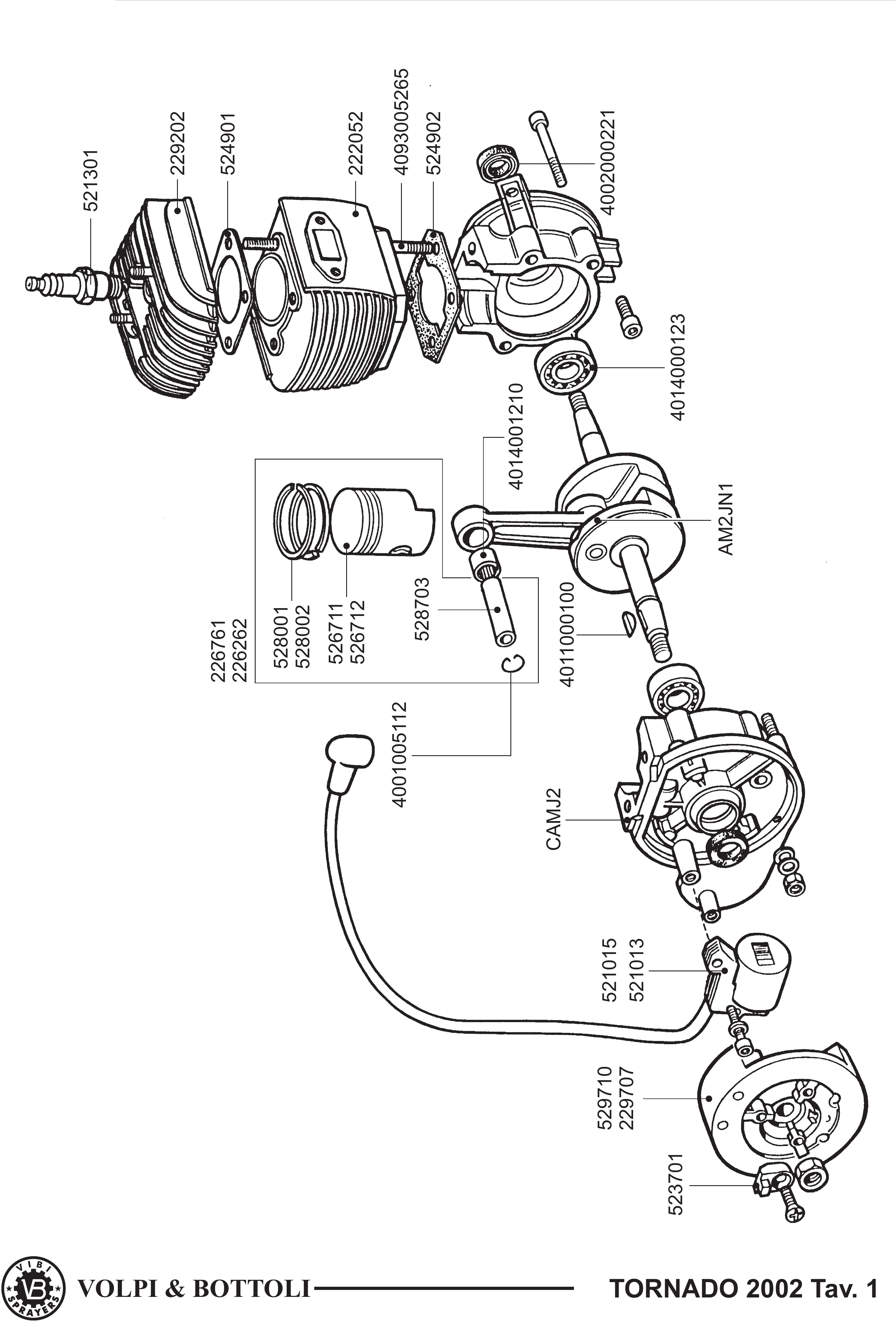

Esploso pagina 1

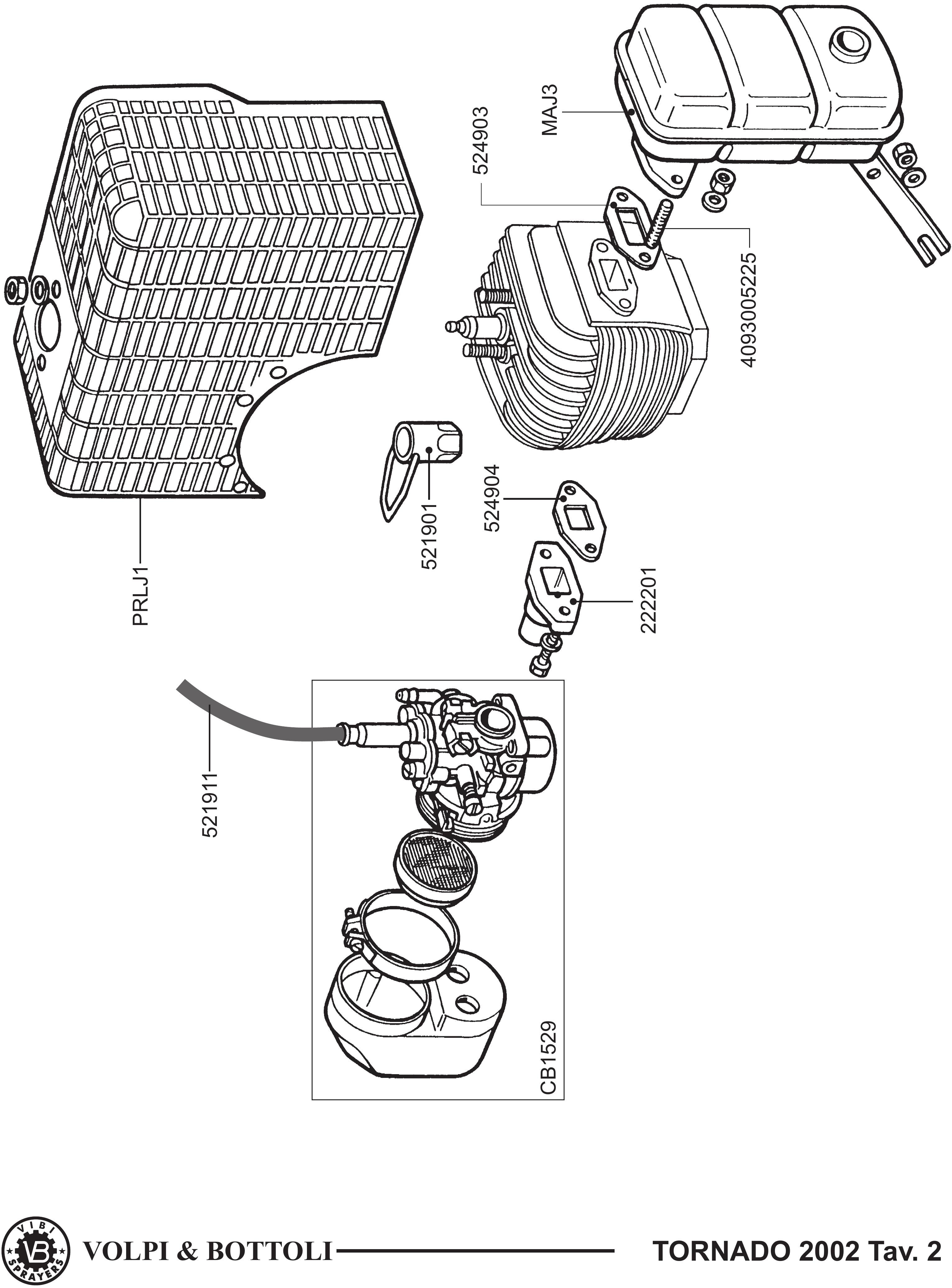

Esploso pagina 2

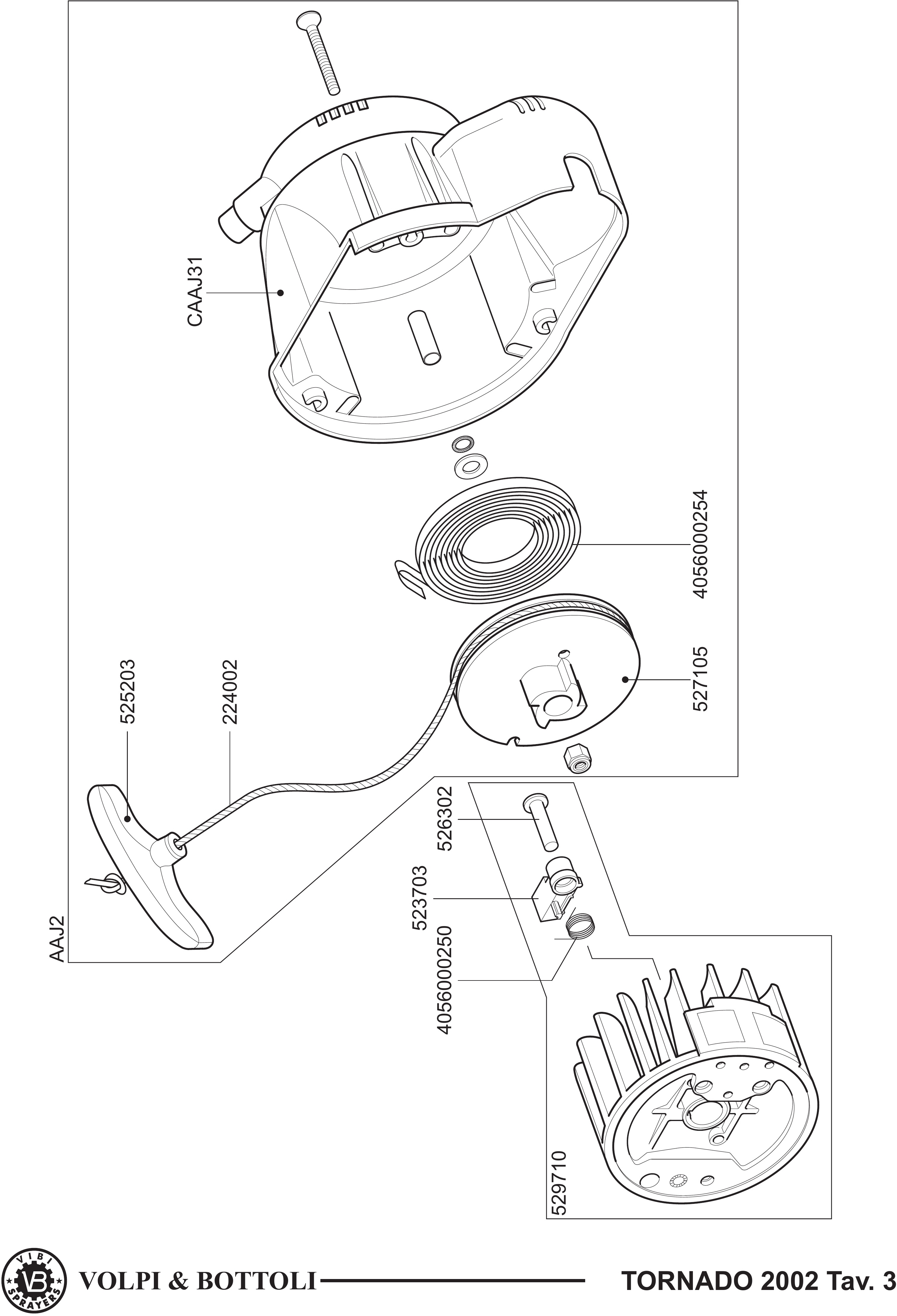

Esploso pagina 3

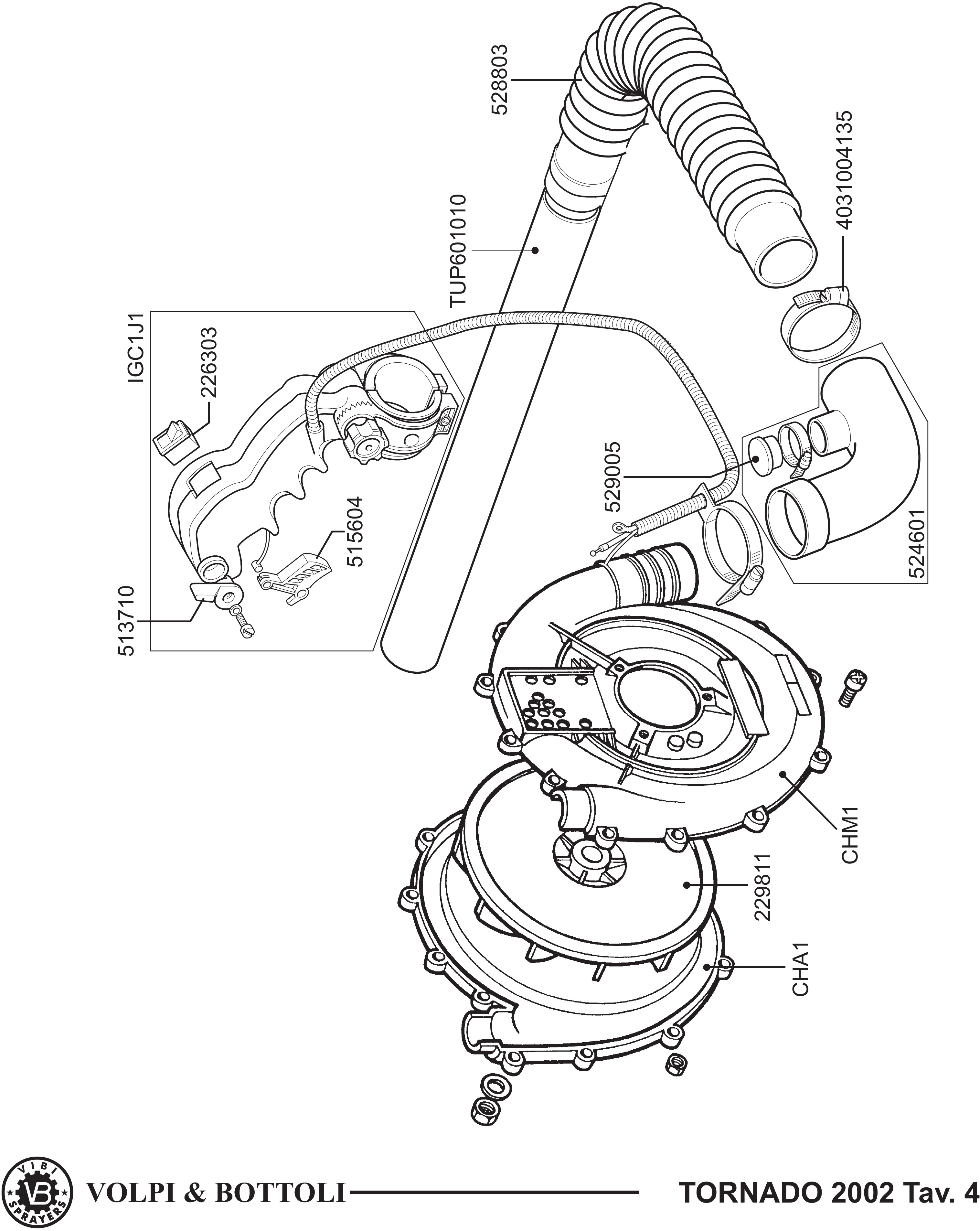

Esploso pagina 4

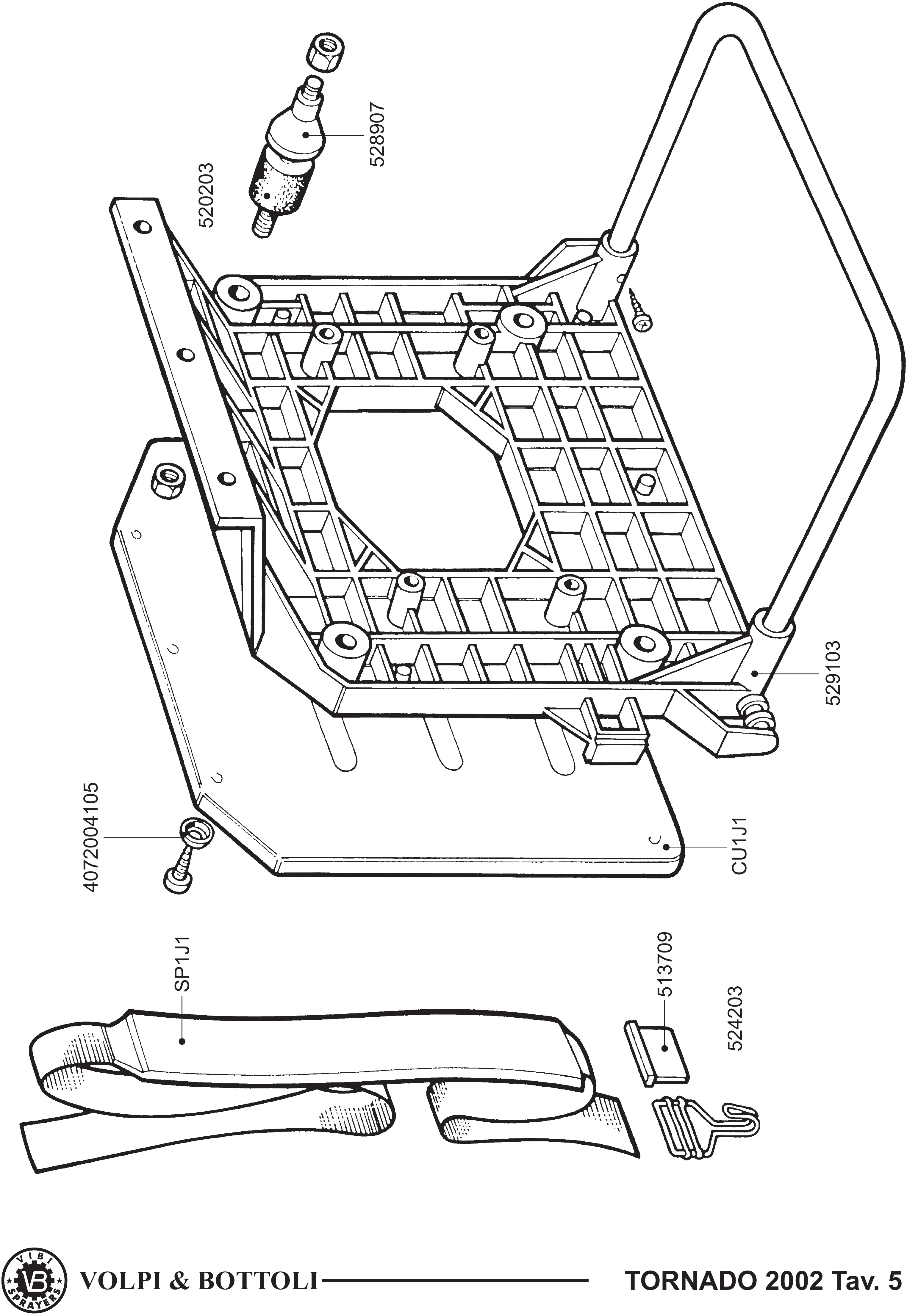

Esploso pagina 5
1 / 5
Pos. Item Price Buy
photo_cameraImage coming soon 529002 Fuel cap Super Jolly €1.66 Not available for order
AAJ2
 Recoil Starter for Sprayers Volpi & Bottoli Super Jolly 2002 AAJ2 Recoil Starter for Sprayers Volpi & Bottoli Super Jolly 2002 €38.61 Not available for order
AM2JN1
 photo_cameraImage coming soon AM2JN1 Crankshaft Super Jolly complete €128.50 Not available for order
CAAJ31
 photo_cameraImage coming soon CAAJ31 Carter recoil Super Jolly 2002 €11.01 Not available for order
CAMJ2
 photo_cameraImage coming soon CAMJ2 Crankcase Super Jolly €55.00 Not available for order
CB1529
 photo_cameraImage coming soon CB1529 Carburetor Super Jolly €64.18 Not available for order
CHA1
 photo_cameraImage coming soon CHA1 Clochea suction side €39.23 Not available for order
CHM1
 photo_cameraImage coming soon CHM1 Clochea motor side €42.79 Not available for order
CU1J1
 photo_cameraImage coming soon CU1J1 Back cushion Super Jolly €14.86 Not available for order
IGC1J1
 photo_cameraImage coming soon IGC1J1 Handle command Super Jolly €55.85 Not available for order
MAJ3
 photo_cameraImage coming soon MAJ3 Muffler Super Jolly €37.44 Not available for order
PRLJ1
 photo_cameraImage coming soon PRLJ1 Sheet protection Super Jolly €24.02 Not available for order
SP1J1
 photo_cameraImage coming soon SP1J1 Single shoulder strap atomizer €4.02 Not available for order
TUP601010
 photo_cameraImage coming soon TUP601010 Plastic pipe drive launches atomizer €11.01 Not available for order
222052
 photo_cameraImage coming soon 222052 Cylinder motor 60cc €65.36 Not available for order
222201
 Intake Manifold for Engines Volpi & Bottoli Ercolino 222201 Intake Manifold for Engines Volpi & Bottoli Ercolino €8.44 Not available for order
224002
 photo_cameraImage coming soon 224002 Nylon rope 0 4x1050 starter motors €2.21 Not available for order
226303
 Stop Switch for Sprayer Volpi & Bottoli Super Jolly 2002 226303 Stop Switch for Sprayer Volpi & Bottoli Super Jolly 2002 €15.61 Not available for order
226761
 photo_cameraImage coming soon 226761 Piston 0 46 S.Jolly ASS. (1) €47.56 Not available for order
229202
 photo_cameraImage coming soon 229202 Head engine S.Jolly €23.65 Not available for order
229707
 photo_cameraImage coming soon 229707 Flywheel electronic ignition S.Jolly 2000/2001 (2) €35.65 Not available for order
229811
 photo_cameraImage coming soon 229811 fan atomizer €38.62 Not available for order
513709
 Shoulder Strap Clip for Sprayer Volpi & Bottoli Super Jolly 2002 513709 Shoulder Strap Clip for Sprayer Volpi & Bottoli Super Jolly 2002 €0.99 Not available for order
513710
 photo_cameraImage coming soon 513710 Throttle latch Super Jolly 2002 €3.86 Not available for order
515604
 photo_cameraImage coming soon 515604 Throttle Lever Super Jolly 2002 €4.52 Not available for order
520203
 Damper for Sprayer Volpi & Bottoli Super Jolly 2002 520203 Damper for Sprayer Volpi & Bottoli Super Jolly 2002 €7.15 Not available for order
521015
 photo_cameraImage coming soon 521015 Electronic ignition coil S.Jolly 2002 (6) €36.85 Not available for order
521301
 photo_cameraImage coming soon 521301 spark Plug €6.51 Not available for order
521901
 photo_cameraImage coming soon 521901 key candle €6.52 Not available for order
521911
 photo_cameraImage coming soon 521911 Accelerator control cable €8.32 Not available for order
523701
 photo_cameraImage coming soon 523701 Hook aluminum flywheel Super Jolly €3.31 Not available for order
523703
 Flywheel Plastic Hook for Motopumps Volpi & Bottoli Master 523703 Flywheel Plastic Hook for Motopumps Volpi & Bottoli Master €2.12 Not available for order
524203
 Shoulder Strap Hook for Sprayer Volpi & Bottoli Super Jolly 2002 524203 Shoulder Strap Hook for Sprayer Volpi & Bottoli Super Jolly 2002 €2.71 Not available for order
524601
 Bend Hose for Sprayer Volpi & Bottoli Super Jolly 2002 524601 Bend Hose for Sprayer Volpi & Bottoli Super Jolly 2002 €28.51 Not available for order
524901
 Head Gasket for Motorpump Volpi & Bottoli Ercolino 524901 Head Gasket for Motorpump Volpi & Bottoli Ercolino €2.14 Not available for order
525203
 Recoil Starter Handle for Engines Volpi & Bottoli Ercolino 525203 Recoil Starter Handle for Engines Volpi & Bottoli Ercolino €4.01 Not available for order
526302
 Flywheel Pin Hook for Motopumps Volpi & Bottoli Master 526302 Flywheel Pin Hook for Motopumps Volpi & Bottoli Master €2.06 Not available for order
526711
 Piston 46.0 mm for Sprayer Volpi & Bottoli Super Jolly 2002 526711 Piston 46.0 mm for Sprayer Volpi & Bottoli Super Jolly 2002 €42.56 Not available for order
526712
 Piston 46.5 mm for Sprayer Volpi & Bottoli Super Jolly 2002 526712 Piston 46.5 mm for Sprayer Volpi & Bottoli Super Jolly 2002 €42.56 Not available for order
528001
 Piston Ring 46.0 mm for Sprayer Volpi & Bottoli Super Jolly 2002 528001 Piston Ring 46.0 mm for Sprayer Volpi & Bottoli Super Jolly 2002 €9.29 Not available for order
528002
 Piston Ring 46.5 mm for Sprayer Volpi & Bottoli Super Jolly 2002 528002 Piston Ring 46.5 mm for Sprayer Volpi & Bottoli Super Jolly 2002 €9.29 Not available for order
528703
 Piston Pin 12x38 for Sprayer Volpi & Bottoli Super Jolly 2002 528703 Piston Pin 12x38 for Sprayer Volpi & Bottoli Super Jolly 2002 €5.00 Not available for order
529103
 photo_cameraImage coming soon 529103 Full frame Super Jolly €38.03 Not available for order
529710
 photo_cameraImage coming soon 529710 Flywheel electronic ignition Selettra 0100 (11) €39.82 Not available for order
4001005112
 Piston Pin Lock Ring for Sprayer Volpi & Bottoli Super Jolly 2002 4001005112 Piston Pin Lock Ring for Sprayer Volpi & Bottoli Super Jolly 2002 €1.28 Not available for order
4002000221
 Oil Seal mm 15x30X7 for Sprayer Volpi & Bottoli Super Jolly 2002 4002000221 Oil Seal mm 15x30X7 for Sprayer Volpi & Bottoli Super Jolly 2002 €4.29 Not available for order
4011000100
 Woodroof mm 2x3,7 for Sprayer Volpi & Bottoli Super Jolly 2002 4011000100 Woodroof mm 2x3,7 for Sprayer Volpi & Bottoli Super Jolly 2002 €2.14 Not available for order
4014000123
 photo_cameraImage coming soon 4014000123 Ball Bearing 15x42x13 €9.91 Not available for order
4014001210
 Needle Bearing 12x10 for Sprayer Volpi & Bottoli Super Jolly 2002 4014001210 Needle Bearing 12x10 for Sprayer Volpi & Bottoli Super Jolly 2002 €7.15 Not available for order
4031004135
 photo_cameraImage coming soon 4031004135 Clamp screw 50-70 with eyelet €5.58 Not available for order
4056000250
 Flywheel Spring Hook for Motopumps Volpi & Bottoli Master 4056000250 Flywheel Spring Hook for Motopumps Volpi & Bottoli Master €1.42 Not available for order
4056000254
 Recoil Starter Spring for Motors Volpi & Bottoli 4056000254 Recoil Starter Spring for Motors Volpi & Bottoli €22.78 Not available for order
4093005225
 photo_cameraImage coming soon 4093005225 Stud M 6x25 €1.66 Not available for order
4093005265
 photo_cameraImage coming soon 4093005265 Stud M 6x125 €1.66 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Volpi & Bottoli Parts for Blower Tornado 2002

Genuine parts for to repair Blower Tornado 2002. Compact and robust, the blower shoulder TORNADO 2002 is characterized by the excellent value
between weight and power.

In the following table , look for the type of the Blower and theirs spare part.
Ordered items will be shipped within 7/10 working days approx.

Shoulder Blower TORNADO 2002
222052 Cylinder motor 60cc
222201 Intake Manifold Ercolino
224002 Nylon rope 0 4x1050 starter motors
226303 Button Stop Super Jolly 2000
226761 Piston 0 46 S.Jolly ASS. (1)
229202 Head motor S.Jolly
229707 Flywheel electronic ignition S.Jolly 2000/2001 (2)
229811 Fan atomizer
513709 Fermo shoulder
513710 Throttle latch Super Jolly 2002
515604 Throttle Lever Super Jolly 2002
520203 Anti-vibration chassis Super Jolly '' '1.w'
521013 Electronic ignition coil S.Jolly 2000/2001 (6)
521015 Electronic ignition coil S.Jolly 2002 (6)
521015+529710 Ignition Coil + Flywheel - Electronic Start
521301 Spark
521901 key spark plug
521911 Accelerator control cable
523701 Hook aluminum flywheel Super Jolly
523703 Plastic hook fly 0100
524203 Hook shoulder metallic
524601 Elbow complete with cap and strap
524901 Head gasket Ercolino
524903 Packing outlet Ercolino
524904 Seal suction Ercolino
525203 Starter handle Ercolino, Super Jolly
526302 Pin fastening hook fly 0100
526711 Piston 0 46 Super Jolly naked (9)
526712 Piston 0 46.5 naked Super Jolly (9)
527105 Pulley recoil Master
528001 Segment 0 46
528002 Segment 0 46.5
528703 12x38 pin 0
528803 Spiral great for launch tube
528907 Support plastic Vibrostop
529002 Fuel cap Super Jolly
529103 Full frame Super Jolly
529710 Flywheel electronic ignition Selettra 0100 (11)
529710 Flywheel electronic ignition Selettra 0100 (11)
4001005112 Ring stop pin 0 12
4002000221 Sealing ring 15x30X7
4011000100 Key American 2x3,7
4014000123 Ball Bearing 15x42x13
4014001210 Roller bearing 12x10
4031004135 Clamp screw 50-70 with eyelet
4056000250 Return spring hook fly D100
4056000254 Recoil Spring
4072004105 Special washer 05 for pillow
4093005225 Stud M 6x25
4093005265 Stud M 6x125
AAJ2 Recoil for Super Jolly 2002
AM2JN1 Crankshaft Super Jolly ASS.
CAAJ31 Carter recoil Super Jolly 2002
CAMJ2 Crankcase Super Jolly
CB1529 Carburetor Super Jolly
CHA1 Clochea suction side
CHM1 Clochea motor side
CU1J1 Back cushion Super Jolly
IGC1J1 Handle command Super Jolly
MAJ3 Muffler Super Jolly
PRLJ1 Sheet protection Super Jolly
SP1J1 Single shoulder strap atomizer
TUP601010 Plastic pipe drive lance atomizer

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ViBi Sprayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ViBi Sprayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Specific References

New

Download

Diagram Tornado 2002

Diagram Tornado 2002

Download (394.16KB)
