Volpi & Bottoli Parts for Motor Pump Power Sprayer
Volpi&Bottoli Genuine spare parts or replacement parts for to repair Knapsack Motorpump with 2-stroke internal combustion engine.
In the following table , look for the type of the Motorpump and theirs spare part.

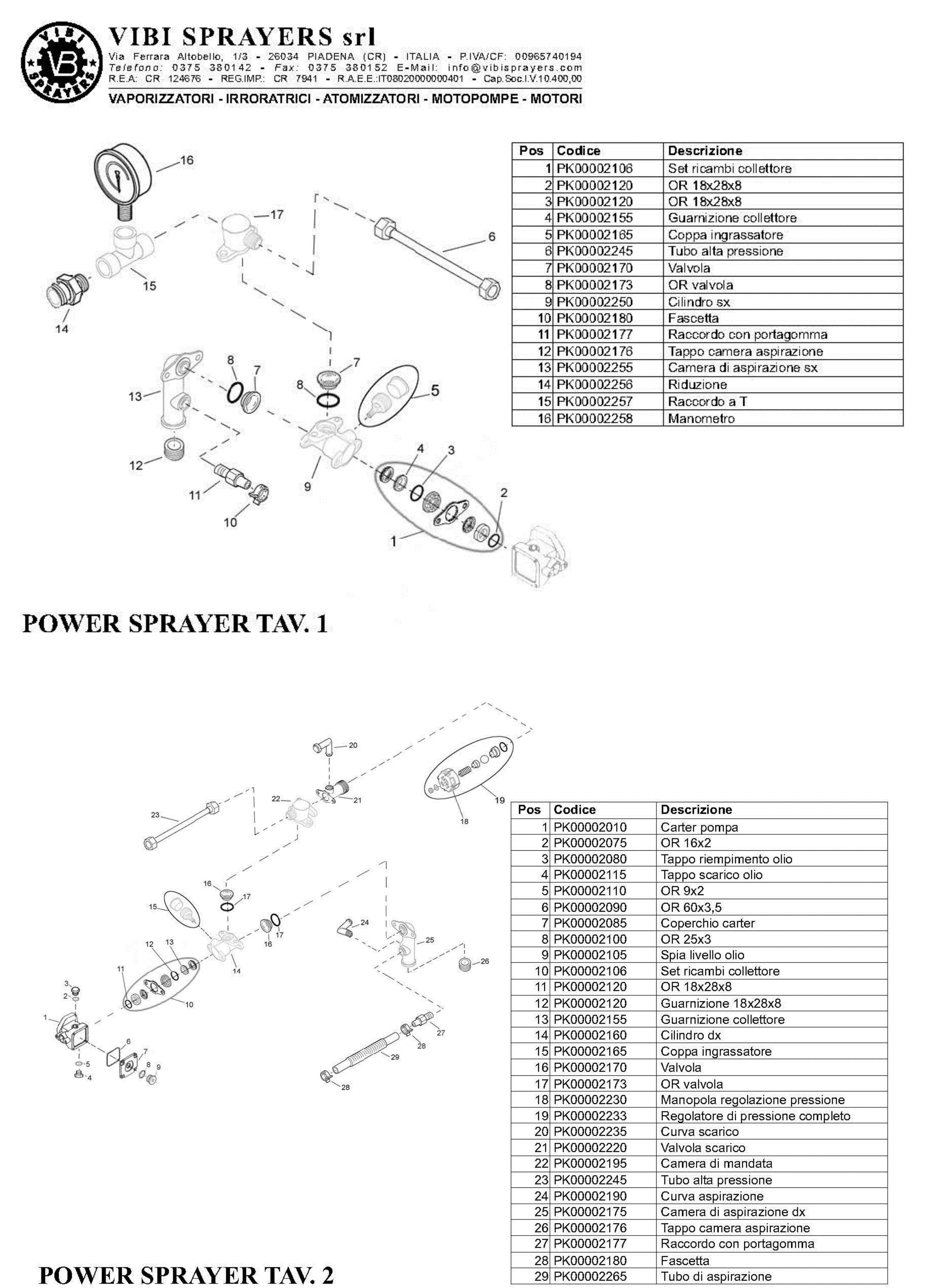

| MOTOR PUMP POWER SPRAYER |
|
|
Table # 1 |
| 1-1 |
PK00002106 |
Parts Set COLLECTOR |
| 2-1 |
PK00002120 |
SEAL 18X28X8 |
| 3-1 |
PK00002120 |
SEAL 18X28X8 |
| 4-1 |
PK00002155 |
SEAL COLLECTOR |
| 5-1 |
PK00002165 |
CUP GREASE |
| 6-1 |
PK00002245 |
HIGH PRESSURE HOSE |
| 7-1 |
PK00002170 |
VALVE |
| 8-1 |
PK00002173 |
OR VALVE |
| 9-1 |
PK00002250 |
CYLINDER SX |
| 10-1 |
PK00002180 |
CLAMP |
| 11-1 |
PK00002177 |
RECONCILIATION WITH HOSE |
| 12-1 |
PK00002176 |
CAP ROOM INTAKE |
| 13-1 |
PK00002255 |
CAMERA SUCTION SX |
| 14-1 |
PK00002256 |
REDUCTION |
| 15-1 |
PK00002257 |
T-CONNECTION |
| 16-1 |
PK00002258 |
GAUGE |
|
|
Table # 2 |
| 1-2 |
PK00002010 |
CARTER PUMP |
| 2-2 |
PK00002075 |
OR 16X2 |
| 3-2 |
PK00002080 |
FILLER PLUG OIL |
| 4-2 |
PK00002115 |
PLUG OIL DRAIN |
| 5-2 |
PK00002110 |
OR 9X2 |
| 6-2 |
PK00002090 |
OR 60X3,5 |
| 7-2 |
PK00002085 |
COVER CARTER |
| 8-2 |
PK00002100 |
OR 25x3 |
| 9-2 |
PK00002105 |
OIL LEVEL INDICATOR |
| 10-2 |
PK00002106 |
Parts Set COLLECTOR |
| 11-2 |
PK00002120 |
OR 18X28X8 |
| 12-2 |
PK00002120 |
SEAL 18X28X8 |
| 13-2 |
PK00002155 |
SEAL COLLECTOR |
| 14-2 |
PK00002160 |
CYLINDER DX |
| 15-2 |
PK00002165 |
CUP GREASE |
| 16-2 |
PK00002170 |
VALVE |
| 17-2 |
PK00002173 |
OR VALVE |
| 18-2 |
PK00002230 |
KNOB PRESSURE REGULATOR |
| 19-2 |
PK00002233 |
PRESSURE REGULATOR COMPLETE |
| 20-2 |
PK00002235 |
CURVE DRAIN |
| 21-2 |
PK00002220 |
EXHAUST VALVE |
| 22-2 |
PK00002195 |
DELIVERY ROOM |
| 23-2 |
PK00002245 |
HIGH PRESSURE HOSE |
| 24-2 |
PK00002190 |
CURVE INTAKE |
| 25-2 |
PK00002175 |
CAMERA SUCTION DX |
| 26-2 |
PK00002176 |
CAP ROOM INTAKE |
| 27-2 |
PK00002177 |
RECONCILIATION WITH HOSE |
| 28-2 |
PK00002180 |
CLAMP |
| 29-2 |
PK00002265 |
HOSE |
|
|

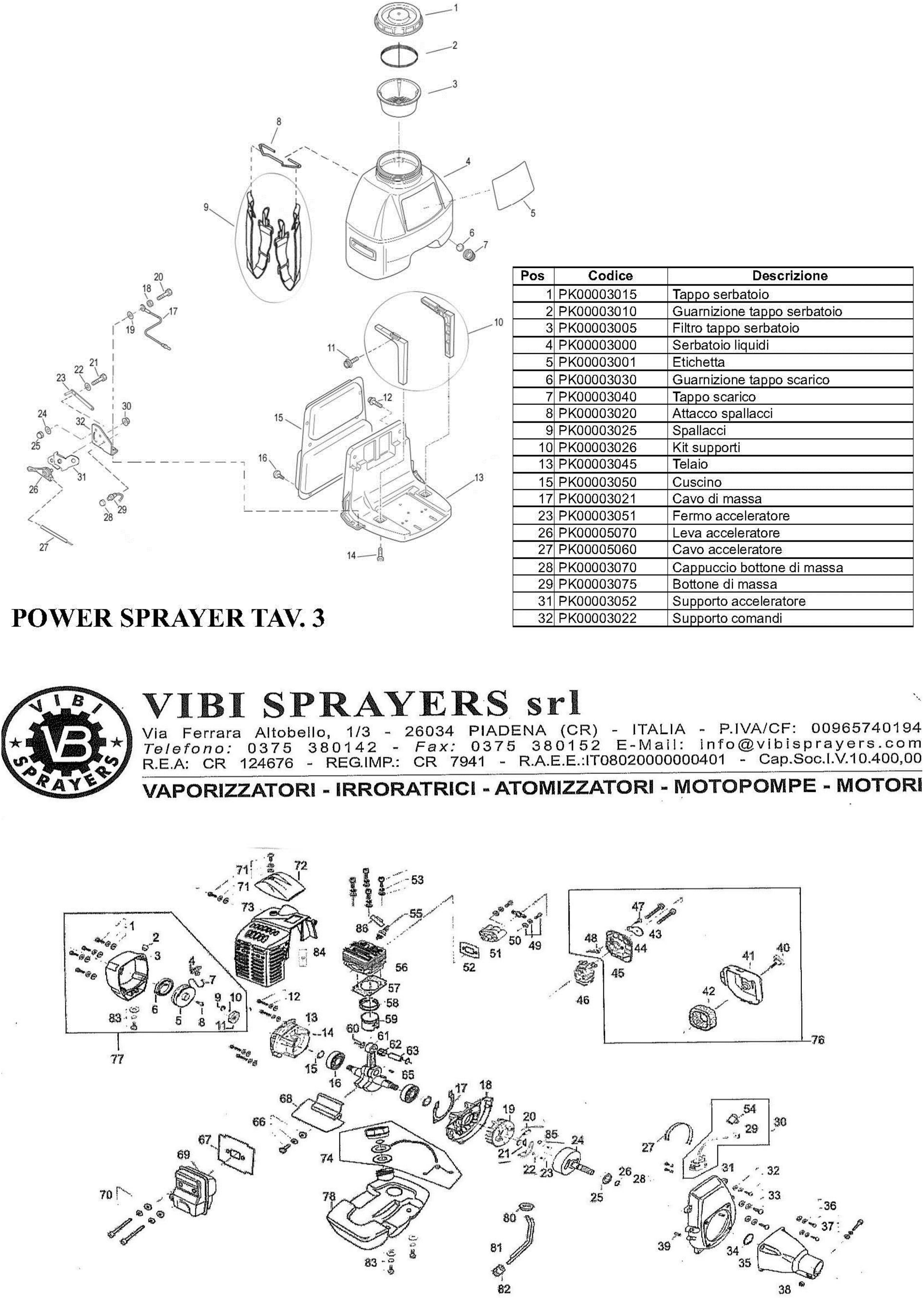

Table # 3 |
| 1-3 |
PK00003015 |
TANK CAP |
| 2-3 |
PK00003010 |
SEAL TANK CAP |
| 3-3 |
PK00003005 |
FILTER TANK CAP |
| 4-3 |
PK00003000 |
LIQUID TANK |
| 5-3 |
PK00003001 |
LABEL |
| 6-3 |
PK00003030 |
SEAL PLUG DRAIN |
| 7-3 |
PK00003040 |
DRAIN PLUG |
| 8-3 |
PK00003020 |
ATTACK SHOULDER |
| 9-3 |
PK00003025 |
SHOULDER |
| 10-3 |
PK00003026 |
MEDIA KIT |
| 13-3 |
PK00003045 |
FRAME |
| 15-3 |
PK00003050 |
CUSHION |
| 17-3 |
PK00003021 |
CABLE MASS |
| 23-3 |
PK00003051 |
FREEZE ACCELERATOR |
| 26-3 |
PK00005070 |
ACCELERATOR LEVER |
| 27-3 |
PK00005060 |
THROTTLE CABLE |
| 28-3 |
PK00003070 |
HOOD CIRCUIT BUTTON |
| 29-3 |
PK00003075 |
CIRCUIT BUTTON |
| 31-3 |
PK00003052 |
SUPPORT THROTTLE |
| 32-3 |
PK00003022 |
SUPPORT COMMAND |
|
|
MOTOR |
|
Codice |
description |
| 5 |
MT26001005 |
PULLEY RECOIL POWER SPRAYER |
| 6 |
MT26001006 |
SPRING AAV RECALL POWER SPRAYER |
| 9 |
MT26001009 |
RETURN SPRING HOOK AAV POWER SPRAYER |
| 11 |
MT26001011 |
WASHER RECOIL PS |
| 13 |
MT26001013 |
FRONT HALF POWER SPRAYER |
| 15 |
MT26001015 |
ENGINE OIL SEAL PS |
| 16 |
MT26001016 |
ENGINE BEARING PS |
| 17 |
MT26001017 |
GASKET CRANKCASE PS |
| 18 |
MT26001018 |
MOTOR COVER RIGHT SIDE POWER SPRAYER |
| 19 |
MT26001019 |
FLYWHEEL PS |
| 21 |
MT26001021 |
SPRING FOR CLUTCH POWER SPRAYER |
| 24 |
MT26001024 |
BELL FOR POWER SPRAYER |
| 25 |
MT26001025 |
BEARING PS ENGINE CLUTCH SIDE |
| 30 |
MT26001030 |
REEL MOTOR PS |
| 31 |
MT26001031 |
COVER CONVOGLIATORE PS |
| 41 |
MT26001041 |
COVER AIR FILTER ENGINE PS |
| 42 |
MT26001042 |
FILTER ELEMENT MOTOR PS |
| 44 |
MT26001044 |
AIR VALVE MOTOR PS |
| 45 |
MT26001045 |
SUPPORT AIR FILTER ENGINE PS |
| 48 |
MT26001048 |
LEVER AIR ENGINE PS |
| 50 |
MT26001050 |
SEAL B CARB PS |
| 52 |
MT26001052 |
SEAL CARB PS |
| 54 |
MT26001054 |
HOOD CANDLE PS |
| 56 |
MT26001056 |
CYLINDER ENGINE PS |
| 57 |
MT26001057 |
SEAL CYLINDER ENGINE PS |
| 58 |
MT26001058 |
PISTON RING MOTOR PS |
| 59 |
MT26001059 |
PISTON ENGINE PS |
| 61 |
MT26001061 |
CRANKSHAFT PS |
| 62 |
MT26001062 |
BEARING ROLLER MOTOR PS |
| 67 |
MT26001067 |
SEAL DRAIN MOTOR PS |
| 69 |
MT26001069 |
MUFFLER PS |
| 73 |
MT26001073 |
MOTOR PROTECTION PS |
| 74 |
MT26001074 |
CAP FUEL TANK POWER SPRAYER |
| 76 |
MT26001076 |
FILTER UNIT FOR POWER SPRAYER |
| 77 |
MT26001077 |
RECOIL STARTER COMPLETE PS |
| 78 |
MT26001078 |
FUEL TANK POWER SPRAYER |
| 80 |
MT26001080 |
CONNECTOR FUEL TANK PS |
| 81 |
MT26001081 |
TUBE MIX CTO PS |
| 82 |
MT26001082 |
FILTER MIX PS |
| 85 |
MT26001085 |
SEAL FLAT FOR POWER SPRAYER |
