Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72

€52.67
VAT included

Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72

Self-priming centrifugal motor pump for irrigation with 2-stroke petrol engine model ERCOLINO.

Engine characteristics
- Motor Type : ERCOLINO
- Displacement: 84 cc
- Power. 3.5 HP
- Fuel Mixture (1/20)
Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72
  • Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72
  • Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72
  • Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72
  • Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72
  • Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72
Volpi&Bottoli by VIBI Sprayer

Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72

Condition: New
€52.67
VAT included

Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72

Self-priming centrifugal motor pump for irrigation with 2-stroke petrol engine model ERCOLINO.

Engine characteristics
- Motor Type : ERCOLINO
- Displacement: 84 cc
- Power. 3.5 HP
- Fuel Mixture (1/20)
settings 55 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts
Page 1 zoom_in View exploded

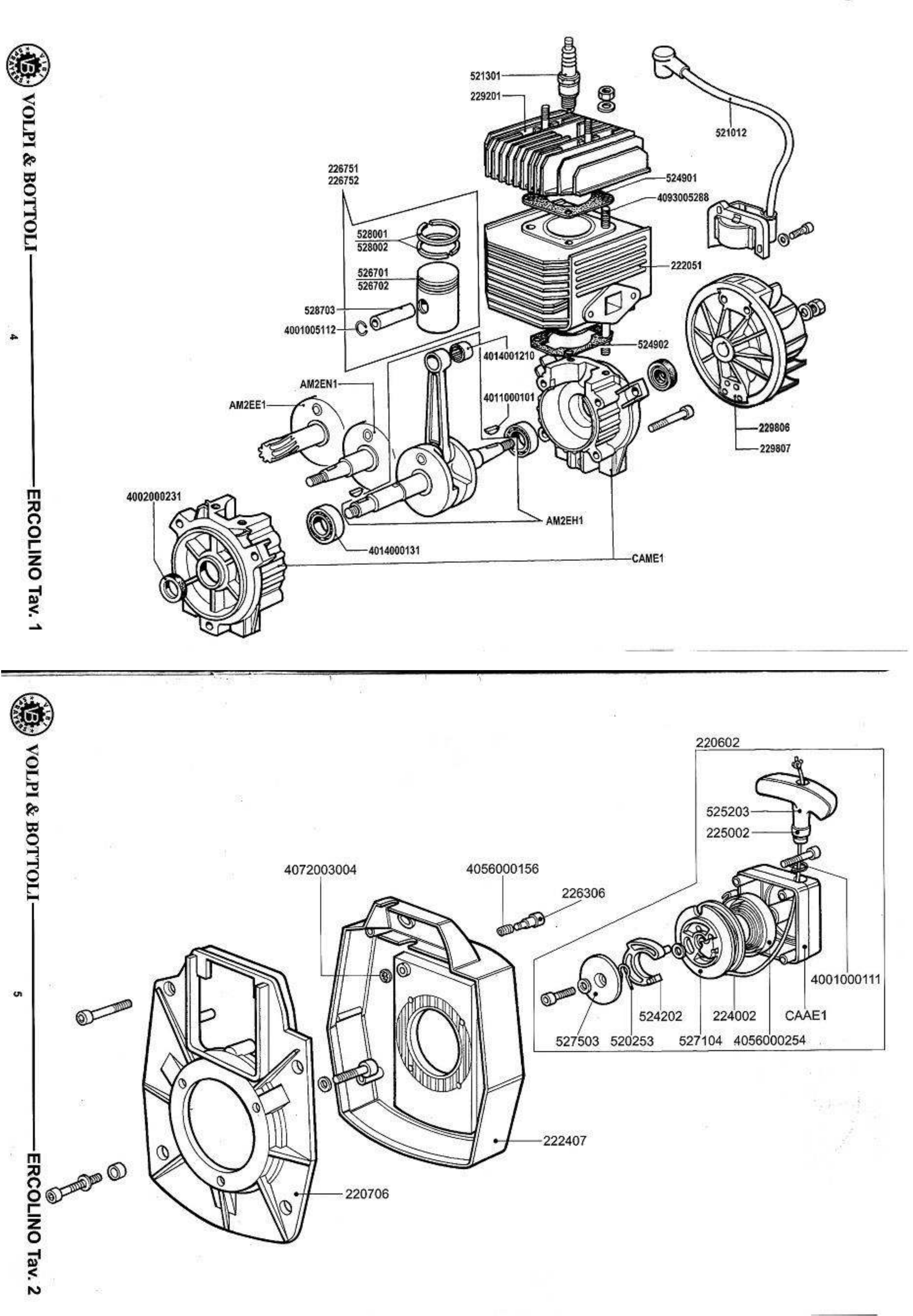

Esploso pagina 1

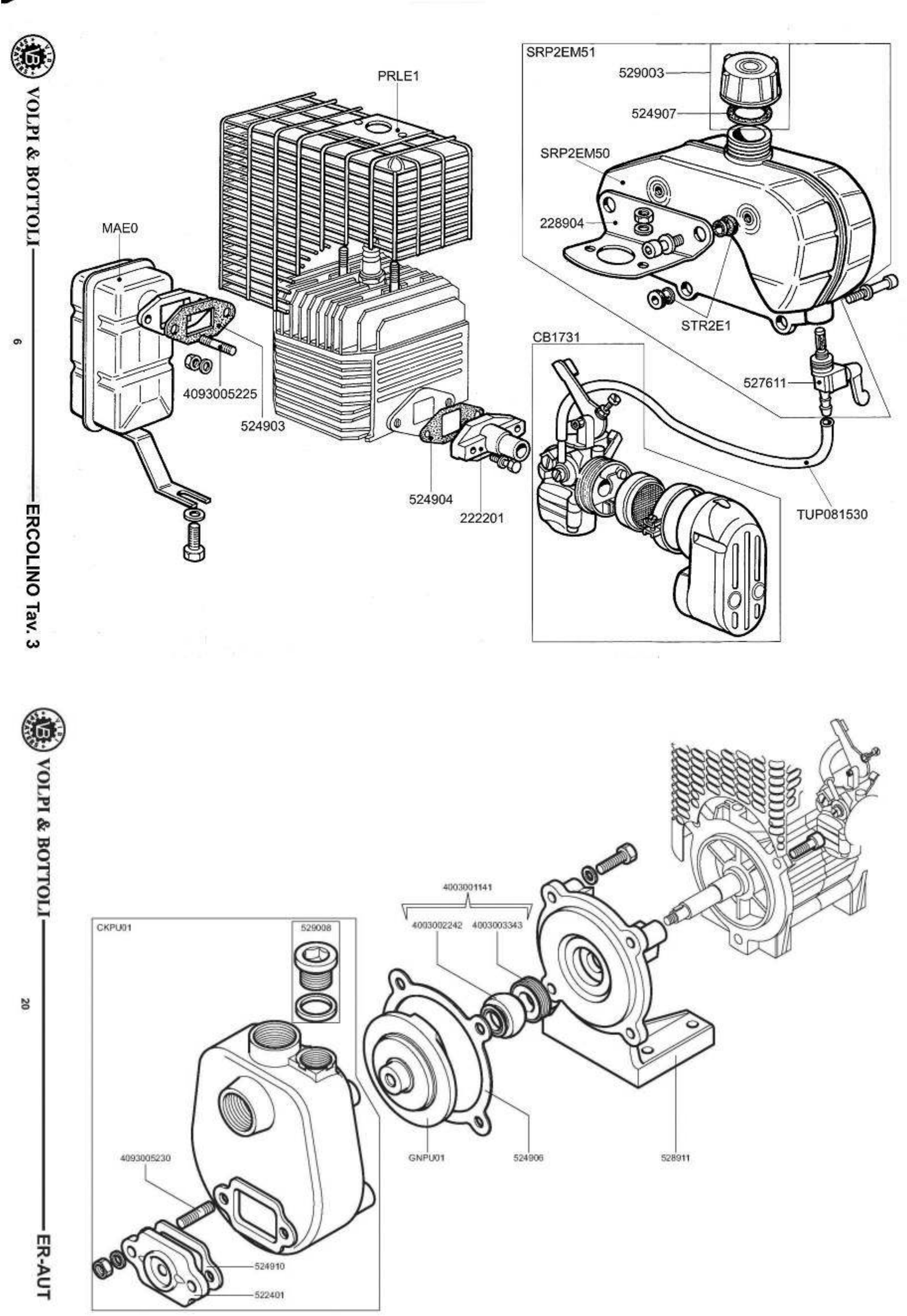

Esploso pagina 2
Esploso pagina 3
1 / 3
Pos. Item Price Buy
AM2EE1
 photo_cameraImage coming soon AM2EE1 Crankshaft Ercolino helical complete €106.31 Not available for order
AM2EH1
 Crankshaft AH35 for Motorpumps Volpi & Bottoli Ercolino AM2EH1 Crankshaft AH35 for Motorpumps Volpi & Bottoli Ercolino €171.87 Not available for order
AM2EN1
 photo_cameraImage coming soon AM2EN1 Crankshaft Ercolino conic complete €84.29 Not available for order
CAAE1
 photo_cameraImage coming soon CAAE1 Carter recoil Ercolino €12.12 Not available for order
CAME1
 photo_cameraImage coming soon CAME1 Crankcase Ercolino €37.51 Not available for order
CKPU01
 photo_cameraImage coming soon CKPU01 Pump body Aut complete €177.21 Not available for order
GNPU01
 photo_cameraImage coming soon GNPU01 Rotor pump Aut €42.02 Not available for order
photo_cameraImage coming soon MAEO Muffler Ercolino €36.21 Not available for order
photo_cameraImage coming soon PRLEI Protezione in lamiera Ercolino €22.17 Not available for order
SRP2EM50
 photo_cameraImage coming soon SRP2EM50 Tank mixture Ercolino €34.59 Not available for order
STR2E1
 Petrol Tank Damper for Motopumps Volpi & Bottoli Ercolino STR2E1 Petrol Tank Damper for Motopumps Volpi & Bottoli Ercolino €4.29 Not available for order
TUP081530
 photo_cameraImage coming soon TUP081530 Fuel Tube Master, Ercolino €3.02 Not available for order
220706
 photo_cameraImage coming soon 220706 Base conveyor Ercolino €23.24 Not available for order
222051
 photo_cameraImage coming soon 222051 Cylinder engine with 84cc - Only shirt €51.34 Not available for order
222201
 Intake Manifold for Engines Volpi & Bottoli Ercolino 222201 Intake Manifold for Engines Volpi & Bottoli Ercolino €8.44 Not available for order
222407
 photo_cameraImage coming soon 222407 Cover conveyor Ercolino €25.95 Not available for order
224002
 photo_cameraImage coming soon 224002 Nylon rope 0 4x1050 starter motors €2.21 Not available for order
225002
 photo_cameraImage coming soon 225002 Guide rope recoil Ercolino €2.52 Not available for order
226306
 Stop Button for Engines Volpi & Bottoli Ercolino 226306 Stop Button for Engines Volpi & Bottoli Ercolino €4.14 Not available for order
226752
 Piston Set mm 46,5 for Engines Volpi & Bottoli Ercolino 226752 Piston Set mm 46,5 for Engines Volpi & Bottoli Ercolino €65.21 Not available for order
228904
 Petrol Tank Plate Support for Motopumps Volpi & Bottoli Ercolino 228904 Petrol Tank Plate Support for Motopumps Volpi & Bottoli Ercolino €12.07 Not available for order
229201
 photo_cameraImage coming soon 229201 Head engine Ercolino ..,., _, €21.62 Not available for order
229806
 photo_cameraImage coming soon 229806 Flywheel special electronic ignition Ercolino (3) €54.04 Not available for order
229807
 photo_cameraImage coming soon 229807 Flywheel electronic ignition Ercolino (4) €45.01 Not available for order
520253
 photo_cameraImage coming soon 520253 Ring washer recoil €5.09 Not available for order
521012
 photo_cameraImage coming soon 521012 Electronic ignition coil Ercolino €46.47 Not available for order
521301
 photo_cameraImage coming soon 521301 spark Plug €6.51 Not available for order
522401
 photo_cameraImage coming soon 522401 Cover cleaning pump Aut €16.72 Not available for order
524901
 Head Gasket for Motorpump Volpi & Bottoli Ercolino 524901 Head Gasket for Motorpump Volpi & Bottoli Ercolino €2.14 Not available for order
524902
 Cylinder Base Gasket for Motorpump Volpi & Bottoli Ercolino 524902 Cylinder Base Gasket for Motorpump Volpi & Bottoli Ercolino €2.14 Not available for order
524906
 Pump Housing Gasket Volpi & Bottoli Ercolino 524906 Pump Housing Gasket Volpi & Bottoli Ercolino €5.85 Not available for order
524907
 Gasoline Tank Cap Gasket for Engines & Volpi Bottoli Ercolino-Master 524907 Gasoline Tank Cap Gasket for Engines & Volpi Bottoli Ercolino-Master €1.71 Not available for order
525203
 Recoil Starter Handle for Engines Volpi & Bottoli Ercolino 525203 Recoil Starter Handle for Engines Volpi & Bottoli Ercolino €4.01 Not available for order
526701
 photo_cameraImage coming soon 526701 Piston 0 46 nude Ercolino (9) €29.73 Not available for order
526702
 photo_cameraImage coming soon 526702 Piston 0 46.5 Ercolino nude (9) €29.73 Not available for order
527104
 photo_cameraImage coming soon 527104 Pulley recoil Ercolino €7.92 Not available for order
527503
 photo_cameraImage coming soon 527503 washer locking recoil Ercolino €1.53 Not available for order
527611
 Gasoline Valve for Tanks Volpi & Bottoli Ercolino 527611 Gasoline Valve for Tanks Volpi & Bottoli Ercolino €25.13 Not available for order
528001
 Piston Ring 46.0 mm for Sprayer Volpi & Bottoli Super Jolly 2002 528001 Piston Ring 46.0 mm for Sprayer Volpi & Bottoli Super Jolly 2002 €9.29 Not available for order
528002
 Piston Ring 46.5 mm for Sprayer Volpi & Bottoli Super Jolly 2002 528002 Piston Ring 46.5 mm for Sprayer Volpi & Bottoli Super Jolly 2002 €9.29 Not available for order
528703
 Piston Pin 12x38 for Sprayer Volpi & Bottoli Super Jolly 2002 528703 Piston Pin 12x38 for Sprayer Volpi & Bottoli Super Jolly 2002 €5.00 Not available for order
528911
 photo_cameraImage coming soon 528911 Support flange irrigation pumps €85.37 Not available for order
529003
 Gasoline Tank Cap for Engines & Volpi Bottoli Ercolino-Master 529003 Gasoline Tank Cap for Engines & Volpi Bottoli Ercolino-Master €5.58 Not available for order
4001005112
 Piston Pin Lock Ring for Sprayer Volpi & Bottoli Super Jolly 2002 4001005112 Piston Pin Lock Ring for Sprayer Volpi & Bottoli Super Jolly 2002 €1.28 Not available for order
4002000231
 photo_cameraImage coming soon 4002000231 Sealing ring 20x30X7 €3.03 Not available for order
4003002242
 photo_cameraImage coming soon 4003002242 Sealing ring moving part 19x39x13 €11.36 Not available for order
4003003343
 photo_cameraImage coming soon 4003003343 Sealing ring fixed part 21x42x8 €7.58 Not available for order
4011000101
 Crankshaft Woodruf Metric Key for Engines Volpi & Bottoli Ercolino 4011000101 Crankshaft Woodruf Metric Key for Engines Volpi & Bottoli Ercolino €2.14 Not available for order
4014000131
 photo_cameraImage coming soon 4014000131 Ball Bearing 20x42x12 €10.02 Not available for order
4014001210
 Needle Bearing 12x10 for Sprayer Volpi & Bottoli Super Jolly 2002 4014001210 Needle Bearing 12x10 for Sprayer Volpi & Bottoli Super Jolly 2002 €7.15 Not available for order
4056000156
 Stop Button Spring for Engines Volpi & Bottoli Ercolino 4056000156 Stop Button Spring for Engines Volpi & Bottoli Ercolino €0.99 Not available for order
4056000254
 Recoil Starter Spring for Motors Volpi & Bottoli 4056000254 Recoil Starter Spring for Motors Volpi & Bottoli €22.78 Not available for order
4072003004
 Stop Button Washer for Engines Volpi & Bottoli Ercolino 4072003004 Stop Button Washer for Engines Volpi & Bottoli Ercolino €4.14 Not available for order
4093005225
 photo_cameraImage coming soon 4093005225 Stud M 6x25 €1.66 Not available for order
4093005288
 photo_cameraImage coming soon 4093005288 Stud M 6x137 €1.53 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Volpi & Bottoli Parts for Self Priming Motor Pump ER - AUT 72

Self-priming centrifugal motor pump for irrigation with 2-stroke petrol engine model ERCOLINO.

Engine characteristics
- Motor Type : ERCOLINO
- Displacement: 84 cc
- Power. 3.5 HP
- Fuel Mixture (1/20)
- Characteristics of the pump
- Aspiration: 1 1/2"
- Flow: 1 1/2"
- Depth aspiration. 7 m
- Prevalence: 40 m
- Capacity 80 to 320 L/min
- Weight: 20 kg

In the following table , look for the type of the Motorpump and theirs spare part.
Ordered items will be shipped within 7/10 working days.

Motorpump ER - AUT 72
220602 Recoil for Ercolino
220706 Base conveyor Ercolino
222051 Cylinder engine with 84cc - Only shirt
222201 Intake Manifold Ercolino
222407 Cover conveyor Ercolino
224002 Nylon rope 0 4x1050 starter motors
225002 Guide rope recoil Ercolino
226306 Stop button Ercolino
226751 Piston 0 46 Ercolino complete (1)
226752 Piston 0 46.5 Ercolino complete (1)
228904 Support iron tank Ercolino
229201 Head engine Ercolino ..,., _,
229806 Flywheel special electronic ignition Ercolino (3)
229807 Flywheel electronic ignition Ercolino (4)
520253 Ring washer recoil
521012 Electronic ignition coil Ercolino
521301 spark Plug
524202 Hook dragging recoil
524901 Head gasket Ercolino
524902 Gasket basement Ercolino
524903 Exhaust Gasket Ercolino
524904 Gasket suction Ercolino
524907 Gasket fuel cap
525203 Starter handle Ercolino, Super Jolly
526701 Piston 0 46 nude Ercolino (9)
526702 Piston 0 46.5 Ercolino nude (9)
527104 Pulley recoil Ercolino
527503 washer locking recoil Ercolino
527611 tap mixture
528001 Segment 0 46
528002 Segment 0 46.5
528703 12x38 pin 0
529003 Fuel cap Ercolino, Master
4001000111 Circlip inner hole 11
4001005112 Ring stop pin 0 12
4002000231 Sealing ring 20x30X7
4011000101 Key American 2,5x3,7
4014000131 Ball Bearing 20x42x12
4014001210 Roller bearing 12x10
4056000156 Spring stop button Ercolino
4056000254 Recoil Spring
4072003004 Lock washer 04 stop button
4093005225 Stud M 6x25
4093005288 Stud M 6x137
AM2EE1 Crankshaft Ercolino helical complete
AM2EH1 Crankshaft Ercolino AH35 complete
AM2EN1 Crankshaft Ercolino conic complete
CAAE1 Carter recoil Ercolino
CAME1 Crankcase Ercolino
SRP2EM50 Tank mixture Ercolino
SRP2EM51 Fuel tank full Ercolino
STR2E1 September vibration tank Ercolino
TUP081530 Fuel Tube Master, Ercolino
MAEO muffler Ercolino
PRLEI Sheet protection Ercolino
CKPU01 Pump body Aut complete
529008 Cap M30 pump Aut
524910 Cover gasket cleaning pump Aut
522401 Cover cleaning pump Aut
4093005230 Stud M 6x30
GNPU01 Rotor pump Aut
524906 Gasket body pump irrigation
528911 Support flange irrigation pumps
4003001141 Mechanical seal complete Ercolino
4003002242 Sealing ring moving part 19x39x13
4003003343 Sealing ring fixed part 21x42x8
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s ViBi Sprayer websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to ViBi Sprayer brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Specific References

New

Download

Diagram ER-AUT 72

Diagram ER-AUT 72

Download (316.73KB)

You might also like

Gasoline Valve for Tanks Volpi & Bottoli Ercolino Sale
Volpi&Bottoli by VIBI Sprayer SKU: 527611
Gasoline Valve for Tanks Volpi & Bottoli Ercolino
Gasoline Valve for Tanks Volpi & Bottoli Ercolino Genuine spare Volpi & Bottoli, Gasoline Valve for tanks Ercolino. Part for the following products: - Gasoline Engine Volpi&Bottoli - Code: 527611
Last items in stock €25.13
Details
Pump Housing Gasket Volpi & Bottoli Sale
Volpi&Bottoli by VIBI Sprayer SKU: 524906
Pump Housing Gasket Volpi & Bottoli Ercolino
Pump Housing Gasket Volpi & Bottoli Ercolino Genuine spare Volpi & Bottoli, Pump Housing Gasket. Parts for the following products: - Motorpump Volpi & Bottoli ER - AUT 72 - Motorpump Volpi & Bottoli ER - Standard Super...
Last items in stock €5.85
Details
Recoil Starter Spring for Motors Volpi & Bottoli Sale
Volpi&Bottoli by VIBI Sprayer SKU: 4056000254
Recoil Starter Spring for Motors Volpi & Bottoli
Recoil Starter Spring for Motors Volpi & Bottoli Genuine part Volpi & Bottoli, Recoil Starter Spring for Sprayers Super Jolly 2002 - Blowers TORNADO 2002 - Motor Pump Master A1 - ER AUT 72 - Standard Super ER - ER GEMINI....
Last items in stock €22.78
Details
Gasoline Tank Cap for Engines & Volpi Bottoli Ercolino-Master
Volpi&Bottoli by VIBI Sprayer SKU: 529003
Gasoline Tank Cap for Engines & Volpi Bottoli Ercolino-Master
Gasoline Tank Cap for Engines & Volpi Bottoli Ercolino-Master Genuine part Volpi & Bottoli, Gasoline Tank Cap for Engines & Volpi Bottoli Ercolino - Master. Part for the following products: - Motorpump ER - AUT 72 - Motorpump ER -...
AVAILABLE €5.58
Details
Crankshaft AH35 for Motorpumps Volpi & Bottoli Ercolino
Volpi&Bottoli by VIBI Sprayer SKU: AM2EH1
Crankshaft AH35 for Motorpumps Volpi & Bottoli Ercolino
Crankshaft AH35 for Motorpumps Volpi & Bottoli Ercolino Genuine part Volpi & Bottoli, Crankshaft AH35 Assembly for Motor Pumps Volpi & Bottoli Ercolino. Parts for the following products: - Motorpump Volpi & Bottoli ER...
Out-of-Stock €171.87
Details
Piston Pin 12x38 for Sprayer Volpi & Bottoli Super Jolly 2002
Volpi&Bottoli by VIBI Sprayer SKU: 528703
Piston Pin 12x38 for Sprayer Volpi & Bottoli Super Jolly 2002
Piston Pin 12x38 for Sprayer Volpi & Bottoli Super Jolly 2002 Genuine parts Volpi & Bottoli, Piston Pin 12x38 mm, for Sprayer Super Jolly 2002 - Blower Volpi & Bottoli Tornado 2002 Parts for the following products: -...
Last items in stock €5.00
Details
Head Gasket for Motorpump Volpi & Bottoli Ercolino
Volpi&Bottoli by VIBI Sprayer SKU: 524901
Head Gasket for Motorpump Volpi & Bottoli Ercolino
Head Gasket for Motorpump Volpi & Bottoli Ercolino Genuine parts Volpi & Bottoli, Head Gasket for Motorpump Volpi & Bottoli Ercolino. Parts for the following products: - Sprayer Volpi & Bottoli Super Jolly 2002 - Blower Volpi &...
AVAILABLE €2.14
Details
Cylinder Base Gasket for Motorpump Volpi & Bottoli Ercolino
Volpi&Bottoli by VIBI Sprayer SKU: 524902
Cylinder Base Gasket for Motorpump Volpi & Bottoli Ercolino
Cylinder Base Gasket for Motorpump Volpi & Bottoli Ercolino Genuine parts Volpi & Bottoli, Cylinder Base Gasket for Motorpump Volpi & Bottoli Ercolino. Parts for the following products: - Sprayer Volpi & Bottoli Super...
Out-of-Stock €2.14
Details
Piston Set mm 46,5 for Engines Volpi & Bottoli Ercolino
Volpi&Bottoli by VIBI Sprayer SKU: 226752
Piston Set mm 46,5 for Engines Volpi & Bottoli Ercolino
Piston Set mm 46,5 for Engines Volpi & Bottoli Ercolino Genuine replacement part Volpi & Bottoli, Piston Set mm 46,5 for Engines Volpi & Bottoli Ercolino. Part for the following products: - Motorpump Volpi & Bottoli ER...
AVAILABLE €65.21
Details
Petrol Tank Damper for Motopumps Volpi & Bottoli Ercolino
Volpi&Bottoli by VIBI Sprayer SKU: STR2E1
Petrol Tank Damper for Motopumps Volpi & Bottoli Ercolino
Petrol Tank Damper for Motopumps Volpi & Bottoli Ercolino Genuine spare Volpi & Bottoli, Petrol Tank Damper for Motor Pump with Engine Ercolino Part for the following products: - Motor Pump Volpi&Bottoli Ercolino - Code:...
AVAILABLE €4.29
Details
Intake Manifold for Engines Volpi & Bottoli Ercolino Sale
Volpi&Bottoli by VIBI Sprayer SKU: 222201
Intake Manifold for Engines Volpi & Bottoli Ercolino
Intake Manifold for Engines Volpi & Bottoli Ercolino Genuine spare part Volpi & Bottoli, Intake Manifold for Sprayer Super Jolly 2002 - Blower Tornado 2002 - Motorpump ER - AUT 72 - ER - Standard Super - ER - GEMINI. Part for...
AVAILABLE €8.44
Details
Stop Button for Engines Volpi & Bottoli Ercolino
Volpi&Bottoli by VIBI Sprayer SKU: 226306
Stop Button for Engines Volpi & Bottoli Ercolino
Stop Button for Engines Volpi & Bottoli Ercolino Genuine part Volpi & Bottoli, Stop Button for Engines Ercolino, Motor Pump ER - AUT 72 - ER - Standard Super - ER - GEMINI. Part for the following items: - Motor Pump Volpi...
AVAILABLE €4.14
Details
Stop Button Spring for Engines Volpi & Bottoli Ercolino
Volpi&Bottoli by VIBI Sprayer SKU: 4056000156
Stop Button Spring for Engines Volpi & Bottoli Ercolino
Stop Button Spring for Engines Volpi & Bottoli Ercolino Genuine part Volpi & Bottoli, Stop Button Spring for Engines Ercolino, Motor Pump ER - AUT 72 - ER - Standard Super - ER - GEMINI. Part for the following items: - Motor...
AVAILABLE €0.99
Details
Stop Button Washer for Engines Volpi & Bottoli Ercolino
Volpi&Bottoli by VIBI Sprayer SKU: 4072003004
Stop Button Washer for Engines Volpi & Bottoli Ercolino
Stop Button Washer for Engines Volpi & Bottoli Ercolino Genuine part Volpi & Bottoli, Stop Button Washer for Engines Ercolino, Motor Pump ER - AUT 72 - ER - Standard Super - ER - GEMINI. Part for the following items: - Motor...
AVAILABLE €4.14
Details
Comments (0)
